R32 WiFi DC Inverter Metal Casing Swimming Pool Air Source Heat Pump Water Heater Air To Water SPA Pool Heater 7 10 13 17KW
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1601270041895):
Product Overview
Description
Heat Pump Swimming Pool Heaters
A heat pump is a device that uses a small amount of energy to move heat from one location to another. Heat pumps used for heating pools transfer heat from the outdoors into the water. Unlike gas heaters that require natural gas or propane, they use heat that is already available and just move it from one place to another, thereby using a cleaner heat via electricity, producing no carbon monoxide.
A heat pump is a device that uses a small amount of energy to move heat from one location to another. Heat pumps used for heating pools transfer heat from the outdoors into the water. Unlike gas heaters that require natural gas or propane, they use heat that is already available and just move it from one place to another, thereby using a cleaner heat via electricity, producing no carbon monoxide.
Why Use a Heat Pump for Water Heating?
Heat pumps are perfect for use in warmer climates! Heat pumps are most efficient when they’re heating outdoor air that’s above 10 degrees centigrade. Anything below 10 and a heat pump does start to lose efficiency. In fact, heat pumps work more efficiently the warmer the air temperature gets.
Think of a gas heater as a muscle car and a heat pump as a bike. A gas heater will definitely heat your pool faster, but you’ll pay a price for it when the energy bill comes. On the other hand, a heat pump will provide an even and consistent heat once it reaches your ideal temperature, operating with much less effort.
A premium heat pump model won’t just heat your pool, but also keep the water cooler when the weather is too hot outside.
Heat pumps are perfect for use in warmer climates! Heat pumps are most efficient when they’re heating outdoor air that’s above 10 degrees centigrade. Anything below 10 and a heat pump does start to lose efficiency. In fact, heat pumps work more efficiently the warmer the air temperature gets.
Think of a gas heater as a muscle car and a heat pump as a bike. A gas heater will definitely heat your pool faster, but you’ll pay a price for it when the energy bill comes. On the other hand, a heat pump will provide an even and consistent heat once it reaches your ideal temperature, operating with much less effort.
A premium heat pump model won’t just heat your pool, but also keep the water cooler when the weather is too hot outside.
Specification

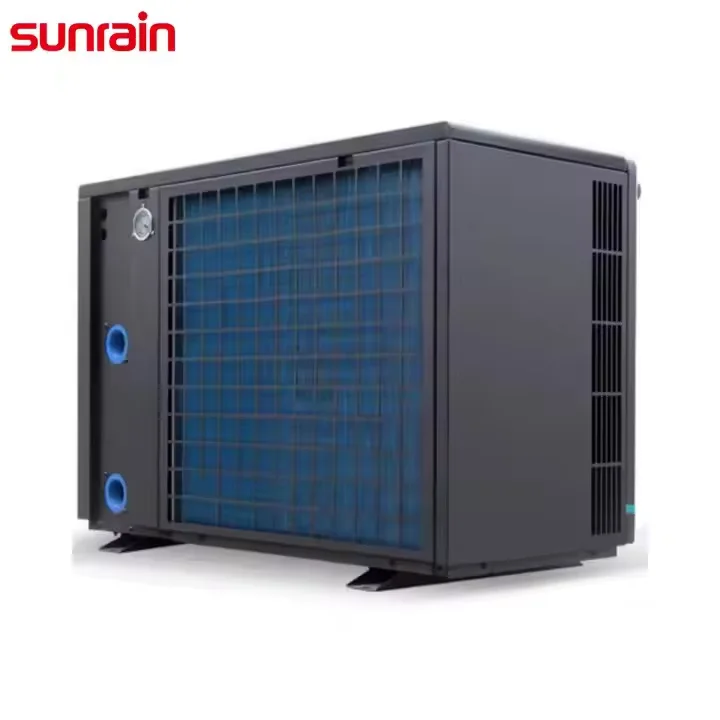

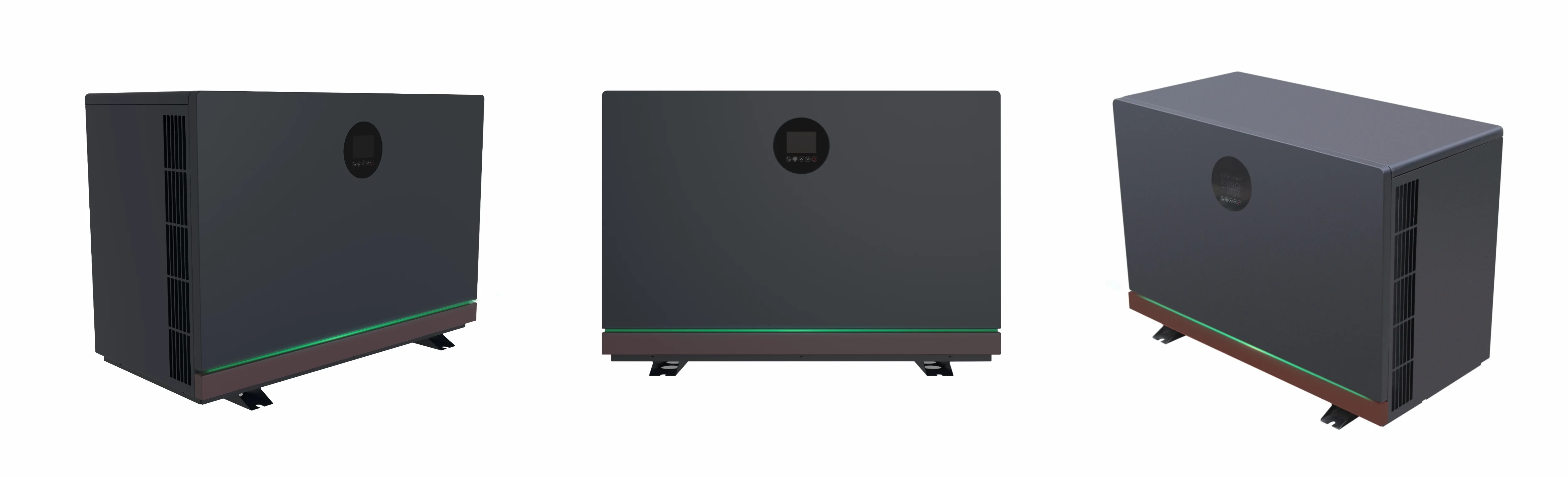

The SUNRAIN R32 DC Inverter Air To Water Heat Pump Swimming Pool Heaters
Heating Capacity: 7KW/10KW/13KW/17KW
Heating Capacity: 7KW/10KW/13KW/17KW

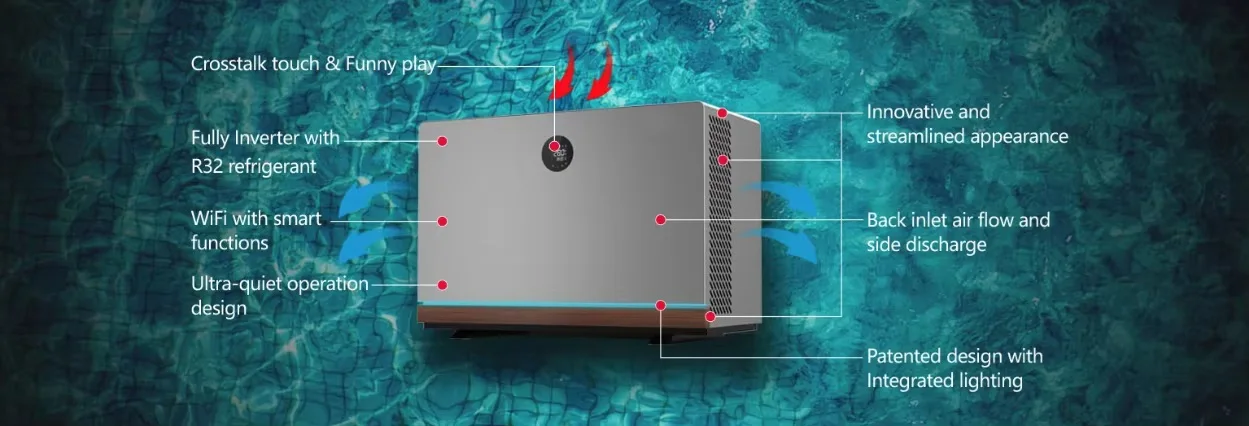

Fully Inverter Driven Heat Pump R32 Outdoor Pool Water heater
✔ R32 refrigerant, environmentally friendly.
✔ With MITUBISHI compressor.
✔ Titanium heat-exchanger, corrosion resistance.
✔ High pressure protection function.
✔ Defrost automatically, intelligent and fast.
✔ Titanium heat-exchanger, corrosion resistance.
✔ High pressure protection function.
✔ Defrost automatically, intelligent and fast.
✔ With MODBUS communication.
✔ With water flow switch.
✔ The heat pump can heat and cool the swimming pool.
✔ With DC INVERTER.
✔ With water flow switch.
✔ The heat pump can heat and cool the swimming pool.
✔ With DC INVERTER.

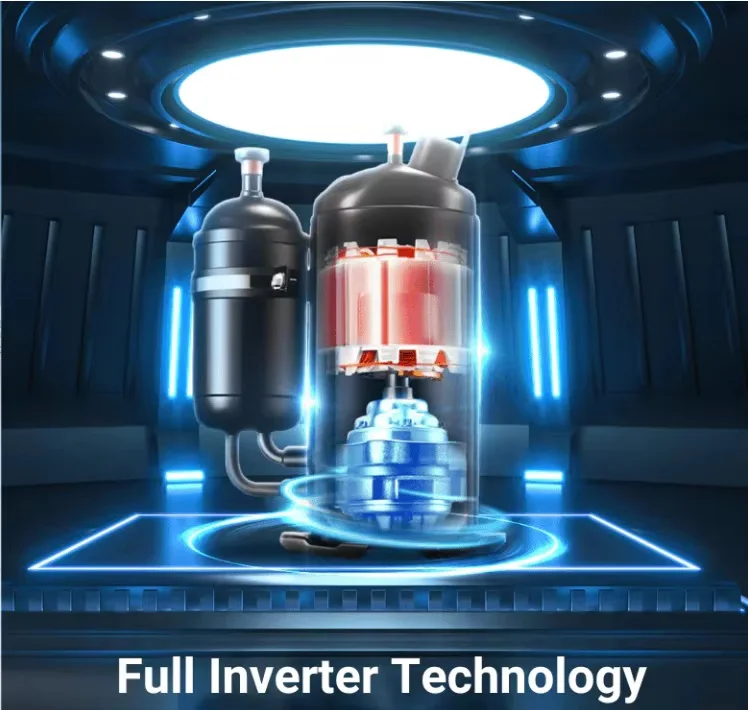

The home heating and cooling industries frequently use full inverter technology,which precisely controls the compressor and fan,turning a heat pump into a smart pump.
Unlike a traditional heat pump,the Full Inverter compressor starts up gradually. If the pool's actual temperature is higher than the set temperature, an automated regulator helps the heat pump raise the temperature more quickly.In order to maintain the desired temperature during the swimming season, the heat pump uses less energy.
Everything On One App
The Eco Inverter and Power Inverter operating modes are available on the new control panel with wired extension at 20 meters. The built-in WiFi module allows for remote control of the swimming pool heat pump via a smart phone.
The Eco Inverter and Power Inverter operating modes are available on the new control panel with wired extension at 20 meters. The built-in WiFi module allows for remote control of the swimming pool heat pump via a smart phone.

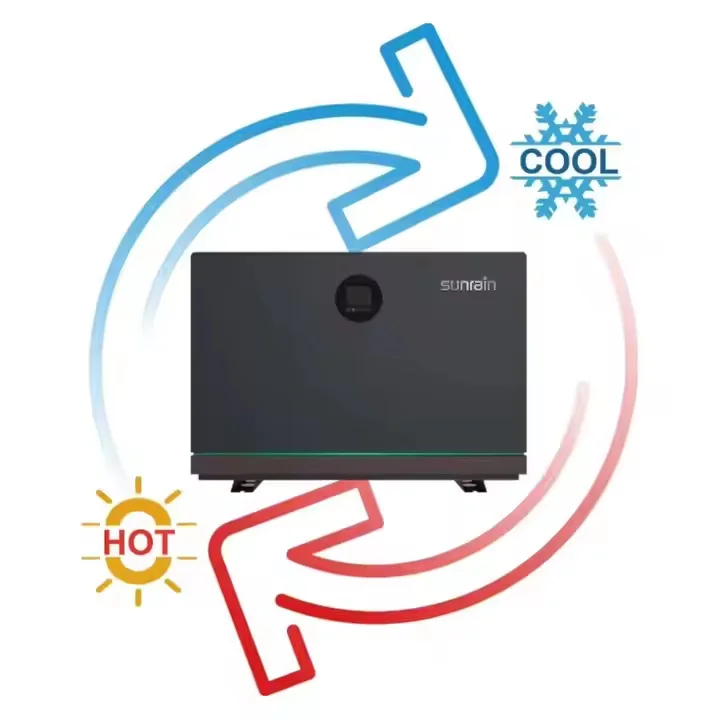

Heating, Cooling & Automatic Modes
Spans a broad range of operating environment temperatures as well as target water temperatures, with heating, cooling, and automated modes included.
Spans a broad range of operating environment temperatures as well as target water temperatures, with heating, cooling, and automated modes included.

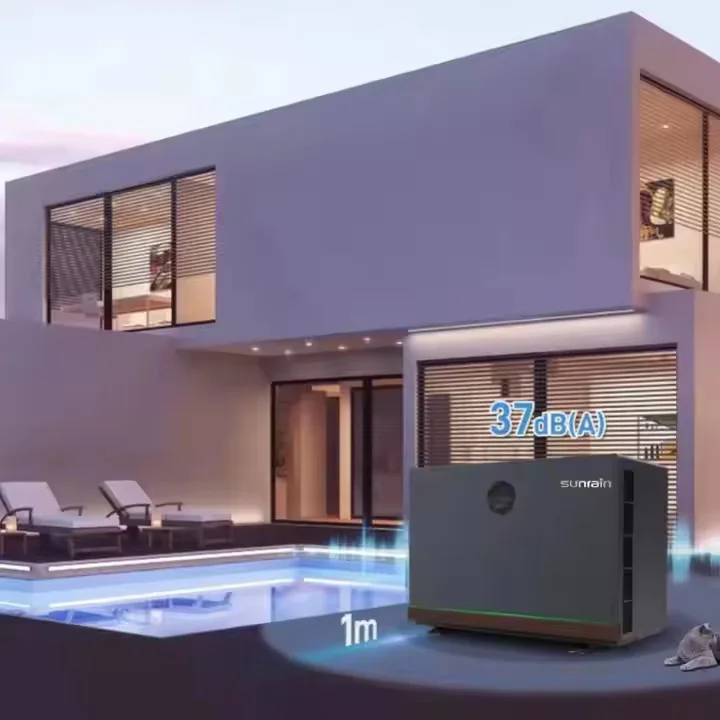

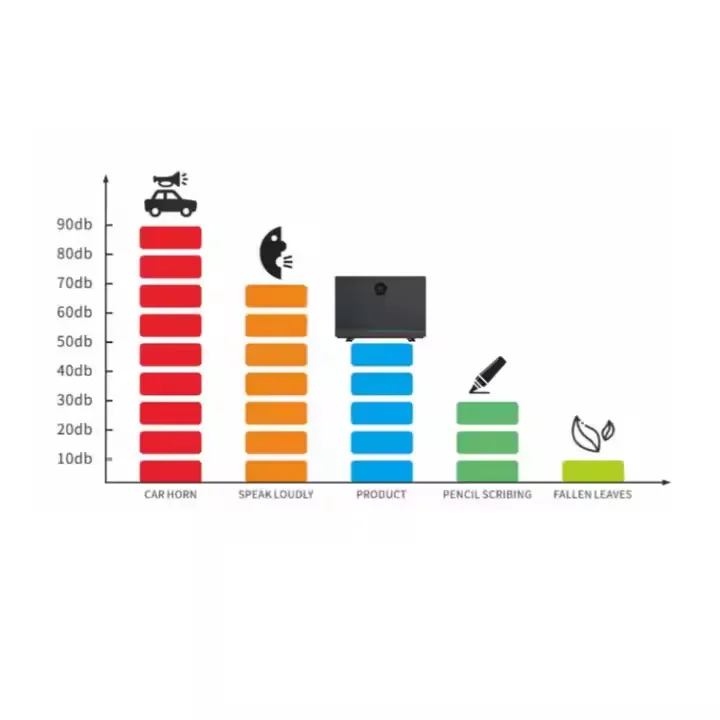

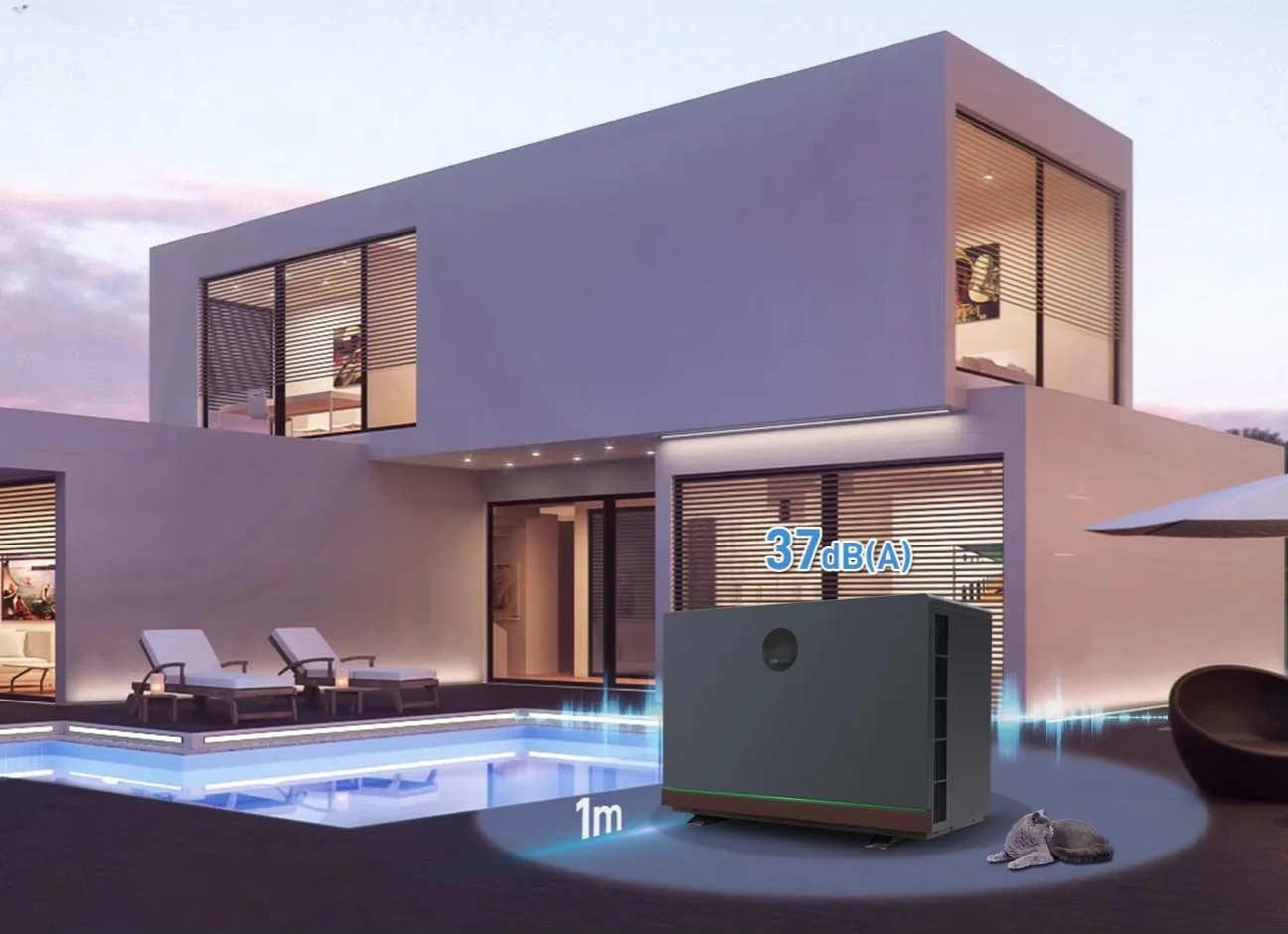

Silence Mode
At one meter, the sound pressure of the R32 Inver Premium Series Inverter Pool Heat Pump is 39dB(A).
When the temperature remains constant, the inverter technology's components—the compressor and fan—operate at extremely low speeds, lowering the sound level to only air movement (about 39 dB(A)).
At one meter, the sound pressure of the R32 Inver Premium Series Inverter Pool Heat Pump is 39dB(A).
When the temperature remains constant, the inverter technology's components—the compressor and fan—operate at extremely low speeds, lowering the sound level to only air movement (about 39 dB(A)).
Model No. | BYC-007TH1 | BYC-010TH1 | BYC-013TH1 | BYC-017TH1 | BYC-021TH1 | |||||
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||||||
Heating Capacity (kW) | 7.0~1.7 | 9~2.3 | 12.5~3.0 | 16.5~3.8 | 20.5~4.8 | |||||
Power Input (kW) | 1.04~0.12 | 1.34~0.16 | 1.84~0.21 | 2.46~0.25 | 3.06~0.32 | |||||
COP | 14.5~6.7 | 14.3~6.7 | 14.5~6.8 | 15~6.7 | 15~6.7 | |||||
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||||||
Heating Capacity (kW) | 5.3~1.3 | 6.8~1.7 | 9.3~2.2 | 12.3~2.8 | 15.0~3.5 | |||||
Power Input (kW) | 1.06~0.17 | 1.39~0.23 | 1.86~0.29 | 2.51~0.37 | 3.06~0.47 | |||||
COP | 7.5~5.0 | 7.5~4.9 | 7.5~5.0 | 7.5~4.9 | 7.5~4.9 | |||||
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||||||
Cooling Capacity (kW) | 3.7~1.0 | 4.9~1.4 | 6.5~1.8 | 8.2~2.3 | 10.2~2.8 | |||||
Power Input (kW) | 1.0~0.15 | 1.32~0.21 | 1.76~0.27 | 2.22~0.35 | 2.76~0.42 | |||||
EER | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | 6.6~3.7 | |||||
* General data | ||||||||||
Power supply | 220~240V/1/50 | |||||||||
Max Power Input (kW) | 1.4 | 1.7 | 2.1 | 2.5 | 3.1 | |||||
Max Current (A) | 6.6 | 8.1 | 10 | 11.9 | 14.7 | |||||
Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | |||||
Refrigerant | R32 | |||||||||
Heat Exchanger | Titanium | |||||||||
Air Flow Direction | Horizontal | |||||||||
Kind of defrost | by 4 way valve | |||||||||
Working temp. range (℃) | -15~43 | |||||||||
Casing Material | Aluminum alloy & Metal | |||||||||
Water Proof Level | IPX4 | |||||||||
Noise level 1m dB(A) | 37~46 | 38~47 | 40~49 | 41~51 | 41~52 | |||||
Noise level 10m dB(A) | 18~27 | 19~28 | 20~29 | 21~31 | 21~32 | |||||
Net Weight (kg) | 46 | 48 | 55 | 63 | 68 | |||||
Gross Weight (kg) | 56 | 58 | 65 | 73 | 78 | |||||
Net Dimensions (mm) | 870*420*640 | 1050*420*690 | ||||||||
Package Dimensions (mm) | 930*470*760 | 1110*470*810 | ||||||||
Installation Cases

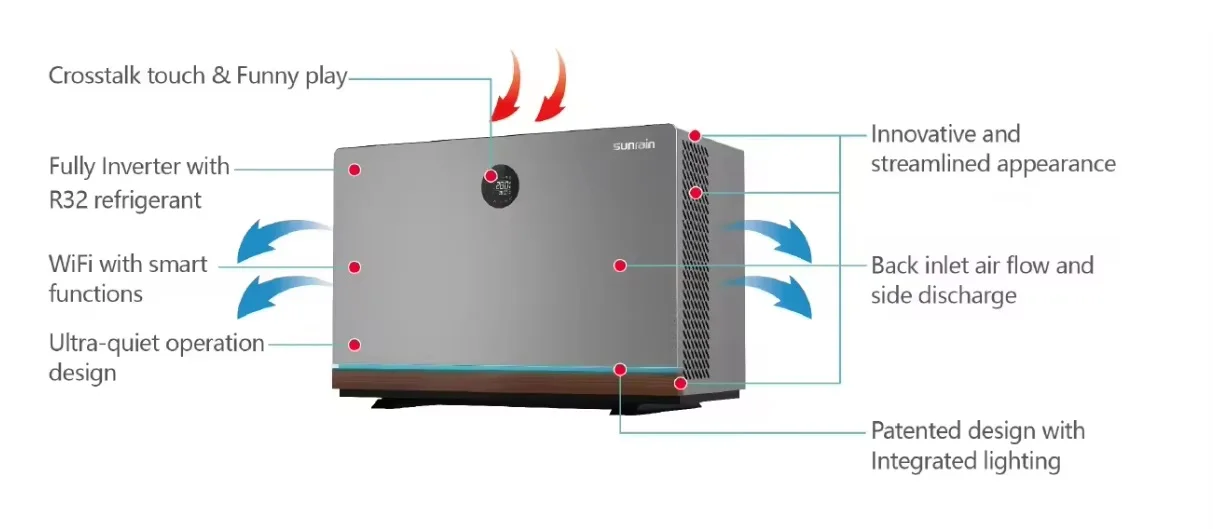

Details Images

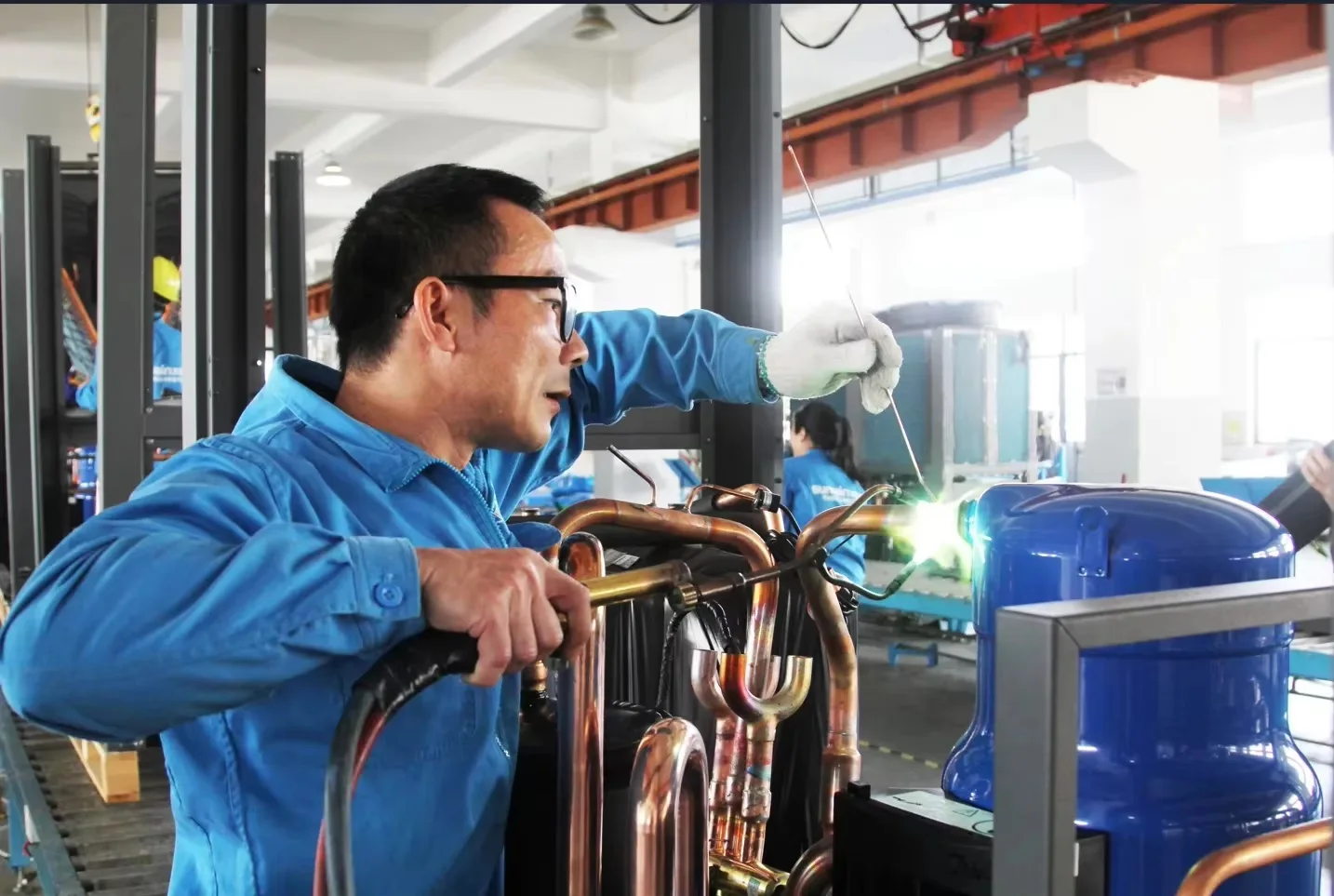

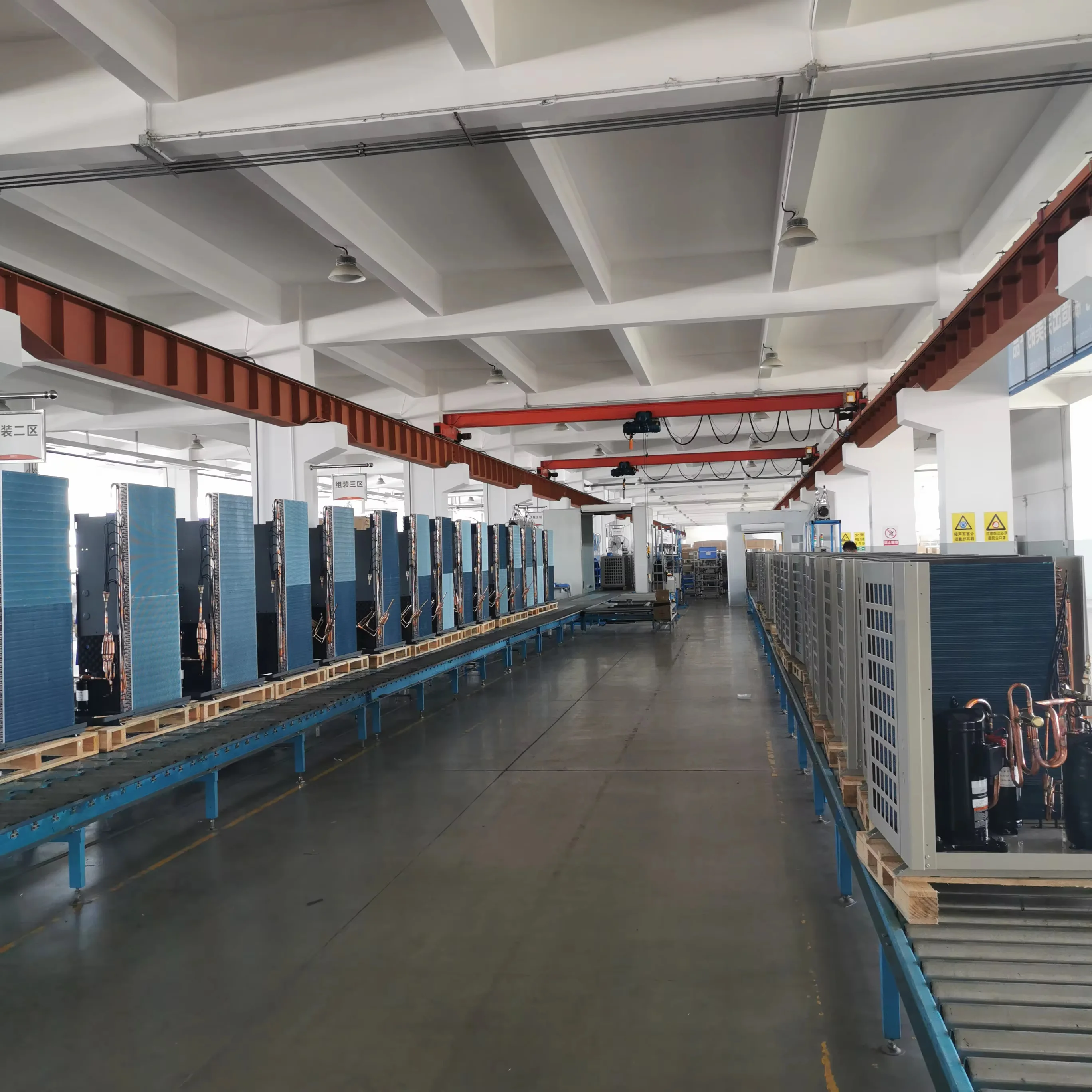

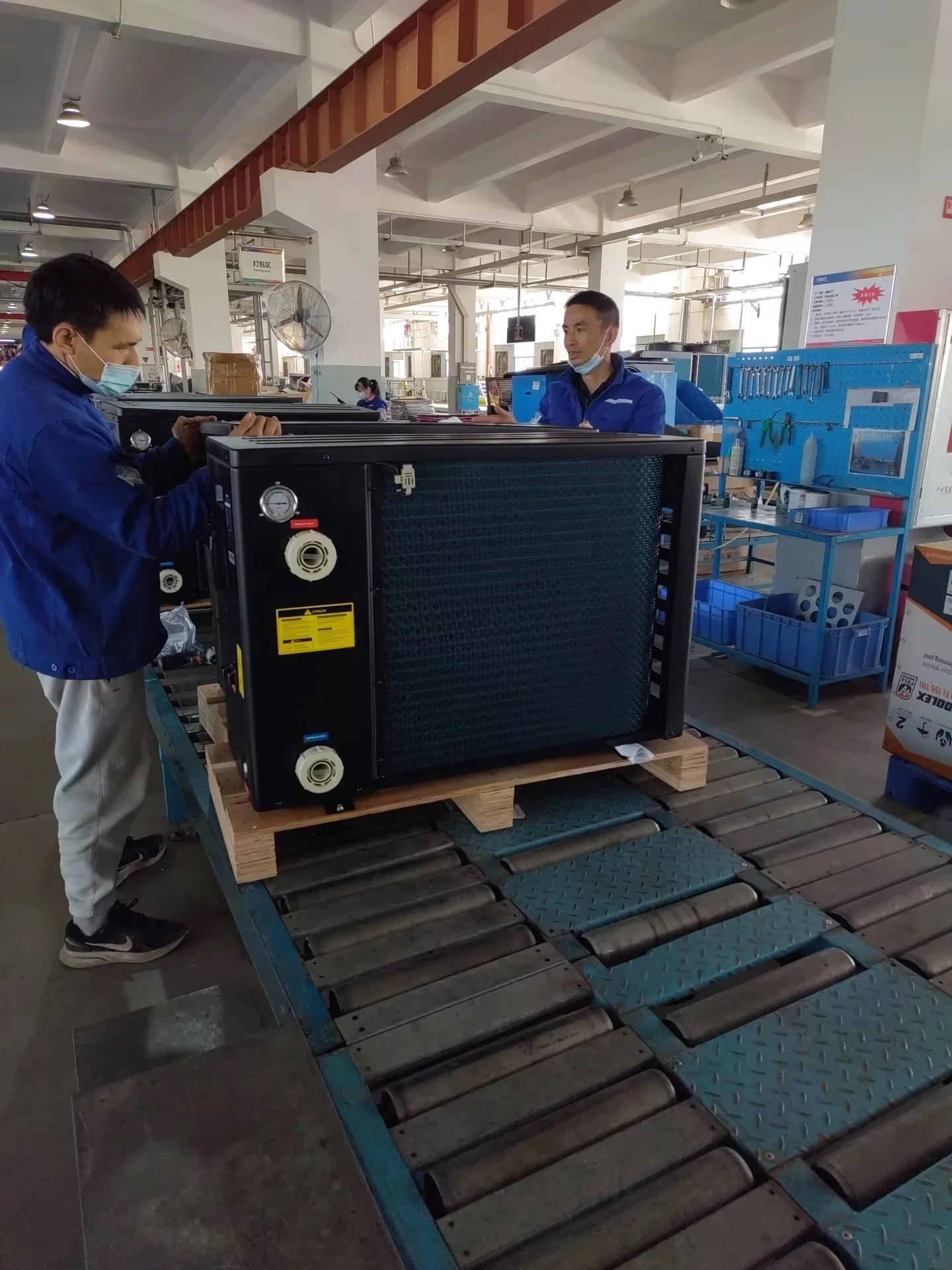

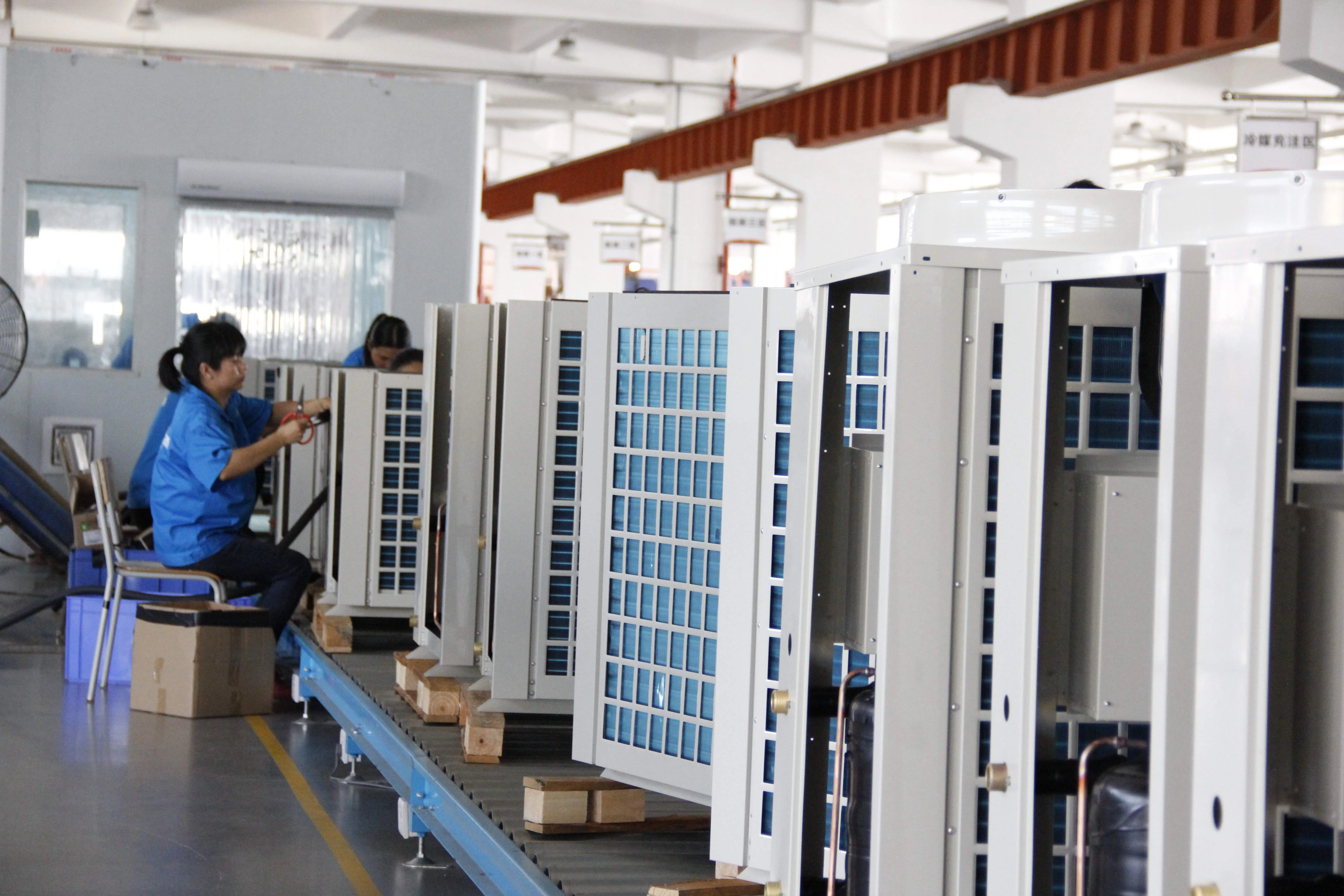

Our Workshop
