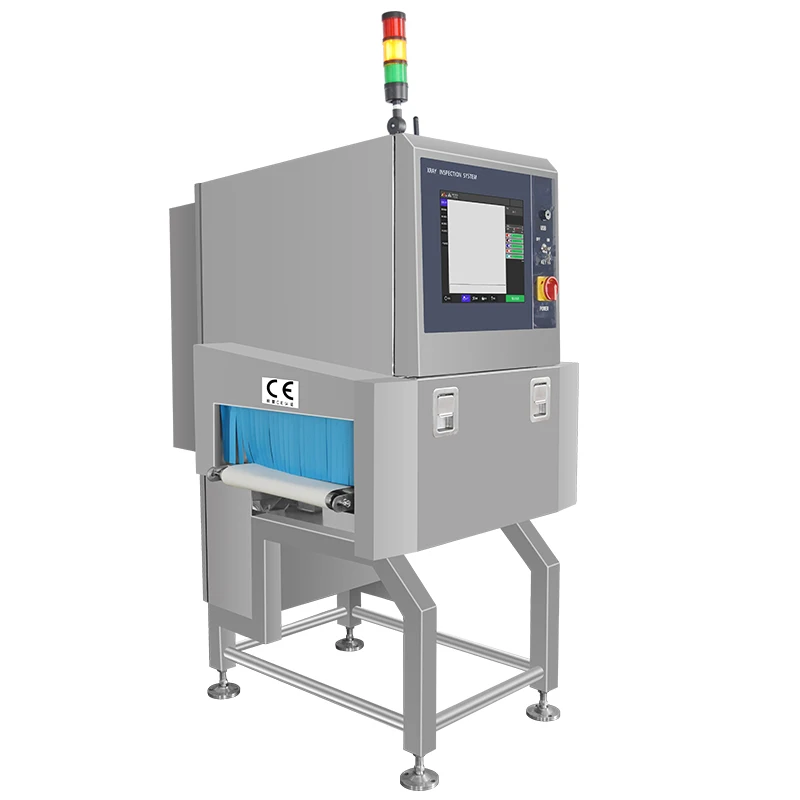

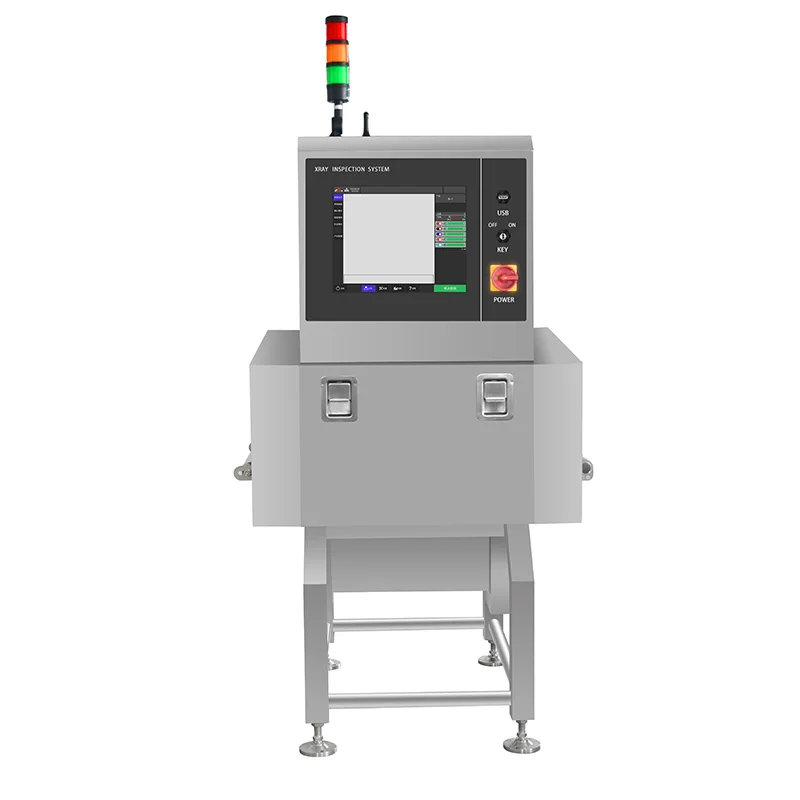

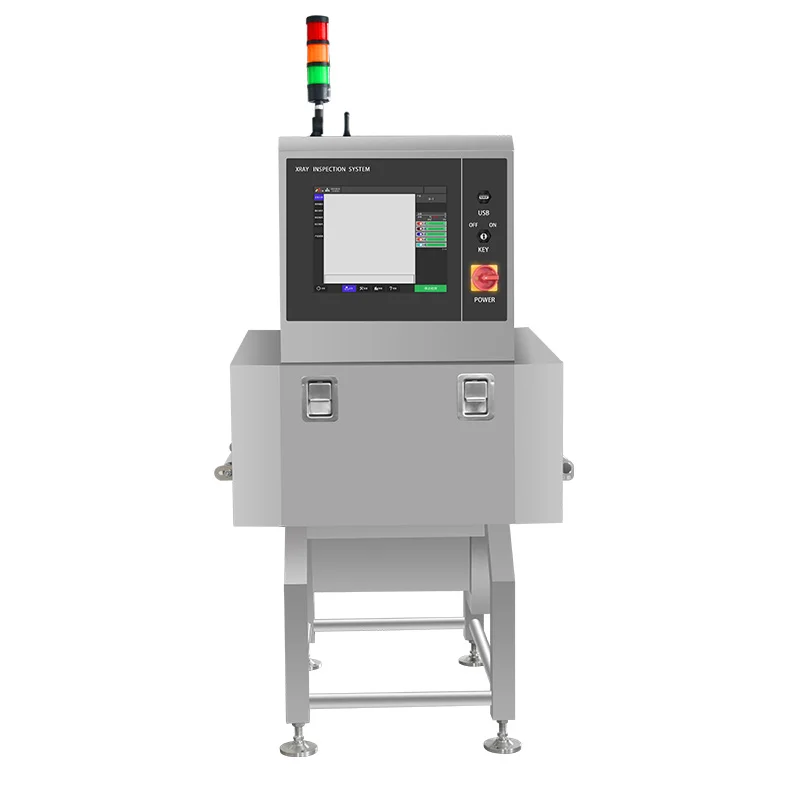

Advanced Industrial Factory X Ray Machine For Food With Rejection High Sensitivity For All Food Industry
- Category: >>>
- Supplier: Guangdong Chaoqiang Electronic Technology Co. Ltd.
Share on (1601270043673):
Product Overview
Description
Product Description
Specification
Suitable for industry
Suitable for industry. Not limited to product type, packaging form, packaging material, including: plastic packaging, aluminum foil packaging, glass cans, metal cans, bulk products, etc. Denser substances include metals, non-metals, stainless steel, iron, ceramics, glass, stones, bones, and hard rubber. Rigid plastics, etc. The specific situation depends on the product being tested.
Performance characteristics

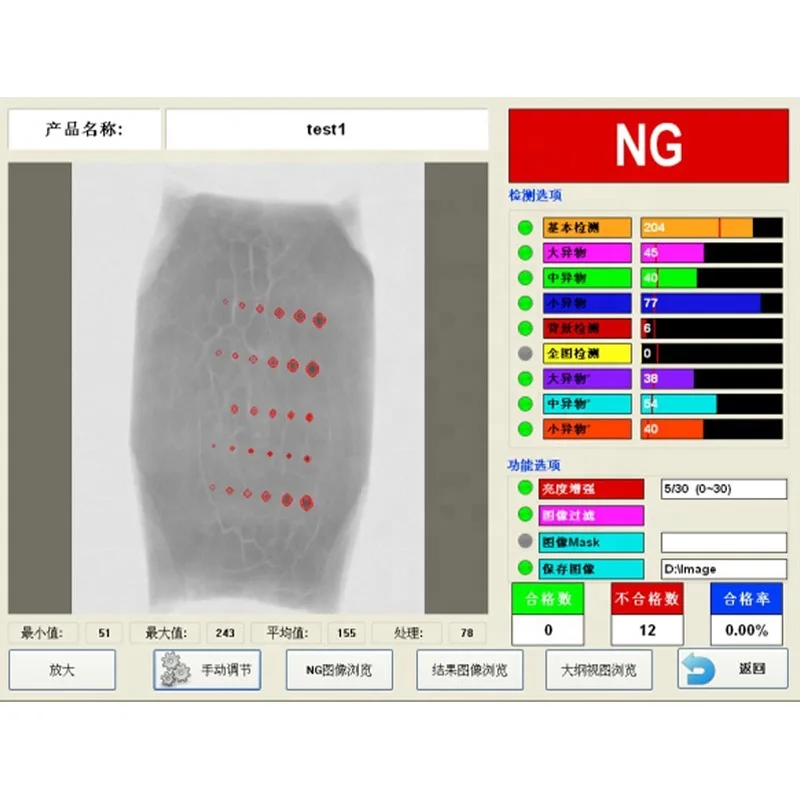

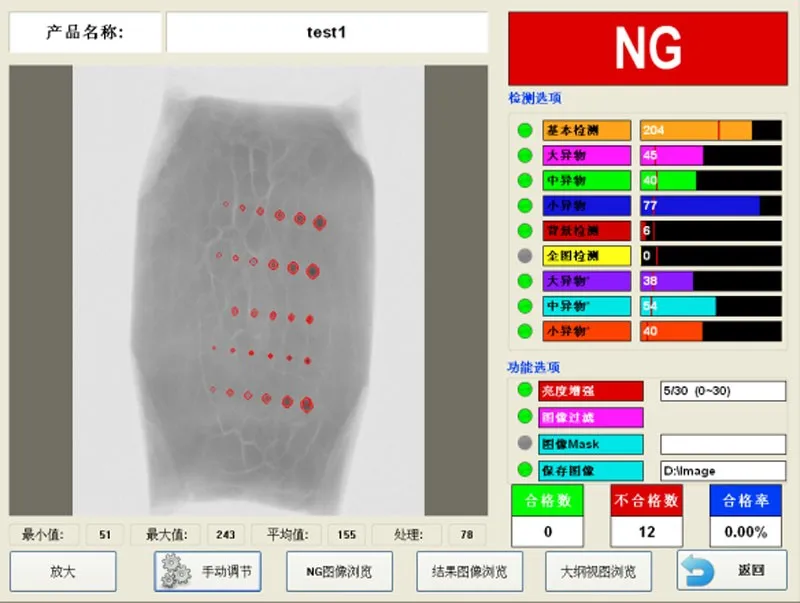

1. Use X-rays to irradiate the inspected product to obtain the product transmission image. Image processing technology determines whether the product image contains information about foreign matter
2. The accuracy of the stainless steel ball can reach 0.3 mm in diameter, the accuracy of the stainless steel wire can reach 0.2 mm * 0.2 mm, the accuracy of the ceramic ball can reach 1.0 mm in diameter, and the accuracy of the glass bridge can reach 1.0 mm in diameter.

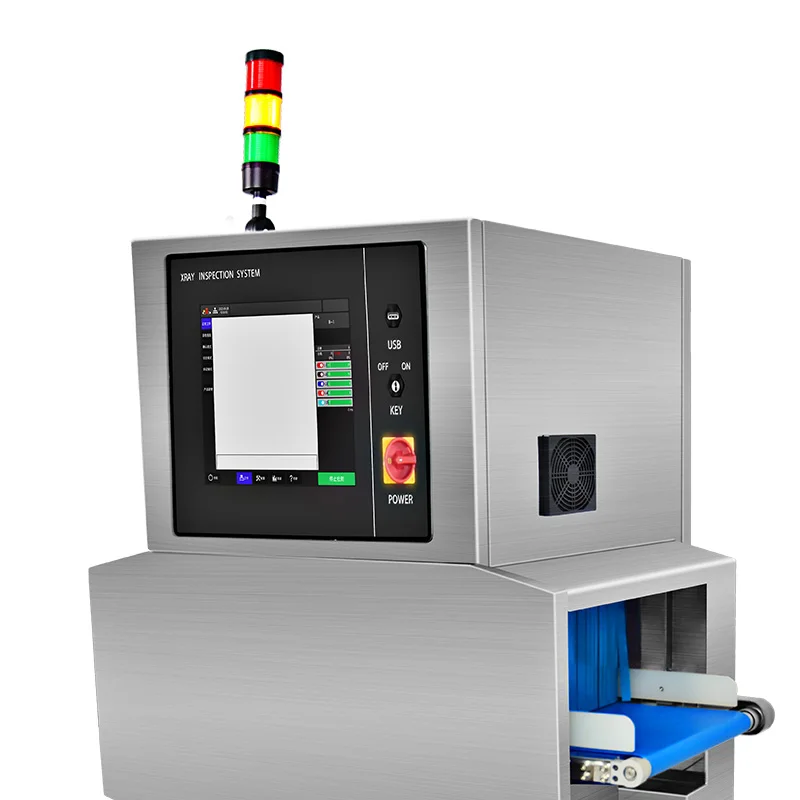

3.The 15-inch large touch screen display makes it easy to realize human-computer dialogue. The software comes with a self-learning function, which eliminates the need for users to manually design parameters, reducing the difficulty of use. It automatically saves the detected product pictures to facilitate users to analyze the product later.
4. According to the product detection requirements, the areas that lead to reduced product detection accuracy can be shielded to improve the overall detection accuracy.
5. X-ray leakage meets US FDA standards, European CE standards, less than 1 microsievert per hour
2. The accuracy of the stainless steel ball can reach 0.3 mm in diameter, the accuracy of the stainless steel wire can reach 0.2 mm * 0.2 mm, the accuracy of the ceramic ball can reach 1.0 mm in diameter, and the accuracy of the glass bridge can reach 1.0 mm in diameter.
3.The 15-inch large touch screen display makes it easy to realize human-computer dialogue. The software comes with a self-learning function, which eliminates the need for users to manually design parameters, reducing the difficulty of use. It automatically saves the detected product pictures to facilitate users to analyze the product later.
4. According to the product detection requirements, the areas that lead to reduced product detection accuracy can be shielded to improve the overall detection accuracy.
5. X-ray leakage meets US FDA standards, European CE standards, less than 1 microsievert per hour
X-ray source | Maximum 150W/80KV |
Maximum height of detection channel | 160mm |
Maximum width of detection channel | 400 mm |
Conveyor speed | 10-70m/min |
Maximum load-bearing capacity of conveyor | 10KG |
Touch screen | TFT 15inch with full color screen |
Support data interface | LAN port ,USB port |
voltage | AC 220V 1.5KVA 50/60HZ |
Ambient temperature | 0~40°C |

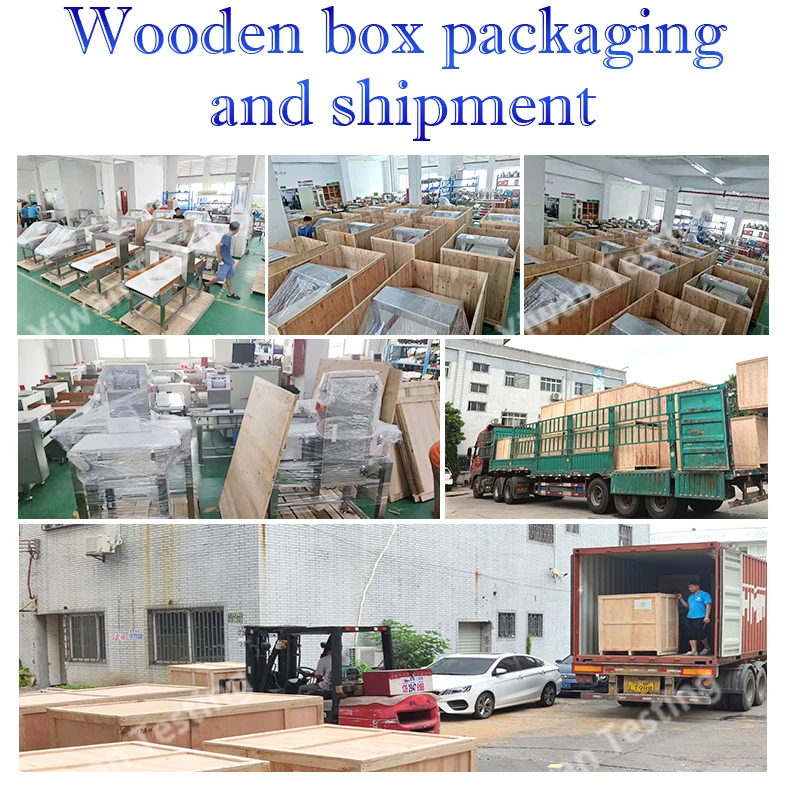

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1.How long of the warranty period? Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken。
2.How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment? T/T,L/C,Western Union, etc A:T/T 30% as deposit,and 70% before delivery.We'll show you
the photos of the products and packages before you pay the balance.or 100% L/C at sight .
3.What is your terms of payment? T/T,L/C,Western Union, etc A:T/T 30% as deposit,and 70% before delivery.We'll show you
the photos of the products and packages before you pay the balance.or 100% L/C at sight .
4.What kind of Transportation could you provide?
And are you able to update the production process Information in time after placing our order? Sea shipping, air Shipping,
and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
