Product Overview
Description
Hot Sale Nigeria Tin Chrome Manganese Lead Zinc Tungsten Titanium Barite Copper Hematite Iron Ore Mining Equipment Price
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining feeding machine, mining crushing machine, mining milling machine, mining screening equipment, mining classifying separator, mining magnetic separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
Iron Ore Mining Equipment of Introduction
We can produce one roller, two rollers, three rollers, four rollers dry type high intensity magnetic separator and low intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
Iron mining equipment of Working Principle

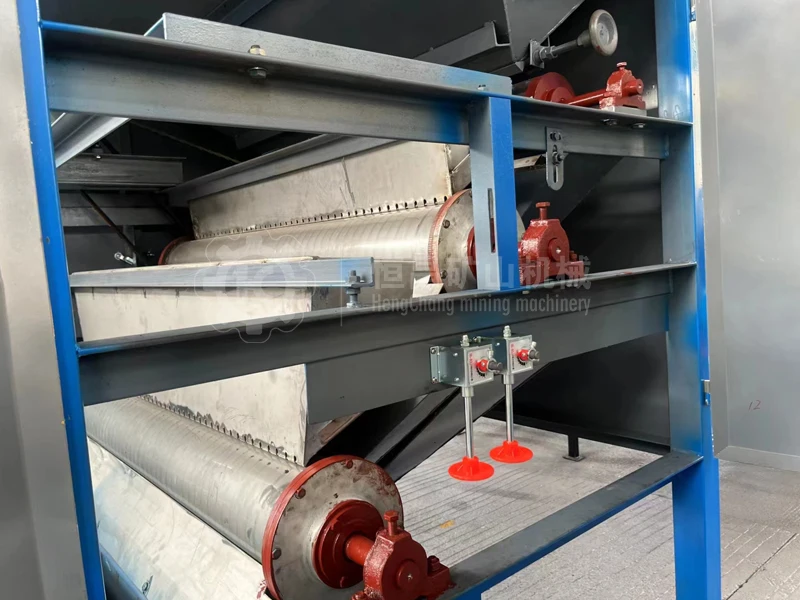

When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 0-6 mm size.
Iron Ore Mining Equipment Basic Info:
Capacity:10-20 tons per hour
Roller size: diameter 400mm* length 1800mm, magnetic field intensity:1200 gauss
Material: steel for the whole machine frame
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Roller size: diameter 400mm* length 1800mm, magnetic field intensity:1200 gauss
Material: steel for the whole machine frame
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Feeder hopper on the top of the machine
Drum Magnetic Separator Basic Info:
Capacity:1-2 tons per hour
First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss
Second roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss
Material: steel for the whole machine frame;
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Dimension:1700*1400*2250mm
First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss
Second roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss
Material: steel for the whole machine frame;
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Dimension:1700*1400*2250mm
Feeder hopper on the top of the machine
Drum Magnetic Separator Basic Info:
Capacity:1-2 tons per hour
First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:1200 gauss
Second roller size:diameter 390 mm* length 1200 mm, magnetic field intensity:8000 gauss
Third roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss-15000 gauss
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Dimension:1700*1500*2280mm
First roller size: diameter 160 mm* length 1200 mm, magnetic field intensity:1200 gauss
Second roller size:diameter 390 mm* length 1200 mm, magnetic field intensity:8000 gauss
Third roller size:diameter 160 mm* length 1200 mm, magnetic field intensity:13000 gauss-15000 gauss
Adjust speed motors
Electromagnetic speed regulation to adjust the roller speed
Dimension:1700*1500*2280mm
Feeder hopper on the top of the machine
Drum Magnetic Separator Basic Info:
Capacity:2-5 tons per hour
First drum size: diameter 440 mm* length 1100 mm, magnetic field intensity:1000 gauss-1500 gauss
Second drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:5000 gauss-7000 gauss
Third drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:8000 gauss-10000 gauss
Fourth roller size:diameter 220 mm* length 1100 mm, magnetic field intensity:15000 gauss
Frequency conversion motors
AC Inverter Controller to adjust the speed variation of each rollers
Electric control pannel box to control the machine working
First drum size: diameter 440 mm* length 1100 mm, magnetic field intensity:1000 gauss-1500 gauss
Second drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:5000 gauss-7000 gauss
Third drum size:diameter 440 mm* length 1100 mm, magnetic field intensity:8000 gauss-10000 gauss
Fourth roller size:diameter 220 mm* length 1100 mm, magnetic field intensity:15000 gauss
Frequency conversion motors
AC Inverter Controller to adjust the speed variation of each rollers
Electric control pannel box to control the machine working
Feeder hopper on the top of the machine
Drum diameter and length | Customized Available | ||||
Magnetic field intensity | Customized Available | ||||
1.What is your machine used for ?
1).Our One Two Three Four Rollers Magnetic Separator used for separate Tin ore(cassiterite), Zircon ore, Magnetic iron ore, Ilmenite ore, Monazite ore, Rutile ore, silica sand, weak magnetic ore and so on.
2.Are you factory or trade company?
Yes, we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
