cheap frp pultrusion machine price pultrusion machine for cable tray makingmachines pultrusion

Share on (1601270070537):


Price:

Quantity:


Product Overview

Description



FRP pultrusion equipment
Scope of application of the device
Suitable for large section of solid products, such as cable bridge, guardrail, square rod, round rod, etc.
Characteristics of equipment
The whole machine adopts PLC control, and the traction control system adopts automatic and manual control system.
Equipment details
1. The whole machine adopts PCL control, traction control adopts automatic and manual control system.
2. The product is pressed.
3. Sawing machine adopts frequency conversion speed regulation and fixed length cutting.
4. With hydraulic oil cooling system and fault alarm system;
5. General dimensions: length 9000 mm * width 1200 mm * height 1500 mm;
6. Traction (t): 10-30 adjustable;
7. Clamping force (t): <5-30 adjustable;
8. Traction speed mm/min: 50-1500;
9. Traction reciprocating stroke mm: > 600;
10. Keep the stroke mm: > 100;
11. The length of the mold frame is mm:900.
12. Mold clamping mechanism: screw clamping;
13. Tank cooling water requirements: temperature 0-15℃, flow rate is not less than 100 liters/hour;
14. Automatic cutting air source requirements: applicable pressure 0.4-0.8MPa;
15. Heating area: The heating area is heated by contactor, which can ensure that the temperature control fluctuation range is ±5 ° C and the temperature control range is 0-300 ° C, and the heating power of 3-6 zones can be controlled at 6kw per zone.
16. The equipment cooling system uses a cooler to cool the hydraulic oil. Its advantages are fast cooling, maintenance-free, and water cooling.
17. The electrical control system of the equipment adopts logic control, which is mature and easy to operate.
18. Total power demand of factory service :10-12KVA, 380V voltage;
19. The installation length of the production line is nearly 30,000 mm.

Equipment advantages:
1, hydraulic pump is the world famous brand, low noise, energy saving.
2. Temperature and speed are controlled by high-precision digital display.
3, PLC system intelligent control hydraulic traction clamping, high degree of automation. 4, alarm function is complete, protect the life of the machine.
5. Emergency stop device.
6, international brand electrical components, switch failure alarm.
7, mold heating constant temperature adjustable, instrument digital display, easy to adjust.
8, heavy body structure, foot adjustment height, to ensure the level of the machine.
9, high-speed starting, braking and reverse response speed; Wide speed range; Control motor speed to control flow.
10, high control accuracy, fast response time.
11, traction cycle error time is low, traction speed synchronization and matching set speed performance is greatly improved.
12, reduce system failure, speed unlimited digital adjustment, ensure the smooth operation of the system.



Product Description




Packaging & delivery


Package Type:
Standard Packing.


Supply Ability


Supply Ability
 30 Set/Sets per Month


Company Profile

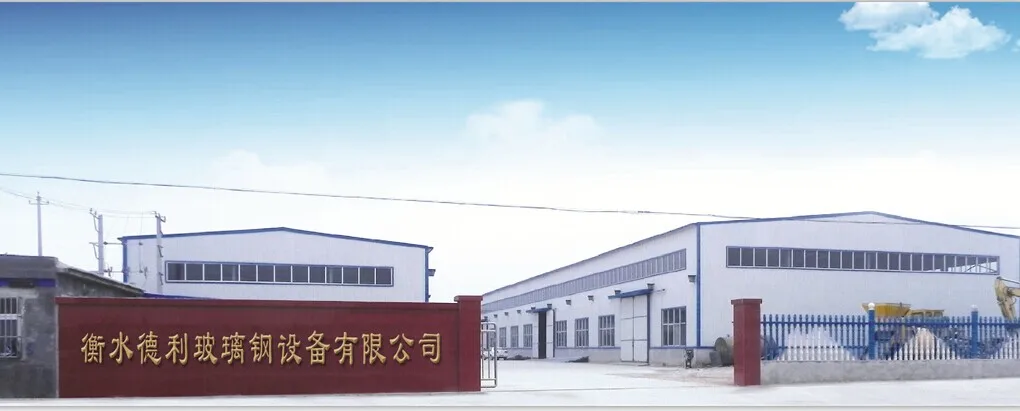

Hengshui Deli FRP Equipment Co., Ltd. is a technology-led production enterprise, mainly engaged in the development, design and manufacture of FRP winding equipment, pultrusion equipment, double-wall tank spraying equipment and FRP molds.
Enter the field of composite materials. It is an enterprise that digests and absorbs FRP pultrusion technology imported from abroad for relevant domestic institutes and provides self-produced FRP pipe winding and pultrusion units. The company has transferred FRP profile pultrusion technology to many companies.
In recent years, with the in-depth development of the composite material industry in my country, the company has developed a series of FRP pultrusion machines to meet the needs of FRP development. At present, the company has provided customers with a large number of pultrusion machine production lines. Practice has proved that our company's products have high reliability and are more suitable for the needs of my country's FRP pipe winding and pultrusion industry. We can provide customers with the following services:
1. Provide corresponding FRP winding machine unit, pultrusion machine unit and supporting auxiliary equipment according to the requirements of different FRP products;
2. Layout design of winding, pultrusion, double-wall tank spraying factories and workshops;
3. Provide formula and mold and pre-forming design and provide technical guidance documents;
4. Training technical operators to assist customers in pulling out qualified products;
5. Customized according to customer needs.
"Credit first" is our commitment. We believe that providing comprehensive services is more important than sales. We are willing to provide you with pre-sales consultation and provide industry-related information to create the greatest profit space for you.
Hengshui Deli FRP Equipment Co., Ltd. is willing to sincerely cooperate with new and old customers to create a better tomorrow!


FAQ


1. Are you a trading company or a manufacturer?
Answer:We are both a trading company and a manufacturer. Since 2014, we have sold to Africa (20.00%), Southeast Asia (20.00%), Eastern Europe (20.00%), South America (20.00%), North America (20.00%). There are about 30-40 people in our office altogether. Welcome to send your inquiry!

2. What can you buy from us?
Answer: FRP winding equipment, FRP pultrusion equipment, FRP pultrusion molding, FRP winding mold.

3. What about delivery time?
Answer: Usually about 30 days. May I ask when you would like to purchase it? I will give you the exact time.

4. How is the machine installed?
Answer: We can send technicians to the site for installation or video instruction, and promise to teach how to use the equipment. At the same time, we will provide a full range of production guidance services.

5. What are the terms of payment?
Answer: Basically, payment is T/T.
