Flax Seed Cleaning Machine Good Quality Wheat Corn Maize Sesame Coffee Rice De stoning Machine

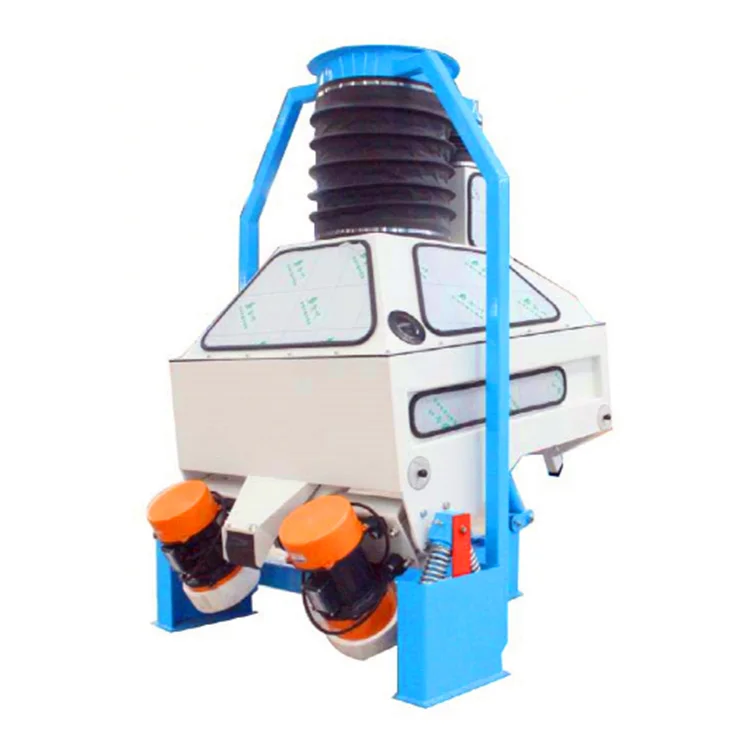

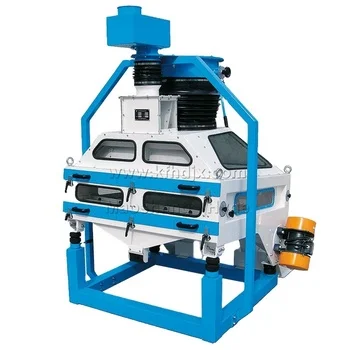

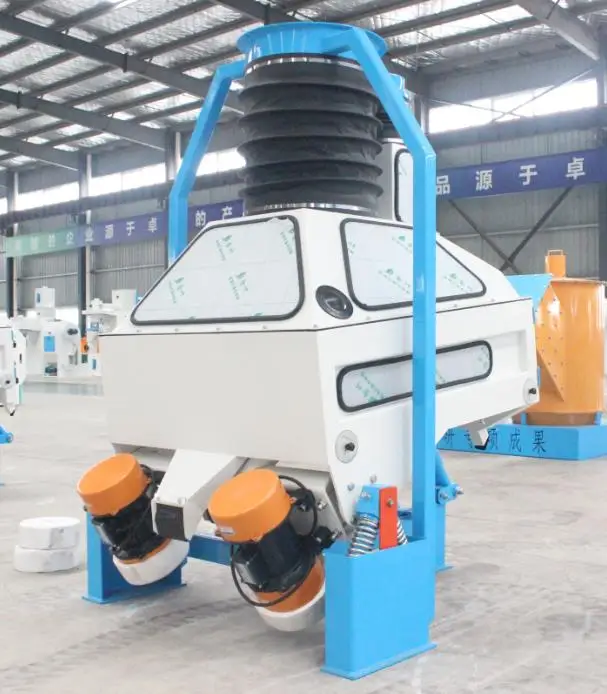

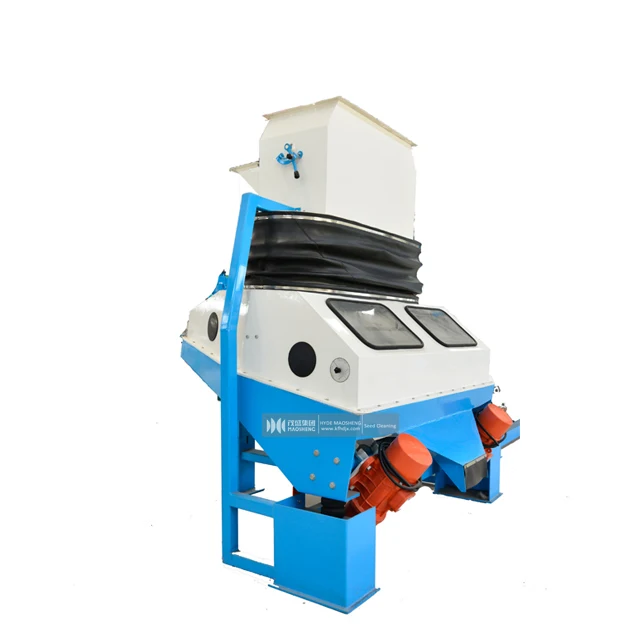

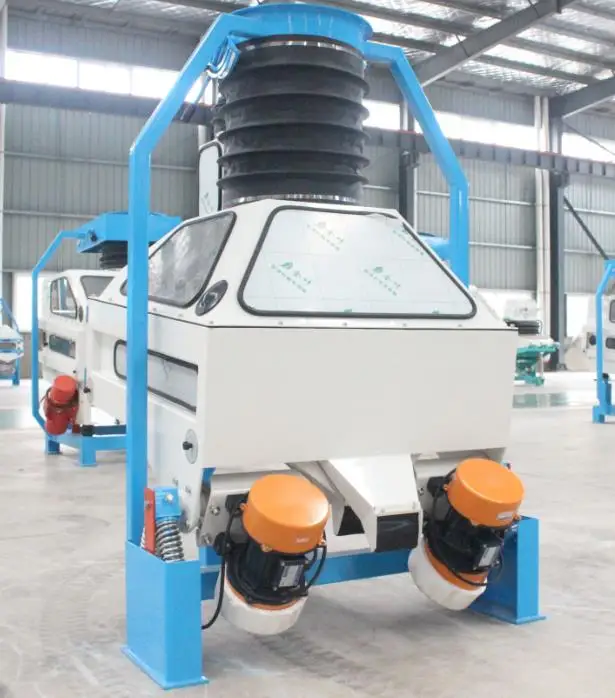

TQSF125B De-stoner

Structure Drawings:

TQSF De-stoner Is A Grading And Stone Removal Of Grain Particles (Rice, Wheat, Beans, Corn, Etc.).

TQSF De-stoner Has High Production Efficiency, Good Performance In Classification, Stone Removal And Impurity Removal, Low Energy Consumption, Low Noise, No Dust,         Easy Operation And Operation Adjustment, Simple Maintenance.

(1). The fully sealed vibrator (A) is supported by two sets of "eight" springs (B) on both sides of the rear end and an adjustable support rod (C) in the middle of the front end.

Two vibrating motors (L) are bolted side by side on the circular shaft at the rear end of the vibration body. The two motors rotate in the direction of each other and drive the vibration body to reciprocate linear vibration.

(2). Front at the top of the machine for the material import (D), by the fixed on the supporting frame (M) of the plate will be hold, are connected to the chute feed inlet top (upper inlet as buffer hopper is best), the bottom through the soft tube is connected to a feed box (E).Container (E) is located in the inlet below, fixed on the vibrating body, in the box is equipped with adjustable spring offered material baffle to control the material flow, material box containing organic glass observation window (F), in order to observe the condition of material.

All equipped with large observation window suction hood (G) is installed in the upper body vibration, suction duct above the suction hood (H) on the hose (J) connected to the suction cover, inside the suction duct is equipped with an external handle can be adjusted by controlling the butterfly throttle.

(3). The machine base (K) directly supports the vibration body (A), the support frame supports the suction pipe (H) and the feed pipe (D) and is fixed on the base (K).

(4). Vibration in the body is equipped with two layers of withdrawable type mesh (N) and (O), the upper mesh (N) three section of the screen surface, the first paragraph for spring steel wire weaving nets, the second for the long hole sieve plate, the third paragraph as the round hole sieve plate, this layer mesh for material classification, classification of material flow (light) from the rear of vibration body eduction closed, light impurity by suction duct suck.Lower mesh mainly to remove sand, clay pieces, pass the screen mesh of sandstone, clay pieces by vibration devices for the two horns at the stone mouth discharge, through the screen mesh of sand, dirt and debris discharge closed directly, go after the stone material flow (heavy) by the vibrating body back-end out of food.

Technical Specification:

Notes:

Whole Plant Drawings:

Pre-cleaners, Fine Cleaners, Rotary Cleaners, Seed Graders, Seed Gravity Separators, Indented Cylinder, Wheat Paddy De-awner, Destoner, Vibration Cleaner, Rotary Cleaner, Air Aspirator, Cyclone Dust Collector, Seed Treater, Seed Dryers, Elevators And Conveyors, Auto-packing Scales.

With 50 Years' Growth, MAOSHENG GROUP Company Has Become One Of China Top 1 Grain Processing Machinery Manufacturer.

In Addition, MAOSHENG Is The Host Of CHINA National Grain Processing Technology Research Center.

With Decades Of Our Effort, Our Machines Have Obtained China Top 1.

China Famous Brand And Enjoyed High Reputation In Domestic And Oversea Markets.

50 YEARS Manufacturing Experience Since 1976.

CHINA TOP 10 Grain Processing Machinery Manufacturing Company.

Member Of 13 China National Standards DRAFTER In Grain Processing Industry.

75 PATENTED Technologies And Products.

600,000 Square Meter Production Area.

Over 100 Experienced Engineers, Research Staff And Technicians.

State-of-the-art Facilities. Advanced Imported CNC Machines For Function Parts.

Full Range Of Service, From Single Machine To Turnkey Systems In Grain And Flour Industry.

Machinery And Equipment Quality Tested By Domestic And Global Market, Rich Installation And Trouble-shooting Experience.
