100~240V Real Time PCR System Qualitative / Quantitative Portable PCR Thermal Cycler Price Machine
100~240V Real-Time PCR System Qualitative / Quantitative Portable PCR Thermal Cycler Price Machine
100~240V Real-Time PCR System Qualitative / Quantitative Portable PCR Thermal Cycler Price Machine

100~240V Real Time PCR System Qualitative / Quantitative Portable PCR Thermal Cycler Price Machine

Share on (1601270129299):


Price:$32,000.00

Quantity:


Product Overview

Description



If you need a discount distribution price, please contact us.

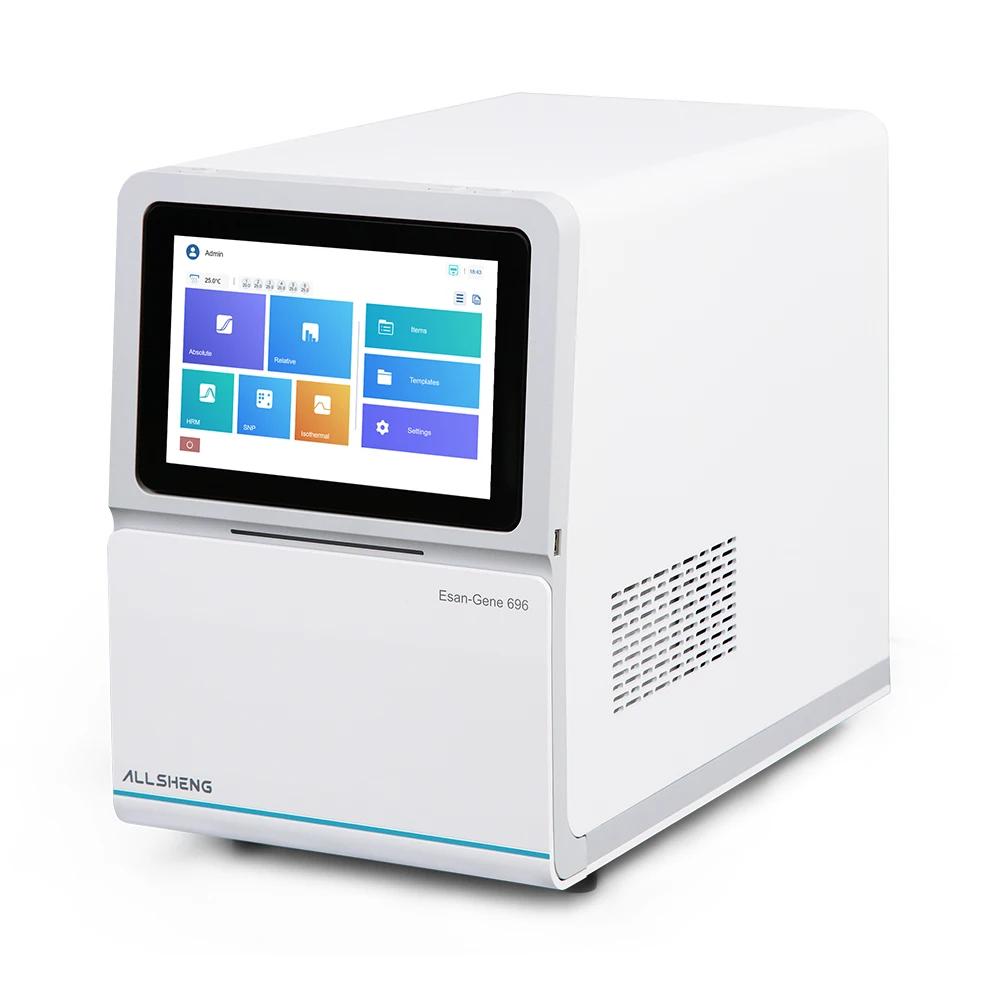

Real-time PCR System Esan-Gene 496 / 696


Product Description


Esan-Gene 496 / 696 real-time PCR system adopts mature thermoelectric refrigeration technology, brand-new light source and light path design. The unique constant-current power and multi-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption. The product is modularized with various configurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low-temperature storage of sample at 4 °C, and automatic dehumidification.
It's mainly applied in gene expression, genotyping (detection), cloning, mutation, methylation analysis, sequencing, medicine, forensic medicine and applied science.




Specification


Model
Esan-Gene 496 / Esan-Gene 696
Detection channel / applied dyes
Esan-Gene 496 / 496A
F1: FAM, SYBR Green I, etc.
F2: HEX, JOE, VIC, etc.
F3: ROX, TEXAS-RED
F4: Cy5, Quasar-670
Detection channel / applied dyes
Esan-Gene 696 / 696A
F1: FAM, SYBR Green I, etc.
F2: HEX, JOE, VIC, etc.
F3: ROX, TEXAS-RED
F4: Cy5, Quasar-670
F5: Cy5.5
F6: Can be customized, default is FRET
Applicable centrifuge tube (496 / 696)
0.2 mL 96-well plate, single tube, 8-strip tube
Applicable centrifuge tube (496A / 696A)
0.1 mL 96-well plate, single tube, 8-strip tube
Sample system size
10~100 μL
Linear range
100 ~1010 Copies/μL
Min. detection range
1 Copy
Excitation light source
High power white LED
Detecting element
High-performance CMOS
Ct repeatability
CV ≤1 %
Sample linearity (Ct)
|r| ≥0.999
Temp. range
4~99.9 °C
Temp. control mode
Block control / tube control
Average heating rate
3.5 °C/s
Average cooling rate
2.5 °C/s
Temp. uniformity
±0.2 °C @95 °C
Temp. accuracy
±0.15 °C
Temp. control precision
0.1 °C
Melting temp.
Minimum differentiation 0.1 °C
Gradient mode
6 gradient temperature control
Gradient temp. range
1~40 °C
Thermo lid temp.
30~110 °C
Display screen
10.1-inch touch screen
Dimension (W*D*H)
298 mm×530 mm×430 mm
Input power
100~240 VAC 50~60 Hz
External port
USB (Type A)×3, LAN ×1
Wireless function
Expandable wireless transmission function, support LIS function
Data export format
Excel, PDF


Ordering information


Code
Model
AS-30050-00
Esan-Gene 496 real-time PCR system, suitable for 0.2 mL centrifuge tube
AS-30060-00
Esan-Gene 696 real-time PCR system, suitable for 0.2 mL centrifuge tube
AS-30070-00
Esan-Gene 496A real-time PCR system, suitable for 0.1 mL centrifuge tube
AS-30080-00
Esan-Gene 696A real-time PCR system, suitable for 0.1 mL centrifuge tube
