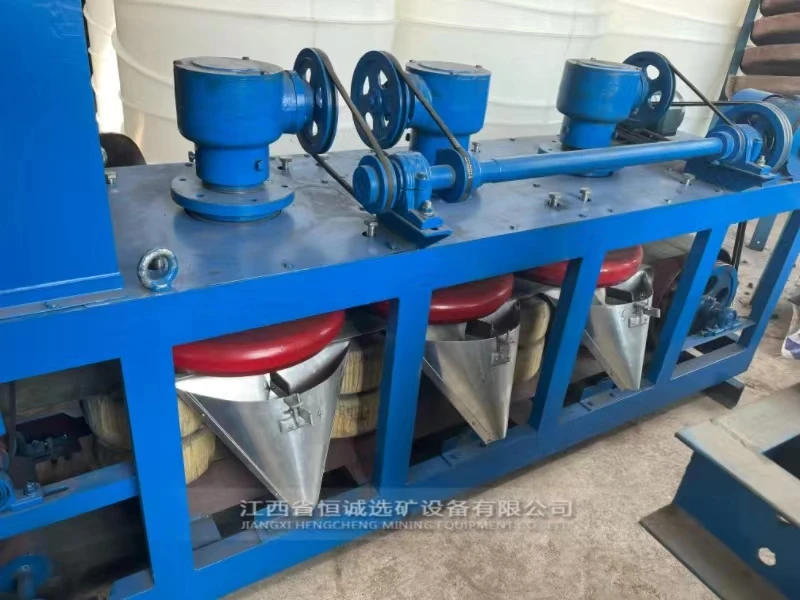

Hengcheng dry Three Disc Magnetic Separator for magnetic metal separation
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601270132240):
Product Overview
Description
Product Overview

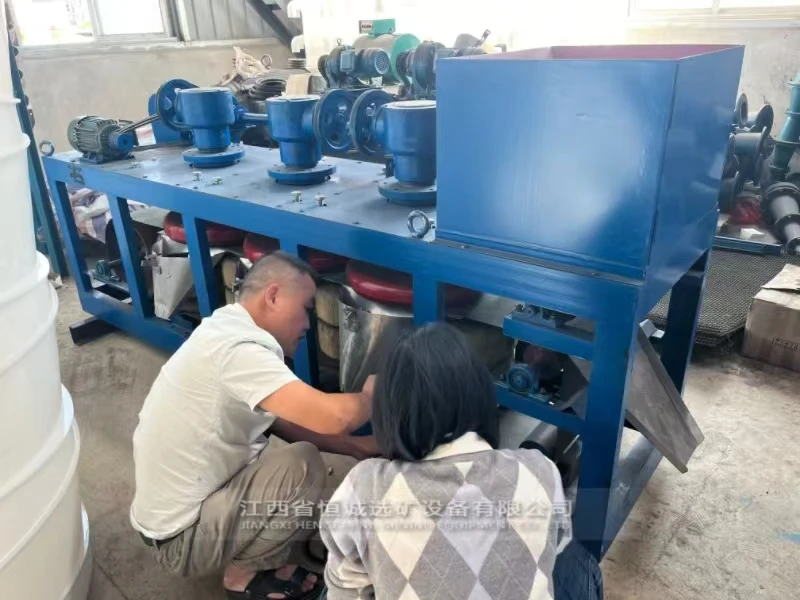

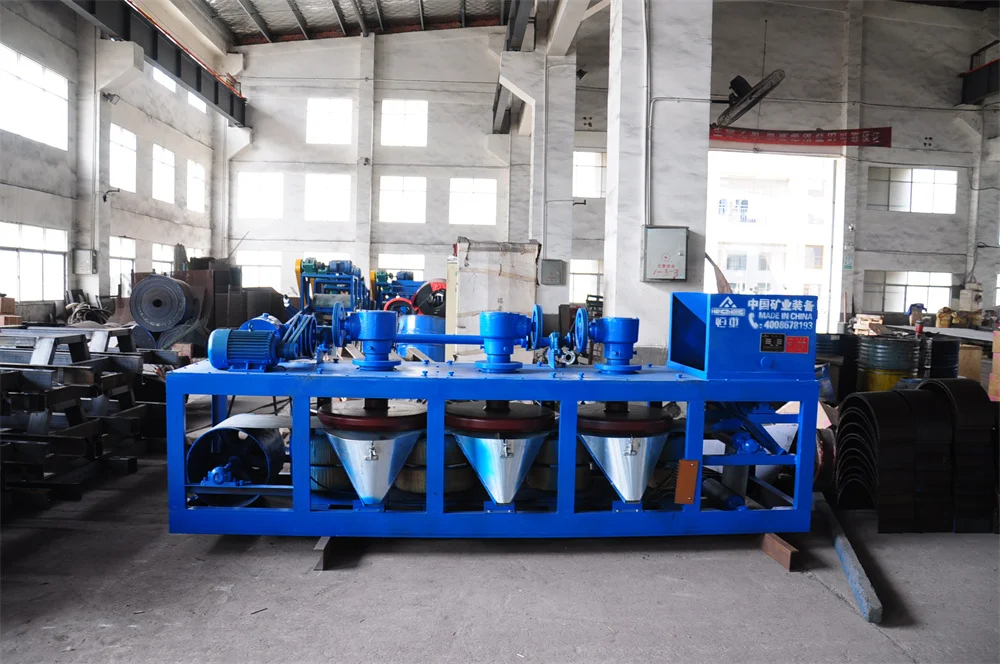

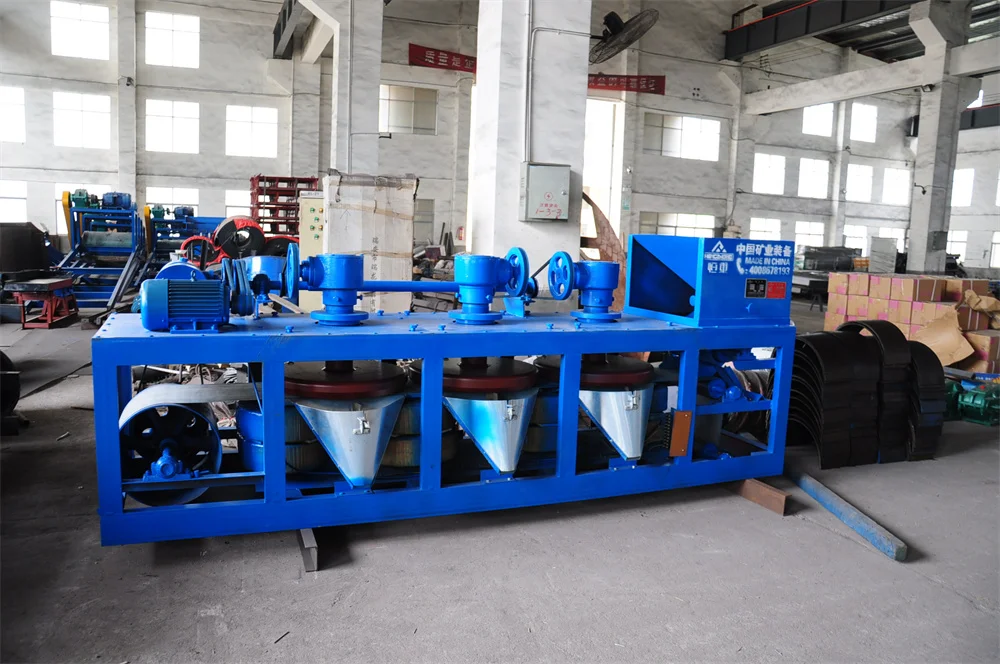

Three disk dry magnetic separator
Three-disc electromagnetic separator is suitable for sorting ore size less than 2-3mm of weak-magnetic minerals and rare metal ore selection, it is a very important mineral processing equipment. Three-disc electromagnetic separator have CP-500, CP-600 two models.
This machine is widely used in ilmenite, monazite, tungsten, tin, tantalum, iron ore and other minerals with magnetic and
non-magnetic dry sorting.
non-magnetic dry sorting.
FEATURES AT A GLANCE
Working Principle
Three-disc electromagnetic separator suits for a variety of strong magnetic minerals mixed ore separation, according to the
difference of magnetic minerals, could achieve efficient separation. It can form different magnetic intensity by adjusting the
excitation current levels, can also adjust each disk level and sensing distance between dressing grain, to get different magnetic
induction intensity, reach a one-time separation for mixed type minerals.
difference of magnetic minerals, could achieve efficient separation. It can form different magnetic intensity by adjusting the
excitation current levels, can also adjust each disk level and sensing distance between dressing grain, to get different magnetic
induction intensity, reach a one-time separation for mixed type minerals.
It has a reasonable structure, small footprint, simple operation and maintenance, it could separate variety of ferromagnetic
minerals, weakly magnetic, non-magnetic and so on in the same time. It’s best choice for water-shortage mines.

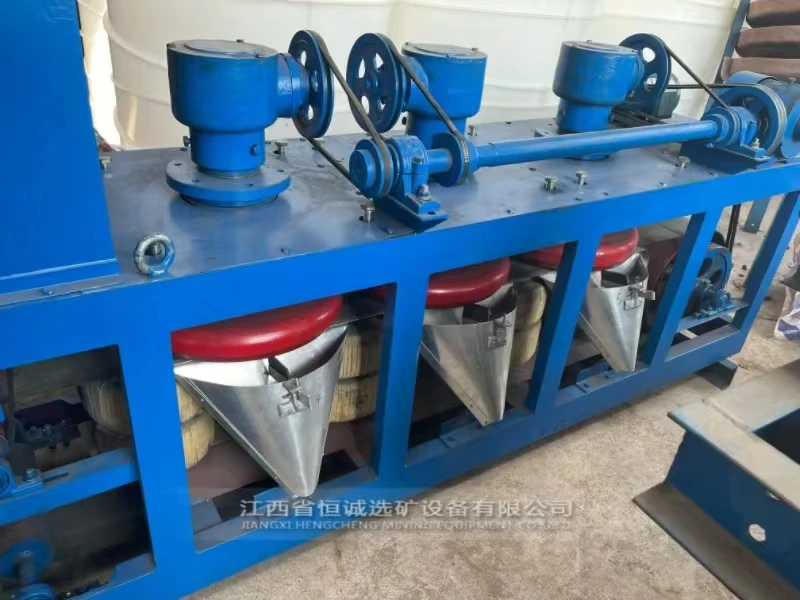

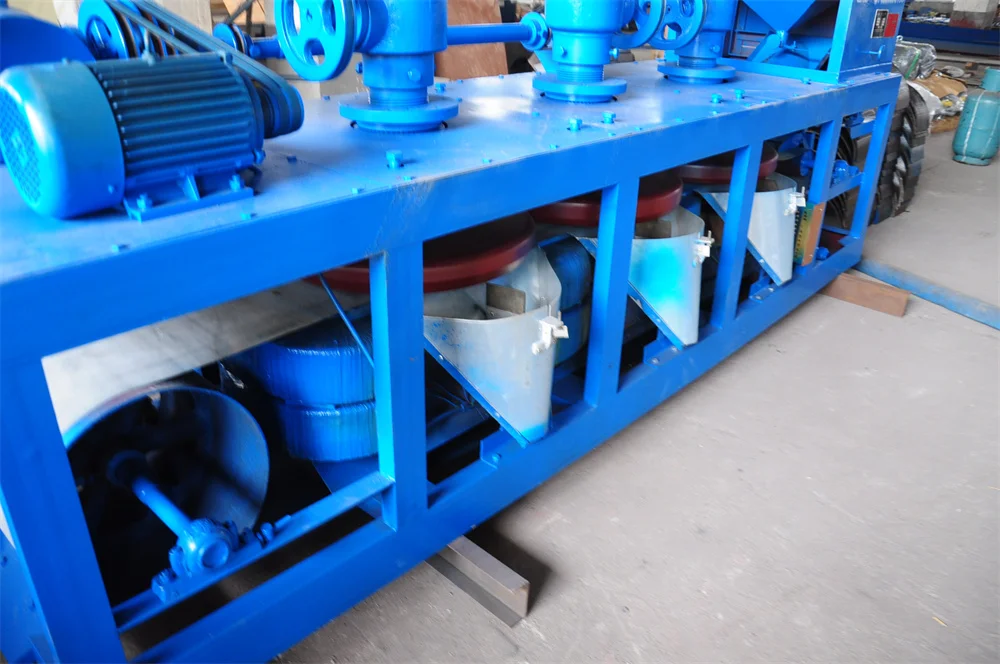

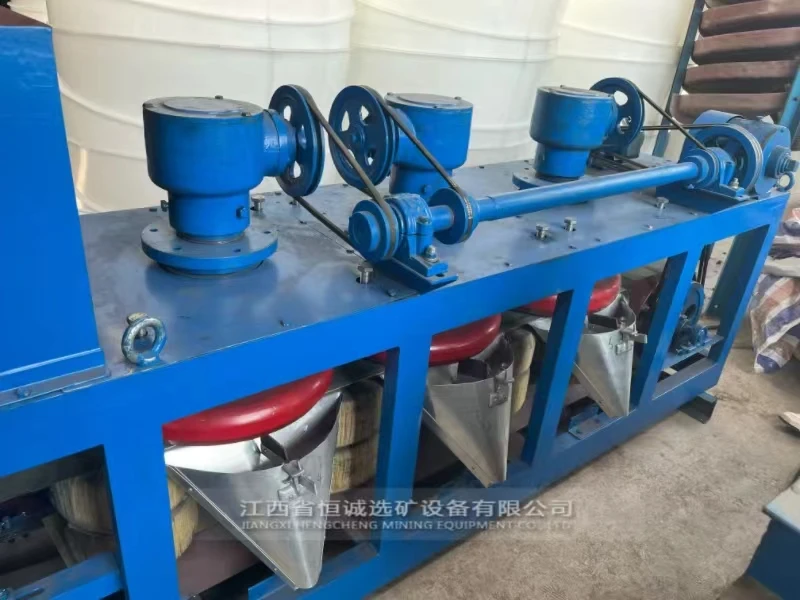

3PCS Disk dry magnetic Separator transfer the material by the conveyor under the disks.

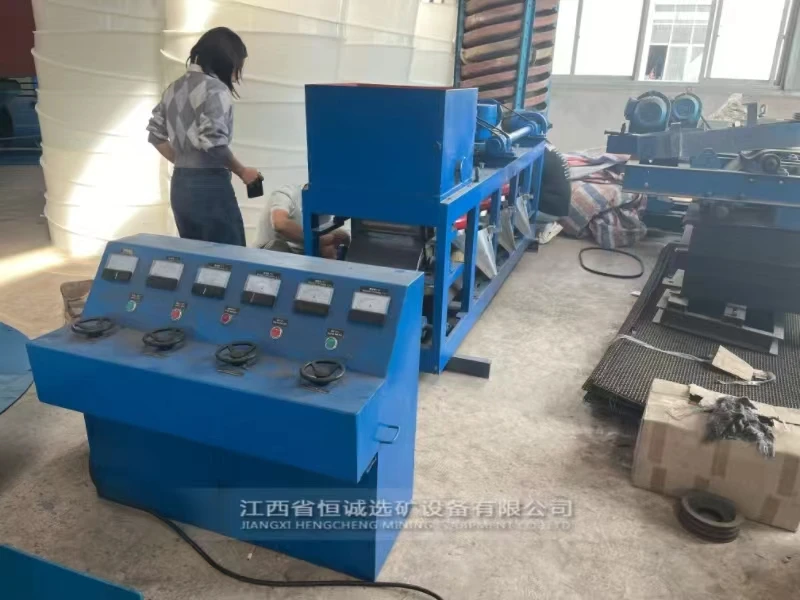

Cross belt dry magnetic Separator has 3PCS Disk & 4 group electromagnetic coils, make 0-20000 gauss adjustable.
SIMILAR PRODUCTS
PRODUCT SPECIFICATIONS
Model | CM3-500 Belt type | CM3-600 Belt type | CM3-500 rare earth |
Magnetic Intensity | 2 mm from the ground tooth plate 1700 mSv | 2 mm from the ground tooth plate 1800 mSv | 2 mm from the ground tooth plate 2000 mSv |
Disc Qty. | 3pcs | 3pcs | 3pcs |
Disk Dia. | 500mm | 600mm | 600mm |
Speed | 25-40r./min | 22-38r./min | 22-38r./min |
Power | 380v/3 phase/4 wires | 380v/3 phase/4 wires | 380v/3 phase/4 wires |
Exciting coil | 4sets | 4sets | 4sets |
Motor Power | Y112M-6 1.1KW | Y112M-6 2.2KW | Y112M-6 1.5KW |
Exciting power | 1.1KW | 2.2KW | 1.5KW |
coil temperature | 65°c | 65°c | 65°c |
rated coil current | 1.2-1.9A | 1.2-1.9A | 1.2-1.9A |
Duty-rating | Continuous | Continuous | Continuous |
Feeding width | 210mm | 300mm | 300mm |
Feeding size | ＜2mm | ＜2mm | ＜2mm |
Dimension | 3100×800×1220mm | 3150×900×1250mm | 3150×900×1250mm |
Capacity | 100-500kg/h | 120-800kg/h | 80-800kg/h |
Gross weight | 1900kg | 2200kg | 2300kg |

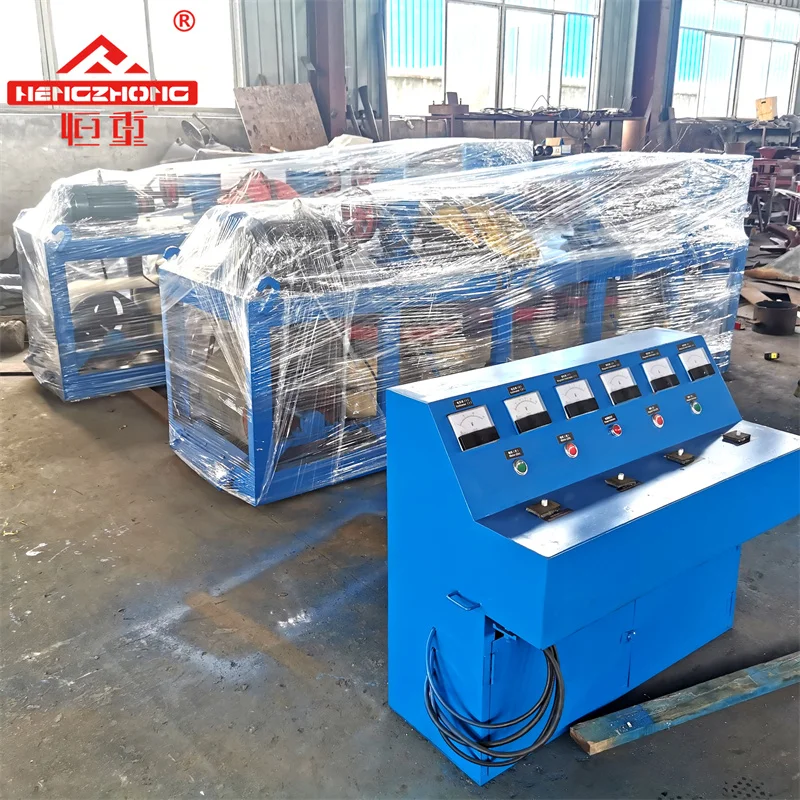

Product packaging
1. All the goods will be delivered in 15-30 working days after receiving payment.
2. The machine will be packed in an export container.
3. Motors and small parts will be packed in new strong wooden cases that are suitable for long-distance ocean transportation.
4. We promise that your goods will be shipped to your destination timely and safely.
2. The machine will be packed in an export container.
3. Motors and small parts will be packed in new strong wooden cases that are suitable for long-distance ocean transportation.
4. We promise that your goods will be shipped to your destination timely and safely.
