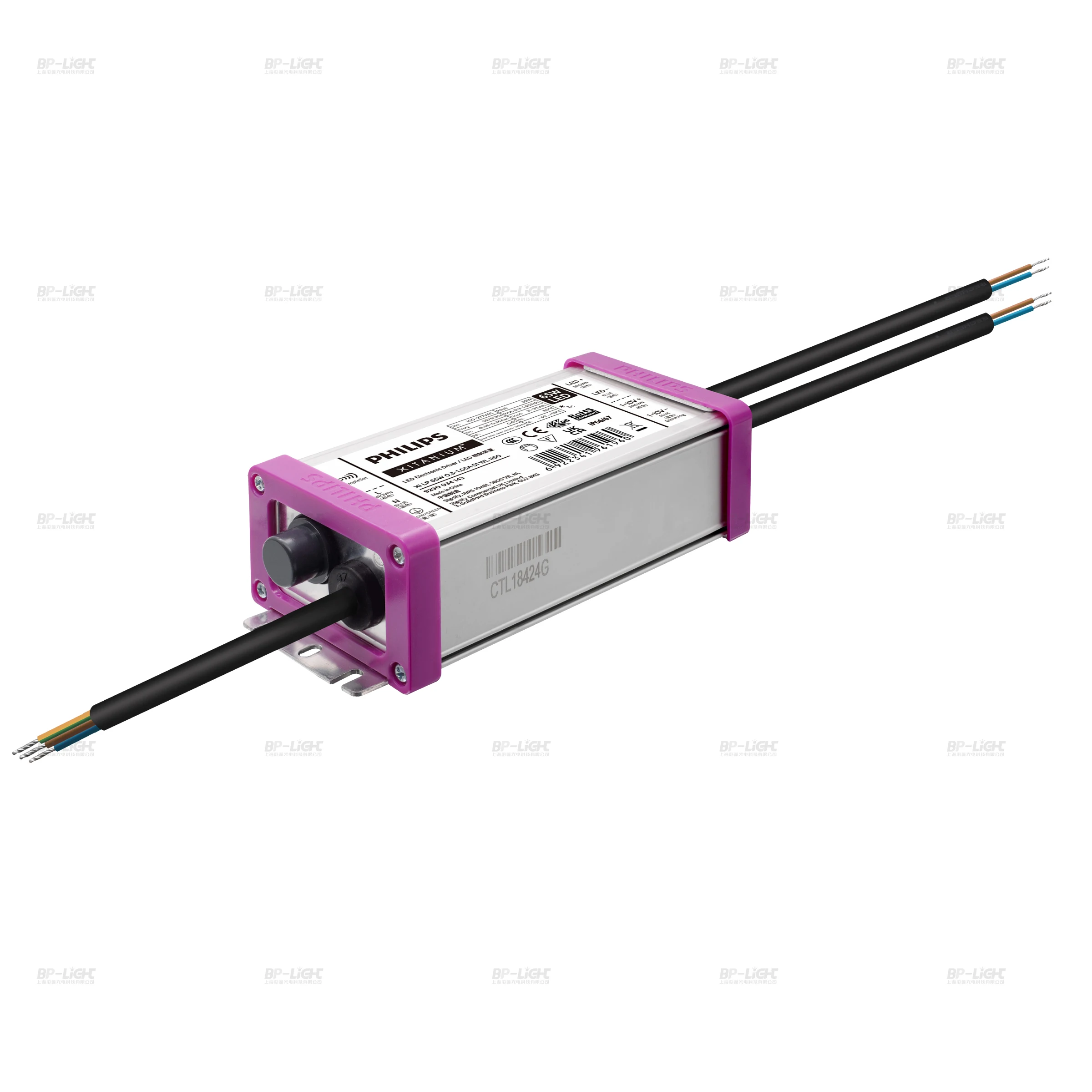

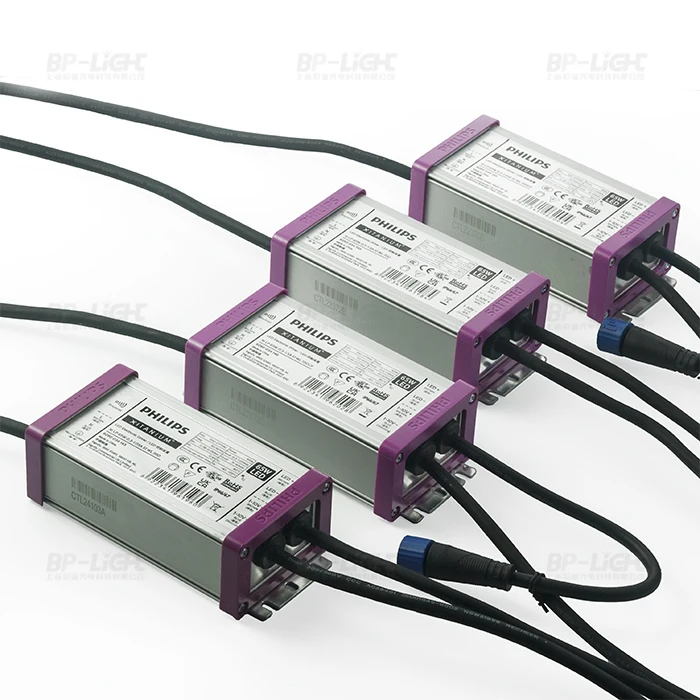

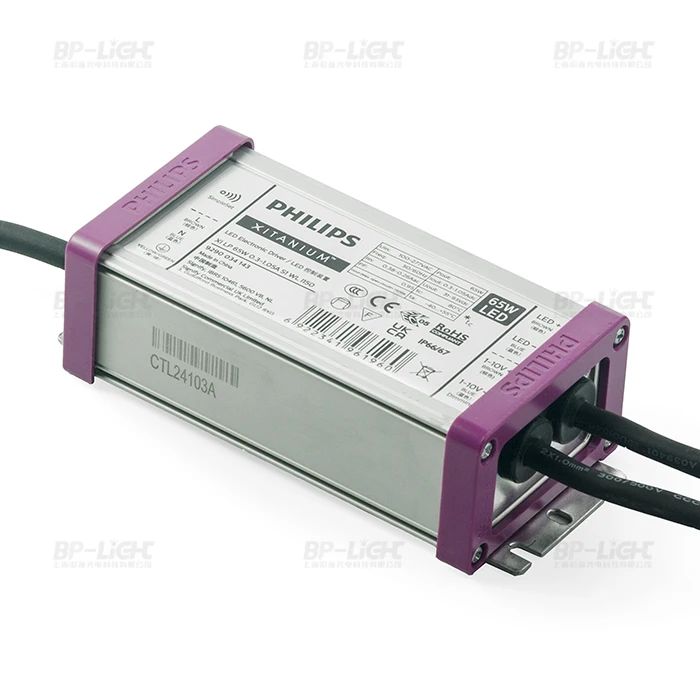

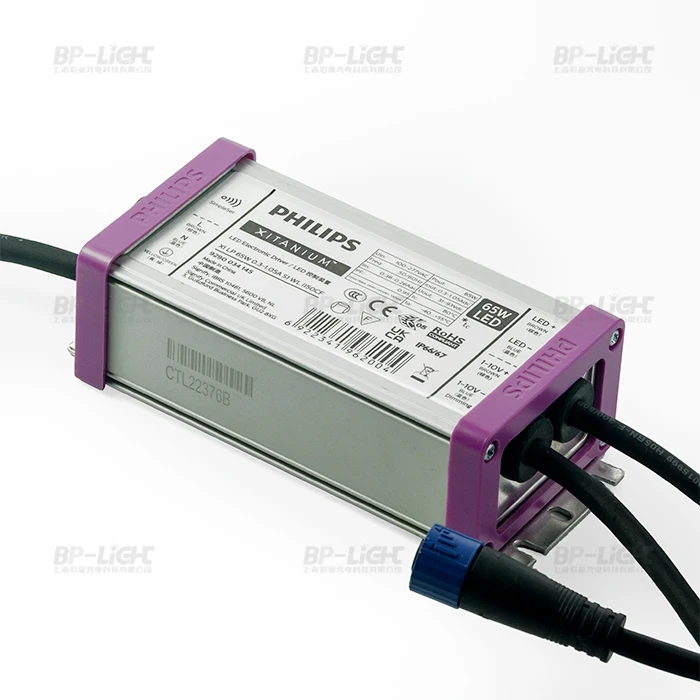

Xitanium LITE Prog LED drivers Independent
Xi LP 65W 0.5-1.5A S1 WL I150 929003414480

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades.
In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.



Benefits.

• Ultimate robustness, offering peace of mind and lower maintenance costs
• Long lifetime and high survival rate
• Energy savings through high efficiency
• Balanced configurable feature set covering the most common applications
• Superior thermal management
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications



Features.

• SimpleSet®, wireless configuration interface
• H igh surge protection
• L ong lifetime and robust protection against moisture,
vibration and temperature
• Configurable operating windows(AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection



Application.

• Residential areas
• R oad and street lighting
• A rea and flood lighting
• T unnel lighting
• H igh-bay lighting









Datasheet


Electrical Input data



Specification item
Value
Unit
Condition
Rated input voltage range
202...254
Vac
Performance range
Rated input voltage
230
Vac
Rated input frequency range
47...63
Hz
Performance range
Rated input current
0.3
A
At rated output power at rated input voltage
Max. input current
0.39
A
At rated output power at minimum performance input voltage
Rated input power
75
W
At rated output power at rated input voltage
Power factor
≥ 0.95
At rated output power at rated input voltage
Total harmonic distortion
≤ 10
%
At rated output power at rated input voltage
EPciency
≤ 88
%
At rated output power at rated input voltage
Input voltage AC range
85...305
Vac
Safety operational range
Input frequency AC range
45...66
Hz
Operational range
Isolation Input to Output
Basic


Electrical Output data



Specification item
Value
Unit
Condition
Regulation method
Constant Current
Output voltage
21...62
Vdc
Output voltage max
100
V
Peak voltage at open load
Output current
0.5...1.5
A
Full output current setting
Output current min programmable
500
mA
Output current min dimming
105
mA
Output current tolerance
± 5
%
Output current ripple LF
≤ 4
%
Ripple = peak/average at ≤1KHz
Output current ripple HF
≤ 15
%
Output power
2.5...65
W
Full output


Electrical Data Control Input



Specification item
Value
Unit
Condition
Control method
1-10
V
Default: 1-10V.
Optional: reversed 1-10V, reversed 0-5V
10...100
%
1-9V
Dimming range
10...100
%


Operational temperatures and humidity



Specification item
Value
Unit
Condition
Ambient Temperature
-40 ... +55
°C
Higher ambient temperature allowed as long
as Tcase-max is not exceeded
-40 ... +65
°C
Tcase-max
80
°C
Maximum temperature measured at Tcase-point
Tcase-life
70
°C
Measured at Tcase-point
Maximum housing temperature
90
°C
In case of a failure


Lifetime



Specification item
Value
Unit
Condition
Driver lifetime
50,000
hours
Measured temperature at Tcase-point is Tcase-max.


Programmable Features



Specification item
Value
Remark
Condition
Set output current (AOC)
SimpleSet
See Design-in guide
Default output current: = 700 mA
Constant Lumen Over Lifetime (CLO)
Yes
1-10V DIMMING
Yes
Diagnostics
Yes
Dynadimmer
Yes
Ampdim
Yes


Features



Specification item
Value
Remark
Condition
Open load protection
Yes
Automatic recovering
Short circuit protection
Yes
Automatic recovering
Over power protection
Yes
Automatic recovering
Hot wiring
No
Over temperature protection driver
Yes
Automatic recovering
Overheating protection
Yes
Automatic recovering
Input over-voltage
Yes
320Vac at 48hrs
Suitable for fixtures with protection class
I
per IEC60598


Packing & Delivery


Packaging
Size
36*21.5*20 cm
Weight
11kg



Packaging Details
Led Drivers and modules: Philips original carton packing with MOQ.( 16pcs in one carton.)

Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.


Our Company


Shanghai Bipeng Lighting Limited Company is the core distributor of Philips professional lighting products. We mainly focus on LED Drivers and Modules, LED lights which are mainly applied on roads and Industry factories. Each product catalog is composed of over hundreds of product code.

We can offer out standing lighting solutions, depending on our high efficiency management team and strong technician team. Through these years' efforts, we have been recognized and appreciated by many clients coming from mainland,southeast Asia,Europe and America market.

We promise to provide our clients with high quality products and services. At the same time, we have been working with excellent Surge protective device Manufacturer- CITEL and LED dimming Products Manufacturer -EUCHIPS.






FAQ



Q1. Are you Philips Authorized agents?
A:Yes, we can offer Philips Authorized Certificate.

Q2: What's your main products?
Led Drivers and modules. Road Light, Street Light and Highbay Lights.
We still can offer one step lighting Solution, depending on good cooperation relation with China(mainland) Lighting Manufacturers.

Q3. How about the delivery time ?
LED driver and modules Sample: 5-7days
LED driver and mudules Bulk Order: need recheck with us, usually 30-40 days.
LED Lights(sample& Bulk Order): need recheck with us, usually 30-40 days.

Q4. What is the Transaction terms ?
A: Samples: Cash before shipping.
B: Bulk Order: 50% in advance(deposit), 50% of the balance should be paid before shipping.

Q5. How is the Logistics and Transportation time ?
A Samples: International Express Service- DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
B.Bulk order : Airline and Sea shipping are available. Transportation time: need recheck with logistic company.

Q6. Do you have a minimum order?
Bulk order: Philips Original MOQ Packing(usually, 10pcs -12pcs in one carton).

Q7: How Long is the Quality assurance Time?

Philips Official Quality Assurance Time(Usually, 3-5years depend on products.)
