K726 GNSS OEM Board

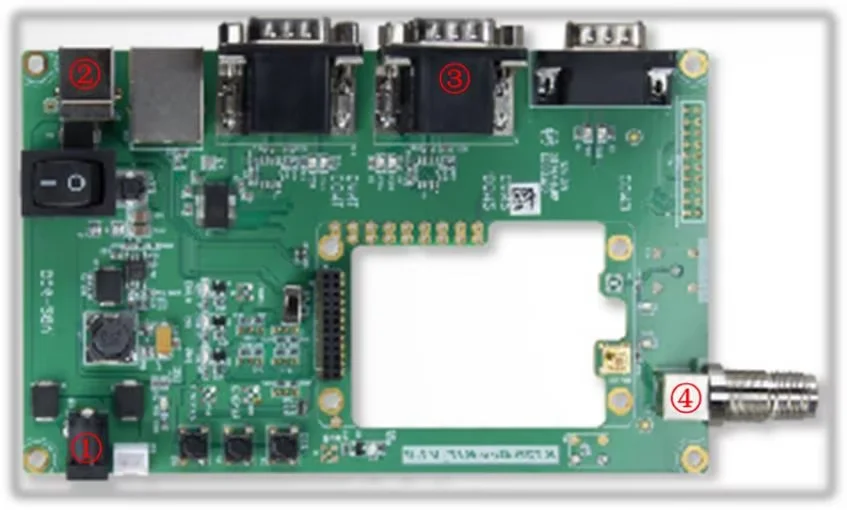

This interface board is a mother board for K7 series OEM board and K8 series card version module. The following picture shows interface board.
Designed for testing performance
1 External DC power supply, 6V-28V
2 USB power supply, 5V
3 Serial ports
4 Antenna connector
1 External DC power supply, 6V-28V
2 USB power supply, 5V
3 Serial ports
4 Antenna connector
Installation Guidelines

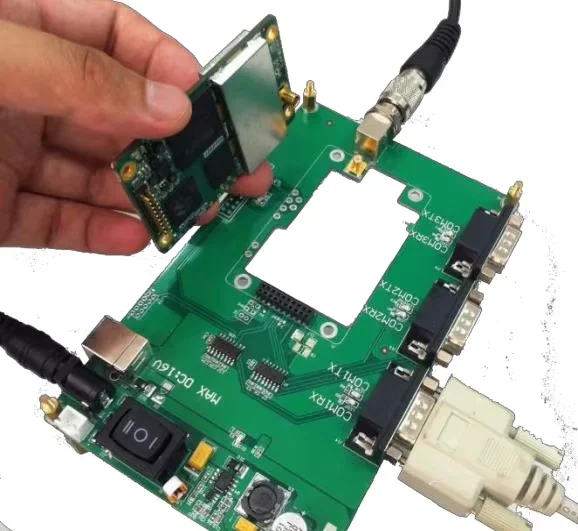

Install the K-series OEM board and K8 series card version module with ComNav interface board.
* Fix the PIN and RF connection to the interface board properly
* Ensure 100% fitting for all connections
* Firstly, unplug the PIN out when uninstalling the OEM cards
* Fix the PIN and RF connection to the interface board properly
* Ensure 100% fitting for all connections
* Firstly, unplug the PIN out when uninstalling the OEM cards
Connect the GNSS antenna through a coaxial cable. When mounting the antennaPower supply

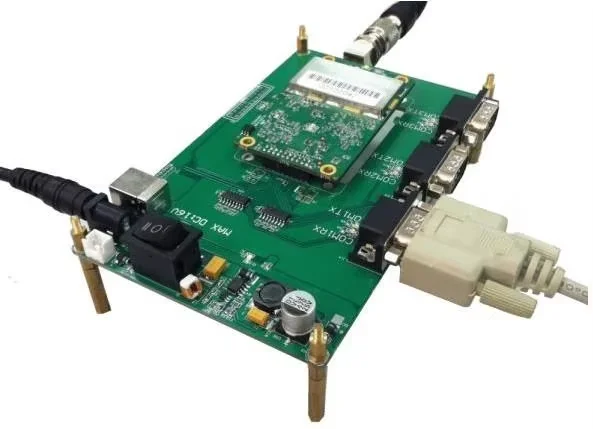

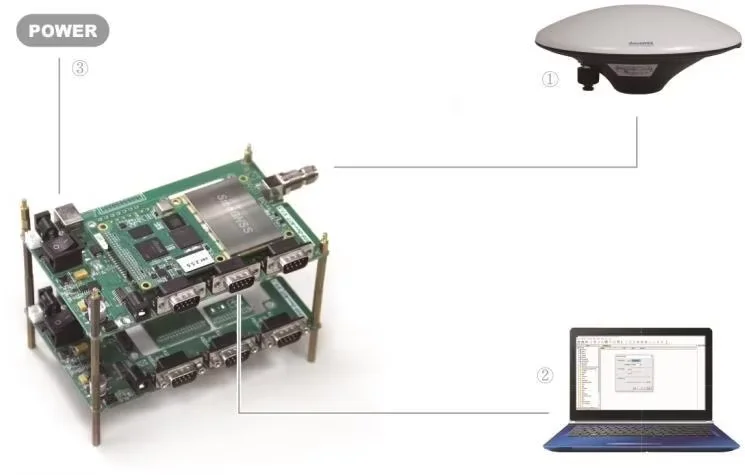

Connect to your PC or data communications equipment as the picture below

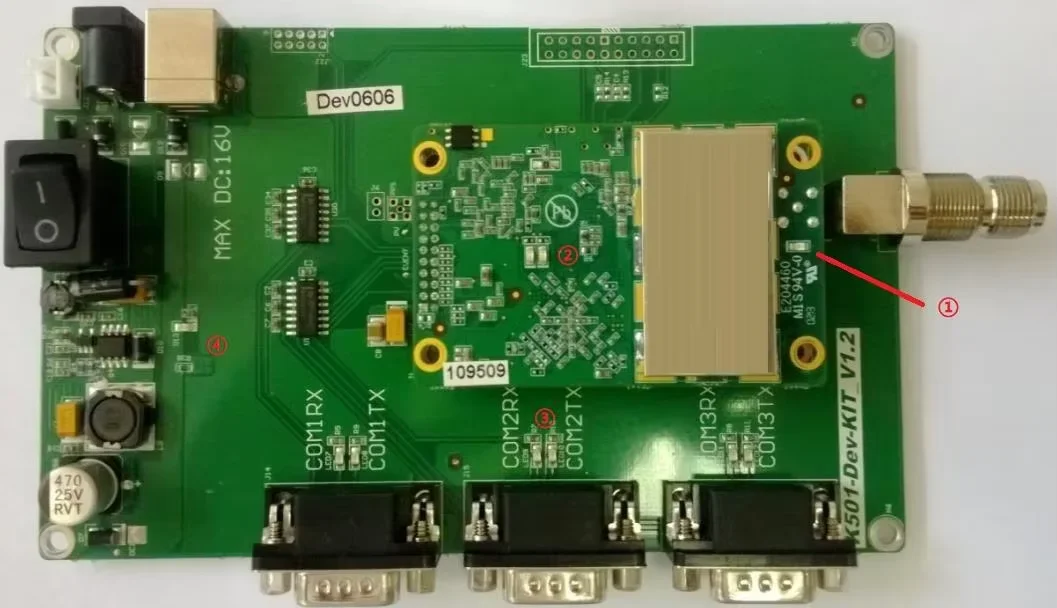

There are LED indicators helping you to check status of K-series OEM board.
1. Power indicator of OEM board
2. LED indicators of satellites and correction data
3. LED indicators of serial ports
4. Power indicator of Interface board
2. LED indicators of satellites and correction data
3. LED indicators of serial ports
4. Power indicator of Interface board
