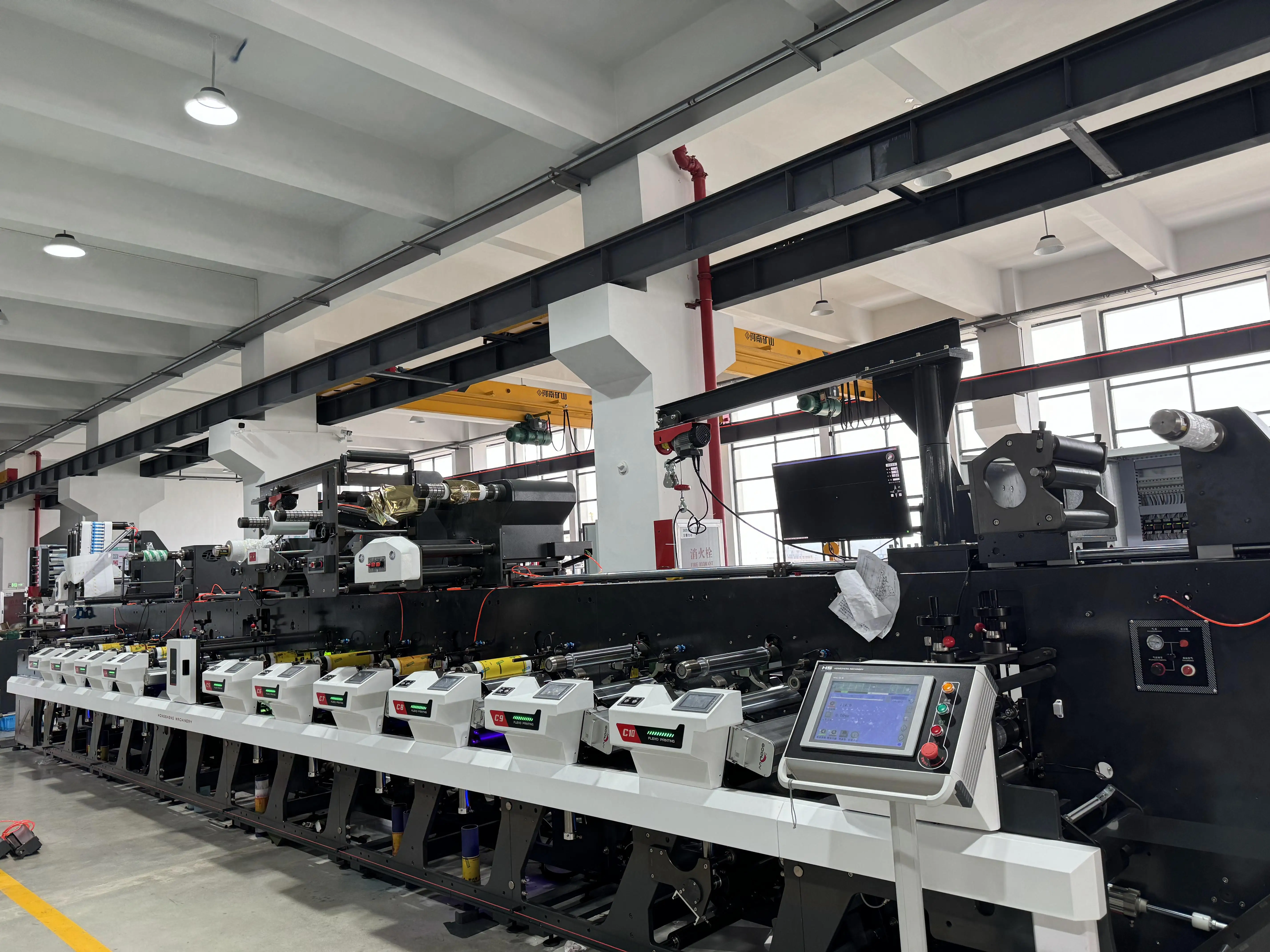

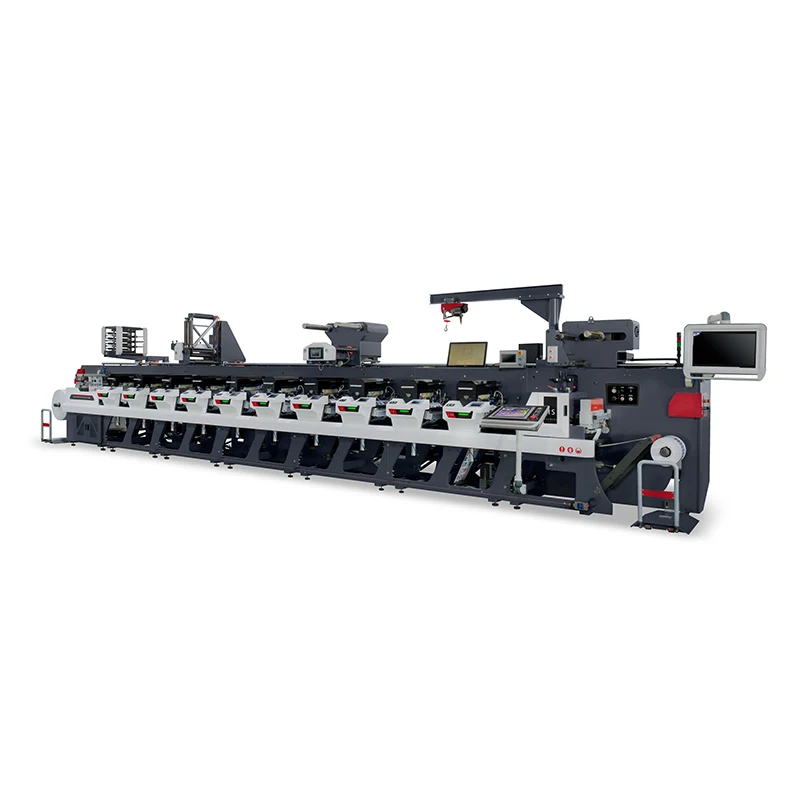

Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
Flexo Printer Machine Label Printer Roll Flexo Press Machine Supplier From China Buy Label Printer Roll Flexo Press
- Category: >>>
- Supplier: Ruian Mosun Machinery Co. Ltd.
Share on (1601270218947):
Product Overview
Description
Product Appearance
Application
Products Description
Model | MSRY-S |
Max. Printing Speed | 200m/min |
Max. Printing Width | 360mm/450mm |
Max. Web Width | 370mm/460mm |
Max. Unwind Diameter | 1050mm |
Max. Waste Diameter | 900mm |
Max. Repeat Length | 241-610mm [76T-192T] |
Loading Method | Sleeve |
Horizontal Overprint Adjustment | Motor Driven |
Vertical Overprint Adjustment | Servo Driven |
Color Pre-register | Semi-Automatic |
Fast Changing Ink System | Ink Swift Change |
Hot Air | Optional |
Cold Foil （movable) | Optional |
Turn Bar （movable) | Standard |
Related Products
Details Images
Characteristic
1、The Sflex press is our newest machine which aimed to produce high quality label,it is suitable for printing with film material， Aluminium material ,all paper material .
2、This machine with compact size and short web path keeps wastage of material
3、The Printing roller adopts sleeve system without gear which is light , easy , convenient and fast to exchange , this design largely improves the printing quality and reduces the maintenance
4、The anvil roller equips with water chiller ,it’s good for film material as well
The full machine adopt all servo motor , each printing unit has double servo motors ,one is for sleeve cylinder, the other is for the impression roller which is also as a cooler roller .
2、This machine with compact size and short web path keeps wastage of material
3、The Printing roller adopts sleeve system without gear which is light , easy , convenient and fast to exchange , this design largely improves the printing quality and reduces the maintenance
4、The anvil roller equips with water chiller ,it’s good for film material as well
The full machine adopt all servo motor , each printing unit has double servo motors ,one is for sleeve cylinder, the other is for the impression roller which is also as a cooler roller .
Main components
1. Servo drivers
2. Servo motors
3. Simpo reducer
4. MCGS Touch screen
5.LED UV or ARC UV
6.Corona treater
2. Servo motors
3. Simpo reducer
4. MCGS Touch screen
5.LED UV or ARC UV
6.Corona treater
7.Dust remove
8.Datelogic color sensor
9.Airtac cylinder 10.Auto web guiding
11.Merobel tension sensor 12.Sleeve plate roller
13.Ceramic anilox
13.Ceramic anilox
Cold Stamping Device
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

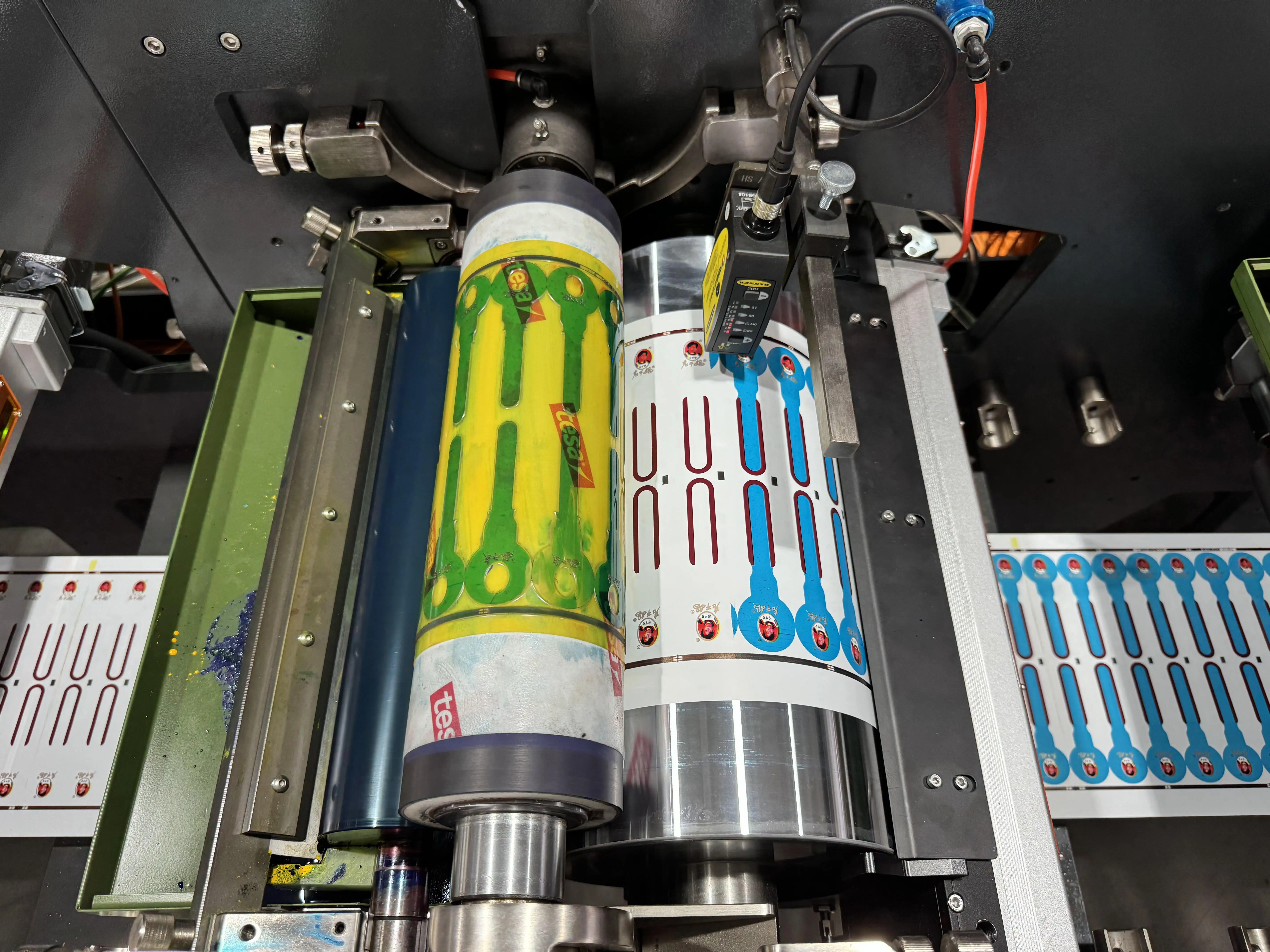

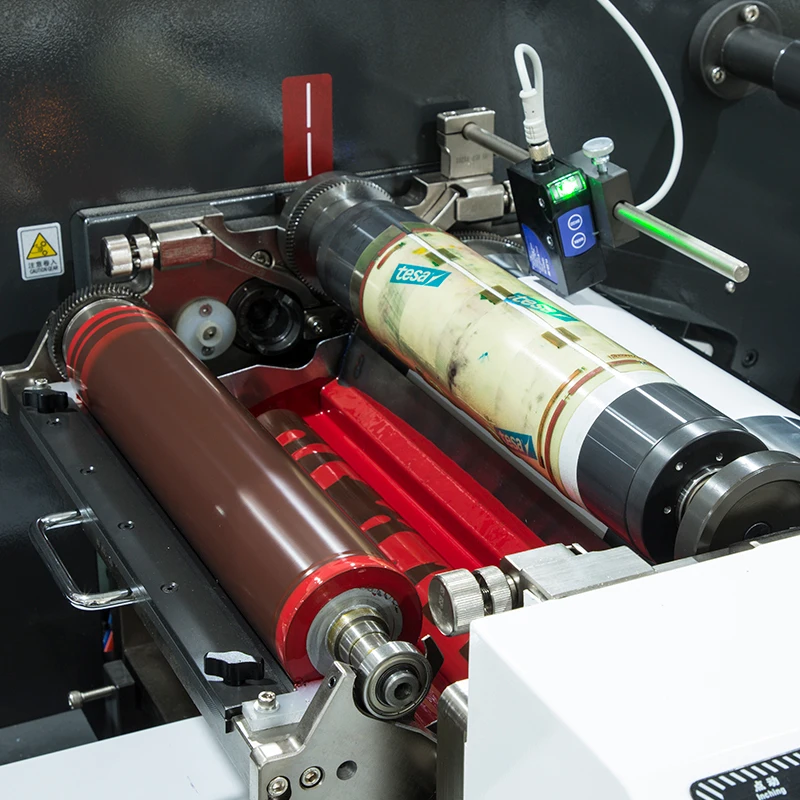

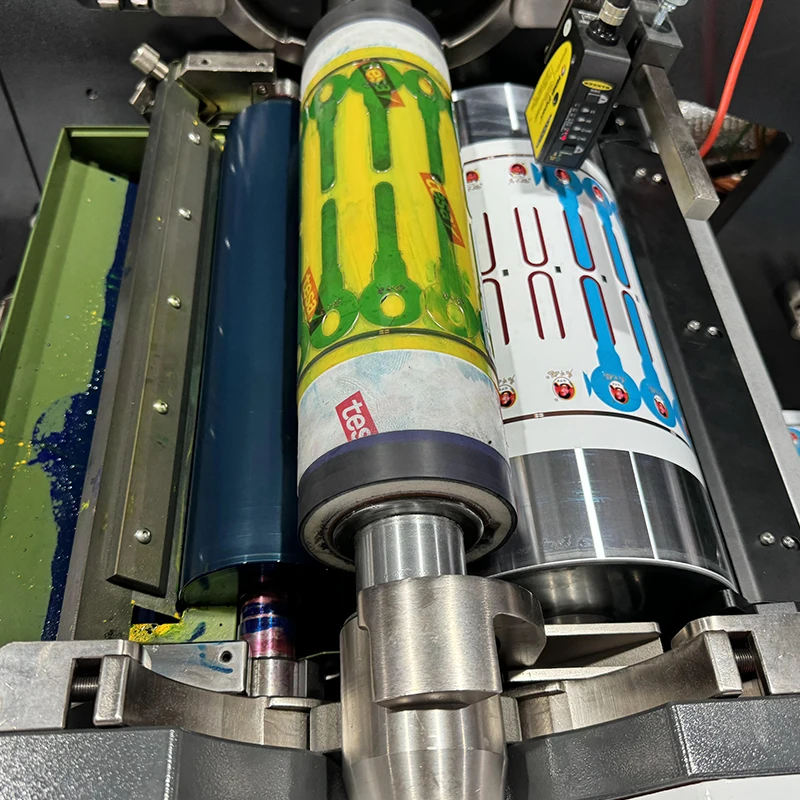

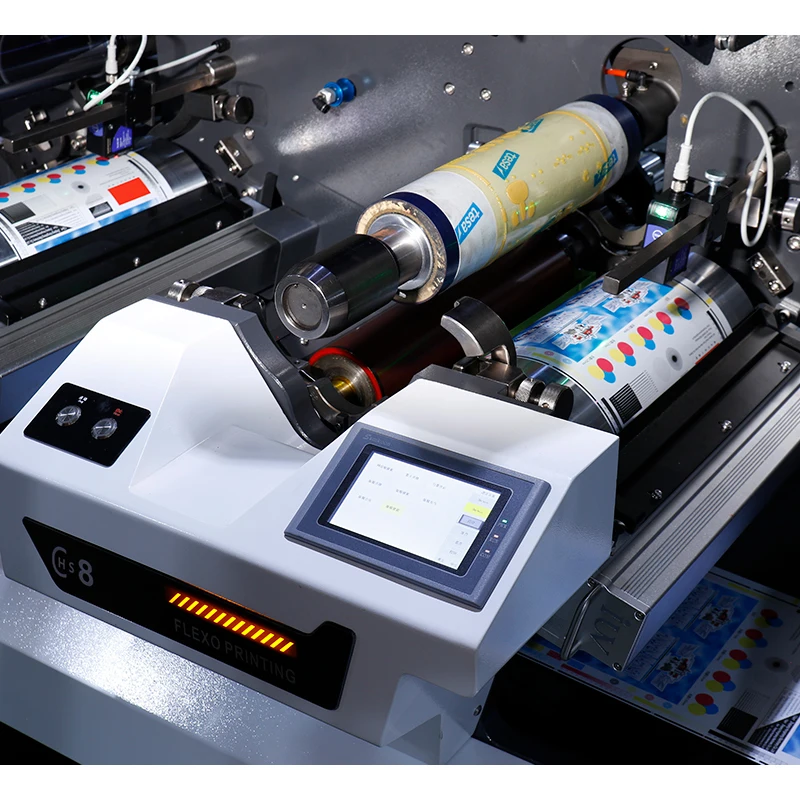

Printing System
--Super Flexo Printing unit
--Printing cylinder is controlled by independent driven motor
--Printing cylinder with sleeve style ,is light and easy to exchange
--Printing plate :plates mounted on the sleeve
--The impression roller is also the waster chiller roller as 195mm for the diameter,and driven by independent servo motor directly and it can print the plastic film well
--Automatic cooling circulatory system : The material can be cooled at the same time when we are making the printing that have more efficiency even run with shrink material
--Pre-registration is controlled by servo motor ,and the motor will calculate automatically when you input the printing length in the main touch screen , the printing sleeve will go to the corresponding position base on the zero point on the sleeve
--Fine registration should be adjusted on the touch screen
When you do the correct color register, then open the register sensor to read the printing mark and the machine can do automatic tracking registration always.
--Operation panel on each unit for fine adjustment with self-locking function
--Fine pressure adjustment for the bearer
--The pressure among the anilox roller ,printing plate and material will be fine adjusted by bearer , it can be operated easily by small HMI

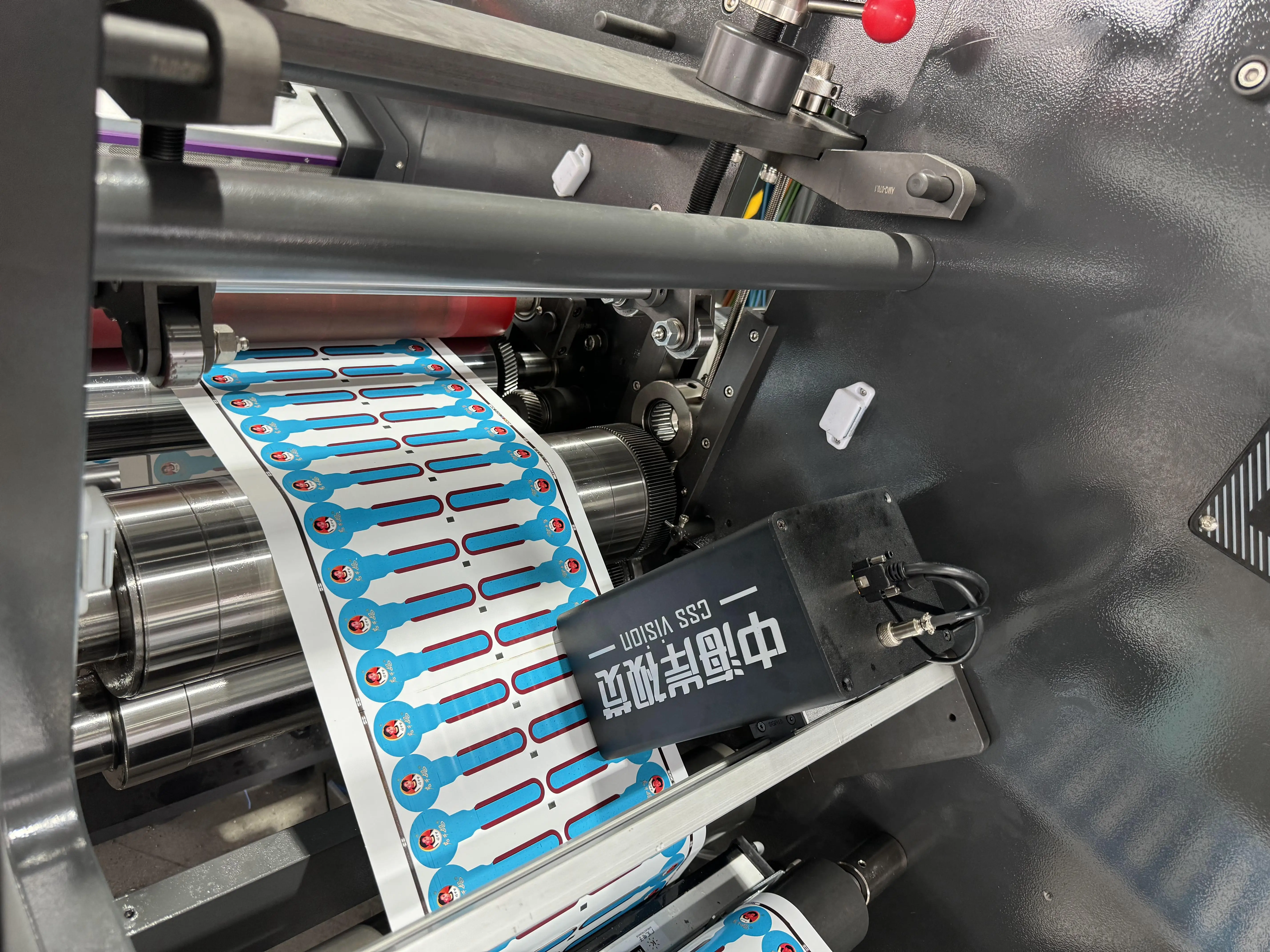

--Second Pass by registration sensor
-- Easy take off anilox roller
--Easy take off ink tray ,auto Up/Down

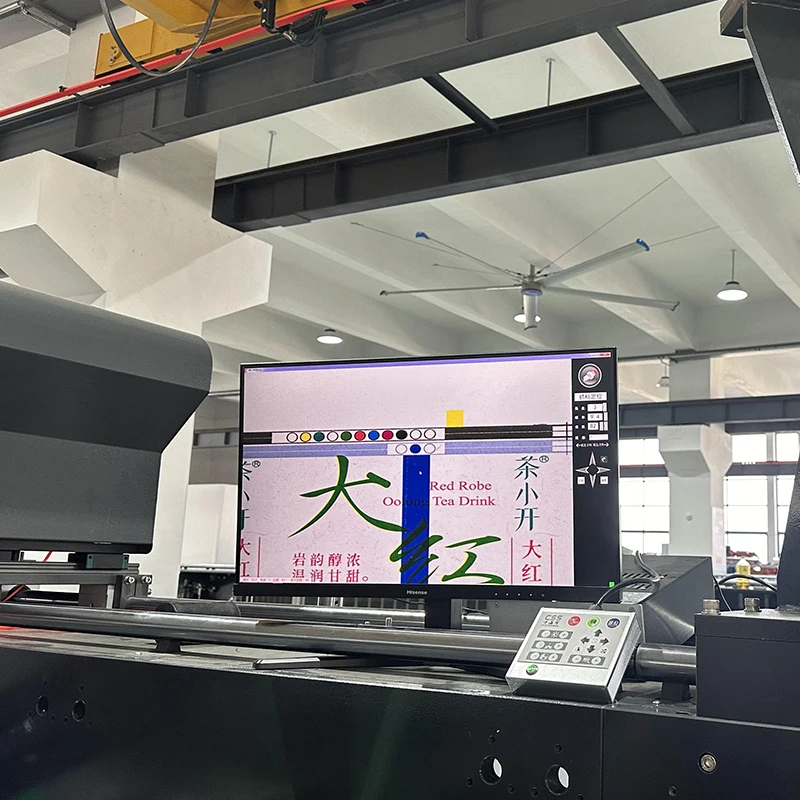

--Every printing unit has its own HMI and Main HMI for whole machine
--Printing cylinder is controlled by independent driven motor
--Printing cylinder with sleeve style ,is light and easy to exchange
--Printing plate :plates mounted on the sleeve
--The impression roller is also the waster chiller roller as 195mm for the diameter,and driven by independent servo motor directly and it can print the plastic film well
--Automatic cooling circulatory system : The material can be cooled at the same time when we are making the printing that have more efficiency even run with shrink material
--Pre-registration is controlled by servo motor ,and the motor will calculate automatically when you input the printing length in the main touch screen , the printing sleeve will go to the corresponding position base on the zero point on the sleeve
--Fine registration should be adjusted on the touch screen
When you do the correct color register, then open the register sensor to read the printing mark and the machine can do automatic tracking registration always.
--Operation panel on each unit for fine adjustment with self-locking function
--Fine pressure adjustment for the bearer
--The pressure among the anilox roller ,printing plate and material will be fine adjusted by bearer , it can be operated easily by small HMI
--Second Pass by registration sensor
-- Easy take off anilox roller
--Easy take off ink tray ,auto Up/Down
--Every printing unit has its own HMI and Main HMI for whole machine

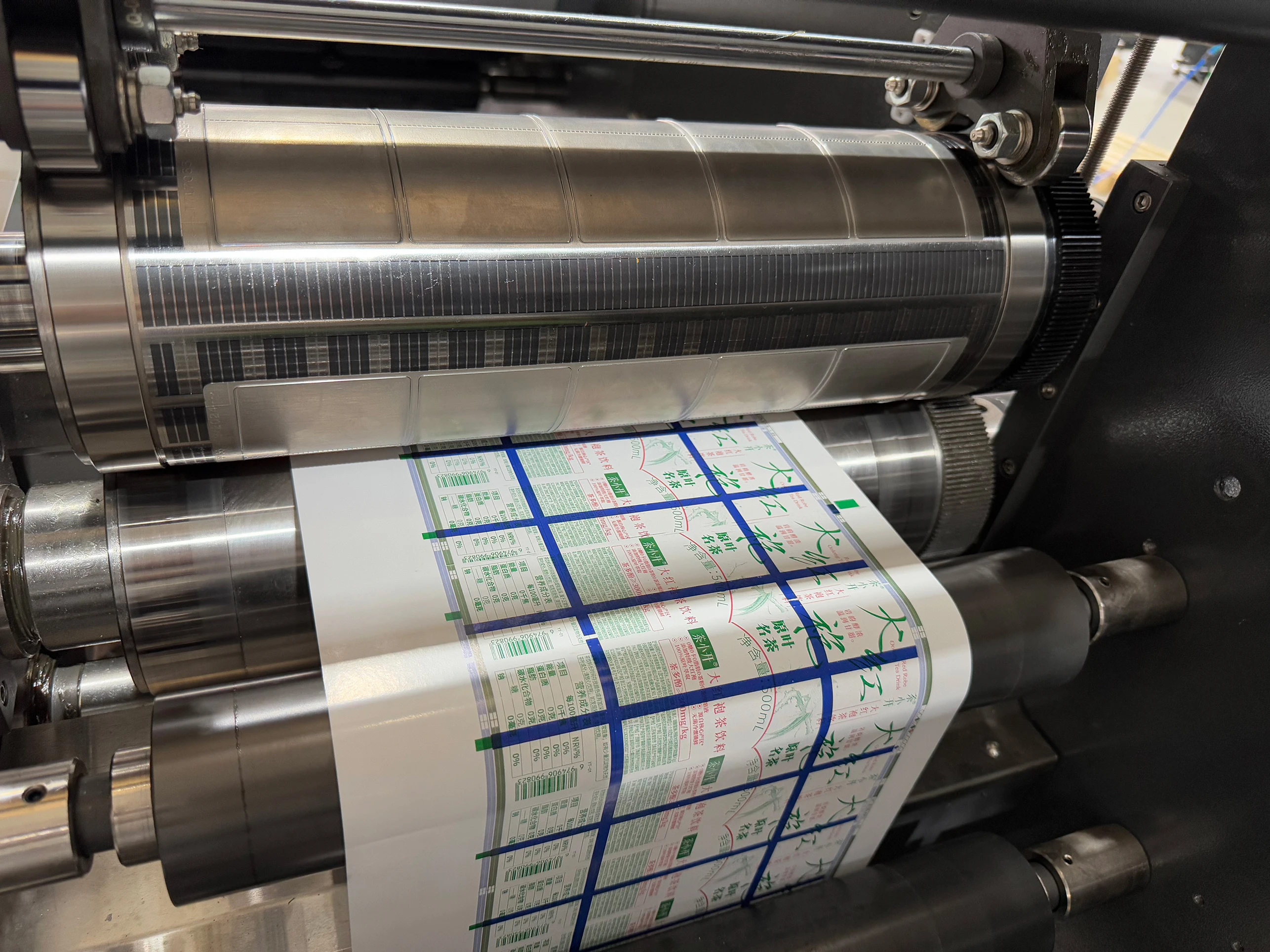

Rotary die cutting
-- 1 set of die cutting station
-- total 3 rollers die cutting system,can finish the job with front or back side of the web by changing the anvil roller and magnetic roller
--A crane assembled near the die cutting station to load and unload the magnetic cylinder
-- total 3 rollers die cutting system,can finish the job with front or back side of the web by changing the anvil roller and magnetic roller
--A crane assembled near the die cutting station to load and unload the magnetic cylinder
Company Profile
SERVICE AND WARRANTY
Marketing & Technical Service Center Technical Training Professional operating engineers sent by GREAT is responsible for equipment installation and commissioning work at the same time, training for user operators.
The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.
Training Content:
All machines have been finished all adjustment and test in GREAT workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
Warranty:
13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.
Training Content:
All machines have been finished all adjustment and test in GREAT workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
Warranty:
13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
