Printing Parameters | ||

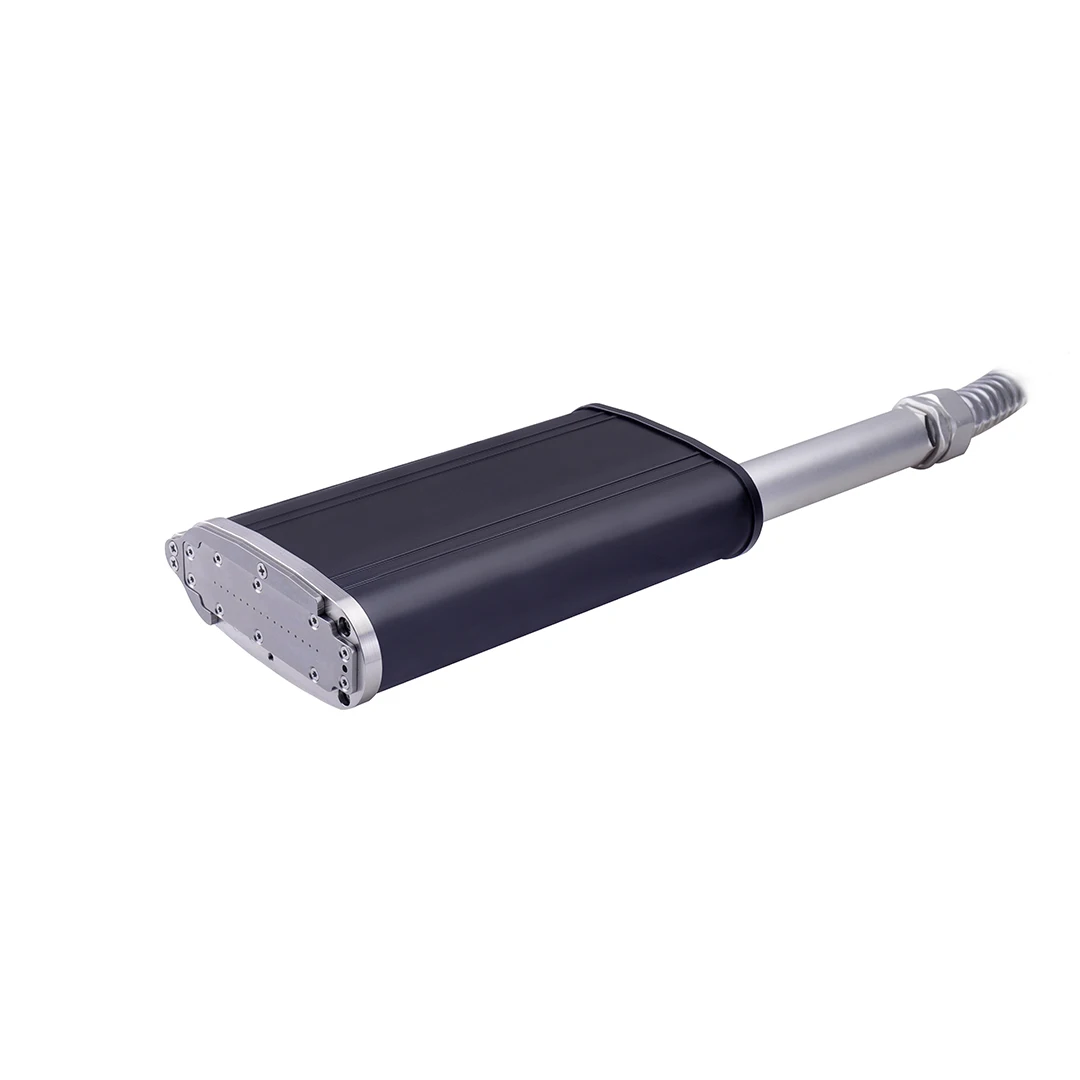

Print Head Duct | 3m/6m | |
Nozzle Specifications | 80u、120u、150u,180u | |
Printing Height | 7dots:5-28mm 16dots:5-64mm 32dots:5-128mm | |
Printing Distance | 3~30mm | |
Printing Lines | 1~4 lines | |
Printing Speed | 63m/min | |
Counter | More than 20 independent counters | |
Ink Color | Black, White, Blue, Green, Yellow, Invisible | |
Ink Type | MEK based ,Water based, Alcohol based. Acetonyl, Pigment | |
Font | 5x6L 7x6L 7x10L 9x8L 9x11L ; 11x11L 12x12L16x16L 24x24L 32x32L; 11x11B 12x13B 16x16B 24x24B 32x32B | |
Printing Material | Carton,Plastic.Metal, Boarding, Pipe. Stone. Glass, Electronic components, Industrial chemical packaging, Paint surface and other permeable andnon-perneable surface | |
Print Content | Text,Time, Date(ulian Year), Logo, Shift, SN, Dynamic Barcode/OR Code, Dynamic Serial Data, Dynamic Database(Additional content can be added as required) | |
Machine Parameters | ||
Operating System | Embedded Linux security operating system | |

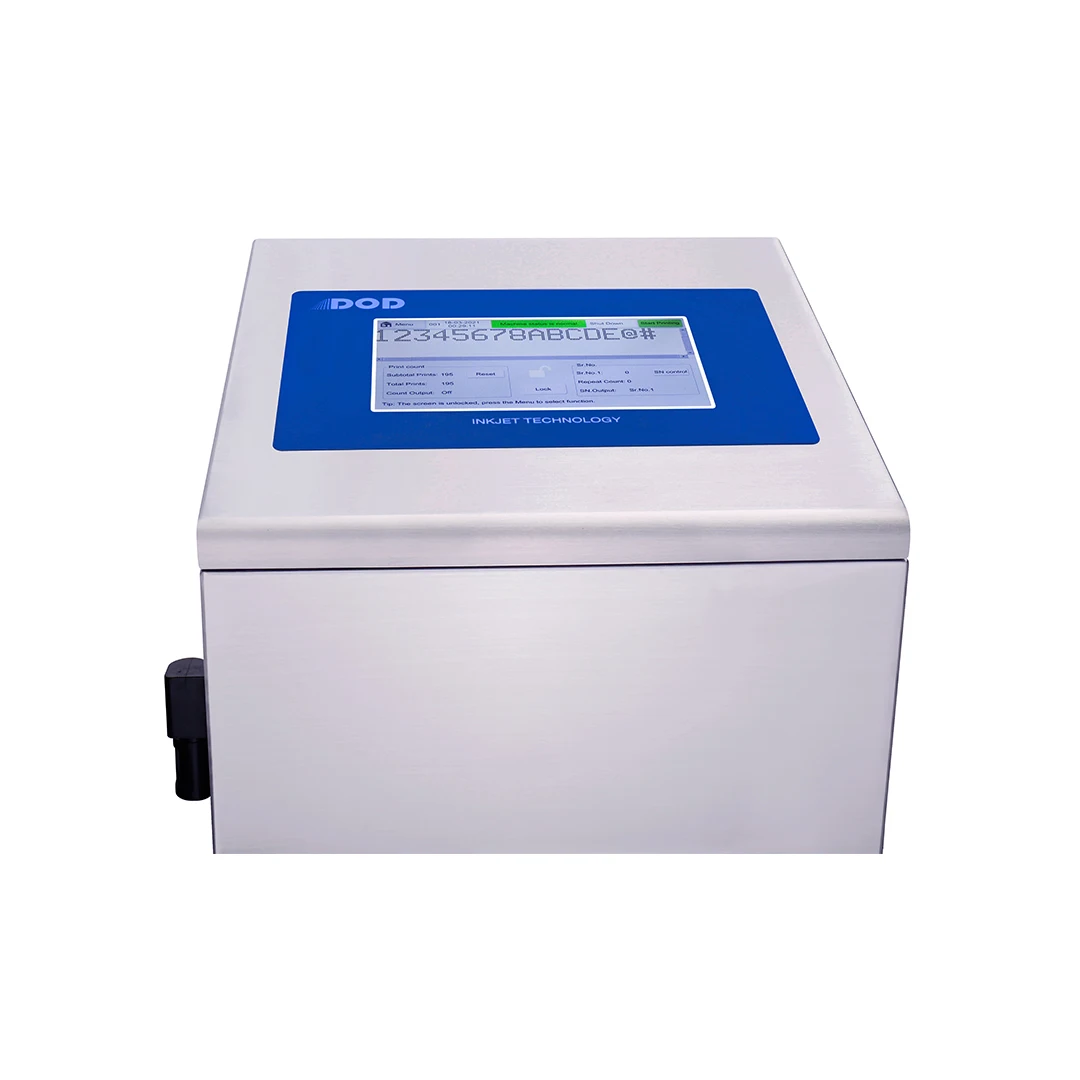

Display Screen | 7 inch color display, industrial touch screen | |
Communication Interface | Network port,USB, RS232 | |
Protection Level | IP65 | |
Power Parameters | Input 100-240V AC | |
Rated power | 150W | |
Memory | 256M | |
Machine Material | 304 stainless steel | |
Machine Specifications | 296mmx296mmx490mm(Length*width*height) | |
Working Environment | Temperature 0-45℃/ Humidity 30-70%Rh | |
Related Certification | CE、RoHS、CC | |
Net Weight | 16kg | |

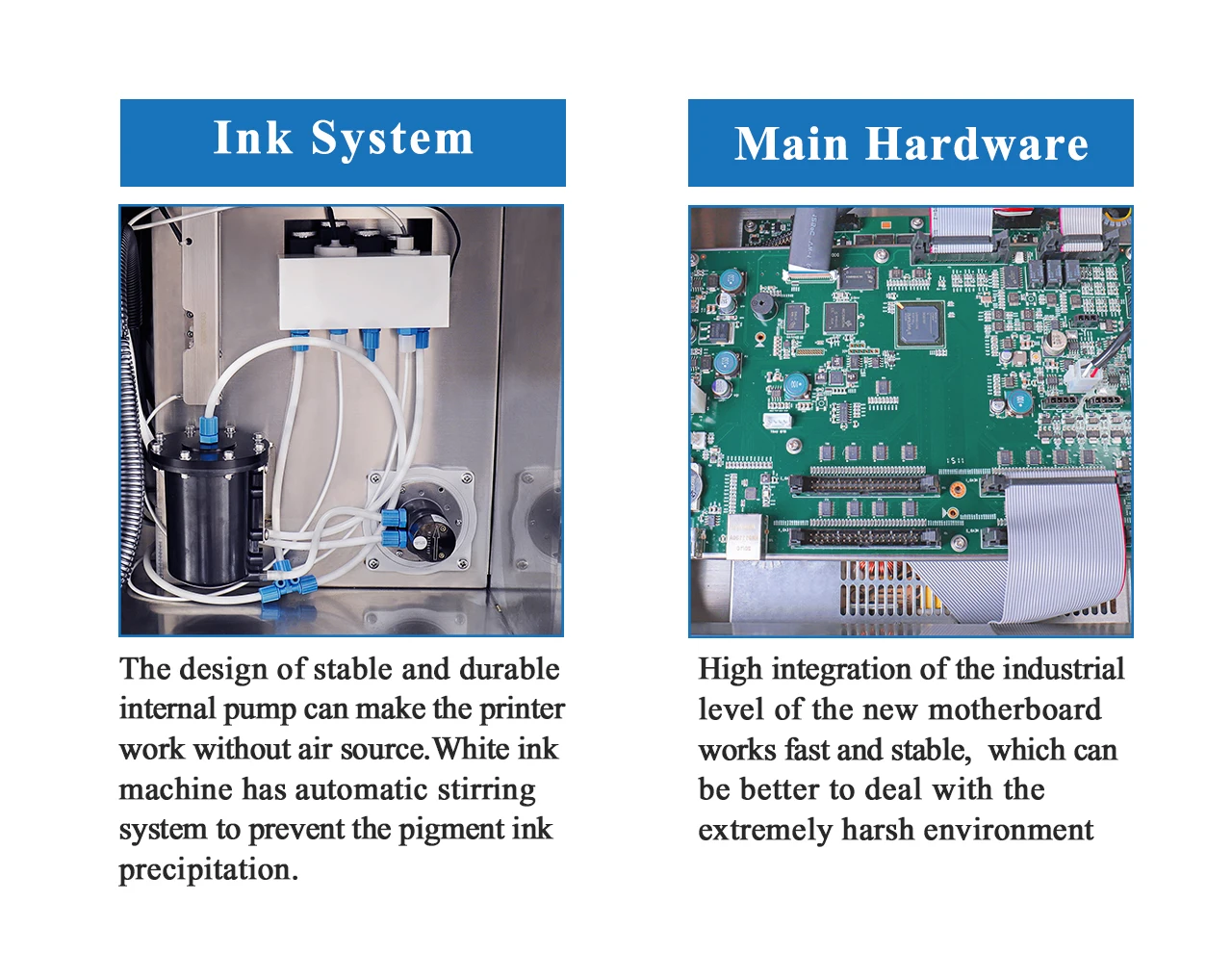

Main Hardware | American TI AM3358 industrial grade CPU,American Xilinx Spartan-6 industrial grade FPGA | |
Exteral Interface | Optical sensor, Encoder, Signal light alarm output,Serial number control and transport, External printing information selection and flipped | |
Support Language | Support more than 40 national languages ( Chinese English, Arabic,Danish, German, Russian, French,Finnish, Korean, Japanese, Spanish, Italian, etc.) | |
