Canal-forming Machine canal Lining Machine with U-shaped Groove
$6,099.00-6,699.00

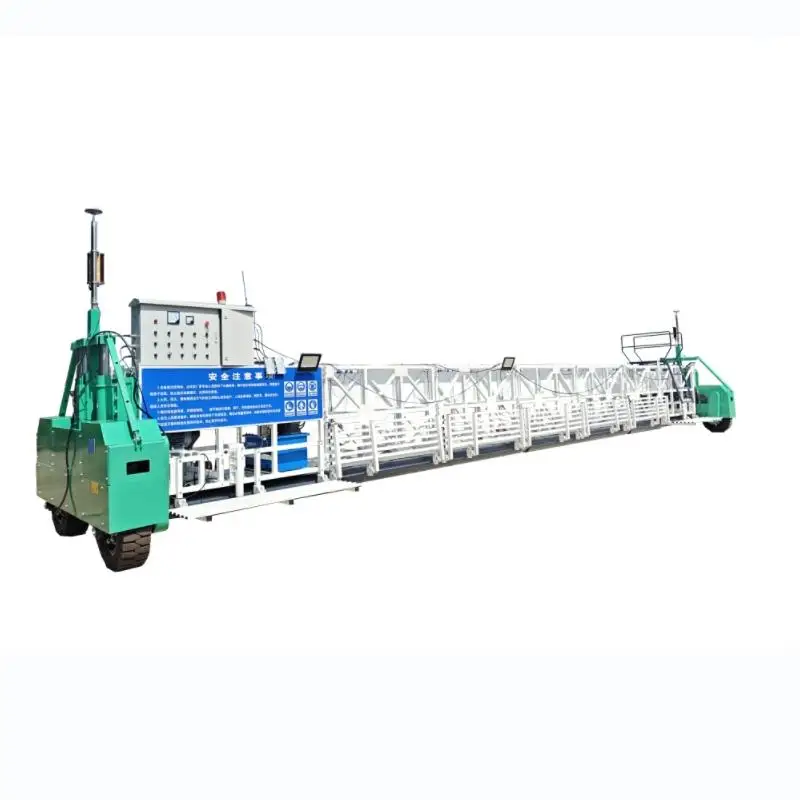

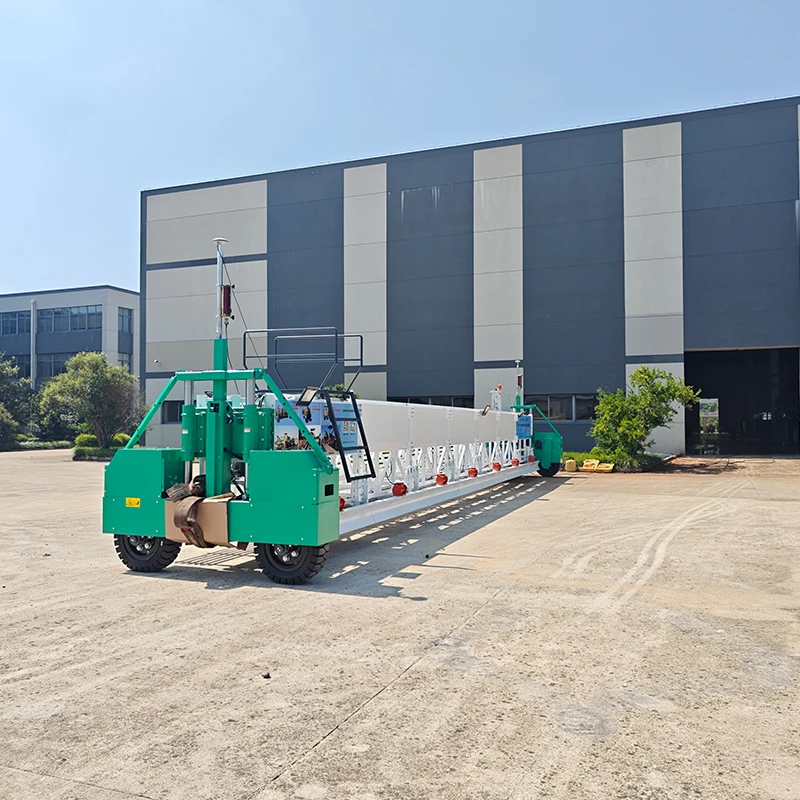

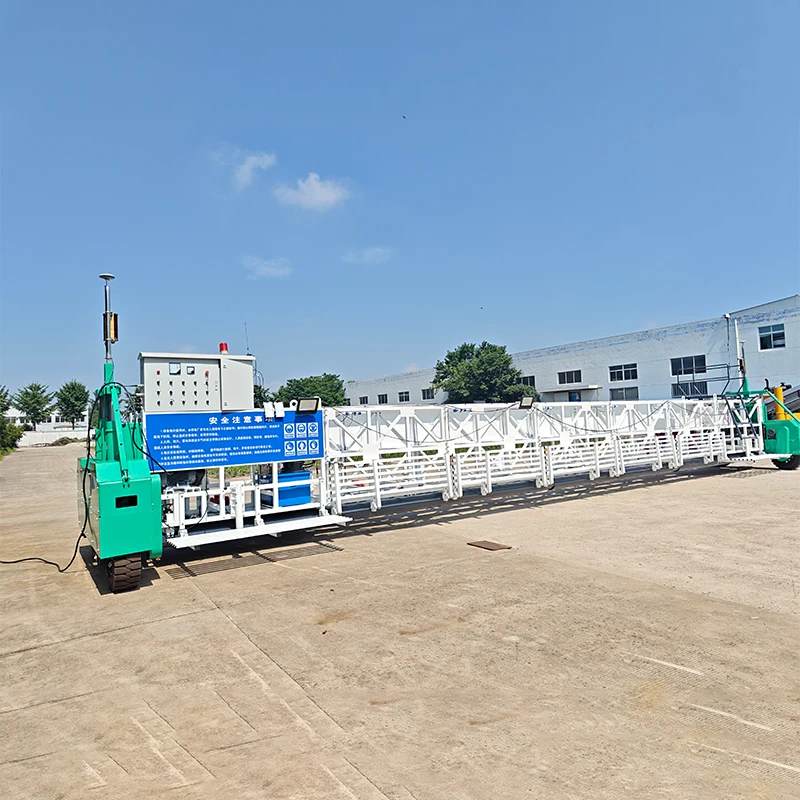

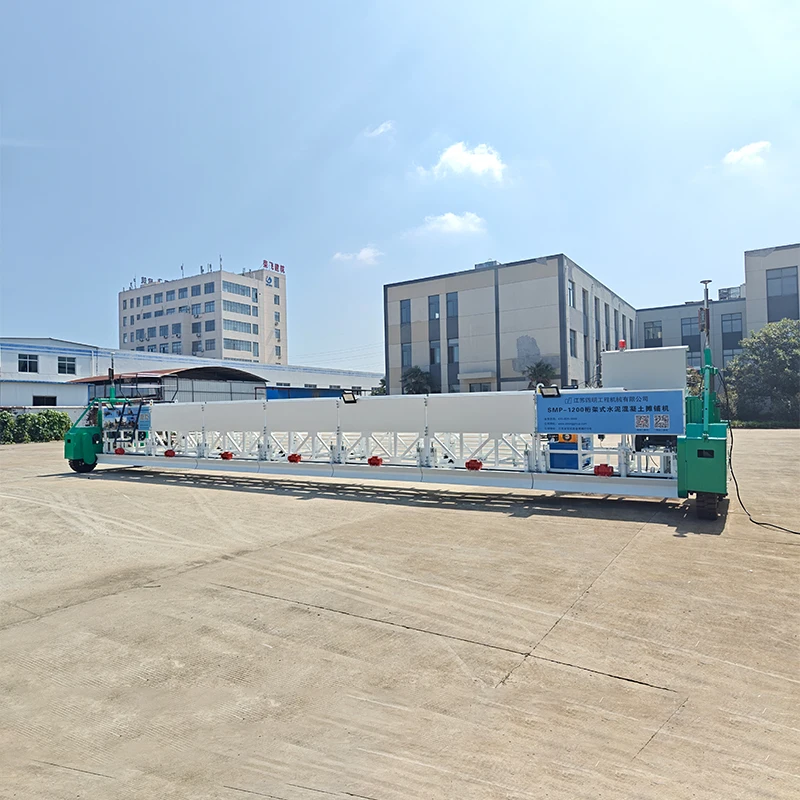

SMP 1200 New Condition Concrete Spreader Machine Curbstone Paver with Core Engine & Pump Components for Bridge Construction
- Category: >>>
- Supplier: Jiangsu Siming Engineering Machinery Co. Ltd.
Share on (1601270250323):
Product Overview
Description

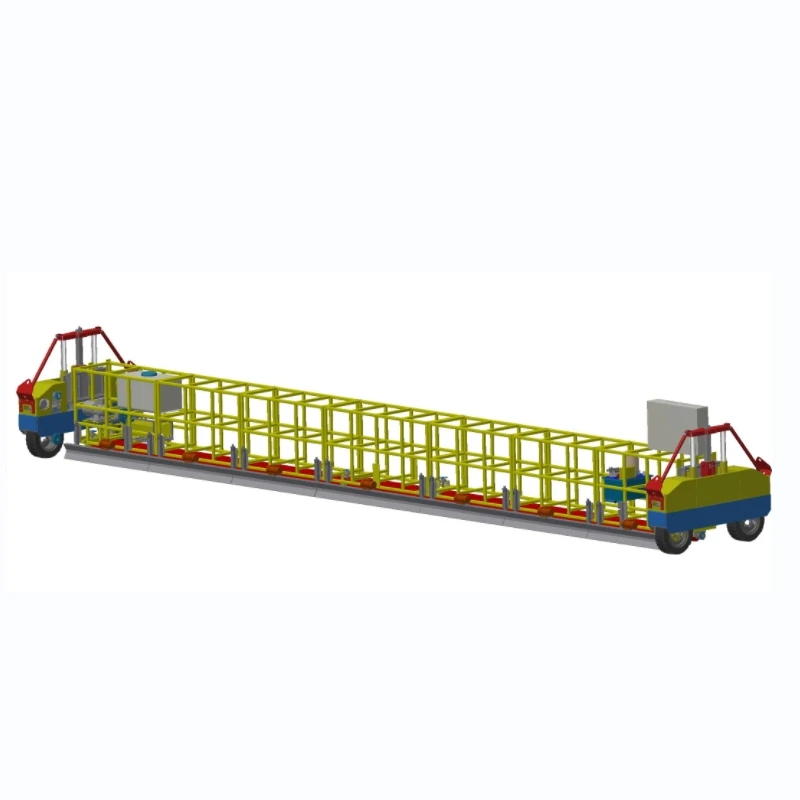

The modular assembly mode of the whole machine truss adopts a split composite connection for the roller shaft, which is easy
to install and can expand the combination to different widths, making it suitable for the use of bridge decks with different
widths and improving equipment utilization.
Technical Parameters | ||
Power Supply | 380V | |
Equipped with power | ≥28KW | |
Rated power of roller drive motor | 7.5kW | |
Rated power of walking drive motor | 1kW | |
Display interface | 10 "touch color display | |
Operation control | Electrical cabinet control+software integration control | |
Paving speed | 0-5m/min | |
Walking speed | 0-10m/min | |
Spread width | ≤16m | |
Water tank capacity | 300L |
Hydraulic oil volume | 80L |
Rod shaft diameter | φ219mm |
Rod shaft speed | 240rpm |
Vibration frequency | ≥3000次/min |
Walking style | Four wheel drive rubber wheel walking |
Elevation control method | Laser automatic positioning |
Laser positioning method | Encoder automatic real-time tracking and positioning |
unevenness, the hydraulic cylinder is controlled by a high-precision digital leveling instrument to adjust the elevation. In the
case where the guardrail has already been laid, suspended structures can be used on both sides to support walking on the
guardrail;
2. Two vibrating rollers with leveling and slurry lifting functions, and the height and inclination angle of the rollers can be
adjusted up and down. At the same time, the shock-absorbing pad handwheel can be adjusted arbitrarily to achieve the adjustment of
the transverse slope of the bridge deck.
case where the guardrail has already been laid, suspended structures can be used on both sides to support walking on the
guardrail;
2. Two vibrating rollers with leveling and slurry lifting functions, and the height and inclination angle of the rollers can be
adjusted up and down. At the same time, the shock-absorbing pad handwheel can be adjusted arbitrarily to achieve the adjustment of
the transverse slope of the bridge deck.
3. Equipped with a flushing system for easy daily maintenance.

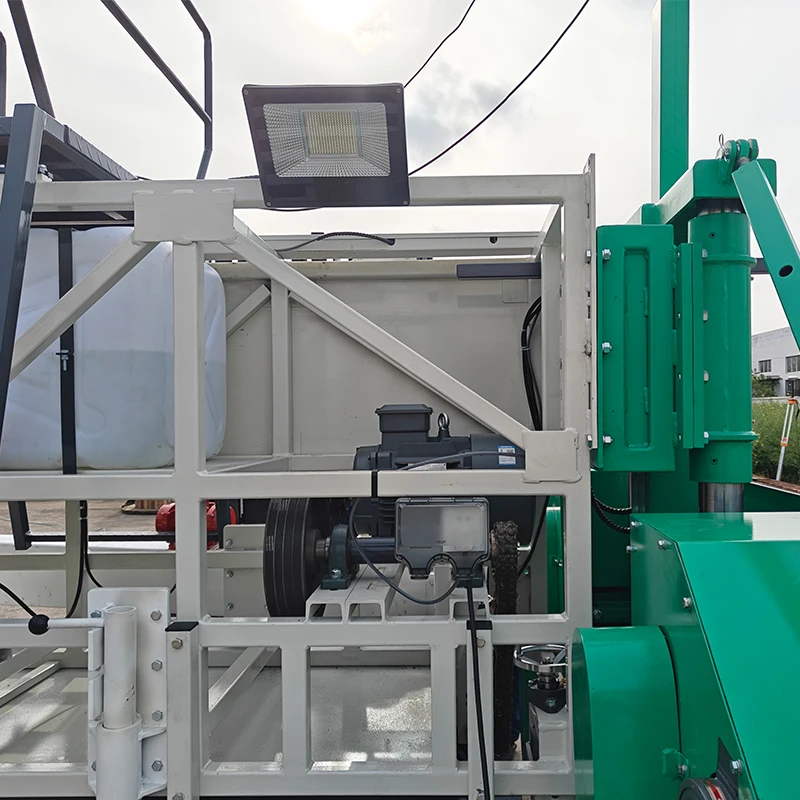

4.Provide lighting fixtures to address lighting issues during nighttime and tunnel construction.5.The whole machine adopts high-frequency vibration pushing plate to push the material, which can keep the concrete in a light
and flowing state, and the material level is uniform and consistent.
6.Efficient compaction design effectively ensures the compactness of concrete, and can also achieve certain ideal compaction and
leveling effects for low slump concrete.7. Using large-diameter high-speed rollers, it has a long wear resistance life, flat transverse end faces, and good linear and
slurry lifting effects.
8. High horsepower output easily maintains a high-speed and stable paving state, which is conducive to ensuring construction
quality and improving construction efficiency.
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,
3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
4.Q: What about the warranty time?
A:: 12 months after shipment .
5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,
3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
4.Q: What about the warranty time?
A:: 12 months after shipment .
5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
