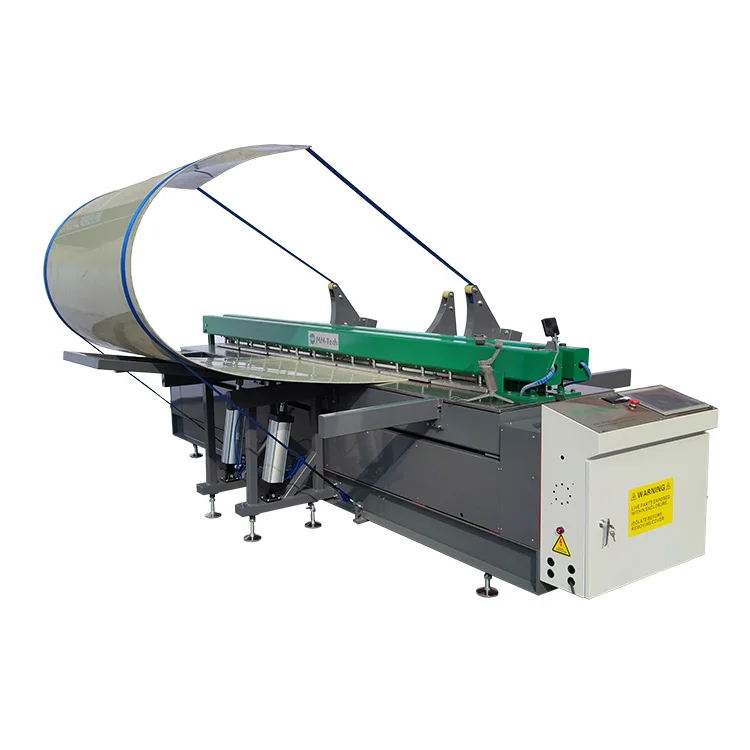

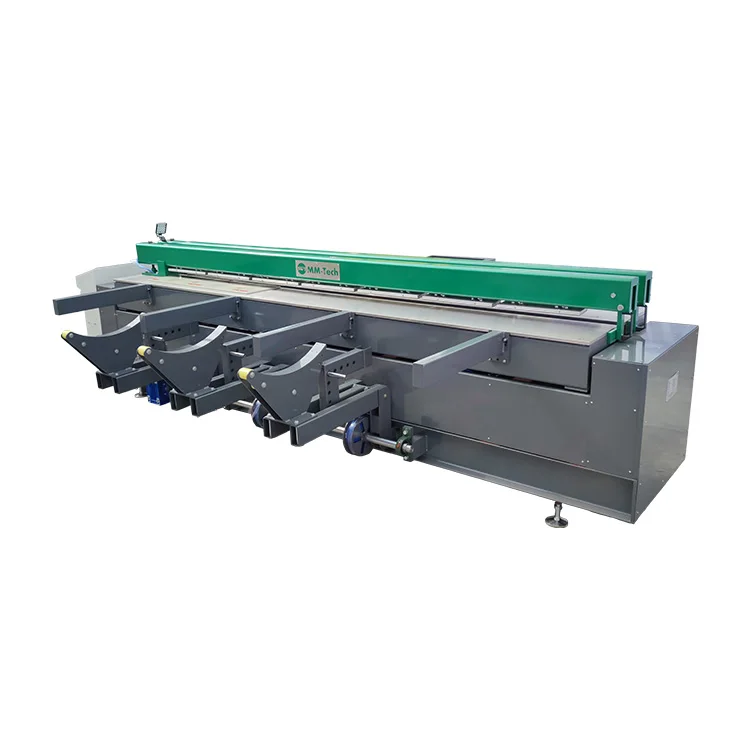

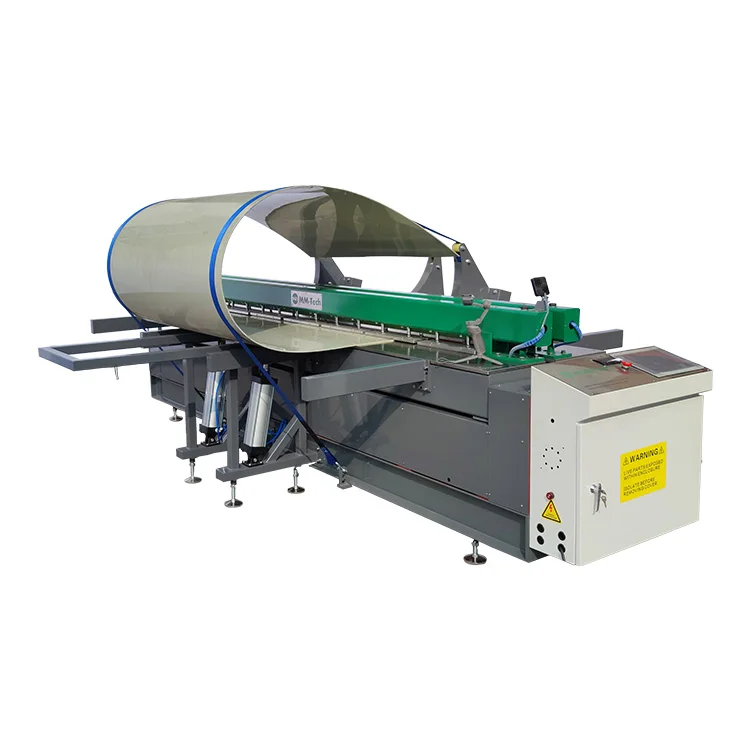

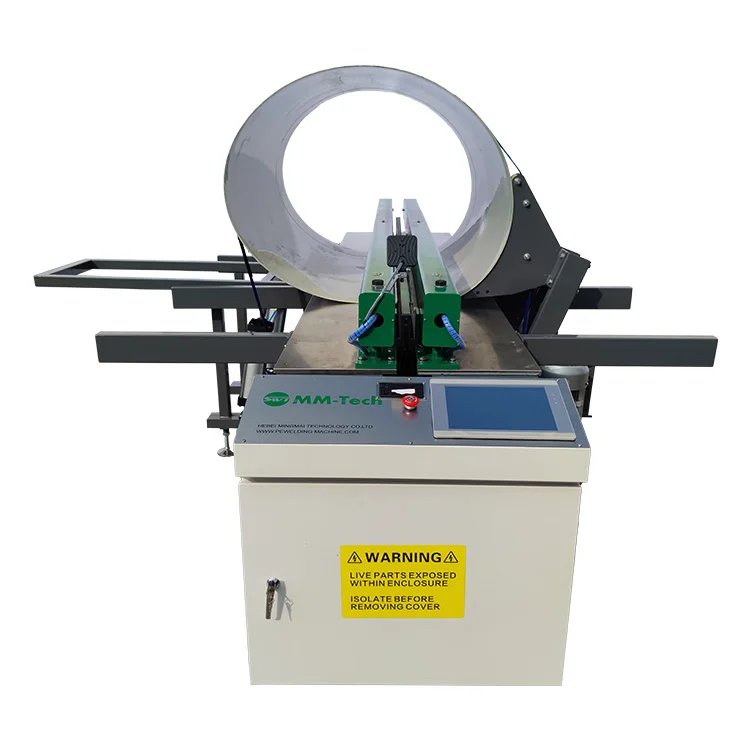

Sheet Butt Fusion Welding Machine Sheet Butt Fusion Welder for PP PE PVC PVDF Sheet 3 30 MM DVS/2207 Bending Vertical Welding
- Category: >>>
- Supplier: Hebei Boda Plastic Technology Co. Ltd.
Share on (1601270258043):
Product Overview
Description
Product Profile

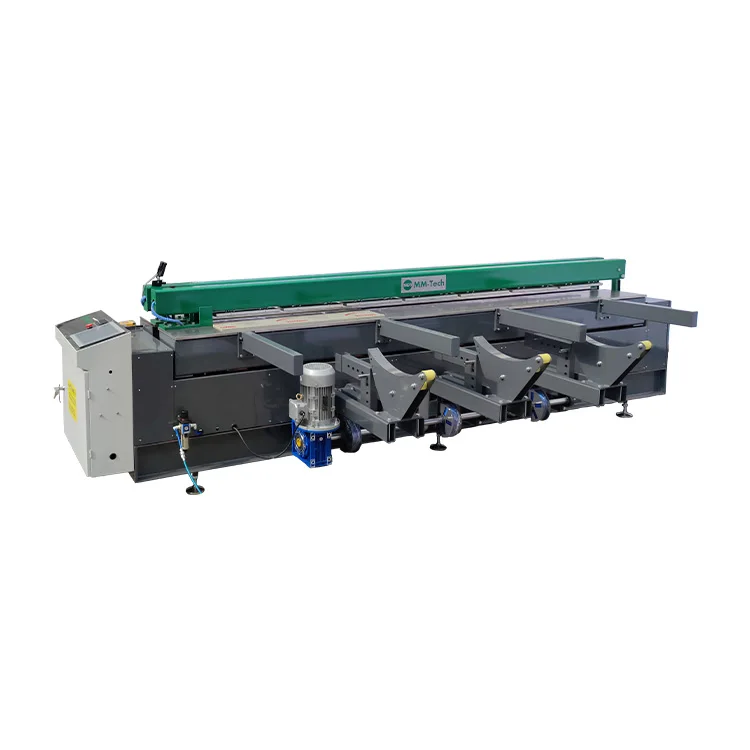

SWT-PH3000 3kw 3-25mm Sheet Butt Fusion Welding Machine
Product Details
Specification/model | SWT-PH1500 | SWT-PH2000 | SWT-PH3000 | SWT-PH4000 | |||
Dimensions Machine Body | 2800X2250X1250 | 3300X2250X1250 | 4300X2550X1250 | 5300X2550X1250 | |||

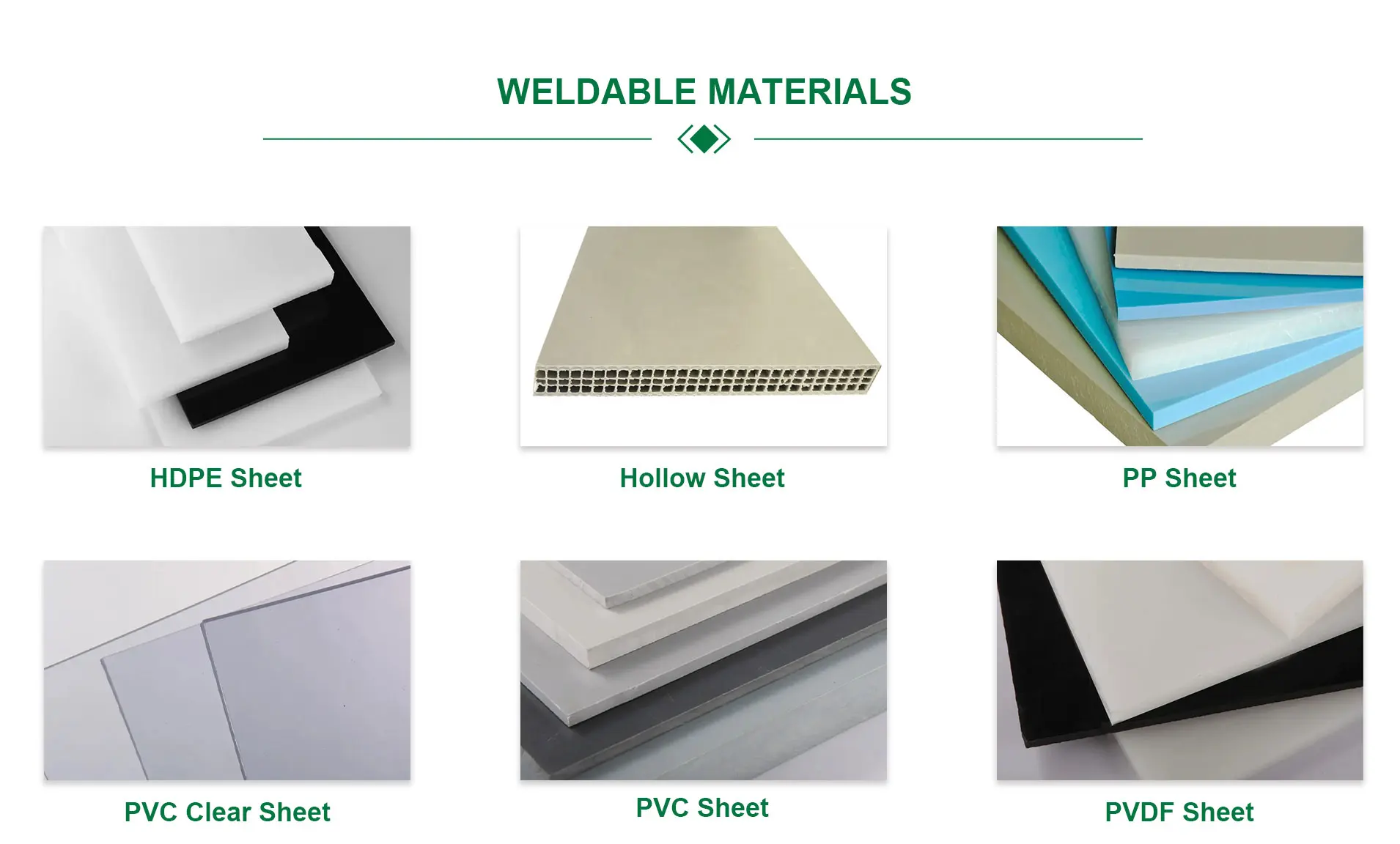

Weldable Materials | PVC, PE, PP, PVDF; twin walls in PE and PP | PVC, PE, PP, PVDF; twin walls in PE and PP | PVC, PE, PP, PVDF; twin walls in PE and PP. | PVC, PE, PP, PVDF; twin walls in PE and PP | |||
Max. Working Length (mm) | 1500mm | 2000mm | 3000mm | 4000mm | |||
Sheet thickness (mm) | 3-20mm | 3-25mm | 3-25mm | 3-30mm | |||
Min. cylinder diameter (mm) | 280mm | 350mm | 350mm | 500mm | |||
Pressure setting method | Digital | Digital | Digital | Digital | |||
Pressure Controller | SMC electric proportional valve | SMC electric proportional valve | SMC electric proportional valve | SMC electric proportional valve | |||
Bending Length | 1500mm | 2000mm | 3000mm | 4000mm | |||
Bending Thickness | 3-15mm | 3-20mm | 3-25mm | 3-25mm | |||
Bending Angle | 0-95° Adjustable | 0-95° Adjustable | 0-95° Adjustable | 0-95° Adjustable | |||
Alarming | buzzing | buzzing | buzzing | buzzing | |||
Power consumption (kW) | 3kW | 4kW | 6kW | 9kW | |||
Power supply | 380V/415V 3P 50/60Hz | 380V/415V 3P 50/60Hz | 380V/415V 3P 50/60Hz | 380V/415V 3P 50/60Hz | |||
Compressed air connection (bar) | 6-8 kg/cm² | 6-8 kg/cm² | 6-8 kg/cm² | 6-8 kg/cm² | |||
Motor of cylinder | 2.2KW | 2.2KW | 4.4kw | 4.4kw | |||
Sheet Locking Clamps | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |||
Welding System | CNC | CNC | CNC | CNC | |||
Display | 7inch | 7inch | 7inch | 7inch | |||
Hardware Control Panel | SIEMENS PLC | SIEMENS PLC | SIEMENS PLC | SIEMENS PLC | |||
Heating Plate Teflon coated | 1700X60X20 | 2200X60X20 | 3200X60X20 | 4200X60X20 | |||
Upper heating element Teflon coated, Tmax= 260 °C (W x H in mm): | 1700x52x45mm "V" Shape | 2200x52x45mm "V" Shape | 3200x52x45mm "V" Shape | 4200x52x45mm "V" Shape | |||
Lower heating element Teflon coated, Tmax= 260 °C (W x H in mm) | 1700x45x35mm Flat | 2200x45x35mm Flat | 3200x45x35mm Flat | 4200x45x35mm Flat | |||

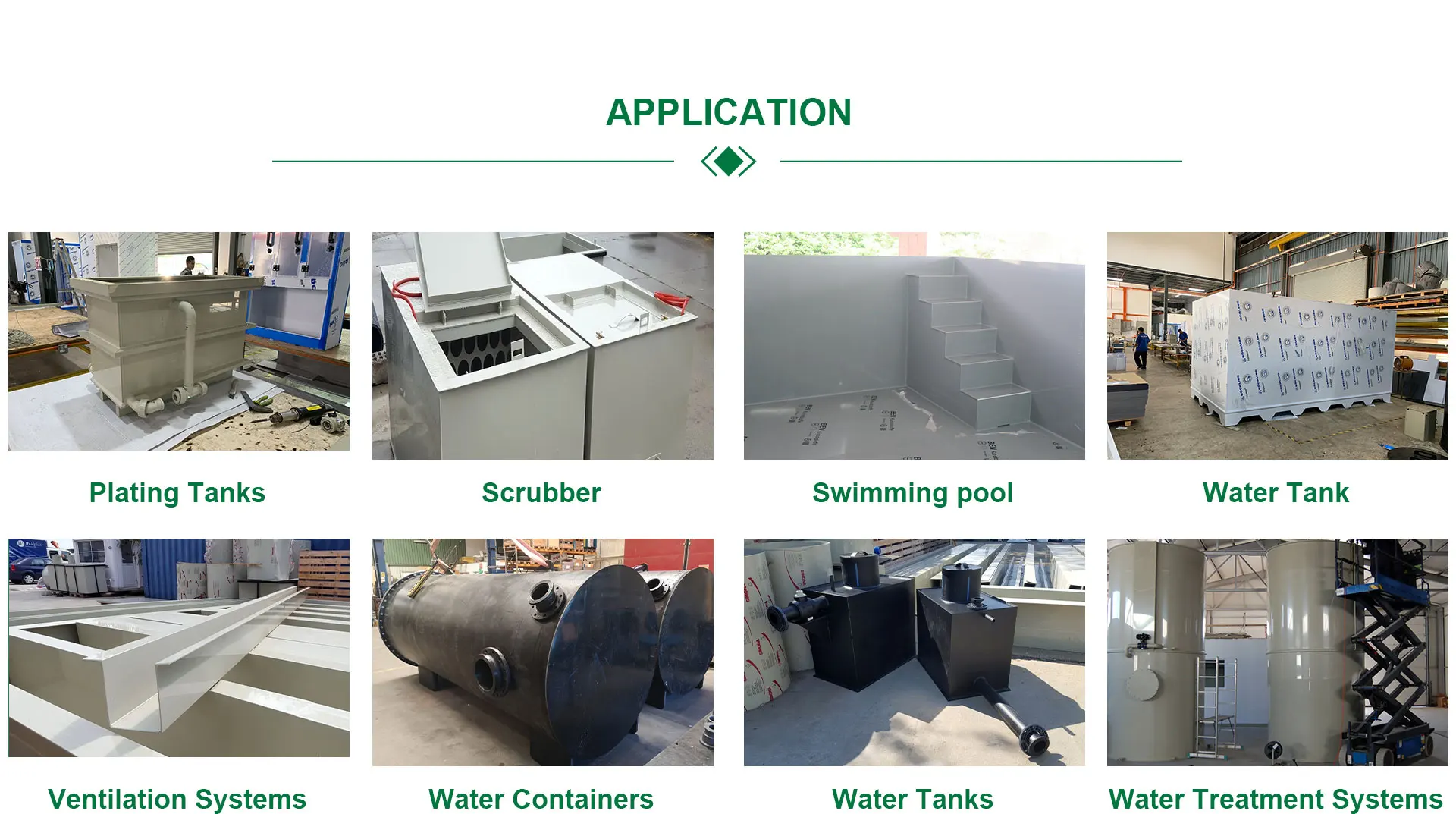

Product Applications
