Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone
Circular Sieve Equipment for Separating Soil, Mud and Stone

Circular Sieve Equipment for Separating Soil, Mud and Stone

Share on (1601270274397):


Price:$12,000.00

Quantity:


Product Overview

Description





Specification


item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Gearbox, Motor
Condition
New
Type
Circular
Application
Separation,classification,scalping,dewatering
Place of Origin
China (Mainland)
Brand Name
PK
Dimension(L*W*H)
Depends on different type
Weight
2000KG
Warranty
1 Year
Material:
xxxnx china fruits fine powder rotary vibrating screen sieve machine
Product name
xxxnx china fruits fine powder rotary vibrating screen sieve machine
Moving trajectory:
Rotary
Deck:
1-5 Vibrating Sieve
Feeding Granularity:
30mm-500mesh
Anti blocking device:
Jumping ball
Motor type:
Vertical Vibration motor
Diameter:
400-2000mm
Applicable Material:
Flour,salt,sugar,milk,nuts,seeds,grains,oil,fruit juice
Production time:
15 days


Product Description




Introduction

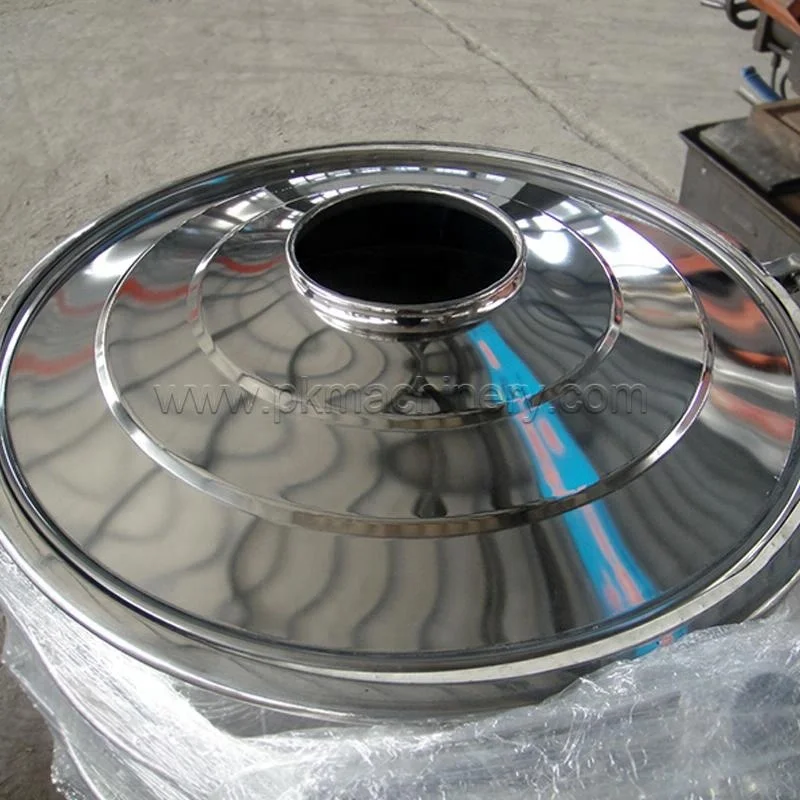

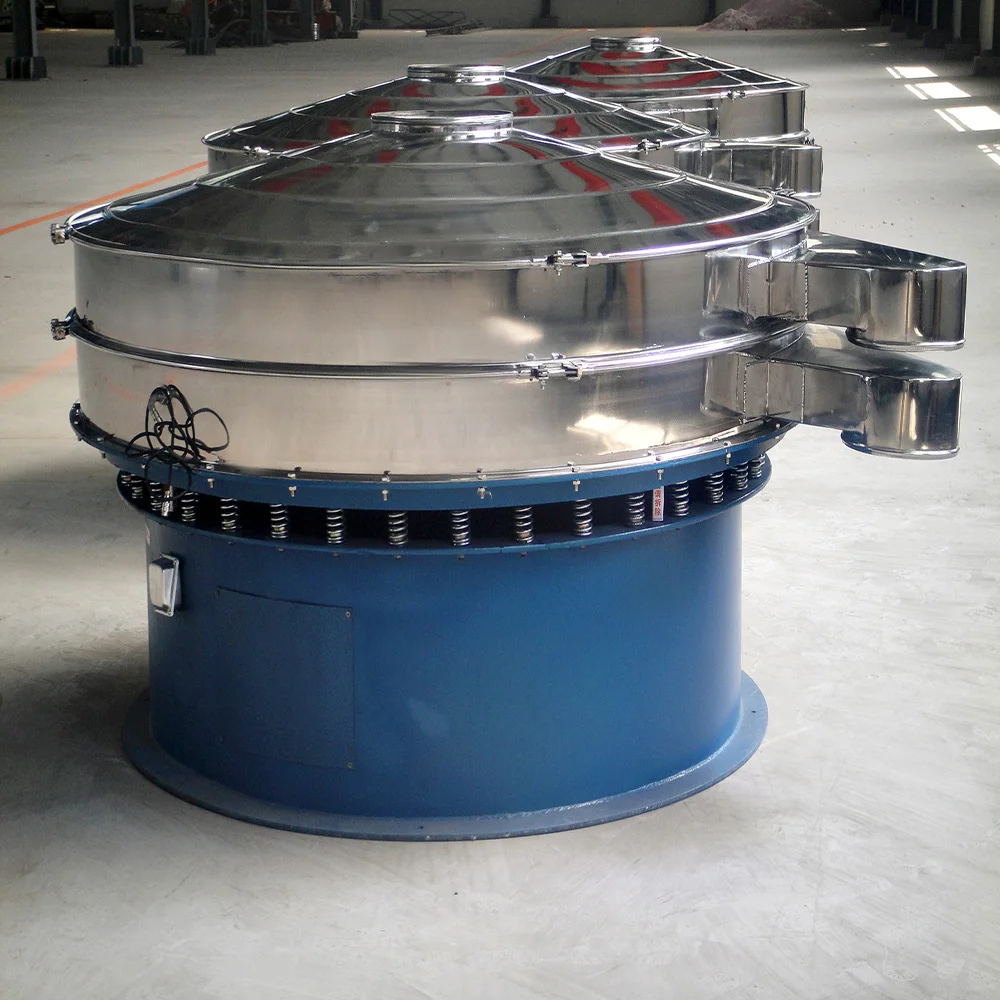

Rotary vibrating screen is designed as a high-precision screening machinery, it is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.


Circular Sieve Equipment for Separating Soil, Mud and Stone is a self-contained equipment working on the principle of gyratory motion using low powered motor. Circular Sieve Equipment for Separating Soil, Mud and Stone separates bulk solid materials from solids and slurries, utilizing multi-plane, inertial vibration that causes particlesto pass through apertures in the screen or to travel across the screen surface in controlled pathways.
—Circular Sieve Equipment for Separating Soil, Mud and Stone handles dry/wet screening of particles from 30mm down to 500 mesh in size.
—Circular Sieve Equipment for Separating Soil, Mud and Stone ranges in diameter from 400mm to 2000mm, with single or multiple screening decks(up to five)


Working Principle
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.




Applications



Rotary Vibrating Screen is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.
♦ Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
♦ Solid/Liquid separation
-Dewatering of solids and clarification of liquids
-Foods, chemicals, pulp
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in a liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
Foods: barley flour, bread crumbs, candies, cereals, coconut shell powder, dried milk, dry potato powder, ground almonds, ground coffee, instant coffee powder, meat meal, nuts, pea grading, powdered cheese, powdered eggs, salt, seeds&grains grading andcleaning, rice bran, soya flour, spices, starch, sugar; fruit juice, syrup.


Product Paramenters


Model
Nominal Diameter(mm)
Screen Diameter(mm)
Screen Surface Area(m3)
Feeding size (mm)
Specification
NO. of Layers
Frequency(rpm)
Power(Kw)
XZ-400
400
340
0.09
<10
2-325
1-5
1500
0.18
XZ-600
600
530
0.22
<10
0.25
XZ-800
800
720
0.4
<20
0.55
XZ-1000
1000
900
0.63
<20
0.75
XZ-1200
1200
1100
0.95
<20
1.1
XZ-1500
1500
1400
1.5
<20
1.5
XZ-1800
1800
1710
2.3
<30
2.2
XZ-2000
2000
1910
2.86
<30
3.7




Henan Pingyuan Mining Machinery Co., Ltd.
Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.










Q1：Are you factory or trade company?
A: We are factory


Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.


Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at


Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.


Q5：What about the payment method?
A: T/T, L/C Paypal is available


Q6：What about after-sale service?
A:12 months warranty for all kinds of products
