Product Overview
Description
Product Description
Reference matching system
6 L-12X connect with 12 KA-2 (2 KA-2 connect to 1 L-12X)
2 L-12X connect with 8 K-28 (4 K-28 connect 1 L-12X)
2 L-12X connect with 8 XT-15 (1 L-12X connect with 4pcs XT-15)
For one set（LA Amp Rack 9U）
3 L-12X amplifiers
1 signal distributor
1 power distributor(380V)
2 L-12X connect with 8 XT-15 (1 L-12X connect with 4pcs XT-15)
For one set（LA Amp Rack 9U）
3 L-12X amplifiers
1 signal distributor
1 power distributor(380V)
This combination can provide a very wide frequency response and high sound pressure level, suitable for large concerts, music festivals, stadiums, and theaters. With precise directivity control and powerful bass support, this speaker combination ensures that every audience member can enjoy a clear, balanced, and dynamic sound experience. The KA-2 speakers "have an unprecedented performance-to-weight ratio" and "thanks to the quick and easy rigging system, on-site installation is convenient and fast." The K-28 subwoofers, on the other hand, can "achieve low-frequency extension down to 25Hz, reducing turbulent noise."

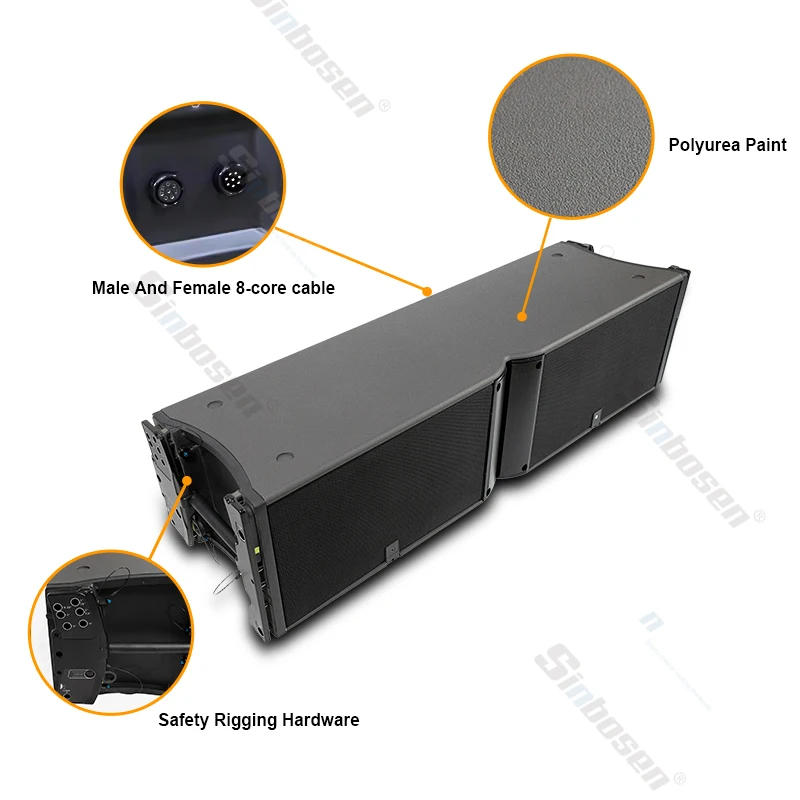

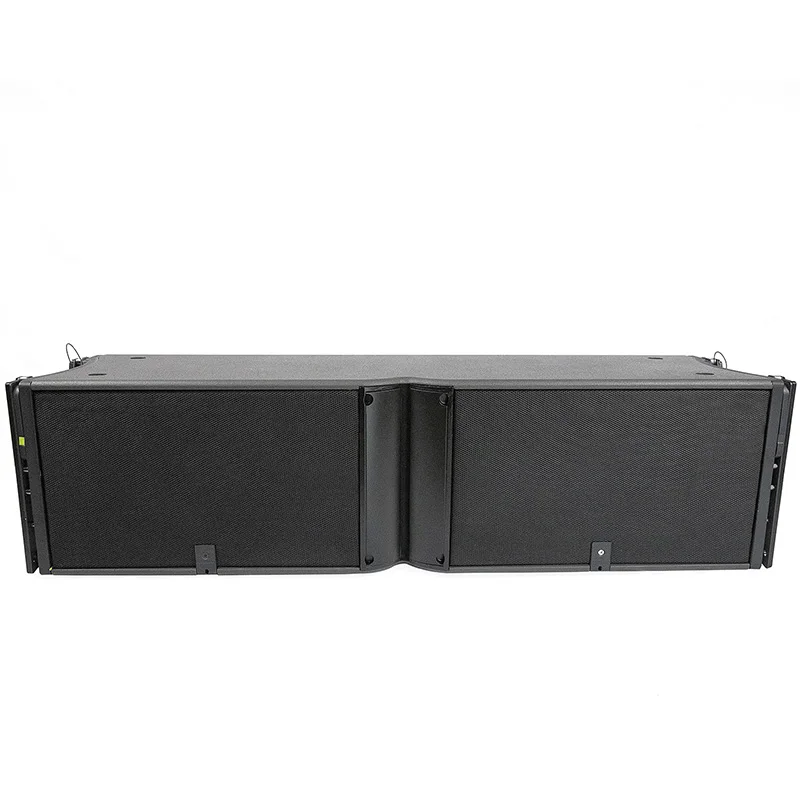

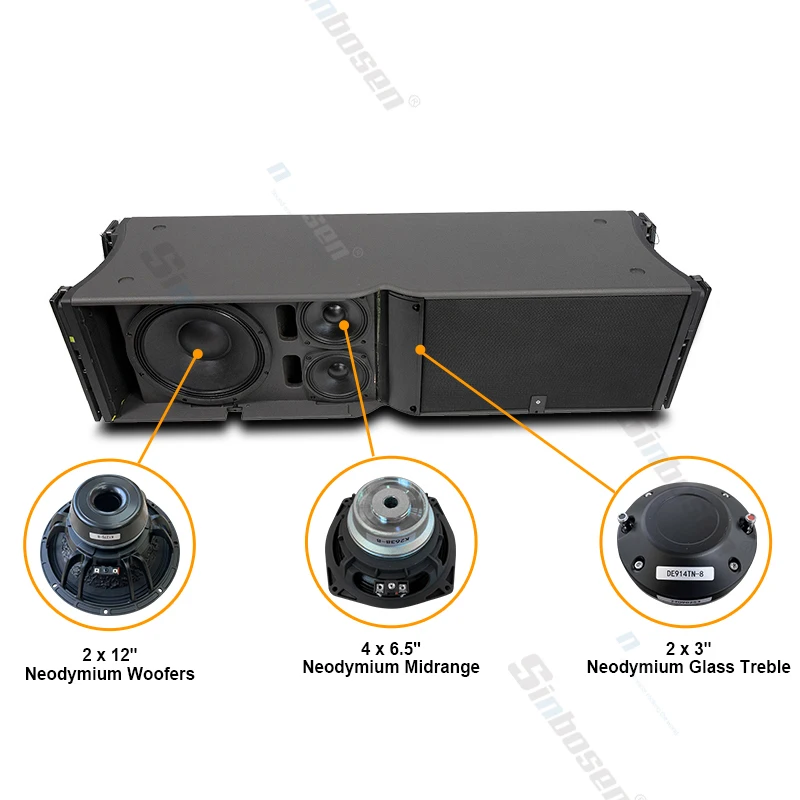

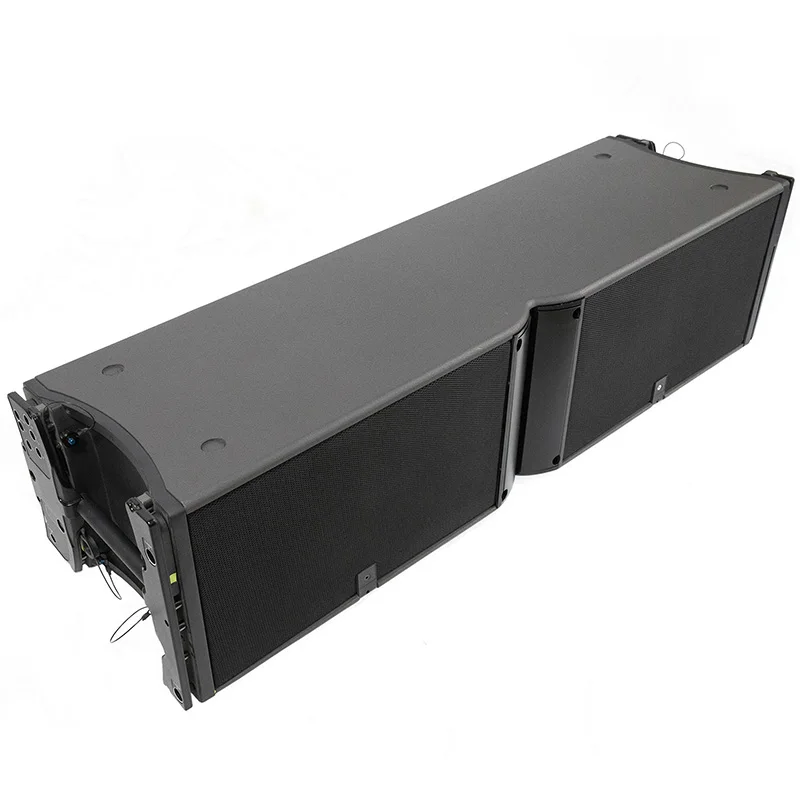

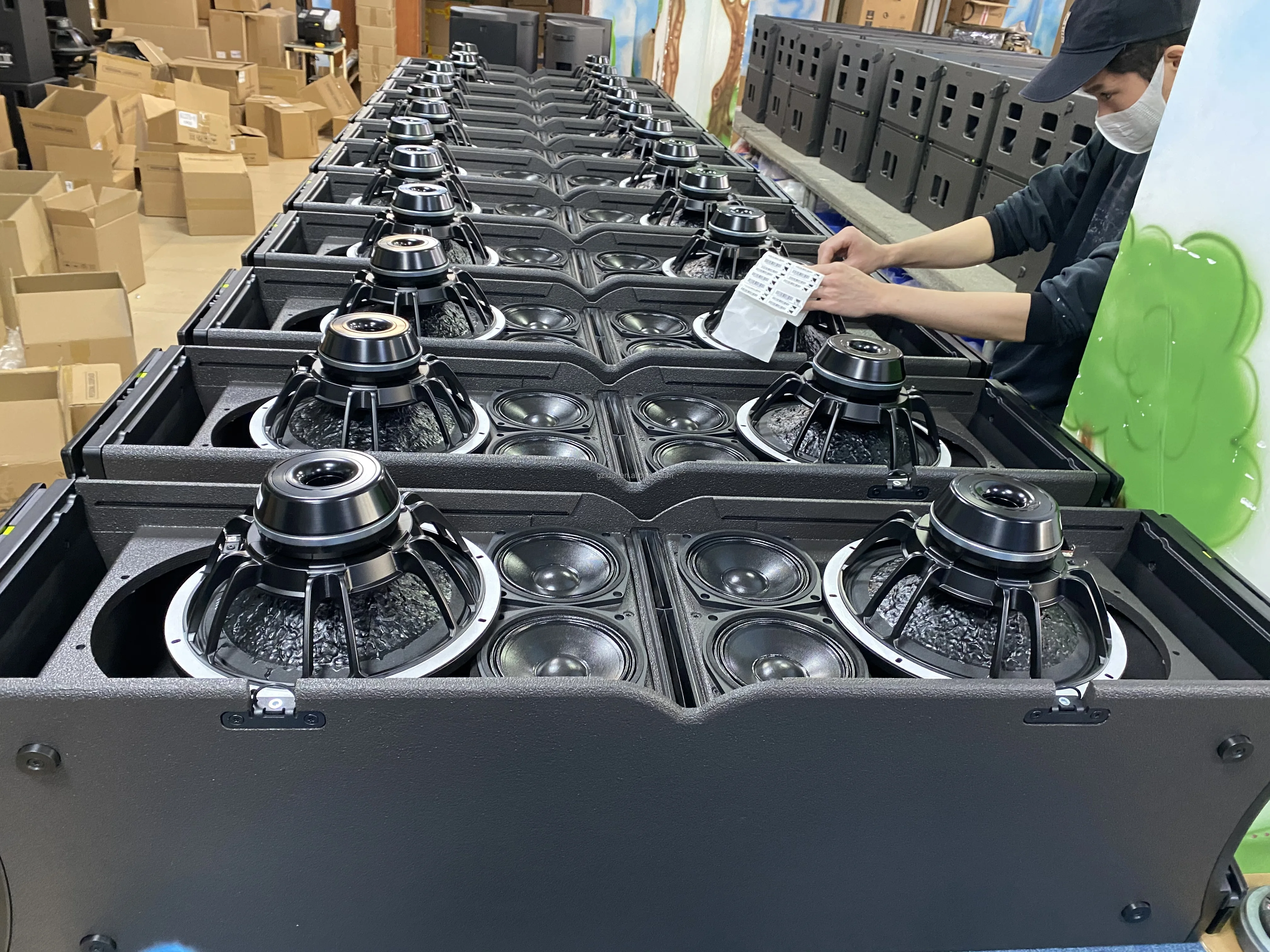

KA-2 Line Array | ||
Type | 3 way audio line array system | |
Usable bandwidth (-10 dB) | 35 Hz – 20 kHz | |
Maximum SPL | 147 dB | |
Nominal directivity (-6 dB) | Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°) | |
Vertical : depends on the number of elements and array curvature. | ||
Transducers | LF: 2 × 12″ cone drivers | |
MF: 4 × 6.5″ cone drivers | ||
HF: 2 × 3″ diaphragm compression drivers | ||
Acoustical load | LF: bass-reflex, L-Vents | |
MF: bass-reflex | ||
HF: DOSC waveguide, Panflex | ||
Nominal impedance | LF : 2 x 8 Ω | |
MF : 8 Ω | ||
HF : 16 Ω | ||
Power handling | LF: 2 x 450 W | |
MF: 320 W | ||
HF: 160 W | ||
Connectors | IN: 1 x 8-point PA-COM LINK: 1 x 8-point PA-COM | |
Rigging and handling | Captive 4-points rigging system | |
2 large side handles | ||
Inter-enclosure angles : 0.25, 1, 2, 3, 4, 5, 7.5 or 10° | ||
Cabinet | First grade Russian birch plywood, high density polyethylene Front steel grill with anti-corrosion coating acoustically neutral 3D fabric | |
Dimension | 1338 x 354/286 x 400 mm 52.7 x 14/11.3 x 15.8 in | |
Weight (net) | 56kg / 123lb | |

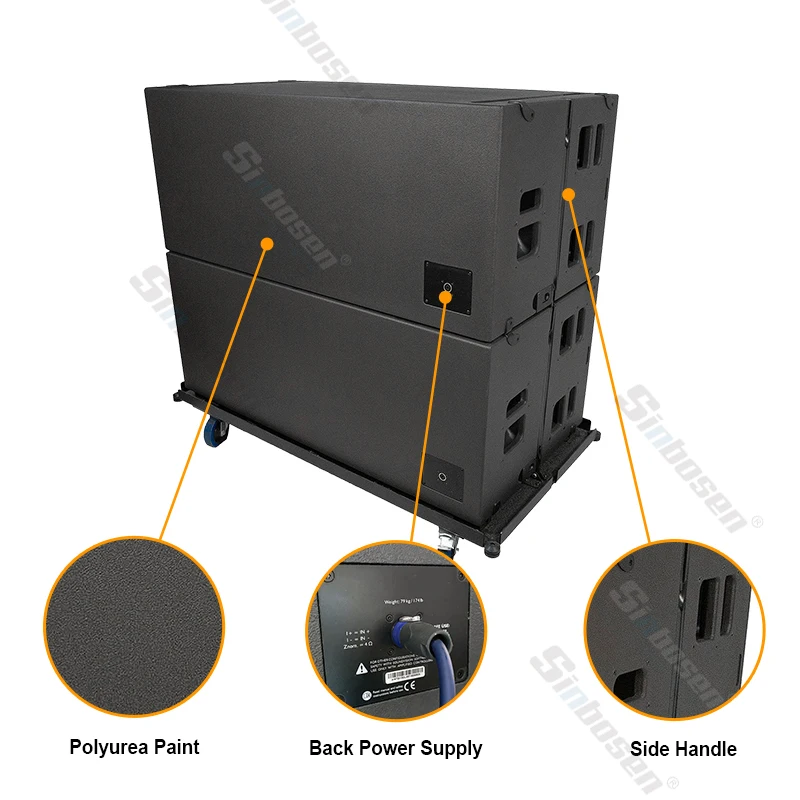

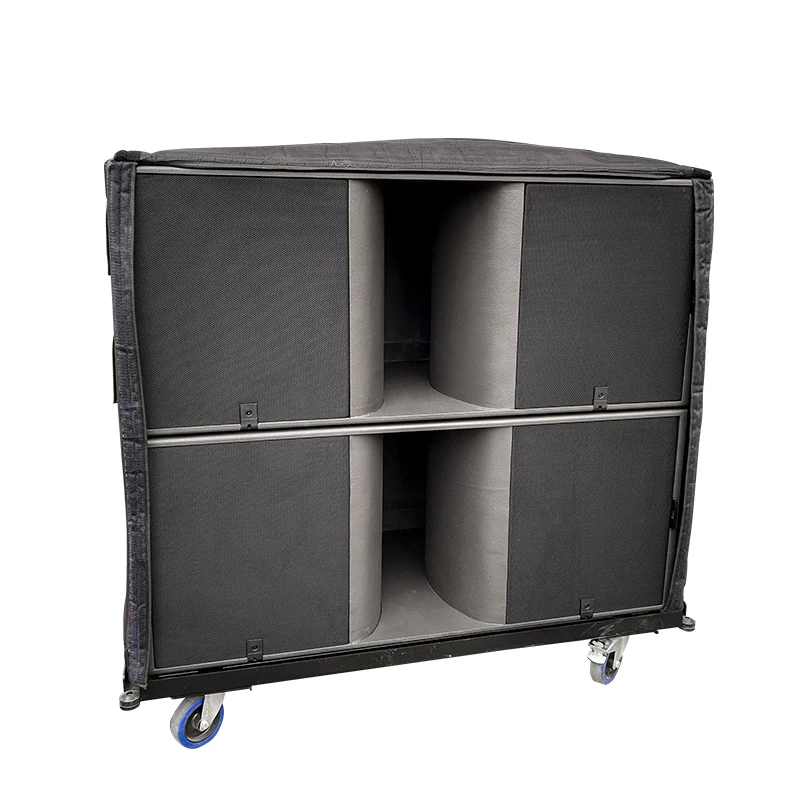

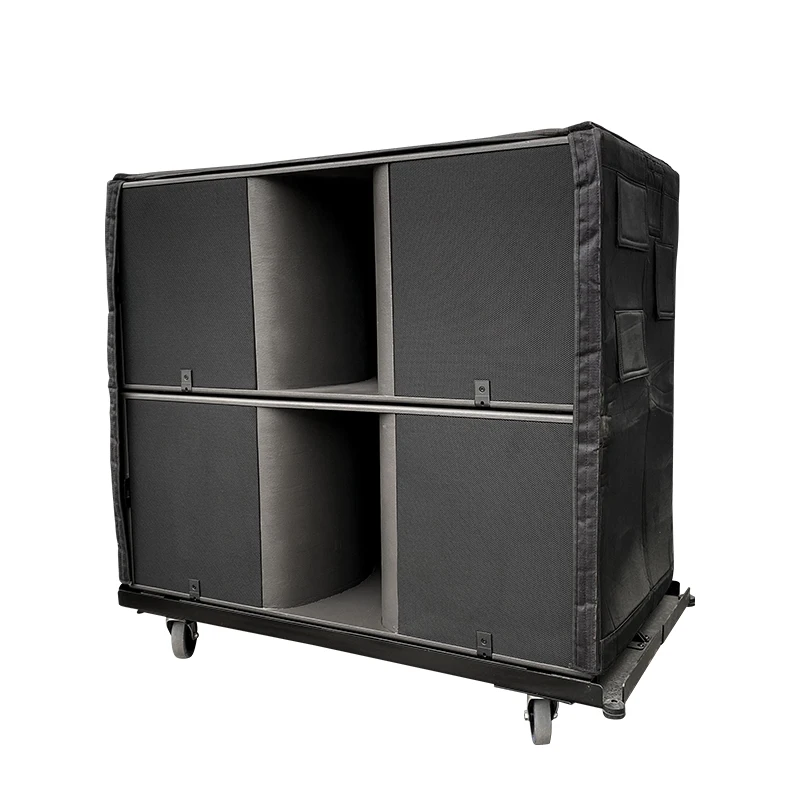

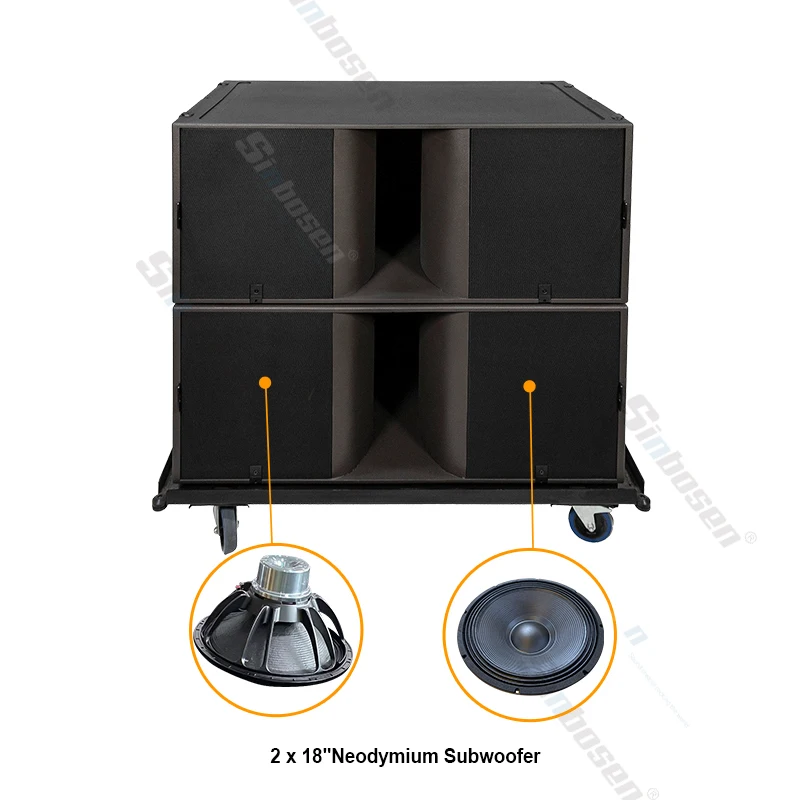

K-28 Subwoofer | ||
RMS | 3200W | |
Low frequency limit (-10 dB) | 25 Hz | |
Maximum SPL | 143 dB | |
Nominal directivity | Standard or cardioid | |
Transducers | 2 × 18″ neodymium cone drivers | |
Cabinet | birch plywood | |
Connectors | 1 × 4-point speakON | |
Acoustical load | Bass-reflex, L-Vents | |
Dimension | 565x1351x719 mm | |
22.2in x53.2inx28.3in | ||
Rigging and handling | Flush-fitting 2-point rigging system | |
6 ergonomic handles | ||
2 ground runners | ||
8 side runners | ||

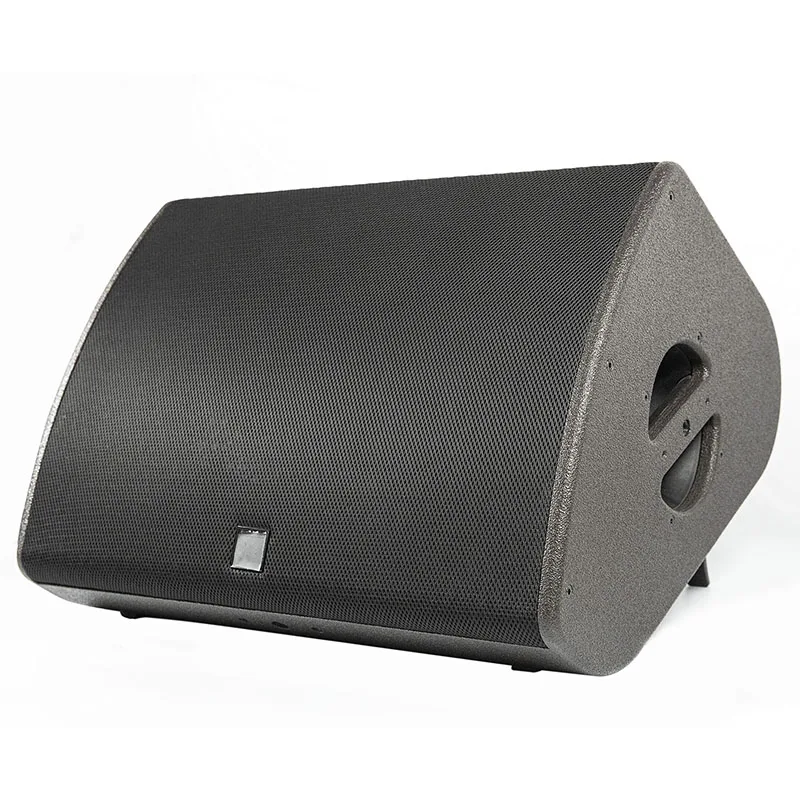

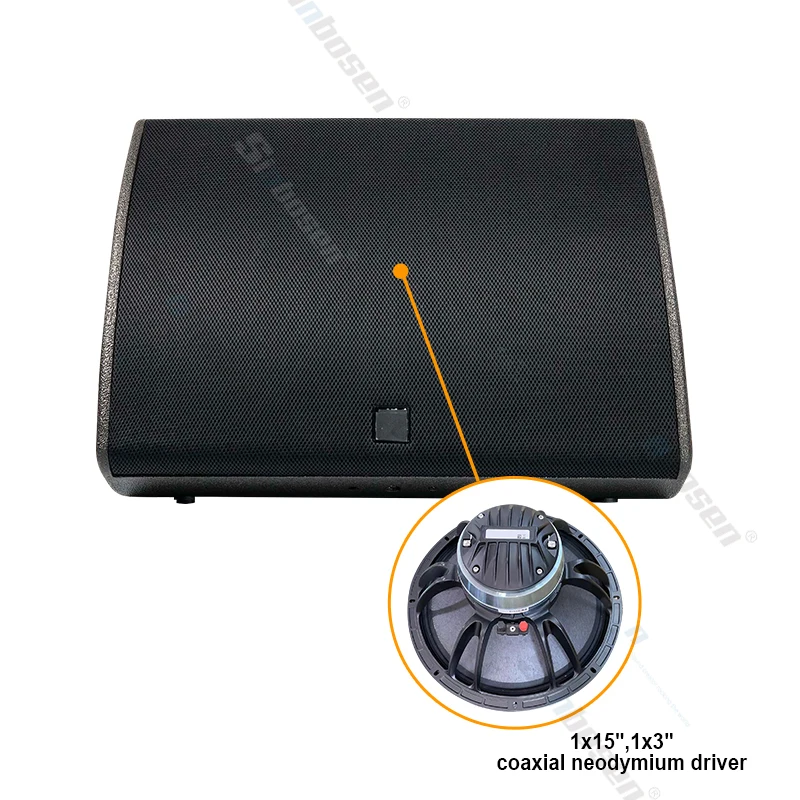

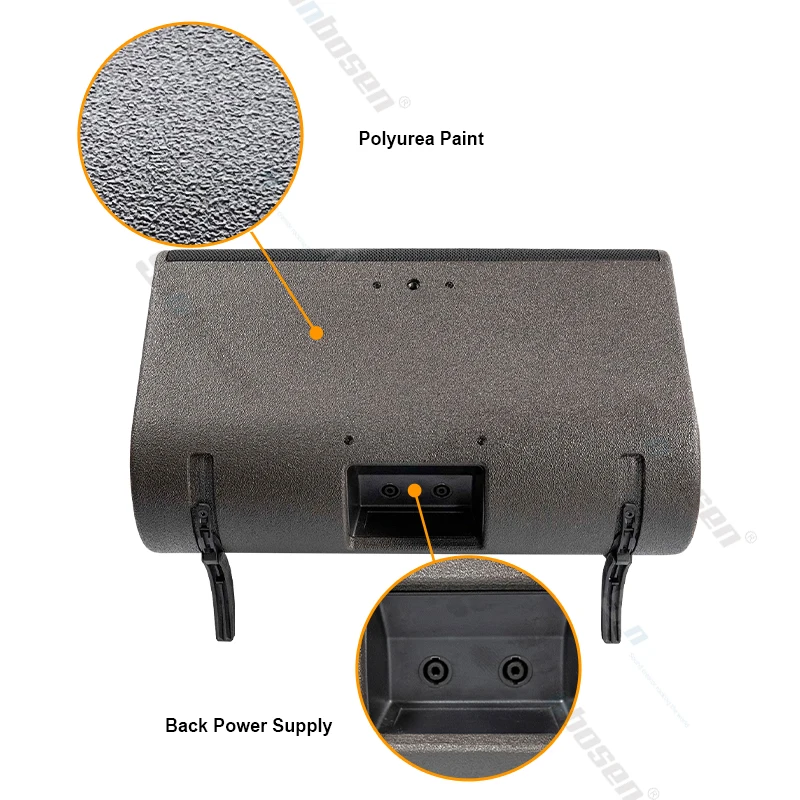

XT-15 Stage monitor | ||
Usable bandwidth (-10 dB) | 55 Hz – 20 kHz | |
Maximum SPL | 138 dB | |
Nominal directivity (-6 dB) | Vertical: 60° symmetric | |
horizontal: 40° symmetric | ||
Monitor angle | Without risers: 35° | |
with risers: 55° | ||
Transducers | LF: 1 × 15″ cone driver | |
HF: 1 × 3″ diaphragm compression driver, neodymium | ||
Acoustical load | Load bass-reflex laminar venting technology ellipsoidal waveguide | |
Nominal impedance | LF: 8 Ω | |
HF: 8 Ω | ||
Connectors | IN: 1 × 4-point speakON | |
LINK: 1 × 4-point speakON | ||
Rigging and handling | 2 handles | |
5 threaded inserts | ||
2 × 35 mm pole sockets | ||
Weight (net) | 21 kg / 46.3 lb | |
Cabinet | FIrst grade Russian birch plywood | |
Front | Steel with anti-corrosion coating | |
acoustically neutral 3D fabric | ||
KA-2 Line Array
K-28 Subwoofer
XT-15 Stage Monitor
