100 KG/H Commercial potato chips production line with gas heating
- Category: >>>
- Supplier: Welljoy food Machinery INCWelljoy INC
Share on (1601270333743):
Product Overview
Description
Products Description

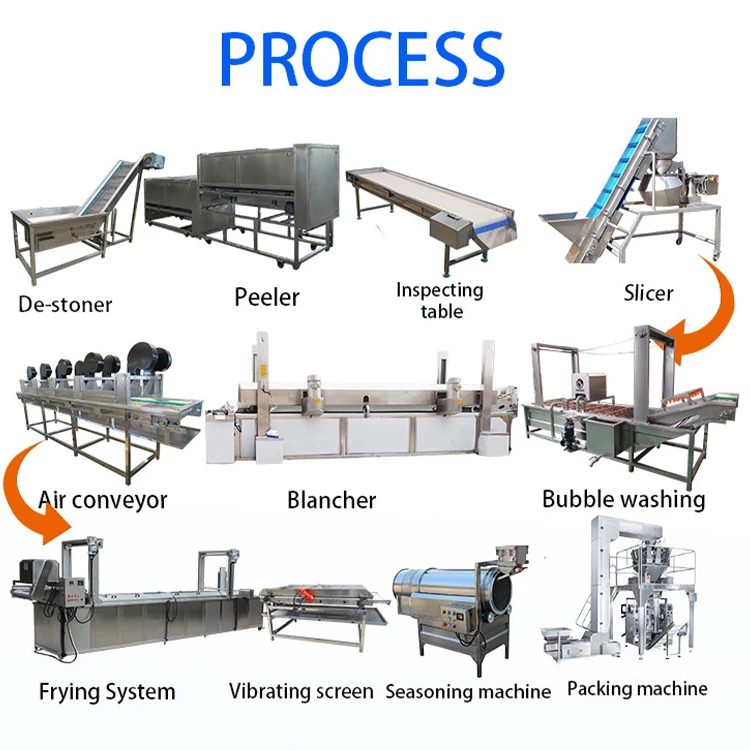

POTATO CHIPS PRODUCTION LINE
Offering perfect, well-balanced potato chips to the consumer is an art-form JOY is the ideal partner for this, with machines that can develop a wide variety of potato chips at a constant quality. The well-balanced engineering and user-friendliness of our machines will enable you to deliver top products every day.
Specification
CAPACITY | 50-500KG/H |
HEATING SOURCE | GAS/DIESEL/LPG/ELECTRICITY |
HEATING POWER | 50-200KW |
CUSTOMIZED | YES |

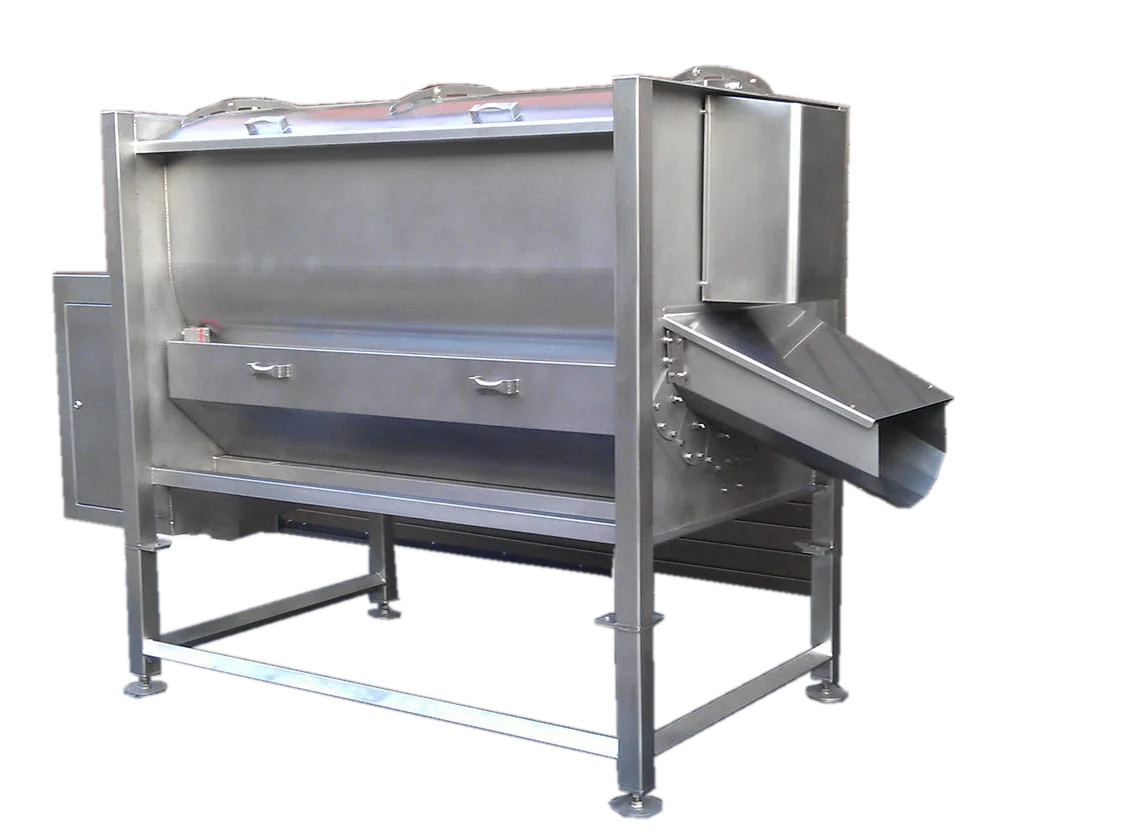

PEELING MACHINE
This machine is used to pre-wash and peel the potato.
2.Feature:
◎Imported nylon silk wool roller.
◎Spiral discharge to realize automatic production
3.Parameters:
◎Dimensions:2650*760*1650mm
◎Power:4.75KW/ 380V 50Hz 3P
◎Trans power：4kw
◎spiral conveyor：0.75kw
◎Brush length:2200mm
2.Feature:
◎Imported nylon silk wool roller.
◎Spiral discharge to realize automatic production
3.Parameters:
◎Dimensions:2650*760*1650mm
◎Power:4.75KW/ 380V 50Hz 3P
◎Trans power：4kw
◎spiral conveyor：0.75kw
◎Brush length:2200mm

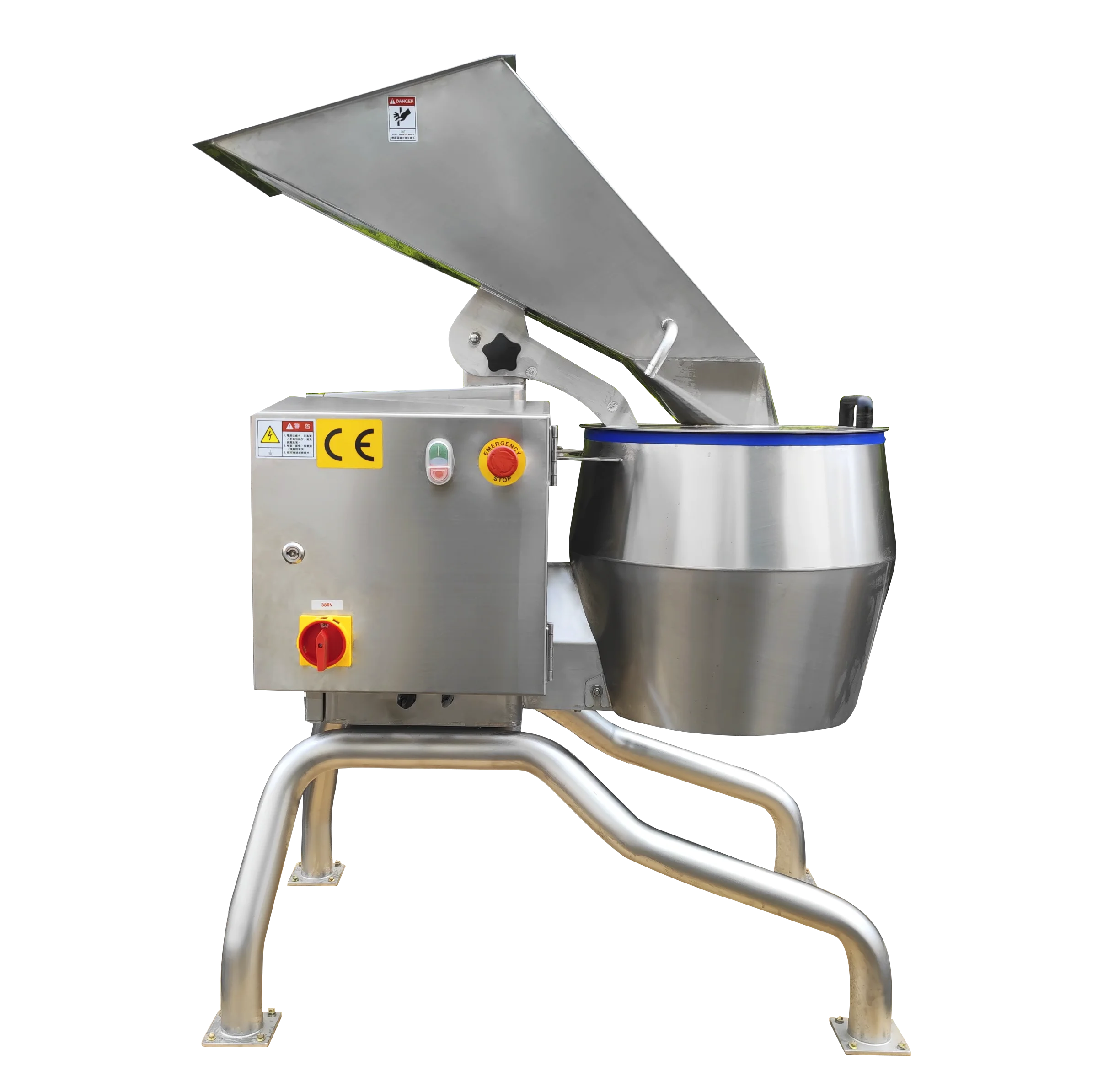

SLICING MACHINE
1.Function :Cut the potato into chips
2.Parameter:
◎Dimensions:1085*795*1525mm
◎Power: 0.75KW/ 380V 50Hz 3P
◎Cutting capacity :300-500/H
◎chips thickness :1.2-1.5mm
◎Cut shape: V +Flat
◎Material :304SUS
◎With 4 wheels ,can move easily
◎Weight:160kg
2.Parameter:
◎Dimensions:1085*795*1525mm
◎Power: 0.75KW/ 380V 50Hz 3P
◎Cutting capacity :300-500/H
◎chips thickness :1.2-1.5mm
◎Cut shape: V +Flat
◎Material :304SUS
◎With 4 wheels ,can move easily
◎Weight:160kg

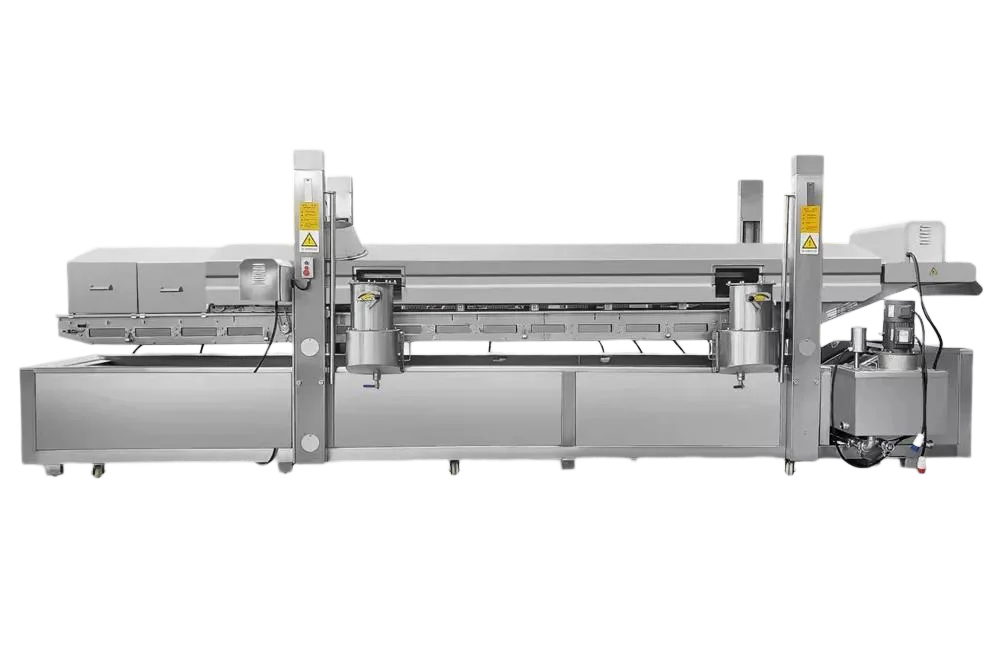

FRYING MACHINE
1.Parameters: ◎Dimension :5000*1000*2100mm ◎Heating Power : 108kw ◎3 grades filter :coarse filter + fine paper filter+bottom
Bottom scraping a)1 set of oil storage tank system (1 storage tank, including oil unloading system), fryer supporting facilities,
and a storage tank area outside the main workshop; ◎Frying temperature :175°C-195° C a)The oil inlet is designed to be higher than
the bottom of the pot, so it is easy to enter the oil and ensure that the bottom is not deformed; Two types temperature sensor
a)one is near heating pipes b)One is away from heating pipes
Bottom scraping a)1 set of oil storage tank system (1 storage tank, including oil unloading system), fryer supporting facilities,
and a storage tank area outside the main workshop; ◎Frying temperature :175°C-195° C a)The oil inlet is designed to be higher than
the bottom of the pot, so it is easy to enter the oil and ensure that the bottom is not deformed; Two types temperature sensor
a)one is near heating pipes b)One is away from heating pipes

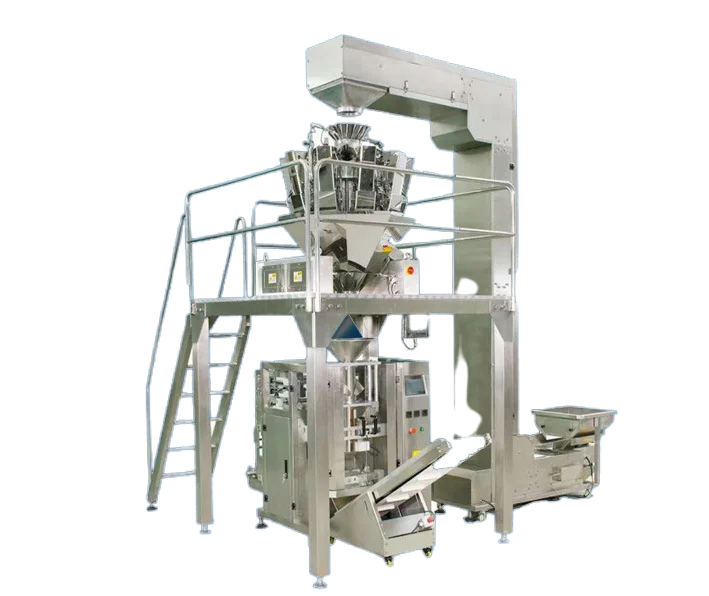

PACKING MACHINE
Function :packing chips for small bags type :420 or 520 Type
14 heads
automatic weighter
14 heads
automatic weighter
Certifications
we have CE ISO9001 and CUSTOMIZED certification

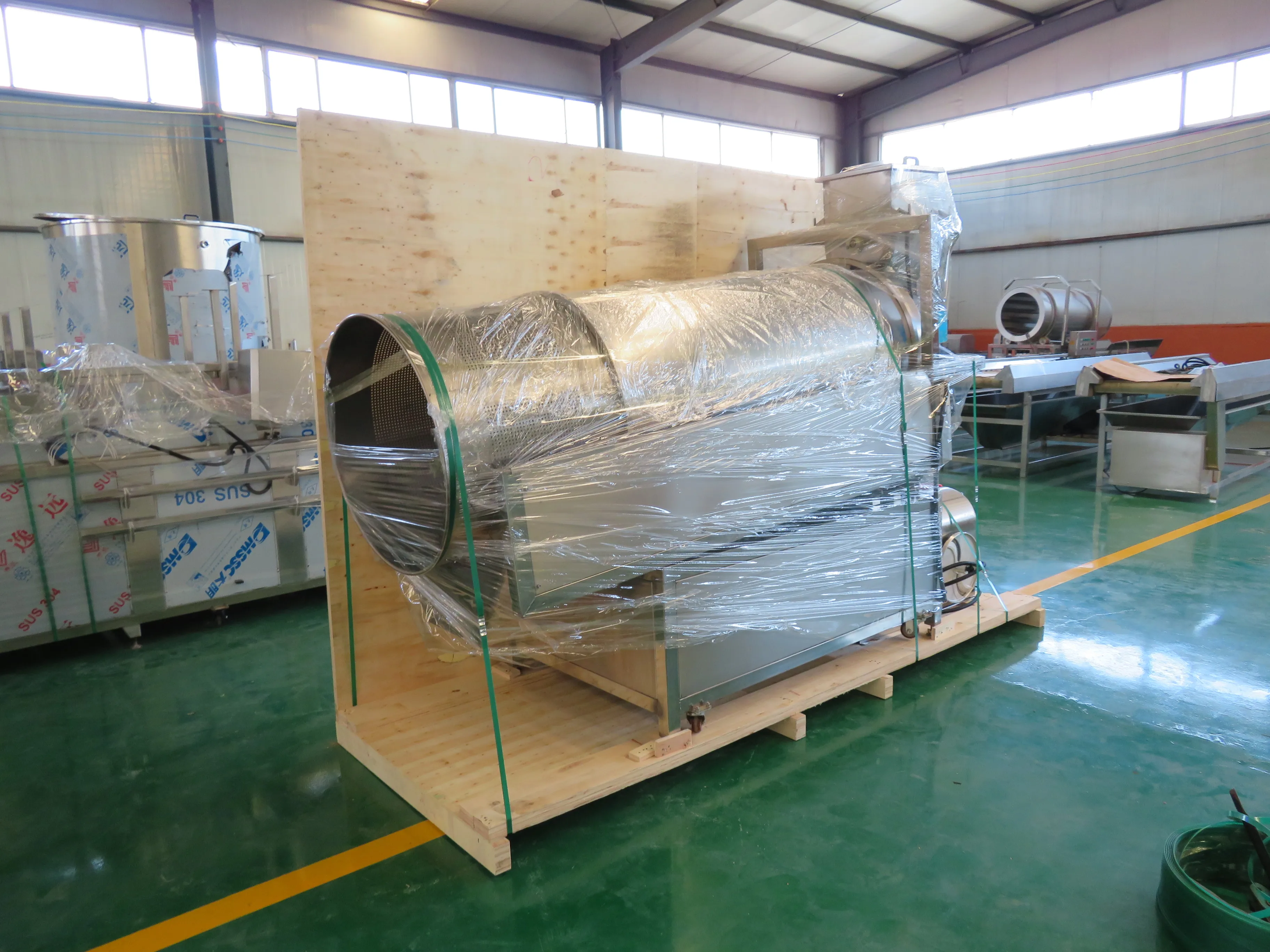

Product packaging

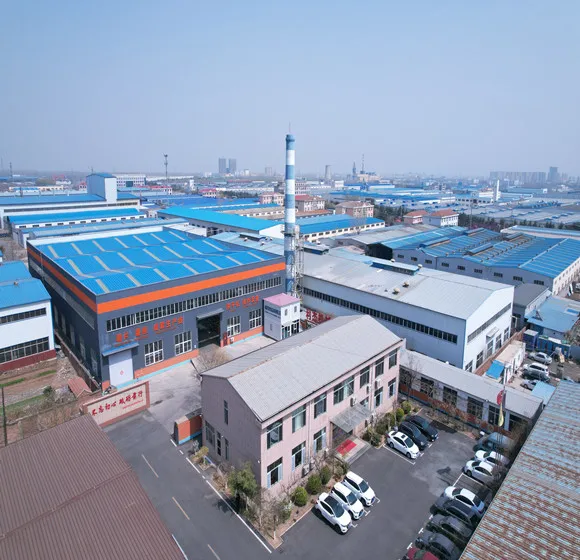

Company Profile
WELL JOY FOOD MACHINERY CO., LTD is a professional manufacturer of food processing equipment for fruits and vegetables . The company is located in the southeast of Shandong , Near Qingdao port. The location and the transportation is convenient for equipment shipping and transportation
Our products mainly sold to the United States, Singapore, Russia,Kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and 1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them.There are two Laser Cutting Machine,four Numerical Control Tool,six cutting Plate Machine and six Bending Machine Tool
Our products mainly sold to the United States, Singapore, Russia,Kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and 1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them.There are two Laser Cutting Machine,four Numerical Control Tool,six cutting Plate Machine and six Bending Machine Tool

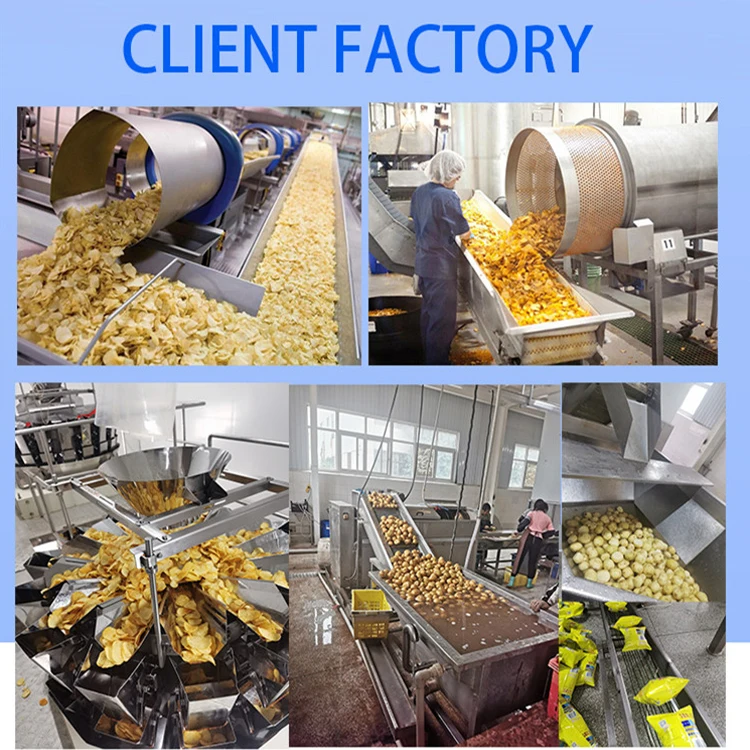

Customer Photos
