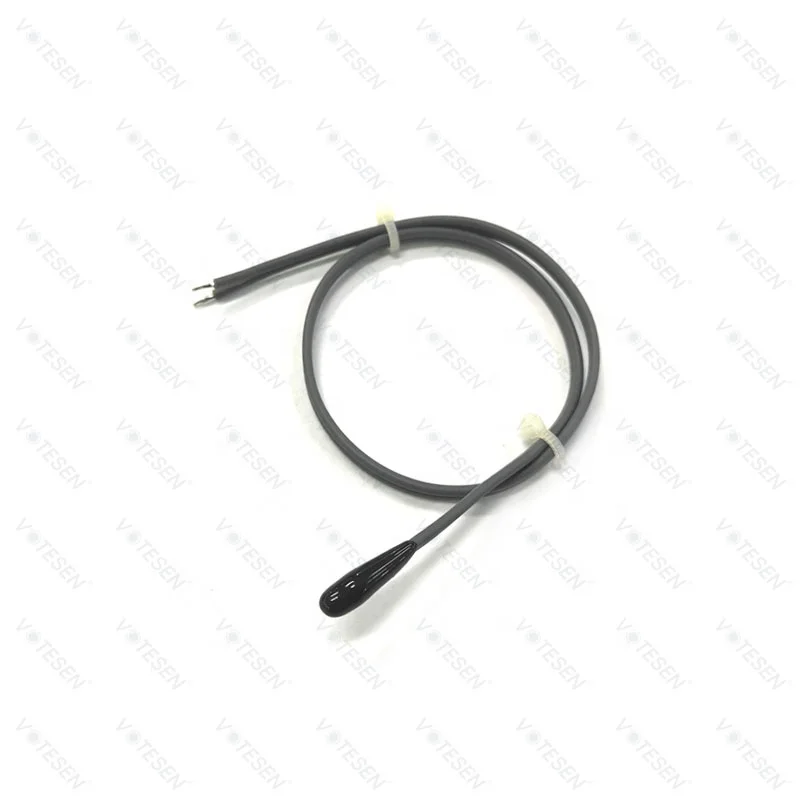

Quick Response Stainless Steel Probe Sensor 2 Wires Waterproof NTC Temperature Sensor For Refrigerator
- Category: >>>
- Supplier: Xian Votesen Electronic Technology Co. Ltd.
Share on (1601270353571):
Product Overview
Description
Product Description
NTC thermistor is a thermally sensitive resistor whose resistance exhibits a large, precise and predictable decrease as the core temperature of the resistor increases over the operating temperature range. Unlike RTDs (Resistance Temperature Detectors), which are made from metals, NTC thermistors are generally made of ceramics or polymers. Different materials used result in different temperature responses, as well as other characteristics.

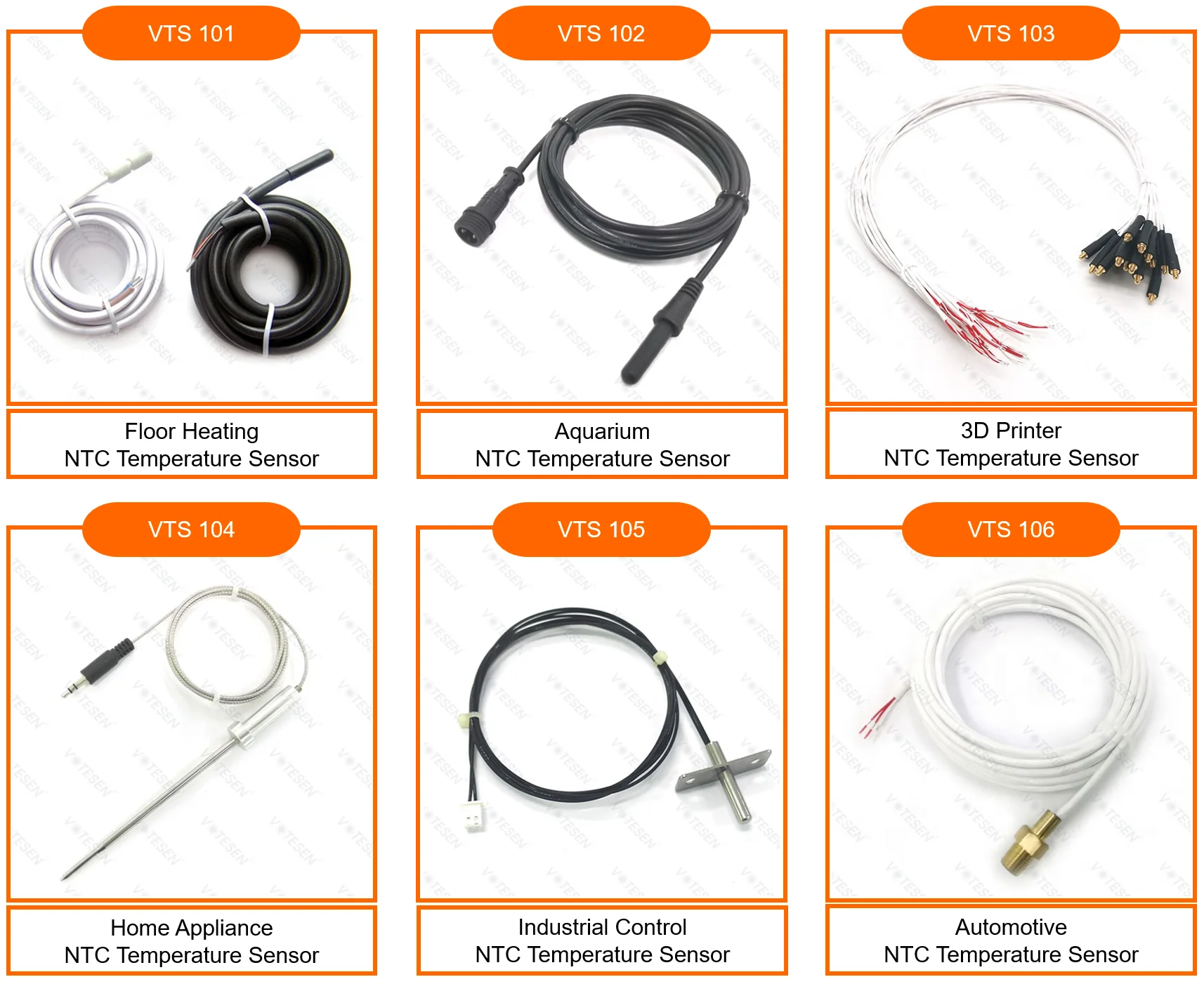

VOTESEN VTS100 series NTC Temperature Sensors employ NTC sensor elements and feature mechanical protection in different packaging technologies and integrated connectors. Thanks to the robust design and excellent performance, our NTC Temperature Sensors can suitable for the most demanding temperature sensing applications. According to the different application environments, it is mainly divided into the following 6 models: VTS101, VTS102, VTS103, VTS104, VTS105, and VTS106.
VOTESEN VTS100 series NTC Temperature Sensors employ NTC sensor elements and feature mechanical protection in different packaging technologies and integrated connectors. Thanks to the robust design and excellent performance, our NTC Temperature Sensors can suitable for the most demanding temperature sensing applications. According to the different application environments, it is mainly divided into the following 6 models: VTS101, VTS102, VTS103, VTS104, VTS105, and VTS106.
Product Features and Details
Our VTS100 series NTC Temperature Sensors is manufactured using sophisticated, state-of-the-art techniques to deliver high-quality products suitable for the most demanding temperature sensing applications. The thermistors we use are created from a precise blend of raw materials and processed using proprietary techniques that result in superior discrete components, probes, and assemblies. Therefore, our products have the following features:
★ Excellent tolerance and interchangeability.
★ Excellent thermal cycle endurance.
★ Small size, high sensitivity.
★ Wide operating temperature range.
★ Long-term stability and reliability.
★ Fast thermal response time.
★ Customize available for different industries and usage environments.
★ Low cost.
We can manufacture all kinds of NTC Temperature Sensors. VTS100 series applicate different industries. Feel free to browse each category to find the sensor or assembly you need. If you're unsure of the type of thermistor sensor or assembly that fits your requirements, our expert application engineering personnel can assist you in making the best selection or in designing a special sensor or assembly specifically suited for your application. We can customize your NTC products according to your demand.
How to place order?
1. Kindly provide us the following information for custom made NTC temperature sensors:
￭ Operation temperature range
￭ Resistance value
￭ B value
￭ Application
￭ Probe type/shape & dimension
￭ Cable material
￭ Cable length
￭ Connector
2. If there is a specific request or custom made, you are welcome to provide us the detail drawing.
★ Excellent tolerance and interchangeability.
★ Excellent thermal cycle endurance.
★ Small size, high sensitivity.
★ Wide operating temperature range.
★ Long-term stability and reliability.
★ Fast thermal response time.
★ Customize available for different industries and usage environments.
★ Low cost.
We can manufacture all kinds of NTC Temperature Sensors. VTS100 series applicate different industries. Feel free to browse each category to find the sensor or assembly you need. If you're unsure of the type of thermistor sensor or assembly that fits your requirements, our expert application engineering personnel can assist you in making the best selection or in designing a special sensor or assembly specifically suited for your application. We can customize your NTC products according to your demand.
How to place order?
1. Kindly provide us the following information for custom made NTC temperature sensors:
￭ Operation temperature range
￭ Resistance value
￭ B value
￭ Application
￭ Probe type/shape & dimension
￭ Cable material
￭ Cable length
￭ Connector
2. If there is a specific request or custom made, you are welcome to provide us the detail drawing.
Product Parameters
The reliability of VOTESEN VTS100 Series NTC Temperature Sensors is the best when it comes to accuracy, precision, and durability. Standard technical parameters make these NTC Temperature Sensors ideal for field use.
Accuracy | ± 1% |
Thermal Response Time | 5 ~ 15s |
Operation Temperature | -40℃ ~ +300℃ |
Resistance | 5KΩ/10KΩ/20KΩ/50KΩ/100KΩ (Customizable) |
B Value | 3270K/3380K/3470K/3550K/3700K/3950K/4200K/4650K (Customizable) |
Probe Type | Thread/Hex Head/Flanged/Ring Lug/Epoxy (Customizable) |
Probe Material | Stainless steel/Brass/Copper/Copper plated nickel/Aluminium/Alloy/ABS/PVC/Epoxy/Glass (Customizable) |
Probe Dimension | Customize according to your requirements |
Probe Protection | IP68 |
Cable Material | PTFE/PVC/Silicone (Customizable) |
Cable Length | Customize according to your requirements |
Connector | Molex/JST/DuPont/CWB/CJT (Customizable) |
Remarks: We can customize various type of NTC temperature sensor based on your requirements. Feel free to let us know your request.
Customer Feedback
Practical Application
NTC Temperature Sensors are mainly used in Household Air Conditioner, Auto Air Conditioner, Refrigerator, Stove, Deep Fryer, Induction Cooker, Soybean Milk Machine, Electric Oven, Kitchen Utensils and Appliances, Floor Heating,3D Printers, etc for Temperature Measurement and Control.
Product Packaging & Shipping
As the client requirement, each unit has an individual box and all boxes are packed in standard export packages.
Company Profile & Certifications
XI'AN VOTESEN ELECTRONIC TECHNOLOGY CO.,LTD located in XI'AN CITY, one of the three major sensor industry based in China. We have more than 10 years experience in sensor industry. We are not only the product manufactory, but also a professional technical support team which we can accommodate customer various requirements. We also accept OEM/ODM production order.
Votesen is committed to produce high-quality sensor and measurement instruments. Our mature and advanced production technology ensure your project safety, stable and long lasting operation. Our ultimate goal is to ensure and control the quality of our products in line with the industry standard quality. Our products have been sold to over 40 countries like Australia, USA, Canada, Mexico, Netherland, Germany, Russia, Poland, Korea, India etc.
With Votesen, you will always harvest the best price, passion service and professional guidance. We supply 7*24 hours professional service and your satisfaction is always our priority.
Votesen is committed to produce high-quality sensor and measurement instruments. Our mature and advanced production technology ensure your project safety, stable and long lasting operation. Our ultimate goal is to ensure and control the quality of our products in line with the industry standard quality. Our products have been sold to over 40 countries like Australia, USA, Canada, Mexico, Netherland, Germany, Russia, Poland, Korea, India etc.
With Votesen, you will always harvest the best price, passion service and professional guidance. We supply 7*24 hours professional service and your satisfaction is always our priority.
We have passed CE, ROHS FC certificate which can satisfy different market standard requirements. We also provide professional technical support to our client.
FAQ
1. What is your lead time?
Our produce lead time is approximately 7 -10 working days. If it is urgent or large order quantity, please connect with us and we will try our level best to meet your requirement.
2. Do you accept OEM order?
Yes, we accept OEM and customize order. Just send us your requirements and we can produce NTC thermistor as per your need.
3. How can I order with you?
Easy! Just fill up the inquiry form below or chat with me now.
4. Do you have other temperature sensor products?
Yes. We supply various types of temperature sensors such as DS18B20, LM35, RTD PT100, PT1000, Thermocouple, DHT/SHT temperature and humidity sensor. For more product options, visit our store now.
5. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you choose to make payment through ALIBABA TRADE ASSURANCE, your payment will be guaranteed because we will only receive payment once you receive the product.
6. How about your product warranty?
Don't worry. Our product has 1 year warranty. We also provide professional after-sales guarantee and services.
7. Why choose VOTESEN?
• Experience and professional support.
• 24/7 customer service support.
• Product quality assurance is always our top and main priority.
• One-stop solution service.
