Wholesale BOE Original NV101WXM N01 10.1 Inch 1280*800 High Resolution TFT LCD Display
- Category: >>>
- Supplier: Hangzhou Chuanbao Electronic Technology Co. Ltd.
Share on (1601270354575):
Product Overview
Description
Product Description
NV101WXM-N01 is a 10.1" inch a-Si TFT-LCD display module product from BOE Technology Group Co., Ltd. (BOE) with WLED backlight, LED driver backlight driver, no touch. According to the Rev.P1 product specification released by BOE on Jun 3, 2020, NV101WXM-N01 has a display resolution of 1280(RGB)×800 (WXGA), an aspect ratio of 16:10 (width:height), and RGB vertical strip arrangement of pixels. Its display area size is 216.96×135.6 (width×height) mm, its external dimensions are 228.3×149.05 (width×height)×4.7 (thickness) mm, its surface treatment is anti-reflection treatment, and its net weight is 400g (Max.). In terms of backlight, this product uses a WLED side-entry light source (bottom), the service life of the light source is 15K hours, including LED driver. NV101WXM-N01 uses LVDS (2 ch, 8-bit) signal interface, a total of 40 pins, terminal connection, and the screen drive voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. Its operating temperature is 0 ~ 50°C and the storage temperature is -20 ~ 60°C. Based on its white LED backlight, including LED driver, Application: running machine and other features, this model is recommended for use in industry, culture, education, sports and entertainment.
Specification
Item | Value |
Type | TFT |
Display Size | 10.1inch |
Supplier Type | lcd panel |
Place of Origin | China |
Brand Name | BOE |
Resolution | 1280(RGB)×800, WXGA, 149PPI |
Model Number | NV101WXM-N01 |
Body Size | 228.3×149.05×4.7 mm (H×V×D) |
Panel type | Liquid crystal glass, a-Si TFT-LCD |
Frequency | 60Hz |
Screen voltage displacement | 3.3V (Typ.) |
Signal interface | LVDS (2 ch, 8-bit) , 40 pins , terminal |

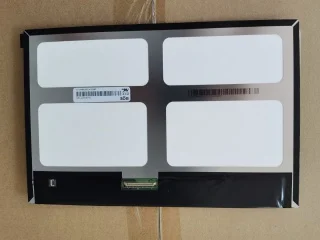

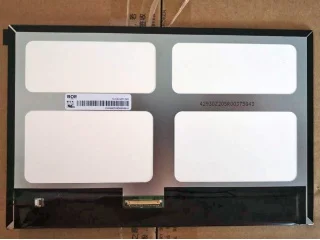

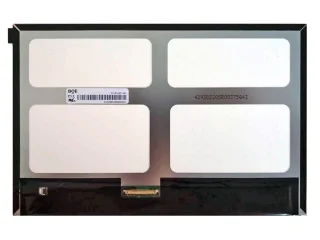

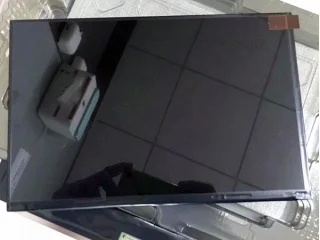

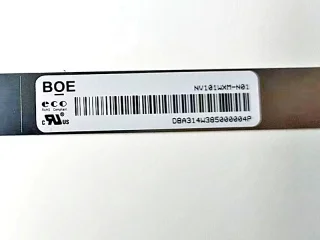

Product photos

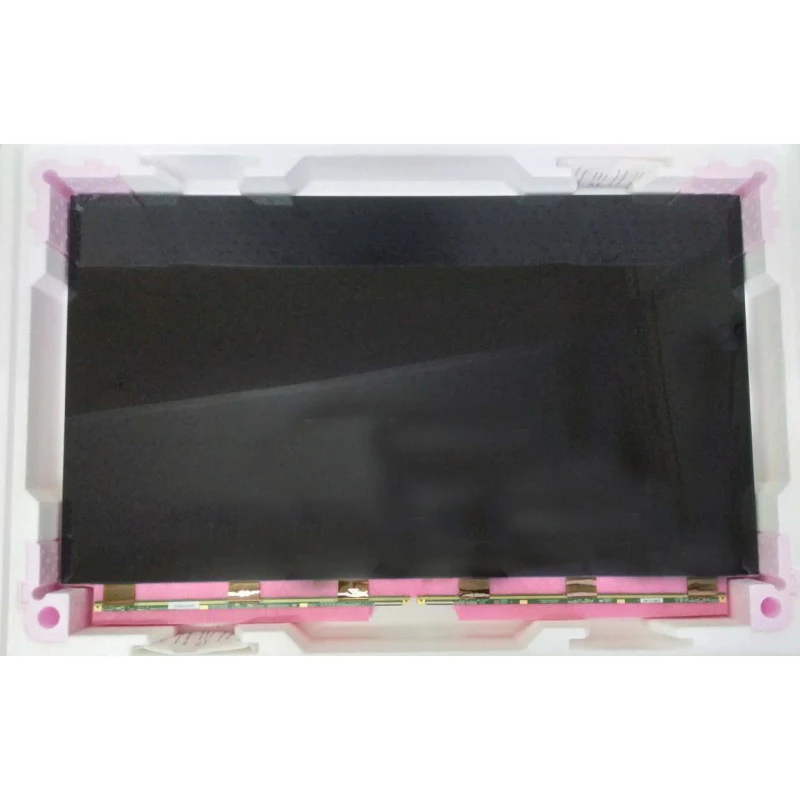

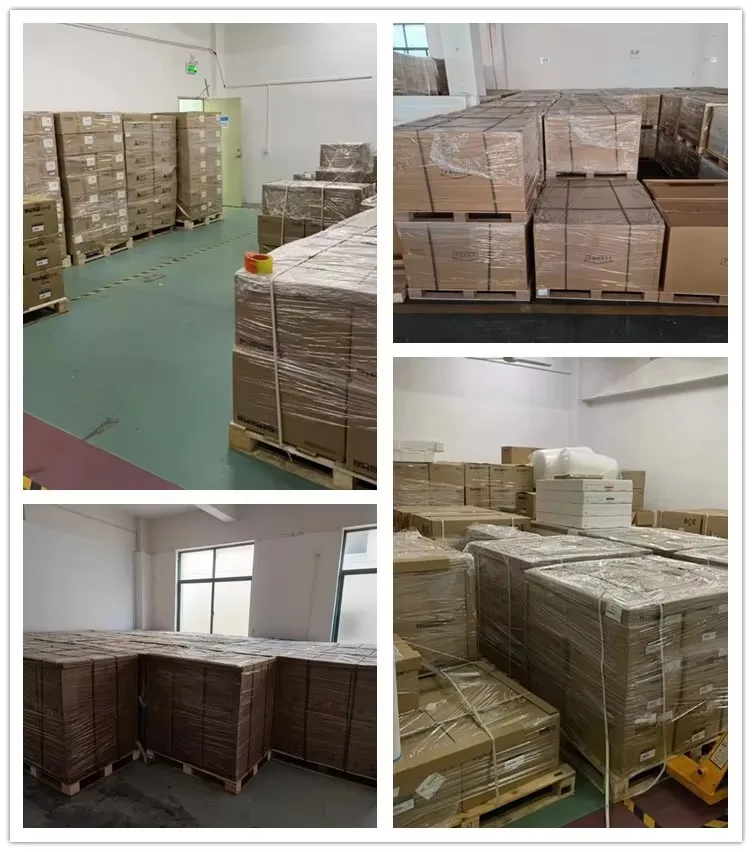

Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.

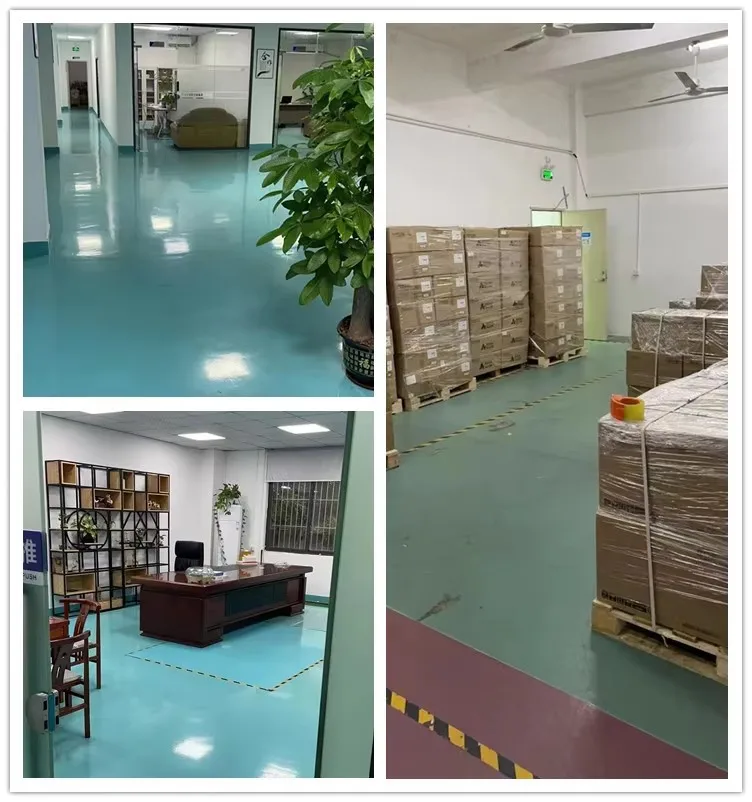

Company Profile
Hangzhou Chuanbao Electronic Technology Co., Ltd. mainly operates services: electronic products, computer software and hardware,LCD displays, household appliances, office supplies, intelligent equipment, communication equipment, monitoring equipment technology development, technical consultation, technical services and achievement transfer; Computer Network Engineering; Wholesale, retail: computer software and hardware; LCD display; Household appliances; office supplies; smart devices; communication equipment; monitoring equipment, etc. The registered capital of the company is RMB1,000,000, our company's office address is located in the largest city in Zhejiang Province, the paradise on earth Hangzhou, we have the best products and professional sales and technical team, the company is developing rapidly, we provide customers with the best products, good technical support, sound after-sales service!
FAQ
1.What Brand do you have?
4.What is the warranty period of the product?
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provide you with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
