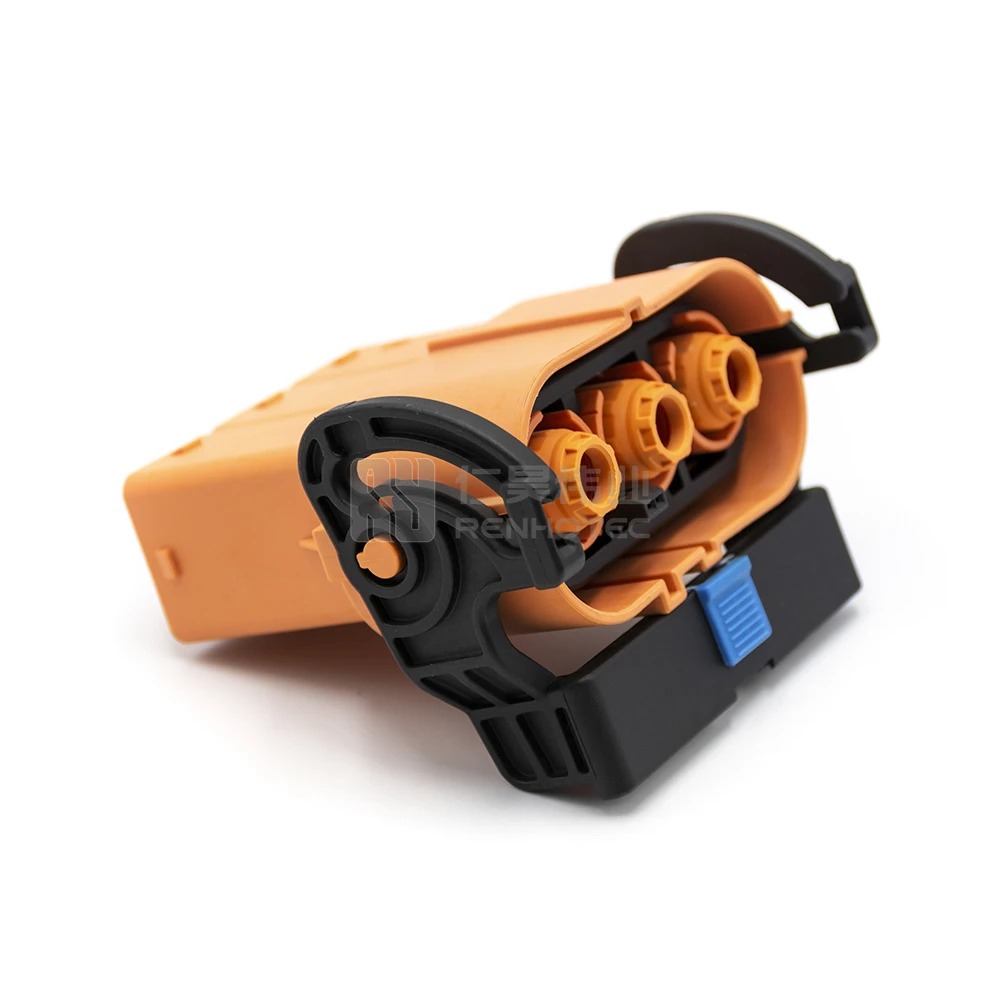

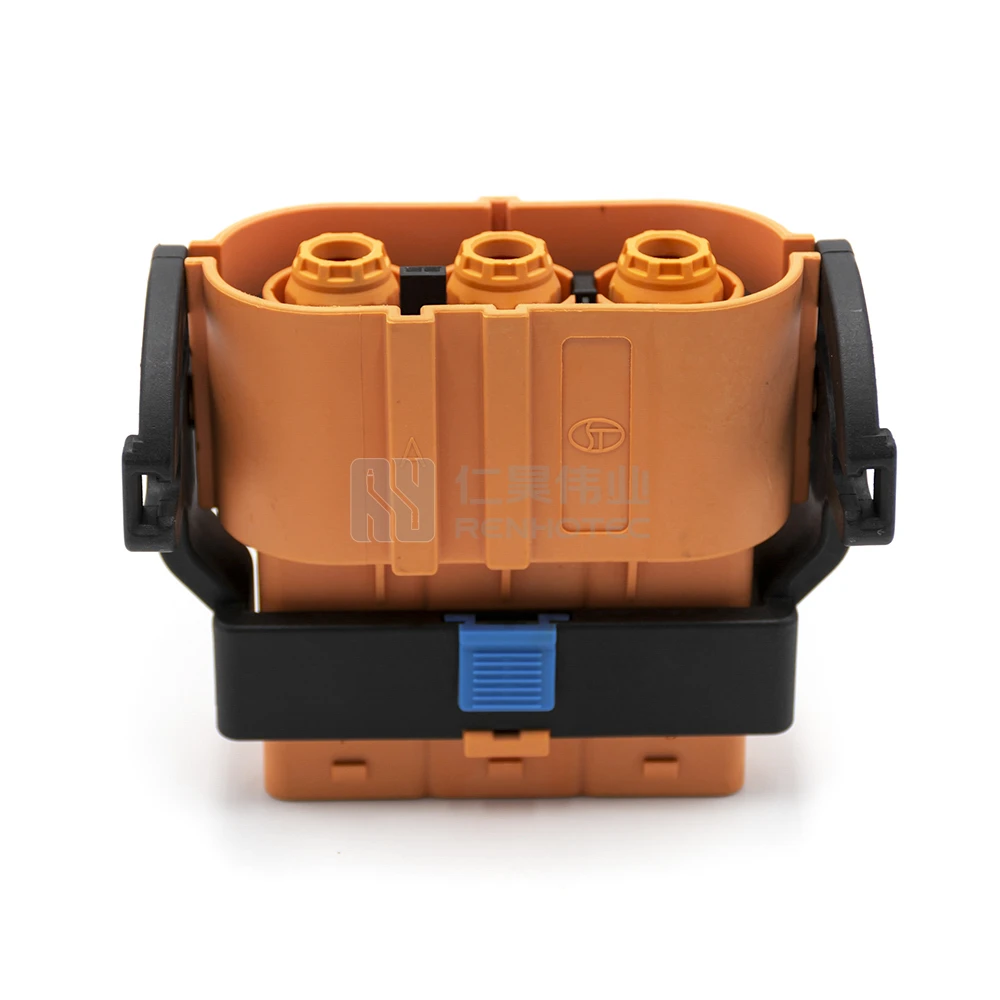

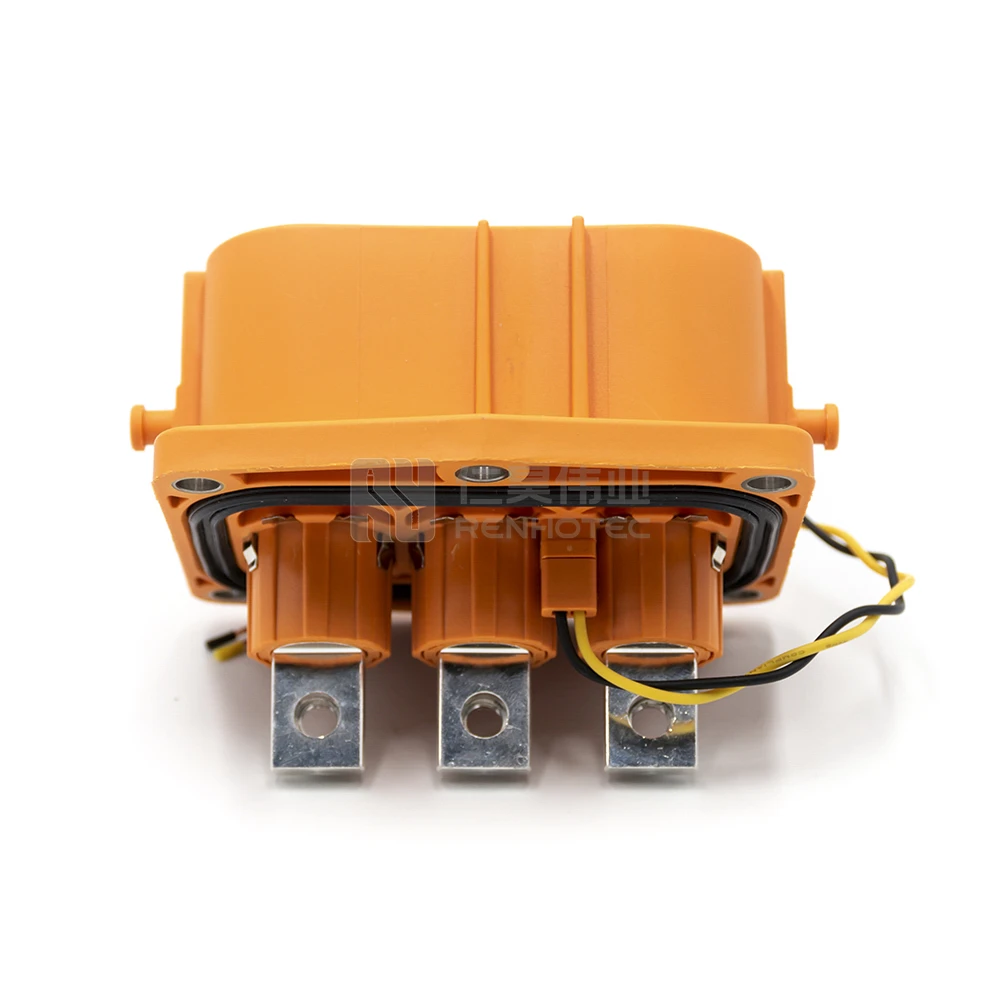

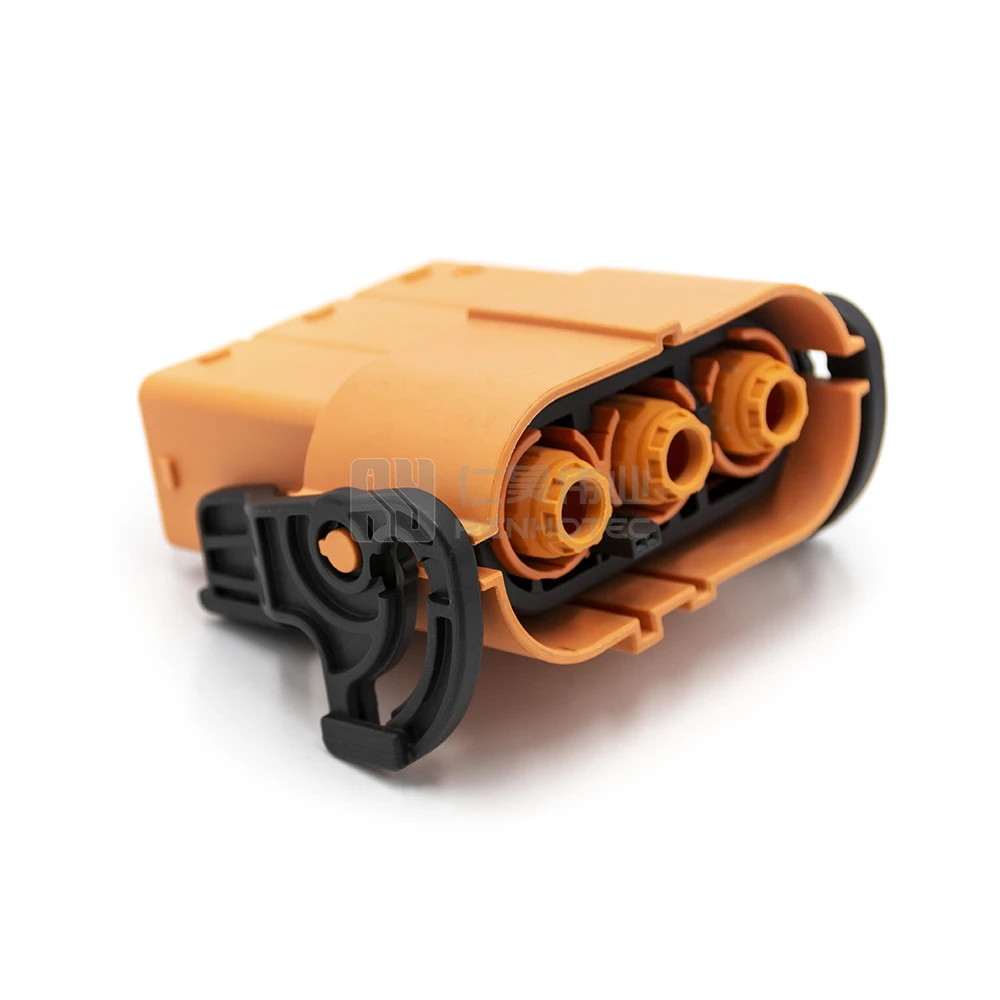

HVIL Connector 3 Pin 250A New Energy Vehicle Connector Power IP67 with High Voltage Interlock
- Category: >>>
- Supplier: Renhao Weiye Technology (Wuhan) Co. Ltd.
Share on (1601270407448):
Product Overview
Description

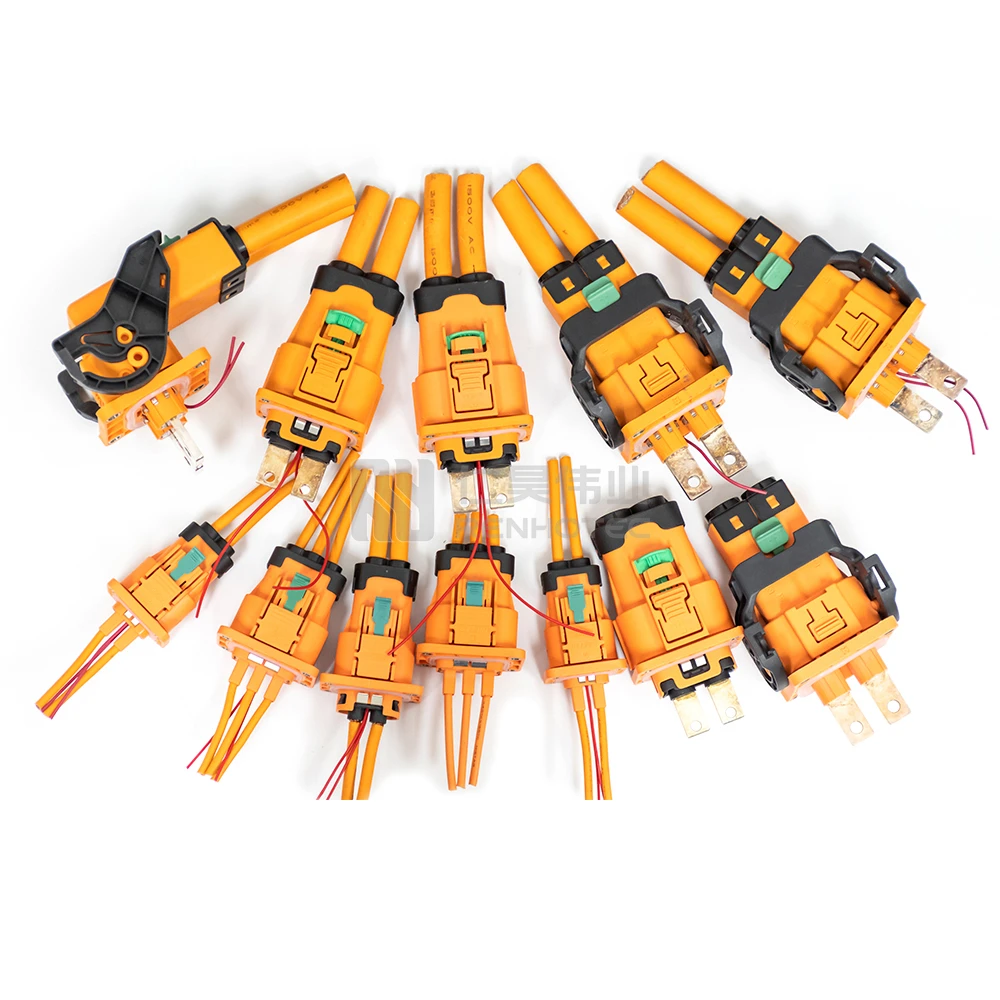

Full Series HVIL Series Connector
All types of High Voltage Connector from OEM Manufacturer in China
Product Description
Connector for High Voltage Inter Lock (HVIL) System in EV
HVIL (High Voltage Interlock) is a safety feature that uses a low voltage circuit to monitor the integrity of the high voltage
circuit, designed to protect those who may come into contact with the high voltage system of an electric vehicle.The main electrical components in the electric vehicle (EV) high voltage interlock system are the HVIL connector and the MSD(Manual Service Disconnect) connector.

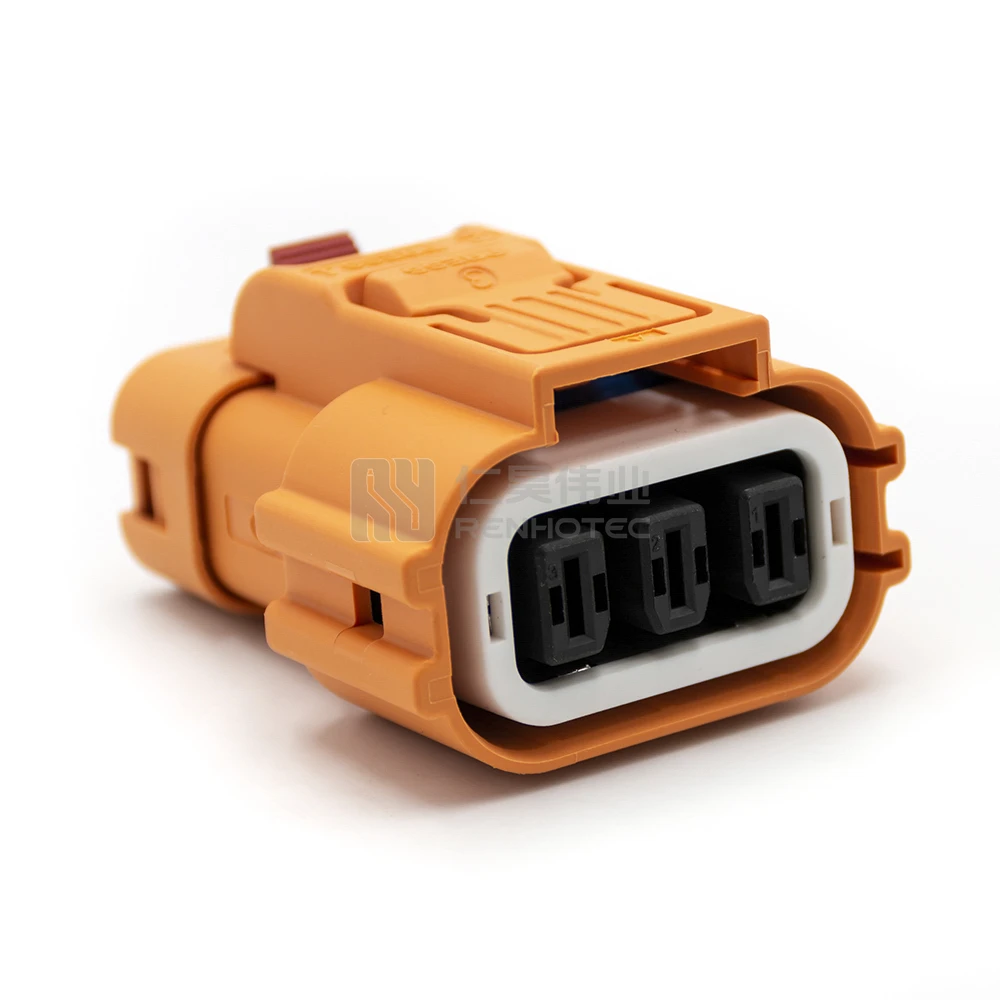

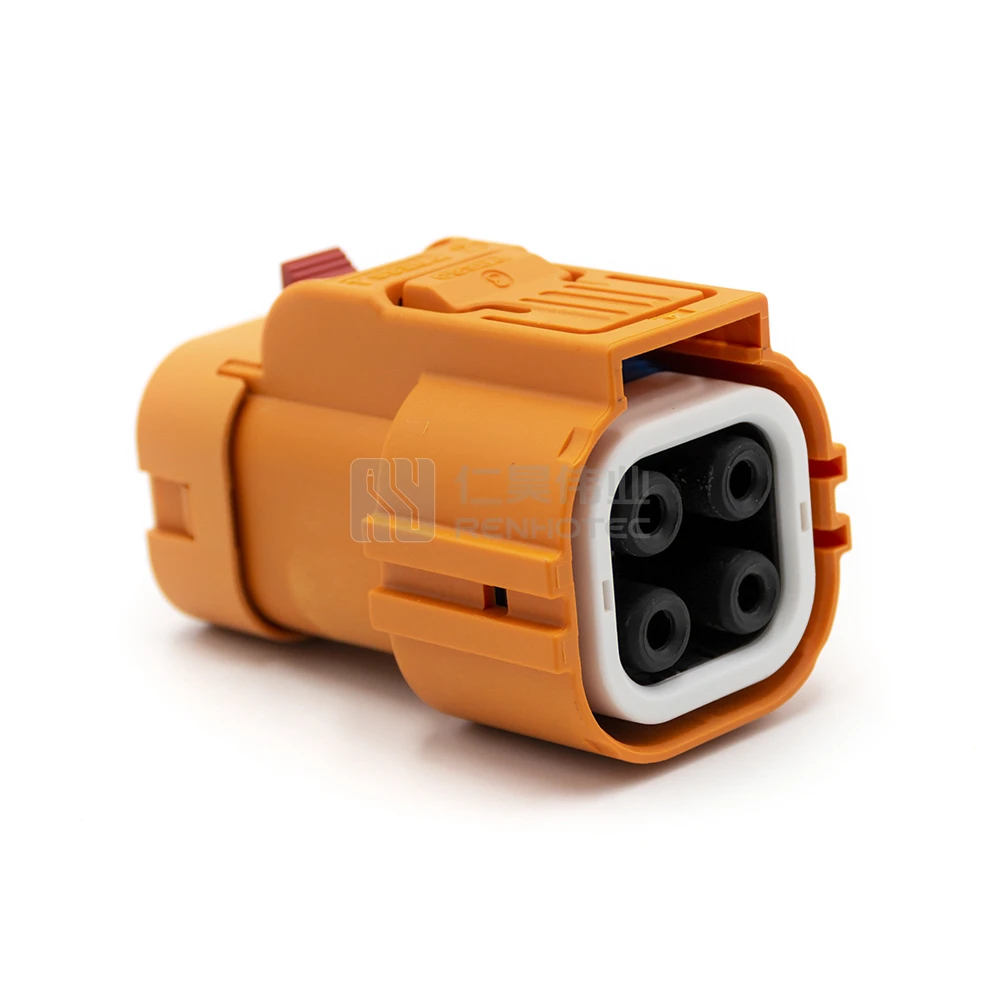

HVIL connectors family features a wide temperature and wire range and multiple keying options for many electric vehicle applications. Assembly is simplified with a lever assist for low insertion force.
HVIL connectors provide a robust design that optimizes package size and plug and header selections to create multiple wire harness assembly routing options. The touch-proof HVIL connectors and headers are engineered with 90-degree and 180-degree plugs and feature an integrated internal HVIL function and EMI shielding.
circuit, designed to protect those who may come into contact with the high voltage system of an electric vehicle.The main electrical components in the electric vehicle (EV) high voltage interlock system are the HVIL connector and the MSD(Manual Service Disconnect) connector.
HVIL connectors family features a wide temperature and wire range and multiple keying options for many electric vehicle applications. Assembly is simplified with a lever assist for low insertion force.
HVIL connectors provide a robust design that optimizes package size and plug and header selections to create multiple wire harness assembly routing options. The touch-proof HVIL connectors and headers are engineered with 90-degree and 180-degree plugs and feature an integrated internal HVIL function and EMI shielding.
Gender | Plug / Socket |
Number of Positions | 1 Pin / 2Pin / 3Pin / 4Pin / 5Pin / 6Pin |
Orientation | Straight / Right Angle |
Body Material | Metal / Plastic |
Contact size | 2.8mm / 3.6mm / 6mm / 8mm / 9mm / 10mm / 12mm /14mm |
Rated Current | 23A / 35A / 46A / 50A / 100A / 150A / 180A / 200A / 250A / 300A / 400A / 500A |
Rated Voltage | 800V / 1000V / 1500V |
Wire Range | 2.5mm² / 4mm² / 6mm² / 10mm² / 25mm² / 35mm² / 50mm² / 70mm² / 95mm² / 150mm² |
Color | Orange / Natural |
Flammability Rating | UL94 V-0 |
Feature | Waterproof |
Protection Rating | IP67 / IP6K9K |
Temperature Range | -40°C~ +125°C |
Features
Options rated for 800V and 1500V
500-amp maximum current rating
IP rating: Mated: IP67, IP6K9K
Unmated: IP2xb

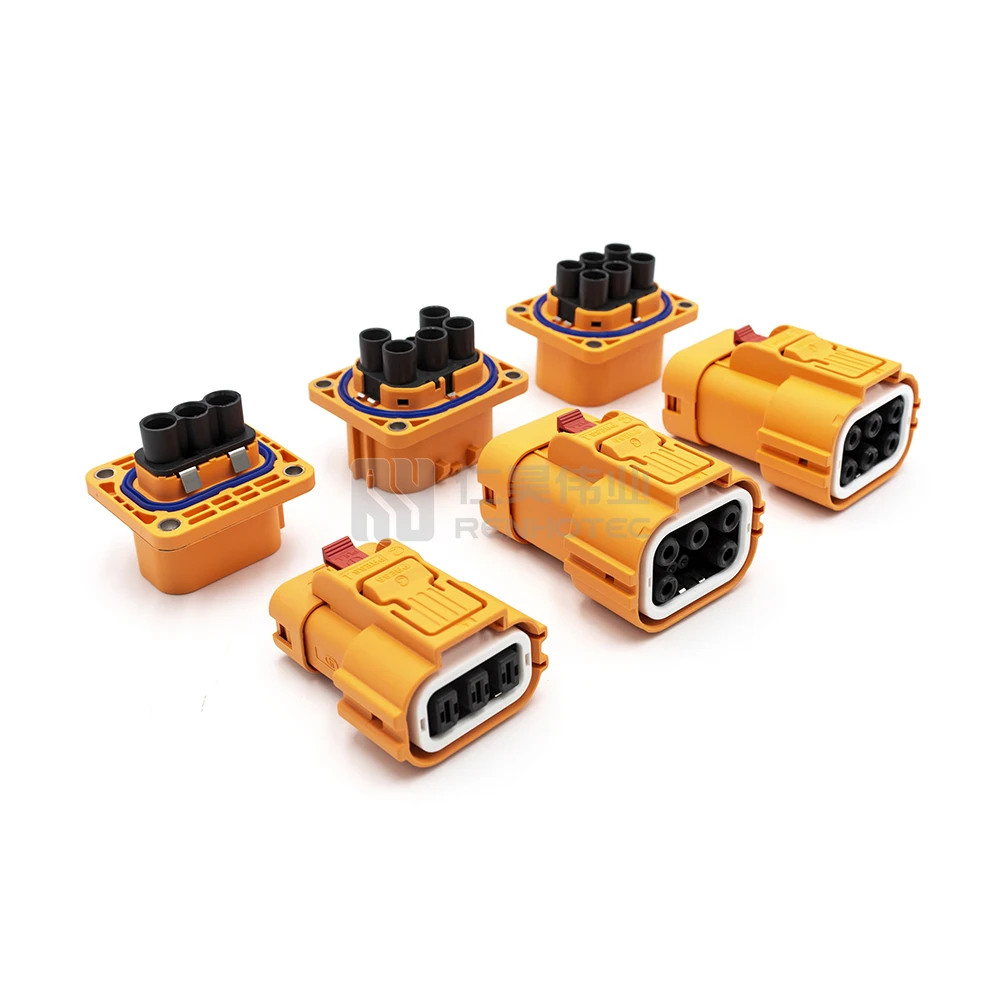

Multiple Solutions for HVIL Systems in EV

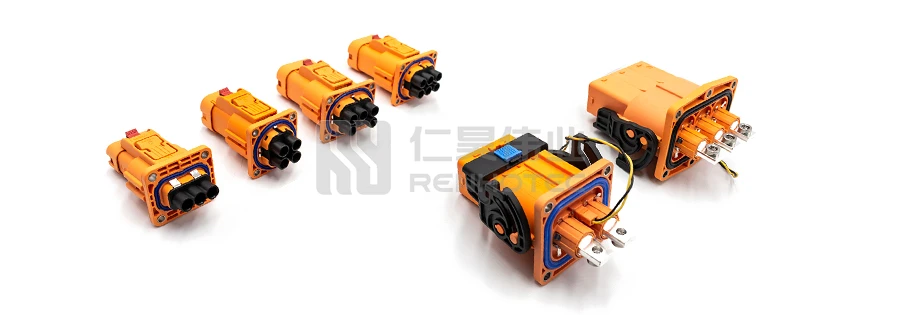

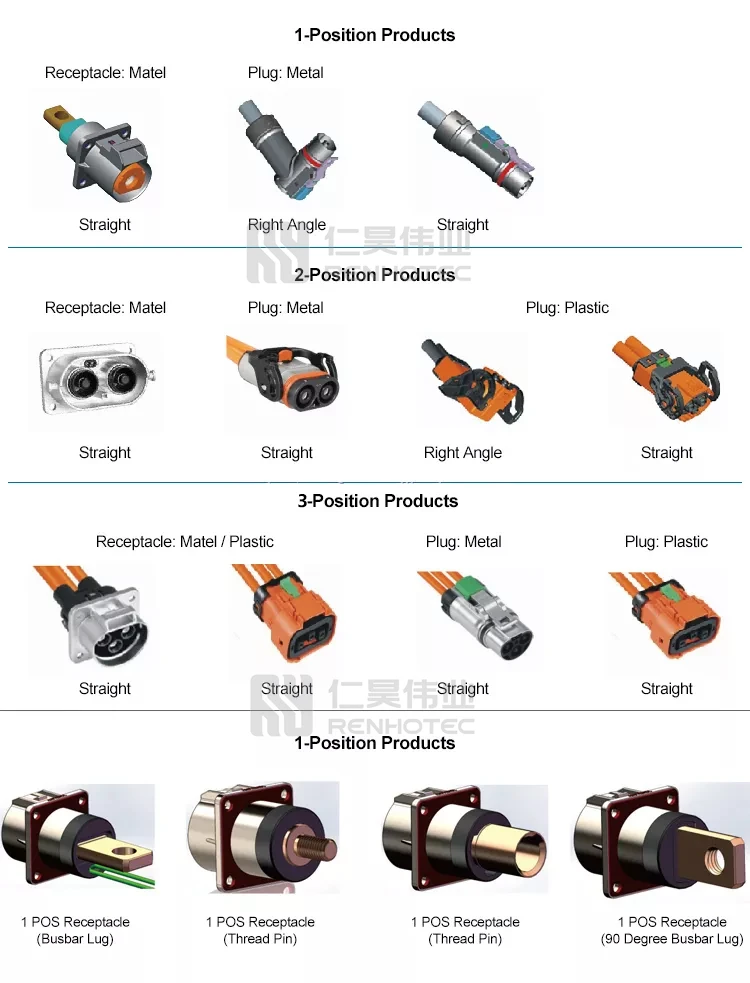

We offers a multiple set of automotive HVIL system solutions with high voltage connectors from 1-6 poles. The high voltage connectors are engineered with 90-degree and 180-degree plugs and feature an integrated internal HVIL function and EMI shielding.
Safe, High-quality and Convenient
The high-voltage connectors are made of PA66 insulation and have passed a high temperature test of 128°C for 1008 hours. Assembly is simplified with a lever assist for low insertion force.
Advanced Contact Design

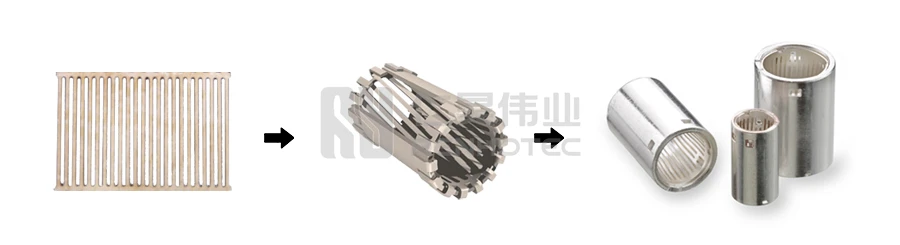

The core technology for any power connection system is the contact. We uses advanced contacts designed to maximize power transfer while minimizing space requirements and minimizing the length and diameter required for a given current while maintaining a good temperature response.
Exhibition
High voltage low current :
Company Profile
Renhotec established in 2008, it is a developing firm specializing in design,manufacturer and marketing NEW Energy Electric vehicle Connector, HV Energy Storage Battery Connector, Power Cable Connector, Quick Connect Connector, HVIL High Voltage Current EV Charger Connector,RF electronic coaxial connectors, Cable Assemblies. Industrial Circular M12 Plug Socket Cable,Sensor connector M5 M8 M12 M16 M23 and related accessories.
Renhotec aimed to offer you Excellent Products with First-Rate service. We believe our company can definitely provide more value to our customer!

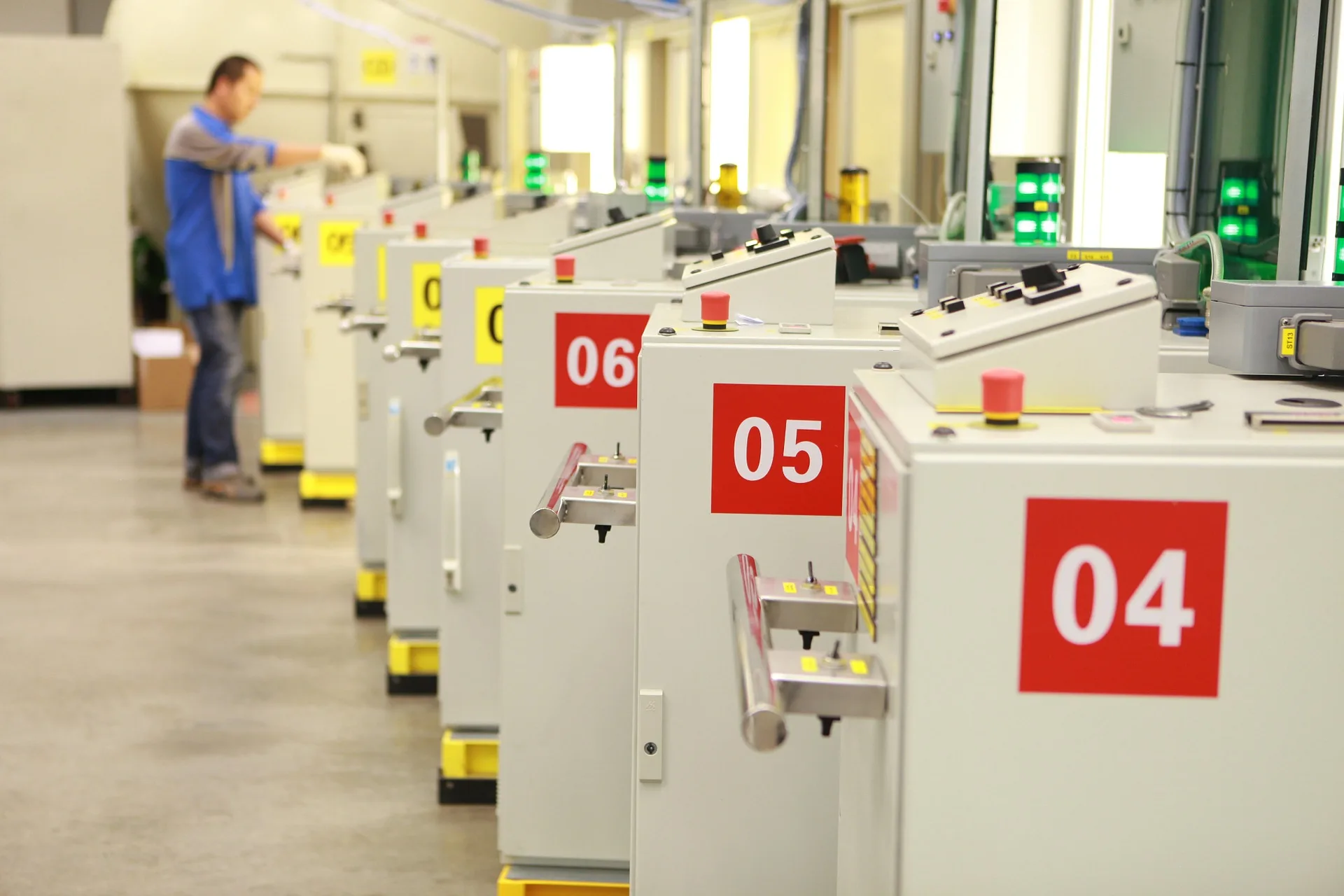

Production Equipment
Applications

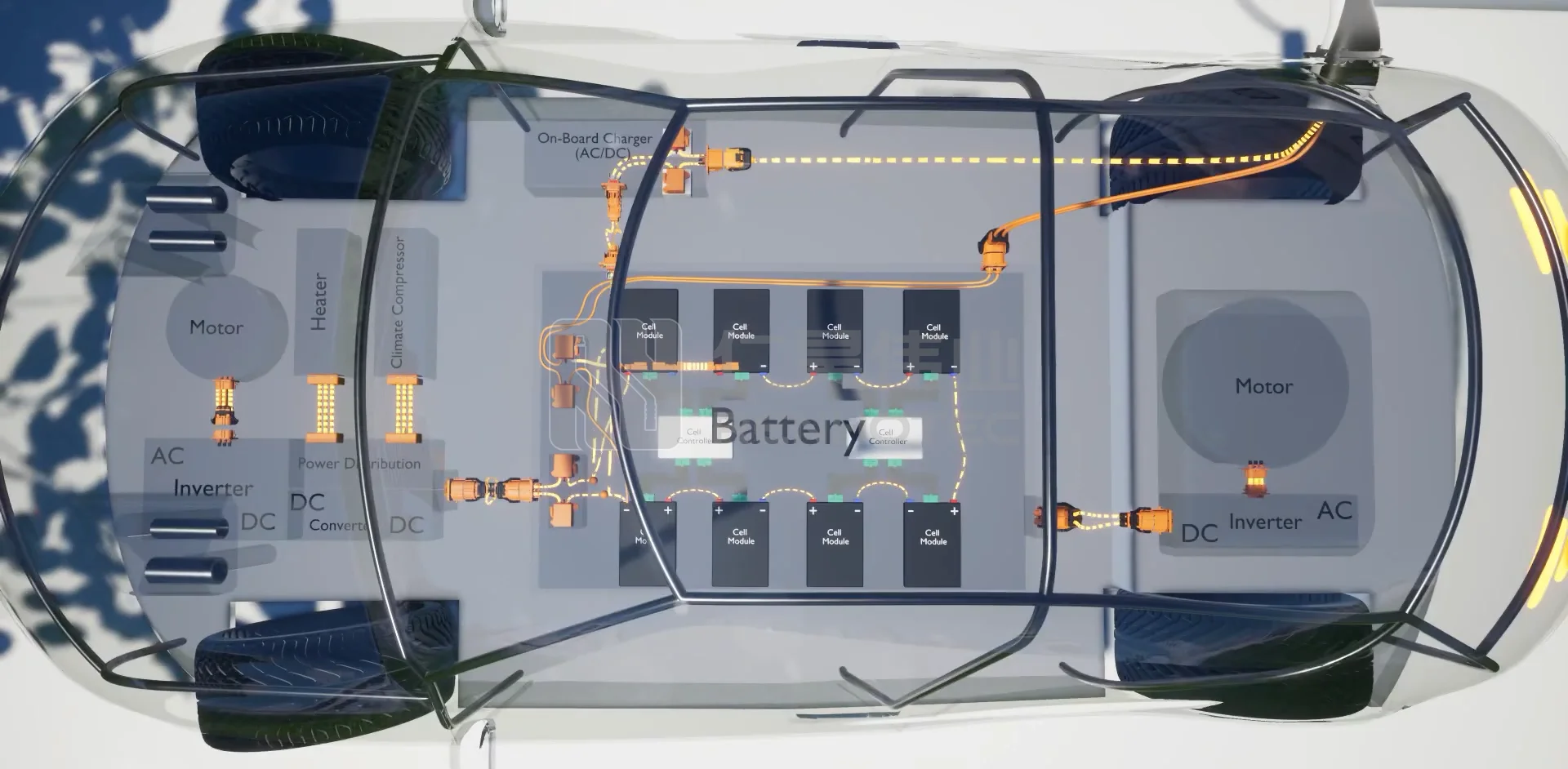

* High Voltage Power Distribution
