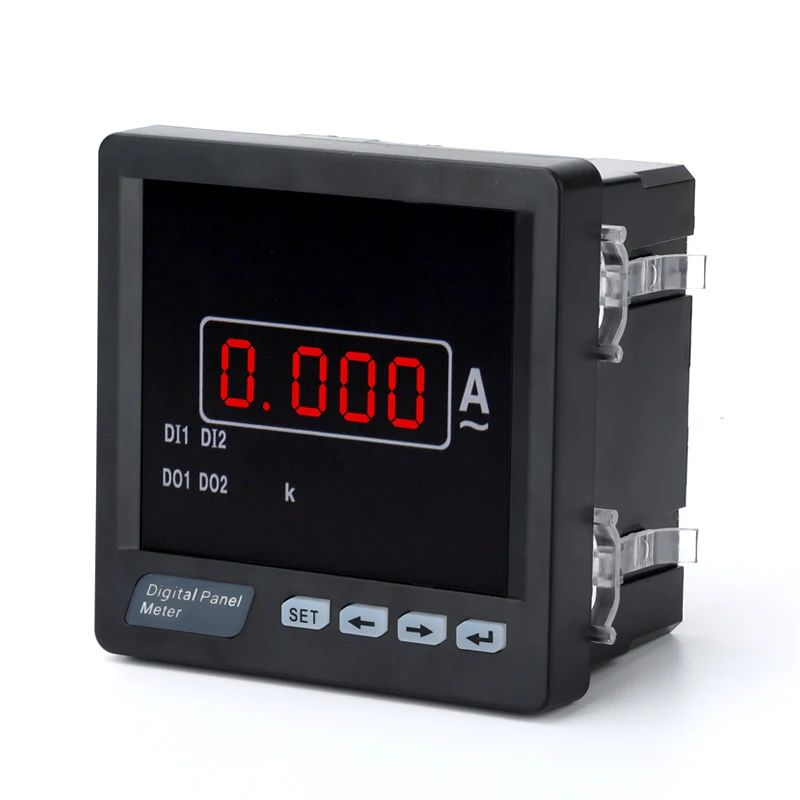

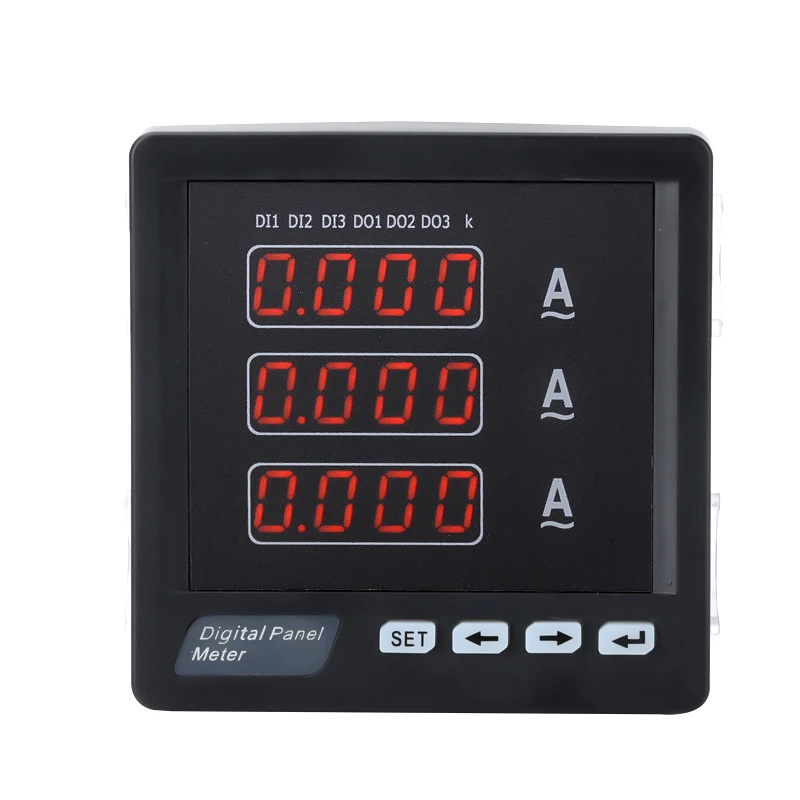

RN 3AA33 LED digital current meter analog and digital electronic ammeter AC three phase digital current meter
- Category: >>>
- Supplier: Yueqing Renping Electric Co. Ltd.
Share on (1601270432356):
Product Overview
Description
Products Description
Products Description
Performance Characteristics
* High precision measurement of single and three phase AC current

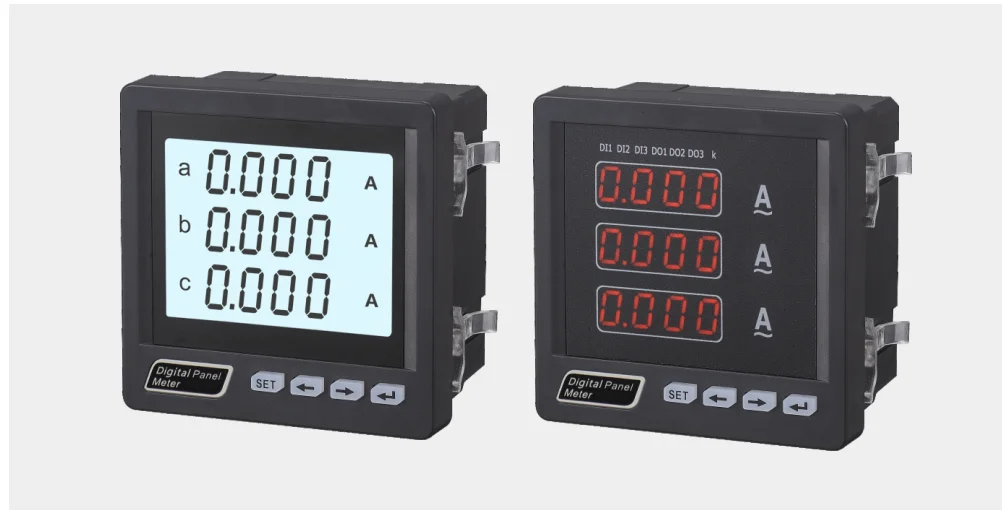

* Provide digital tube display and local data query
* Programmable CT ratio
* Support for RS-485 communication , Mod bus RTU protocol
* Support for switch input, switch output, and analog transmission output
* Auxiliary power supply: AC/DC 85V-265V, AC220V, AC380V, AC100V
* A variety of dimensions to meet the different requirements of the electric distribution box
Accuracy of measurement
* Current level 0.5
Auxiliary Power Supply
* Working range AC/DC 85V-265V、AC220V、AC380V、AC100V
* Power Consumption <4VA
Function Module
* Communication interface 1 loop RS-485communication, Modbus RTU protocol Baud rate:1200~9600bps, default 9600bps
* Switch input 1 input of dry nodes
* Switch output 1 relay output, capacity: AC250V/5A,DC 30V/5A
* Transmission output 1 analog output: 0/4-20mA or 0-5/10V
Security
Electromagnetic compatibility performance
* electrostatic discharge Level 4
* Electric fast transient pulse group Level 4
* Surge Level 4
* External dimensions
* Panel size(mm) 80x80;96x48;96*96;72x72
* Hole size(mm) 76x76;92*45;91x91;67x67
* High precision measurement of single and three phase AC current
* Provide digital tube display and local data query
* Programmable CT ratio
* Support for RS-485 communication , Mod bus RTU protocol
* Support for switch input, switch output, and analog transmission output
* Auxiliary power supply: AC/DC 85V-265V, AC220V, AC380V, AC100V
* A variety of dimensions to meet the different requirements of the electric distribution box
* Current level 0.5
Signal Input

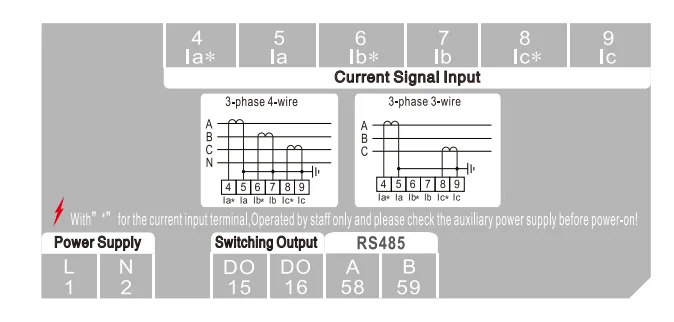

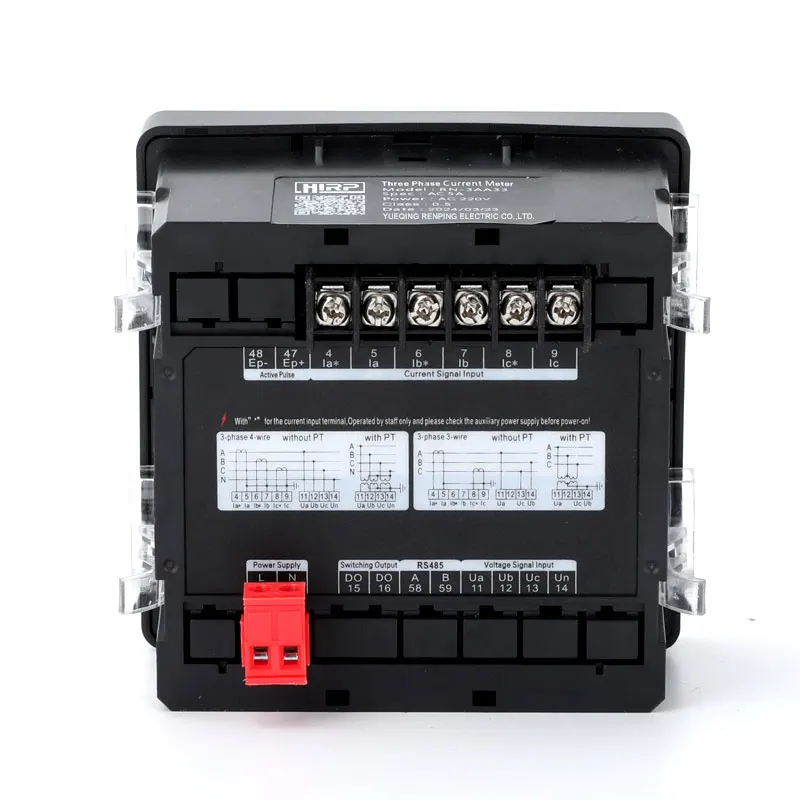

* Connection Mode Three phase four wire, three phase three wire
* Rated current AC 1A、AC 5A
* Overload 1.2 times (continued),10 times/5 seconds (instantaneous)
* Power Consumption <0.4VA/phase
* Impedance <20mΩ
* Frequency 45-65Hz
* Connection Mode Three phase four wire, three phase three wire
* Rated current AC 1A、AC 5A
* Overload 1.2 times (continued),10 times/5 seconds (instantaneous)
* Power Consumption <0.4VA/phase
* Impedance <20mΩ
* Frequency 45-65Hz
Auxiliary Power Supply
* Working range AC/DC 85V-265V、AC220V、AC380V、AC100V
* Power Consumption <4VA
Function Module
* Communication interface 1 loop RS-485communication, Modbus RTU protocol Baud rate:1200~9600bps, default 9600bps
* Switch input 1 input of dry nodes
* Switch output 1 relay output, capacity: AC250V/5A,DC 30V/5A
* Transmission output 1 analog output: 0/4-20mA or 0-5/10V
Environment
* Working temperature -10℃~+55℃
* Storage temperature -25℃-+70℃
* Relative humidity ≤ 93% in non corrosive gas environments
* Altitude ≤2500m
* Working temperature -10℃~+55℃
* Storage temperature -25℃-+70℃
* Relative humidity ≤ 93% in non corrosive gas environments
* Altitude ≤2500m
Security
* insulation resistance >100MΩ
* AC withstand voltage AC 2KV
* AC withstand voltage AC 2KV
Electromagnetic compatibility performance
* electrostatic discharge Level 4
* Electric fast transient pulse group Level 4
* Surge Level 4
* External dimensions
* Panel size(mm) 80x80;96x48;96*96;72x72
* Hole size(mm) 76x76;92*45;91x91;67x67

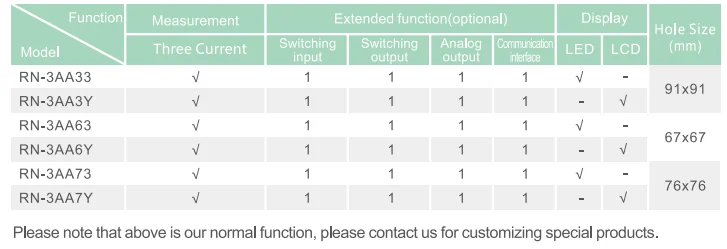

Product Paramenters
Function | Measurement | Extended function(optional) | Dispaly | Display | Hole Size | |||||||
Model NO. | Three Current | Switching input | Switching output | Analog output | Communication Interface | LED | LCD | (mm) | ||||
RN-3AA33 | √ | 1 | 1 | 1 | 1 | √ | - | 91*91 | ||||

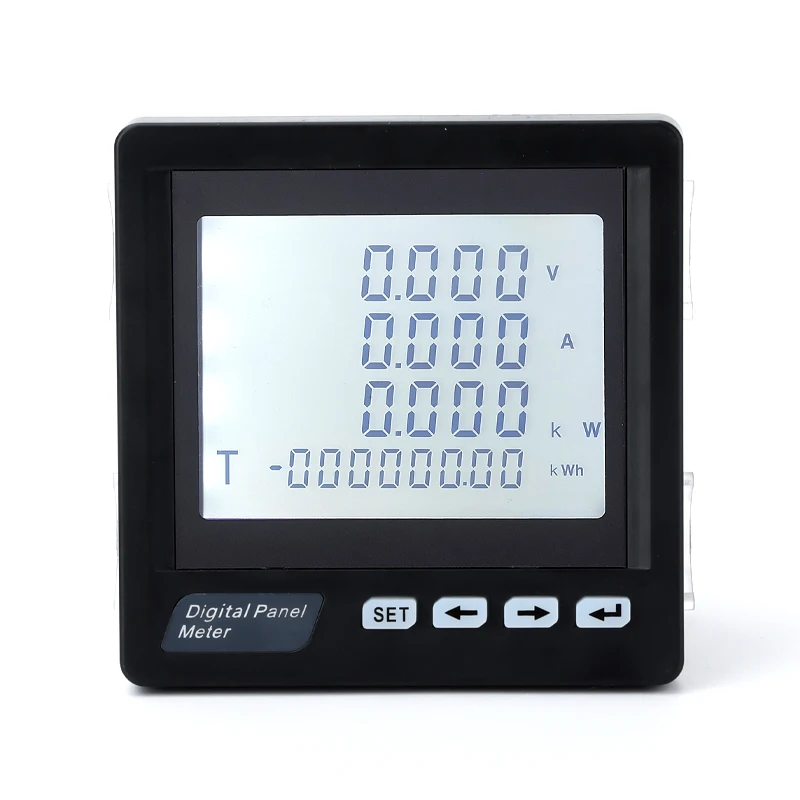

RN-3AA3Y | √ | 1 | 1 | 1 | 1 | - | √ | |||||
RN-3AA63 | √ | 1 | 1 | 1 | 1 | √ | - | 67*67 | ||||
RN-3AA6Y | √ | 1 | 1 | 1 | 1 | - | √ | |||||
RN-3AA73 | √ | 1 | 1 | 1 | 1 | √ | - | 76*76 | ||||
RN-3AA7Y | √ | 1 | 1 | 1 | 1 | - | √ | |||||
Recommend Products

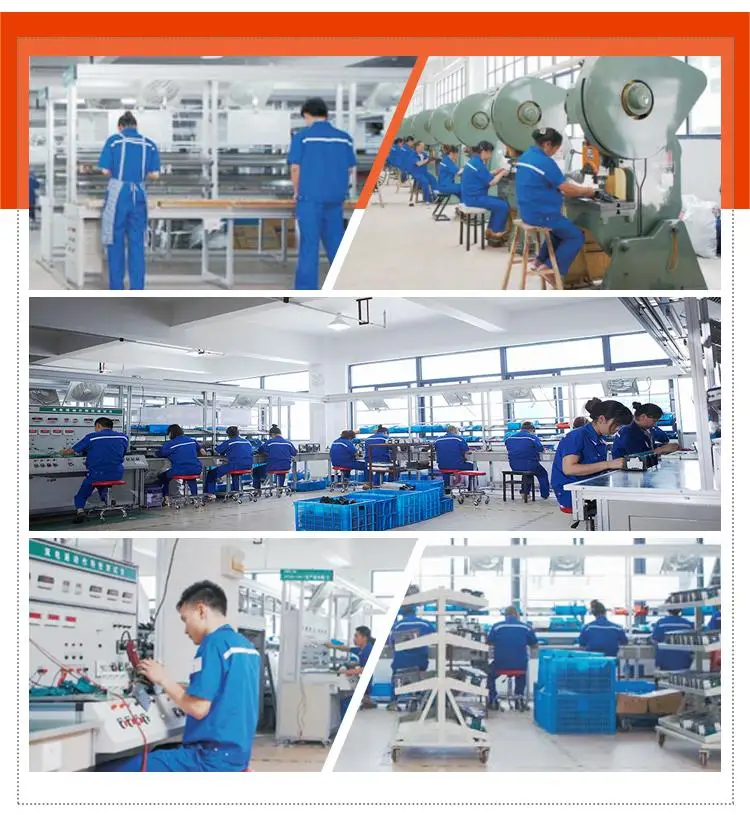

Company Profile
