ZTRFM K Style Gutter Roll Forming Machine metal rain gutter downspout machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo Roll Forming Machinery Co. Ltd.
Share on (1601270437445):
Product Overview
Description
Company Profile
CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd
Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
Product Description

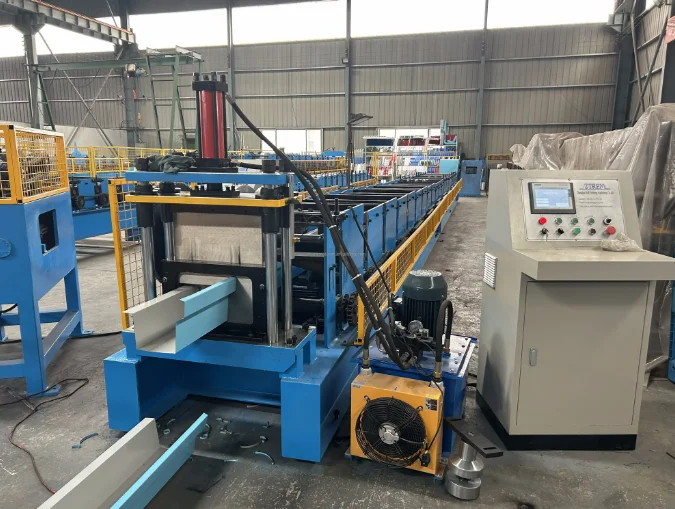

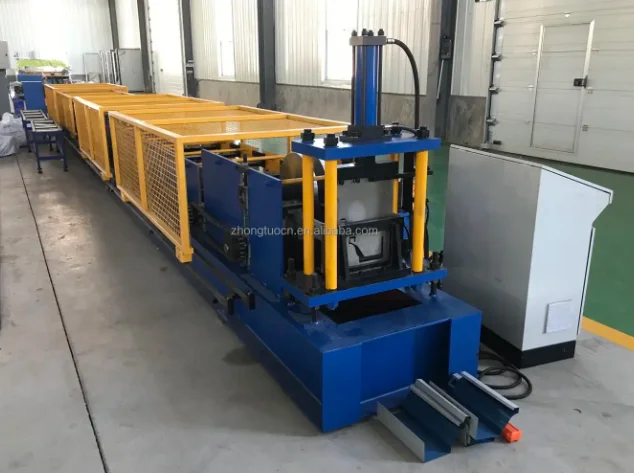

K-Style Gutter Roll Forming Machine
This machine is a Roof Gutter Machine,Gutter Making Machine,Gutter Roll Forming Machinery

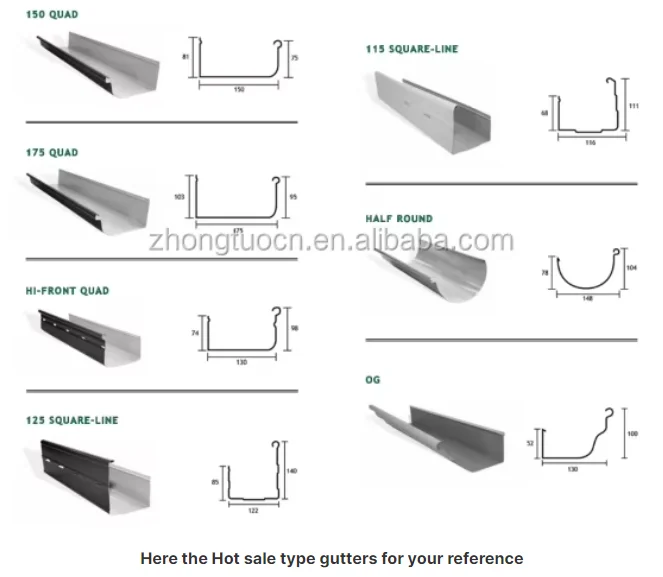

It is used to produce the water rain roof gutter sheet.We can customize the roof Gutter Roll Forming Machiner according to your gutter sample profile drawing.If you have the profile drawing of gutter sample, please send it to me.
It is used to produce the water rain roof gutter sheet.We can customize the roof Gutter Roll Forming Machiner according to your gutter sample profile drawing.If you have the profile drawing of gutter sample, please send it to me.
We can produce the Rain gutter making machine for you, Rain gutter making machine is one of our main machines,.We are professional manufacturer of different Rain gutter making machines. Gutter is widely used nowadays in the house building, especially for the villa building. The gutter have not only the function of decoration but also have the function of collect the rainwater.
ZTRFM Provide Customized Metal K Stype Gutter Making Machine Half Round Gutter Machine | ||||||||
1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm | ||||||
2.Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free） | ||||||
3.Main body | Roller station | 12 rows(As your requirement) | ||||||
Diameter of shaft | 80mm solid shaft | |||||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||||
Machine body frame | 350 H steel | |||||||
Drive | Double Chain transmission | |||||||
Dimension(L*W*H) | 6000*1500*1800mm(customize) | |||||||
Weight | 5 Tons | |||||||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Main Power | 5.5 KW | ||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 8-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||||||

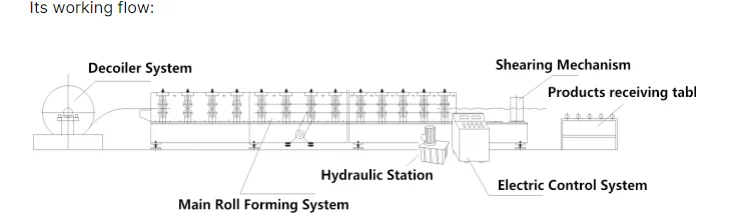

Manual Decoiler
1.Working type: Manual
2.Loading capacity: 10 tons
3.Coil inner diameter: 450-1000 mm
Transportation
1Chains transmission
2.Ensure the high speed and stable efficiency of the machine
2.Ensure the high speed and stable efficiency of the machine
Feeding device
1.Protect coil material
2.With handwheels for easy adjustable.

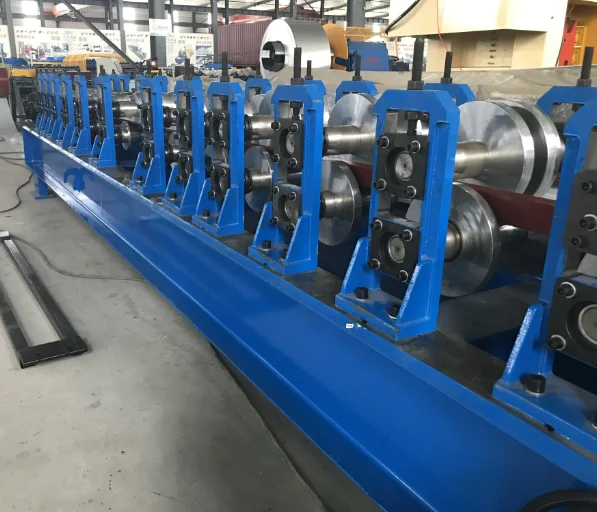

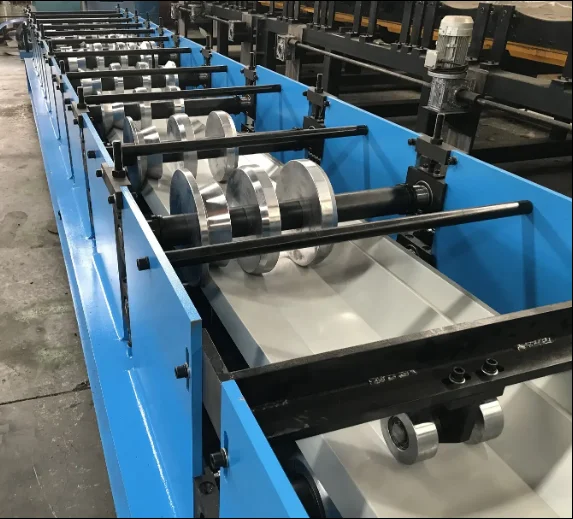

Main roll forming machine
1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 0-30m/min
7.Transmission:gear and chain
8.Voltage:customized
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 0-30m/min
7.Transmission:gear and chain
8.Voltage:customized
Hydraulic cutting system
1.Feature: it is used to make the step , the glazed tile's final formed.
2.Material of mold: Cr12 quenched
2.Material of mold: Cr12 quenched
Automatic oil filler
1.Automatic lubrication for the cutter
2.Reduce machine maintenance time and cost
PLC control cabinet
1.Adopt Siemens electronic control, can support remote control2.Adopt touch screen for easy operation.3.Adopt aviation plugs for easy installation
4.Languages can be customized
4.Languages can be customized
Production receive table
1.Convenient collection of finished products
2.Protecting worker safety
Hydraulic station
1.Updated type
2.Low noise
3.Cooling fan for long service time.
Thermometer
The temperature of the hydraulic station can be measured in real time, more convenient and faster

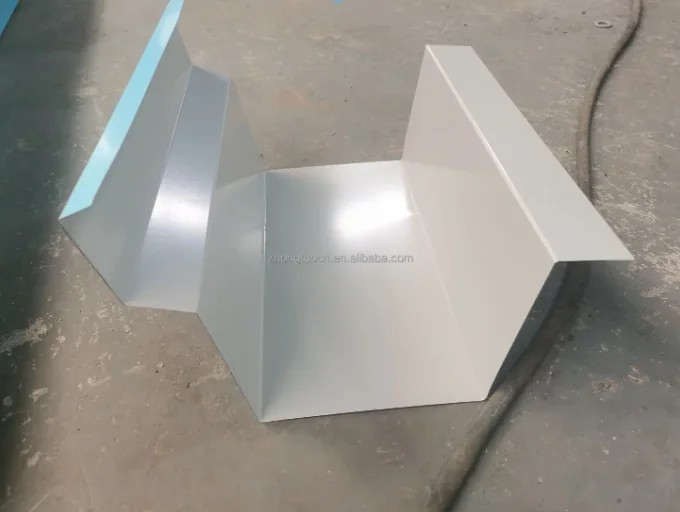

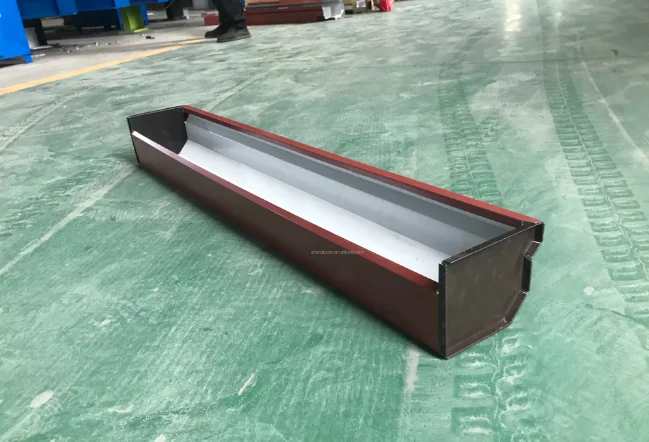

Product display
Exhibition
Certification

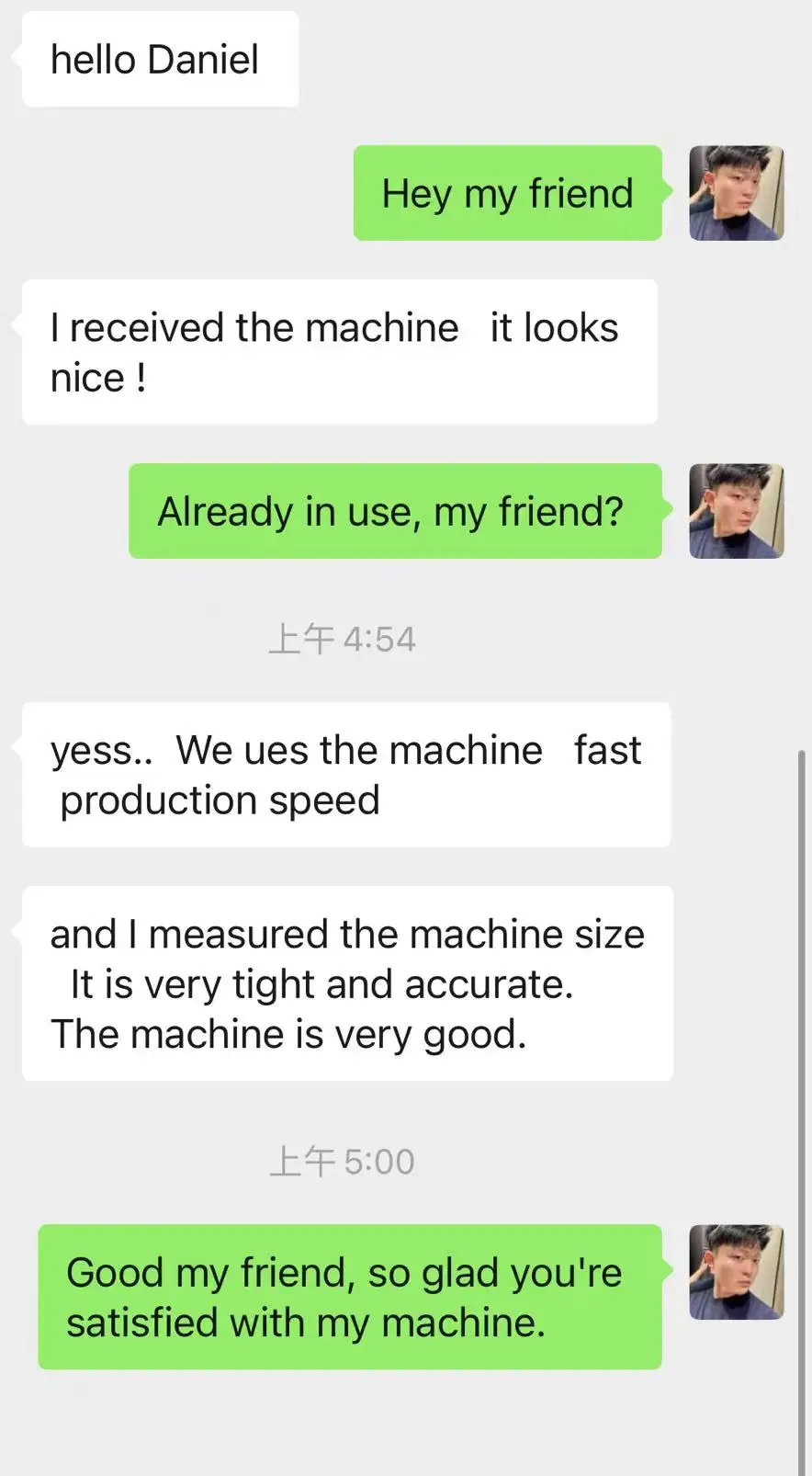

Customer Photos
