Aseptic Packing Syringe Servo Piston Pump Paste Manual Liquid Fire Extinguisher Auto Specialized Machines Filling Machine
- Category: >>>
- Supplier: Wuxi Hebo Automation Machinery Manufacturing Co. Ltd.
Share on (1601270438459):
Product Overview
Description
Products Description

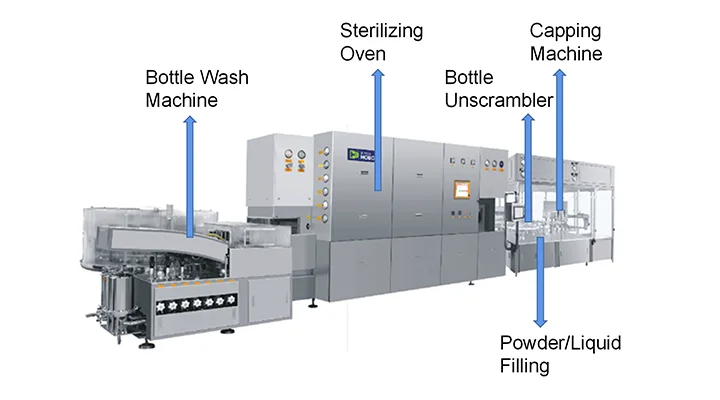

Vial Washing Drying Filling Capping Labeling Line
Introduction
Vial Washing Drying Filling Capping Labeling Line consists of vertical ultrasonic bottle washing machine, tunnel type hot air circulating sterilization oven, liquid or powder filling and capping machine, which can also be used as a single machine. Labeling machine and collecting equipment. All of these machines have relevant certifications which meets the standard.
In order to ensure the sterilized environment, the whole line is equipped with fan filter unit. Our machine meets the GMP standard. With the vertical ultrasonic, the vial bottles will be washed clearly with very high speed. After washing, bottles will go through the hot air sterilization oven which temperature can reach to 350 °C. This step will completely sterilized the bottle. Next is going to fill and cap, we will also equip labeling machine or collecting equipment if our customer want. And the whole process is available to customize according to our customers' bottle size, producing capacity and other individual needs.
Main Application: Liquid, Powder, Injection, Syrup, Oral liquid, Cosmetic freeze-dried powder, and etc.
In order to ensure the sterilized environment, the whole line is equipped with fan filter unit. Our machine meets the GMP standard. With the vertical ultrasonic, the vial bottles will be washed clearly with very high speed. After washing, bottles will go through the hot air sterilization oven which temperature can reach to 350 °C. This step will completely sterilized the bottle. Next is going to fill and cap, we will also equip labeling machine or collecting equipment if our customer want. And the whole process is available to customize according to our customers' bottle size, producing capacity and other individual needs.
Main Application: Liquid, Powder, Injection, Syrup, Oral liquid, Cosmetic freeze-dried powder, and etc.
Model | HBZG-B |
Voltage | 50Hz/220V |
Power consumption | 500W |
Production rate | 120 bottles/min |
Working Pressure | 0.2-0.6Mpa |
Filling Range | 2-50 ml (customize 100-500 ml) |
Passing Rate | 99% |
Main Features
1.This machine can finish do washing drying filling capping in one machine.
2.Automatic bottle loading, automatic capping, automatic filling, automatic capping and bottle discharging.
3.Stainless steel material, avoiding water leakage.
4.Automatic stops be spared from bottle block.
5.Equipment drive is fully servo-controlled, capping torque can be adjusted parametrically.
2.Automatic bottle loading, automatic capping, automatic filling, automatic capping and bottle discharging.
3.Stainless steel material, avoiding water leakage.
4.Automatic stops be spared from bottle block.
5.Equipment drive is fully servo-controlled, capping torque can be adjusted parametrically.
Why Choose Us
Preparing for your success,
we provide customized machines.
As a filling & packing machine manufacturer with over 15 years experience, we provide customized machines according to your needs. Our machines are well-received by customers overseas, because of the good quality and excellent service.
Customization Process
Requirement and Design
According to your real situation and needs, our engineers will design the most suitable machine for you.
Producing and Assembling
Experienced workers and quality components guarantee the good quality of the machines. Always welcome to visit us!
Testing
After receiving the samples, each machine will be tested before delivery. As your requests, we offer installation and Commissioning services as well.
Packing and Delivering
Packed by PE inside, plywood outside. Strong packaging and fast delivery to help you get your machine in perfect condition and in time.
Pre-Sales Service | After-Sales Service |
* Provide detailed pictures,operation video,technical data and consulting support. | * Training how to instal the machine, training how to use the machine. |
* View our Factory online. | * Engineers available to service machinery overseas. |
* Factory visit off site at any time. | * Video instruction instantly within 2 hours. |
Company Profile
Wuxi Hebo Automation Machinery Manufacturing Co., Ltd. is located in Wuxi, 1 hour away from Shanghai, with superior geographical location and convenient transportation.
We are a technology-based enterprise specializing in the design, development, manufacture and sales of filling and packing machines. Our company is a high-tech enterprise. With advanced production equipment and a high-quality technical team, it aims to establish and maintain a quality management system that meets the ISO 9001-2000 standard.
Our products are suitable for many industries, such as: Daily, Chemical, Cosmetics, and Food industries. Various types of liquid, powder, cream, paste, fluid, semi-fluid and other related products available.
Bottle washing machine, hot air circulation oven, liquid filling machine, powder dispensing machine, liquid filling and capping machine, automatic capping machine, glue filling and capping machine, glue tube/hose filling and sealing machine, cosmetic tube filling and sealing machine, planetary mixer and etc.

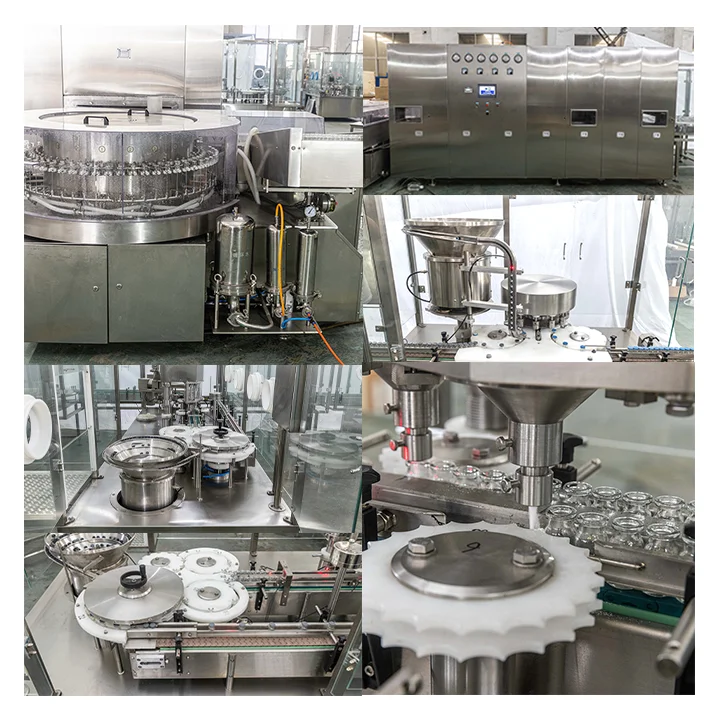

Factory Photos
Certifications
Customer Photos
Product packaging
Packaging & Delivery
Packaging Details Wood
Port Shanghai
Quantity(Units) | 1-5 | 6-10 | >10 |
Est. Time(days) | 45 | 50 | To be negotiated |
FAQ
1.How about warranty and spare parts?
We provide 2 year warranty and enough spare parts for the machine, and most of the parts can be found in local market also, you can buy from us if all the parts that over than 1 year warranty.
2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.
3.How can you control the quality and delivery?
All our machines will be tested before packaging. All our machines meet the GMP standard. Teaching video and packing pictures will be sent to you for checking, we promise that our wooden packaging is strong enough and safety for long delivery.
4.How can I trust you for the first time business ?
If you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
5.What is your payment method?
We have various payment methods, you can tell us how you want to pay and we can cooperate with you.
We provide 2 year warranty and enough spare parts for the machine, and most of the parts can be found in local market also, you can buy from us if all the parts that over than 1 year warranty.
2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.
3.How can you control the quality and delivery?
All our machines will be tested before packaging. All our machines meet the GMP standard. Teaching video and packing pictures will be sent to you for checking, we promise that our wooden packaging is strong enough and safety for long delivery.
4.How can I trust you for the first time business ?
If you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
5.What is your payment method?
We have various payment methods, you can tell us how you want to pay and we can cooperate with you.
