Hydraulic press shisha charcoal machine charcoal production line make charcoal machine
- Category: >>>
- Supplier: Zhengzhou Runxiang Machinery Equipment Co. Ltd.
Share on (1601270442238):
Product Overview
Description
Product Description

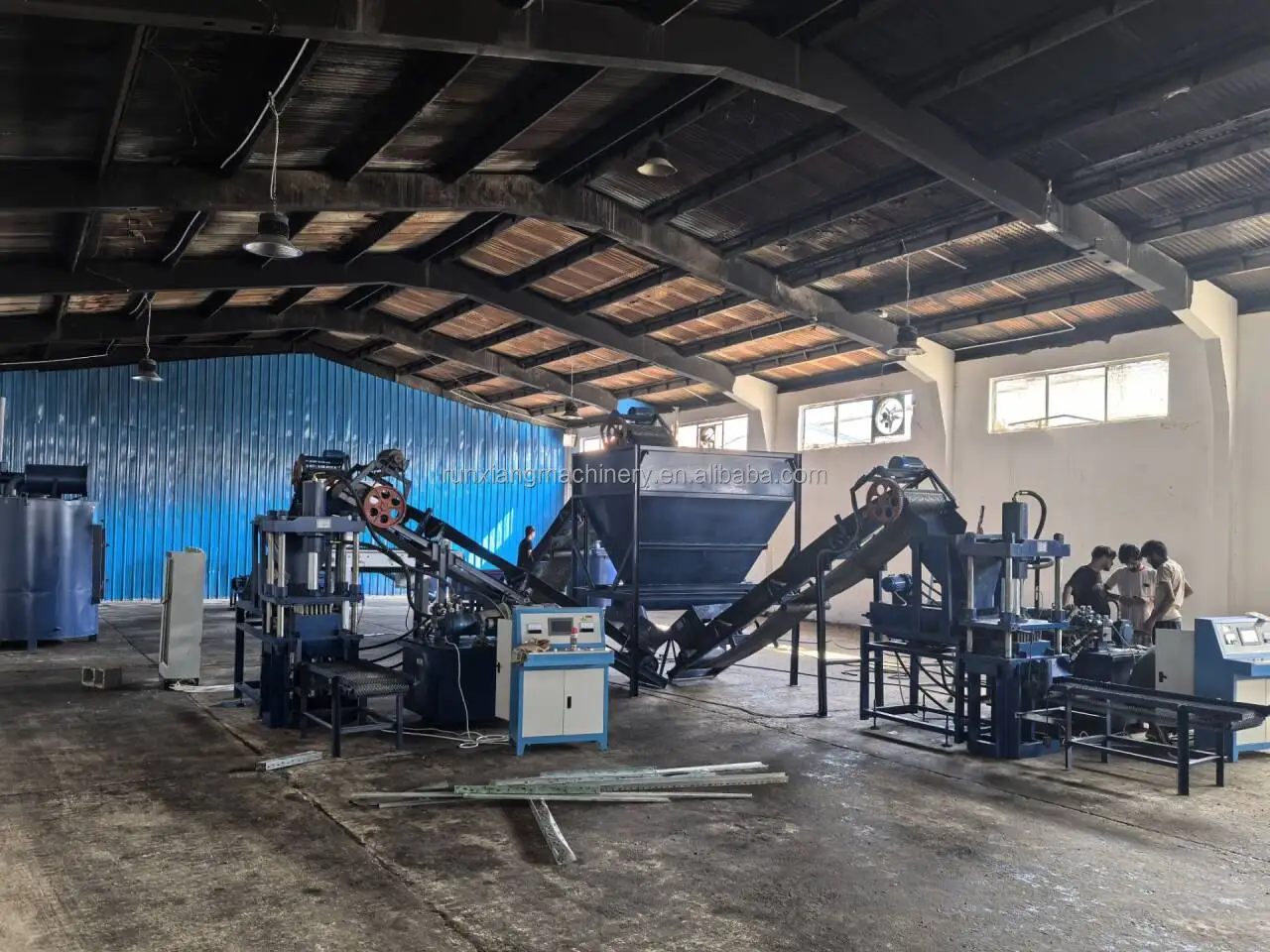

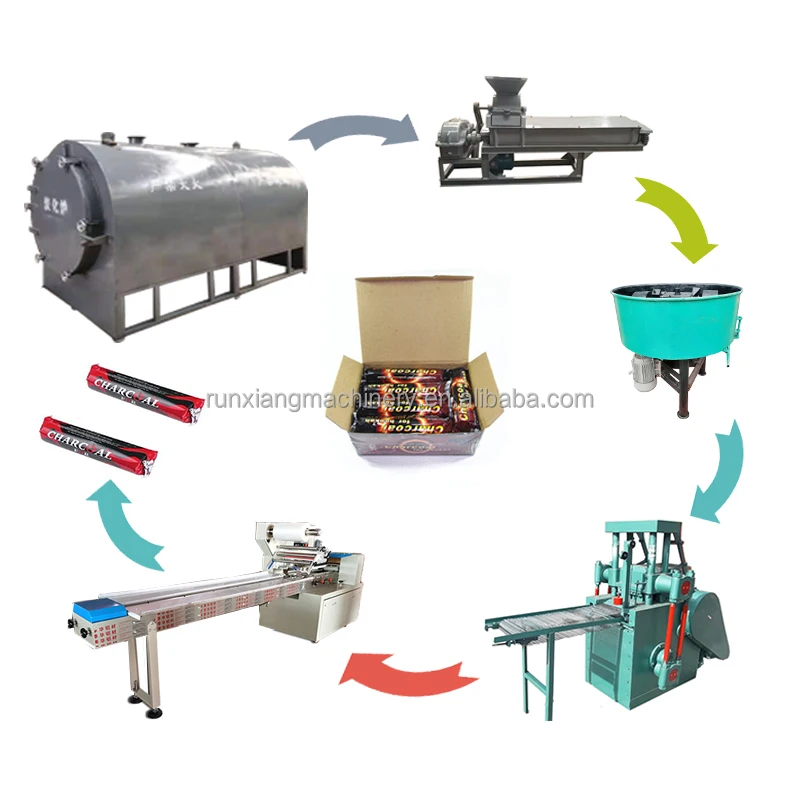

Shisha harcoal briquette production line
This production line is used to make shisha briquettes in charcoal. It is high efficient and multi functional, which can make shisha briquettes with different shape as customer’s requirements .

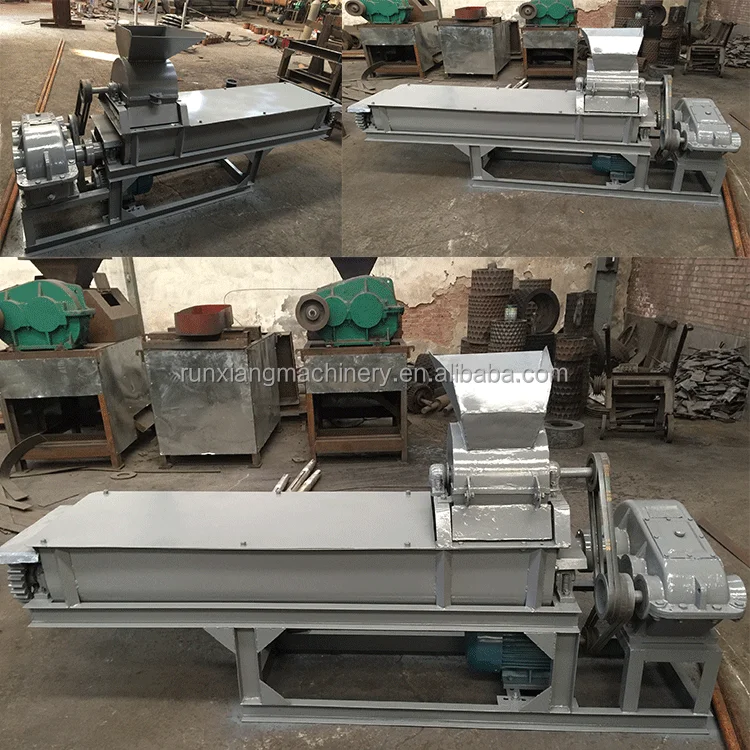

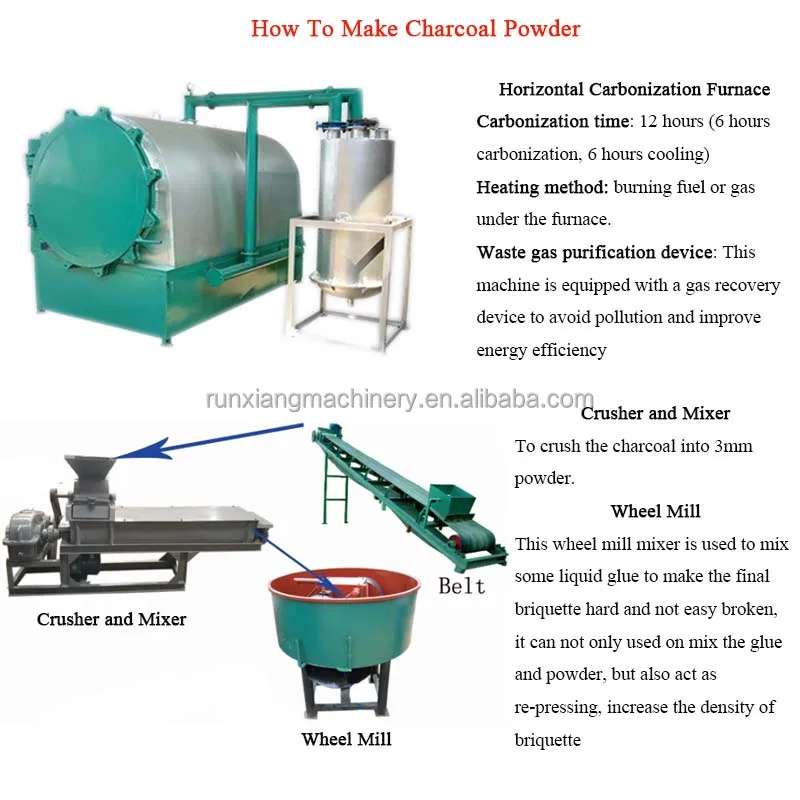

Crusher and mixer
This machine can crush the charcoal blocks into powder, it crush coal and charcoal first,then mix the powder at the same time.High efficiency ,very useful.We have different model,you can choose according to your needs.

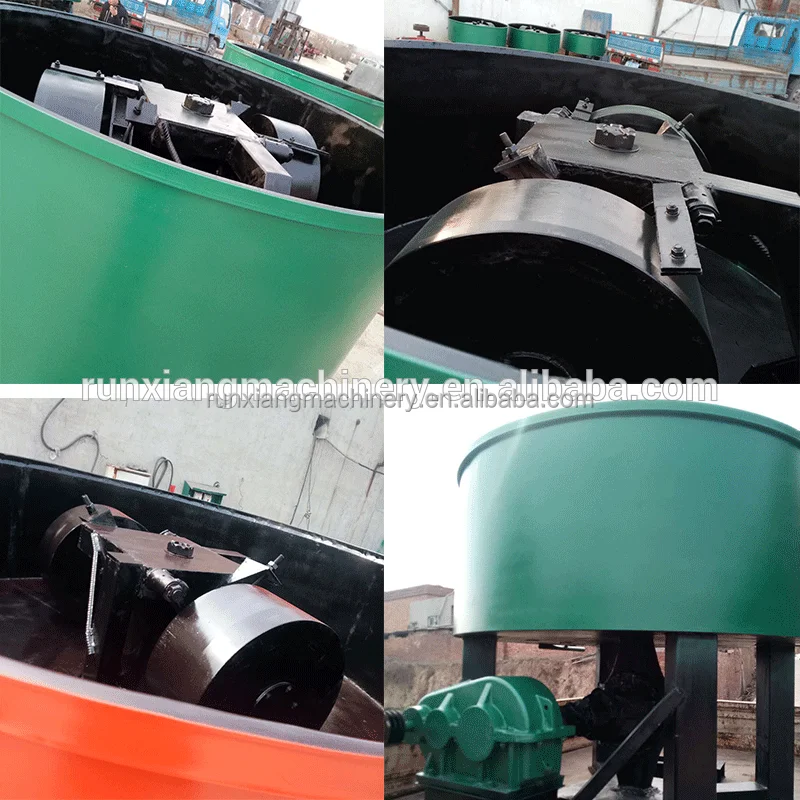

Wheel mill
This wheel mill will transmit powder to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion; Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary; Add ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.
Mechanical pressure type shisha briquette pressing machine
This machine is used to make briquettes in charcoal, medicine, food, industry processing area. It is automatic, which can make the powder into briquettes with different shape as customer’s requirements .

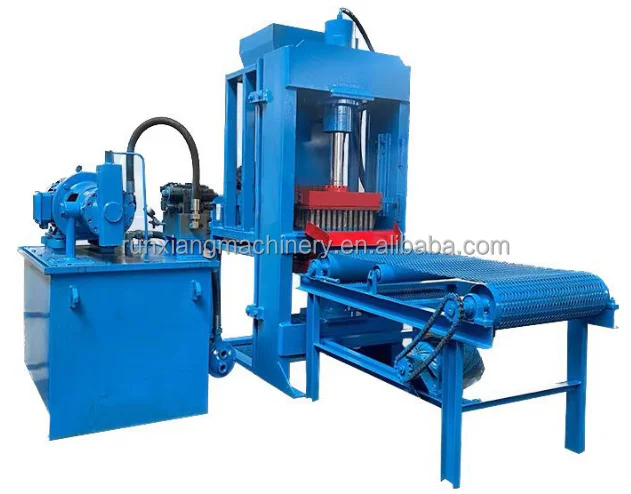

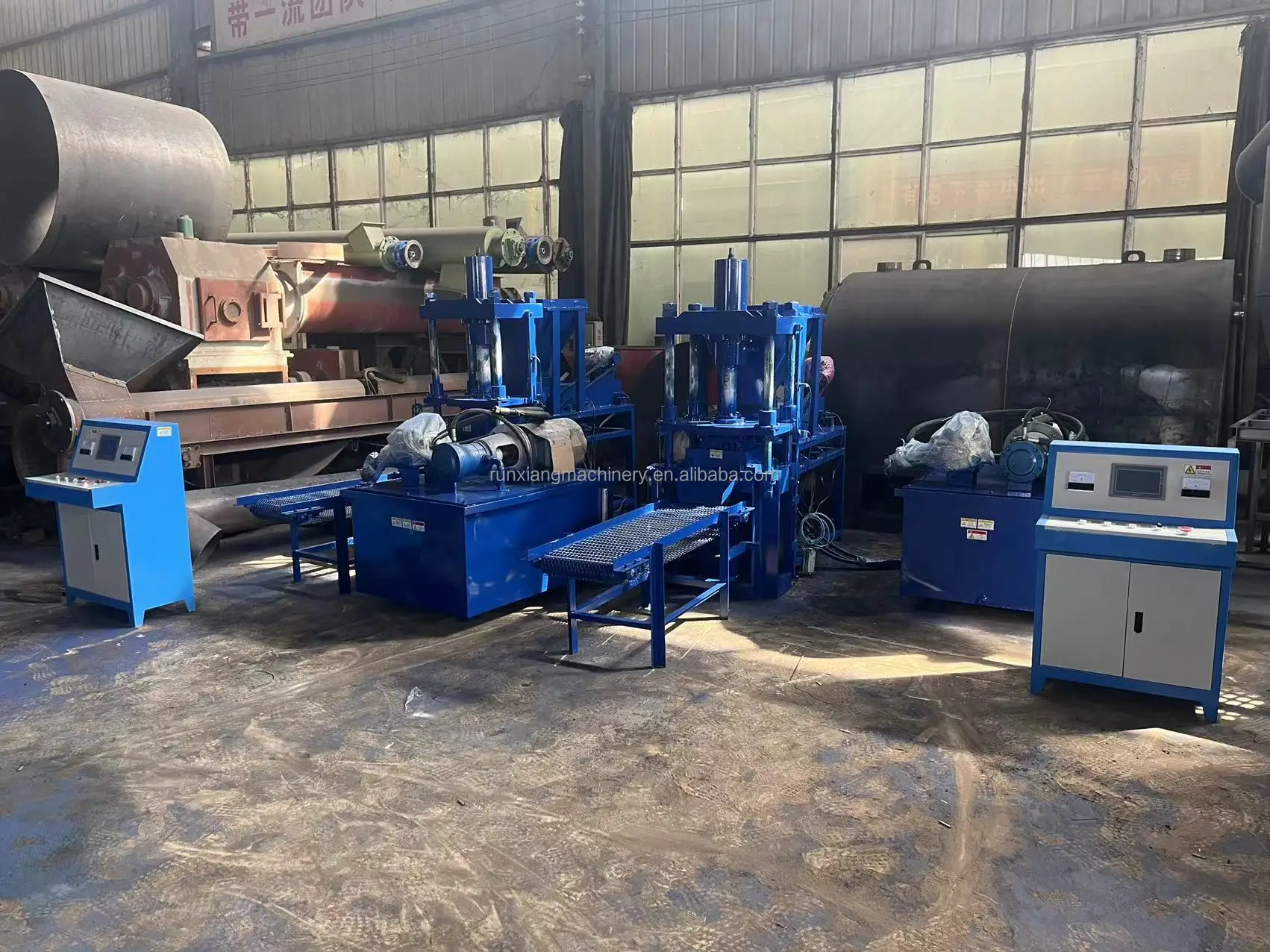

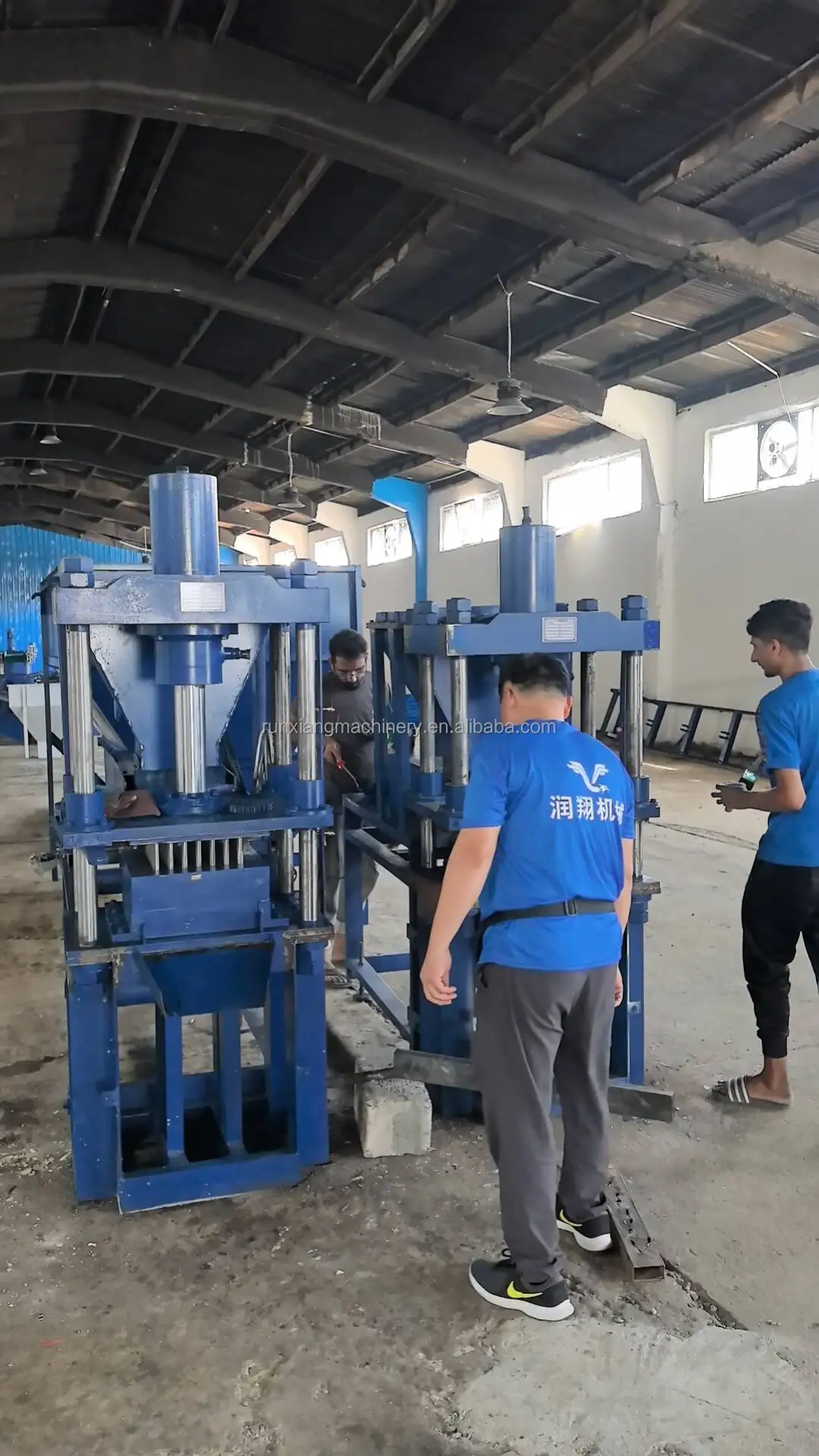

Hydraulic pressure type shisha briquette pressing machine
It is designed as high standard , with the stainless steel externality, the non-obstacle operation and maintain, the smart figuration , the security alarm system and noiseless feature.
Specification
Pressure type | Mechanical pressure | Hydraulic pressure |
Capacity | 11-16 pieced/time 20-40times/min. | 48pieces per time(30mm) 8-20 times/min |
Motor | 7.5kw(4 pole) | 18.5kw(4 pole) |
Pressure | 40-60tons(adjustable) | 40-150 tons(adjustable) |
Overal size | 2500*950*1550mm(include conveyor) | 3500*2000*1800mm(include conveyor) |
Packing size | 1500*1200*1750mm | 2100*2100*1900mm |
Weight | 1500kg | 5500kg |
Relate machine

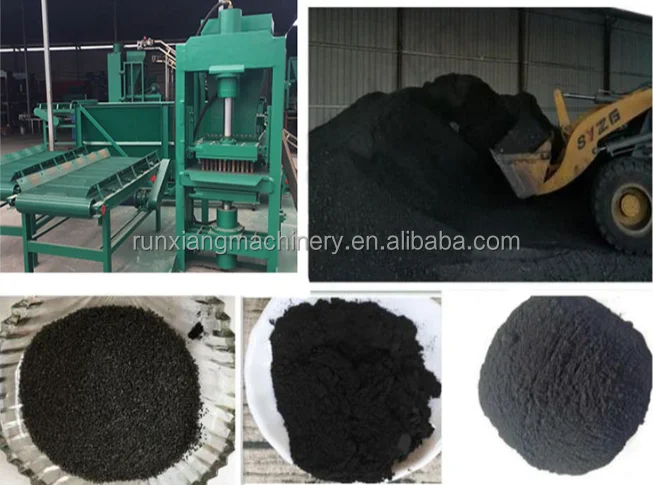

Main raw materials: pulverized coal, carbon powder, sludge, flue ash desulfurization gypsum, phosphogypsum, barbecue charcoal powder, mineral powder, iron powder, metallurgical waste, aluminum ash and so on...

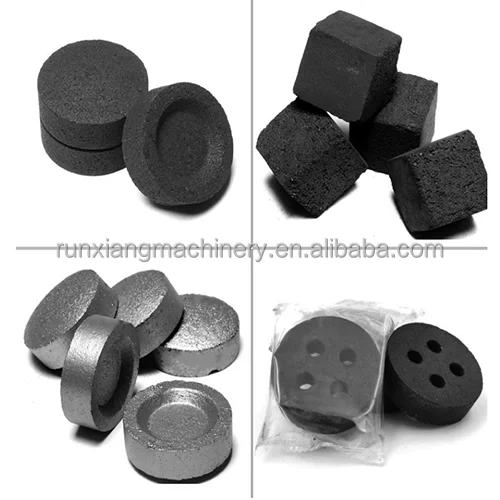

Different moulds making different shisha shape: Round, Square,etc !
It can be custom-made according different customers needs ! But square and round ,the two both are more popular during customers!

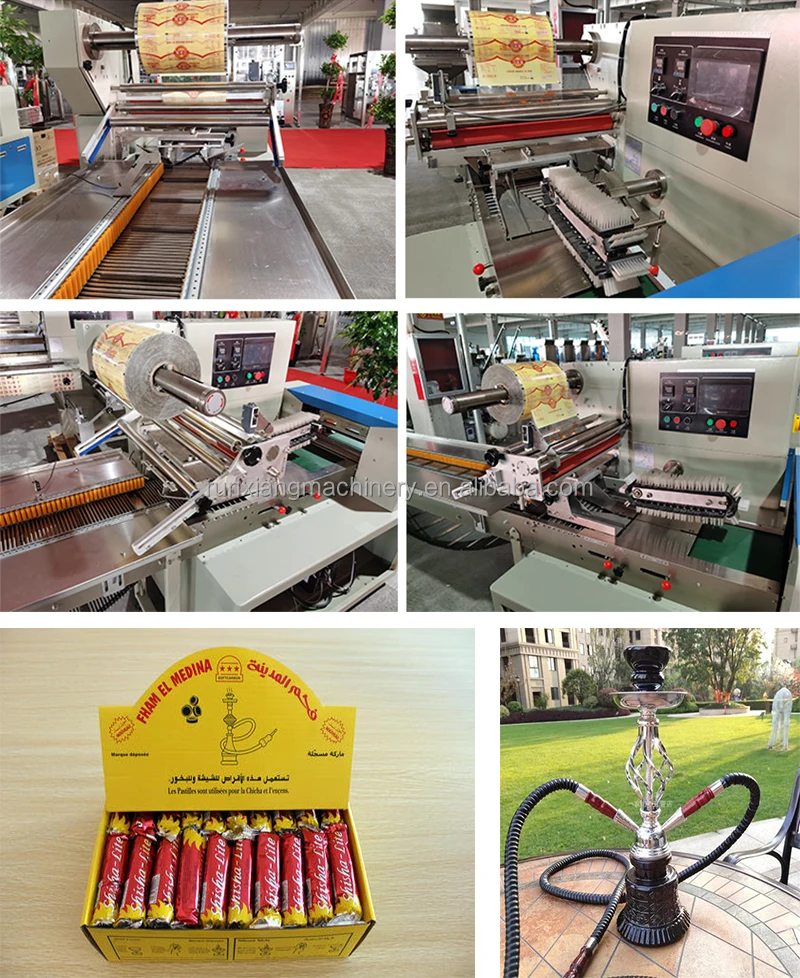

Packing & Delivery
