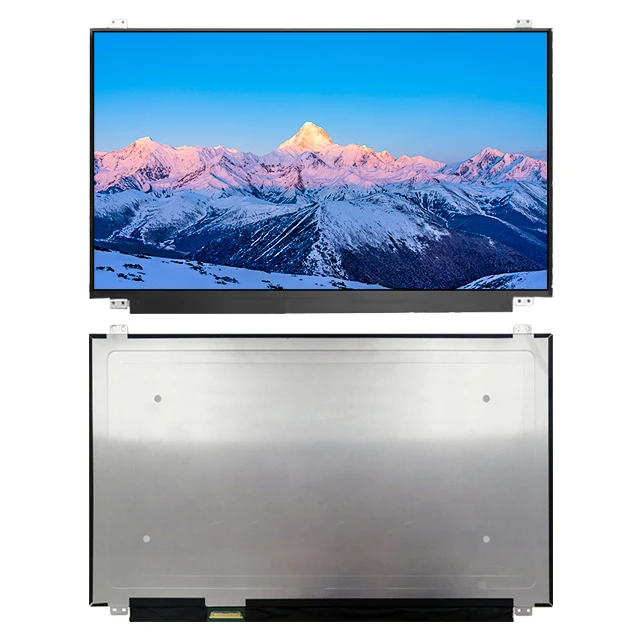

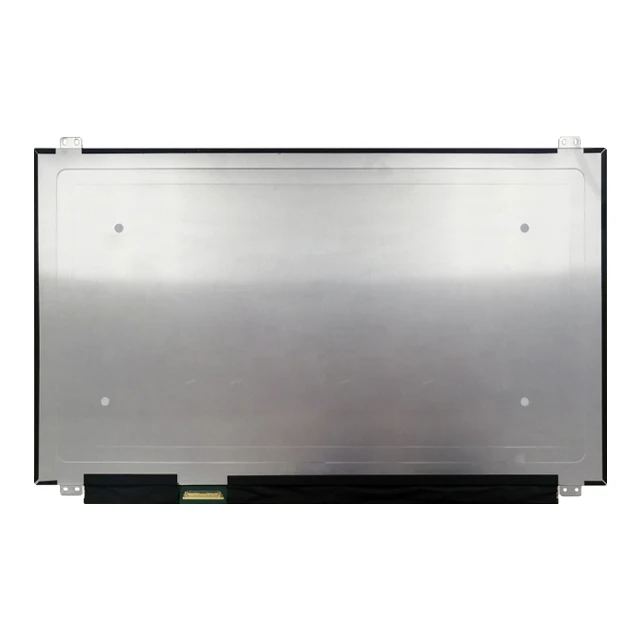

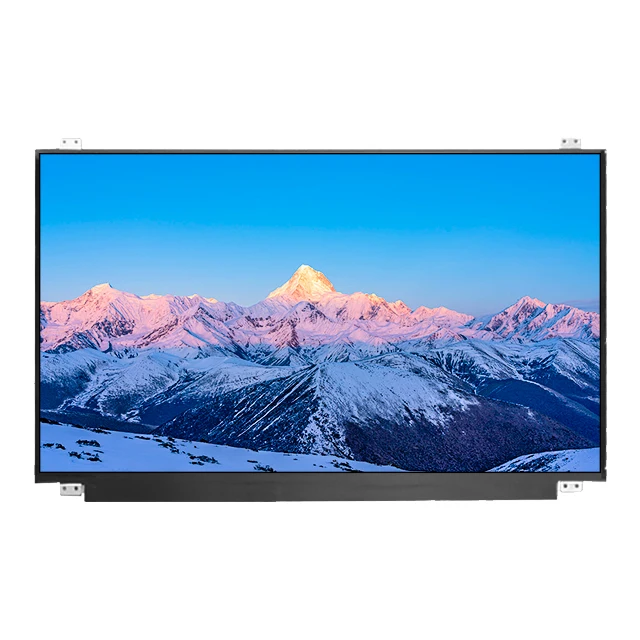

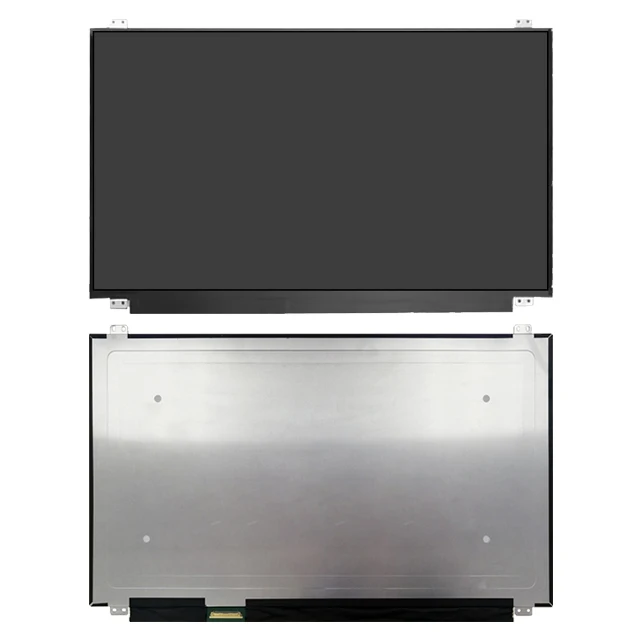

LQ173D1JW33 Sharp LCD Screen Panel 17.3 Inch 3840x2160 eDP1.3 40 pins Connector TFT LCD Display
- Category: >>>
- Supplier: Shenzhen Youritech Technology Co. Limited
Share on (1601270468426):
Product Overview
Description
Products Description
LQ173D1JW33 Overview
LQ173D1JW33 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 255 PPI. As for mechanical detail, it features active area of 382.12(W)×214.94(H) mm, outline size of 393.69(W)×252.1(H)×4(D) mm, with surface treament of Antiglare (Haze 45%), Hard coating (3H), net weight of 610g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a IPS, Normally Black, Transmissive LCM product, LQ173D1JW33 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LQ173D1JW33 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
LQ173D1JW33 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 255 PPI. As for mechanical detail, it features active area of 382.12(W)×214.94(H) mm, outline size of 393.69(W)×252.1(H)×4(D) mm, with surface treament of Antiglare (Haze 45%), Hard coating (3H), net weight of 610g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a IPS, Normally Black, Transmissive LCM product, LQ173D1JW33 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LQ173D1JW33 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Company Profile
Exhibition
Product Uses
Main Customers
FAQ
1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
