JS ATP30 M GPS Module with Dual Band L1 L5 Support for Precision GNSS Positioning in Drones, Vehicles, and Agriculture Equipment
- Category: >>>
- Supplier: Shenzhen Jiameishi Technology Co. Ltd
Share on (1601270499113):
Product Overview
Description

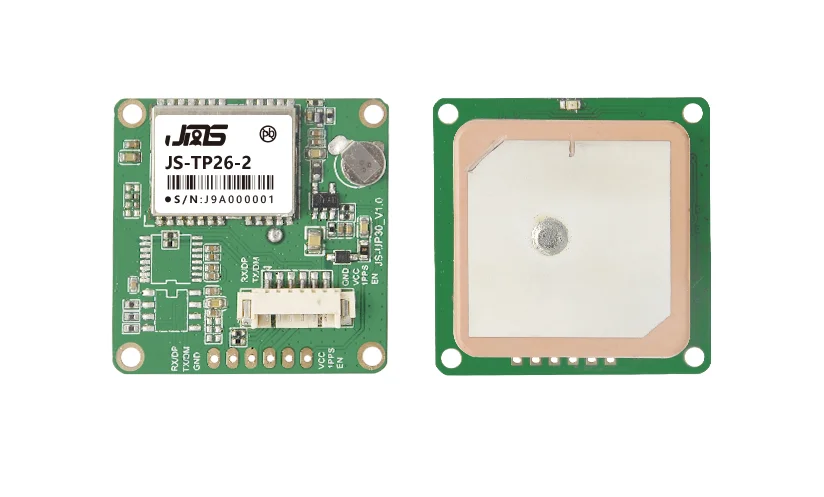

JS-ATP30-M
GAM antenna integrated
Multi-mode low power consumption low cost dual-frequency positioning module
• Based on high-performance GNSS SOC series
• 135 channels (L1:75, L5:60)*
• Cold start acquisition sensitivity is -148dBm, tracking sensitivity is -165dBm
• Navigation update rate up to 10Hz
• Supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS
• Support AGPS
• Indoor and outdoor multipath detection and compensation
• Integrated 12 multi-tone active interference cancellers
• Integrated TCXO, LNA, SAW and RTC

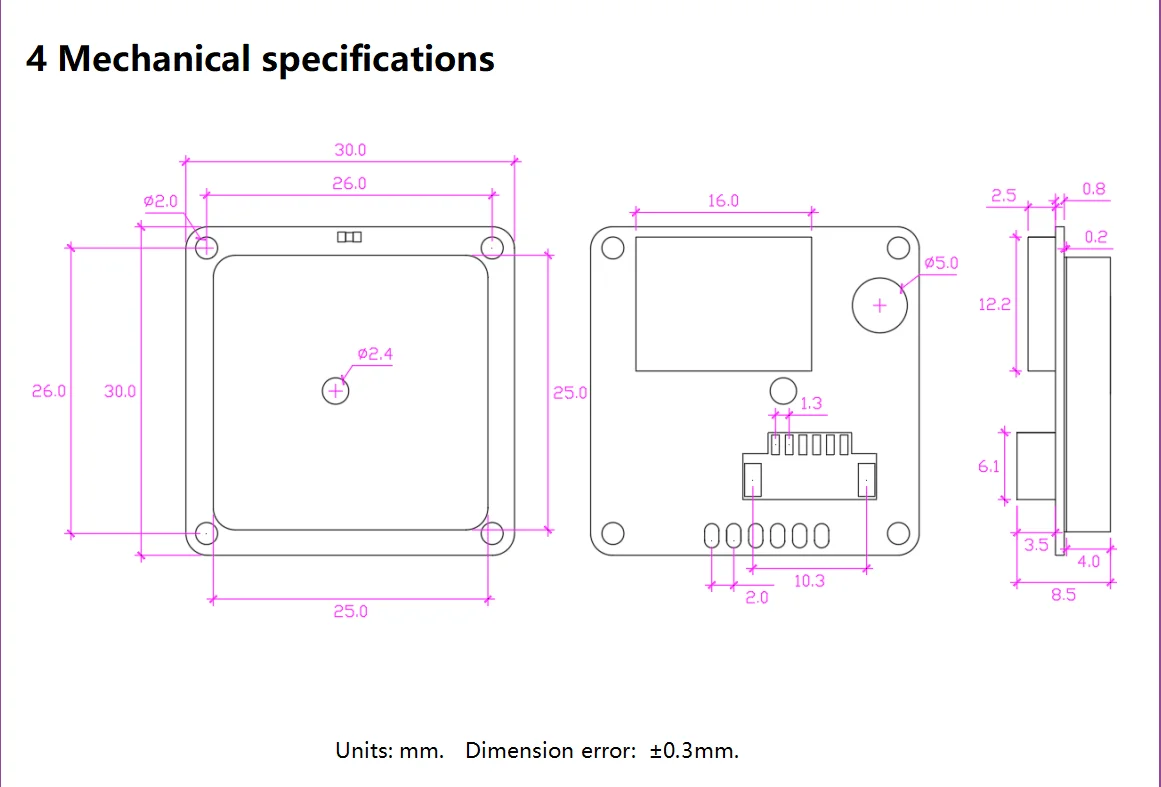

• Compact size (30.0mm x 30.0mm x 12.5mm±0.3mm) for space-sensitive applications
• Support standard NMEA 0183 V3.01/V4.10
• Support 1PPS output
• 135 channels (L1:75, L5:60)*
• Cold start acquisition sensitivity is -148dBm, tracking sensitivity is -165dBm
• Navigation update rate up to 10Hz
• Supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS
• Support AGPS
• Indoor and outdoor multipath detection and compensation
• Integrated 12 multi-tone active interference cancellers
• Integrated TCXO, LNA, SAW and RTC
• Compact size (30.0mm x 30.0mm x 12.5mm±0.3mm) for space-sensitive applications
• Support standard NMEA 0183 V3.01/V4.10
• Support 1PPS output
Parameters | Specifications |
Satellite frequency | ■GPS L1CA L5 ■BDS B1I B2a ■Galileo E1B E1C E5a ■GLONASS L1OF ■QZSS L1CA L1SAIF L5 ■SBAS WAAS EGNOS MSAS GAGAN |
Sensitivity | Tracking and Navigation -165dBm Cold Start -148dBm |
Time-To-First-Fix1 | Cold Start 24s Hot Start 1s |
GNSS Position accuracy² | Horizontal 3G+B 1.0m (L1+L5)；2.5m (L1) Vertical 2.25m |
Time pulse signal accuracy | 1PPS 10ns |
Speed accuracy3 | GNSS 0.1m/s SBAS 0.05m/s |
Operational restrictions4 | Acceleration 4g Altitude 10000m speed limit 100m/s |
Frequency of time pulse signal | 1Hz |
Baud Rate | 4800-921600 bps（ Default 115200 bps）5 |
Maximum navigation update rate | 10Hz（ Default 1Hz） |

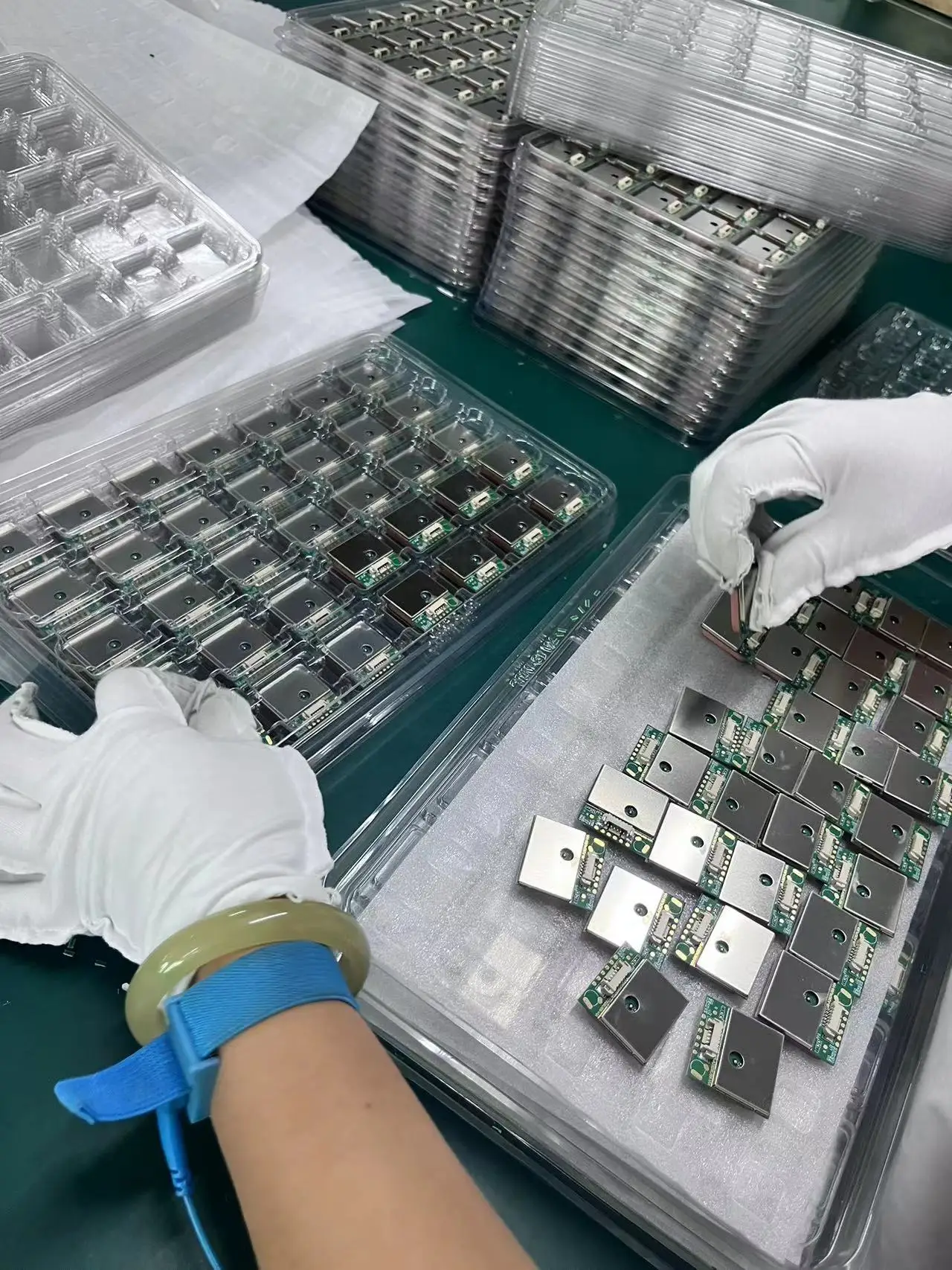

Packing & Delivery
