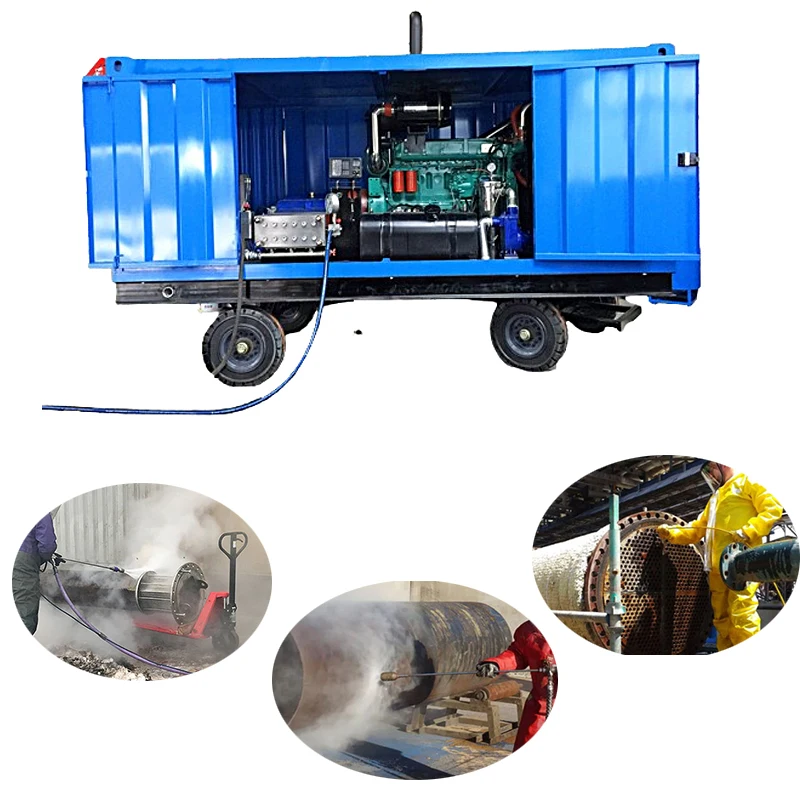

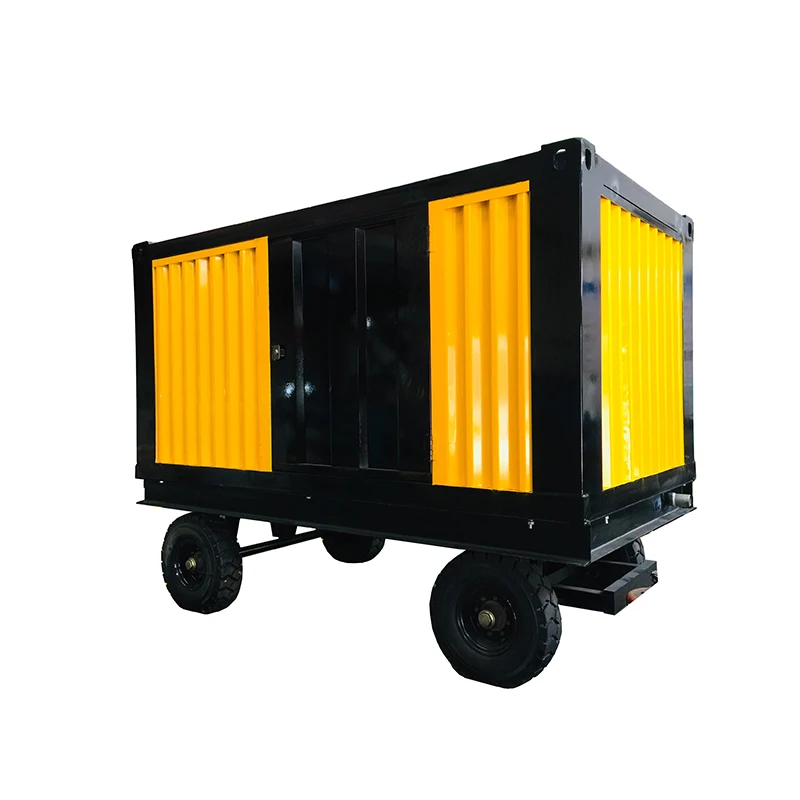

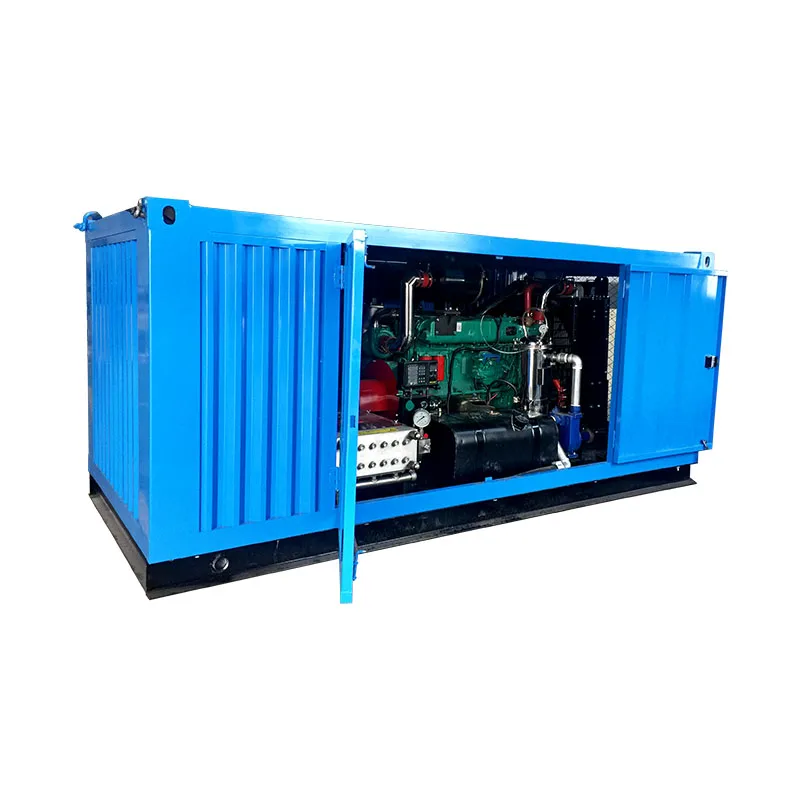

700bar 1500bar Air Preheater Heat Exchanger Industrial Pipeline Cleaning Hydro Blaster Machine High Pressure Water Jet Equipment
- Category: >>>
- Supplier: Zhengzhou Guangyuan Cleaning Equipment Co. Ltd.
Share on (1601270534026):
Product Overview
Description
Product Description
Industrial high pressure water jetting machine pipe cleanning machine
Pressure range from 500bar to 1500bar; water flow: 50L/min to 100L/min;
Batter be used for industrial pipe/tube/heat exchanger/condenser/tank cleaning, etc,marine rust paint removal, oil & gas plant pipe cleaning, etc.

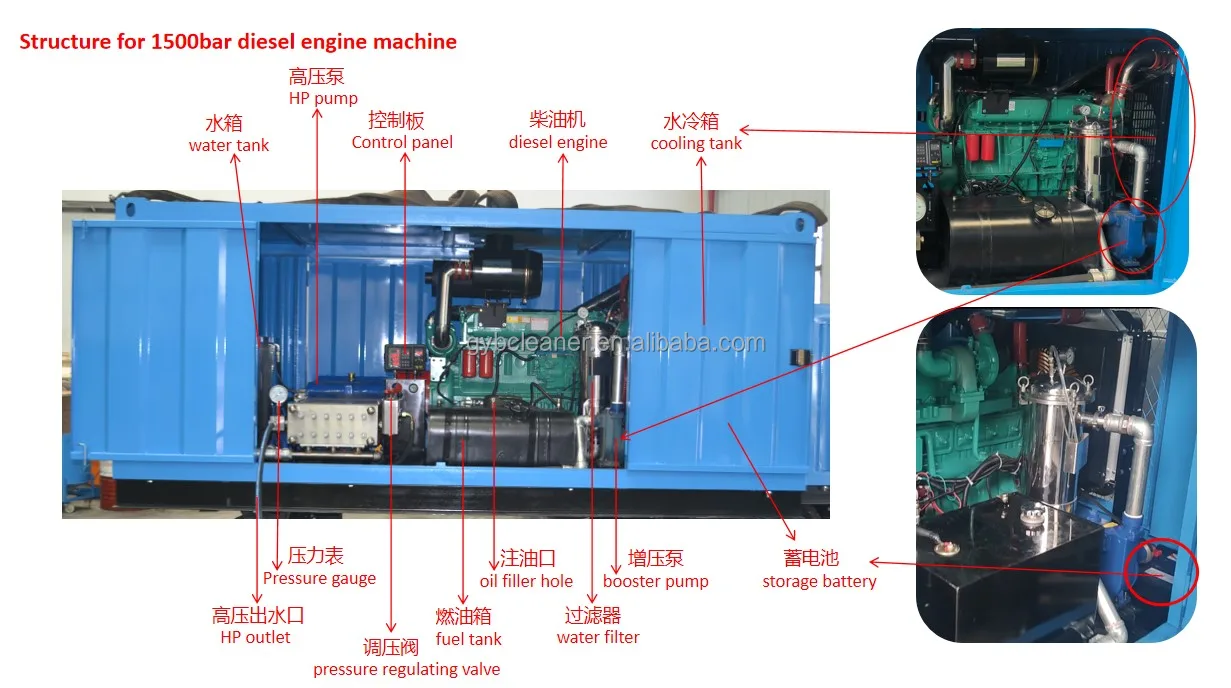

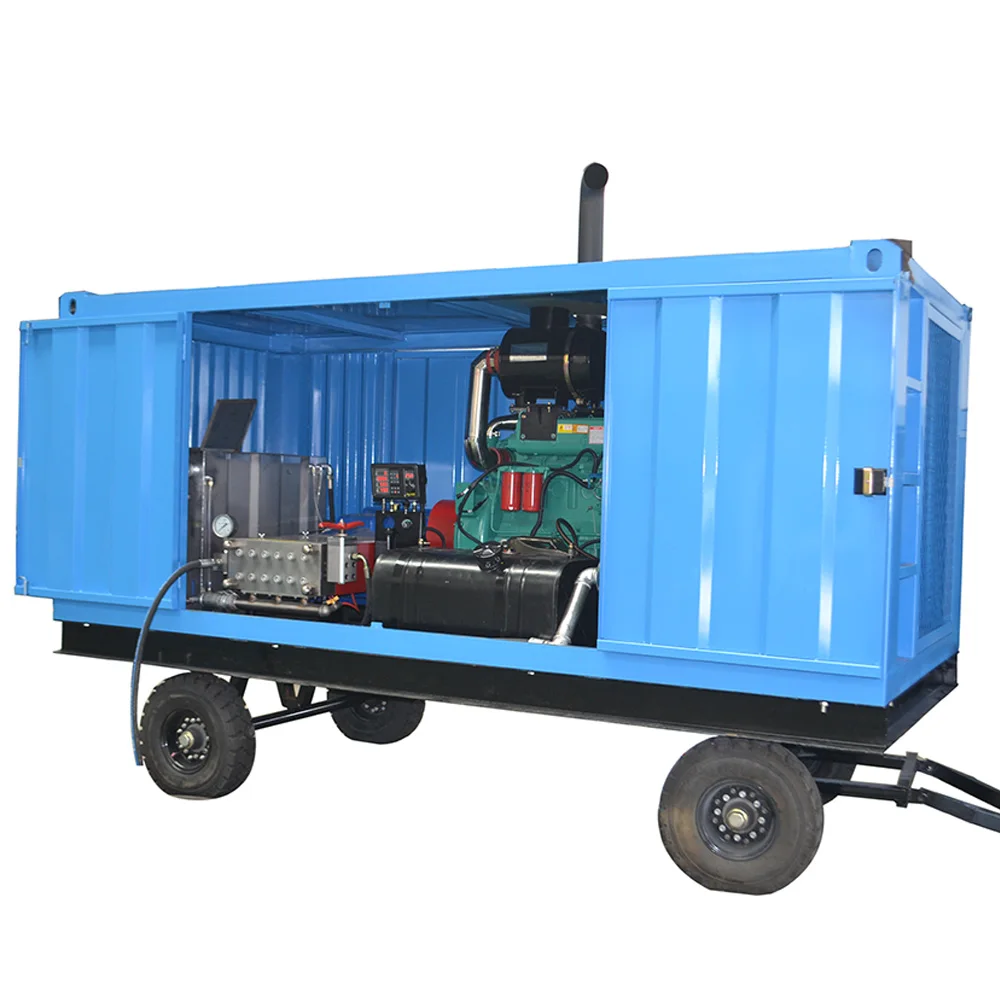

Name | Diesel Hydro blasting machine |
Model | GYB-5 |
Pressure | 150Mpa/1500bar/ 22000psi |
Water flow | 50~ 85 L/min |
Diesel engine | 225-265 kw, 6-cylinder |
movable | can be setting with wheels and container frame |

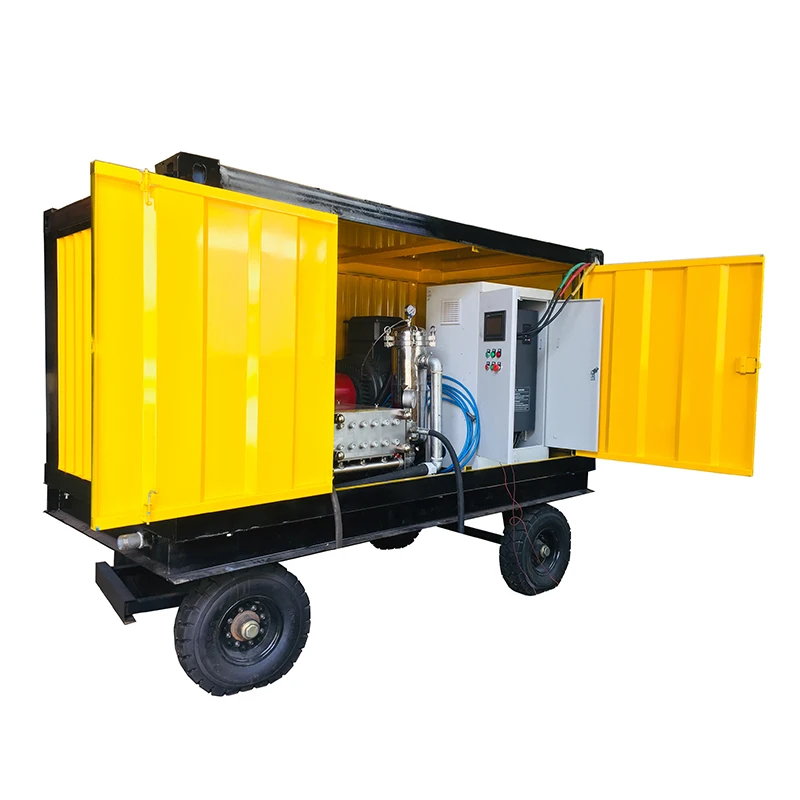

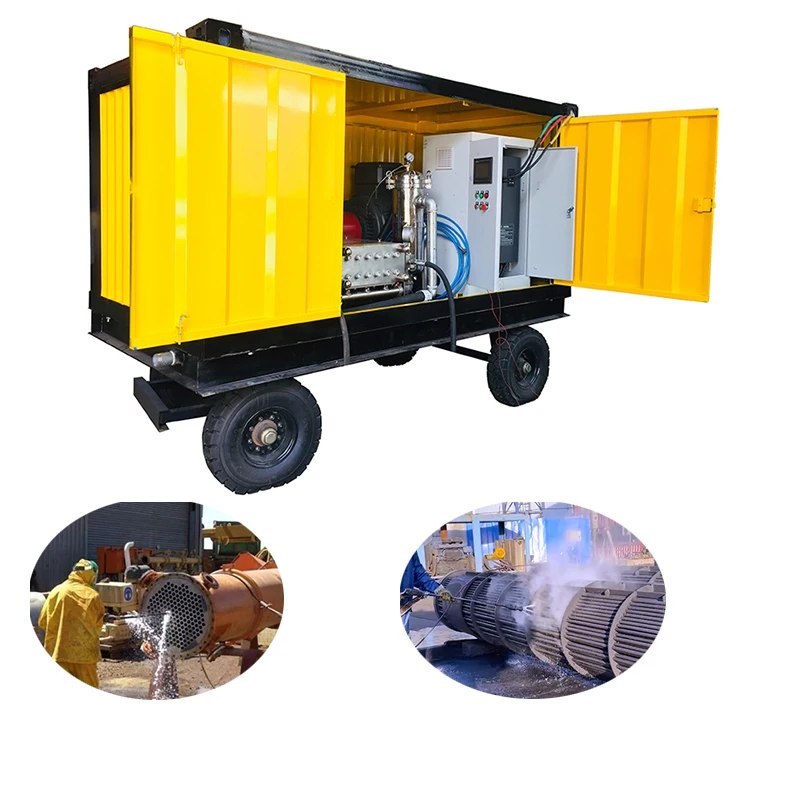

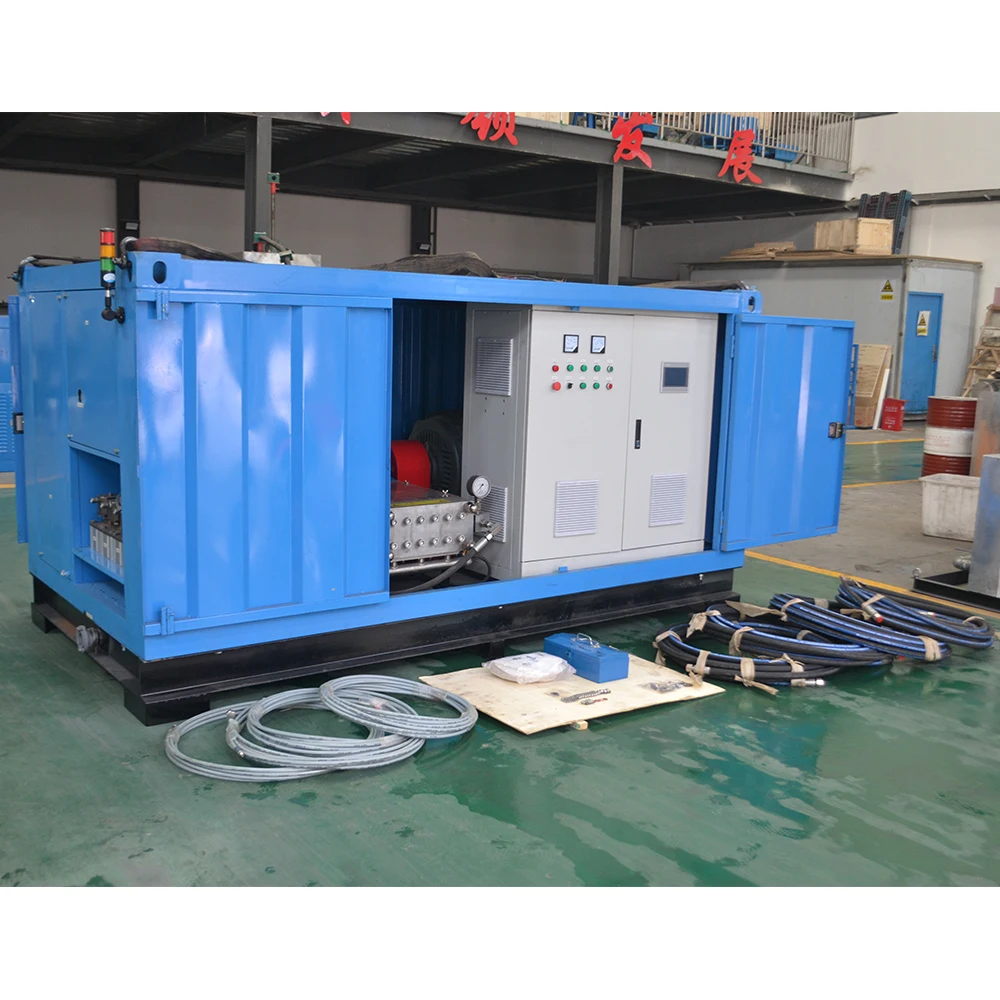

Electric drive Hydro blasting machine
Model: GYB-5E
Working pressure: 150M[a/1500bar/22000psi
Water flow:50-85L/min
Electric motor drive: 160kw, 3 phase, 380v/50Hz
Electric cabinet: has Star triangle start and soft start
Could be choose fixed chassis or with wheels

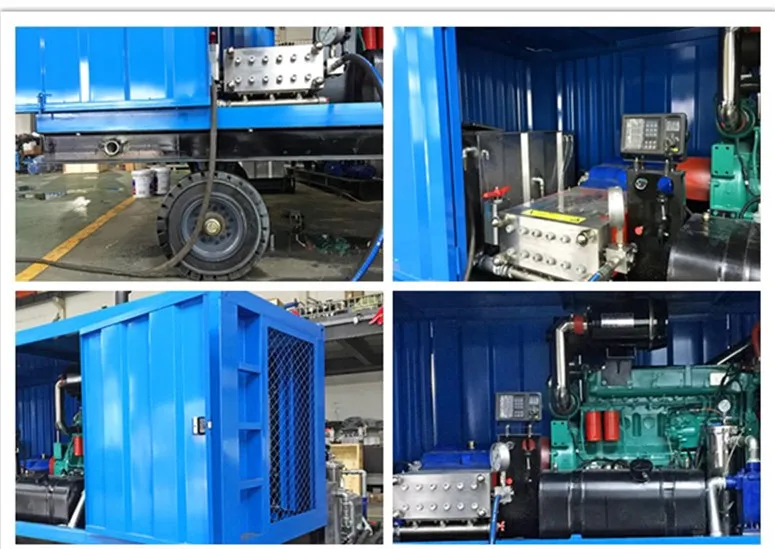

Detailed Images

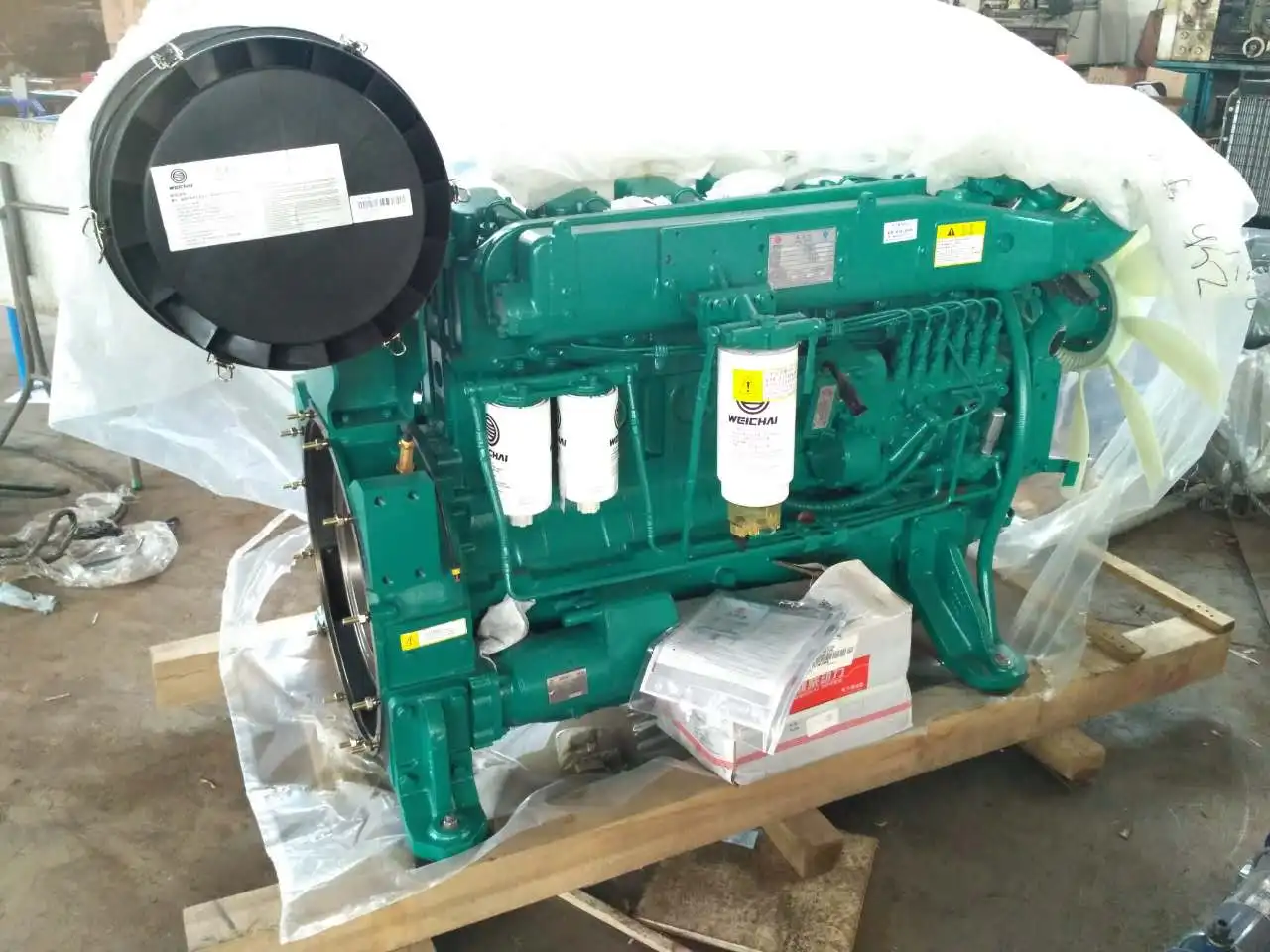

Diesel engine
Brand: WEICHAI brand
Engine power: 264kw, 6-cylidner
Model: WP10D264E201
Engine speed: 1500rpm
Cylinder: 6-cylinder
Operate type: mechanical type
Cooling: water cooling
If you have request about the engine brand, also welcomed.

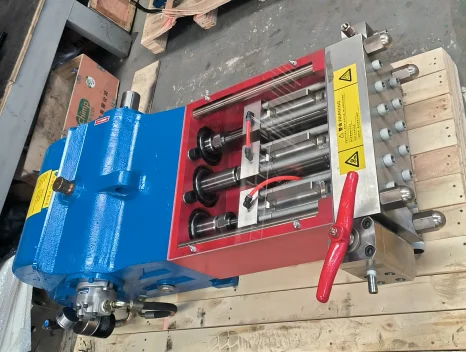

High pressure plunger pump
* Pump plunger: three-plunger
* plunger diameter: 22-28mm
* Pump speed: 366 rpm
* stroke: 120mm
* Plunger material: stainles steel
* Pump end material: nodular cast iron, High hardness, not easy to deformation

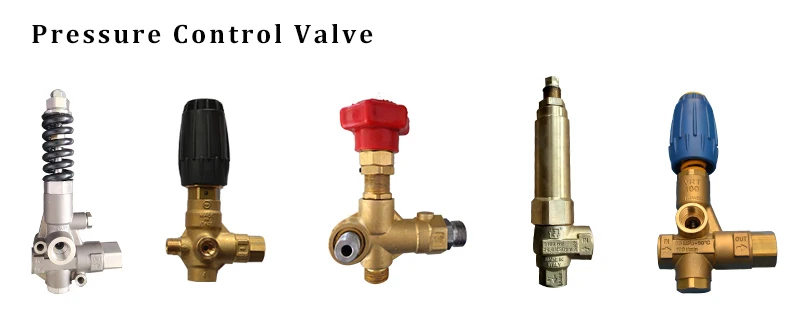

* with pressure regulating valve
* with pressure regulating valve
* safety valve
* pressure gauge, Silicone oil aseismic
Welcome customized
* Pump pressure and water flow can be customized
* Diesel engine brand can be customized
* Container frame color can be customized
* Wheels trailer can be customized
* Can printing with your own LOGO;
* Construction can be customized

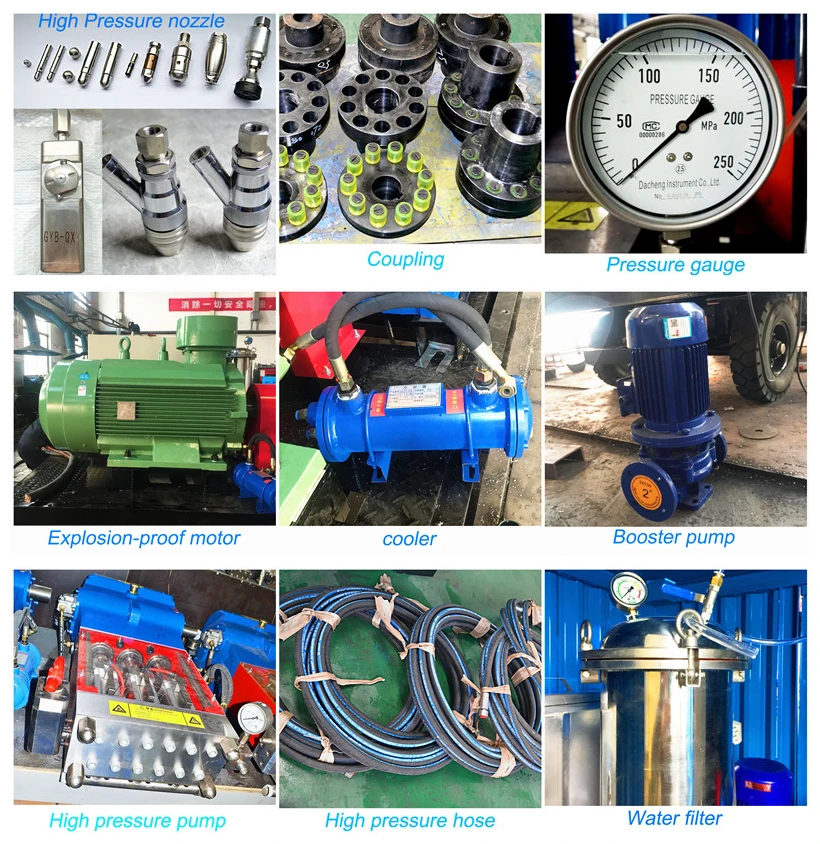

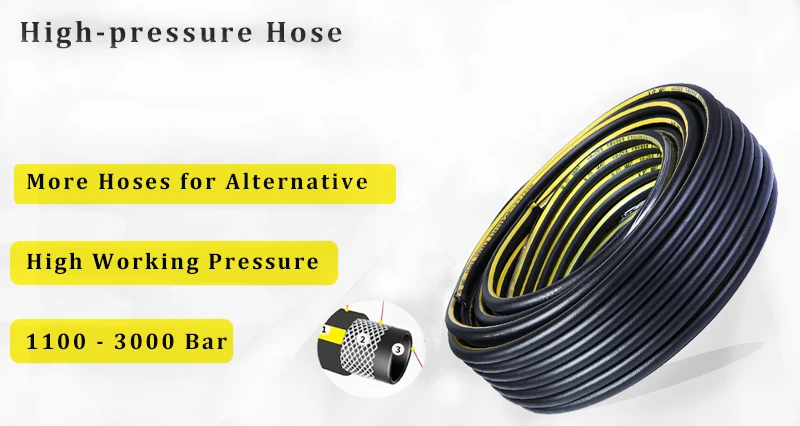

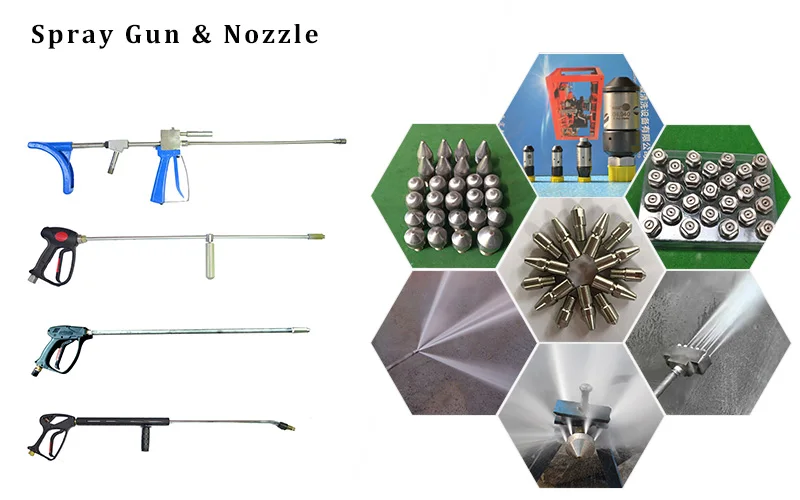

High pressure cleaning machine industrial pipe cleaning machine accessories:
High pressure hose/ water jetting gun/cleaning nozzle/flexible lance/ pipe cleaning nozzle/ foot control valve etc.

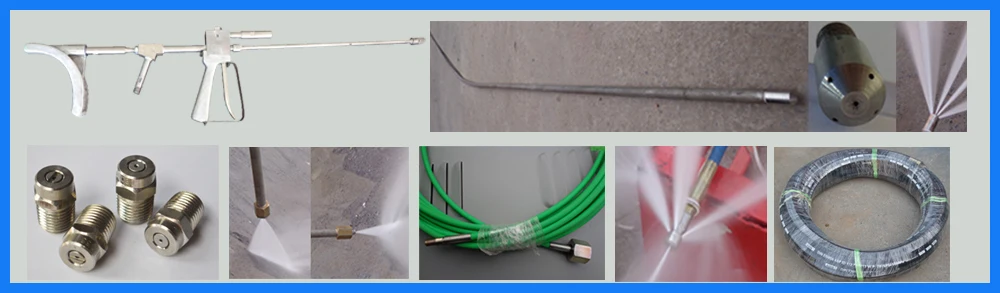

Accessories
Standard accessories:
high pressure hose + high pressure spray gun+ cleaning nozzle
Optional accessories:
single-hole rotating nozzle; turbo nozzle; pipe cleaning nozzle, flexible lance,
mul-ti jetting nozzle, stainless steel lance, foot control valve, etc.
high pressure hose + high pressure spray gun+ cleaning nozzle
Optional accessories:
single-hole rotating nozzle; turbo nozzle; pipe cleaning nozzle, flexible lance,
mul-ti jetting nozzle, stainless steel lance, foot control valve, etc.

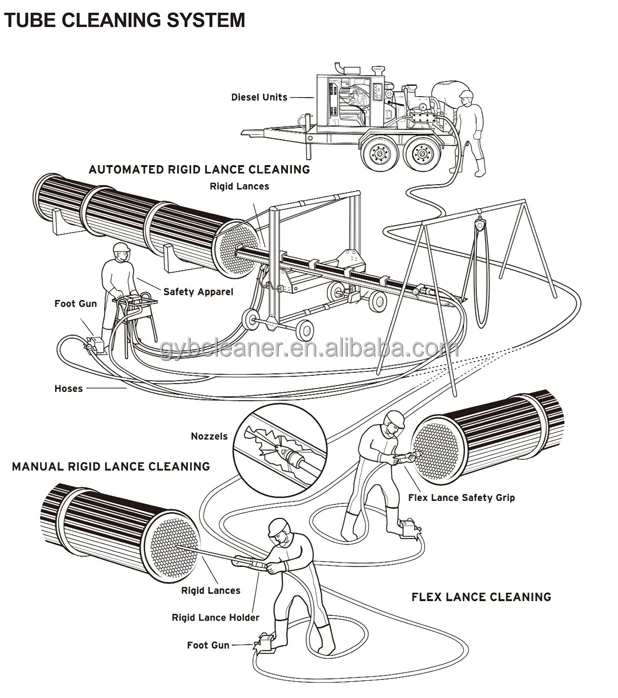

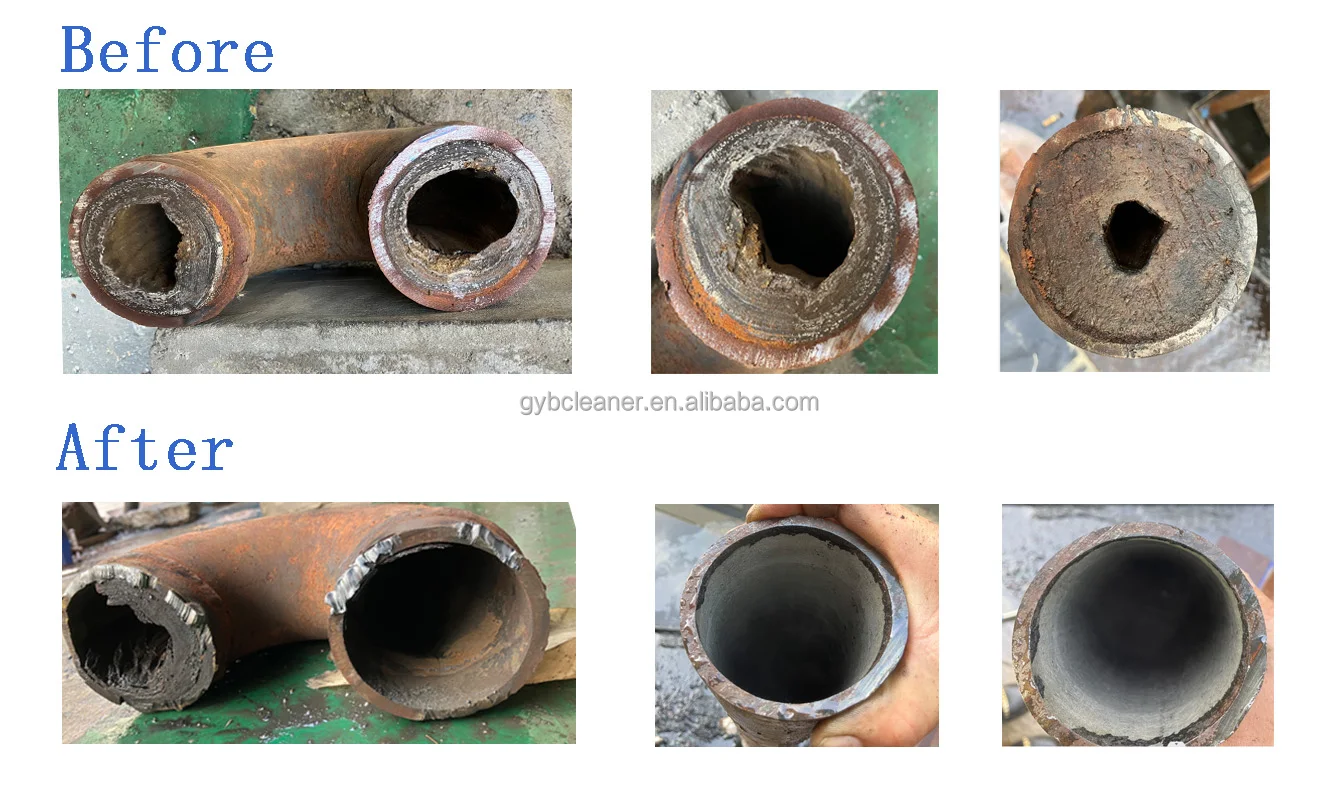

Application

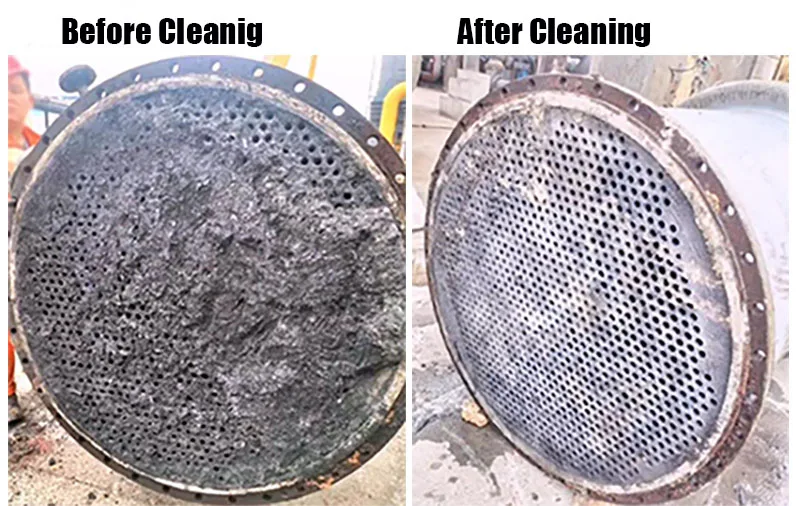

Industrial pipe cleaning purpose
Use special pipe cleaning nozzle
Dimater: Min.10mm, Max. 100mm
for industrial pipe/heat exchanger/condenser/ evaporator/ tube/ primary cooler cleaning, etc

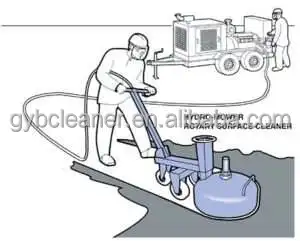

Surface heavy dirt cleaning
Use water spray gun
For surfave heavy dirt cleaning, rust paint remove, concrete removal, concrete surface roughening, concrete cutting, etc.
Pipe cleaning purpose
Use special cleaning nozzle
For diameter: Min.50mm, Max. 800mm
For Oil * Gas tube pipe cleaning purpose
* industrial cleaning area
* Chemical plant cleaning
* Cement tanker cleaning

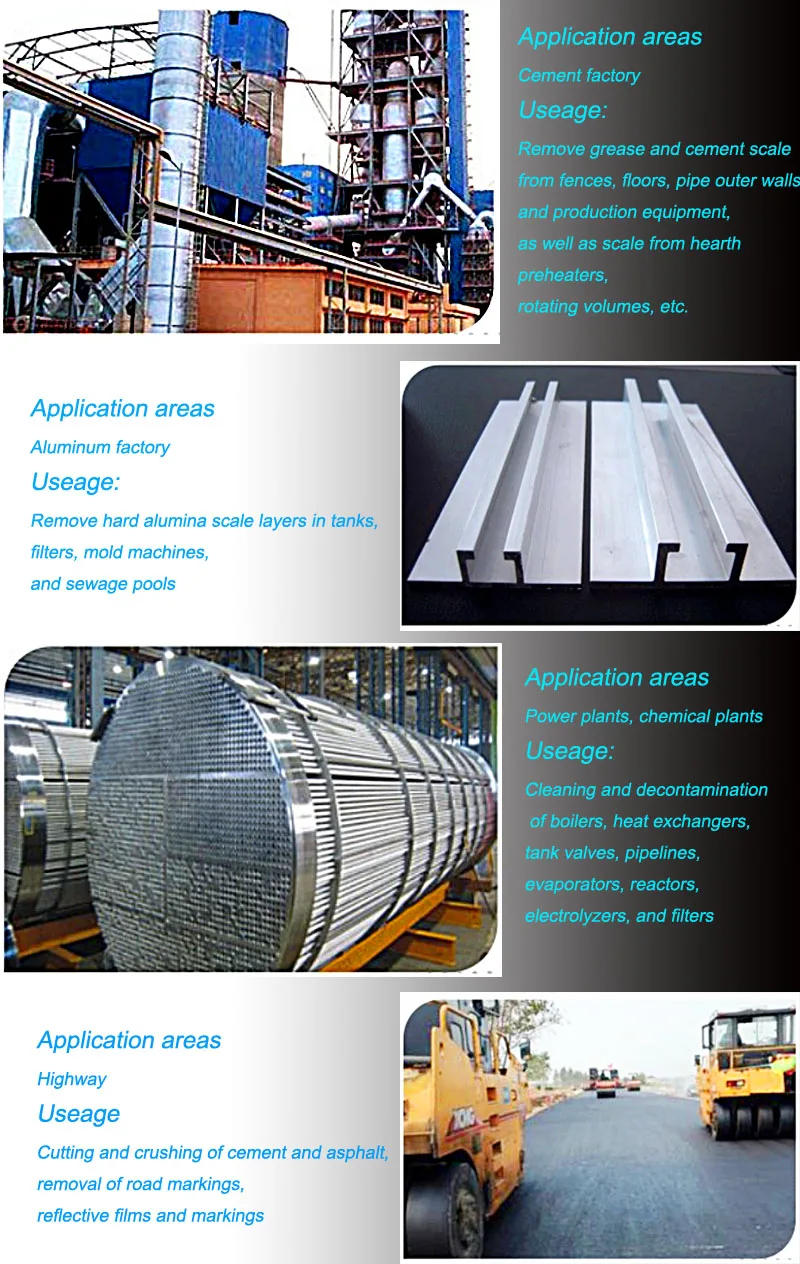

It is suitable for ultra-high pressure water jet cleaning, metal cutting, ship cleaning and rust removal, chemical plant, sugar factory, power plant condenser, heat exchanger, evaporation tank, boiler and other kinds of reactor descaling cleaning, bridge,house concrete removal, Vinyl plant, fertilizer plant, coal chemical industry, power plant, resin factory, ship, automobile painting room, equipment renovation, paint, rust removal, ground, wall oil, airport runway glue marks, marking line, pipeline cleaning and dredging.
Customized service

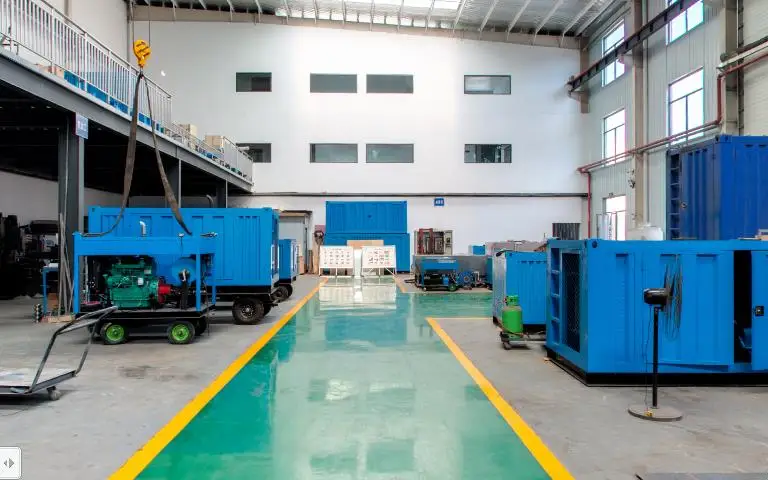

Company Introduction
Zhengzhou GuangYuan Cleaning Eqiupment Co., Ltd. is located in Henan Province, China. We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, high pressure pump, etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
Certifications
Packing&Shipping
FAQ
1.Are you trading company or manufacturer?
--We are manufacturer here for over 15 years.
2.How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;

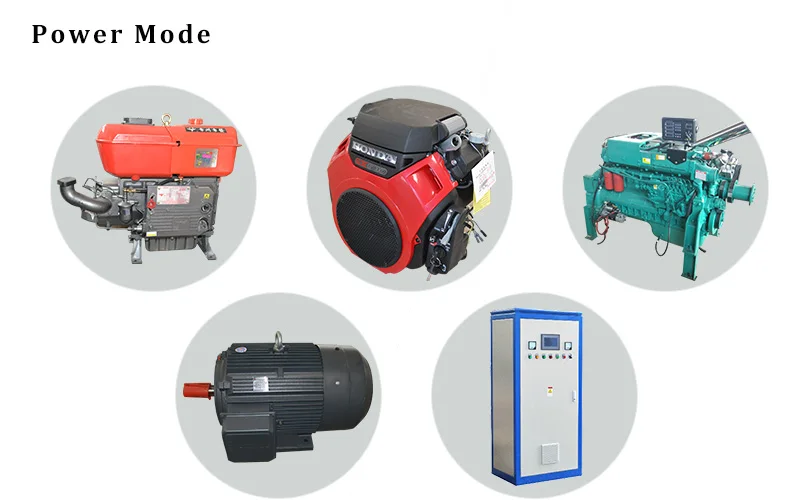

3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What’s your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It’s according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What’s your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What’s the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
--We are manufacturer here for over 15 years.
2.How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What’s your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It’s according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What’s your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What’s the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
