Easy to install lithium battery Balcony Power Plant with Storage Complete Set 2KW Microinverter Aluminum Bracket Solar Panel Kit
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. LimitedShenzhen Limited
Share on (1601270558172):
Product Overview
Description
Joyvoit Balcony Power Plant with Storage
Model: HY2KP
Efficient 2KW Solar Energy Storage System inbuilt Smart Microinverter and LiFePO4 Compact Power Plant with Black Half Cells PV for Balcony Use
Balcony Power Plant Description:
Experience the future of energy independence with Joyvoit Balcony Power Plant with Storage. This innovative system enables you to harness solar energy directly from your balcony and store it for use whenever you need it. Our cutting-edge storage technology ensures that you have access to your self-generated solar power even at night, maximizing your energy efficiency and savings.
By integrating the Balcony Power Plant with our versatile Balcony Solar System, you can enjoy unmatched flexibility. The built-in microinverter connects seamlessly to your power station and the mains, intelligently deciding whether to charge your power station or feed energy back into the grid based on real-time economic benefits.
Specification | ||
Solar Panel | ||
PV Type | TOPCon, Bificial, full black | |
Rated Power | 860W (2*430W) or 1720W (4*430W) | |
Voltage at Pmax(Vmp) | 32.33V | |
Current at Pmax(Imp) | 13.3A | |
Open Circuit Voltage（Voc) | 38.72V | |
Size & weight | 1722x1134x30mm & 23.4kg | |
Smart Battery with PVHub | ||
Battery Type | Lithium ion (LiFePO4 ) | |
Rated Voltage | 51.2V(16S) | |
Battery Capacity | 2048WH | |
Dimensions | 480mm×230mm×275mm | |
Net Weight | Around 20kg | |

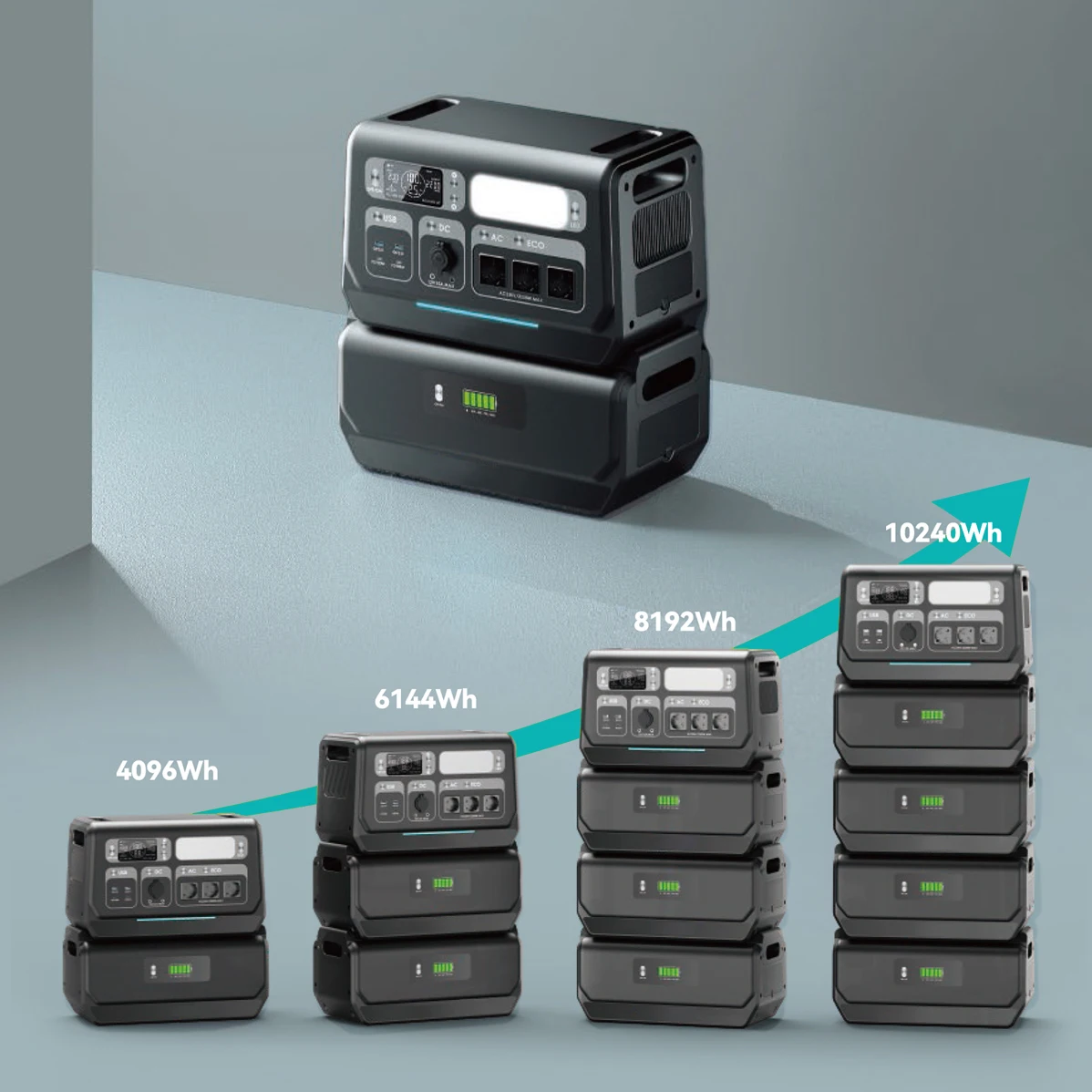

Max External Parallel Battery | 3PCS | |
Slave Battery Pack & Capacity | 480mm×230mm×230mm & 2KWh | |
Cycle Life | 6000(25℃) | |
Discharge Depth | 90% | |
Maximum Charging Current | 60A | |
DC Input(PV Input) | ||
Maximum Input Power | 860W×2 Max | |
MPPT Voltage Range | 18V-60W | |
Start-up Voltage | 12V | |
Operating Voltage Range | 12V-60V | |
Input Conversion Efficiency | 98%Max | |
Maximum Input Voltage | 60V | |
Maximum Input Current per Channel | 25A | |
Maximum Input Short-circuit Protection Current (Transient) per Channel | 90A | |
Number of MPPT Tracking | 2 | |
MPPT Tracking Efficiency | 99% | |
DC Output(for Micro Inverter) | ||
Maximum Output Power | 800W×2Max | |
Output Conversion Efficiency | 98%Max | |
Operating Voltage Range | 18V-55V | |
Maximum Output Voltage | 55V | |
Maximum Output Current per Channel | 28 | |
Maximum Input Short-circuit Protection Current (Transient) per Channel | 90A | |
General Parameters | ||
Charging Operating Temperature | 0℃~55℃ | |
Discharging Operating Temperature | -20℃-60℃ | |
Protection Grade | IP65 | |
Communication Mode | WIFI | |
Heat Dissipation Mode | natural cooling | |
Packaging Dimensions | 520mm×270mm×310mm | |
Features:
1. Efficient Energy Storage:
Store surplus solar power for use during nighttime or peak hours, reducing dependency on the grid.
2. Smart Microinverter:
2. Smart Microinverter:
Automatically switches between charging the power station and feeding energy into the mains, optimizing cost-efficiency.
3. Plug-and-Play Installation:
3. Plug-and-Play Installation:
Simple setup allows you to start generating and storing solar power quickly and easily.
4. Compact Design:
4. Compact Design:
Specifically designed for balcony installation, making it perfect for urban living spaces.
5. Eco-Friendly:
5. Eco-Friendly:
Reduce your carbon footprint by utilizing renewable energy sources.
6. Remote Monitoring:
6. Remote Monitoring:
Keep track of your energy generation and usage through a user-friendly mobile APP.

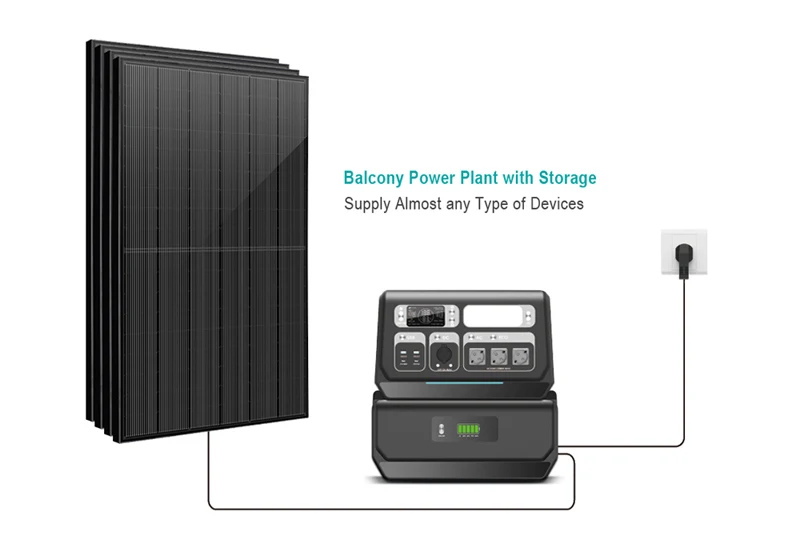

How It Works:
1. Solar Energy Generation:
The Balcony Solar Panels capture sunlight and convert it into usable electrical energy.
2. Energy Storage:
During the day, surplus solar energy not immediately used in your home is stored in the integrated power station.
This stored energy can be accessed when solar generation is low, such as at night or on cloudy days.
3. Smart Microinverter Operation:
Charging Mode: The microinverter monitors energy production and consumption, directing surplus energy to charge the power station.
Feeding Mode: When the power station is fully charged, the microinverter feeds excess energy back into the mains, allowing you to earn credits or reduce your electricity bill.
4. Usage Flexibility:
The stored energy can be utilized to power your home during peak hours or during outages, ensuring a reliable power supply at all times.
1. Solar Energy Generation:
The Balcony Solar Panels capture sunlight and convert it into usable electrical energy.
2. Energy Storage:
During the day, surplus solar energy not immediately used in your home is stored in the integrated power station.
This stored energy can be accessed when solar generation is low, such as at night or on cloudy days.
3. Smart Microinverter Operation:
Charging Mode: The microinverter monitors energy production and consumption, directing surplus energy to charge the power station.
Feeding Mode: When the power station is fully charged, the microinverter feeds excess energy back into the mains, allowing you to earn credits or reduce your electricity bill.
4. Usage Flexibility:
The stored energy can be utilized to power your home during peak hours or during outages, ensuring a reliable power supply at all times.
Detailed Benefits:
1. Cost Savings:
- Store and use solar energy during peak hours when electricity rates are higher.
- Sell excess energy back to the grid, potentially earning on your investment.
2. Energy Independence:
- Reduce reliance on the grid and protect yourself from power outages.
- Contribute to a sustainable future by using clean energy.
3. User-Friendly Design:
- Easy to install and use, making it accessible for all homeowners.
- Monitoring energy production and usage helps optimize consumption.
- Store and use solar energy during peak hours when electricity rates are higher.
- Sell excess energy back to the grid, potentially earning on your investment.
2. Energy Independence:
- Reduce reliance on the grid and protect yourself from power outages.
- Contribute to a sustainable future by using clean energy.
3. User-Friendly Design:
- Easy to install and use, making it accessible for all homeowners.
- Monitoring energy production and usage helps optimize consumption.
With Joyvoit Balcony Power Plant with Storage, you transform your balcony into a powerful energy-generating hub, making clean, renewable energy an integral part of your daily life. Start saving money and protecting the planet, one sunny day at a time.
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use alibaba platform
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use alibaba platform
for 13 years as supplier.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
