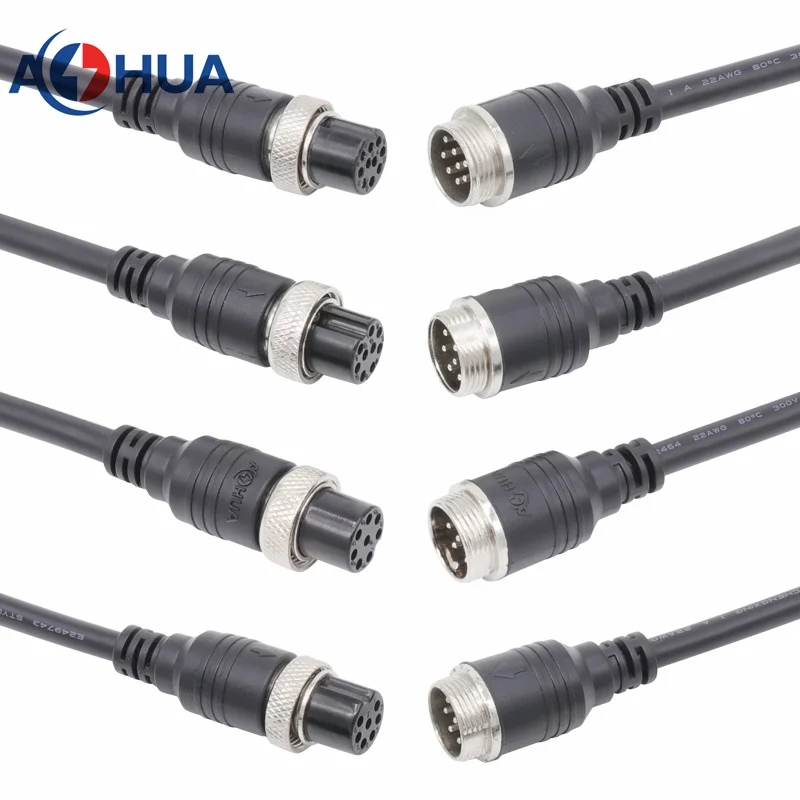

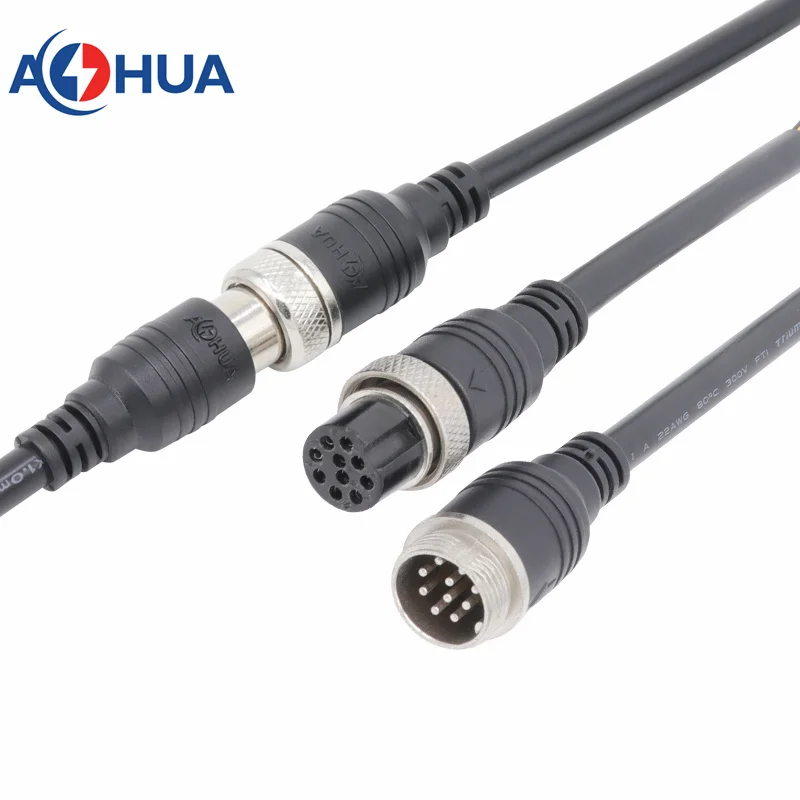

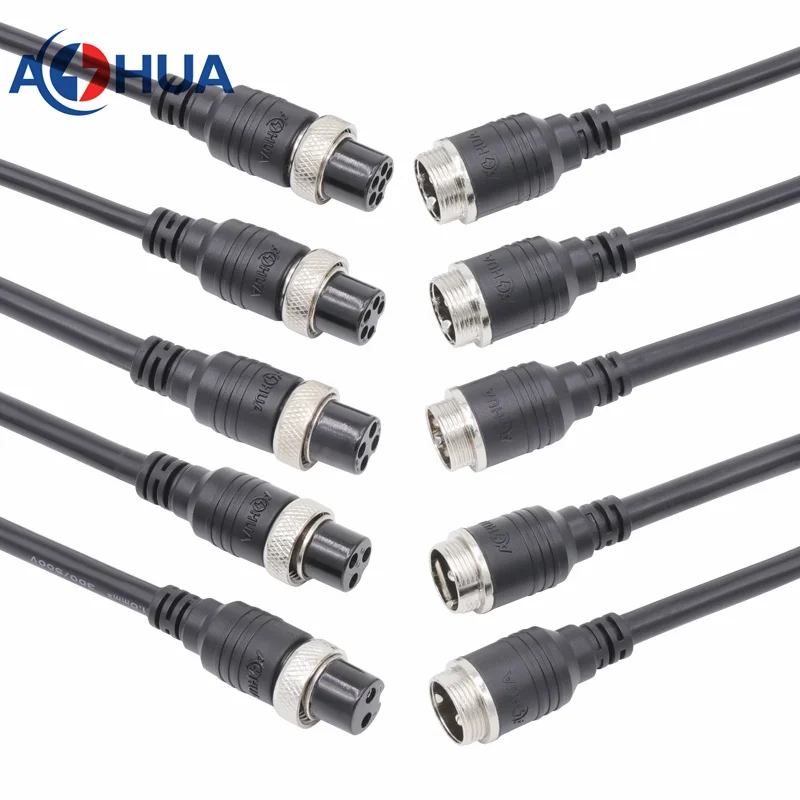

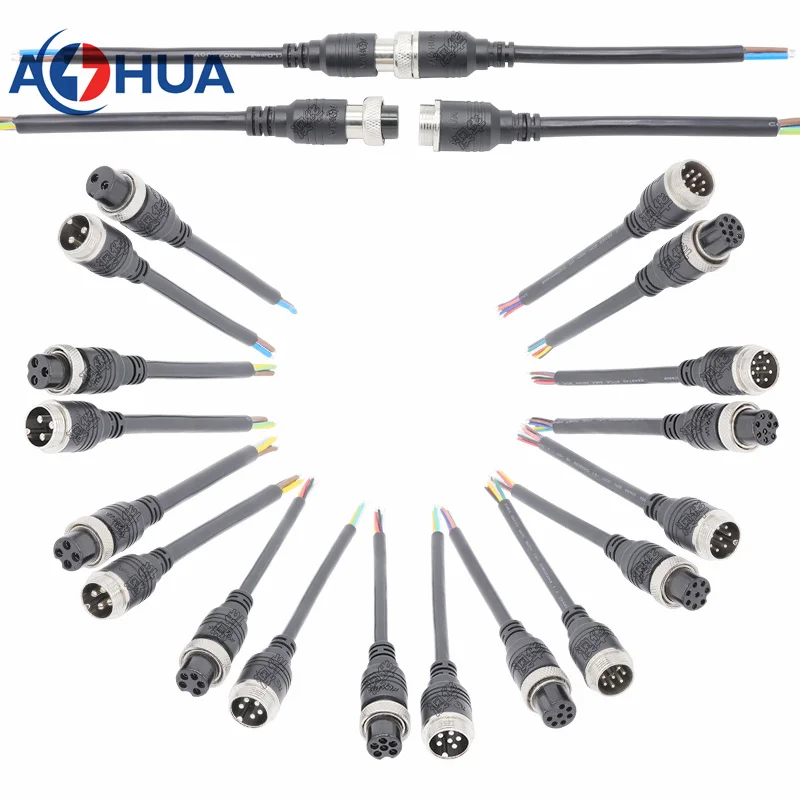

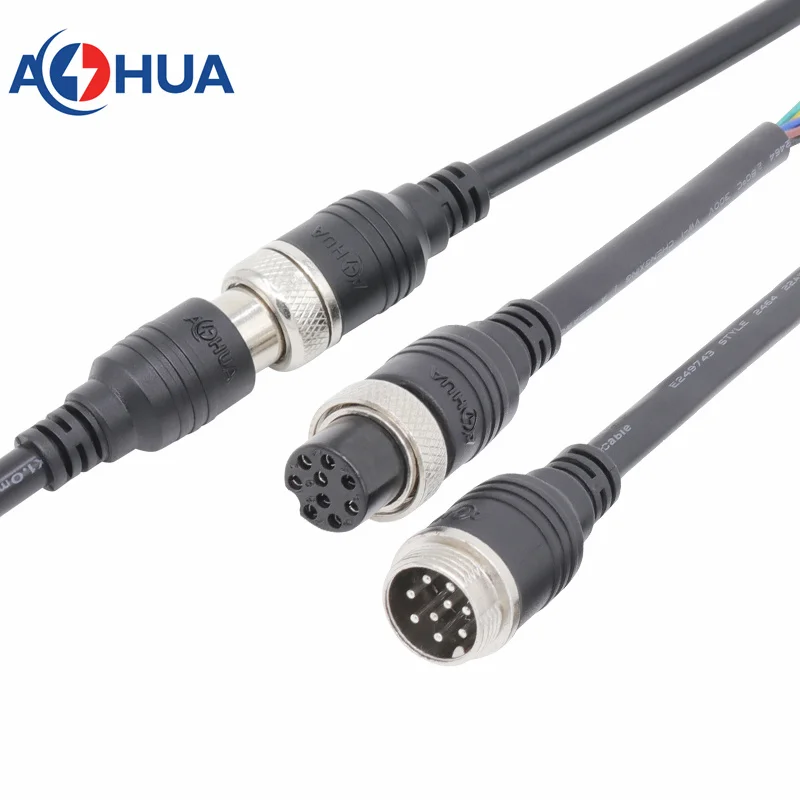

Custom Molded M12 Cable Male Female Plug Connector 3 4 5 Pin Sensor Outdoor Light Led Waterproof Aviation Wire
- Category: >>>
- Supplier: Shenzhen Aohua Electric Corporation Limited
Share on (1601270561343):
Product Overview
Description
Product Description
Color | Black |
Waterproof level | IP67/IP68 |
Cable OD | 5.5mm-10mm |
Temperature Range | -40°c - +105°c |
Certificate | CE/ROHS/TUV/UL |
Mechanical Life | 3000 Mating Cycles |
Material | Nylon |
Details Pictures

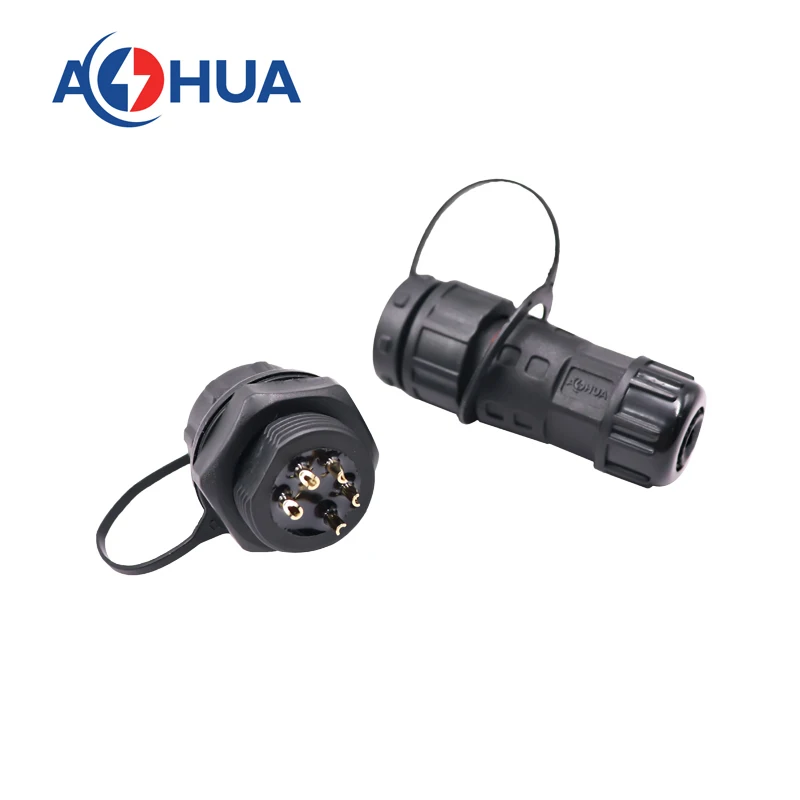

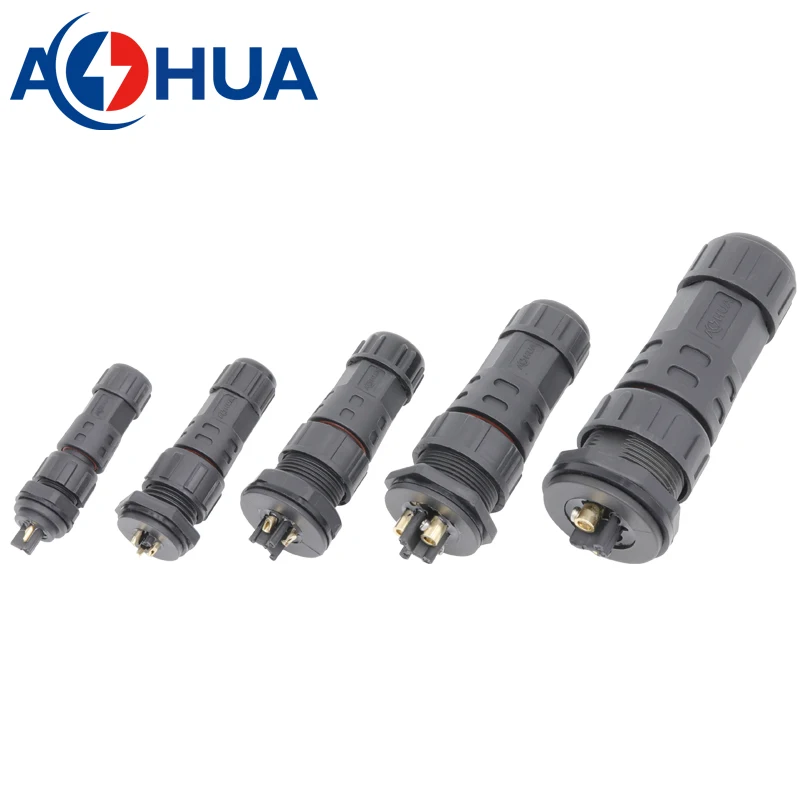

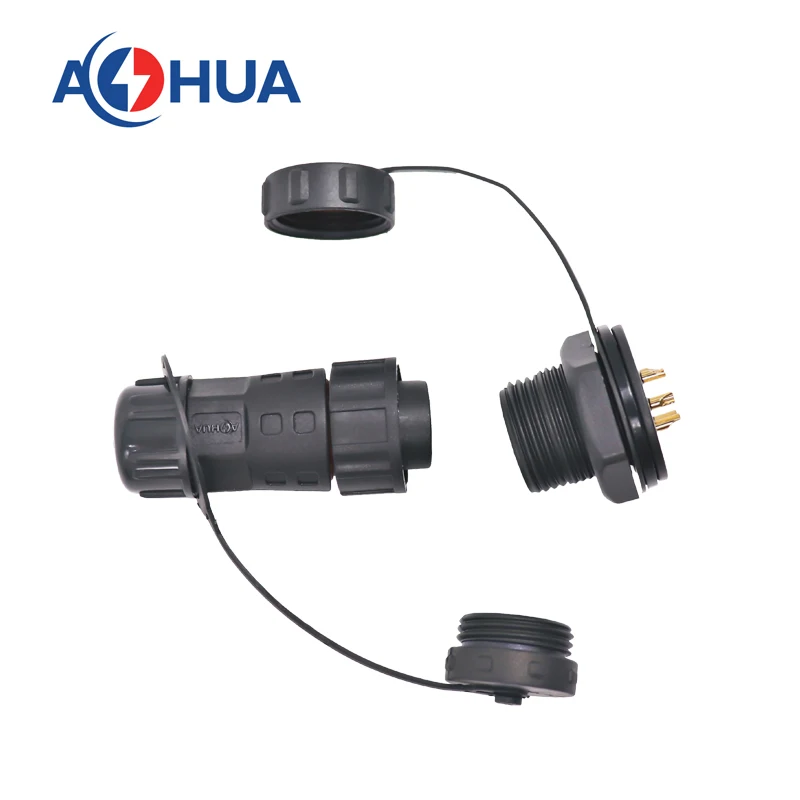

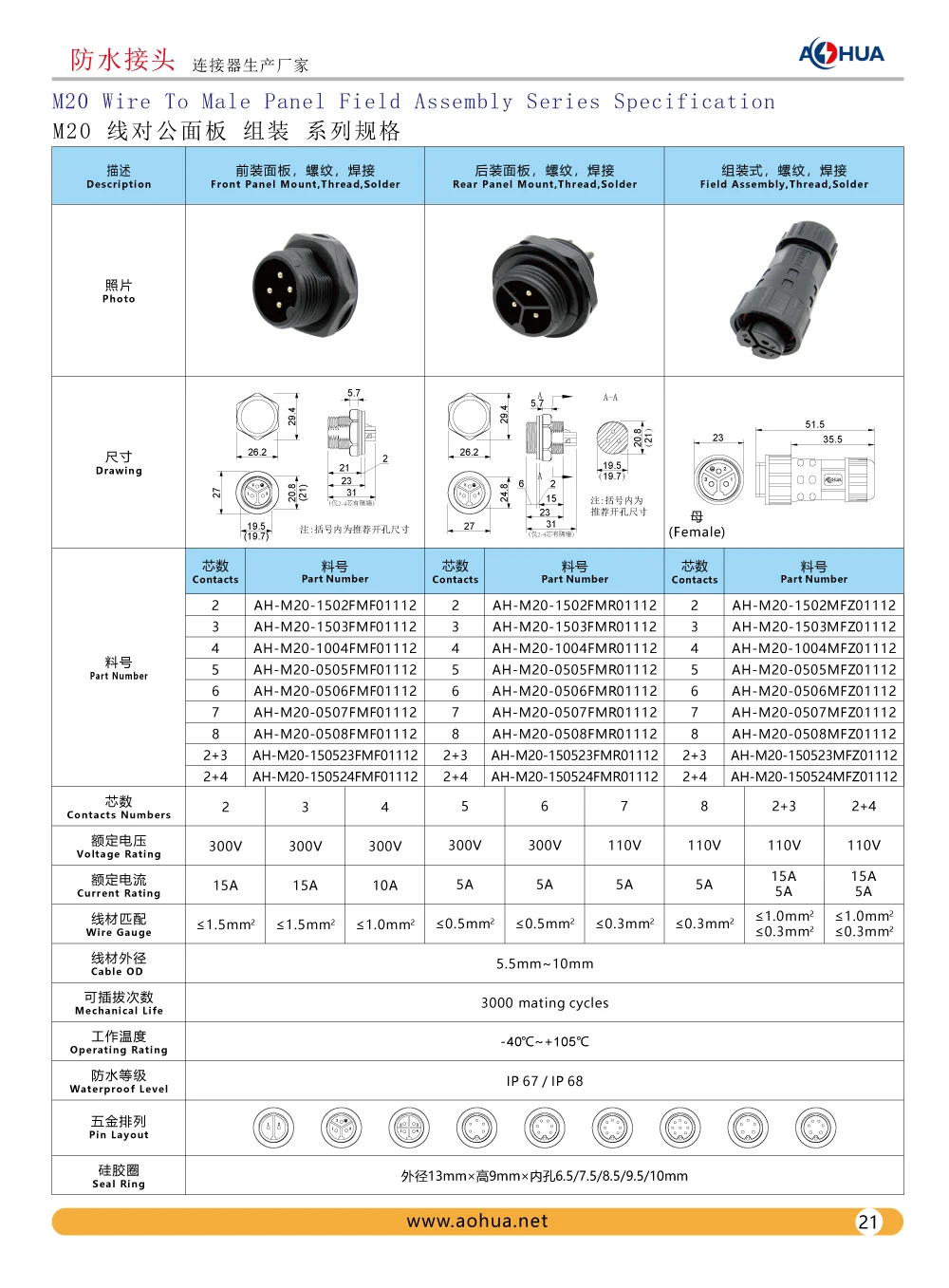

M12 M16 M20 M25 M29 Front Raer Panel Mount Connector
This panel connector is male female panel connector, also they are divided into front rear type connector, in the front type panel connector the nut is outside the box /wall, in the rear type panel connector the nut is inside the box/wall.
In the other side, the wire connector has the silicone ring on the end of the shell, with the presence of silicone rings, the wire can be freely twisted without space constraints, and firmly lock the wire to prevent water intrusion, to protect the electrical safety inside the connector.
The front and rear type connectors can be selected for installation according to the actual usage situation.
The rear type panel connector would be more economical,the front type panel connector would be more easier to install.
There are screw fixing type connector and solder type connector for you choice, screw wiring can lock the wires well, preventing the wires from falling off due to various pulling, and because there is no need for on-site soldering, the wiring will be more convenient and quicker.

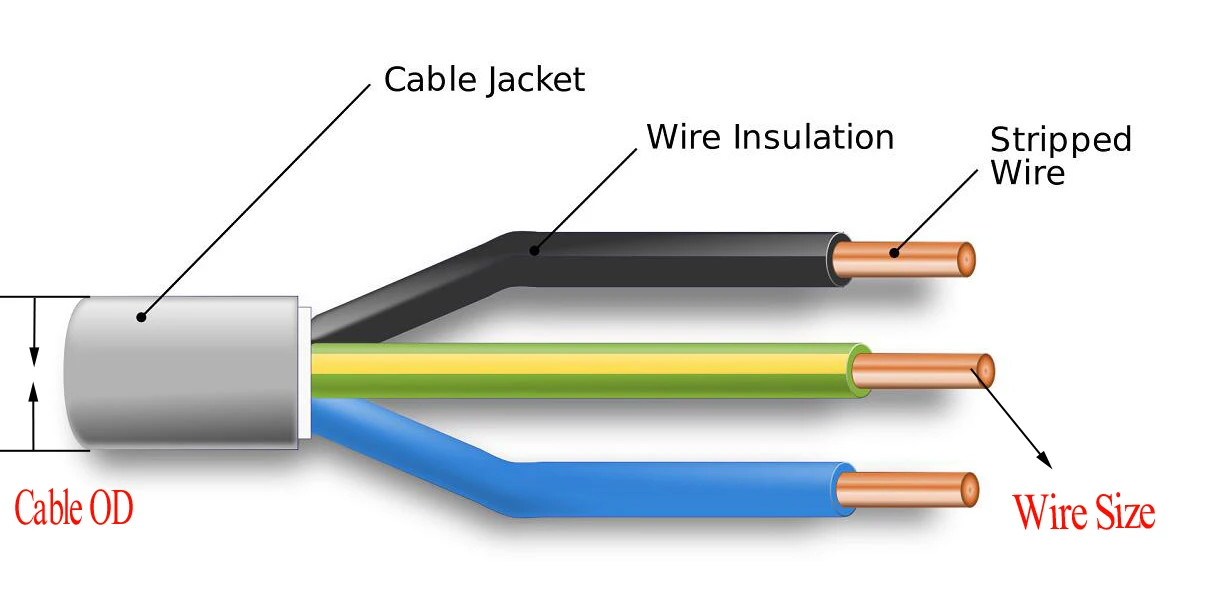

Wire Selection
The panel mount male female connector is 2 3 4 5 6 7 8 2+3 2+4 Pin,
2pin can match the wire of 24AWG 22AWG 20AWG 18AWG 16AWG 14AWG
3PIN can match the wire of 24AWG 22AWG 20AWG 18AWG 16AWG 14AWG
4PIN can match the wire of 24AWG 22AWG 20AWG 18AWG 16AWG
5PIN can match the wire of 24AWG 22AWG 20AWG
6PIN can match the wire of 24AWG 22AWG 20AWG
7PIN can match the wire of 24AWG 22AWG
8PIN can match the wire of 24AWG 22AWG
2+3PIN 2PIN can match the wire of 24AWG 22AWG 20AWG18AWG 16AWG 3PIN can match the wire of 24AWG 22AWG
2+4PIN 2PIN can match the wire of 24AWG 22AWG 20AWG18AWG 16AWG 4PIN can match the wire of 24AWG 22AWG
How to make a order?
Sent us an inquiry about the information below:
1.connector type:assembly/pre-wire connector
2.wire size: 2*20AWG/5*18AWG...
3.the cable outside dameter: 4.5mm 7.8mm...
4.the cable length: male side 300mm, female side 500mm...
Then we will contact you and help you to choose a suitable connector and give you price list.
