Price:$20.00 - $24.00

Quantity:


Product Overview

Description



Product Description

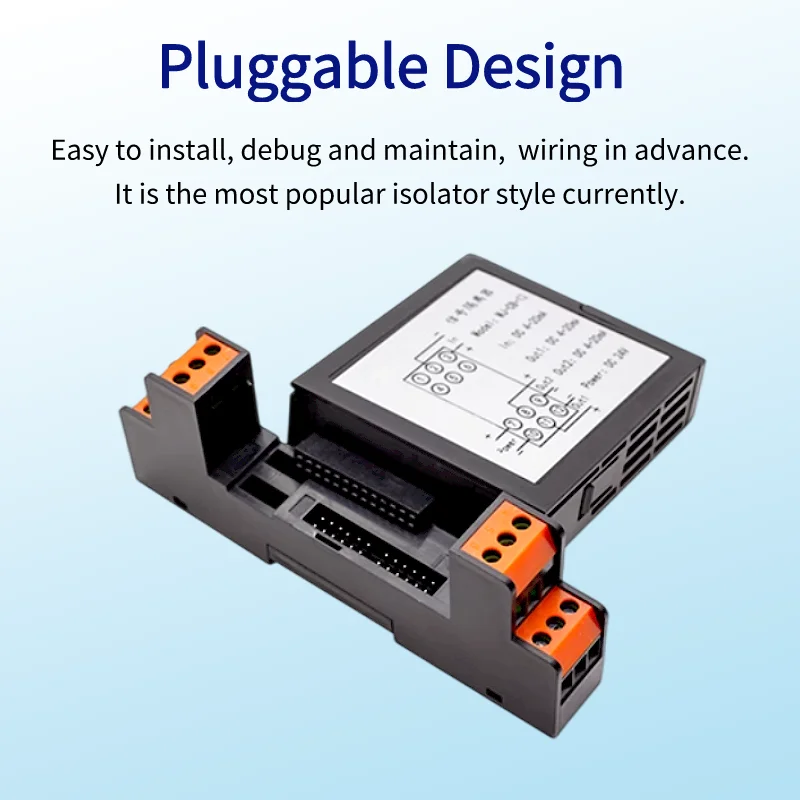

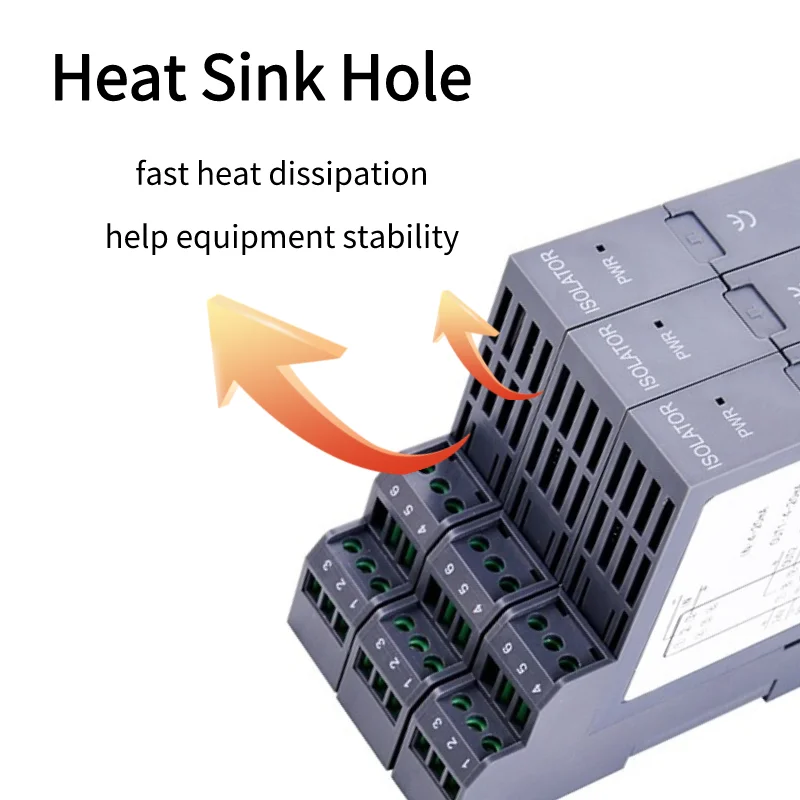

DC Signal Isolator 4-20mA 0-20mA Current Transmitter 0-5V 10V Pluggable Signal Isolation Distributor Signal Converter

✔ YKXH-4 series signal isolation distributor is a high-performance product independently developed by our company. It can be used for isolation, transmission and distribution of 2-wire, 3-wire and 4-wire transmitter output signals.
✔ Precisely isolate and distribute 4~20mA, 0~10V , 0-20mA, 0-5V standard signals and other non-standard signals..

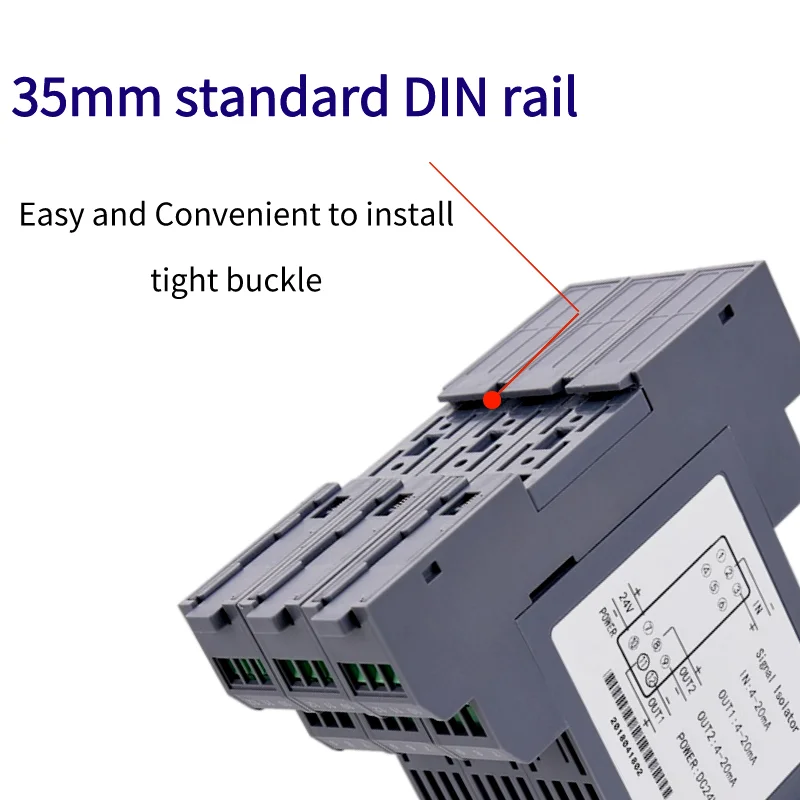

✔ Standard 35mm DIN rail free standing mounting.
✔ It can be used for common ground interference or loop current-induced interference field, signal conversion when the transmitter is not matched with the subsequent equipment, signal distribution of transmitters or sensors.

NOTE: If you need parameters customization, please feel free to contact us

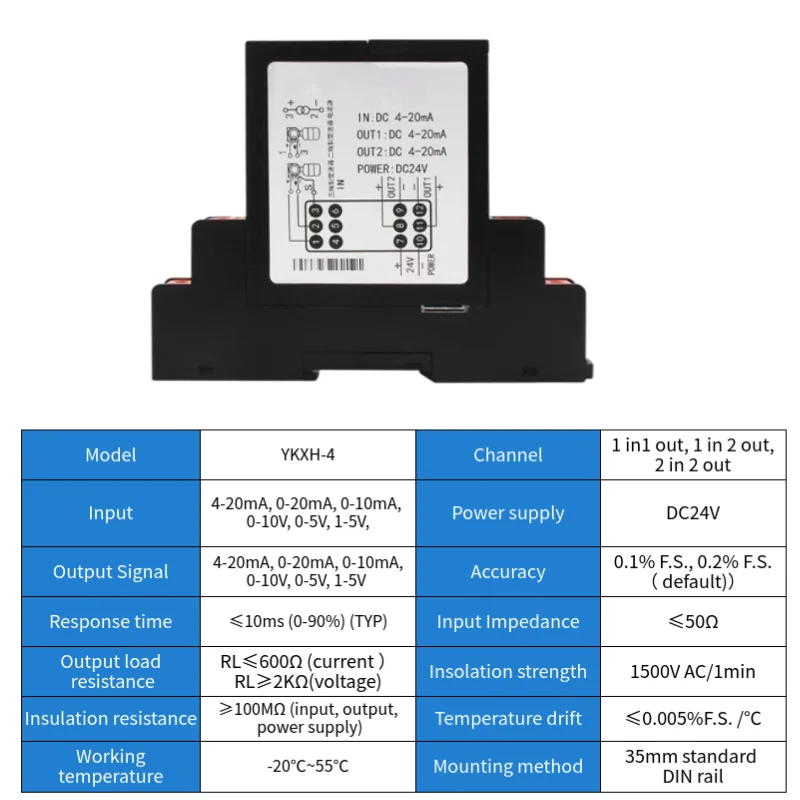

Parameters


Model NO.:
YKXH-4
Name:
Signal Isolator
Channel:

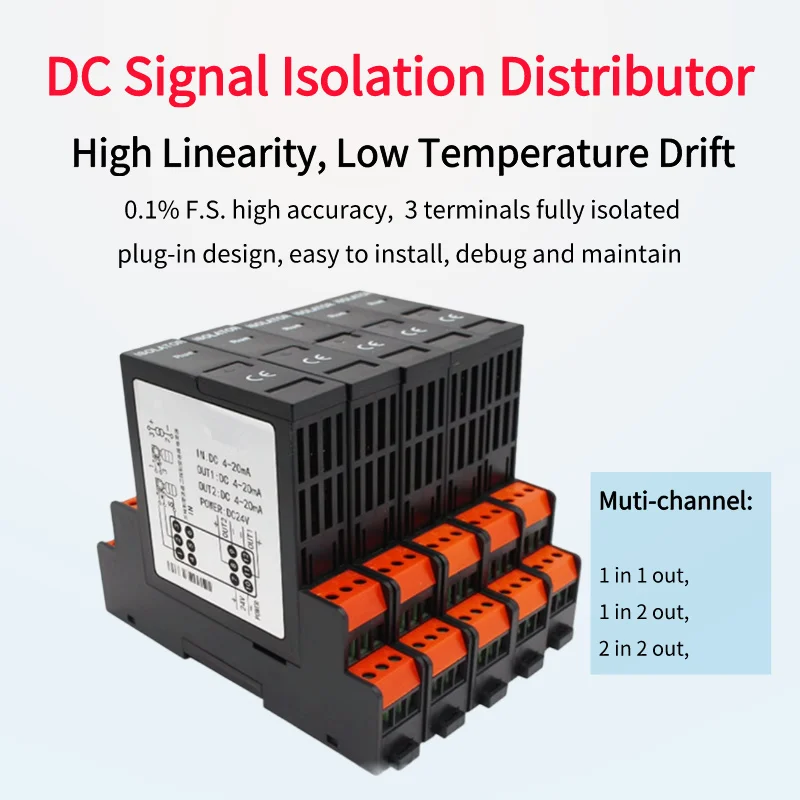

1 in 1 out, 1 in 2 out, 2 in 2 out
Input signal:
4-20mA, 0-10V, 0-5V, 0-20mA; thermocouple,
Output signal:
4-20mA, 0-10V, 0-5V,0-20mA;
Working temperature:
-20℃~+55℃
Accuracy:
0.1%;
Reponse time:
≤ 10ms
Power supply:
DC24V,
Installation
35mm DIN rail














FAQ


Q1: Can the parameters customized according to our demand?
A: Yes, we customize the paraments based on your need, such as measuring range, power supply, output signal, etc., and also supply brand customization, customize your company's name and logo on the products.

Q2: What's your minimum order quantity ? Could I get one sample to test first?
A: We offer the lowest MOQ, and also offer sample for you to test.
Q3:When will the shipment be made after placing the order?
A: For sample order, usually will ship out in 2 days, and for bulk order with parameters customize, usually will be ship out in a week.

Q4: If I meet some problems during using your products, how could I solve it?
A; If you meet any problem during using the prodcuts, please contact us in a timely manner. We have professional engineers who will help you solve the problem.

Q5: What's the delivery time?
A: We have UPS, DHL, Fedex, sea freight, plane etc. shipping methods to choose, which can fulfill your demand about in-time delivery demand.
