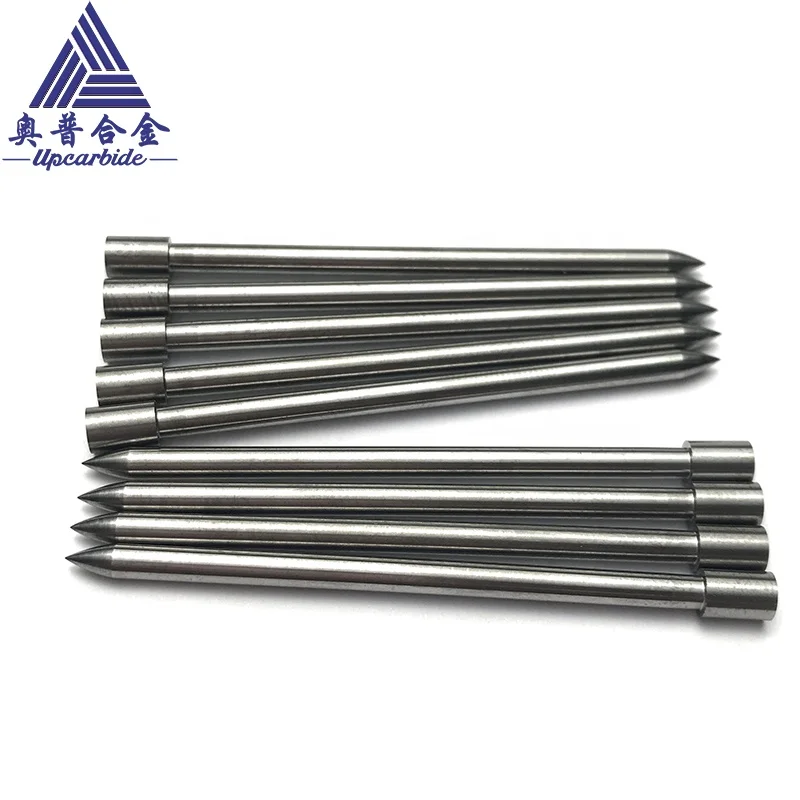

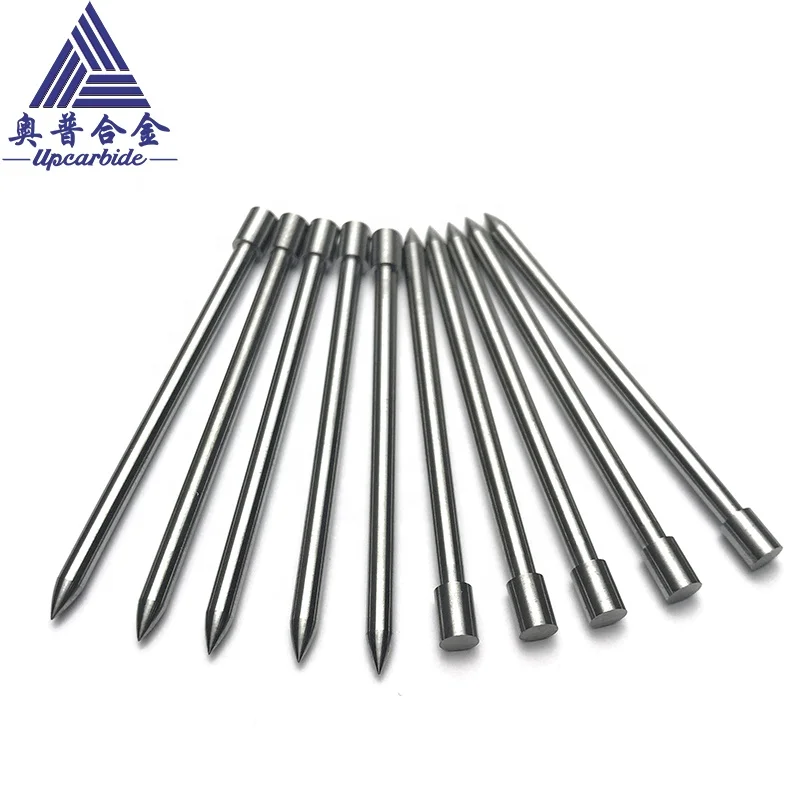

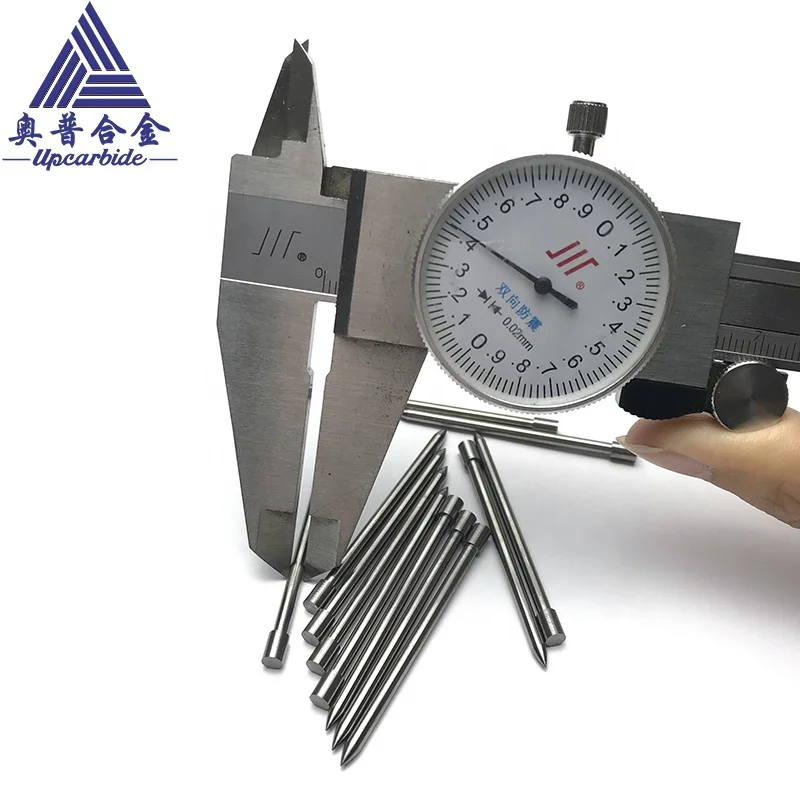

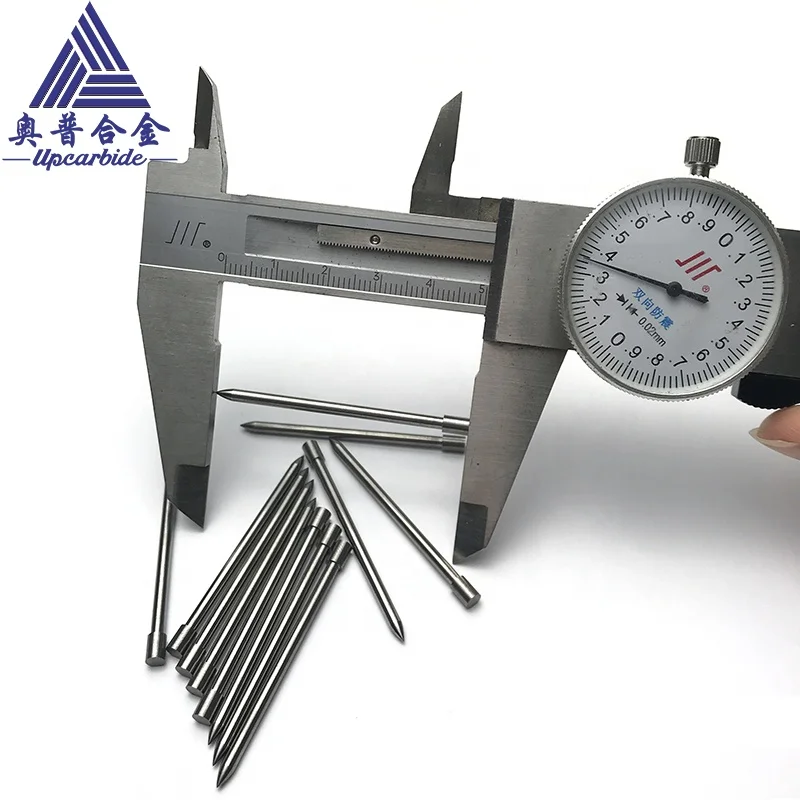

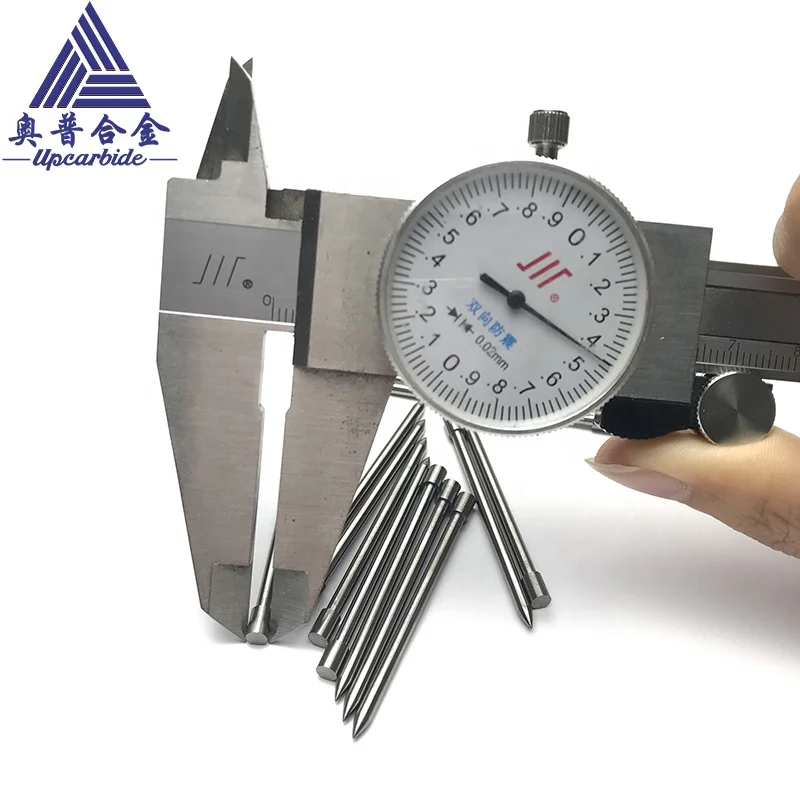

  • customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods
customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods

customization D3.5*d2.5*50mm high hardness tungsten carbide polishing rods

Share on (1601270589937):


Price:$0.77 - $0.87

Quantity:


Product Overview

Description







Overpressure sintering tungsten carbide rod have excellent red toughness,high hardness,good wear resistance,high elasticmodulus,high strength,good chemical stability,acid,alkali,high temperature oxidation,low impact toughness,low expansion coefficient,thermal conductivity,the characteristics of the conductive similar to iron and other alloy.
1. having all kind sizes for your choose,can suply less than 1000mm length.
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. Solid rod, one hole rod ,two straight holes rod ,two 30° helical holes
4. we have unground rod instock ,also can grounding outdiameter H5,H6,H7,h6,h5,h7 etc
5. we have diferent hardnesses for choose: 84.5hra, 89.5hra, 90.5hra,91.5hra, 92.2hra,92.5hra,93.2hra,
94.0hra, 94.1hra, the more details refer our follow grades.
6. Grain sizes: 0.2um , 0.4um ,0.6um, 0.7um etc


Grade
Density (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain size (μm)
Composition (%)
YG10X
14.4
≥90.8
≥3600
0.8
10% CO 90% WC
UP20
14.45
≥91.8
≥3800
0.7
10% CO 90% WC
UP20S
14.45
≥92.2
≥4000
0.6
10% CO 90% WC
UP25
14.12
≥92.5
≥4200
0.4
12%Co 88% WC
UP904
14.5
≥93.2
≥4000
0.4
9%Co 91% WC
UP06
14.8
≥94.0
≥3800
0.4
6% CO 94%WC
UP902
14.45
≥94.0
≥4200
0.2
9% CO 91%WC
UP157
13.98
≥89.6
≥4500
0.7
15% CO 85%WC


YG10X
Sub-fine grain size,processing by medium speed,good general performance,drill bits and end mills are recommended,suitable for cutting Ordinary alloy steel,aluminum alloy,heat resistant,cast iron,etc.
UP20
Sub-fine grain size,processing by medium speed,good general performance,drill bits and end mills are recommended,suitable for cutting Ordinary alloy steel,aluminum alloy,heat resistant,cast iron,etc.
UP20S
Ultra-fine grain size,excellent heat resistance,suitable for high-speed milling and drilling,suitable to process alloy steel, heat-resistant alloy,cast iron,non-ferrous metals,stainless steel amd other materials.
UP25
Ultra-fine grain size,with good wear resistant and toughness,especially suitable for finishing and processing alloy steel,aluminum alloy,titanium alloy etc.suitable for making endmills and reamer.
UP904
Ultra-fine grain size,suitable for processing hardened hard steel,aluminum alloy,glass fiber reinforced materials,high wear resistant materials stainless steel,composite graphite,PCB,plastic.
UP06
Ultra-fine grain size,with good wear resistant,higher wear resistant endmill and engraving tool are recommended,suitable for processing Aluminum-magnesium alloy,composite sheet,PCB,plastic,glass fiber reinforced plastic etc.
UP902
Nano grain size,selected high-quality 0.2um ultra-fine tur,gsten carbide powder,with high wear resistant and toughness,suitable for finishing of hardened steel.high-precision and high-mirror processing of graphite,plastic,glass fiber reinforced materials,stainless steel and aluminum alloy.suitable for making 0.25mm endmill,drills,boring tools.
UP157
fine grain size,with good wear resistant and toughness,suitable for making punching of mould、anti-vibration boring bar etc.




produce name
tungsten carbide solid rods
out diameter
the unground diameter from 0.9mm to 35mm
total length
the length from 300mm to 1000mm (330mm is common length in stock)
Co percent
10% ,12% ,9% , 6% and 15% in different grades
hardness
89.0hra, 91.8hra, 92.2hra, 92.5hra , 93.2hra , 94.0hra and 94.1hra
grain size
from 0.7um to 0.2um
customized service
H6/h6/H7/h7,according to the customer's request






















Q1 : Are you manufacturer or trading company ?
We are manufacturer of tungsten carbide products more than 20 years.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is 1 hours-driving from Changsha airport.welcome to visit our factory.

Q3: Are the products High Quality?
Yes. 100% Raw material will be tested before bulk production, and we will check the phys-ical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What’s your delivery time ?
Generally it is 1-2 days if the goods are in stock; or it is 7-20 days if the goods are not in stock.

Q5: What is products as stock in your warehouse？
Polished ball, unground rod , h6 ground rod ,pure tungsten rod, turning insert ,all kinds tungsten fishing sinker etc.

Q5:Do you provide free samples?
Sure, we can provide free samples. we ready a large number of stock for test samples or trial order.

Q6: How to place an order of tungsten carbide products?
Fill your Order List in our online Inquiry System.Also you can directly contact our salesperson by E-mail / WeChat / Whatsup) 2. within 8 hours feedback when receiving your message.

Q7 : What are certificates together the goods delivery ?
Material report , Certificate of Original , ISO certifiate ,and qualification by third party.
