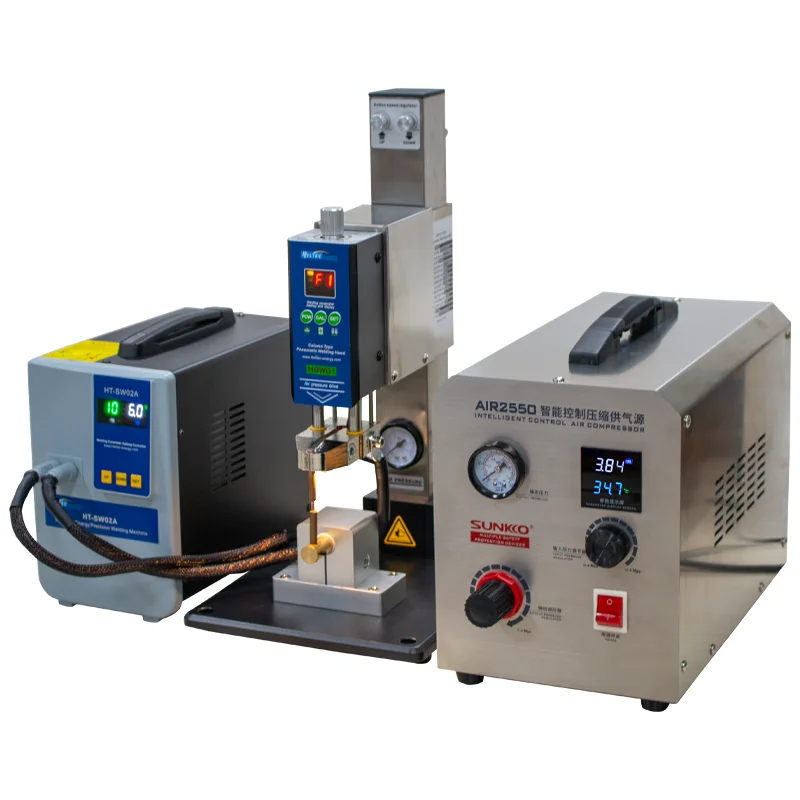

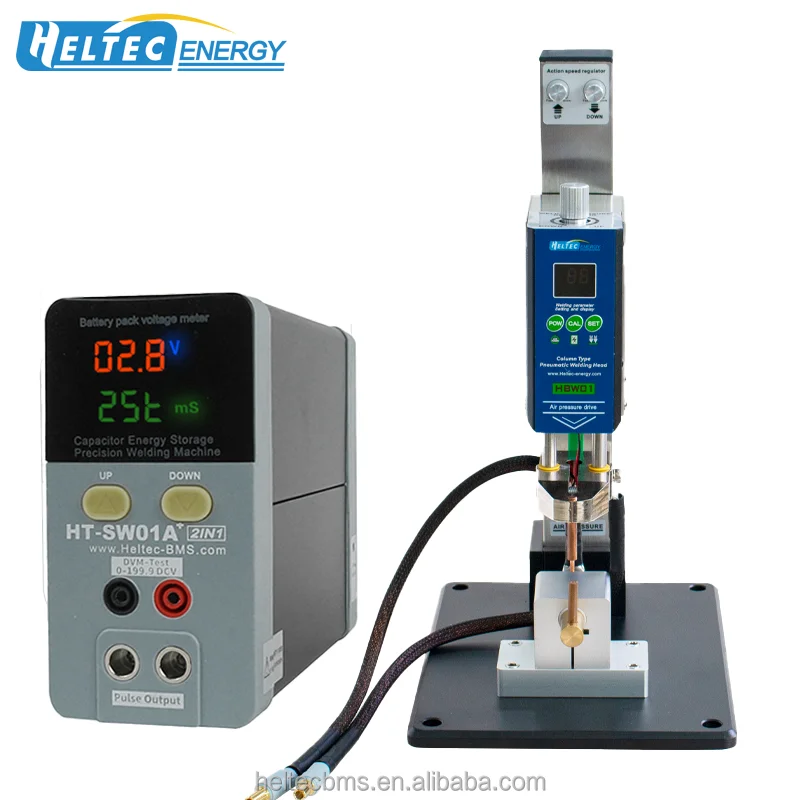

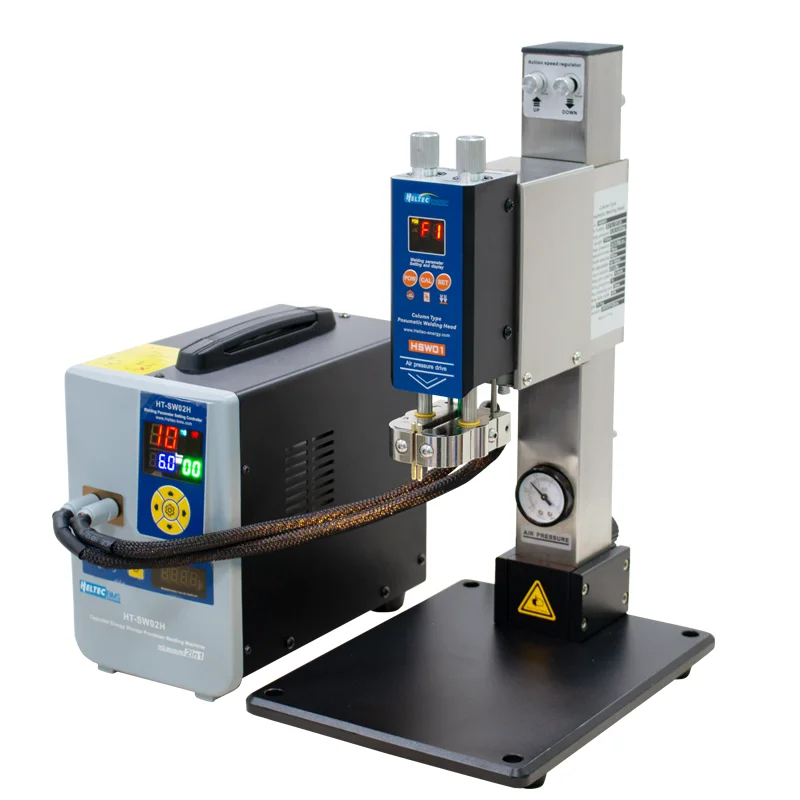

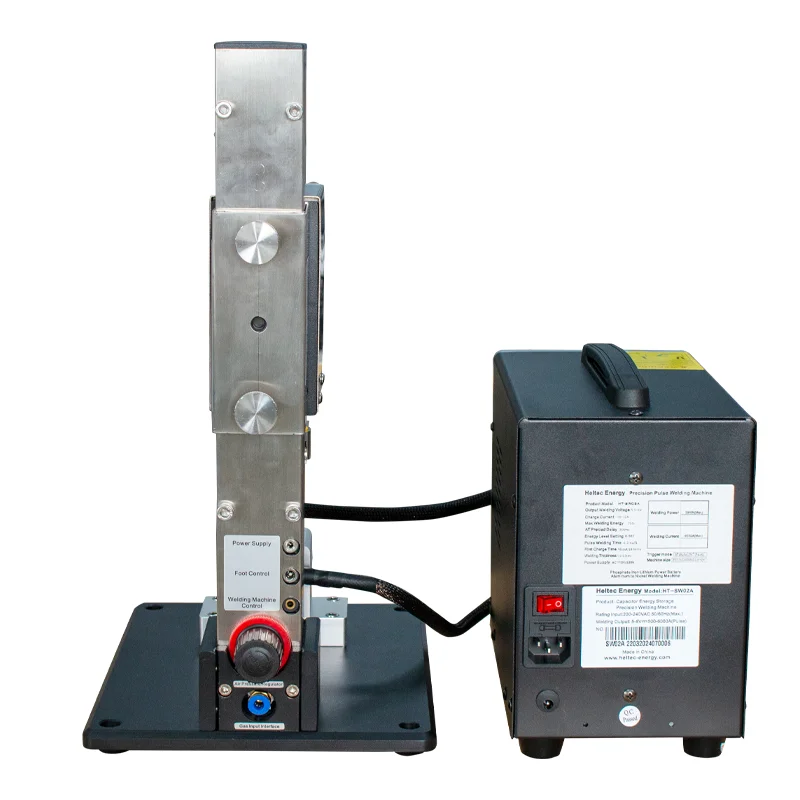

Pneumatic Butt Welding Head High Efficiency Improvement for Spot Welding Machine 21KW 36KW 42KW Spot Welder with Air Compressor
- Category: >>>
- Supplier: Chengdu Heltec Energy Technology Co. Ltd.
Share on (1601270619044):
Product Overview
Description
Products Description
Power supply | DC12-15V/2A | Working air pressure | 0.35~0.55Mpa |
Electrode arm length | 170mm | Max electrode pressure | 3.5-5.5kg(single) |
Electrode pneumatic stroke | 18mm | Adjustable electrode distance | 95mm |
Height adjustment range | 90-190mm | Welding needle pressure adjustment range | 2.2-3.2kg |
Single welder pin spacing | 24mm | Welding pneumatic program | 10 piece |
Welder pin clamping size | 6mm | Welding duty cycle | 45% |
Weight | 11.9kg | Size | 210*275*425mm |
Features
1. Original integrated one-piece column pneumatic welding head,which can be used with_any machine model/output source.
2. The pneumatic spot welding head adopts a cushion design,the pressure of the welding needle is independently adjustable, and the downward pressure speed and reset speed of the pneumatic welding head are independently adjustable.
3. Original semi-automatic continuous spot welding function, which can be set to 1~9 times or N times of continuous welding.
4. The design of the front pressure gauge and pressure adjustment knob facilitates monitoring and efficient adjustment.
5. Equipped with intelligent heat dissipation and cooling system,suitable for long-term batch operations.
6. With the function of adjusting the welding head height,objects of different volumes can also be precisely welded.
7. Pioneering simulated welding calibration mode,zero current output simulates the welding process, reducing the cost of errors.
Application:
· Polymer battery · Copper mesh
· Electronic wire · Stainless steel
· Metal parts
· Electronic wire · Stainless steel
· Metal parts

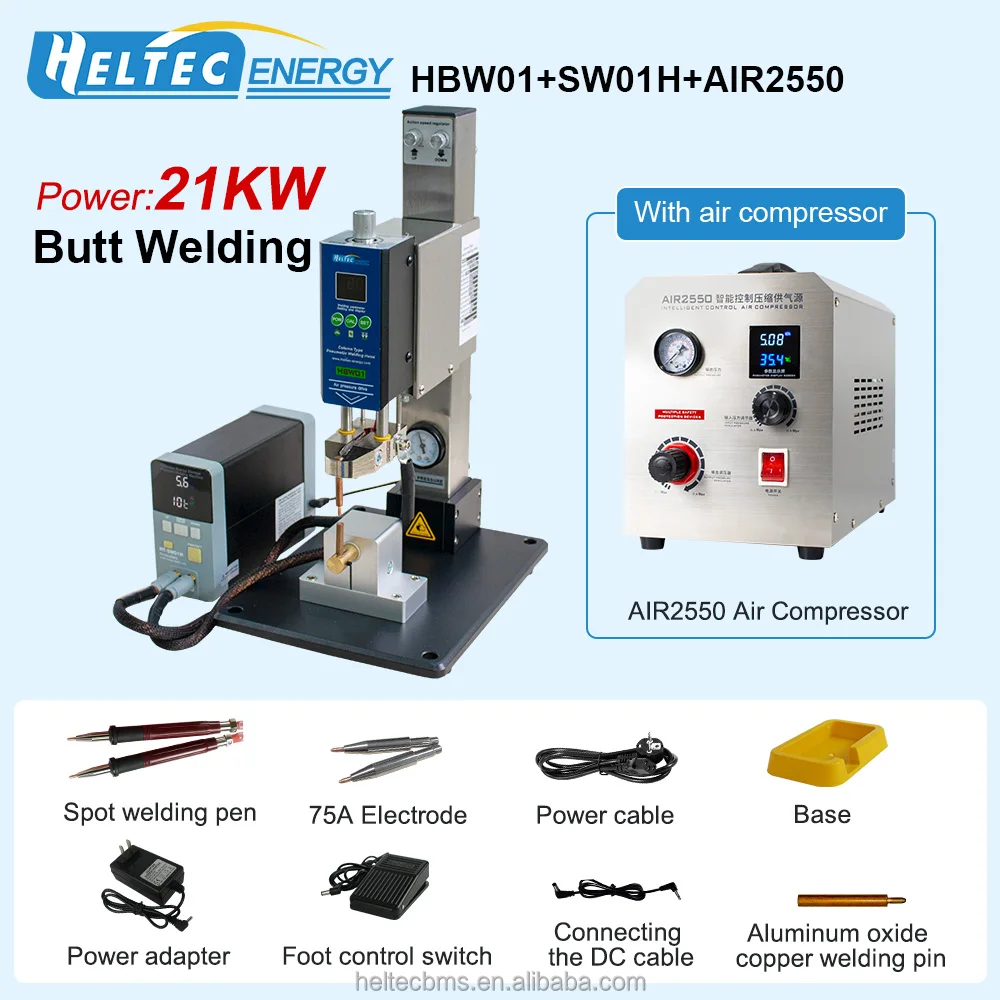

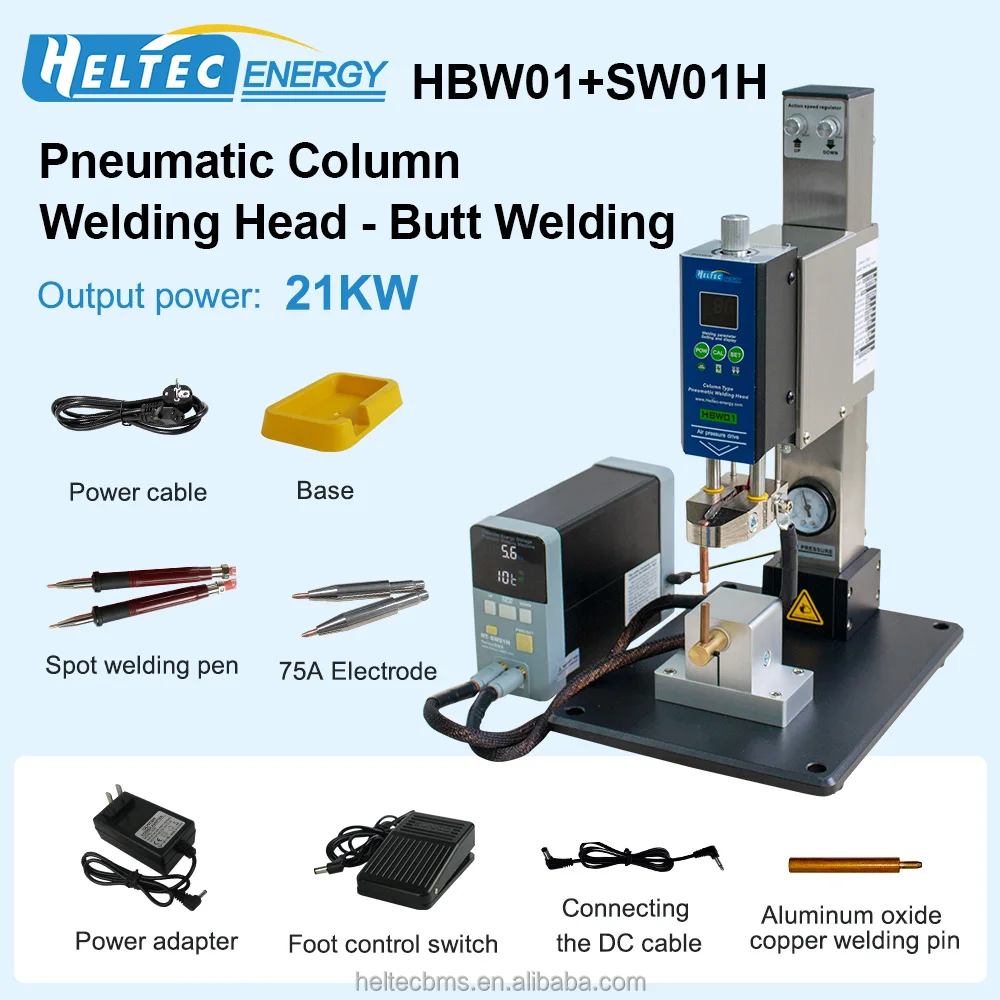

Package Selection -- 21KW

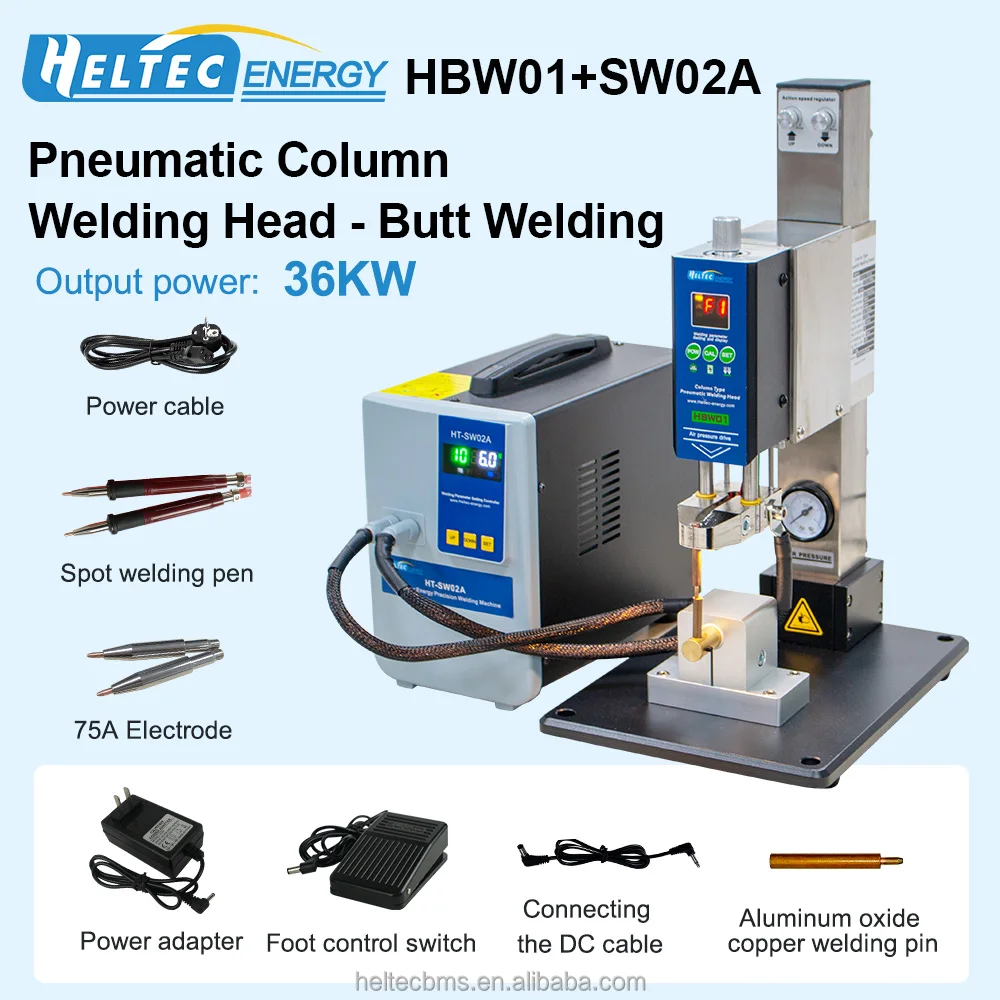

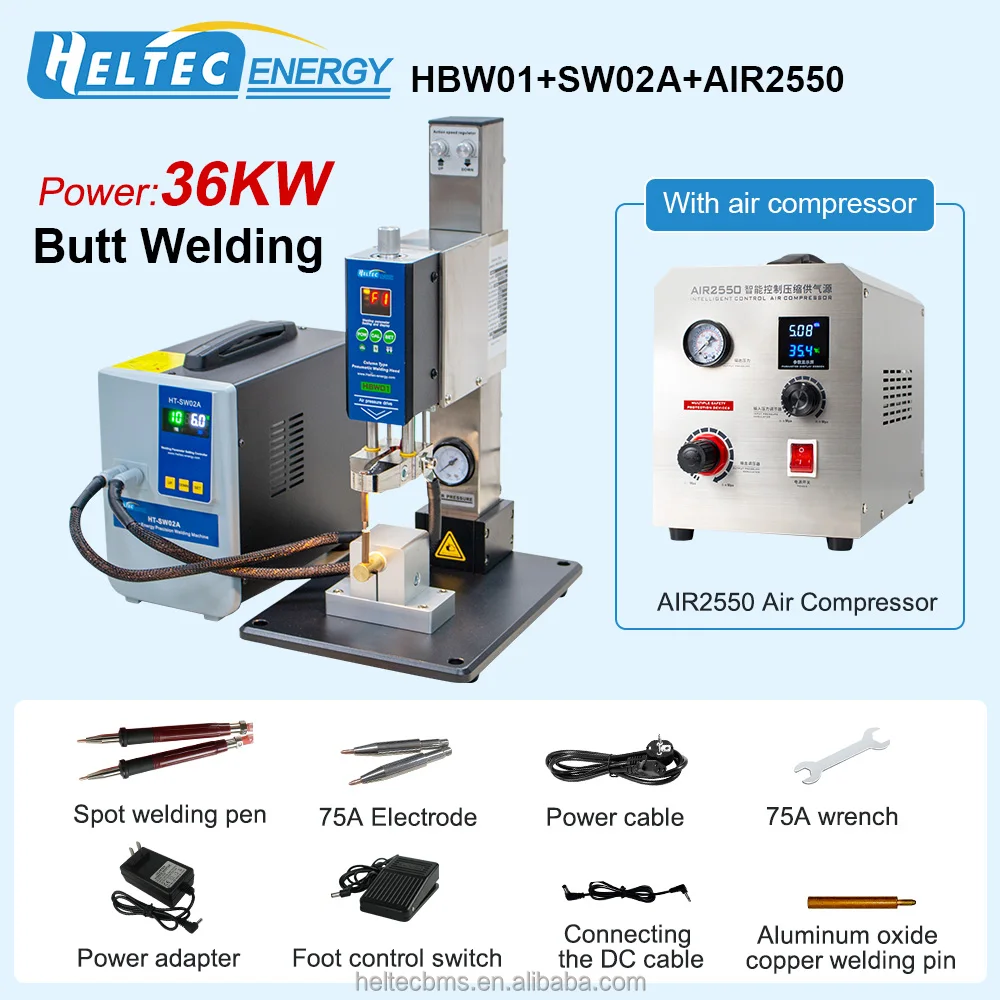

Package Selection -- 36KW

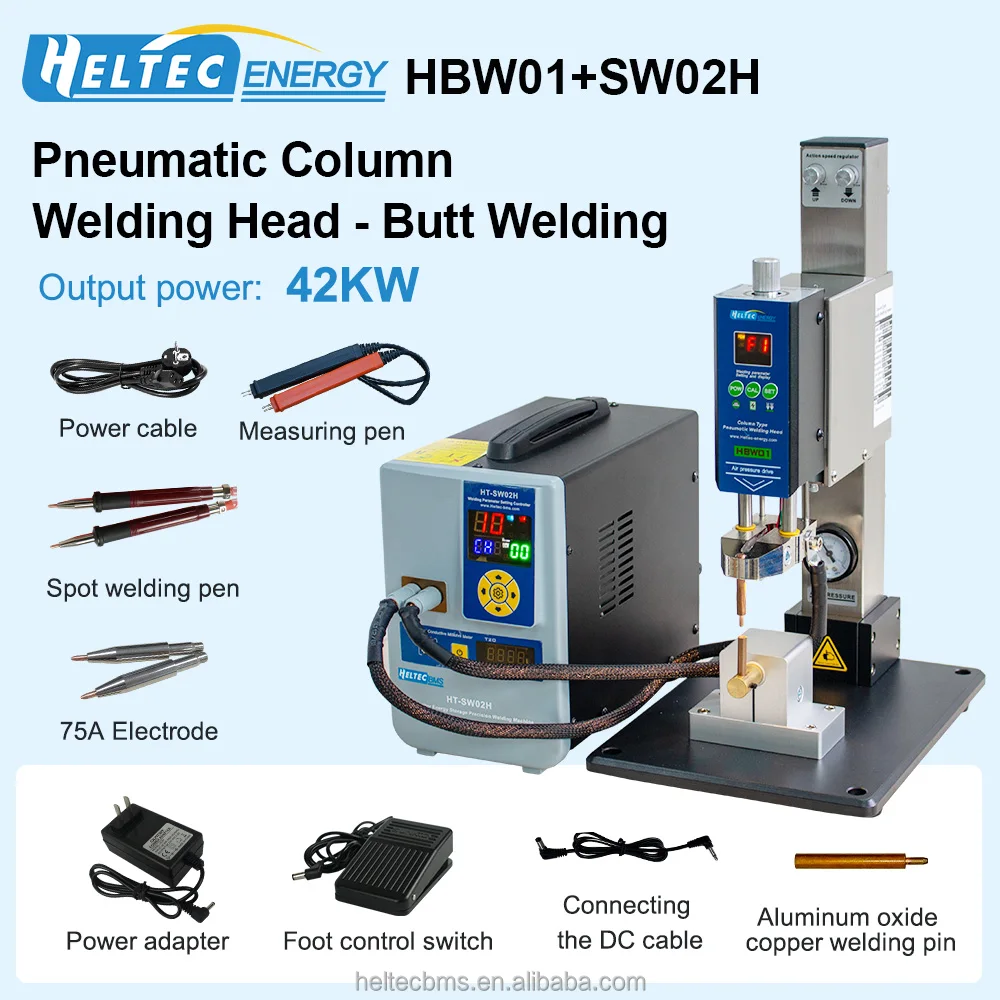

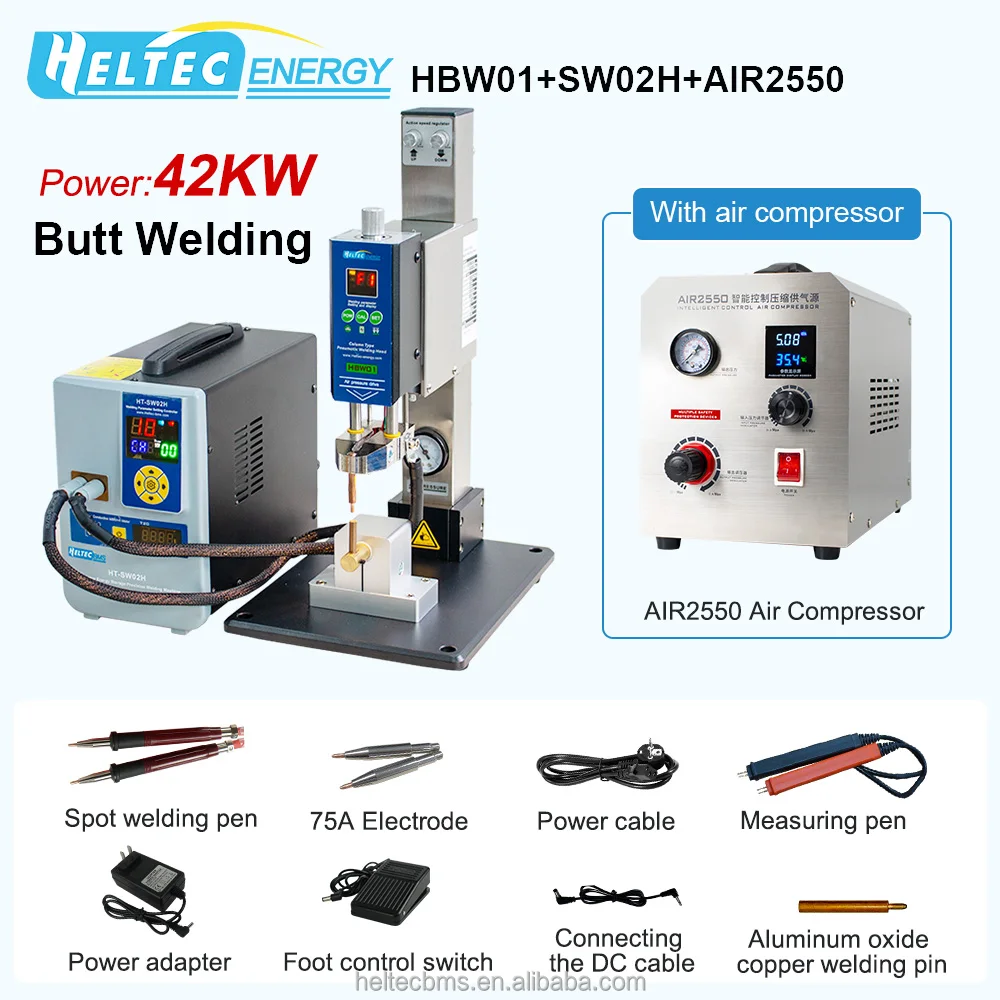

Package Selection -- 42KW
FAQ
1. Can you accept customization?
A: Yes, our company has a design department. We provide hardware design, ARM and Mbed system software design, etc. If you want to know more about our service, please click here: why choose us.
2. How long will it take for sample making and mass production?
A: It takes about 3-5 days to make the sample, and 7-30 days for mass production.
3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.
4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.
