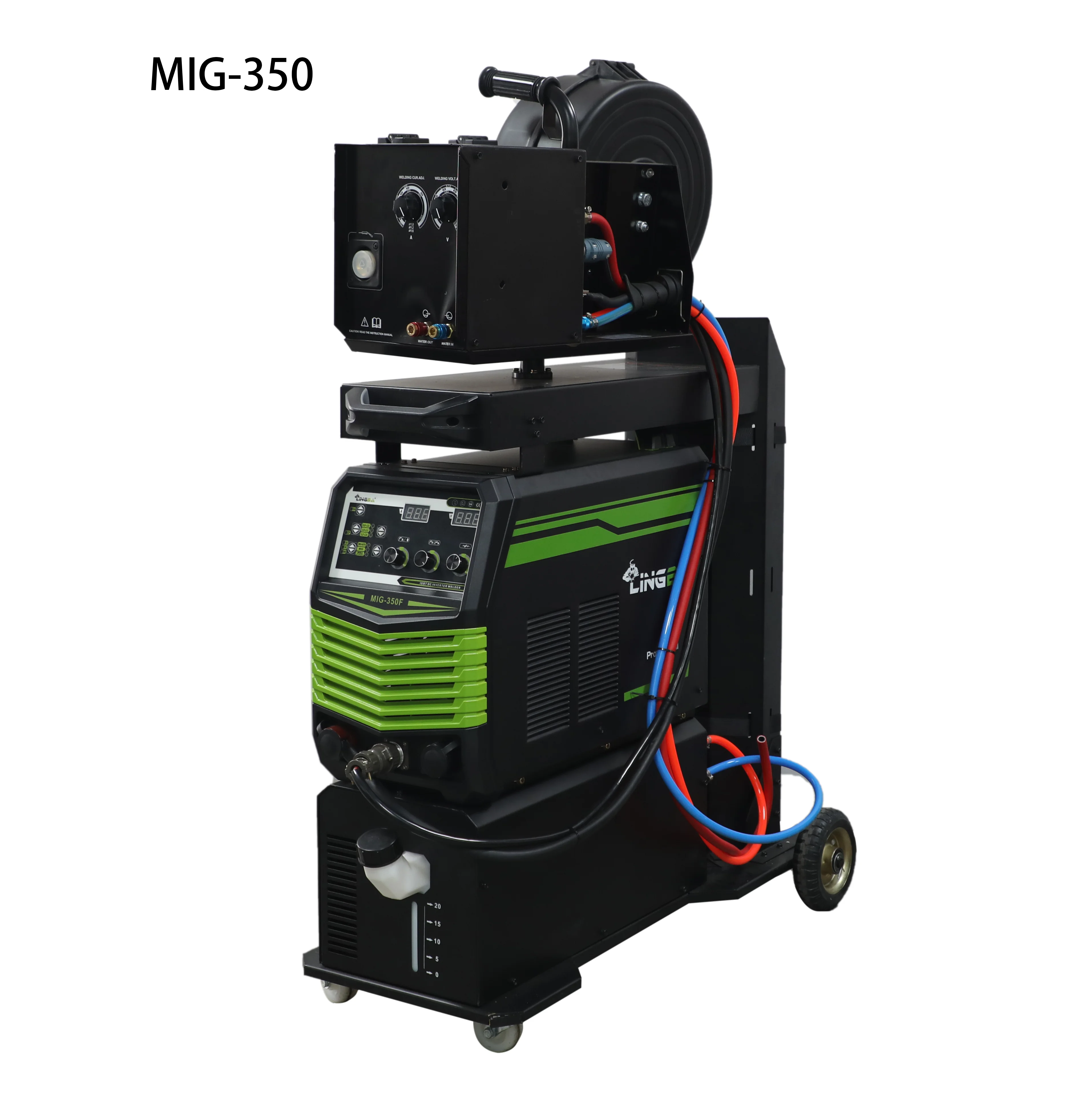

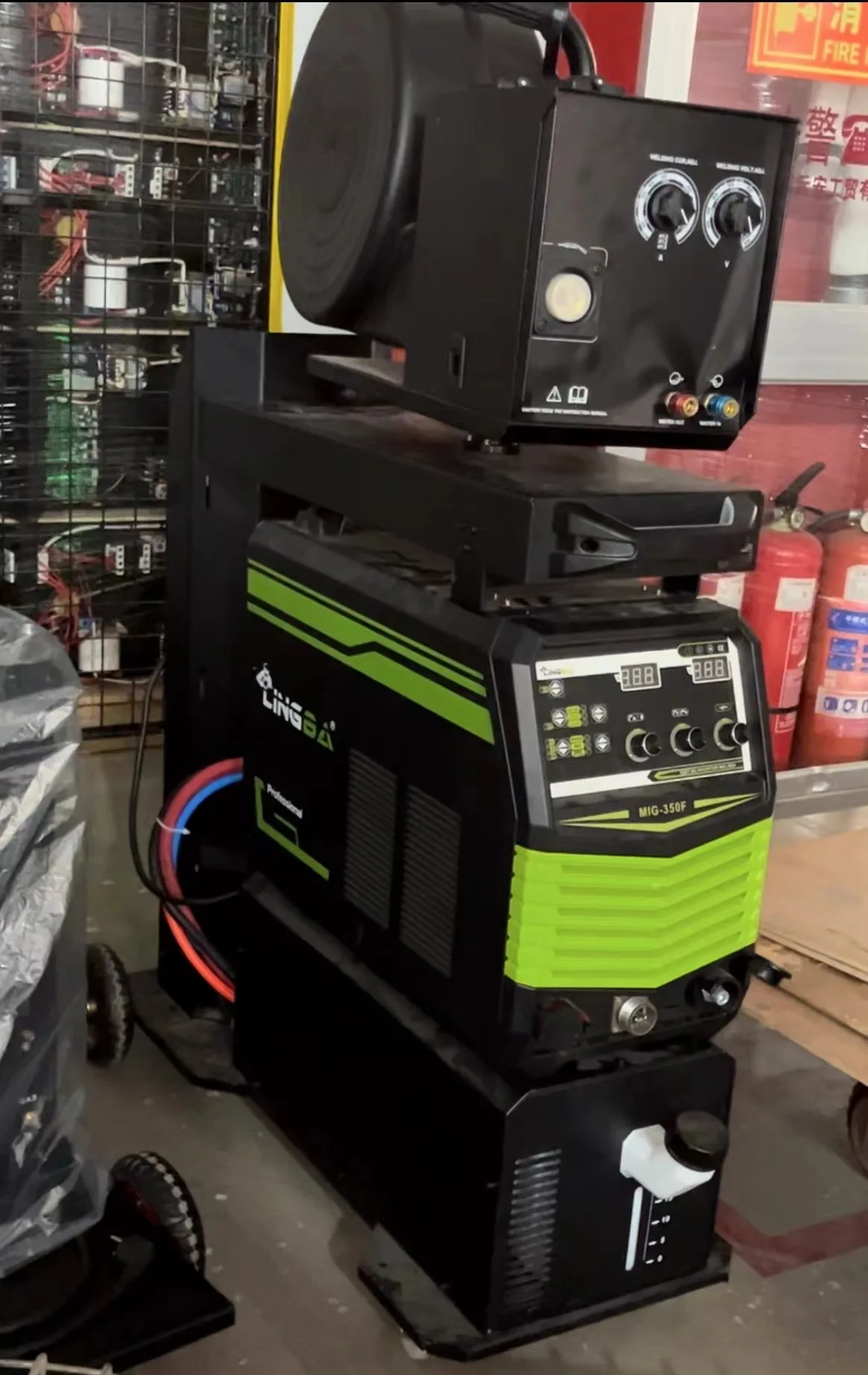

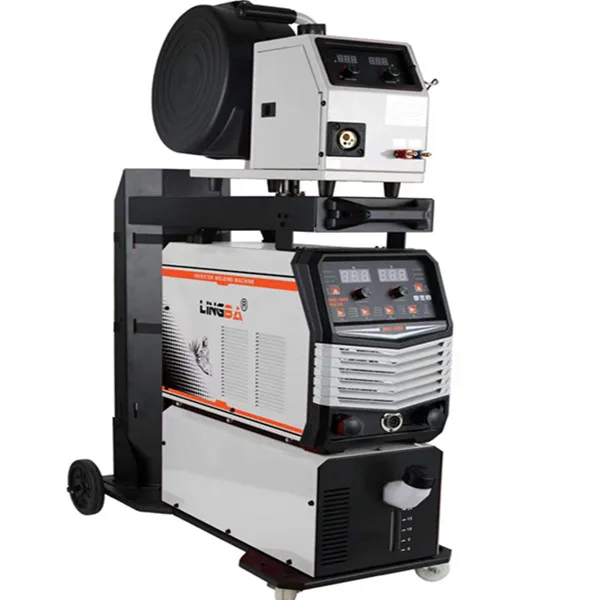

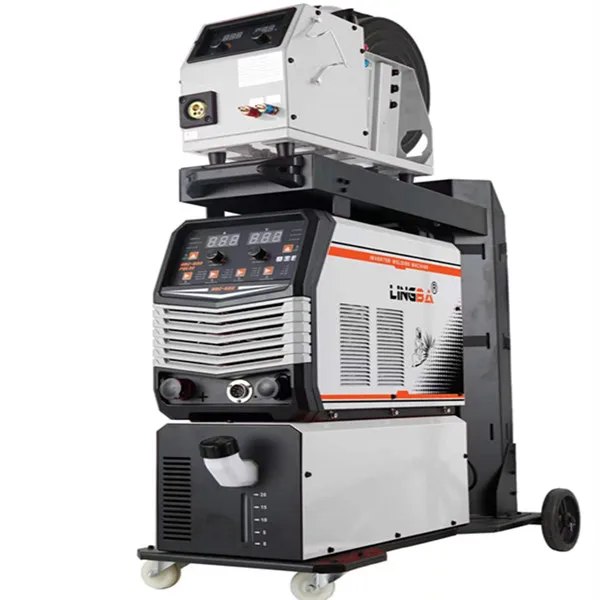

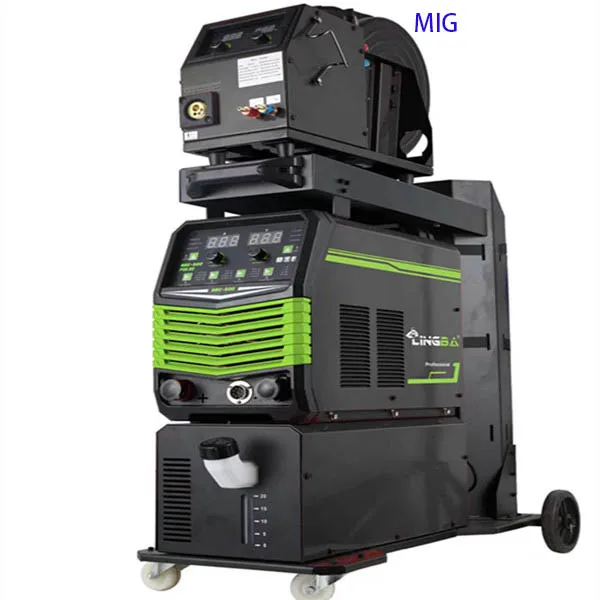

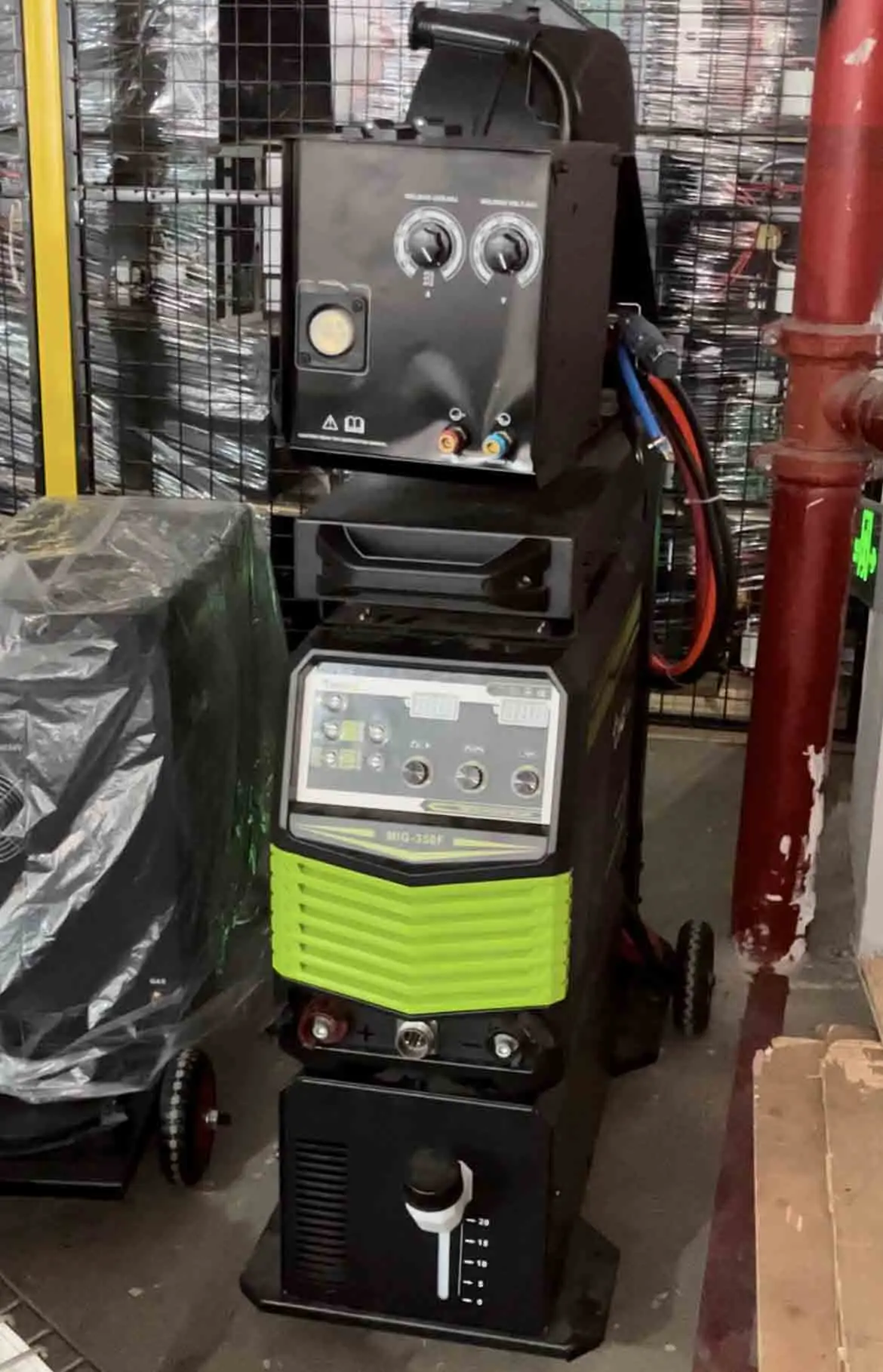

Lingba 15kg gas shielded welding combination machine with water tank industrial MIG 500WP
- Category: >>>
- Supplier: Zhejiang Lingba Welding Equipment Co Ltd
Share on (1601270764905):
Product Overview
Description
| Model |
MIG/MMA-500WP |
| Type | 15kg IGBT |
| Voltage | 380v |
| Rated Input Power Capacity(KVA) | 25kw |
| Input Frequency(Hz) | 50/60hz |
| Non-load Voltage(V) | 56V |
| Output current range(A) | 50-500A |
| Rated Duty Cycle(%) | 40% |
| Efficiency(%) | 90% |
| Class of Insulation | F |
| Protection class of case | IP21S |
| MIG Flux Wire diameter(mm) | 0.8, 1.0, 1.2 |
| MIG Solid wire diameter(mm) | 0.8~1.0mm |
| MMA Electrode | 1.6~5.0mm |
| Quick joint Size(mm) | EDZ-50B Port |
| N.W./G.W.(kg) | 31.95kg/35.83kg |
| Machine Size(LxWxH mm) | 584*304*580mm |
| Accessories | 1.8m 50mm2 500A holder with Cable lug |
| 1.2m 50mm2 500A clamp with Cable lug | |
| 5m MIG Torch | |
| Wire feeder DC24V- 500A | |
| CO2 hose clamp | |
| 2m gas tube | |
| Mask, Brush, Manual | |
| 36V CO2 relief valve |
