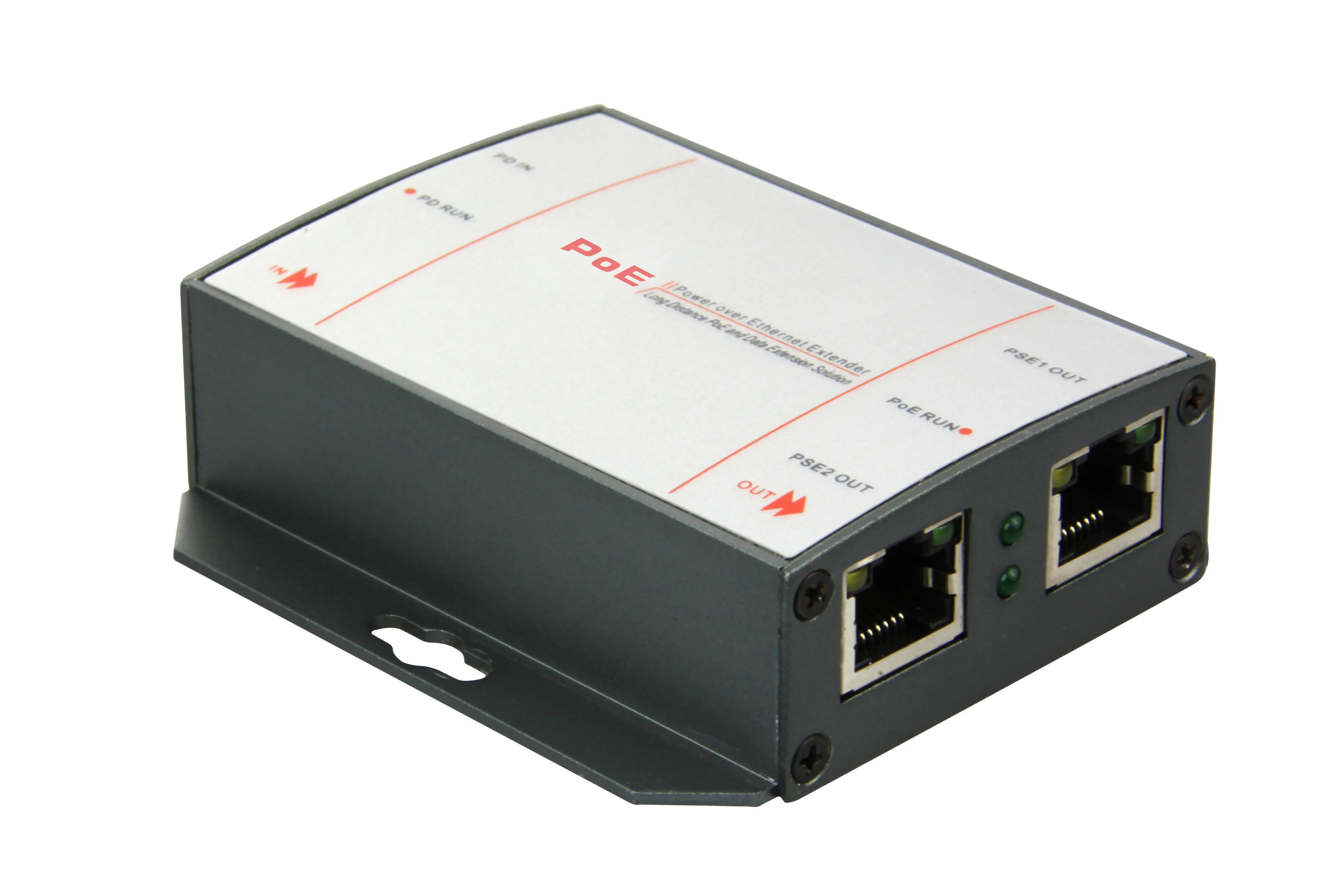

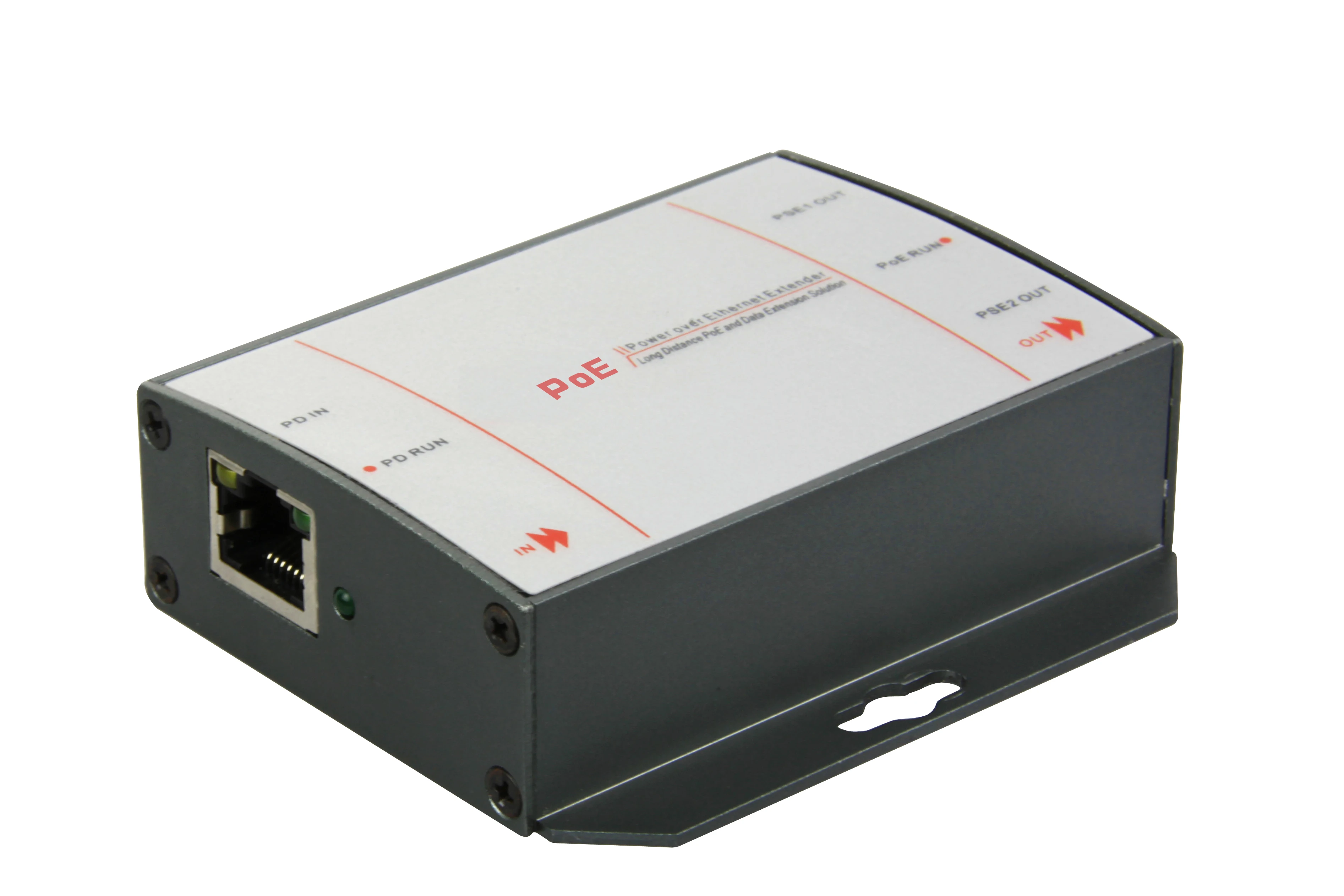

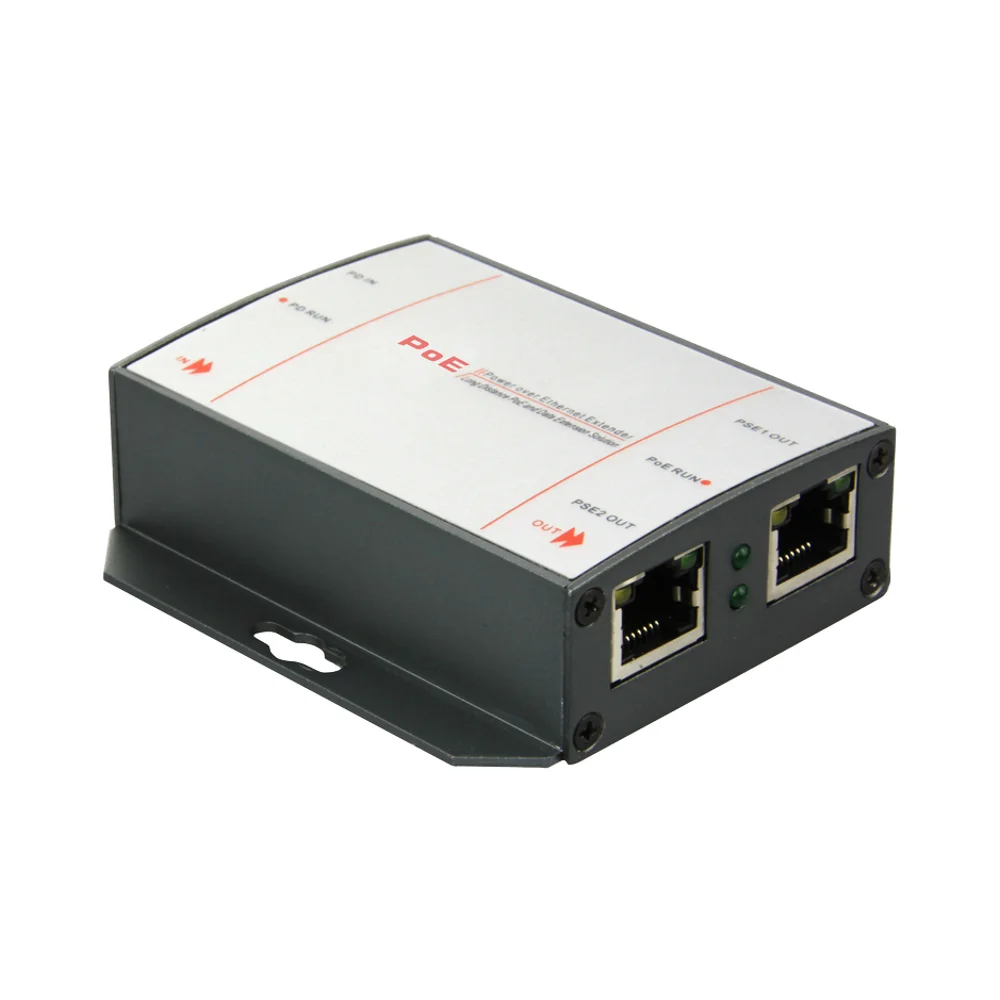

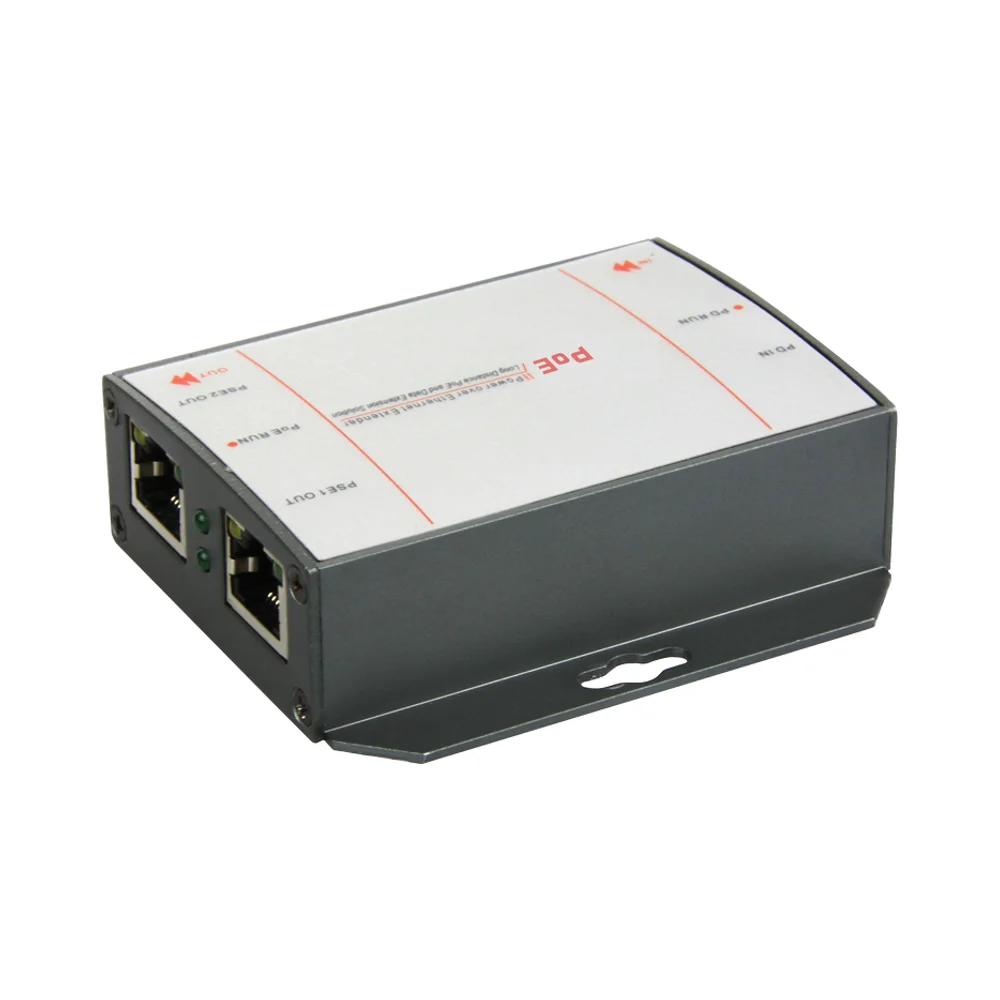

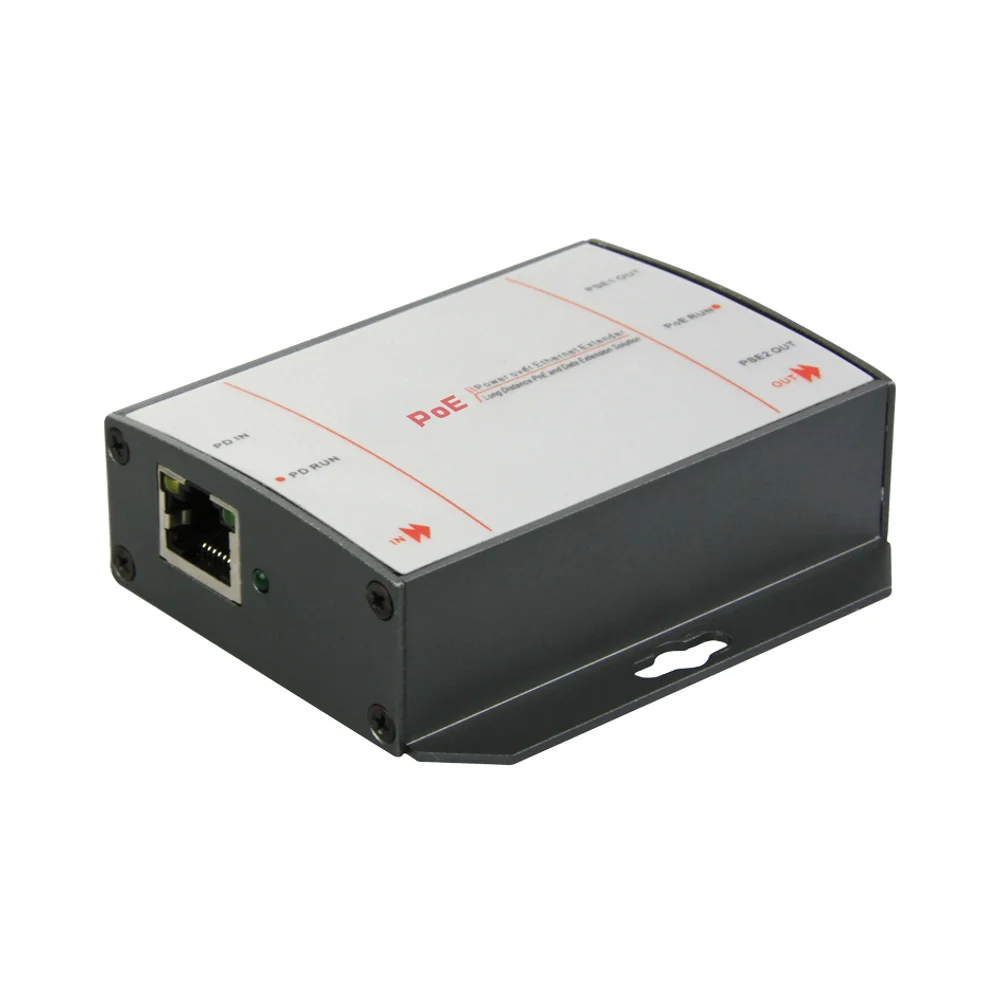

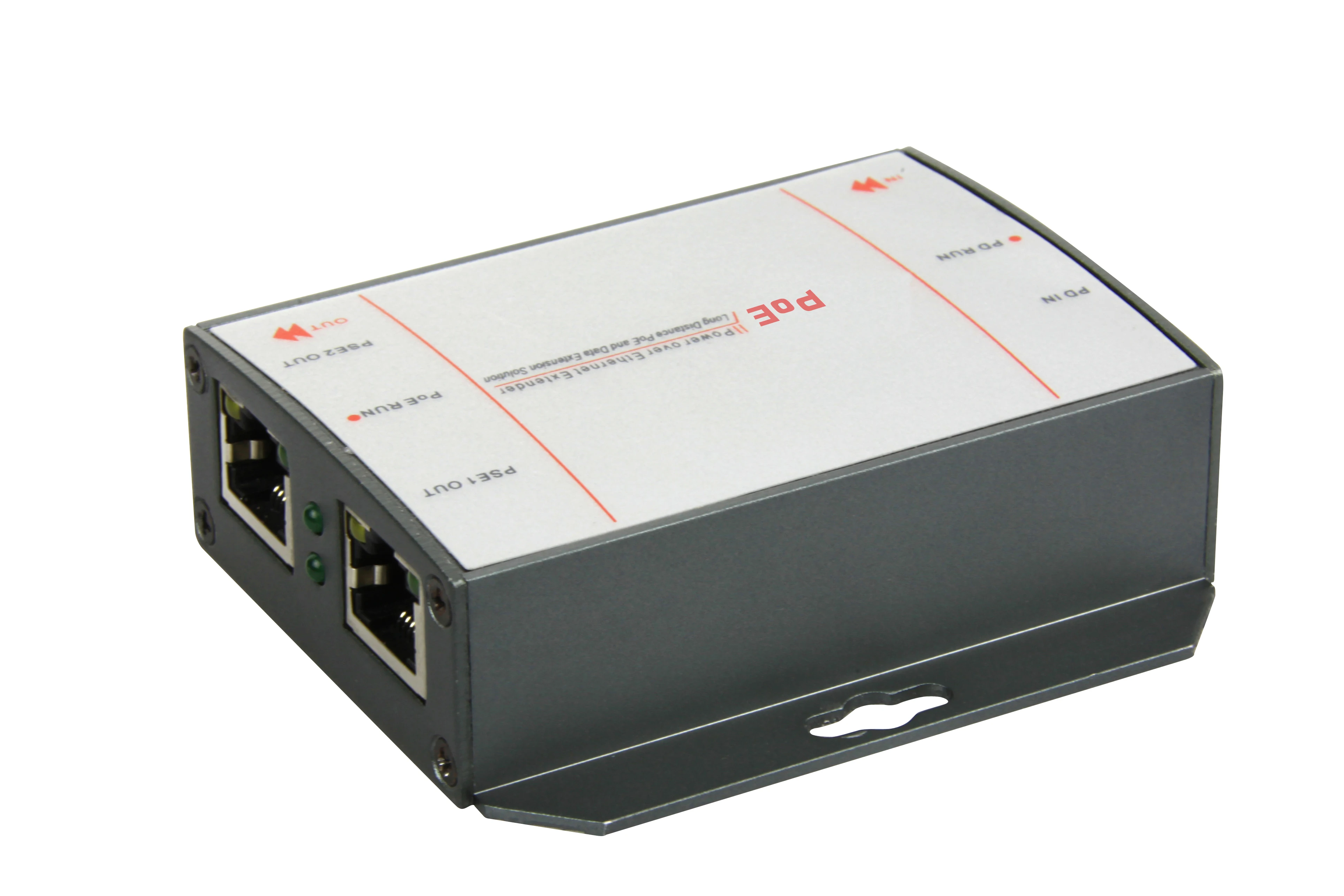

3 port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender
3-port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender

3 port 10/100M RJ45 Port 15.4W PoE 1 in 2 output PoE Repeater extending from 100m to 200m PoE Extender

Share on (1601270790708):


Price:$5.48 - $6.70

Quantity:


Product Overview

Description



Product descriptions from the supplier
Overview


Products Description








Technical Specification


Model
PSE-PD3102
Description
10/100M PoE extender, extends the data transmission from 100m to 200m
Network Protocols and Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASET
IEEE 802.3x Flow Control
IEEE 802.3af DTE Power via MDI
Network Medium
Cat5 or more UTP(≤100 meter)
Switching Capacity
1.6Gbps
Forwarding Way
Store-And-Forward architecture
MAC
1K
Port Description
1x RJ45 PoE input port; 2x RJ45 PoE output ports
PoE standard
IEEE802.3af/at
PoE Port Power
15.4W
Power Supply Pin
Mid-span(4/5+, 7/8- ), end-span(1/2+, 3/6-)
LED Indicator Status
Power; Network; PoE working status
Dimension
80X76X25mm
Environment
Operating temperature: -20 to 55° C
Storage temperature: -20 to 75°C
Working Humidity: 10%～90%, non-condensing
Safety
CE Mark ,commercial, FCC Class, RoHS
Net /Gross Weight
<0.08kg /<0.1kg
Warranty
3 years warranty

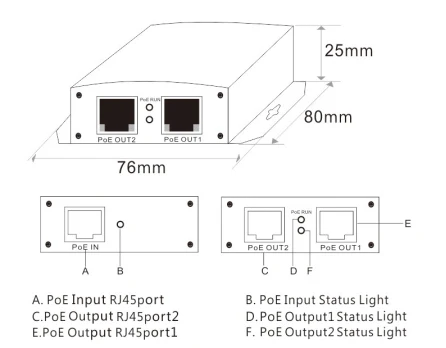

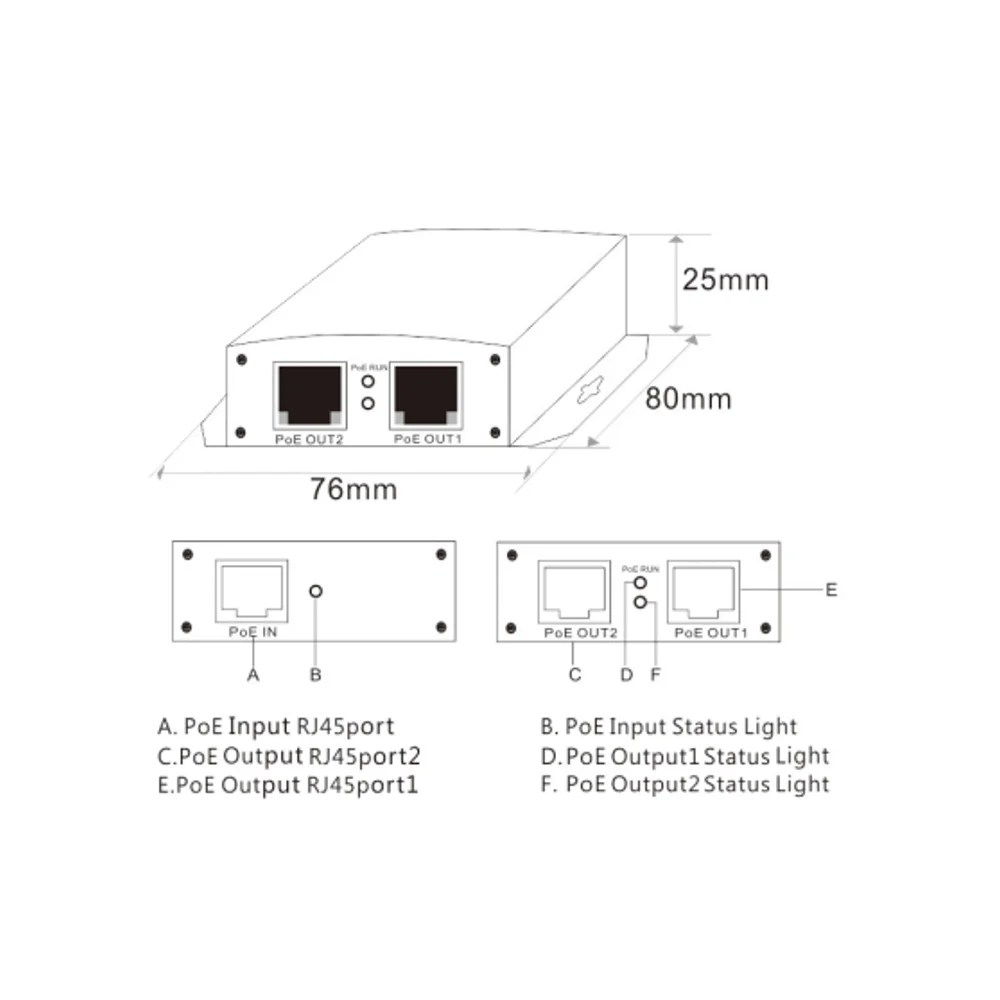

Dimension

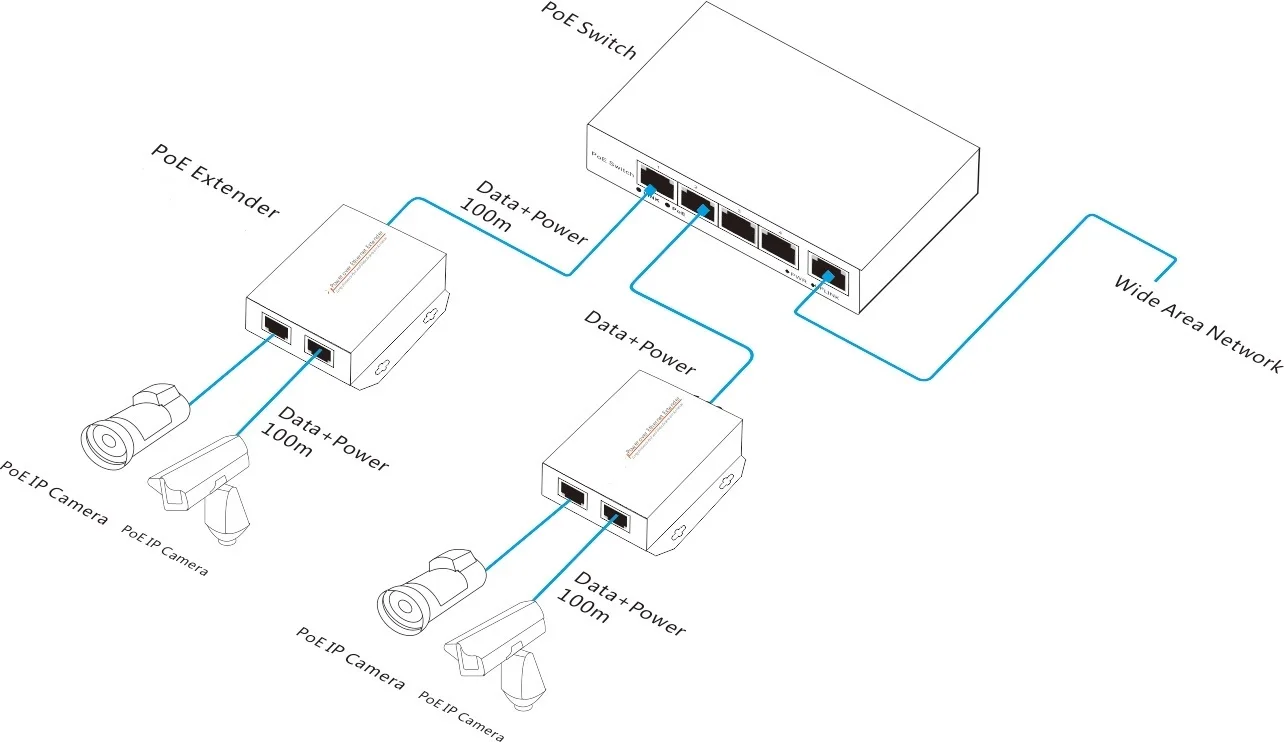

Application




Ordering Information


Model
Description
PSE-PD3102
10/100M PoE extender with 1x RJ45 input port and 2x RJ45 PoE output port. 15.4W(IEEE802.3af), Extends the data transmission from
100m to 200m.
Note: Mid-span (4/5+, 7/8- ), end-span (1/2+, 3/6-), can be customized


Packing List


PACKING LIST
CONTENT
QTY
UNIT
3-port 10/100M PoE Extender
1
SET
User Guide
1
PCS
Warranty Card
1
PCS
