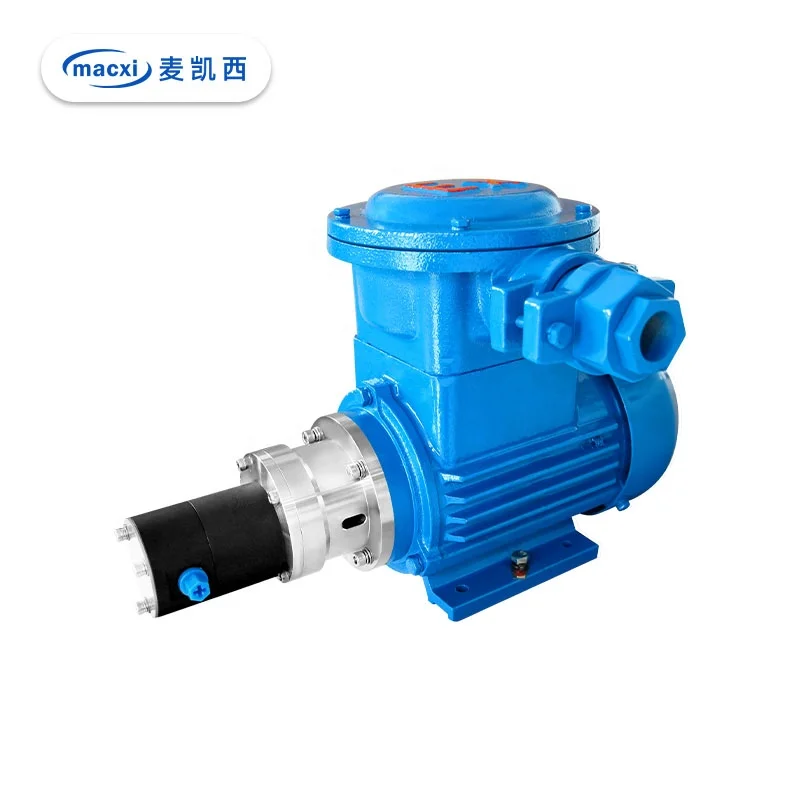

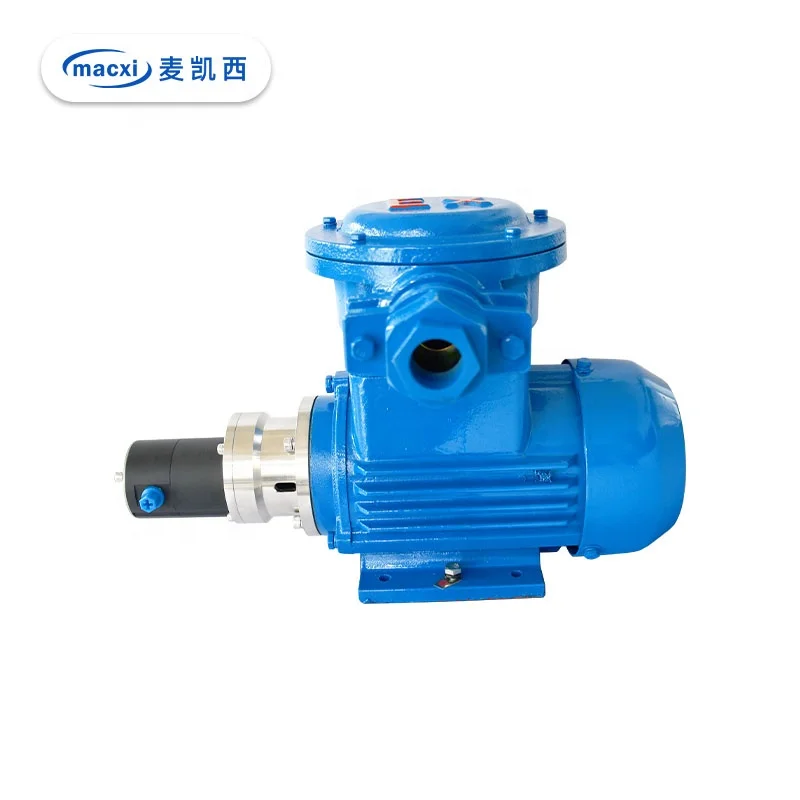

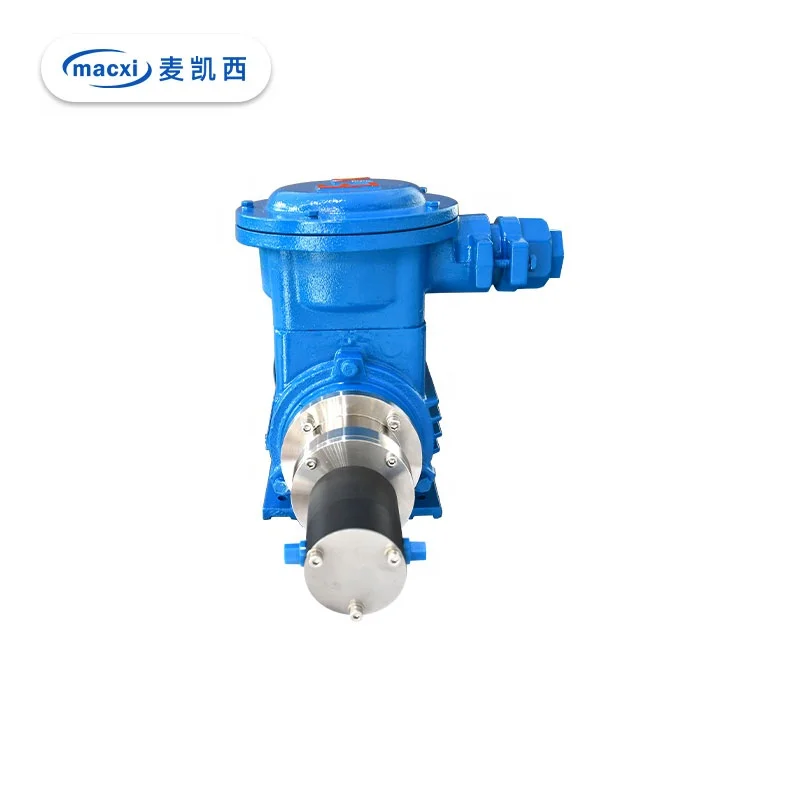

ptfe strong sulfuric acid pump acid resistant for Filling Machine Equipment
- Category: >>>
- Supplier: Suzhou Macxi Fluid Technology Co. Ltd.
Share on (1601270817861):
Product Overview
Description
Products Description
Products Description

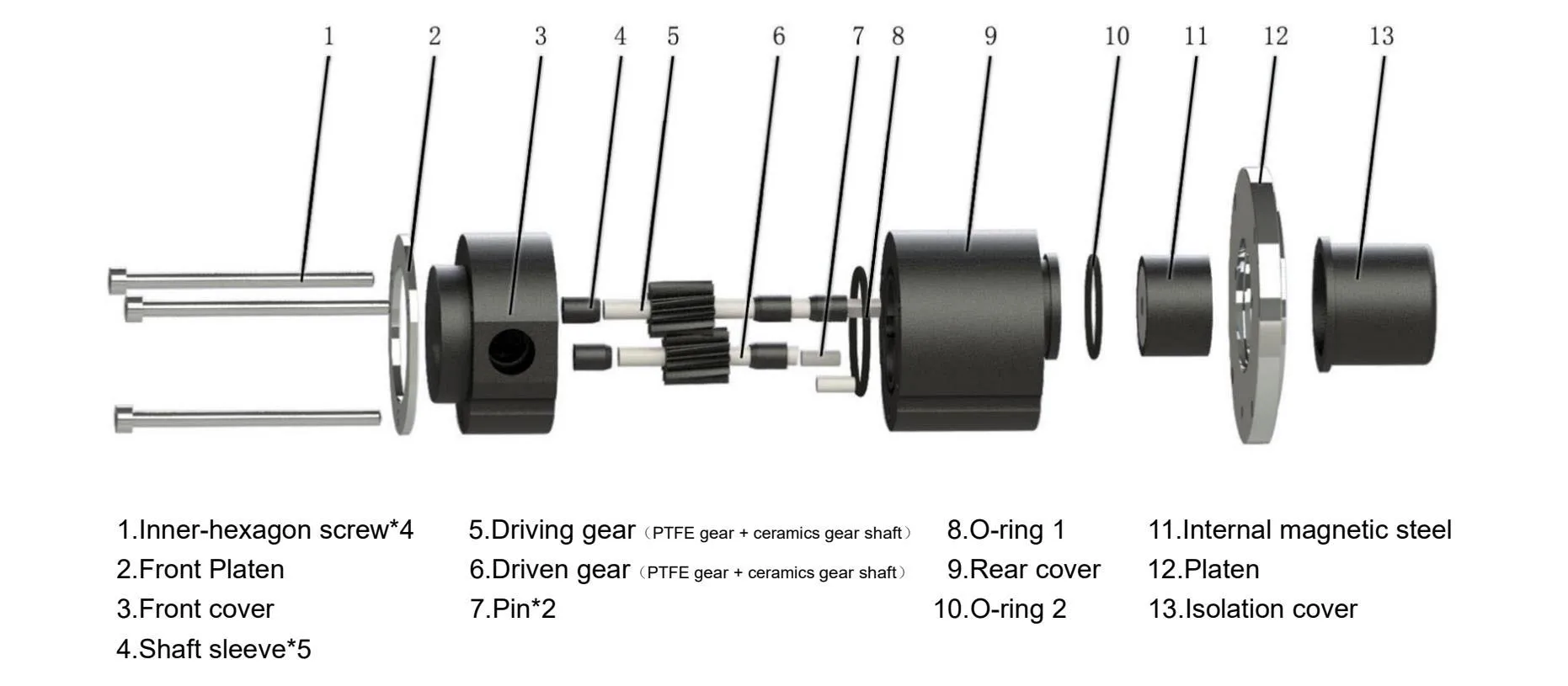

1.The gear of the pump head is made of PTFE, and the pump body is made of PTFE and sealing material Material FFKM, rotor plastic
ETFE. Suitable for liquids that cannot come into contact with metal and concentrated sulfuric acid, concentrated nitric acid,
benzenesulfonic acid and other strong acid liquids.
ETFE. Suitable for liquids that cannot come into contact with metal and concentrated sulfuric acid, concentrated nitric acid,
benzenesulfonic acid and other strong acid liquids.

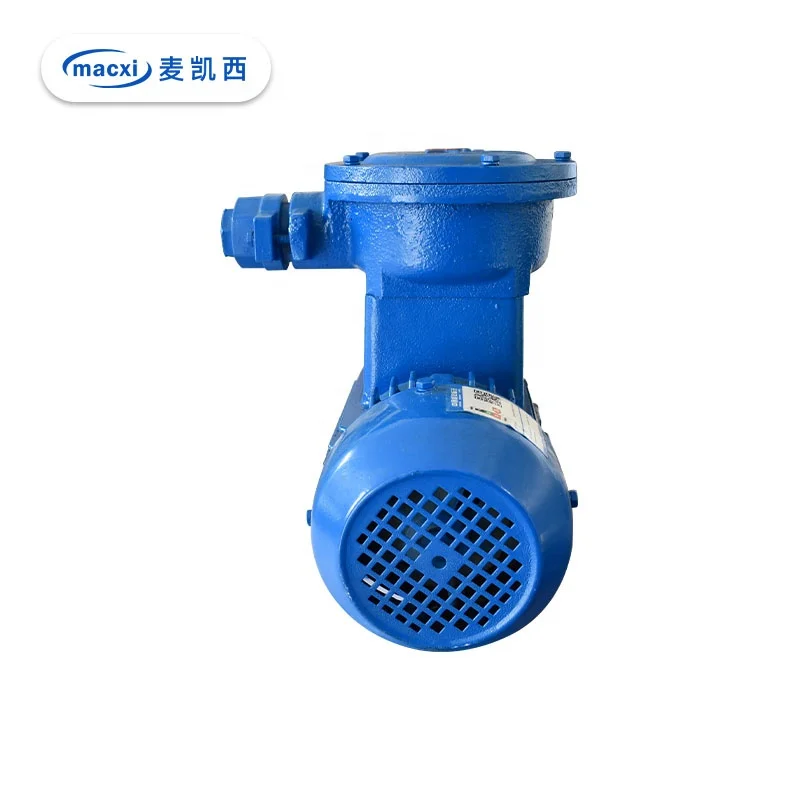

2.Explosion-proof AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is
large.It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the
frequency converter. It can be used in flammable and explosive situations.
large.It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the
frequency converter. It can be used in flammable and explosive situations.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Paramenters

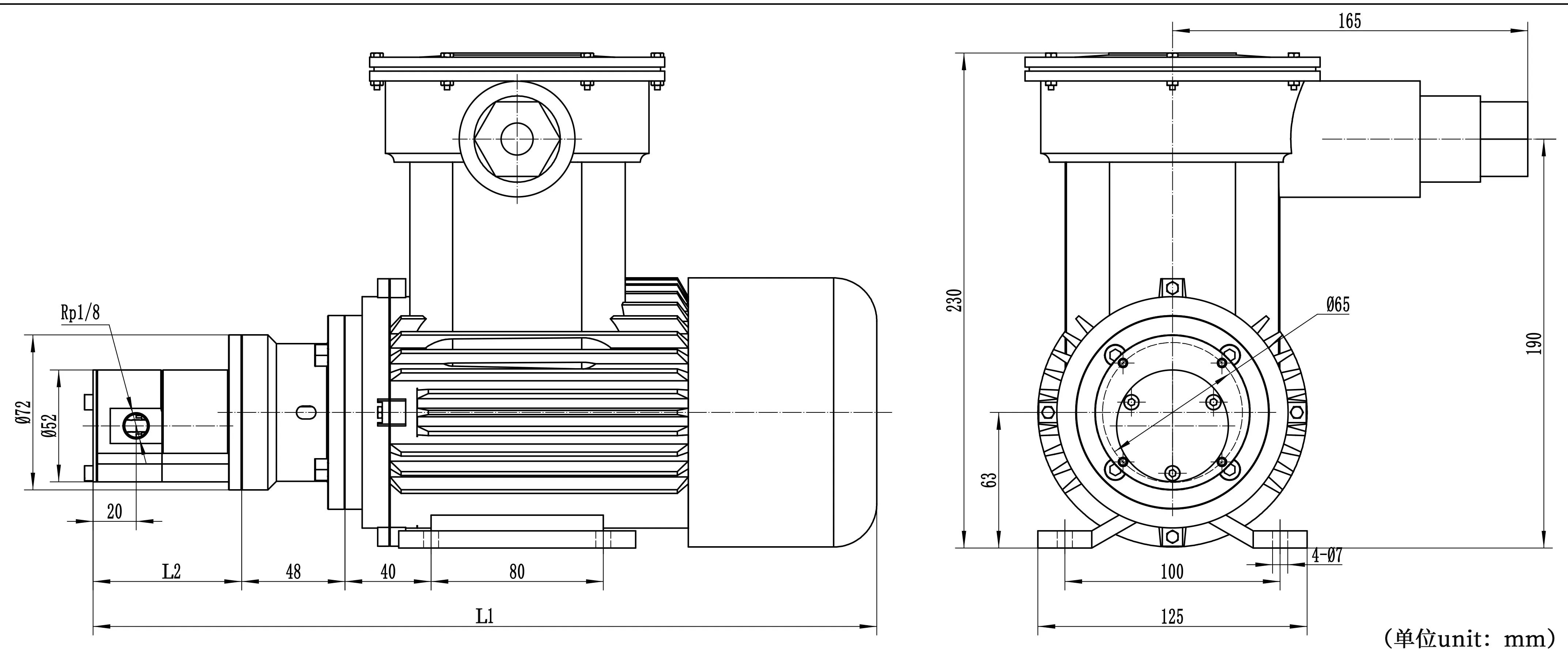

Pump Model | Motor Base | L1 | L2 | Weight(kg) | Imp.&Exp. Size | Rated Flow（ml/min） |
(2 Pole)/(4 Pole) | ||||||
MGP0.60F72YB0.18KW | 63 | 369.2 | 74.2 | 16.1 | G1/8 | 1680/840 |
MGP0.90F72YB0.18KW | 63 | 369.2 | 74.2 | 16.1 | G1/8 | 2520/1260 |
MGP1.50F72YB0.18KW | 63 | 375.6 | 80.6 | 16.2 | G1/4 | 4200/2100 |
Pump Head Parameters | Motor Paramerers | ||||
Fluid Viscosity | 0.2~5000cps | Rated Power | Three-Phase 380V | ||
Ambient Temperature | 0℃-50℃ | Rated frequency | 50HZ | ||
Static Sealing | FFKM | Protection Level | IP55 | ||
Pump Body | PTFE | Working system | Continuous | ||
Gear | Gear PTFE, gear shaft ceramics | EX proof type | Flameproof | ||
The values in this table are for reference only.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
Product Introduction
No pulse, high precision.

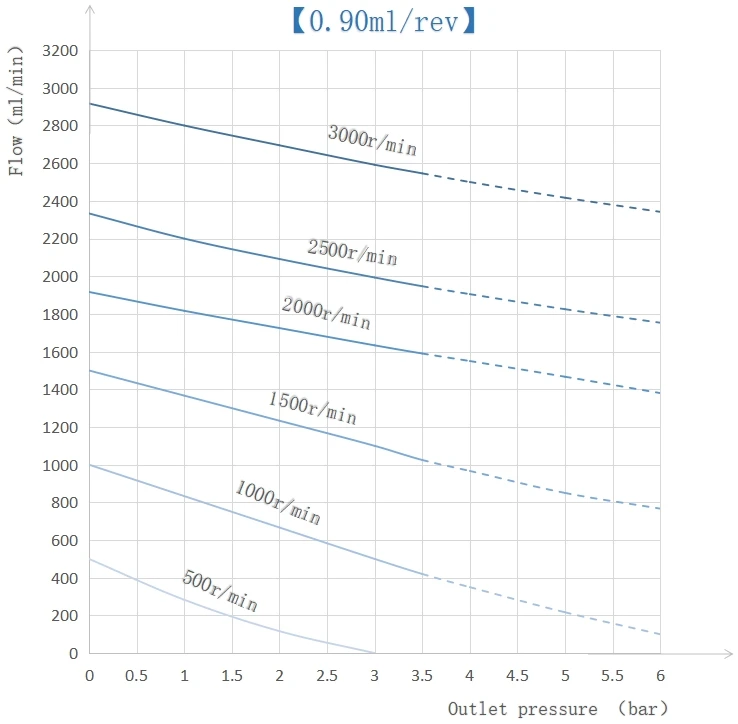

the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.
Stable transmission.
Gear transmission can ensure constant instantaneous transmission ratio.
Zero leakage.
no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage
Corrosion resistance.
304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.
Efficient and convenient, long service life
adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.
Applicability.
suitable for high differential pressure, high system pressure and wide range of medium viscosity.
long service life.
The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.
Diversified drive mode.
magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.
A wide range of applications.
magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.
Applicable Conditions
All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation
It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries
Industrial machinery and equipment | Water treatment | Food and cosmetics |
Inkjet printing/painting | Mask making | Food and Beverage filling |
Oil transportation | Booster pressure | Filling of perfume cosmetics |
Sand mill/Grinding | Circulating cooling | Quantitative Transport |
