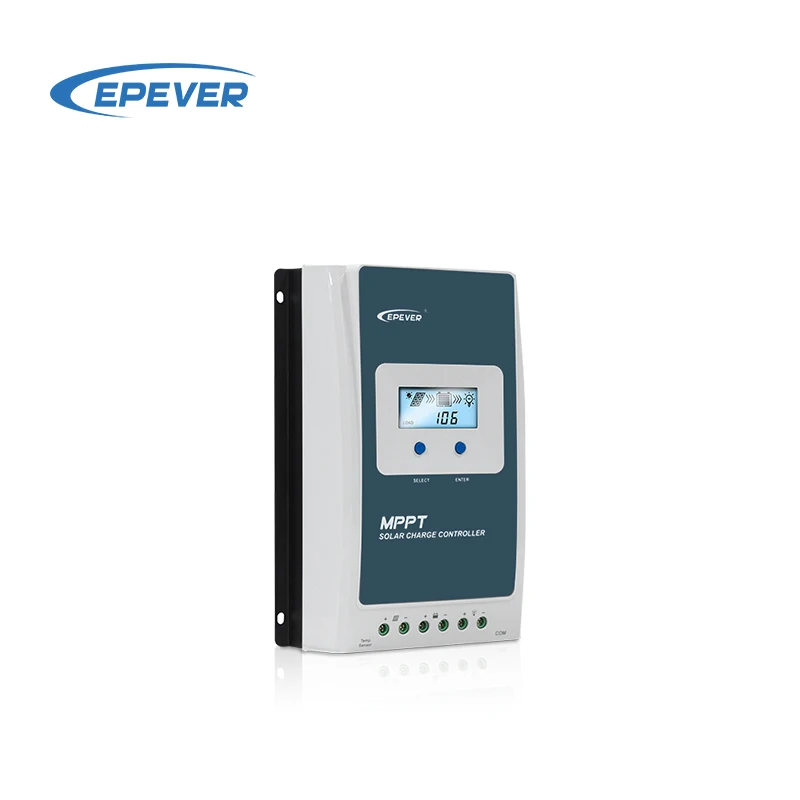

Tracer G3 12V 24V intelligent solar controller regulator mppt epever 10A 20A 30A 40A
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601270831574):
Product Overview
Description
Features

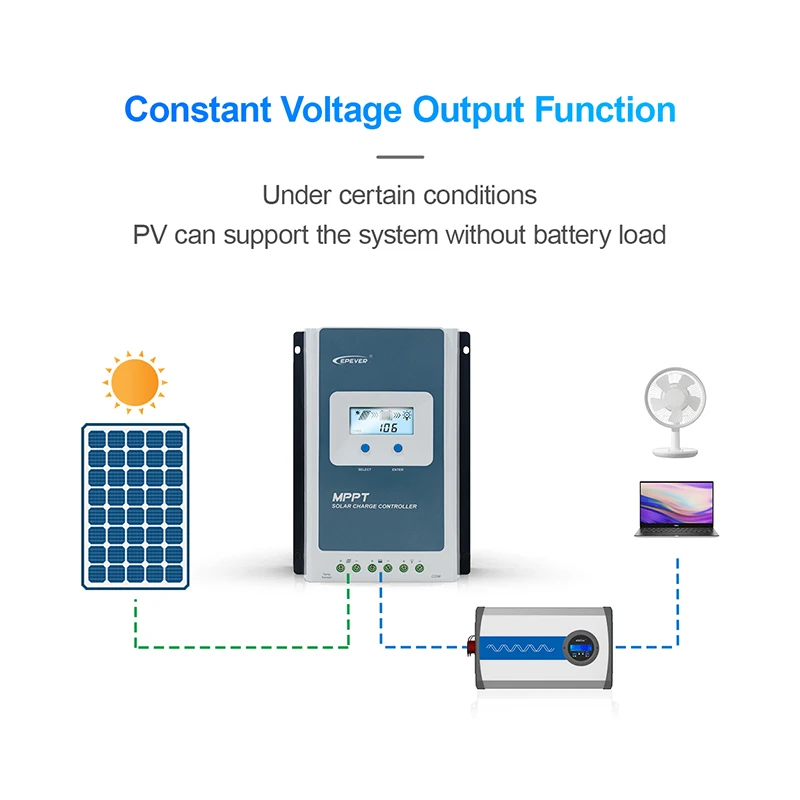

*Constant voltage output,
*function Maximum DC/DC conversion efficiency of 98%,
*Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%,
*Supports multi battery types including lithium batteries,
*Battery temperature compensation; Stable self-activation function,
*LCD screen for battery parameter setting,
*Comprehensive electronic protection,
*Self-consumption lower than 10mA,
*Multiple load work modes,
*Parameter setting via the PC software, APP, or remote meter,

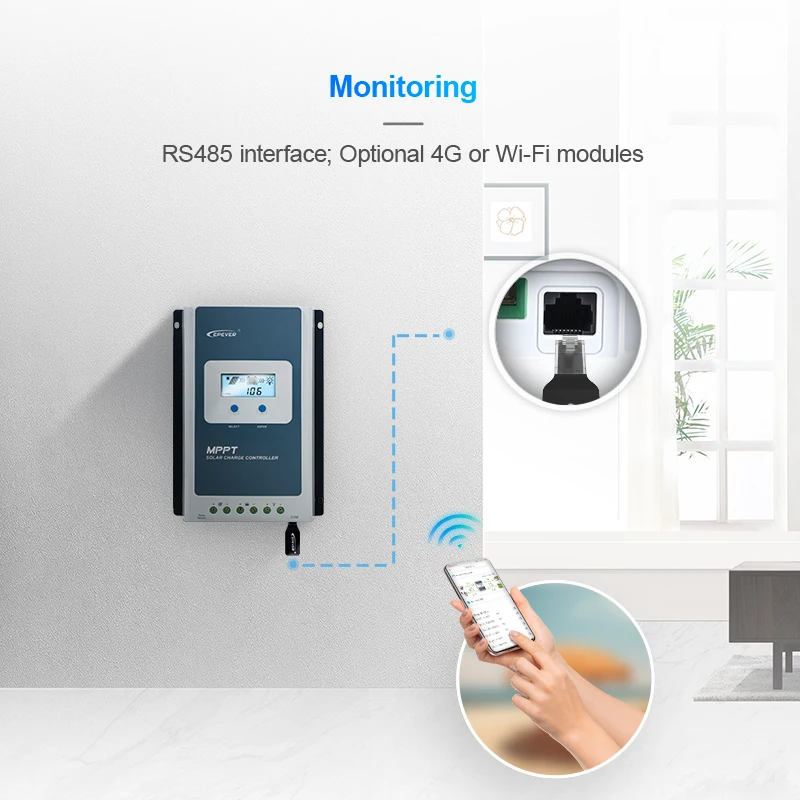

*RS485 communication interface with optional 4G or Wi-Fi modules.
Product Description
Technical Specifications
EPEVER Tracer AN G3 Series 10A 20A 30A 40A MPPT Solar Charge Controller
Parameter | Tracer 1206AN G3 | Tracer 2206AN G3 | Tracer 1210AN G3 | Tracer 2210AN G3 | Tracer 3210AN G3 | Tracer 4210AN G3 | ||||||
Electrical Parameters | ||||||||||||
Battery Rated Voltage | 12/24VDC Auto-recognition | |||||||||||
Rated Charging Current | 10A | 20A | 10A | 20A | 30A | 40A | ||||||
Rated Discharge Current | 10A | 20A | 10A | 20A | 30A | 40A | ||||||
Controller Work Voltage Range | 8~31V | |||||||||||
PV Max.Open-circuit Voltage | 60V | 100V | ||||||||||
46V | 92V | |||||||||||
MPPT Voltage Range | (Battery voltage +2V)~36V | (Battery voltage +2V)~72V | ||||||||||
Rated Charging Power | 130W/12V | 260W/12V | 130W/12V | 260W/12V | 390W/12V | 520W/12V | ||||||
260W/24V | 520W/24V | 260W/24V | 520W/24V | 780W/24V | 1040W/24V | |||||||
Static Losses | ≤8mA(12V) | |||||||||||
≤5mA(24V) | ||||||||||||
Discharge-circuit Voltage Drop | ≤0.23V | |||||||||||
Temperature Compensation | -3mV/℃/2V (Default) | |||||||||||
Grounding Type | Common negative | |||||||||||
RS485 Port | 5VDC/200mA(RJ45) | |||||||||||
LCD Backlight Time | Default:60S, Range:0~999S (0 seconds: the backlight is ON all the time) | |||||||||||
Environmental parameters | ||||||||||||
Work Temperature Range | -25℃~+45℃(100% loads working) | |||||||||||
Storage Temperature Range | -20℃~+70℃ | |||||||||||
Relative Humidity | < 95% (N.C.) | |||||||||||
Enclosure | IP30 | |||||||||||
Dimension (L x W x H) | 172x139x44mm | 220x154x52mm | 172x139x44mm | 220x154x52mm | 228x164x55mm | 252x180x63mm | ||||||
Mounting Size (L x W) | 124x130mm | 170x145mm | 124x130mm | 170x145mm | 170x155mm | 204x171mm | ||||||
Mounting Hole Size | Φ5mm | |||||||||||
Terminal | 12AWG | 6AWG (16mm2) | 12AWG | 6AWG (16mm2) | 6AWG (16mm2) | 6AWG (16mm2) | ||||||
(4mm2) | (4mm2) | |||||||||||
Recommended Wire Size | 12AWG | 10AWG | 12AWG | 10AWG | 8AWG (10mm2) | 6AWG (16mm2) | ||||||
(4mm2) | (6mm2) | (4mm2) | (6mm2) | |||||||||
Net Weight | 0.57kg | 0.94kg | 0.57kg | 0.94kg | 1.26kg | 1.65kg | ||||||
