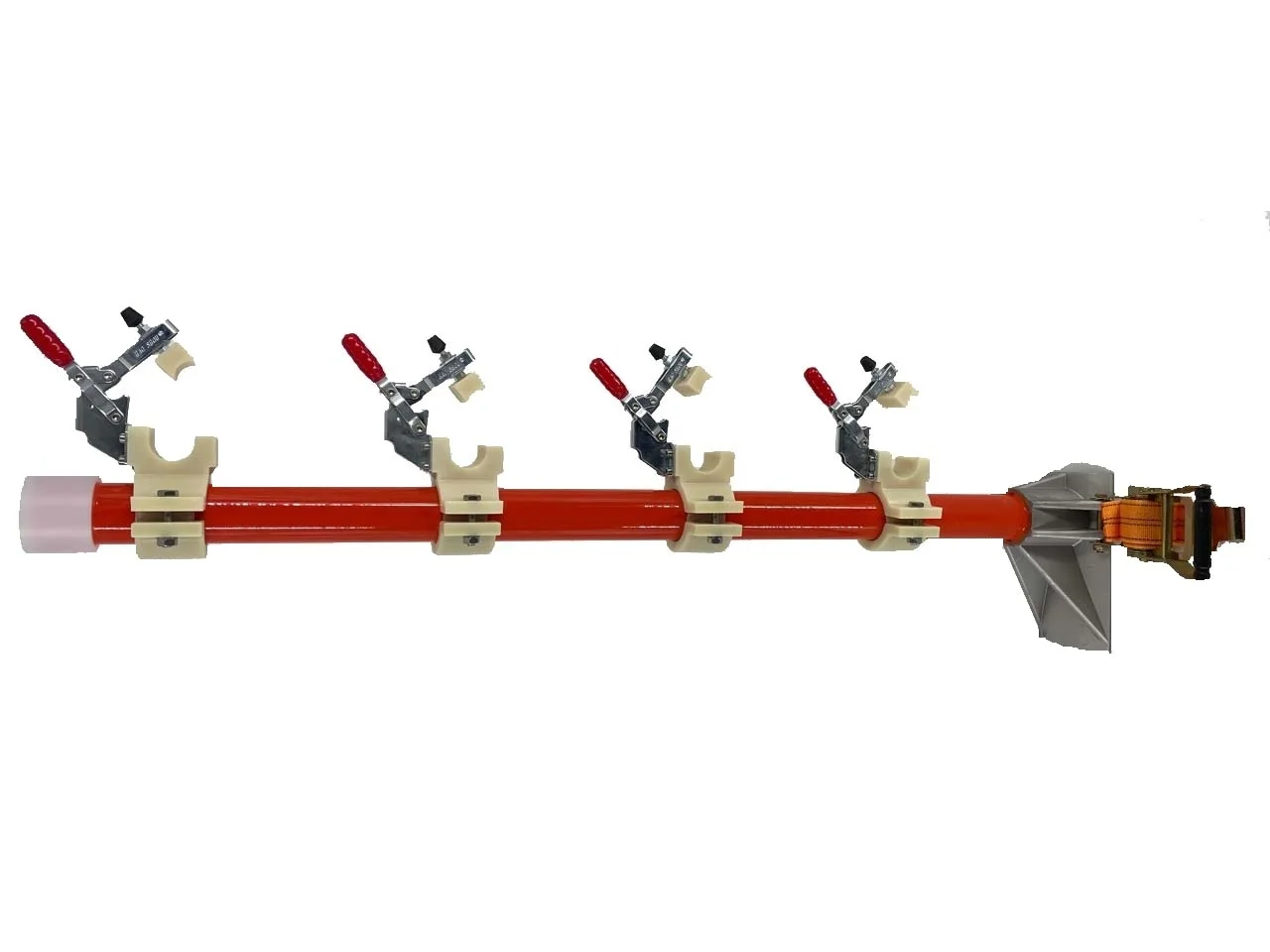

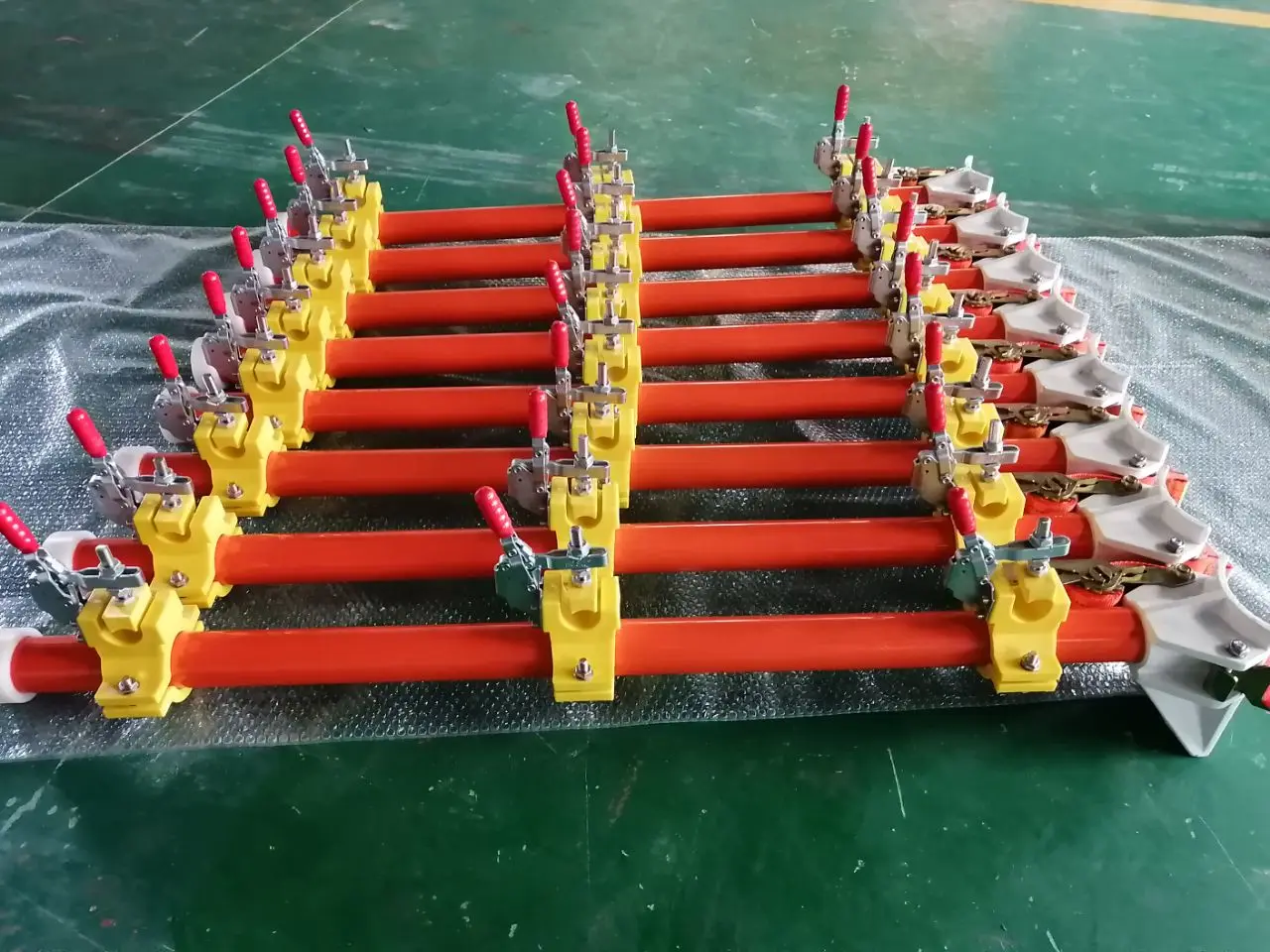

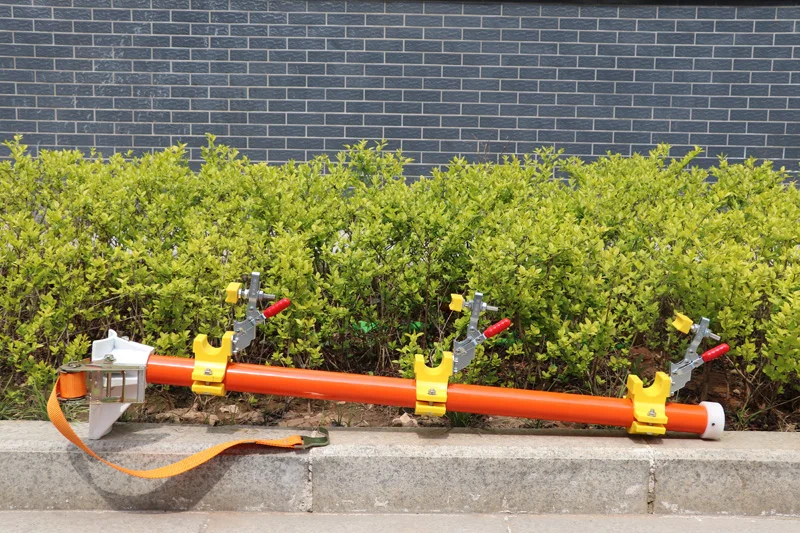

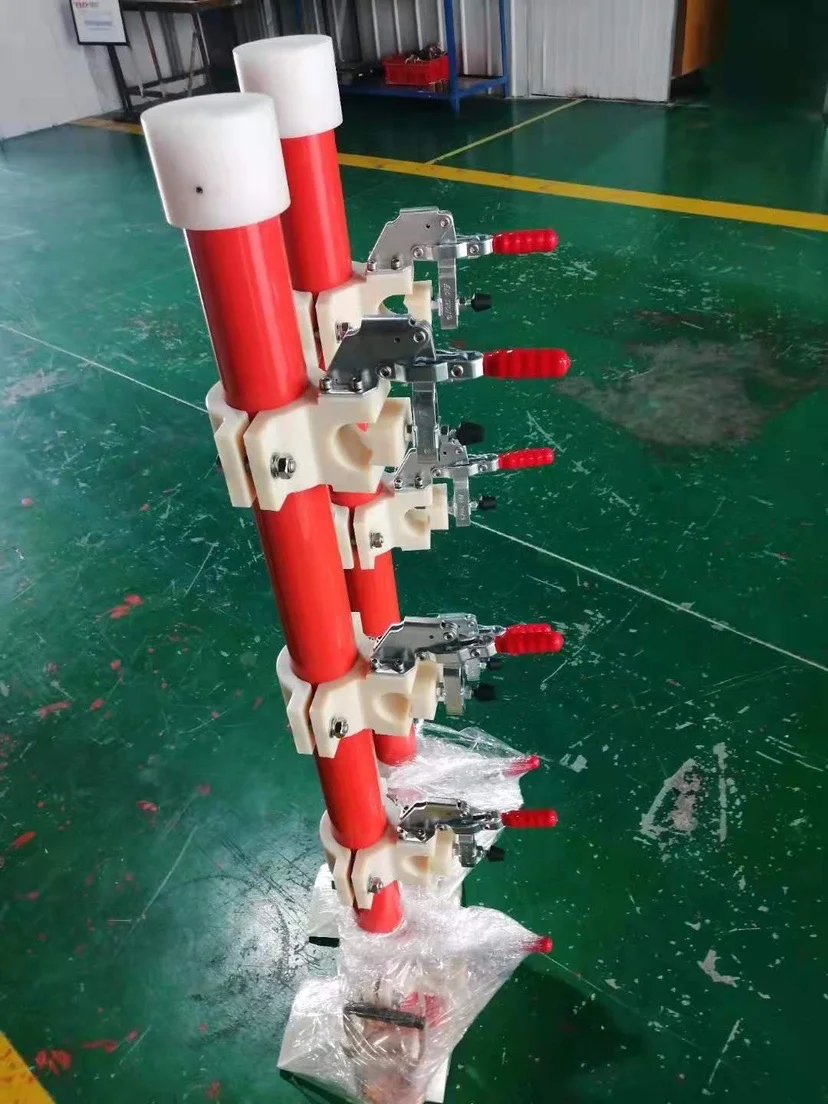

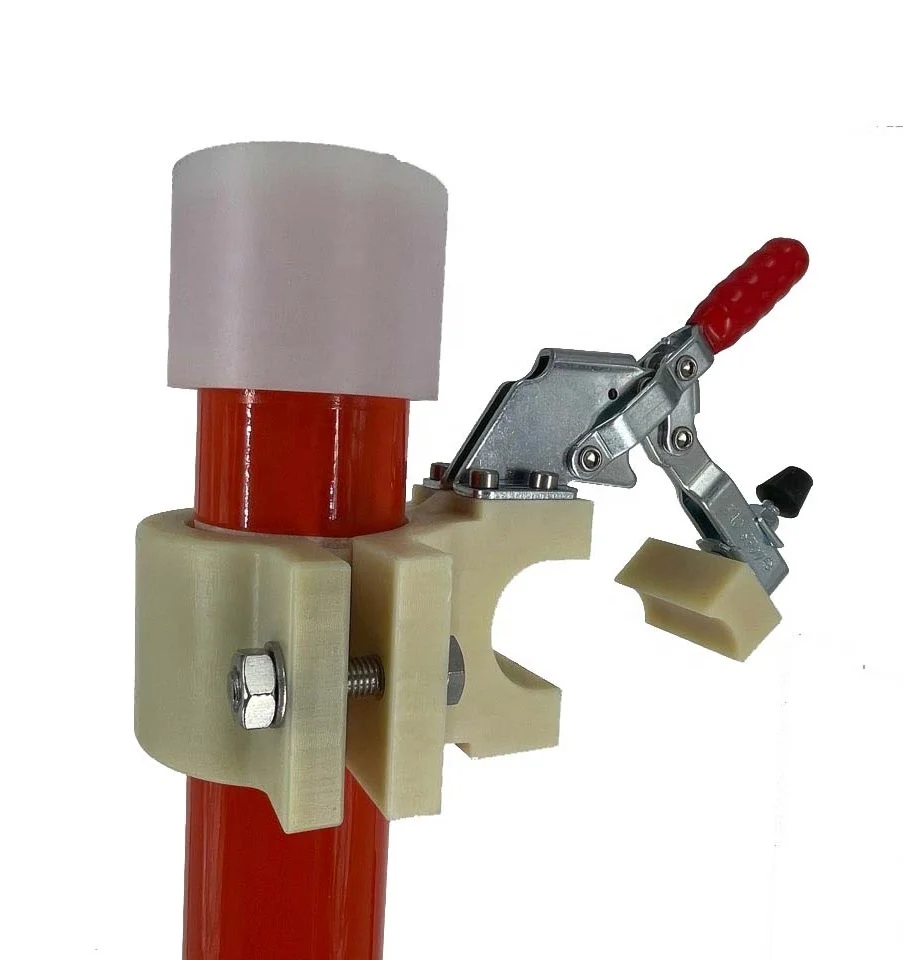

Bypass cable insulation bracket

Name: Bypass cable insulation bracket
SKU: 1601270833645
Price: $175.00 - $220.00 USD
Availability: InStock

Price:$175.00 - $220.00

Quantity:

product discription

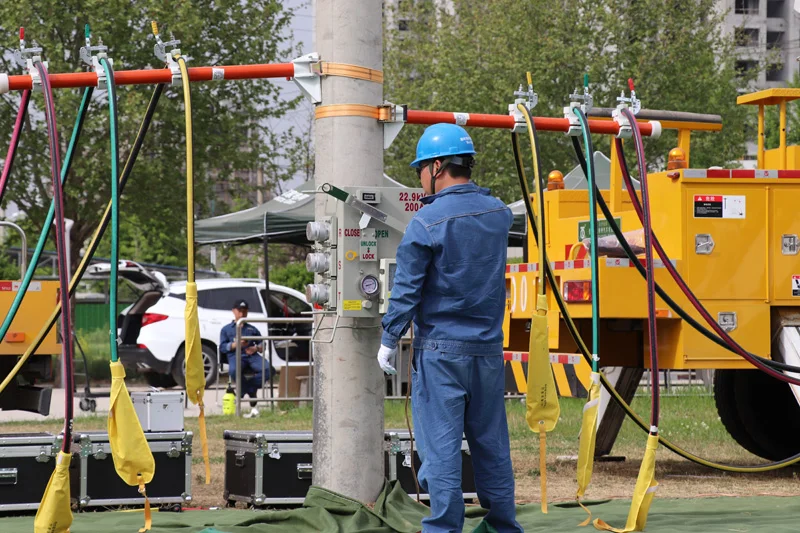

POLE MOUNTED SUPPORT ARM WITH RATCHET BINDER AND NYLON STRAP

• Safety Ratchet Binder and Nylon Strap eliminates hazards of chains and chain tighteners when being used in primary voltage areas

• Installation and removal of arms is quick and easy

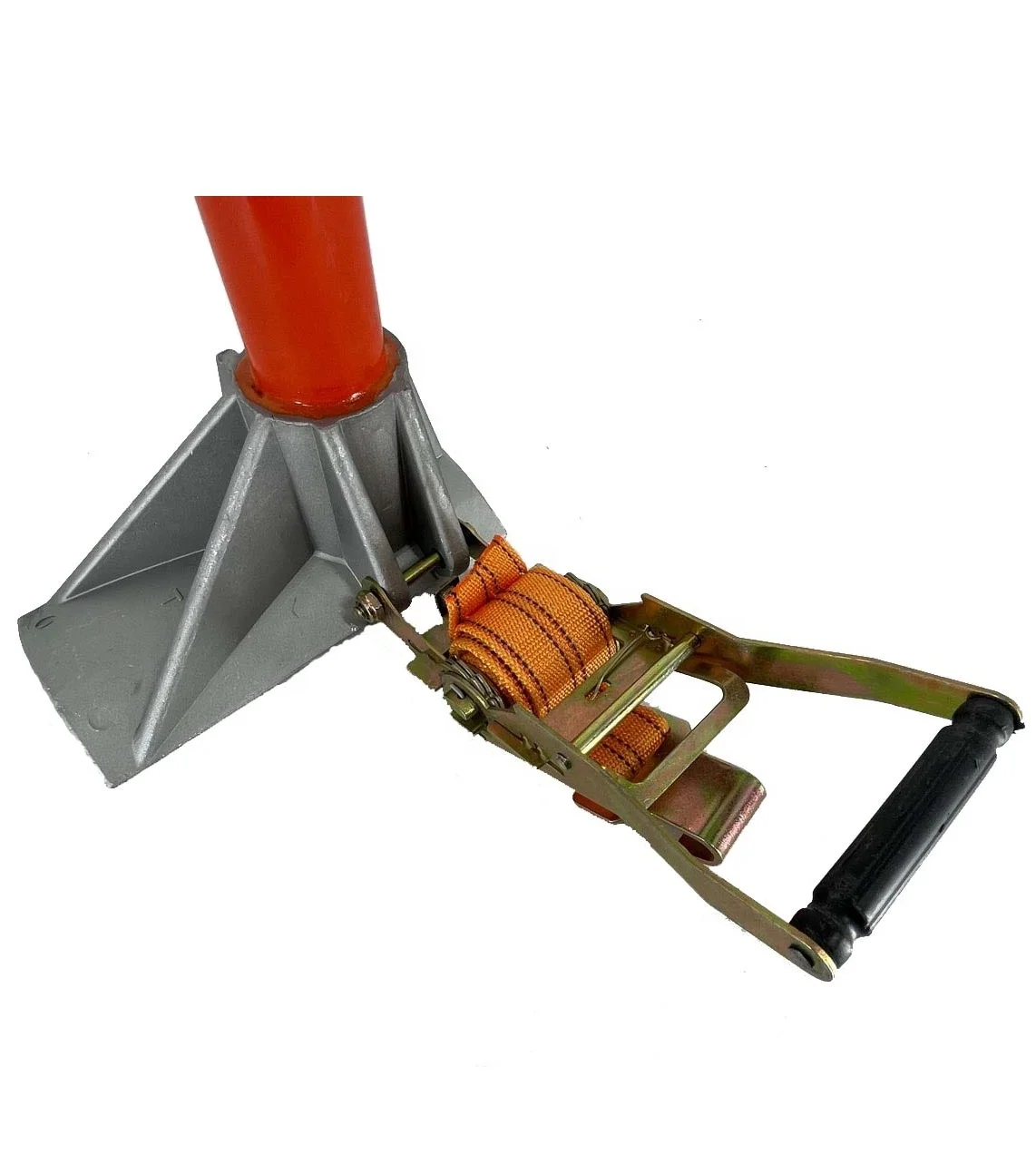

• Ratchet Binder has extra wide handle for easy operation when wearing rubber gloves

• 50mm wide nylon strap is 1300mm long to accommodate most structures

(Note: Periodic inspection of straps for wear is required.)

Code	Description of Products	Max Voltage Phase to Phase (kV)	Max Load/Holder (kg)
23101	0.86 M OVERALL LENGTH WITH 1CONDUCTOR HOLDER	15/35	200
23102	0.86 M OVERALL LENGTH WITH 2 CONDUCTOR HOLDER	35/35	100
23103	1.20M OVERALL LENGTH WITH 3 CONDUCTOR HOLDER	15	65
23104	1.20M OVERALL LENGTH WITH 3 CONDUCTOR HOLDER	15	50
