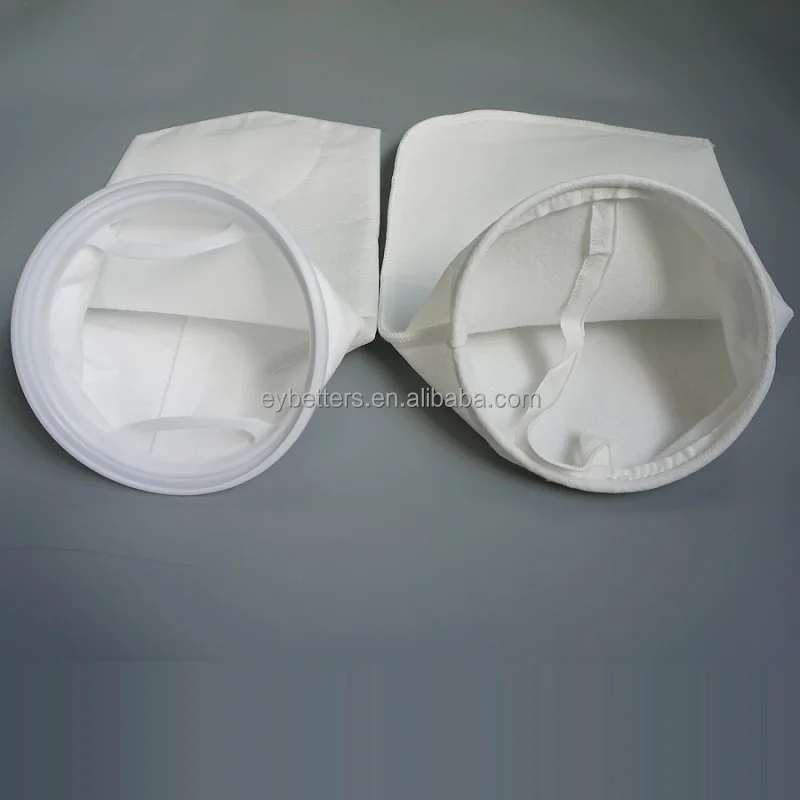

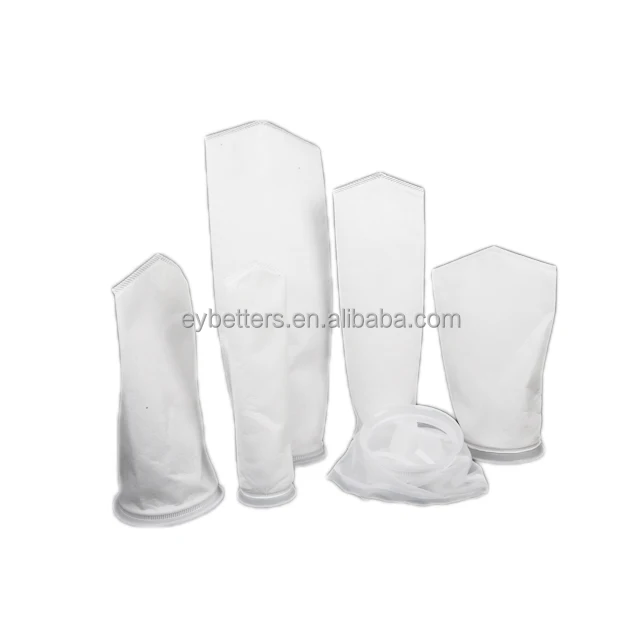

Long lifespan standard pp multi filter bag 20 microns 30 microns precision liquid for water filtration

Features

1. Can resist acid and alkali, organic solvent and good tensile strength

2. Efficient oil absorption capacity

3. Filtering and purifying fluid to remove impurities

4.A wide range of filter material chemical compatibility

5. Reusable and easy to clean

6.Total new material, increase extra 20% working life.

Product Name

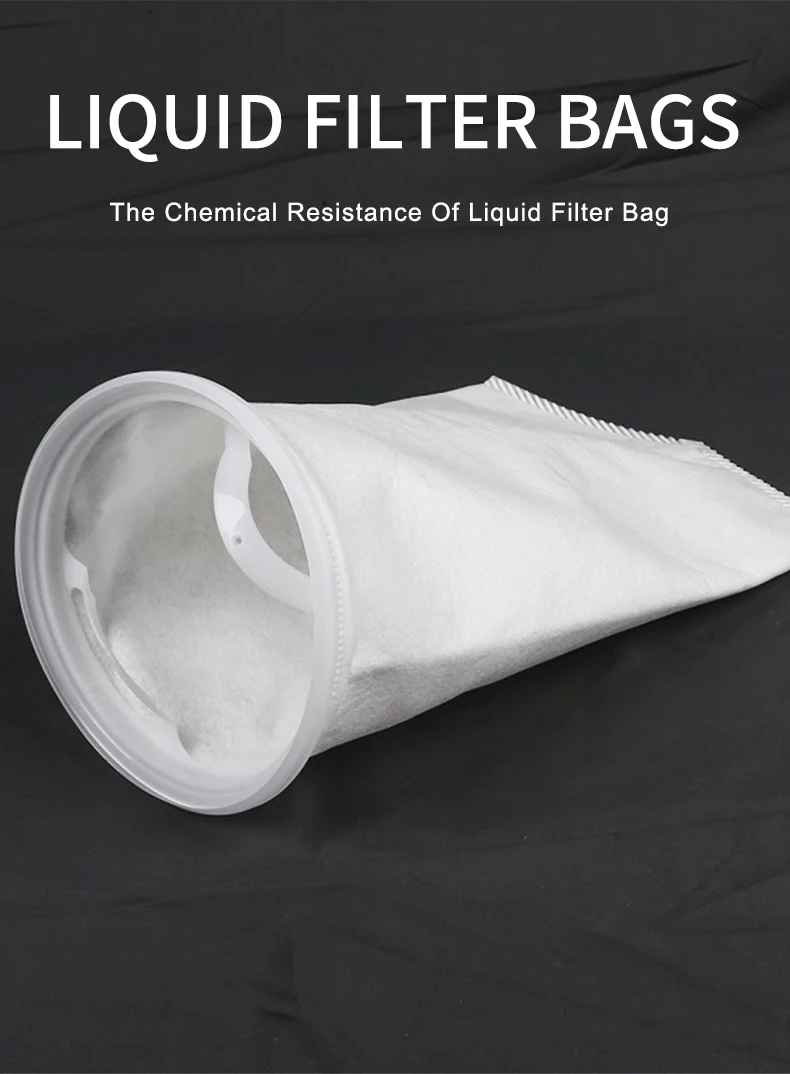

Liquid Filter Bags

Material Available

Nylon (NMO)

Polyester (PE)

Polypropylene (PP)

Maximum Operating Temperature

275-300° F (135-149° C)

275-325° F (135-162° C)

200-220° F (93-104° C)

Micron Rating (um)

25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um

0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300

0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300

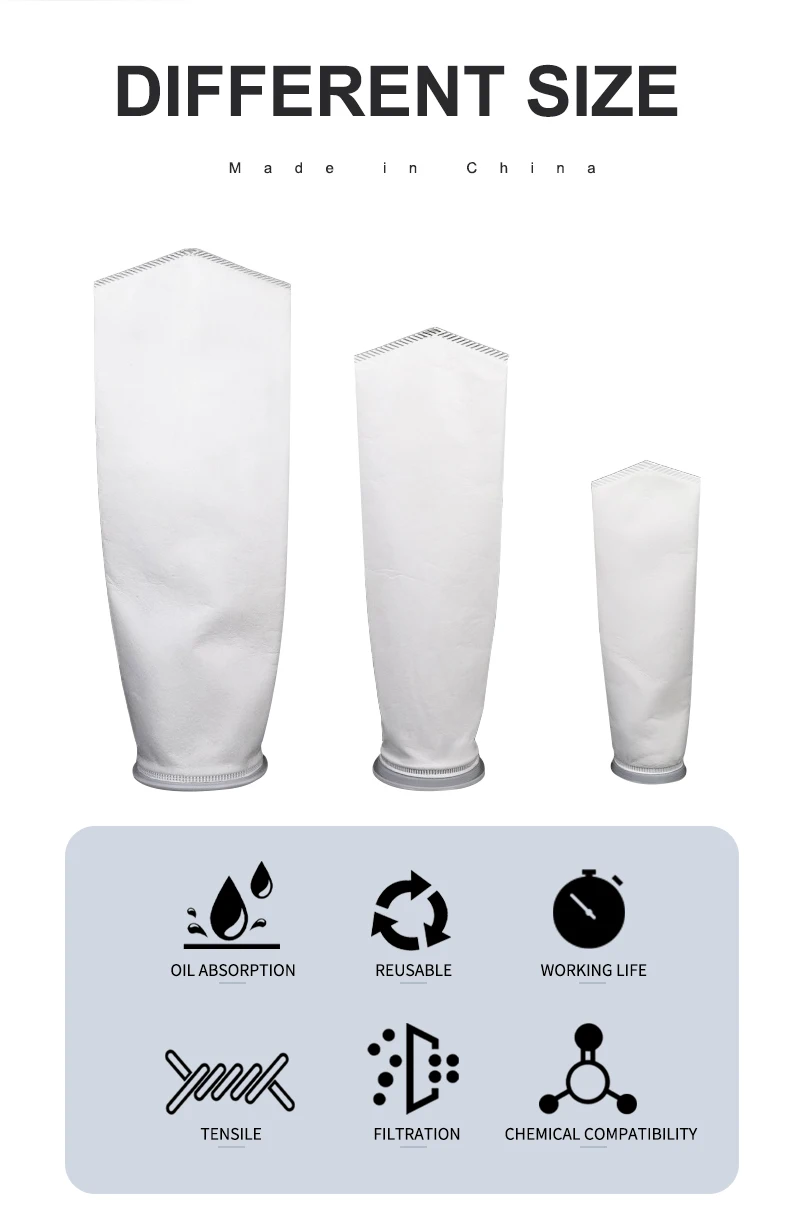

Size

1 #: 7" x 16" (17.78 cm x 40.64 cm)2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm)
4 #: 4" x 14" (10.16 cm x 35.56 cm)
5 #: 6 " x 22" (15.24 cm x 55.88 cm) Customized size

Filter Bag Area(m²) /
Filter Bag Volume (Liter)

1#: 0.19 m² / 7.9 Liter2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter

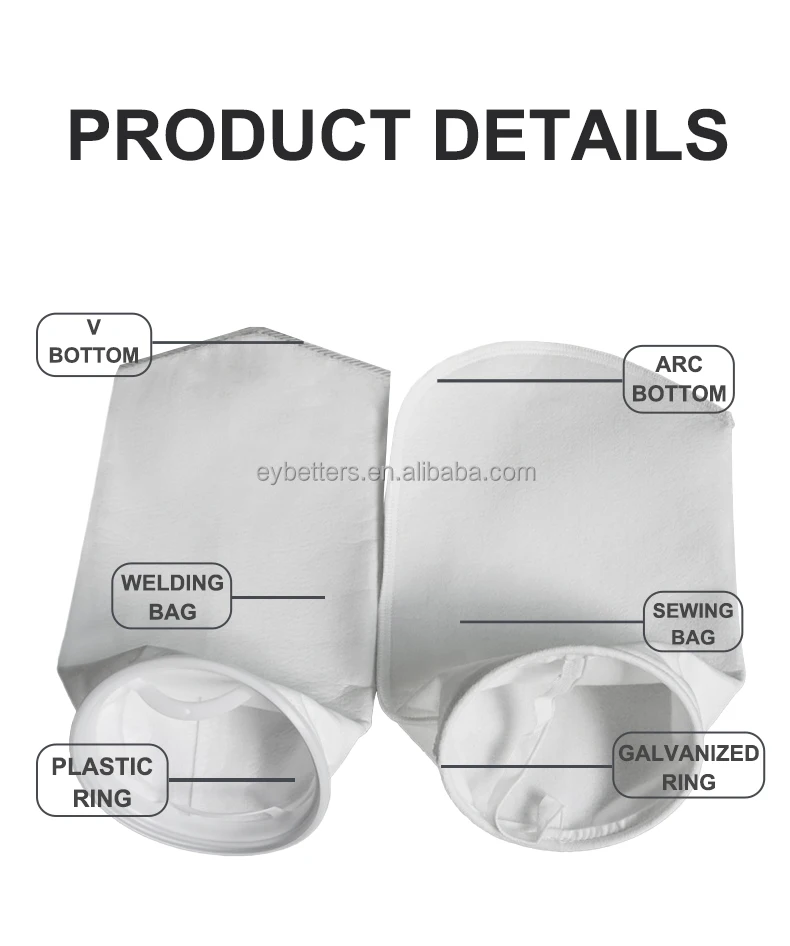

Collar Ring

Polypropylene ring/Polyester ring/Galvanized steel ring/Stainless steel ring/Rope

Remarks

OEM: supportCustomized item: support.

Fiber Material

Polyester (PE)

Nylon (NMO)

Polypropylene (PP)

Abrasion Resistance

Very Good

Excellent

Very Good

Weakly Acid

Very Good

General

Excellent

Strongly Acid

Good

Poor

Excellent

Weakly Alkali

Good

Excellent

Excellent

Strongly Alkali

Poor

Excellent

Excellent

Solvent

Good

Good

General
