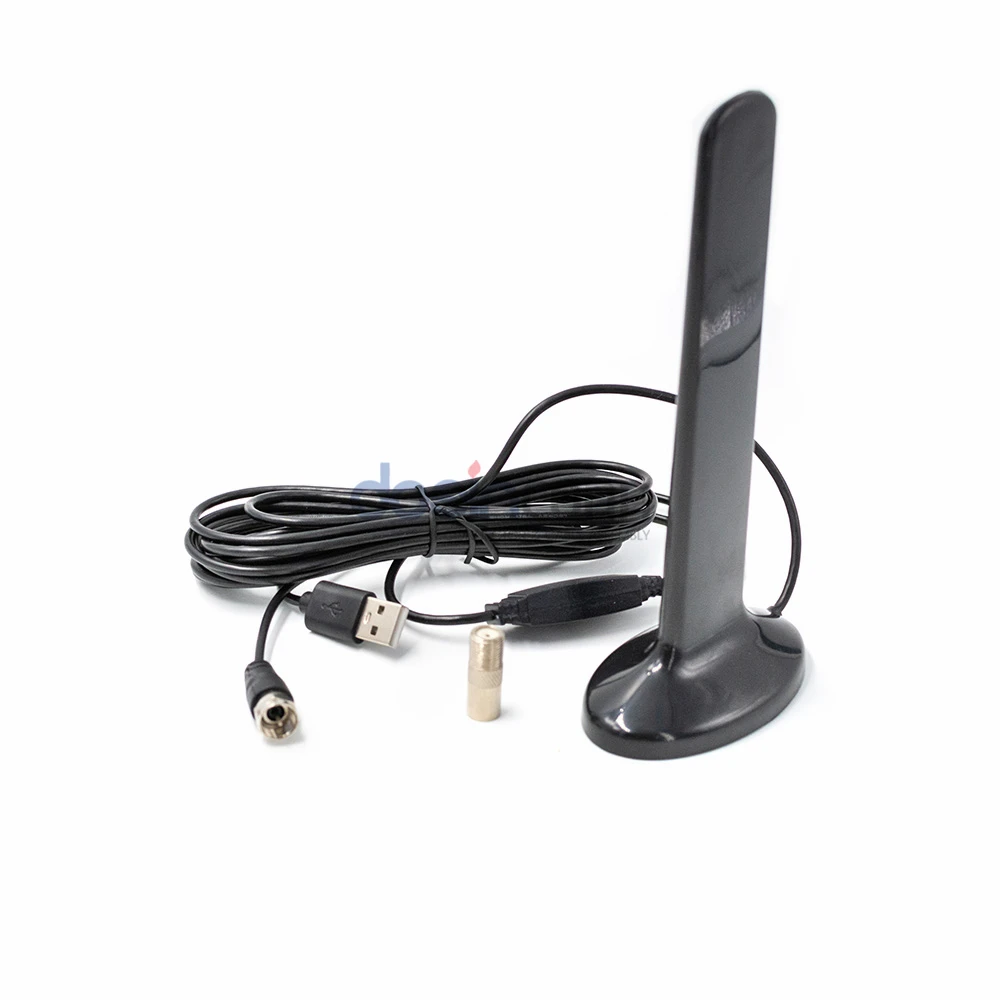

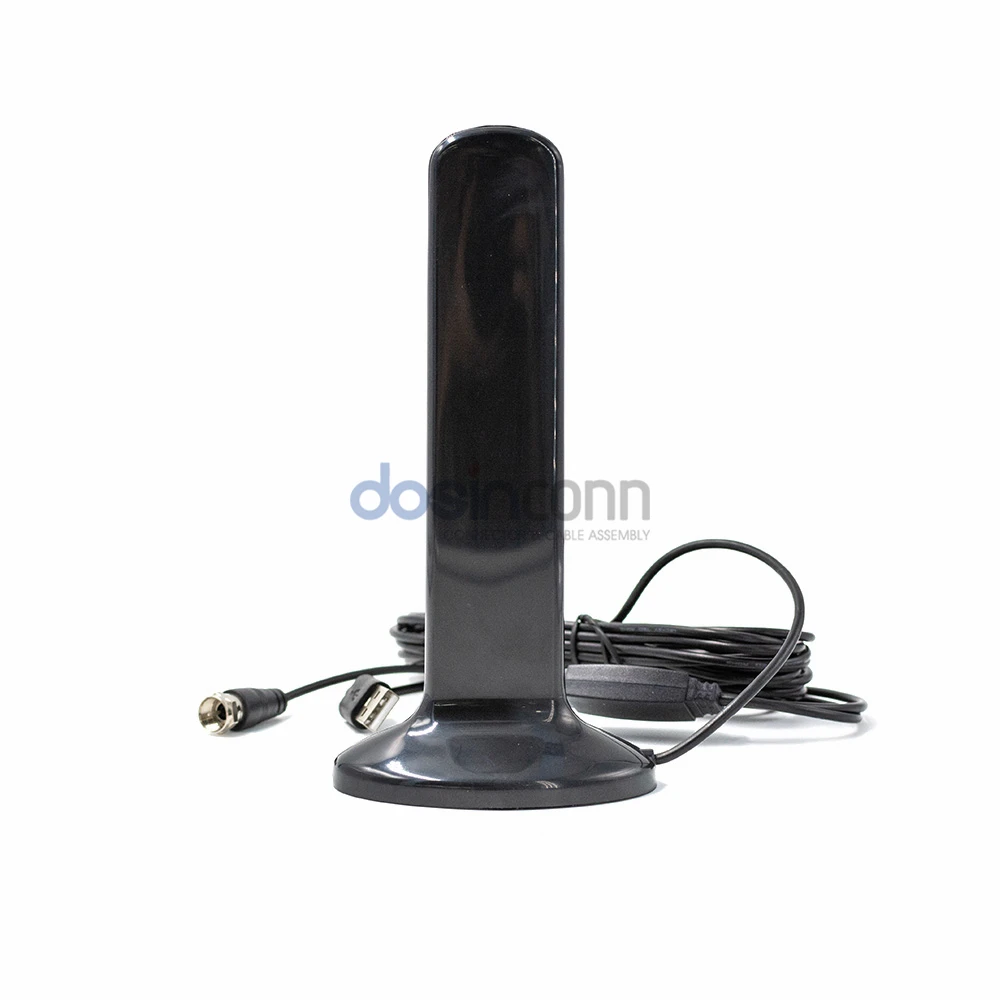

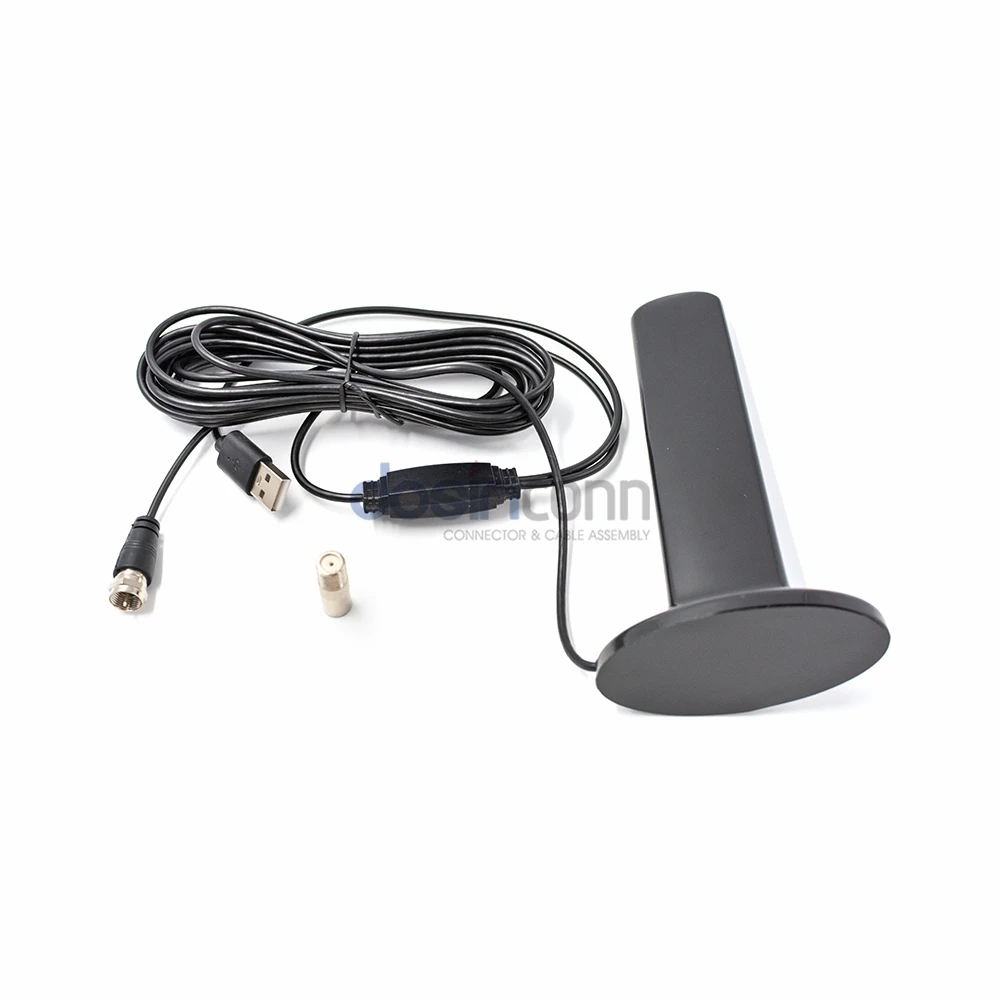

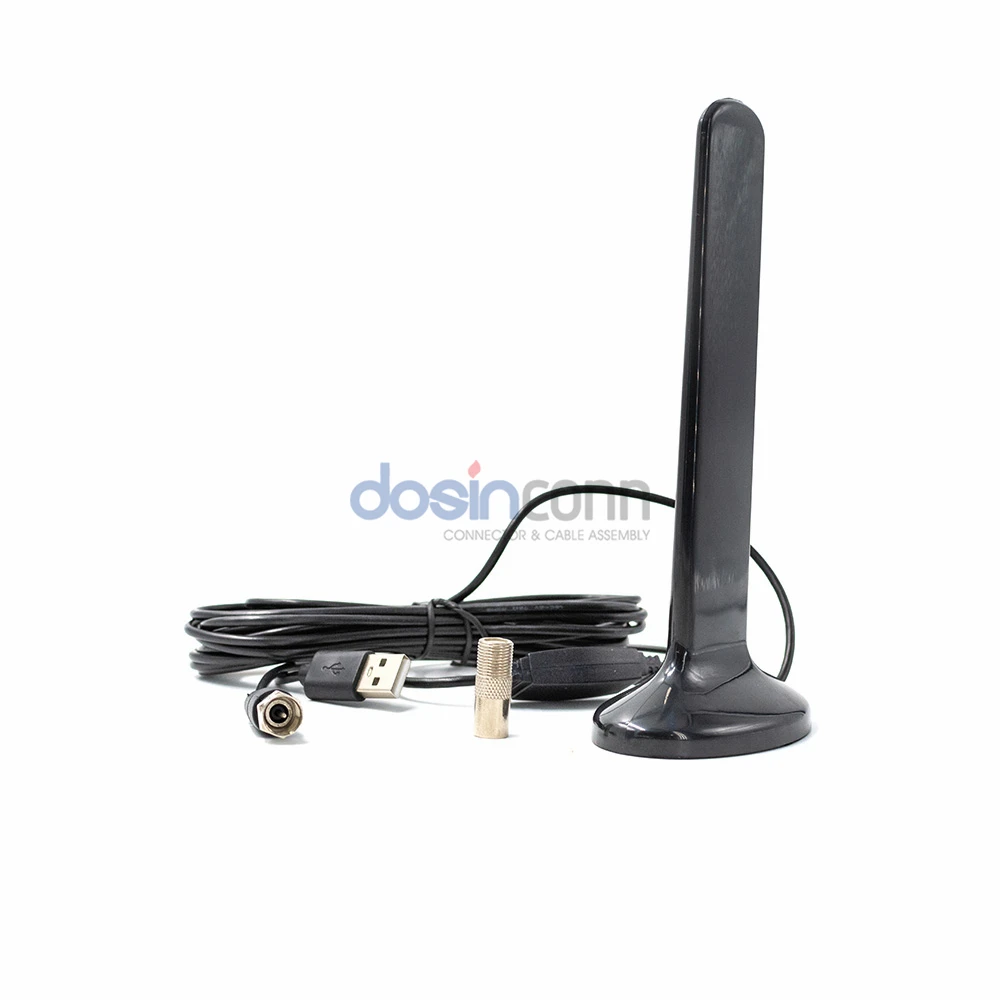

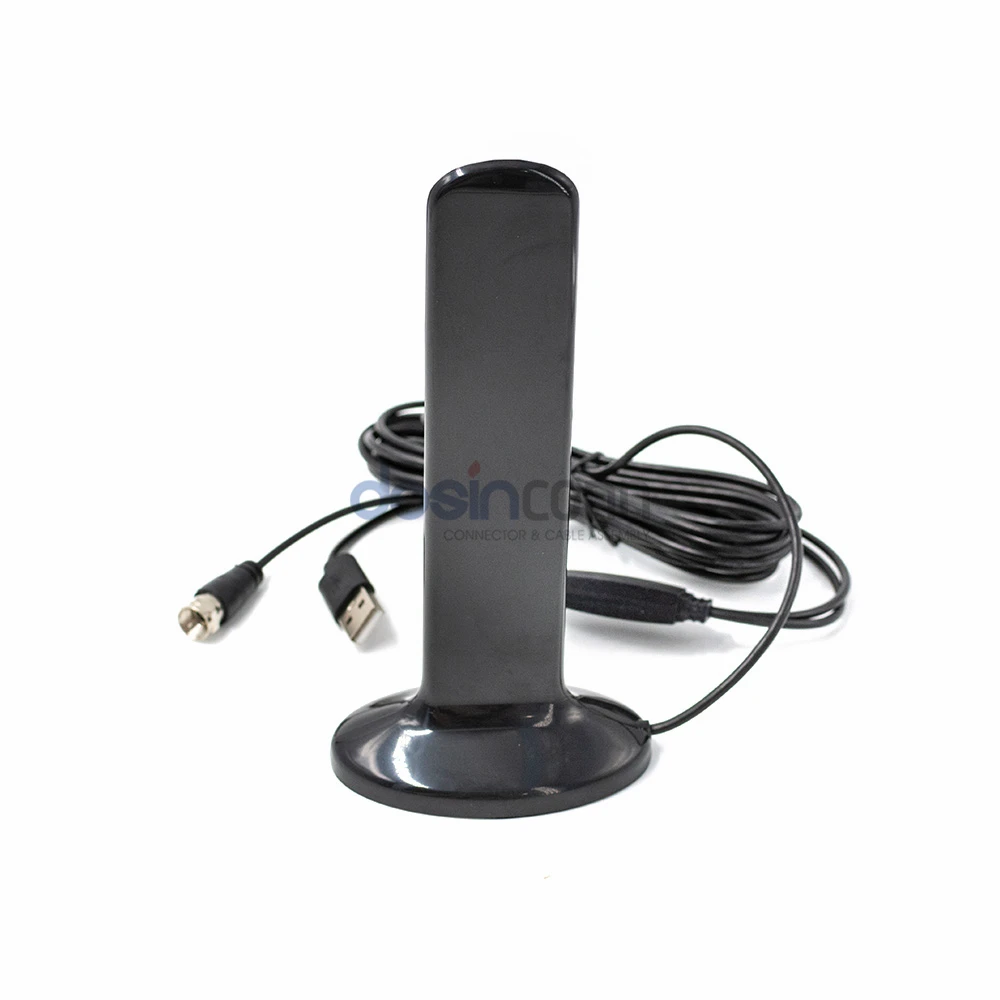

170 230MHz / 470 862MHz Magnetic Base TV Antenna with F Male IEC Male Connector
- Category: >>>
- Supplier: Dongguan Dosin Precision Industry Co. Ltd.
Share on (1601270883263):
Product Overview
Description
Products Description
TV Antenna is an antenna designed to receive terrestrial television over-the-air signals, which are transmitted between 170-230MHz in the VHF band, and between 470-862MHz in the UHF band, depending on the country. Television antennas are manufactured in two different types: "indoor" antennas that can be located on top of or next to the television, and "outdoor" antennas that are mounted on masts on the roof of the owner's house.
Product Feature

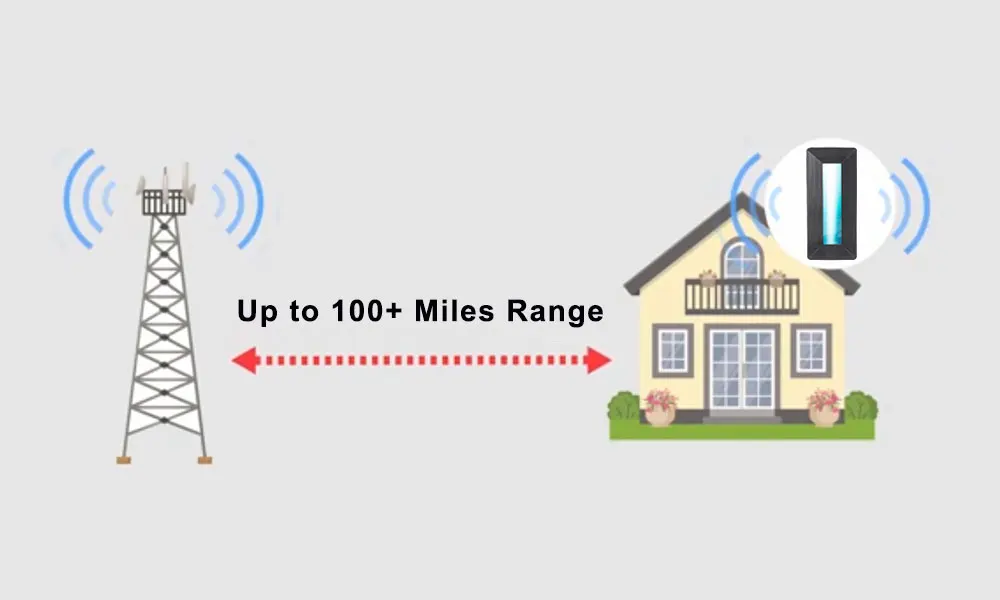

1.Up to 100+ miles of receiving range:
Our indoor TV antennas can receive signals up to 100+ miles, and the advanced signal booster optimizes signal transmission protection against interference with other signals, which ensures you get more channels even when you're far from the broadcast tower. Supported formats: 720p, 1080pi, 1080p/ATSC.
Our upgraded indoor and outdoor TV antennas can instantly get you out of expensive TV bills and enjoy hundreds of HD TV programs, including ABC, CBS, NBC, PBS, Fox, Univision, and more.
3.Multiple Options:

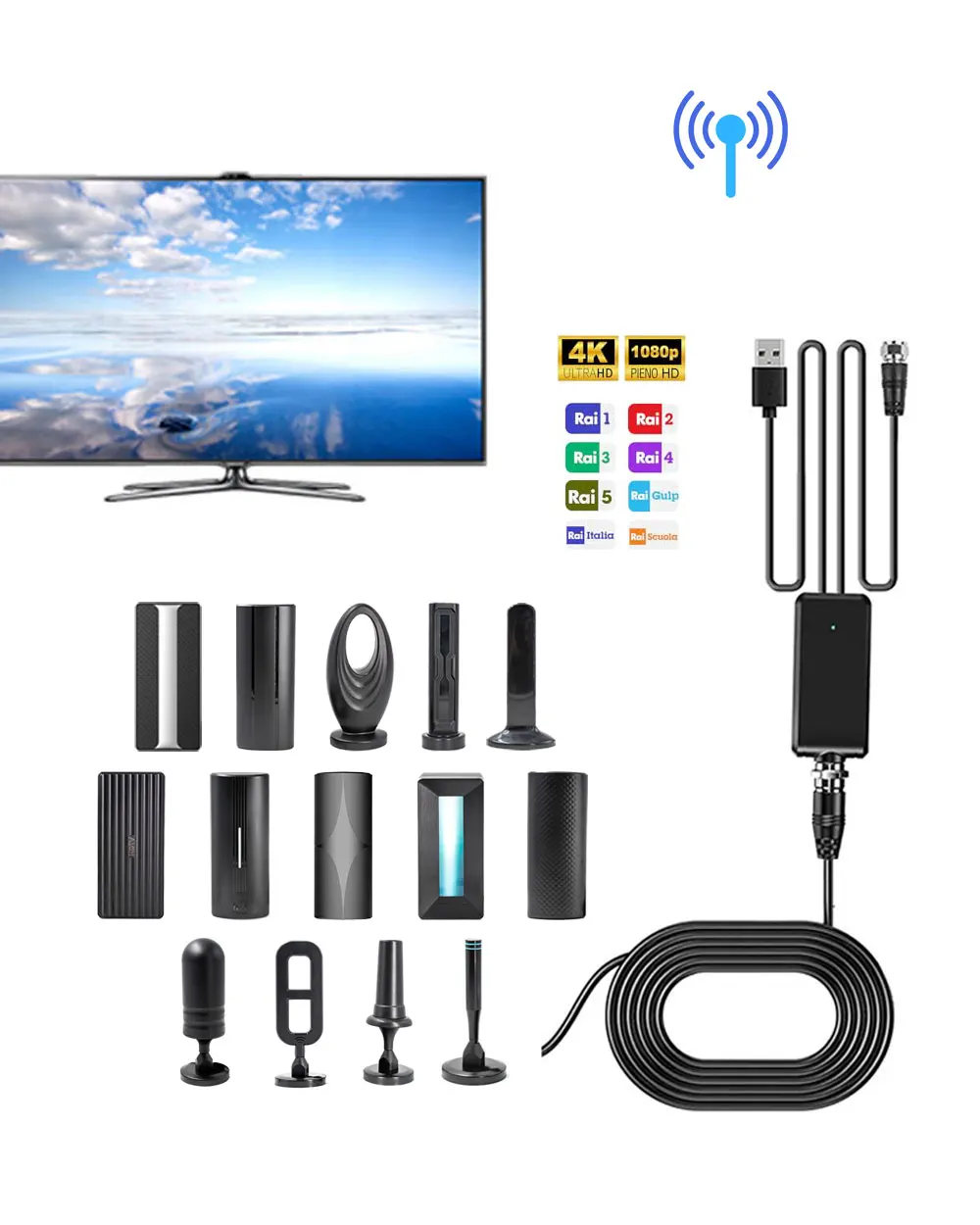

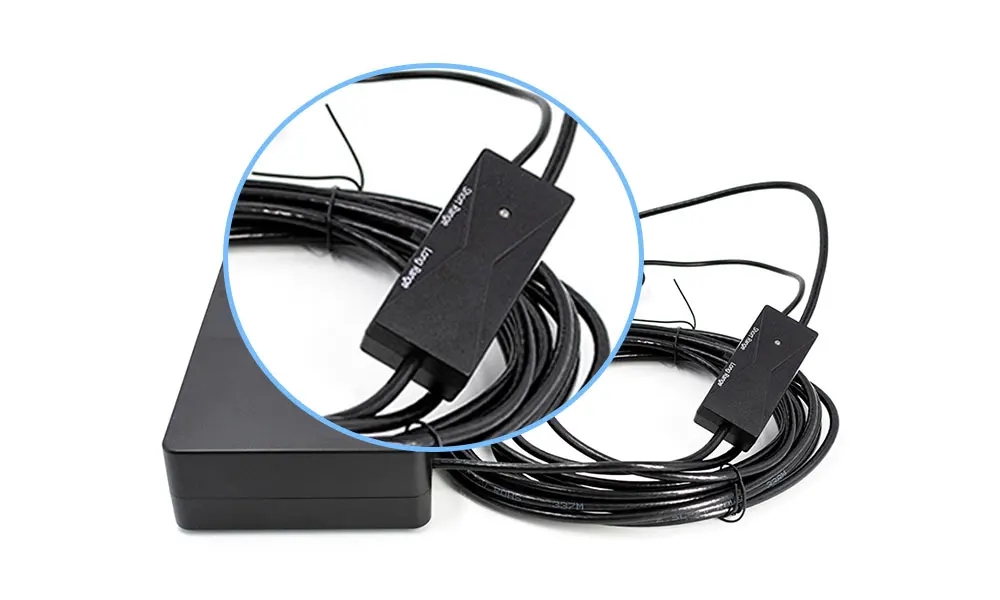

Our smart TV antennas adopt the new generation technology, providing two types of amplifiers, built-in and external, which can meet the diverse needs of different products.
Comes with 36ft coaxial cable, meaning you can set it up behind your TV, on a wall or in a window, and we make sure you can install it in minutes and get plenty of channels in your living room, bedroom, basement and RV and more. "
Product Specifications:
Frequency Range | VHF 170-230MHz / UHF 470-862MHz |
Gain | 5dB or 25dB(With Amplifier) |
VSWR | ≤2.0 |
Impedance | 75Ω |
Cable Length | 1.5C-2V or 2.5C-2V Cable |
Connector | F Male / IEC Male |
Power Supply | USB Port(5V/500mA) / USB Port(5V/50mA) |
Polarization | Vertical / Horizontal+Vertical |
Operation Temperature | -20~ 85℃ |
Working Humidity | 20-85% |
Product Size | 102*50*250mm / 68*50*128mm / 120*65*205mm / 100*58*215mm / 128*75*234mm / 102*46*225mm, etc. |
Installation Guide
Step 1:

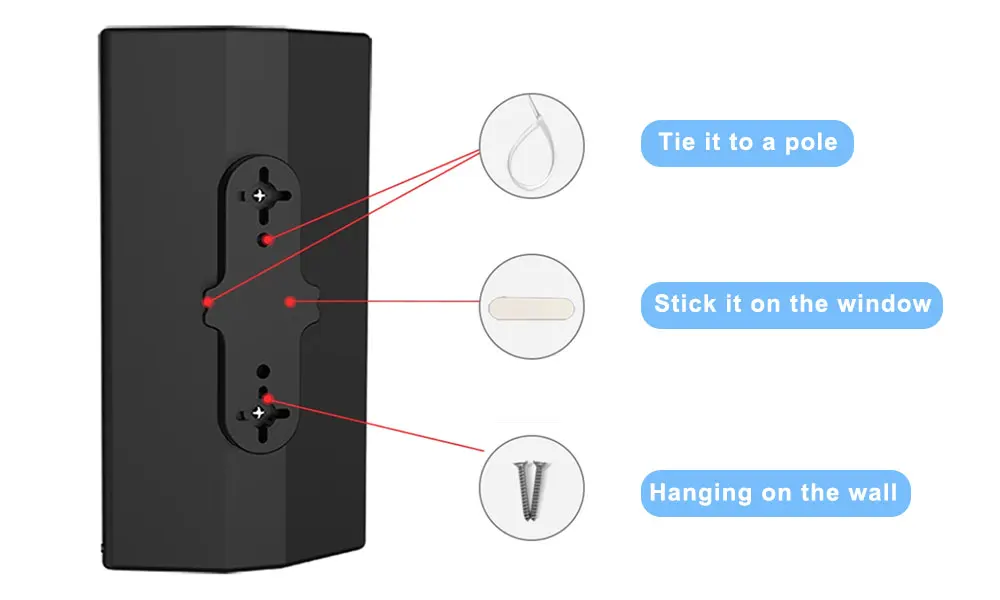

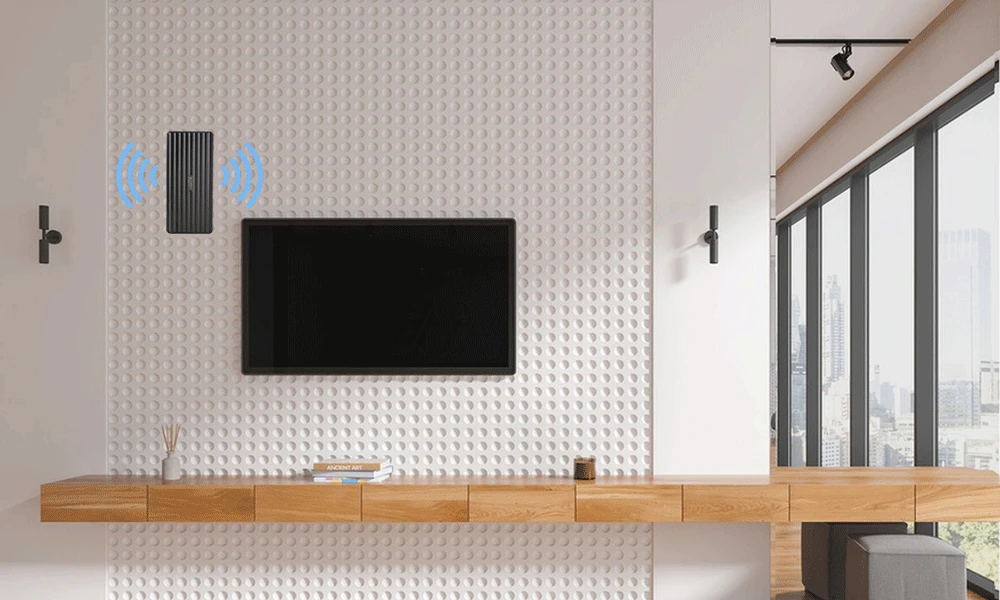

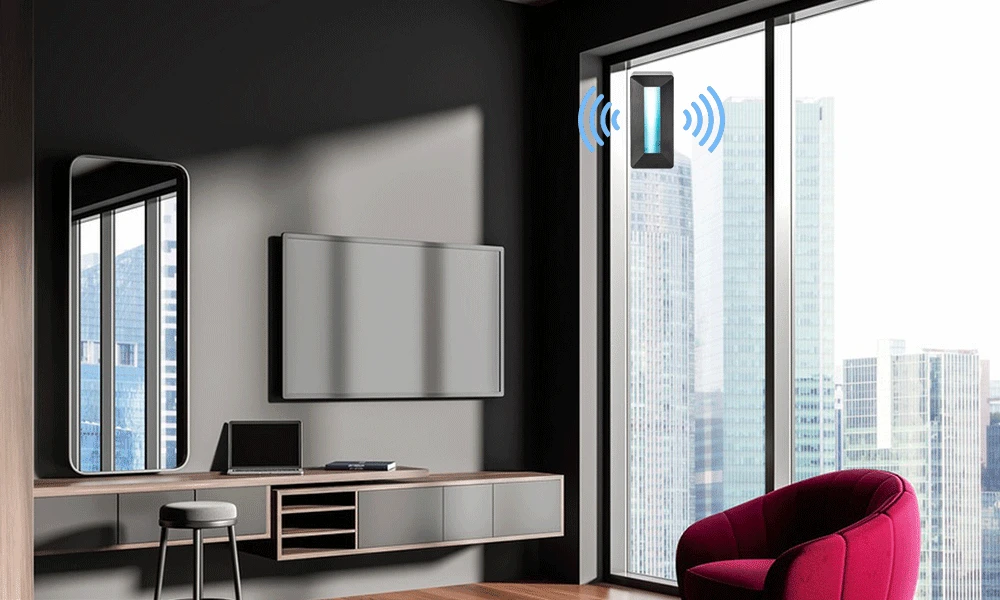

Put the antenna on the table/ window or door.
Step 2:

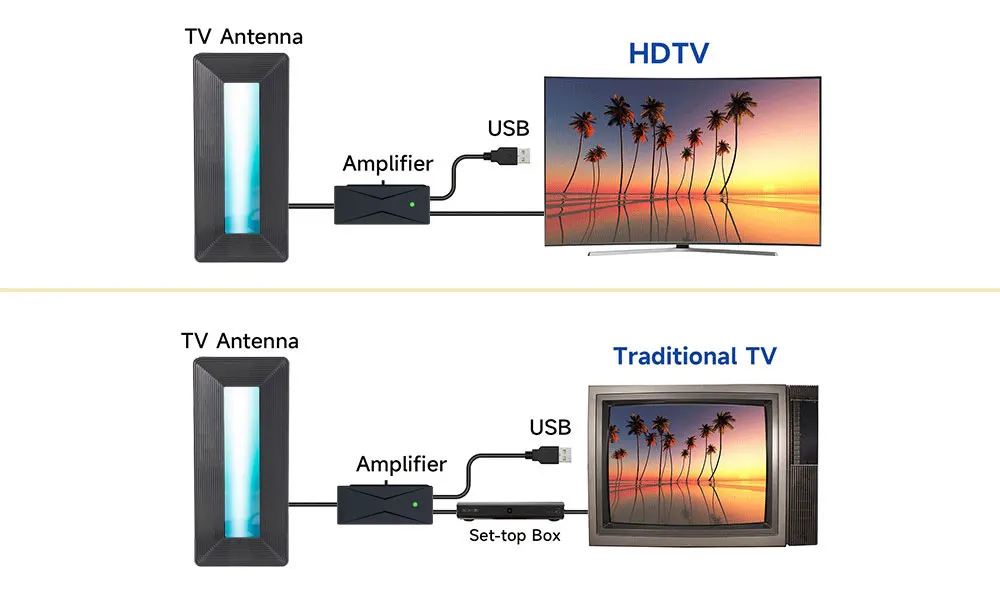

Connect the antenna and booster in series to the TV or set-top box antenna port.
Press the TV signal source button, select DTMB/digital TV/terrestrial digital, and enter the interface to search for channels.
Applications
-Home TV Reception: The most common application is to provide households with free digital TV signal reception.
-Public Places: In hotels, libraries, and community centers, antennas can be used to centrally receive TV signals for shared use by multiple users.
-Mobile Installation: Used in vehicles, boats, or other mobile devices to receive TV signals on the go.
-Special Occasions: Convenient for temporary TV signal reception during outdoor activities, camping, etc.
-Public Places: In hotels, libraries, and community centers, antennas can be used to centrally receive TV signals for shared use by multiple users.
-Mobile Installation: Used in vehicles, boats, or other mobile devices to receive TV signals on the go.
-Special Occasions: Convenient for temporary TV signal reception during outdoor activities, camping, etc.

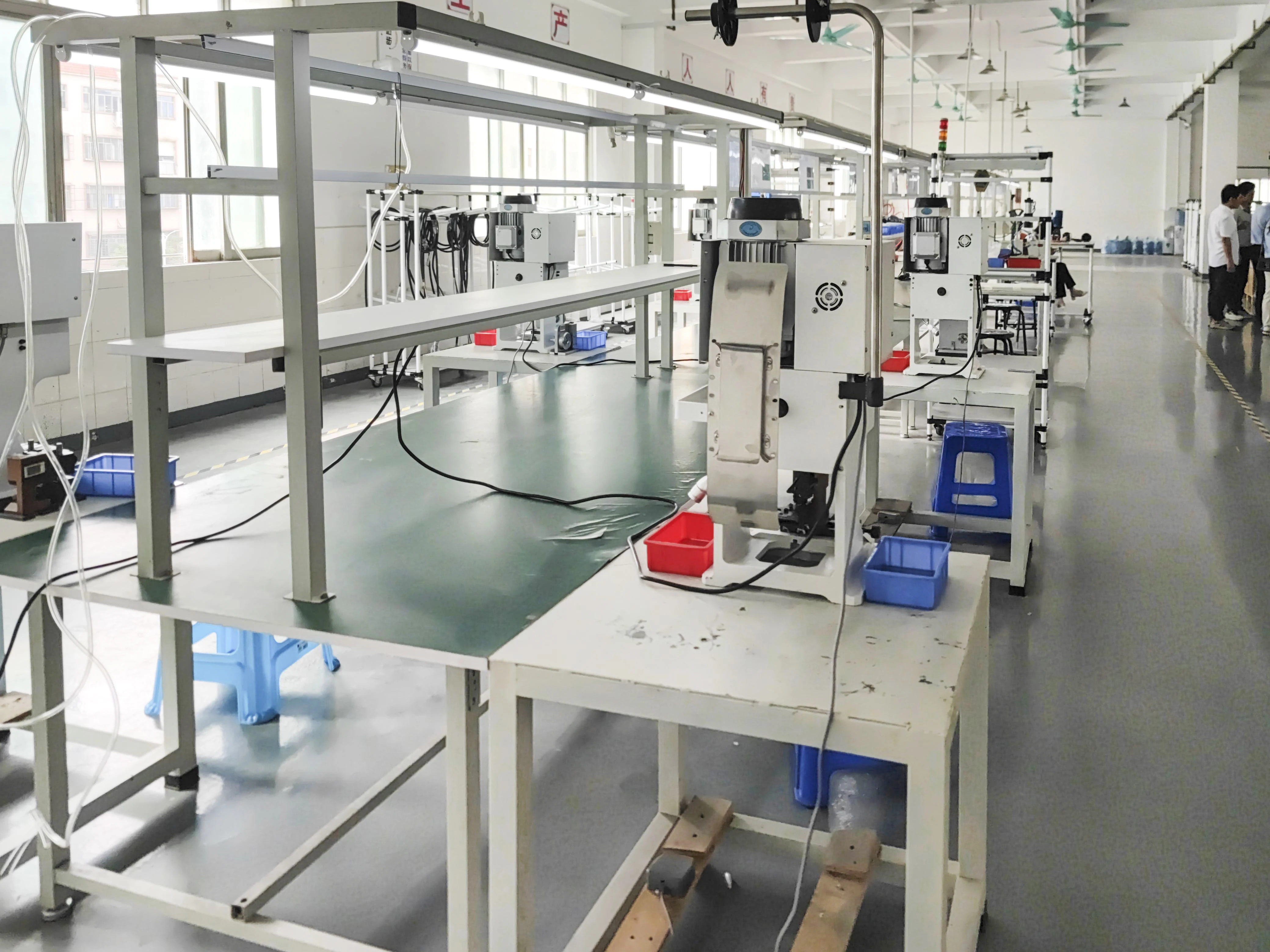

Our Factory
Dongguan Dosin Precision Industry Co., Ltd.
Was established in 2008, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series, Fiber optical cable assemblies and other custom made connectors.
Our company covers more than 20000 square meters, with well-equipped workshop, automatic production lines, andhundreds of employers. Since our establishment, our products and services have received a good reputation home and abroad. So far,we have built business relations in many countries, 70% products being sold to all over the world.
Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence" and values "trust, quality,service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are RoHS, REACH compliant. If you are interested in our company or our products, please contact us. We will be here to response youthe first around.
We promise you the top-quality and the most cost-effective products and services. Looking forward to cooperate with you!
Stamping Workshop
Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.

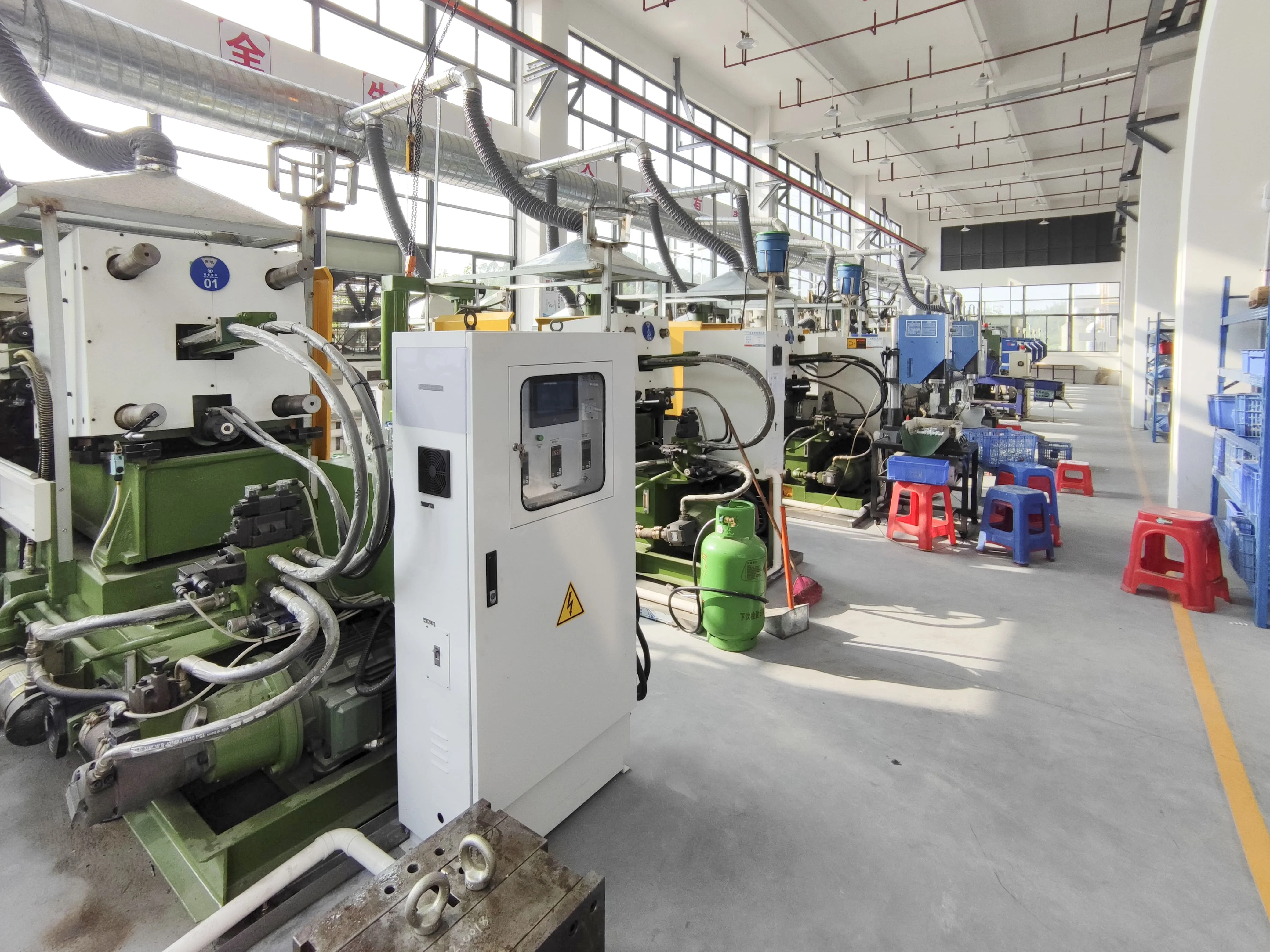

Die Casting Workshop
Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.

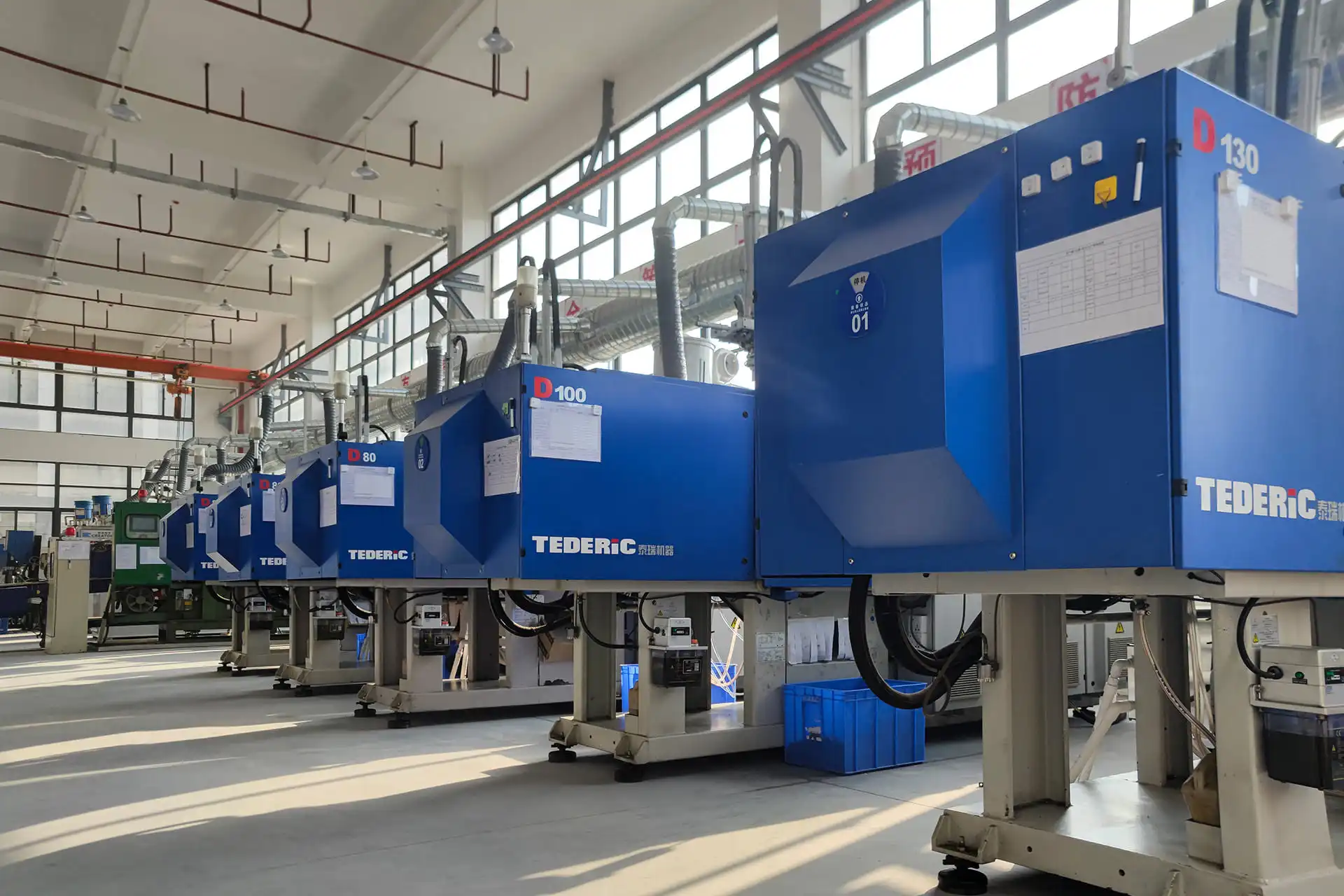

Injection Moulding Workshop
Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.

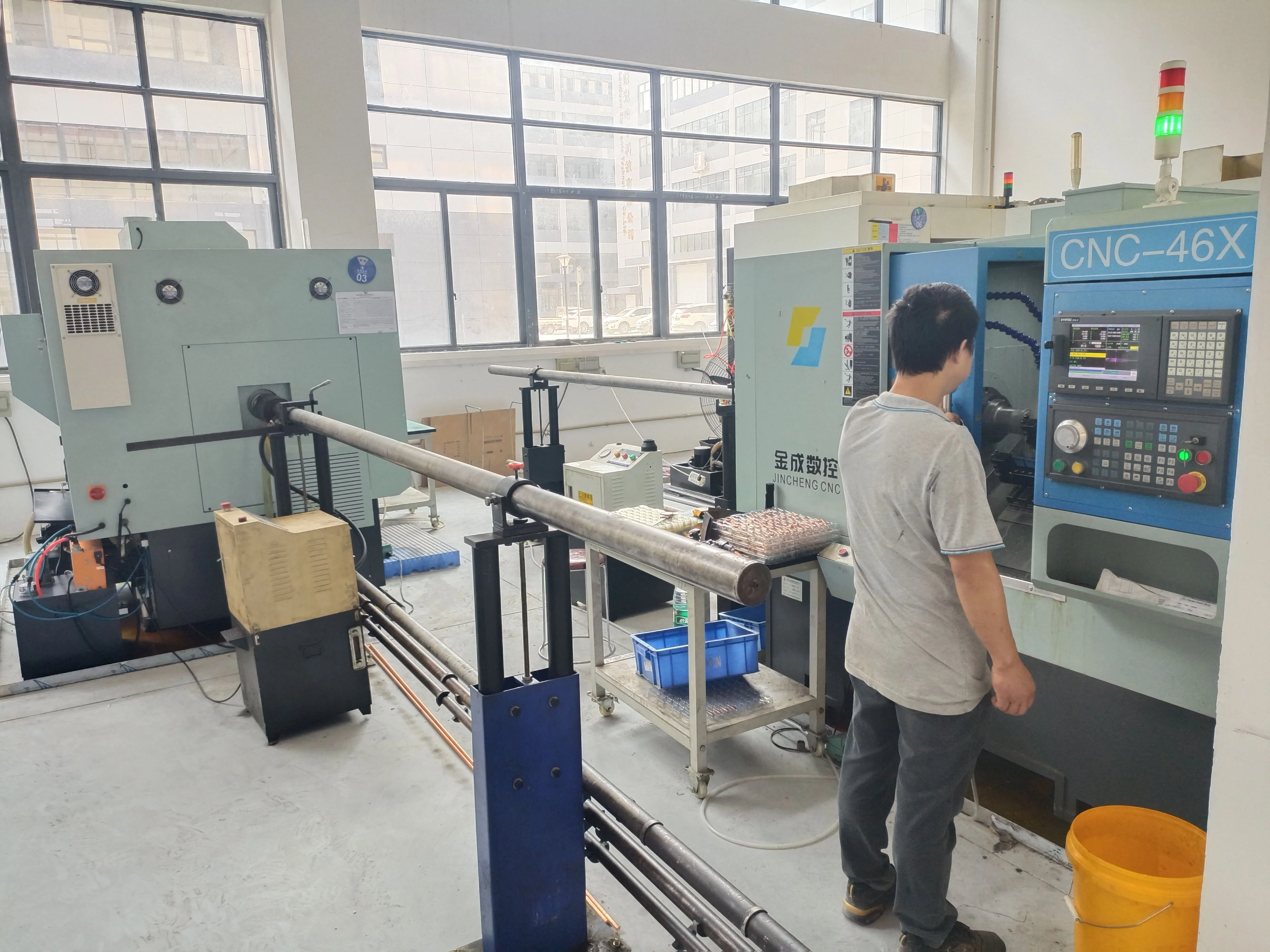

Lathe Turning
Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
FAQ
1. Are you factory?
Yes, we are a manufacturer and trading company with over 16 years of experience in the research, development, design, and manufacturing of communication products.
Yes, we are a manufacturer and trading company with over 16 years of experience in the research, development, design, and manufacturing of communication products.
2. Can you customize products for us?
Yes, we offer customization services to meet your specific needs. Pls advise your specification, performance requirement or drawing, photos or send us samples, we’ll evalute them and get back to you details.
3. How about your delivery time?
Generally, the delivery time is around 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What’s the warranty of your products?
Yes, we offer customization services to meet your specific needs. Pls advise your specification, performance requirement or drawing, photos or send us samples, we’ll evalute them and get back to you details.
3. How about your delivery time?
Generally, the delivery time is around 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What’s the warranty of your products?
Our products have 12 months’warranty. It’s better to provide the feedback within one month after you receive the goods.
