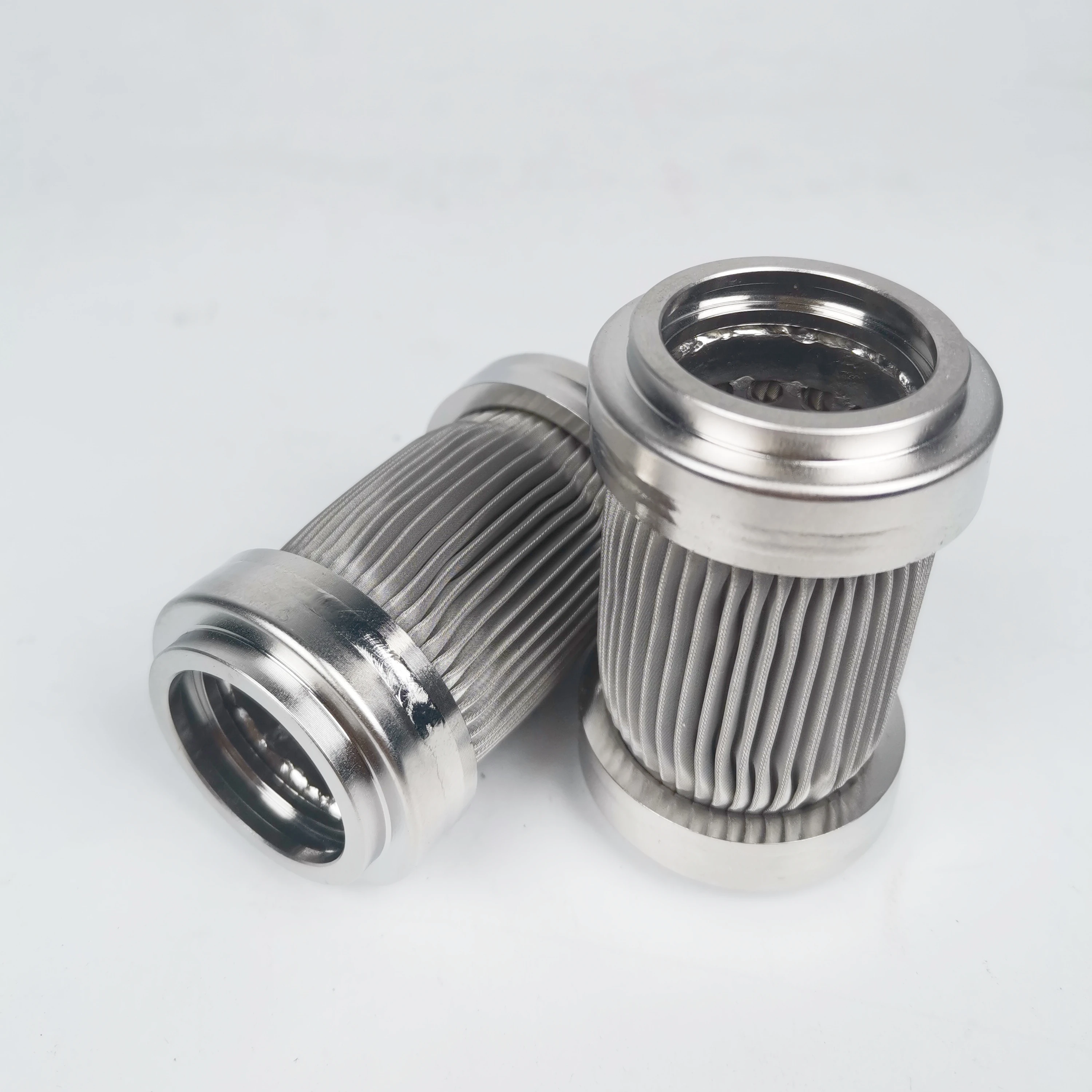

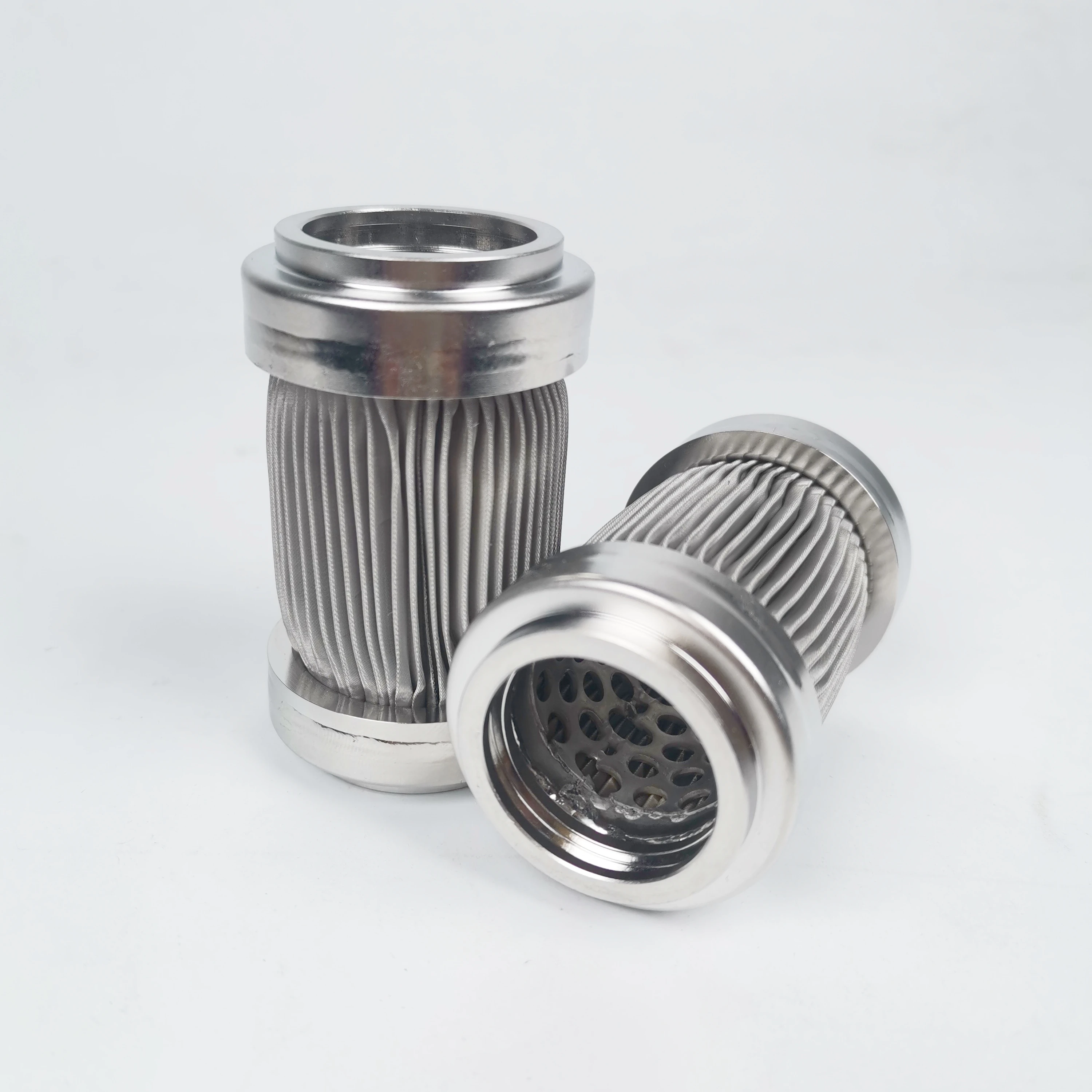

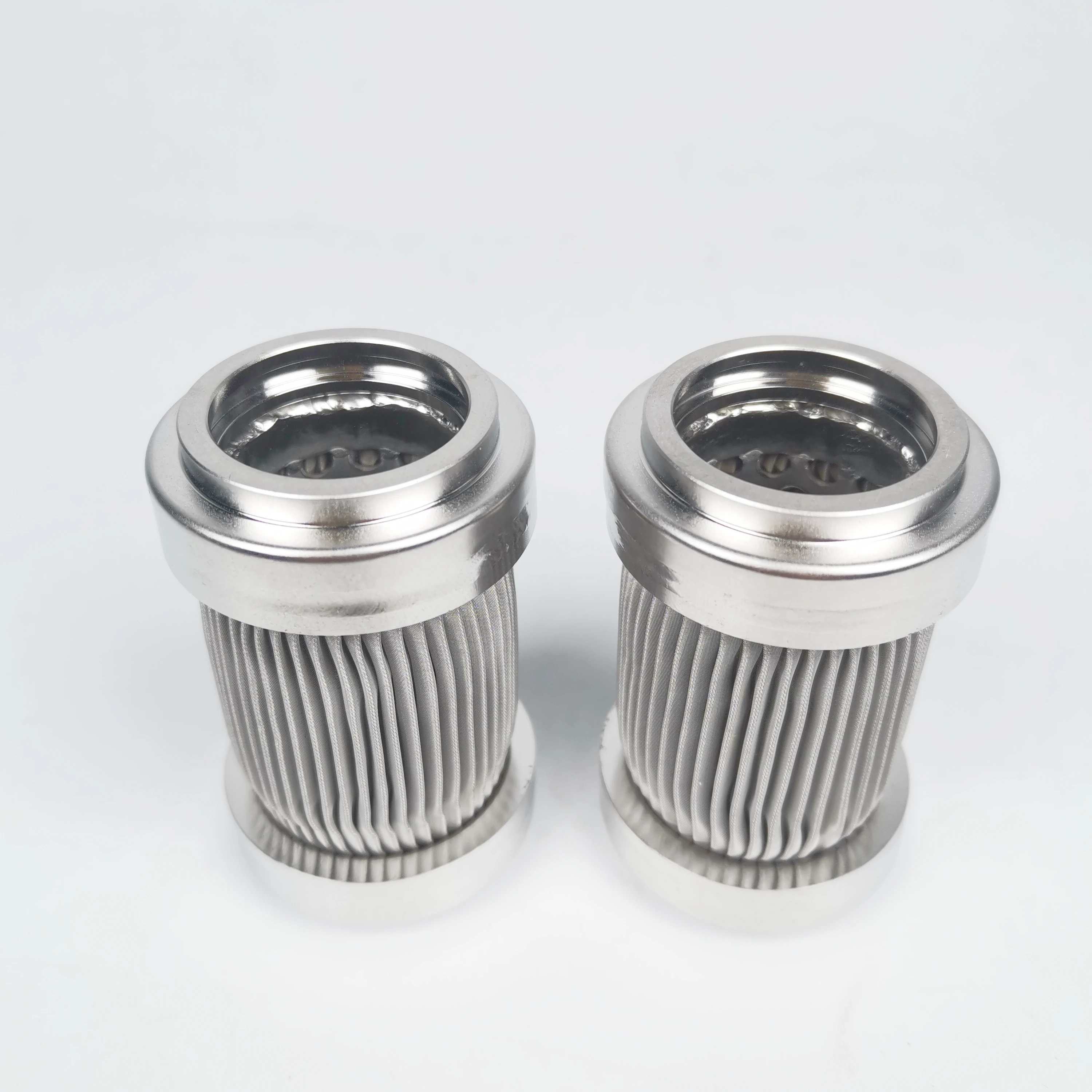

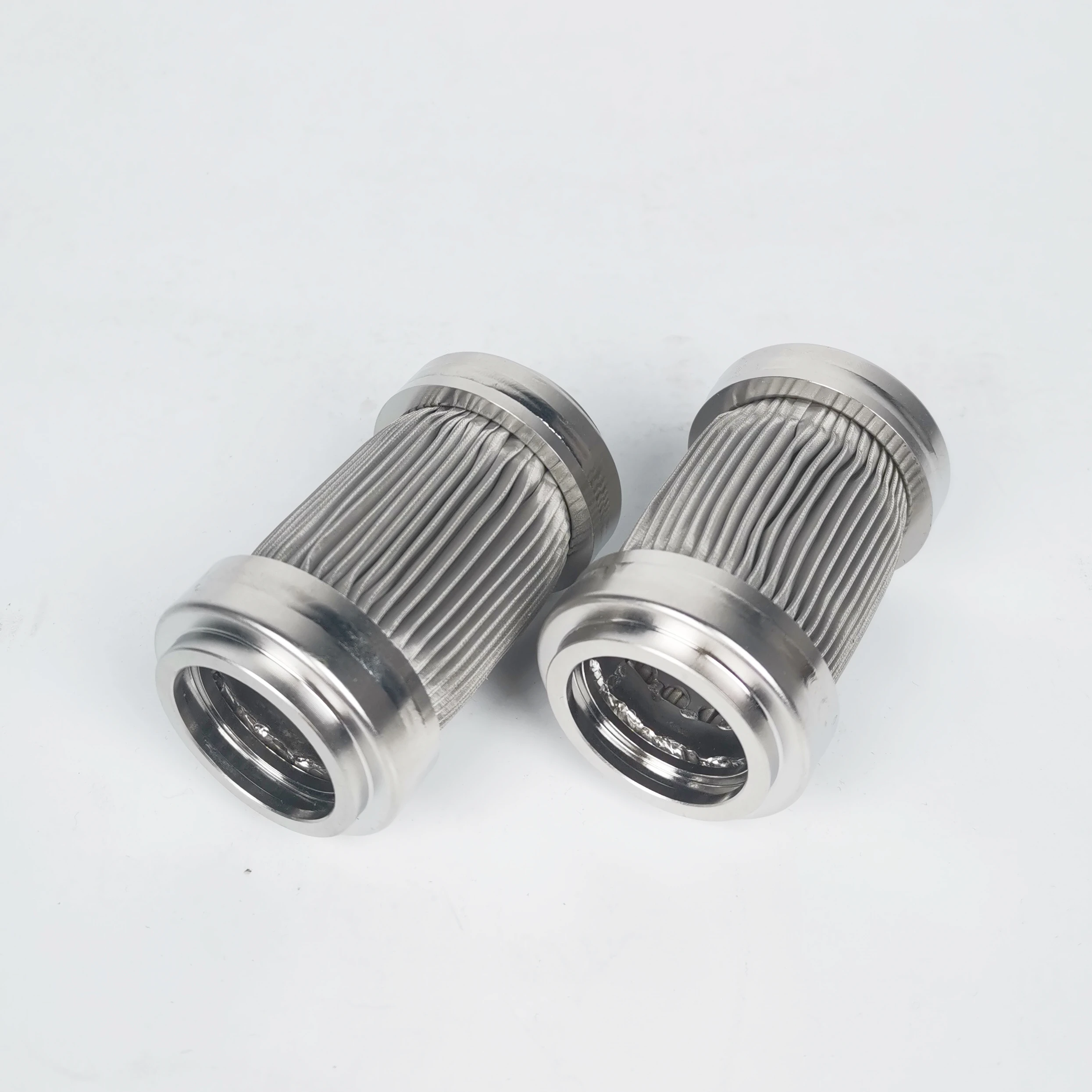

China polymer fiber candle type pleated filter cartridge hydraulic filter
- Category: >>>
- Supplier: Xinxiang Deya Filtration Equipment Co. Ltd.
Share on (1601270946795):
Product Overview
Description
Product Description

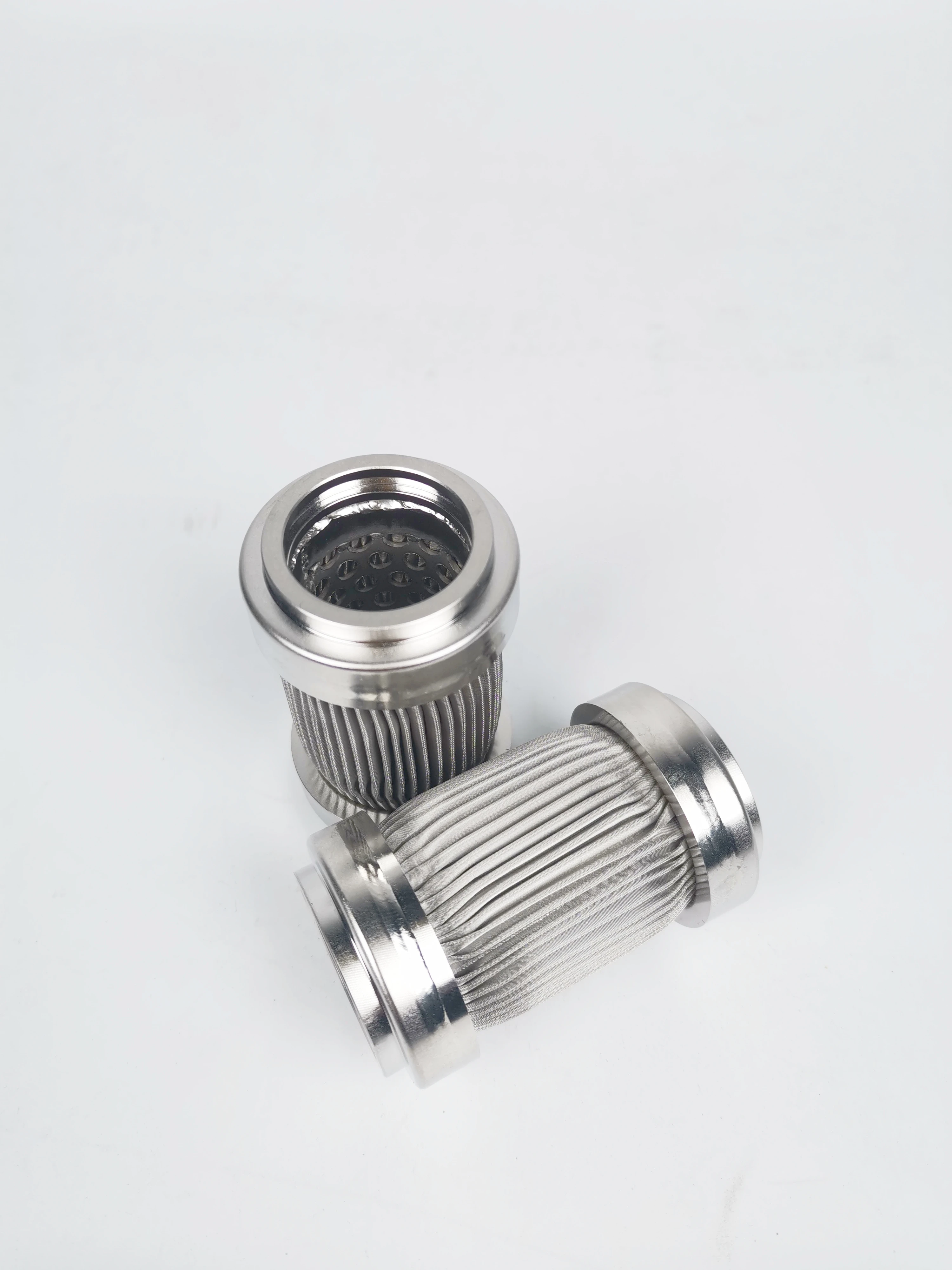

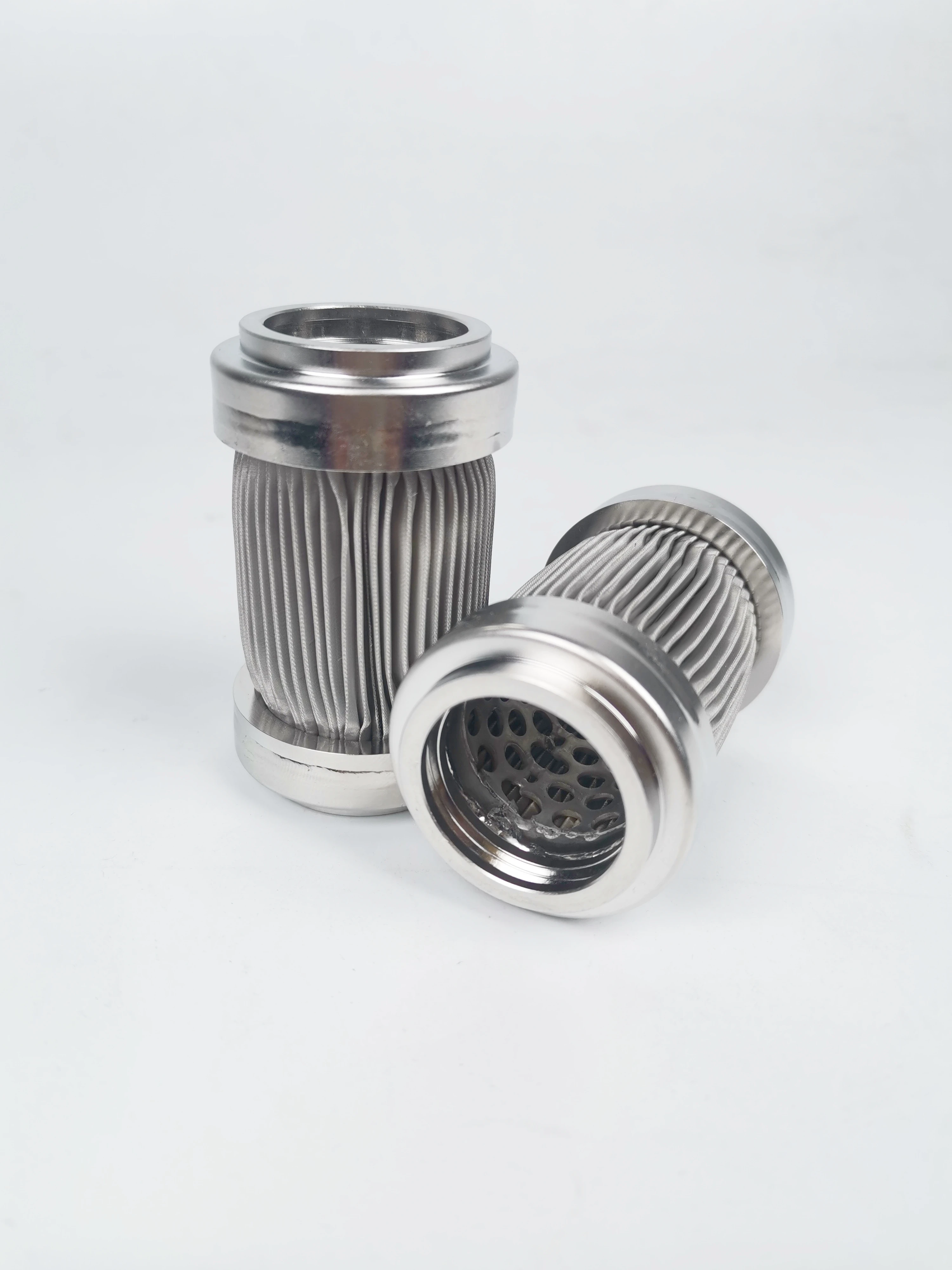

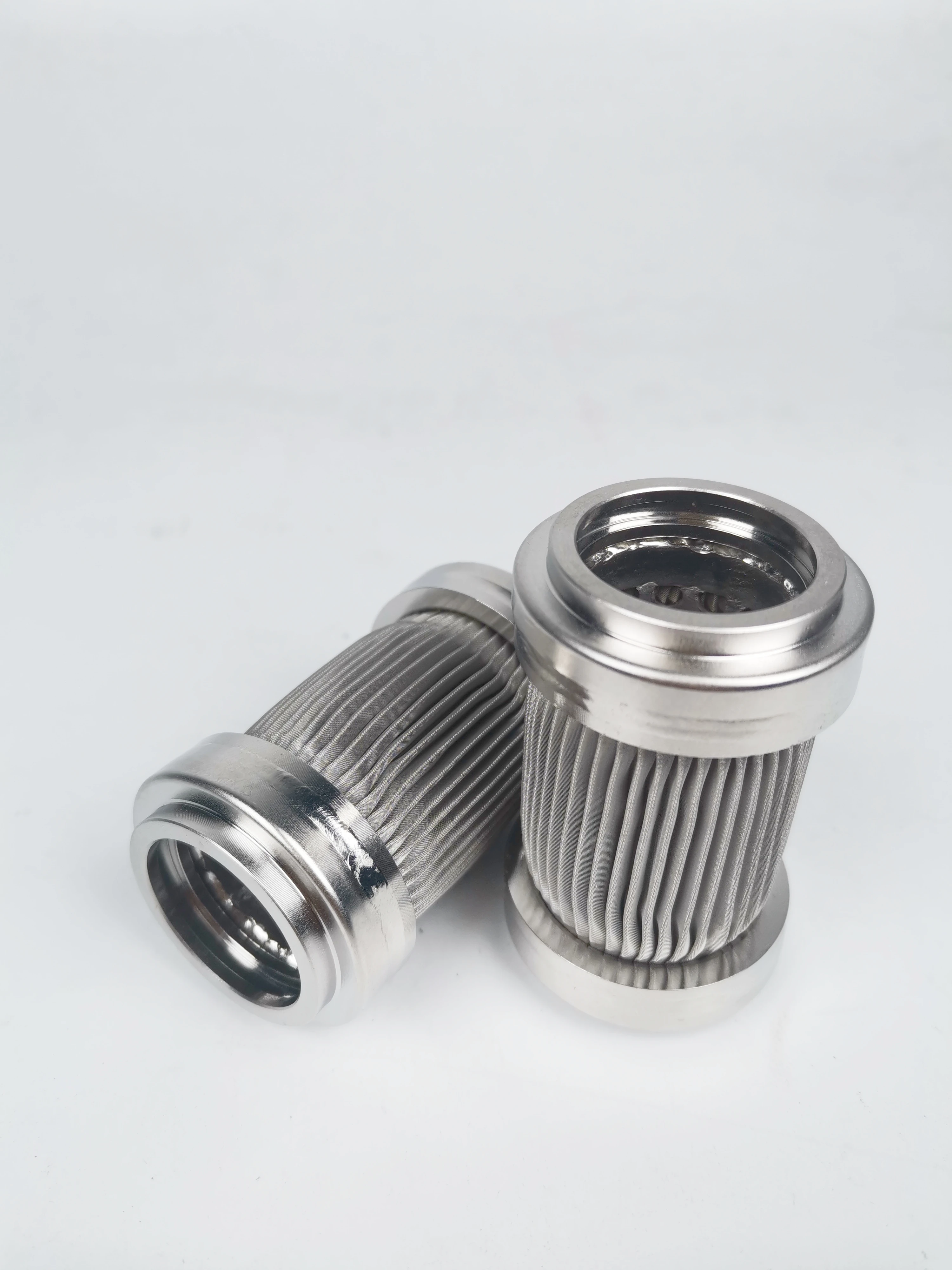

The main filter material he uses 304 304 L, 316 316 L stainless steel fiber felt and stainless steel woven mesh filter medium,
filter sealing surface combined with argon welding technology, multi-layer filter The folding process consists of a complete filter
with no leakage and no dielectric loss. The sintered stainless steel felt is a stainless steel fiber, which is made by porous
sinter at high temperature .
filter sealing surface combined with argon welding technology, multi-layer filter The folding process consists of a complete filter
with no leakage and no dielectric loss. The sintered stainless steel felt is a stainless steel fiber, which is made by porous
sinter at high temperature .

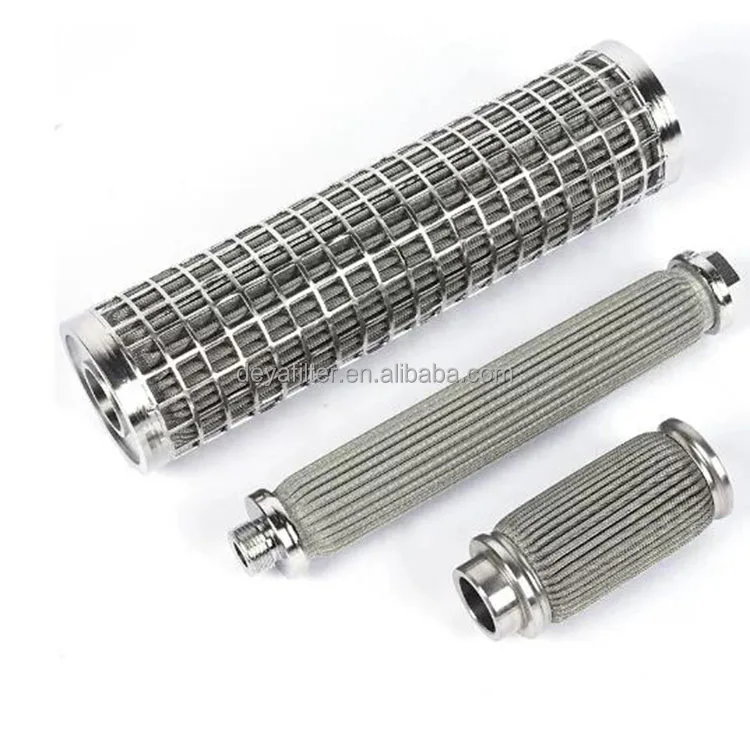

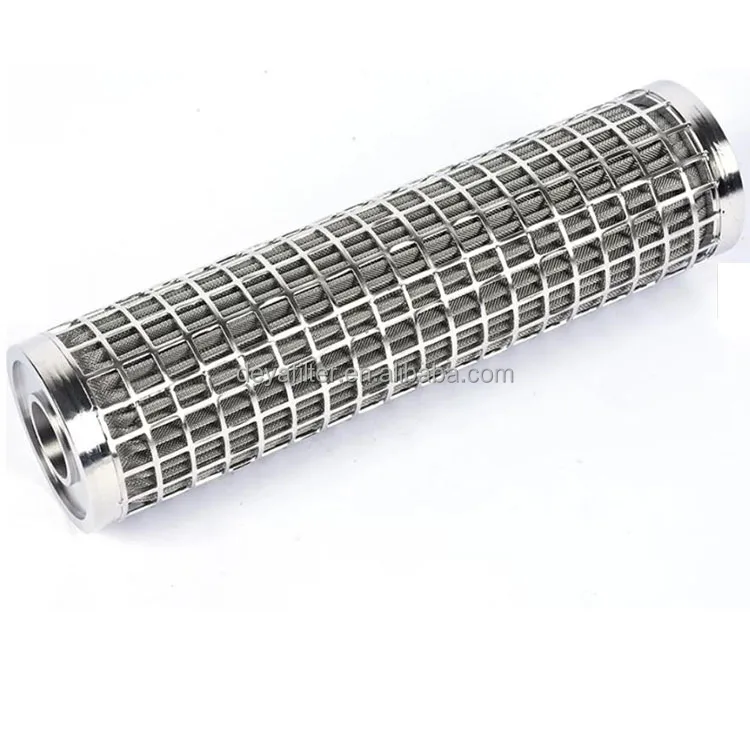

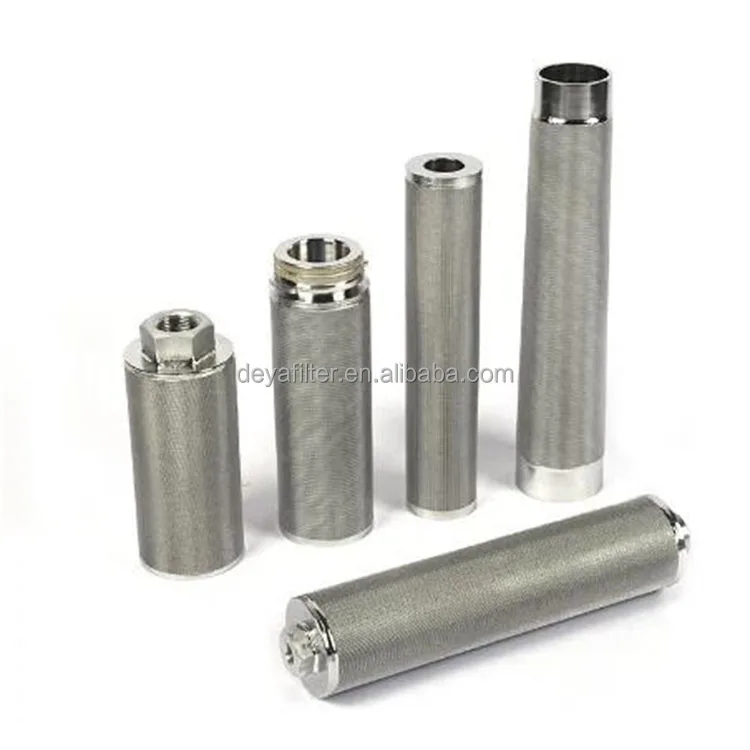

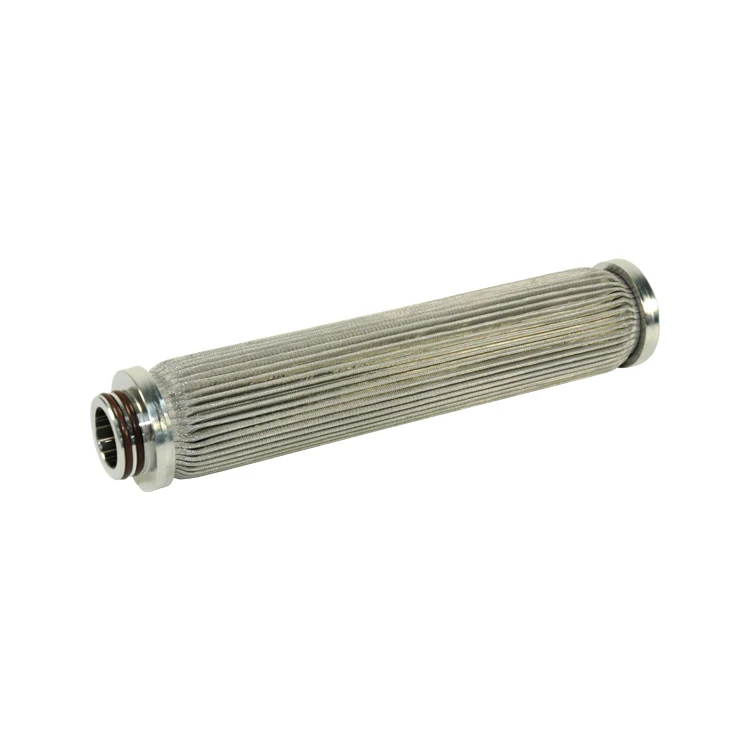

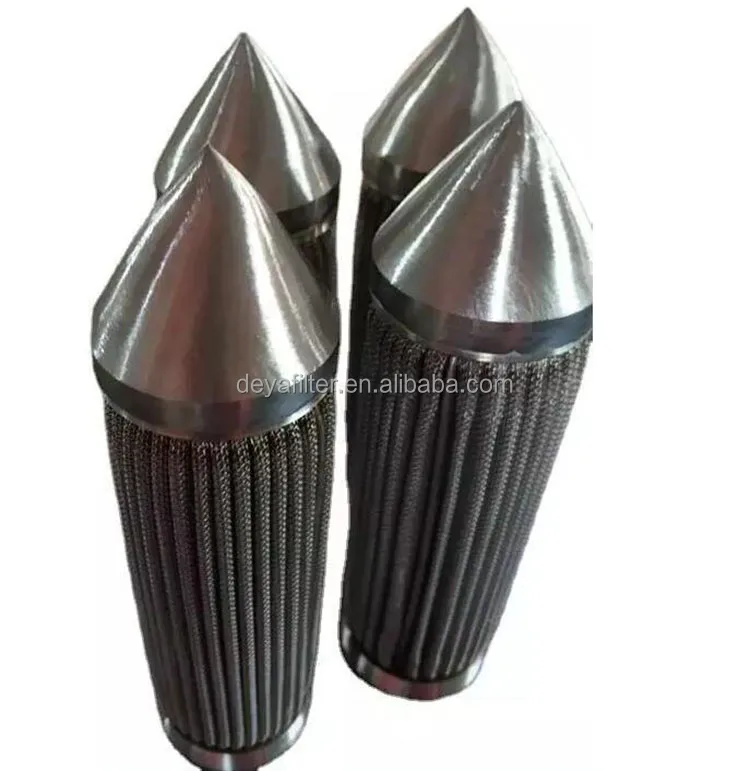

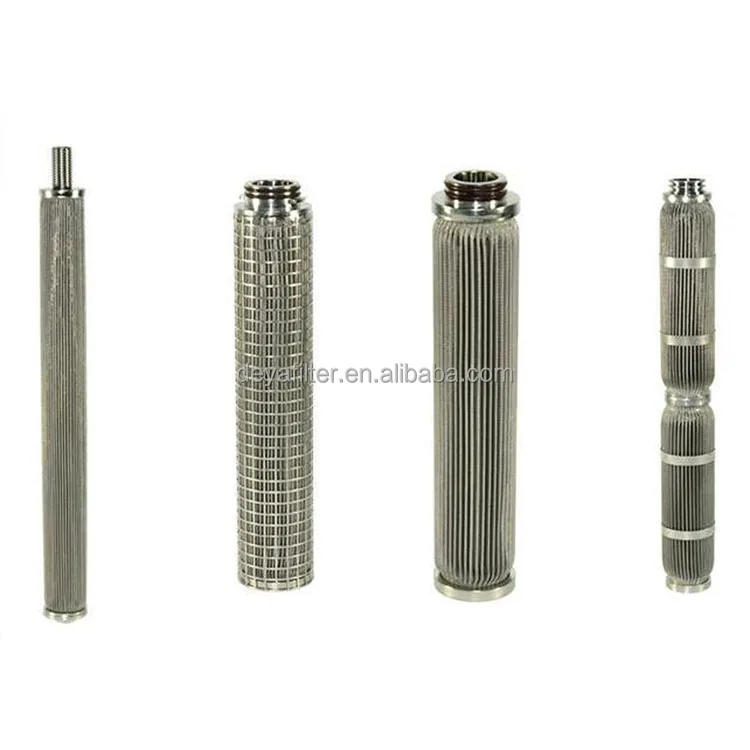

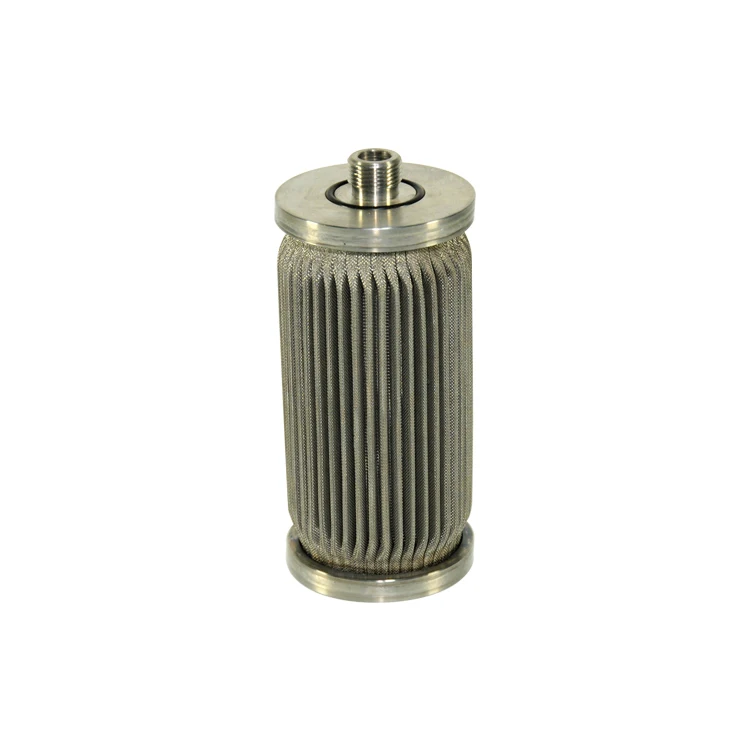

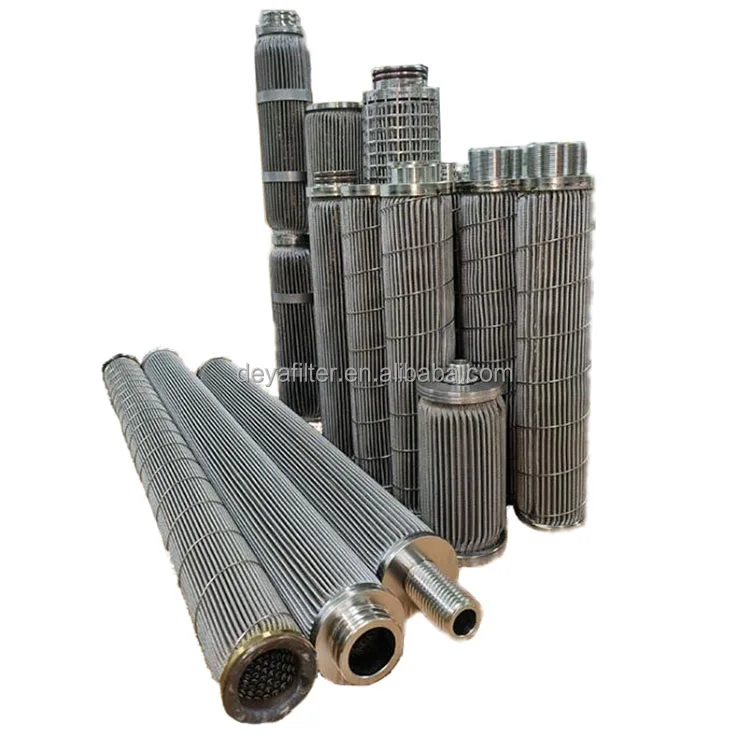

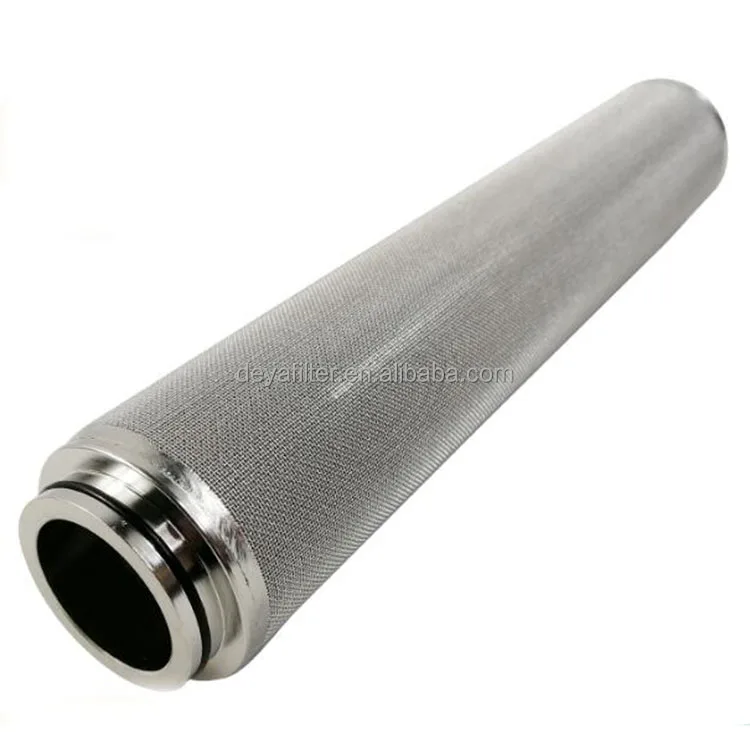

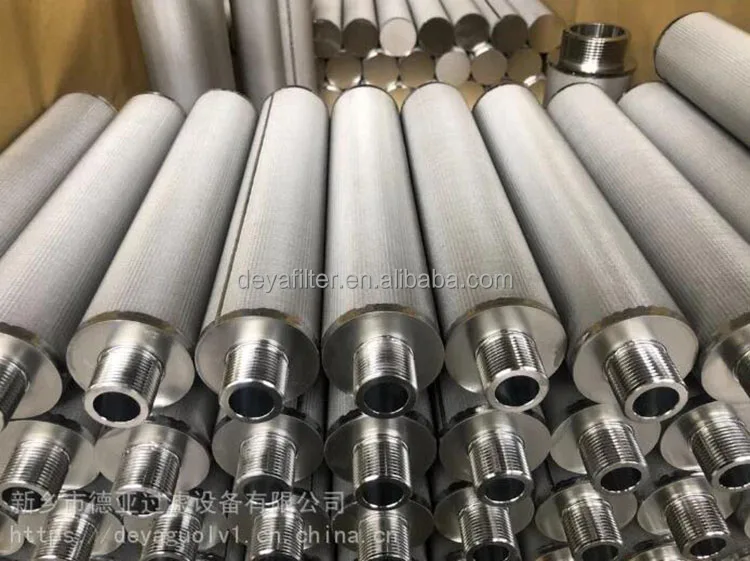

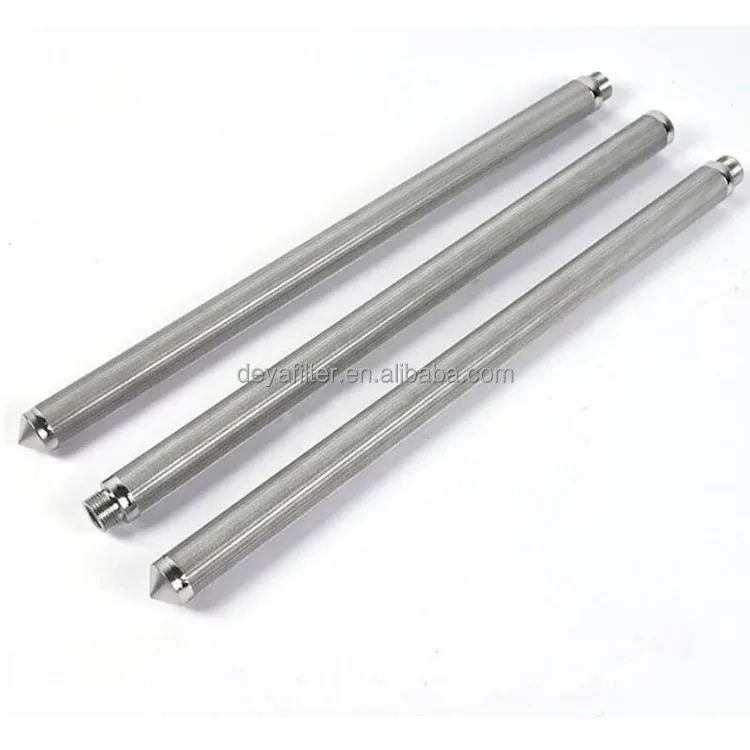

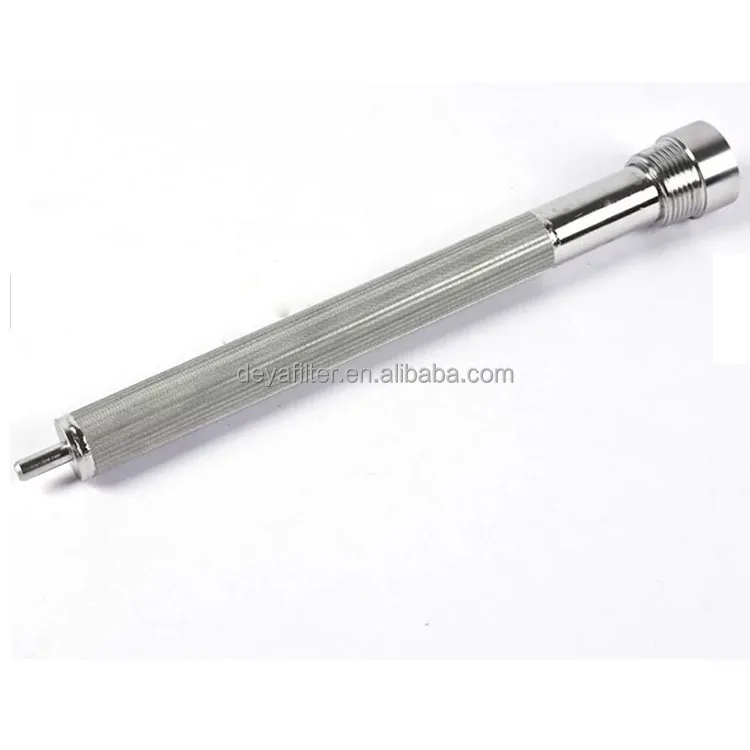

Different kinds of melt filter elments: (customize available)

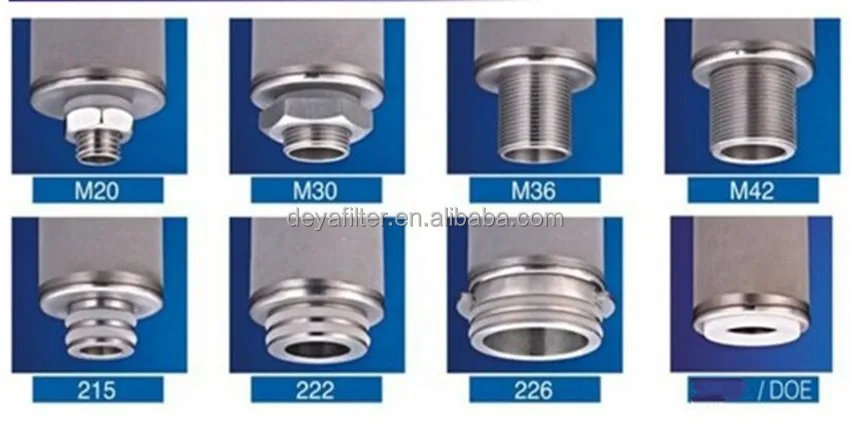

Kinds of interfaces:
A: standard interface(such as 222, 220, 226);
B: quick coupling connection;

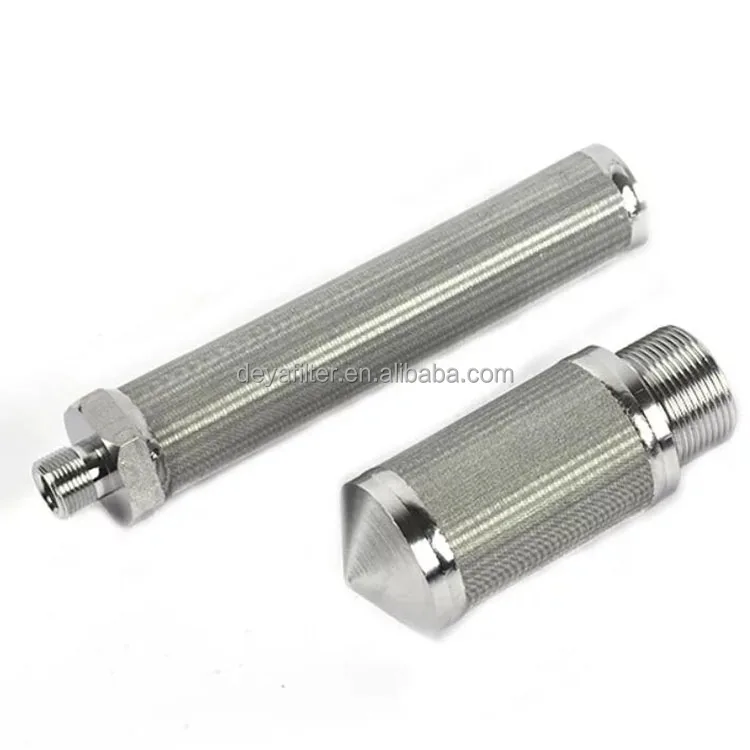

C: thread connection;
D: flange connection;
E: tie rod connection;
F: special custom interface available
B: quick coupling connection;
C: thread connection;
D: flange connection;
E: tie rod connection;
F: special custom interface available
Features of melt filter cartridge |
1. High temperature and high pressure, chemical resistance |
2. Excellent breathability, large amount of dirt, high strength, good sealing, long life, and can be used for repeated use |
3. Can be made into cylindrical or folded cylinder structure, the folded filter area is 3-5 times the cylindrical area |
4.Working temperature: -60-500°C |
5. Filter element withstands the max.pressure difference: 2MPa |
Specification
Type | Melt filter element |
Material | Stainless steel 304/316L，special material can be customized. |

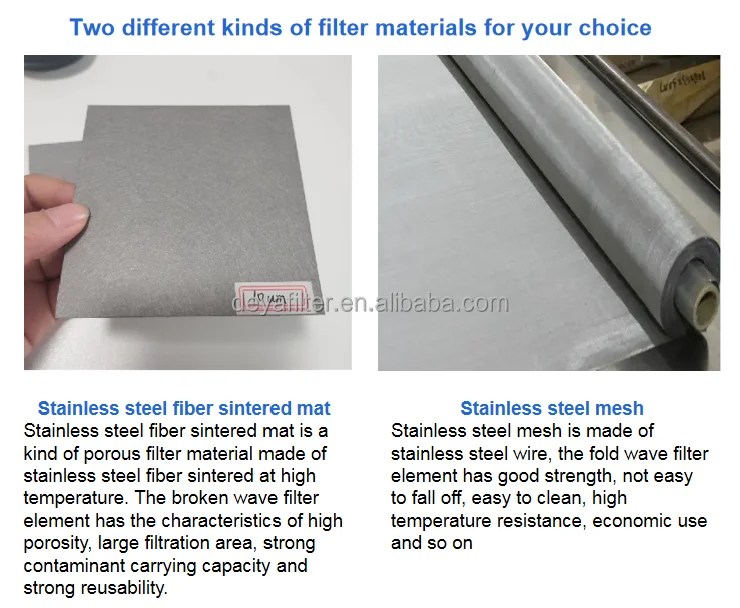

Filter layer material | Stainless steel fiber sintered felt /stainless steel wire mesh |
Filtration precision | 5~150um,3um can be customized/1~500um |
Length range | ≤1200mm,over 1200mm can be customized, need to splice |
Outer diameter range | Standard:30-100 mm,other size can be customized. |

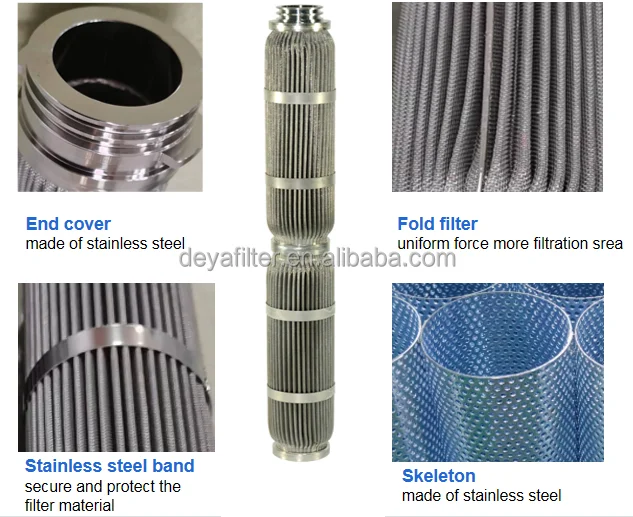

Skeleton | Steel plate punching square hole/round hole |

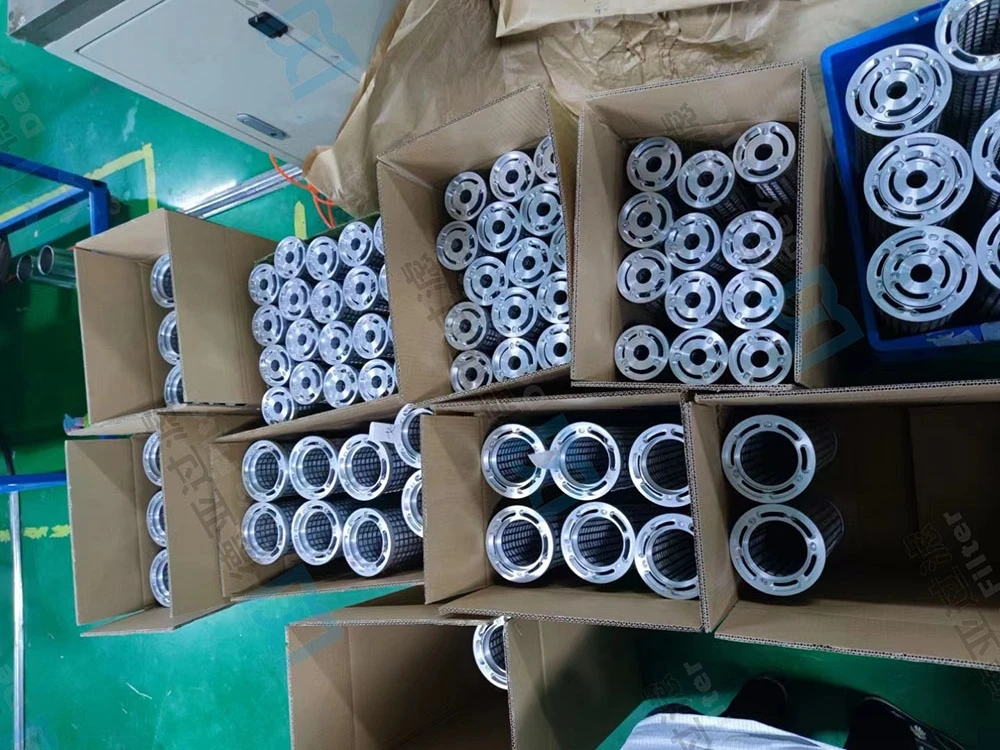

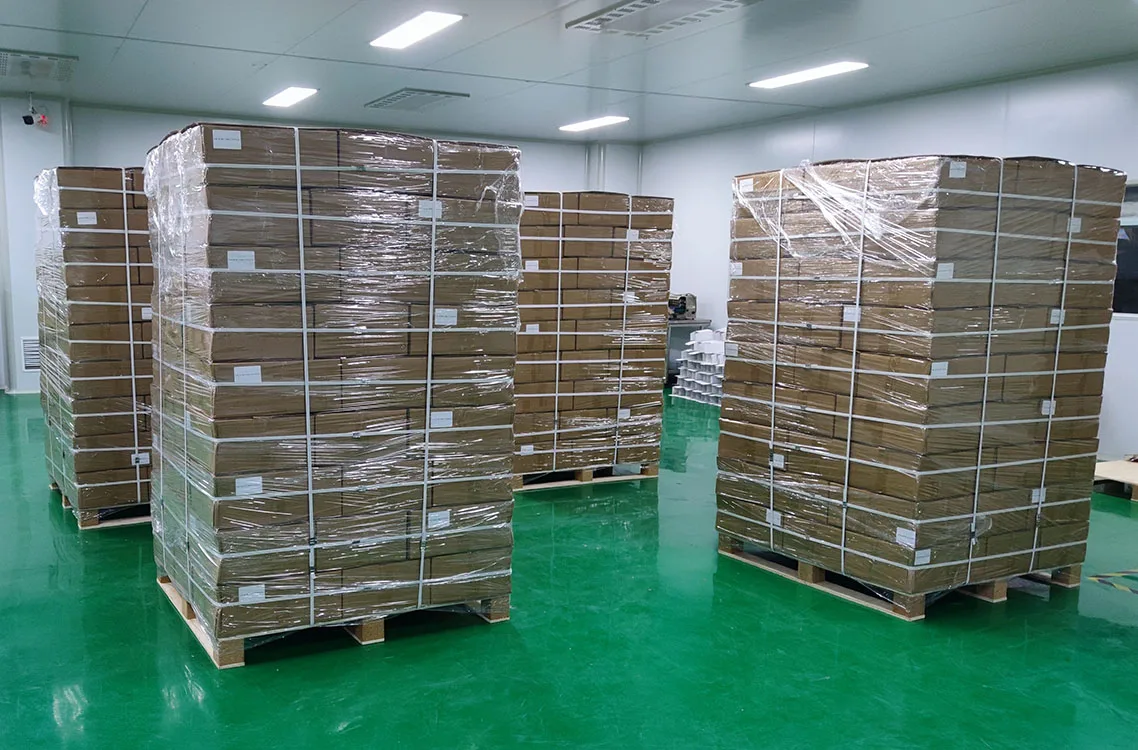

Packing & Delivery

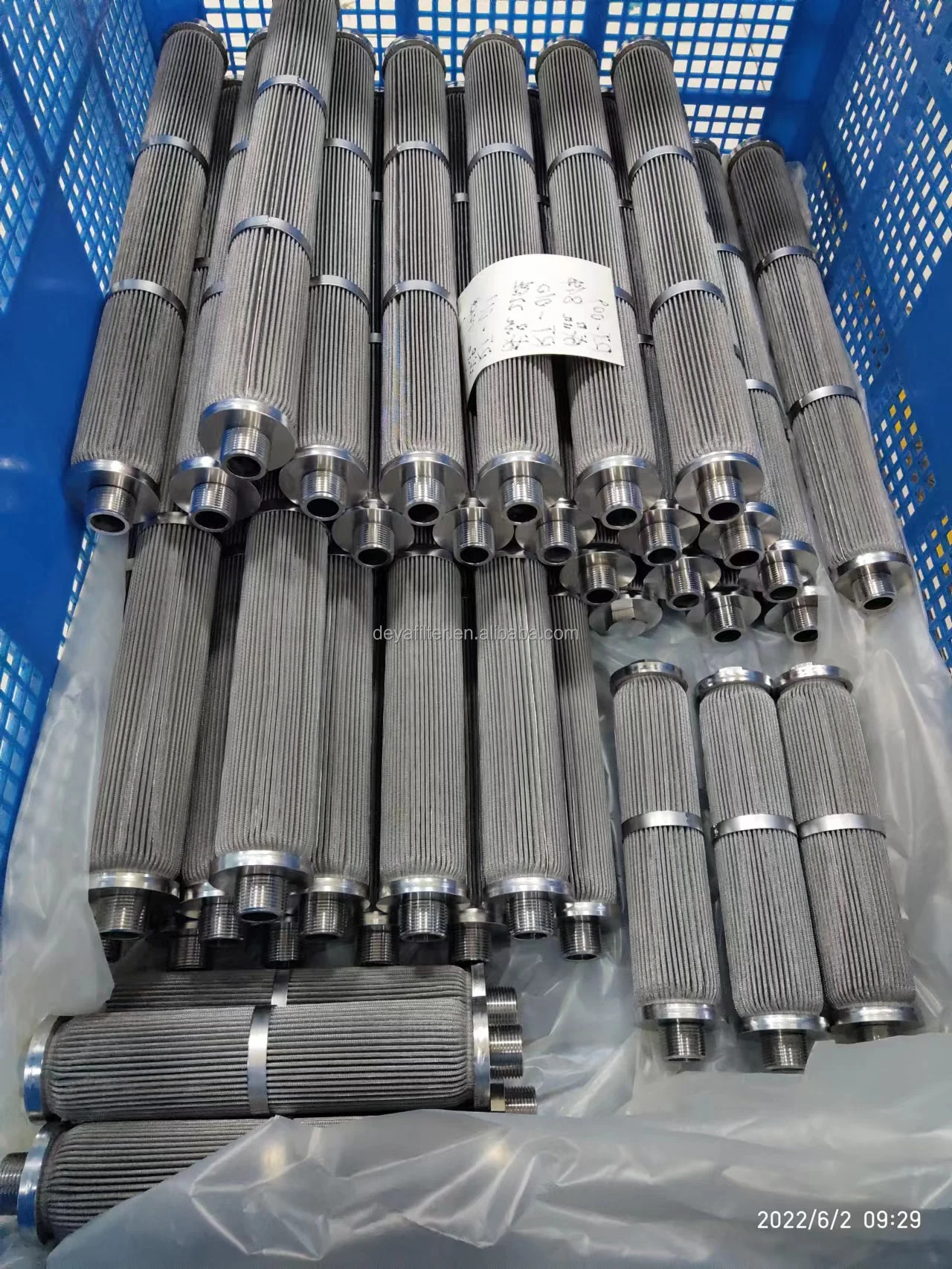

PACKING: The oil filter element will be packed by carton or wooden box
SHIPPING: The filter element will be shipped by air or e express, if quantity is big it will be shipped by sea.
Recommend Products
Muti-parallel filter element
Adhesive filter element
Melt filter clement
Parallel filter element

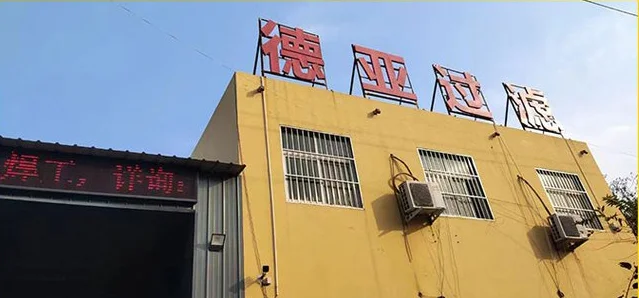

Company Profile

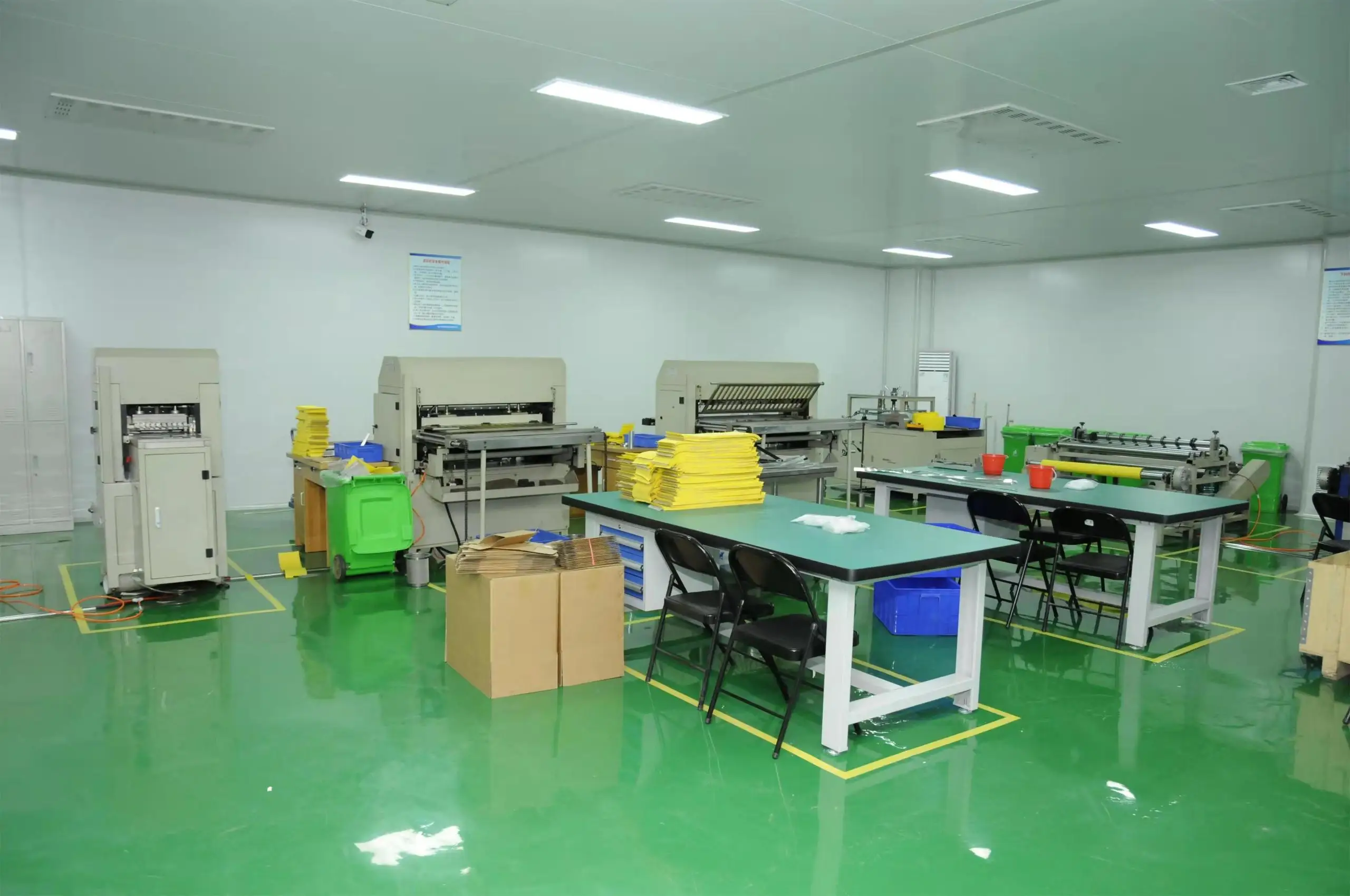

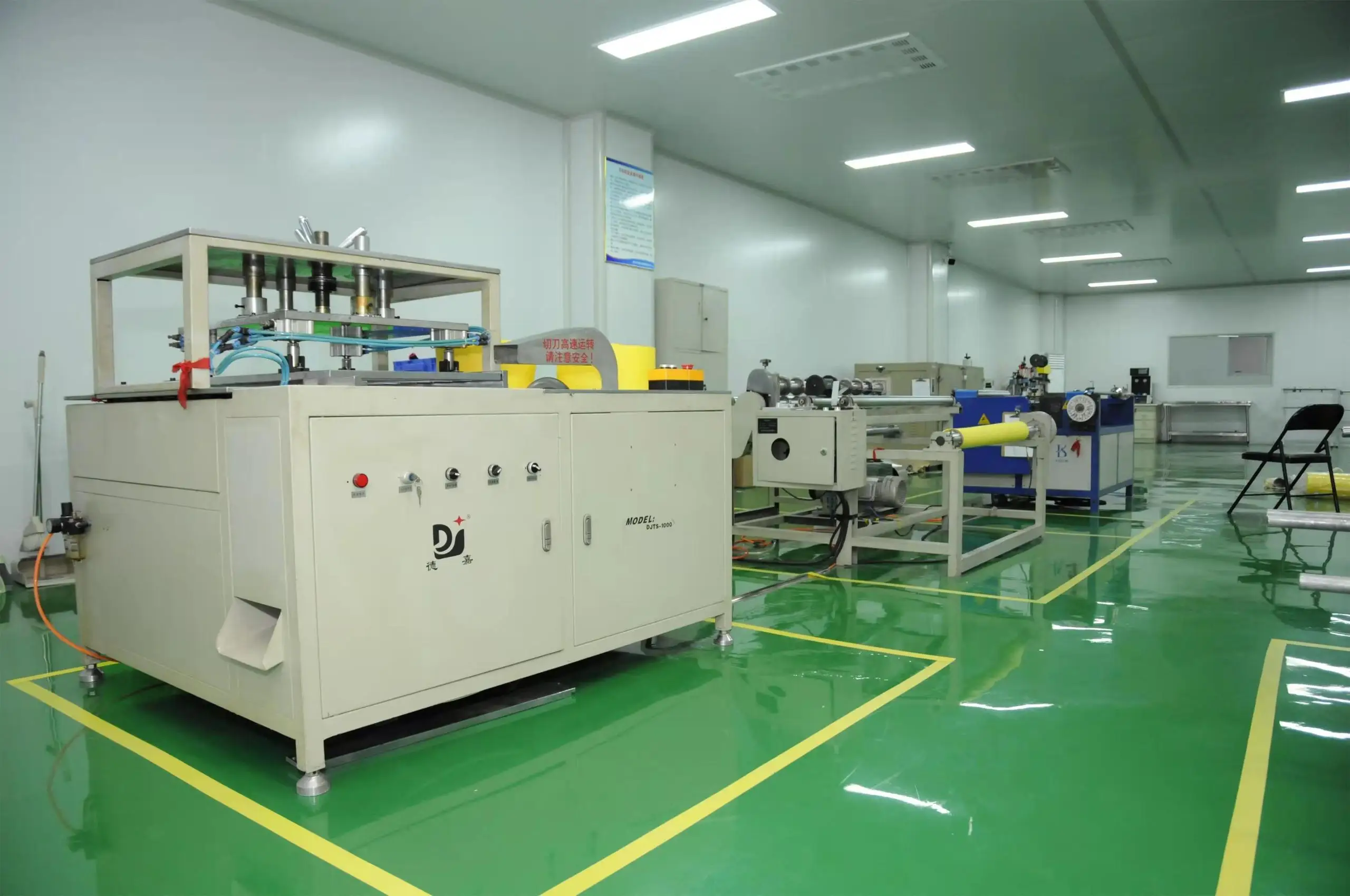

Xinxiang Deya Filtration Co., Ltd. is the professional manufacturer of oil filter elements,mainly to produce kinds of high quality oil filters, filter medium has hydraulic oil and lubricating oil,Product specially was used for high-grade industrial oil purification, widely used in power plants, steel mills, cement plants, pharmaceutical, textile, mining machinery, petrochemical, refrigeration, shipbuilding and other industries.
Certificate of ISO9001:2015 of Deya

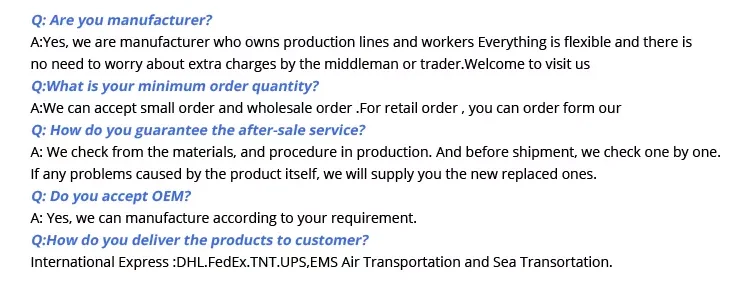

FAQ
