Catvscope 8 Port Waterproof FTTH Fiber Optic Terminal Box optical distribution box 1x8 Optical Splitter
- Category: >>>
- Supplier: HANGZHOU SCOPE TECHNOLOGY CO. LTD.
Share on (1601270961740):
Product Overview
Description
Product Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides
solid protection and management for the FTTX network building.
solid protection and management for the FTTX network building.
Features
1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.

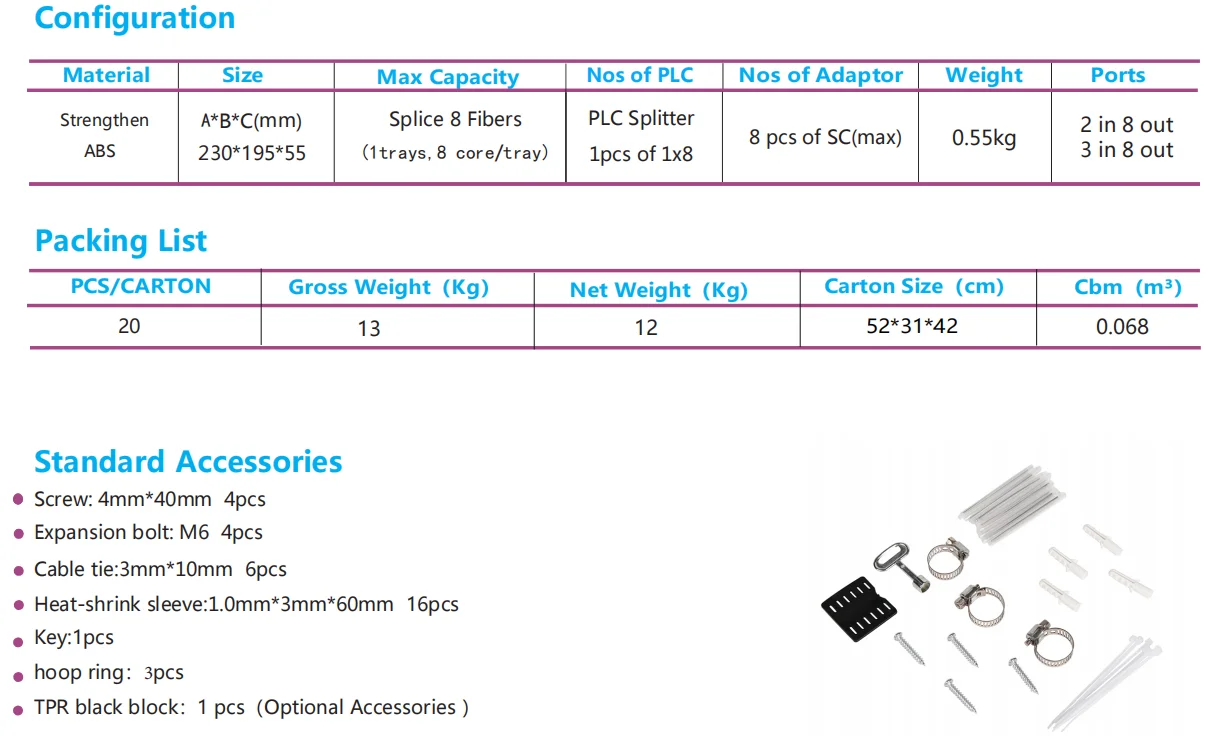

Specification
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 230*195*55 | Splice 8 Fibers (1trays,8core/tray) | PLC Splitter 1pcs of 1X8 | 8 pcs of SC(max) | 0.55kg | 2 in 8 out 3in8out |
