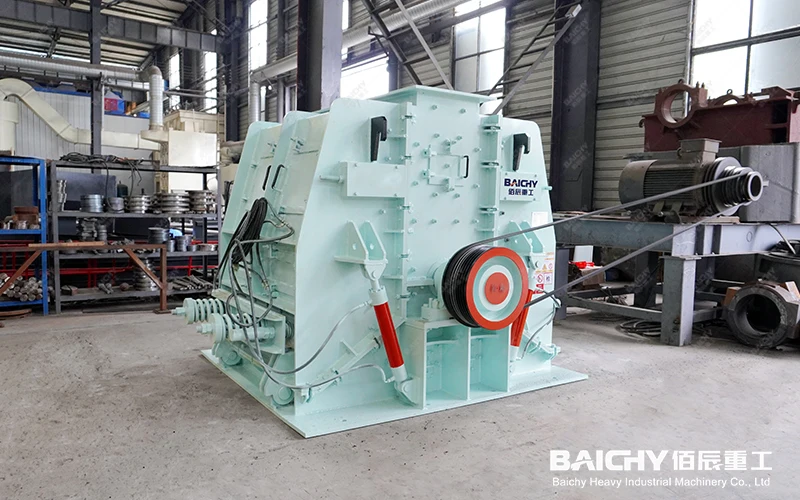

Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher



Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher

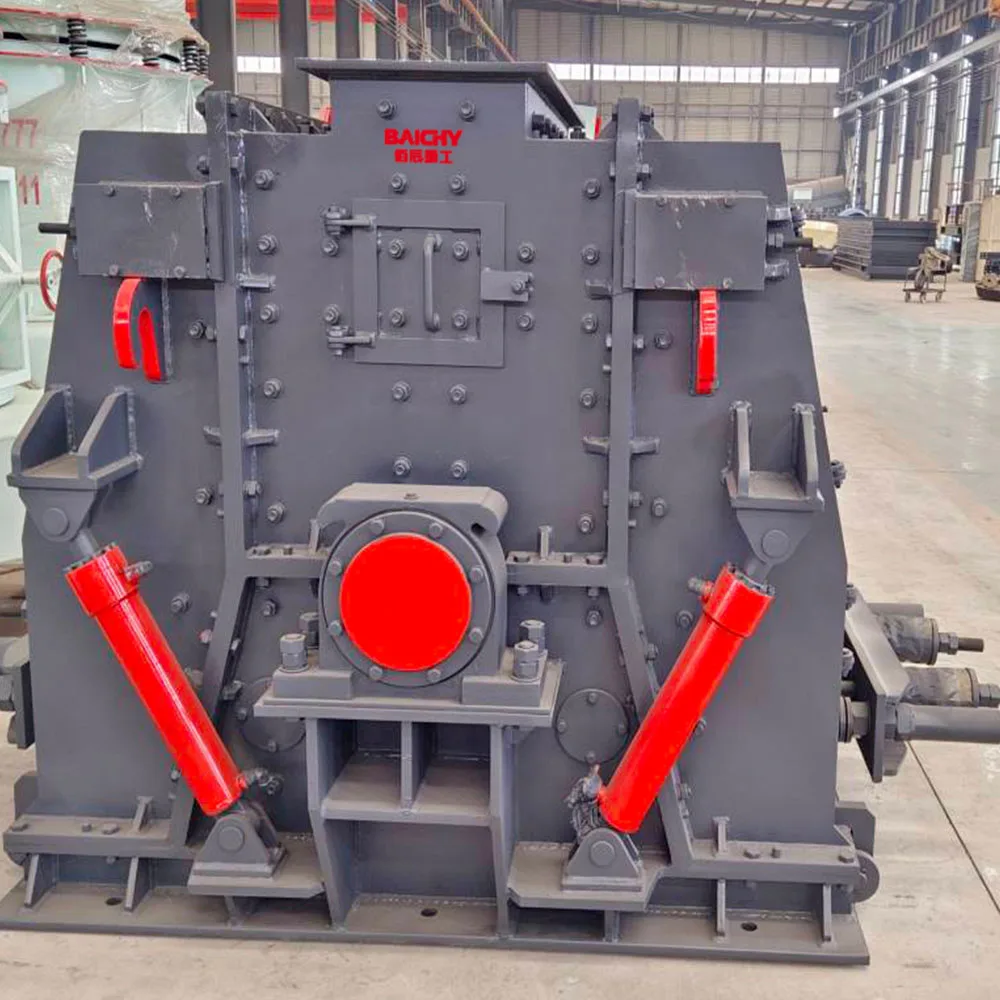

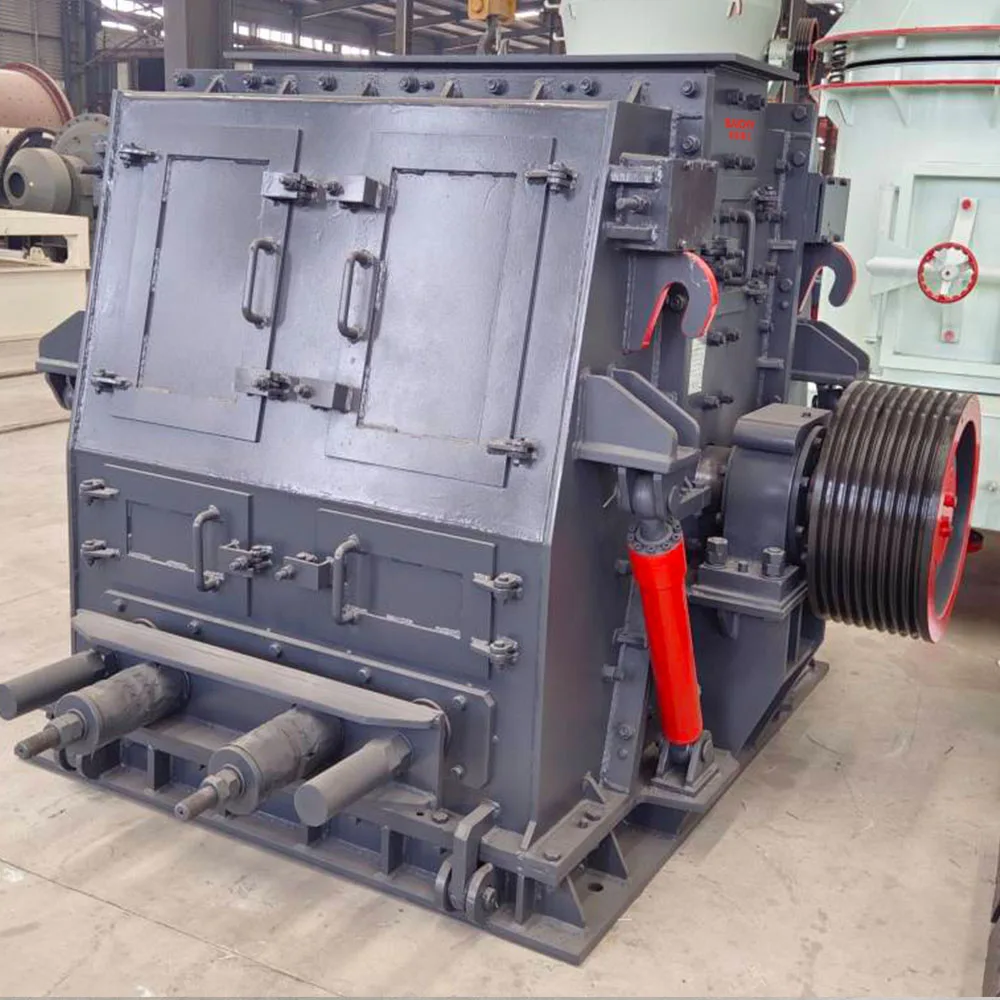

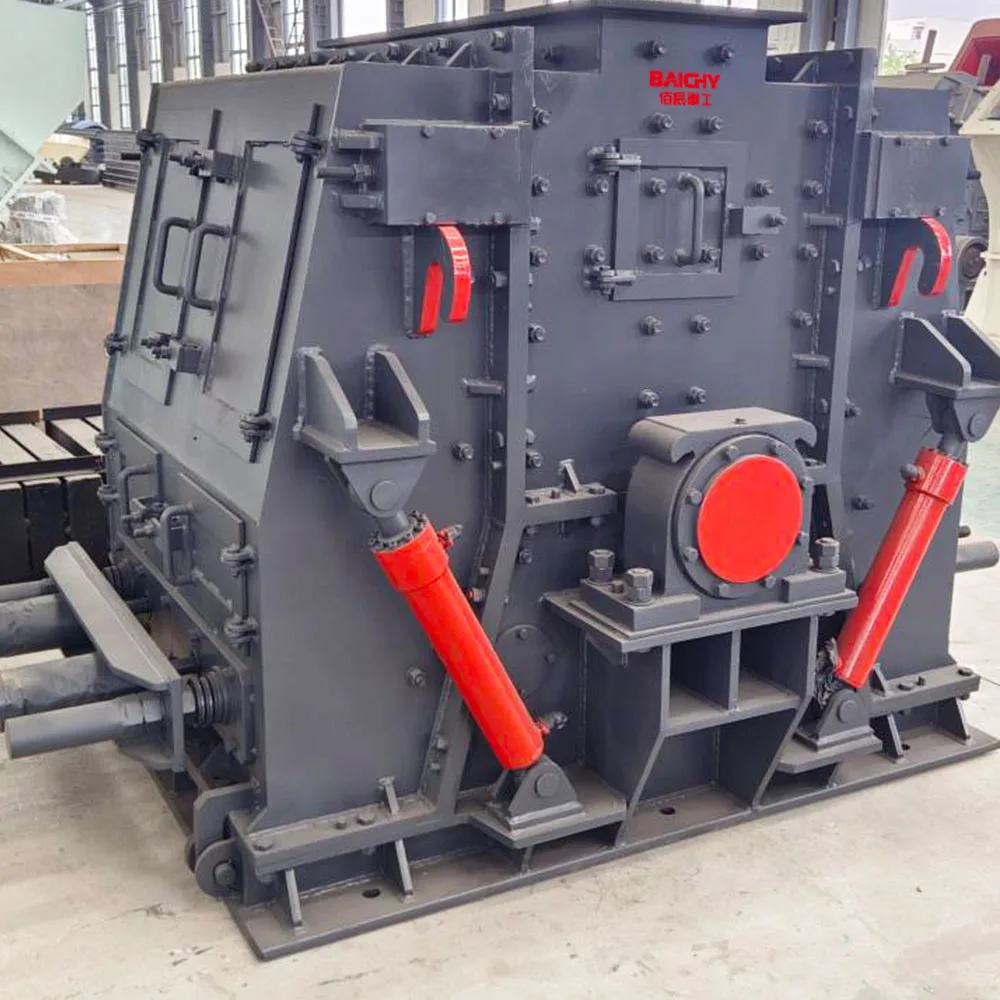

Product Name: Reversible Hammer Crusher




Capacity: 25-350t/h


Power: 90-560kw


Max. Material Size: 0-140mm


The reversible hammer crusher is named after the rotor can rotate in both directions. It is one of the crushing equipment for crushing limestone, coal, or other brittle materials below medium hardness in metallurgy, building materials, the chemical industry, hydropower, and other industrial fields.

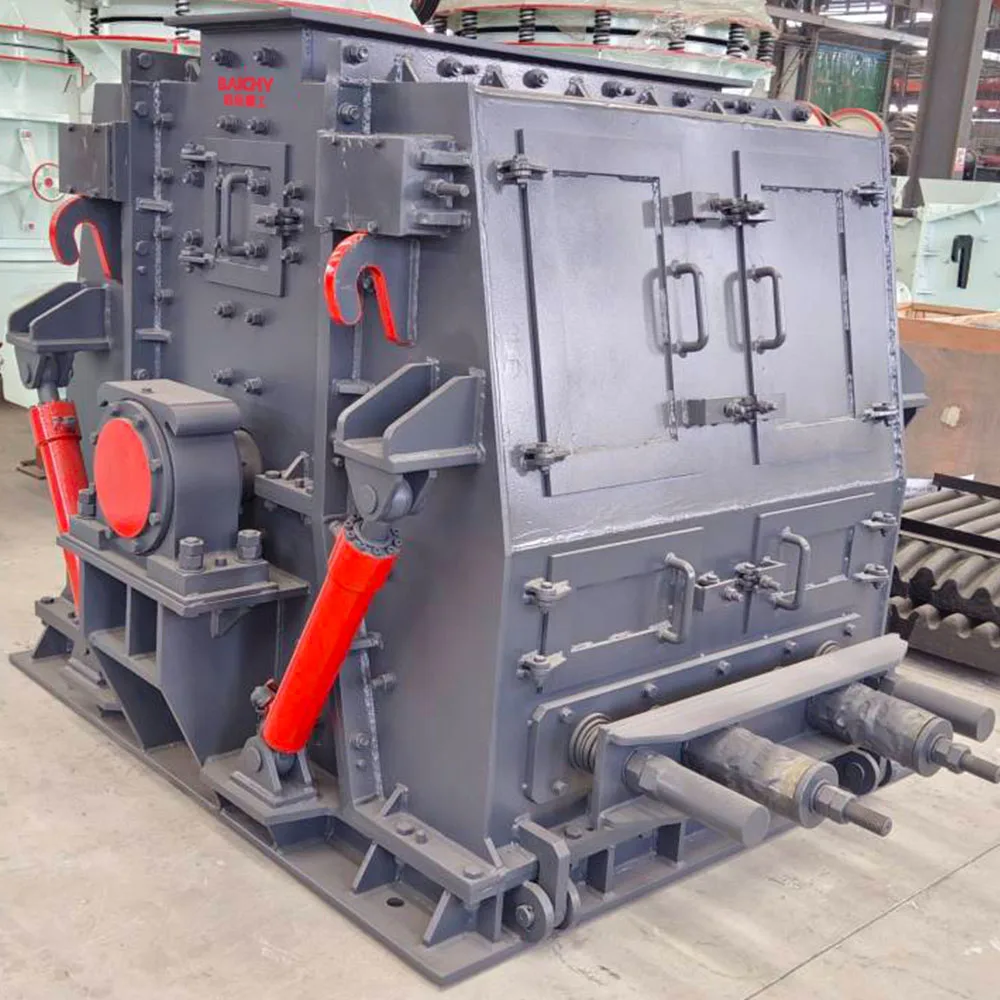

Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher




Application of reversible hammer crusher



Reversible hammer crusher is an efficient, reliable and adaptable crushing equipment that can meet the needs of various industrial sectors for fine crushing of materials. It is widely used in industrial sectors such as metallurgy, building materials, chemical industry and hydropower for fine crushing of brittle materials with medium hardness or below, such as limestone, coal, gypsum and soft refractory materials.

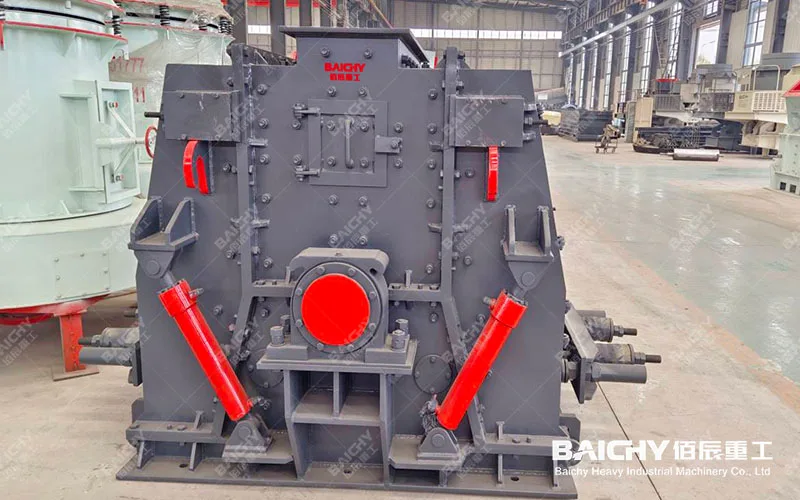

Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher




Main features of a reversible hammer crusher




1. Large crushing ratio: The crushing ratio of reversible hammer crusher can reach up to 20, which can effectively crush the material to the required particle size.


2. High production capacity: The equipment has efficient production capacity and can meet the needs of large-scale production.


3. Uniform product particle size: The material particle size after crushing by a reversible hammer crusher is uniform and meets production requirements.


4. Advanced structure: Reversible hammer crusher adopts advanced product structure, reliable performance, stable operation and low energy consumption.


5. Reversible crushing: The hammer head uses two sides, and the life span is increased by more than 1 times, which reduces the production cost.


6. Mechanical gap adjustment: It can compensate for the increase of particles caused by wear of wearing parts and maintain the stable operation of the equipment.


7. Impact plate heating system: It can be used to process wet and sticky materials so that drying and crushing can be carried out at the same time, which improves the adaptability of the equipment.





Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher

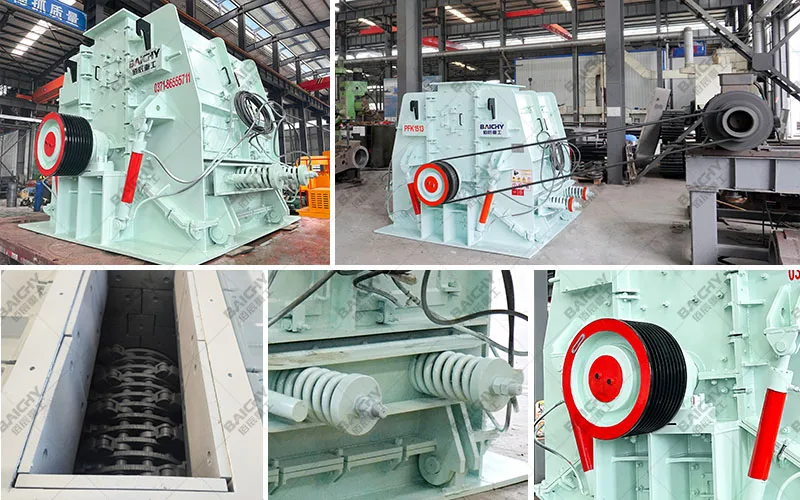

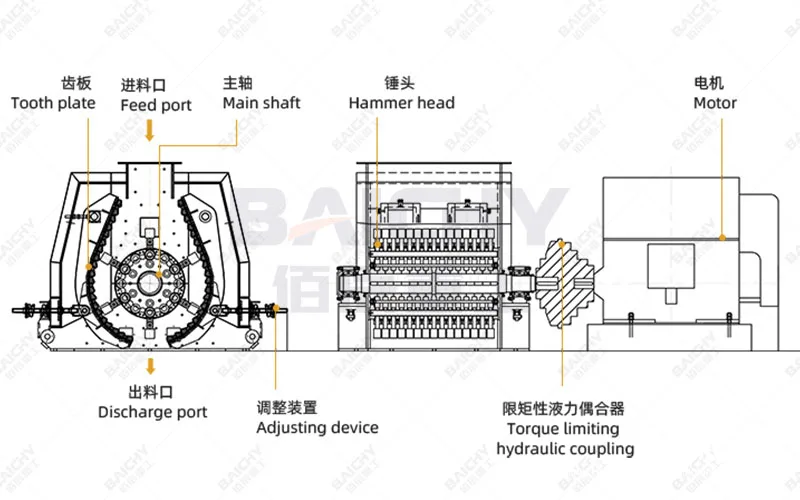

Composition of reversible hammer crusher




Reversible hammer crusher is mainly composed of frame, rotor, screen bar, impact plate, adjustment device, etc. The rotor is the core component of reversible hammer crusher. Its reversibility enables the hammer head to be used on both sides, which prolongs the service life of the hammer head.




The working principle of the reversible hammer crusher is mainly to crush materials by impact.




1. After entering the crusher, it is crushed by the impact of the high-speed rotating hammer.




2. The crushed material obtains kinetic energy from the hammer and rushes to the baffle and screen bar in the frame at high speed. At the same time, the materials collide with each other and are crushed multiple times.




3. The material smaller than the gap between the screen bars is discharged from the gap. Some larger materials are crushed again on the screen bar by the impact, grinding and extrusion of the hammer until the product of the required particle size is obtained.






Technical Parameters








































































Model


Rotor Size(mm)Feed Size(mm)Finished size(mm)Production Capacity(t/h)Power(kw)
PCK0808800x800≤60≤1525-4090
PCK10101000x1000≤8035-70110
PCK10121000x1250≤8070-90132
PCK12121250x1250≤10090-120220
PCK12141250x1400≤100120-150250
PCK14161400x1600≤120160-250355
PCK14181400x1800≤120250-300400
PCK16181600x1800≤140280-350560

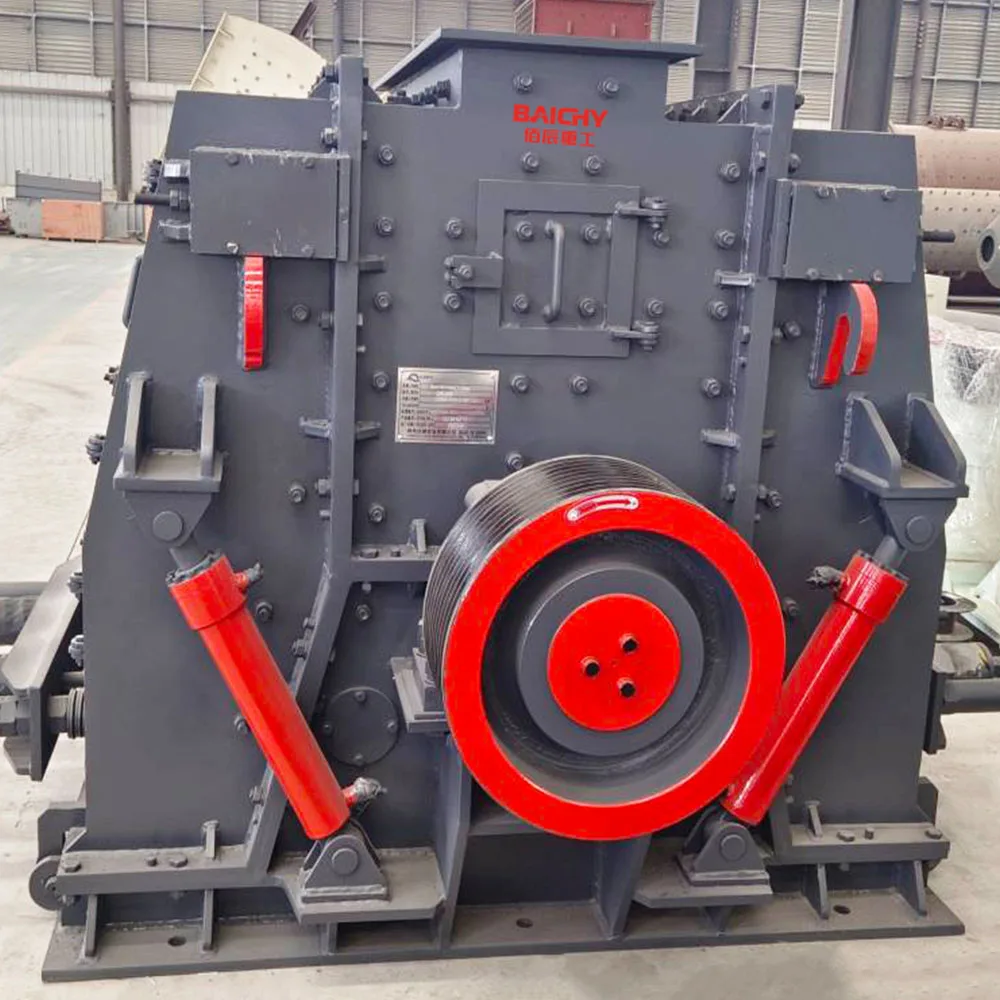

Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher




Baichy-Eva


Related Recommendations


























Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher




Jaw Crusher





Impact CrusherCone Crusher
Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher Best Sale Hardness Stone Crushing Machine Reversible Hammer Crusher,Mining Equipment PCK Series Reversible Hammer Crusher




Sand Making Machine





Vibrating ScreenMobile Stone Crusher

Baichy Machinery Overseas Service Team




Perfect after-sales service




Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.




The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.




To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.





Henan Baichy Machinery Equipment Co., Ltd




Henan Baichy Machinery Equipment Co., Ltd is a professional mining machinery manufacturer mainly engaged in producing stone crushers, powder grinding mills, mobile crushing plants, and mineral processing equipment. It covers a total area of 200,000 square meters, including a standardized workshop, modern office building, R&D center, and sales and aftersales center.

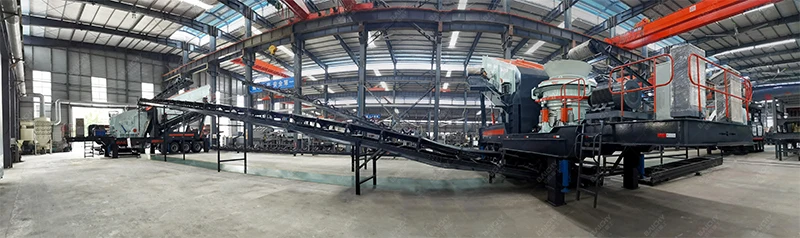

Baichy Machinery workshop
