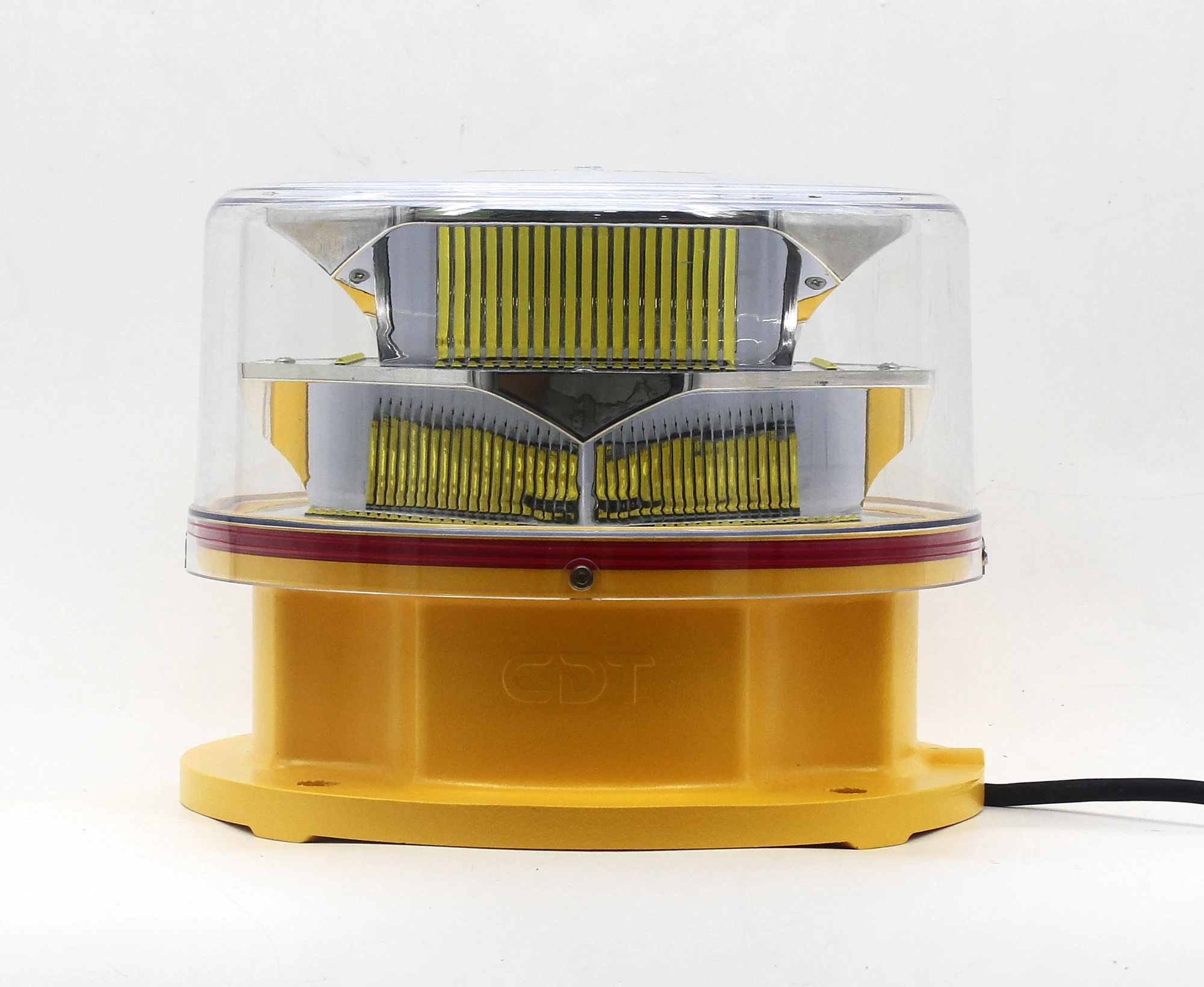

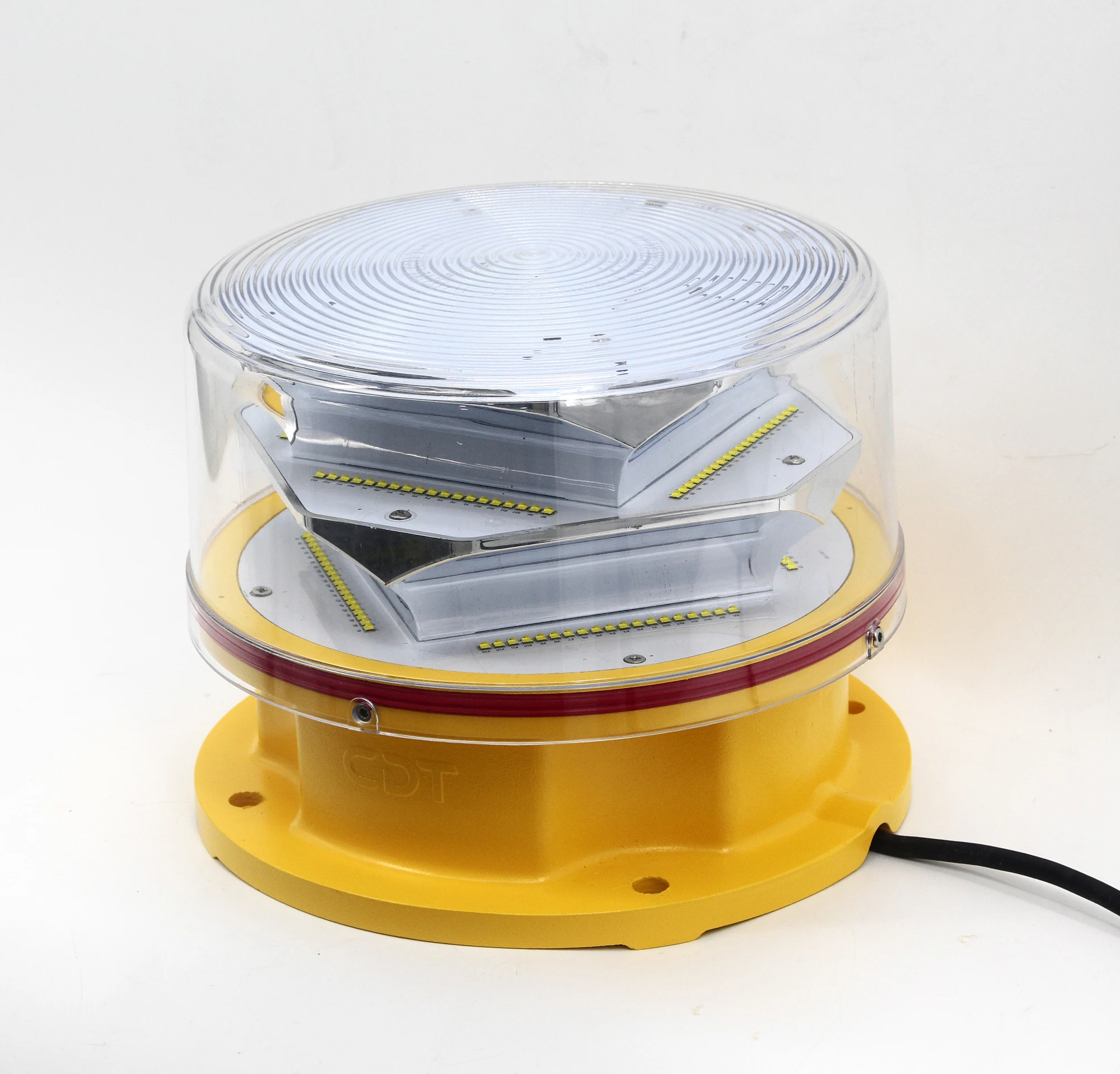

Tower marking light ICAO FAA L864/865 Medium intensity type A white flashing GPS synchronization aviation obstruction Light
* Dual aviation obstruction light (1 duty & 1 stand-by)
* Stainless Steel beacon support bracket
* Infrared version: IR wavelength 850nM
* Solar Powered system
* Medium intensity obstruction light type A , Type B . Type AB . Type C. Type AC Optional
Medium Intensity aviation obstruction light (MIOL) with multi LED type. In compliance with ICAO Annex 14 Type A, Type C and FAA
L-864. As specified by Annex 14 of ICAO regulations, Medium Intensity Obstruction Light can be used to warn the presence of
obstacles Above 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.This
beacon is the simplest device according to ICAO standards. It provides flashing red lightof intensity: ≥2000cd for Type
B,≥2000-20000cd for Type AB . In particular, the medium Intensity Lights with solar panel are used for night-time signalisation
where the power supply does not arrive or where it is very weak.
For more details ,
emma@chendongtech.com
what'sapp :0086-13342512879
what'sapp :0086-13342512879
Skype: chendongtech1
Product Presentation
Item | Parameter | |
Model | CM-15-A | |
Operating Voltage | AC220V(other available) | |
Power consumption | ≤30W | |
Flashing frequency | 20~60times/min | |
Light Intensity | 2000~20000cd | |
Life span | >100,000 hours | |
Emitting color | White | |
Beam angle | 360° horizontal | |
more than 3° vertical beam spread | ||
Method of synchronization | Same power supply voltage signal mode | |
Overall size(mm) | 268mm×206mm | |

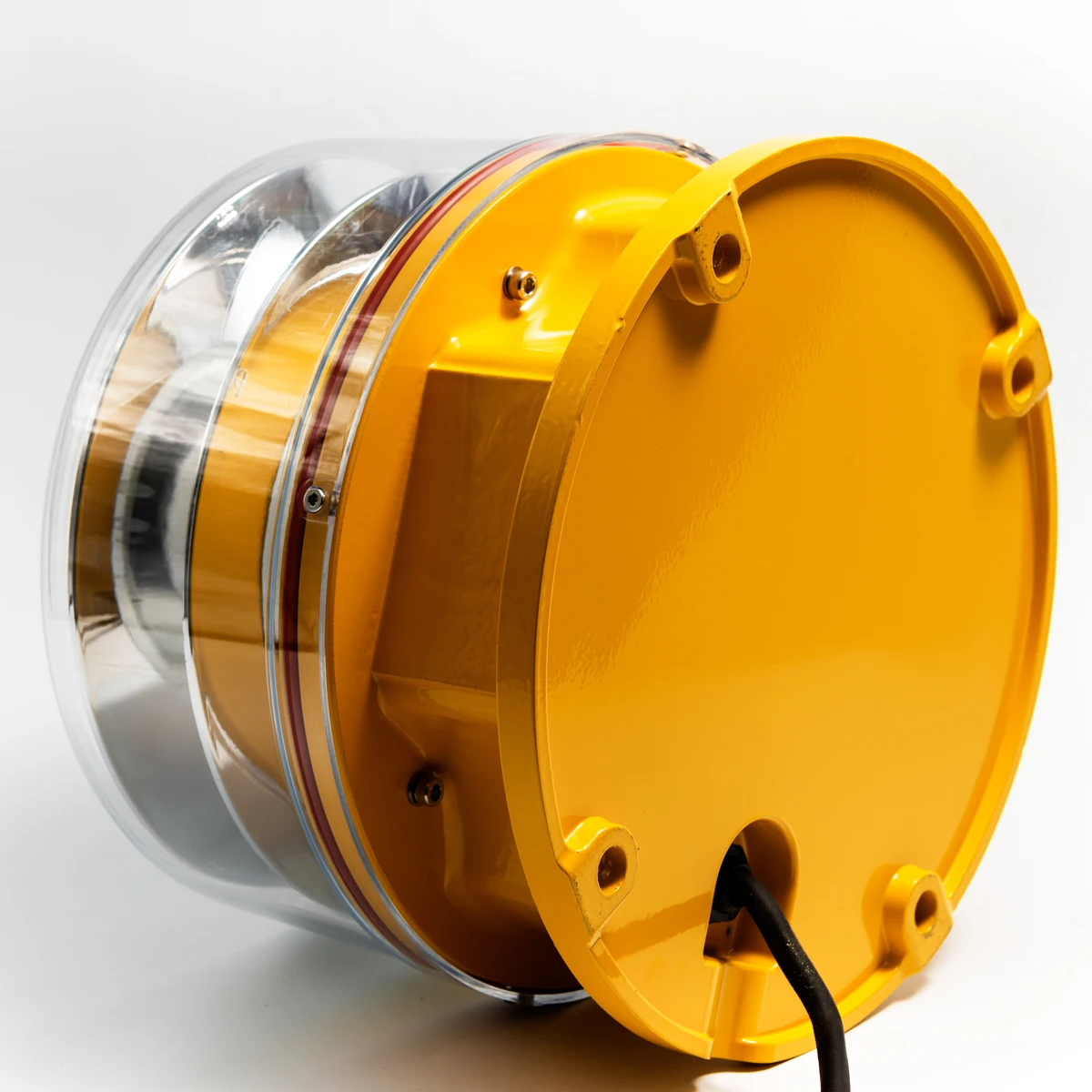

Installation size(mm) | 166mm×166mm×-4x∅10 | |
Ingress protection | IP65 | |
Lightning protection level | 10KA | |
Operating temperature | -40℃~55℃ | |
Net weight | 7KG | |
Wind load | 80m/sec. |
Specification
1. Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite
high impact resistance and fits the bad environment very well.
2. House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high
strength, resistance to corrosion.
3. Use the special optical reflector design, the visual range further, angle more accurate, no light
pollution.
4. Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption,
energy efficiency and environmental protection.
5. Based on the single chip computer control, automatic identification sync signal, do not distinguish
the main light and auxiliary light, and also could be controlled by the controller.
6. Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the
damage by error installation caused.
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light
intensity level.
8. The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
9. Integral structure, protection level of Ip65.
10. GPS synchronizing function is available.

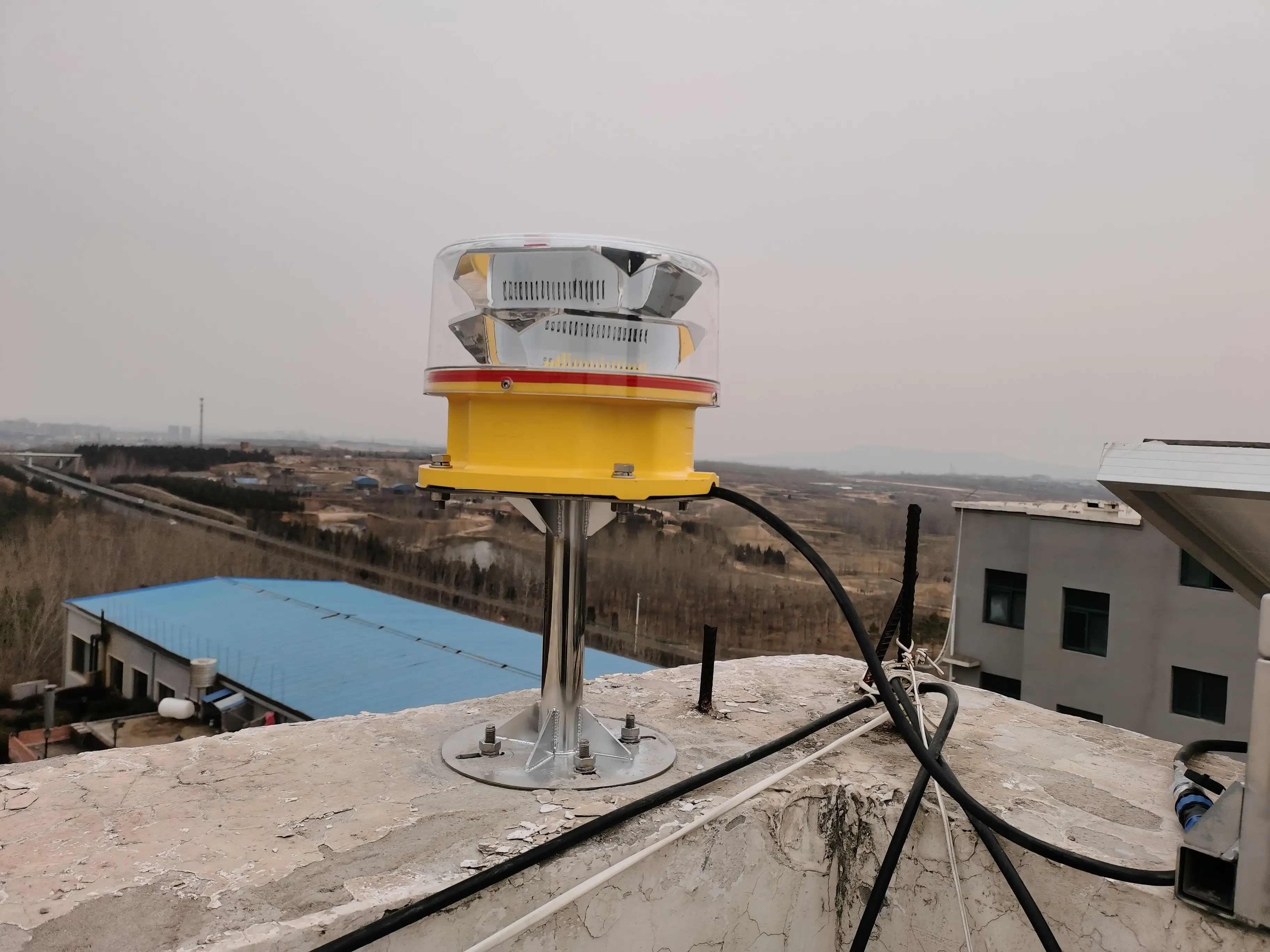

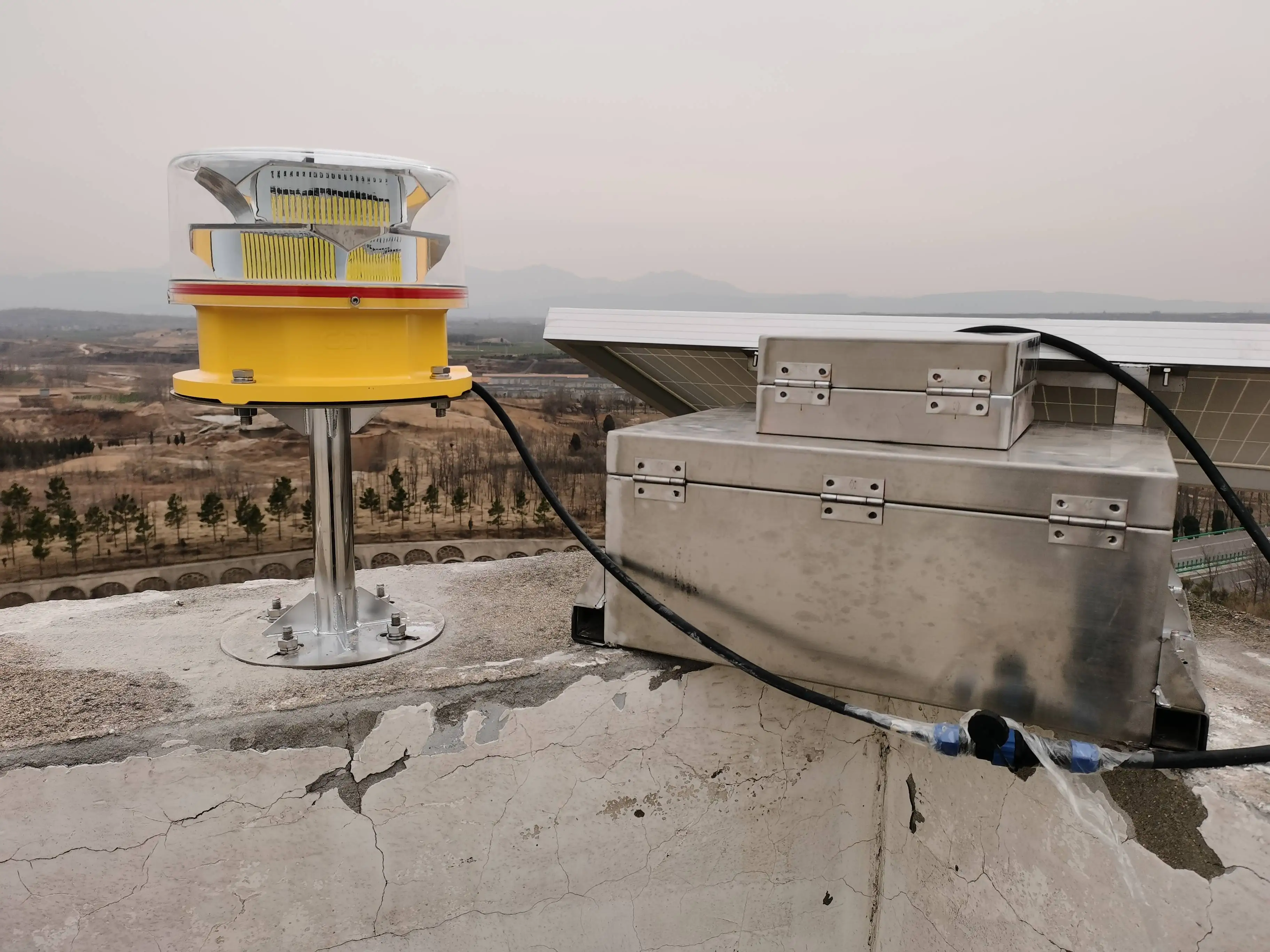

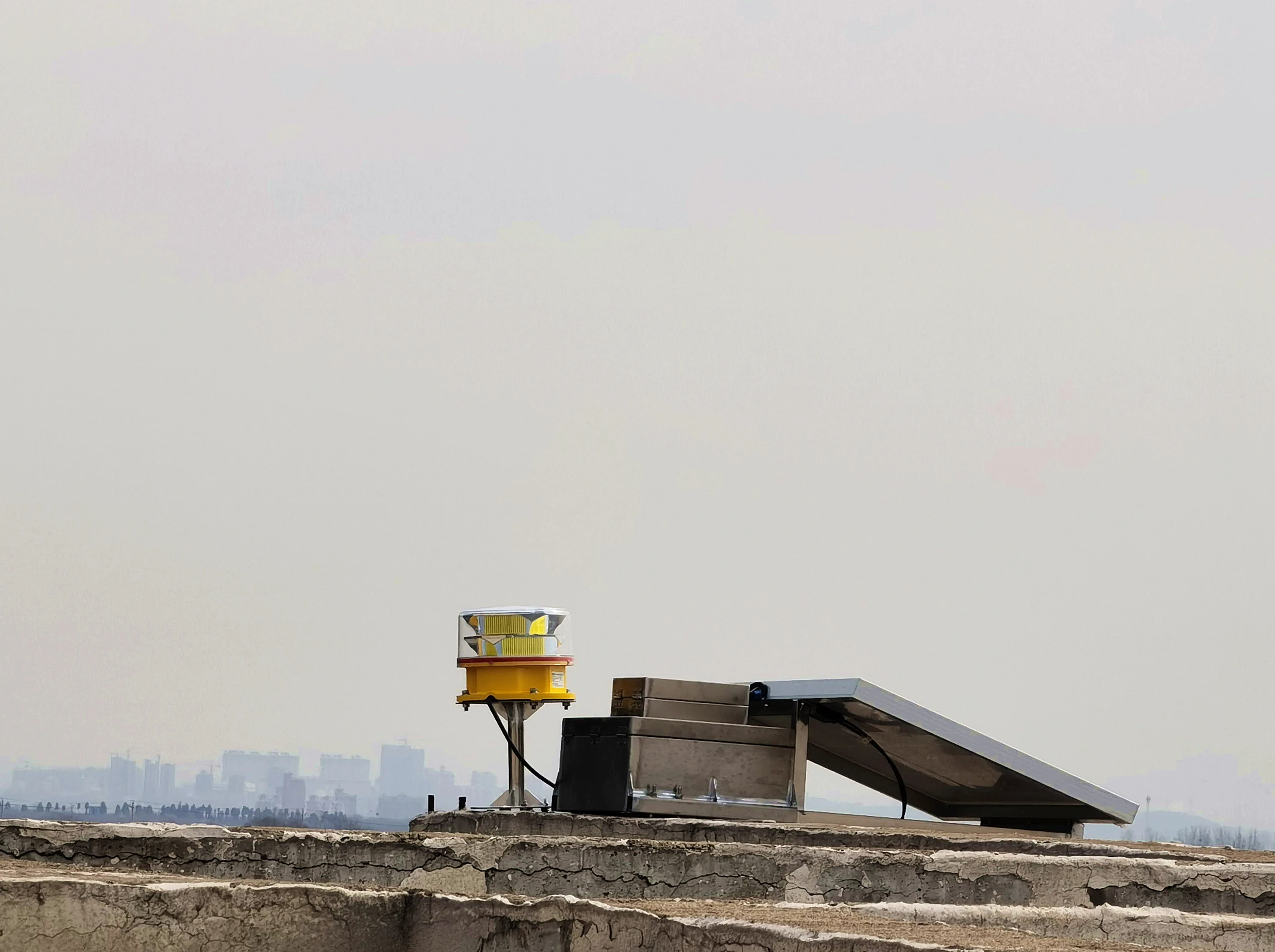

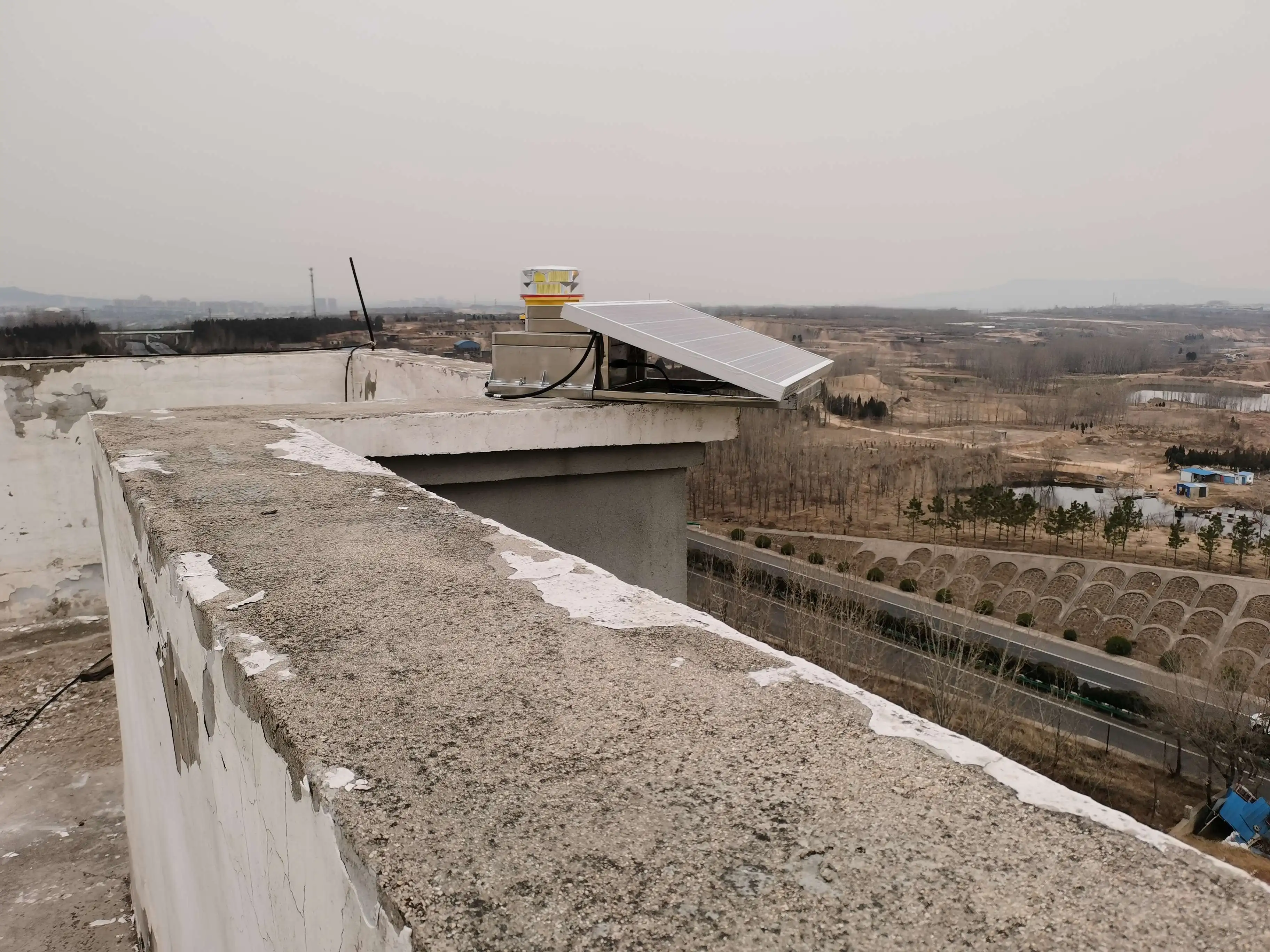

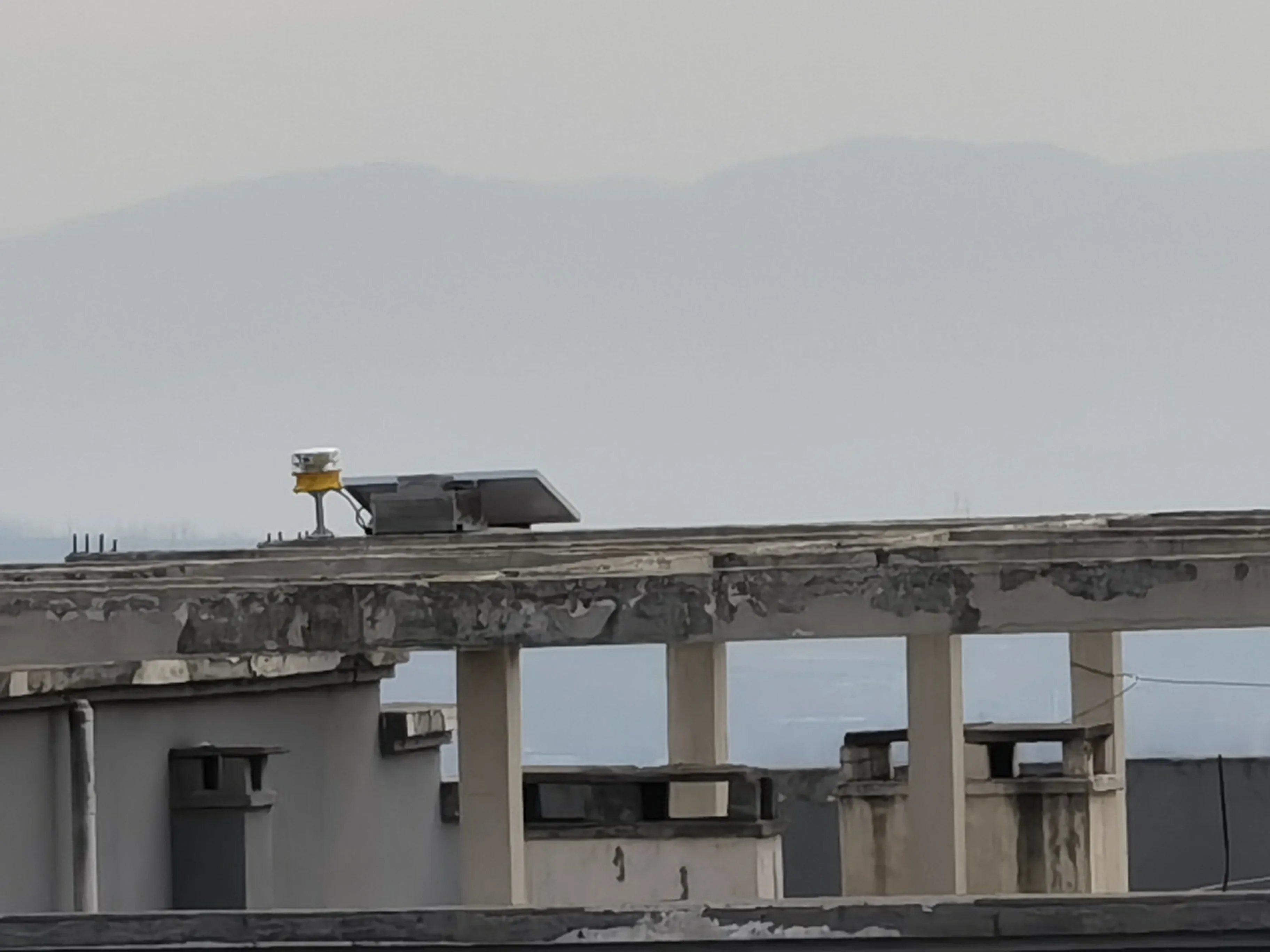

Installation Project
