200w 6GU gear head 104*104mm square mounting flange 15mm output shaft three phase 380v 50hz AC electric gear motor with brake
- Category: >>>
- Supplier: Zhengzhou Huiyinn Electronic Technology Co. Ltd.
Share on (1601271021906):
Product Overview
Description
200w 6GU gear head 104*104mm square mounting flange 15mm output shaft three phase 380v 50hz AC electric gear motor with brake

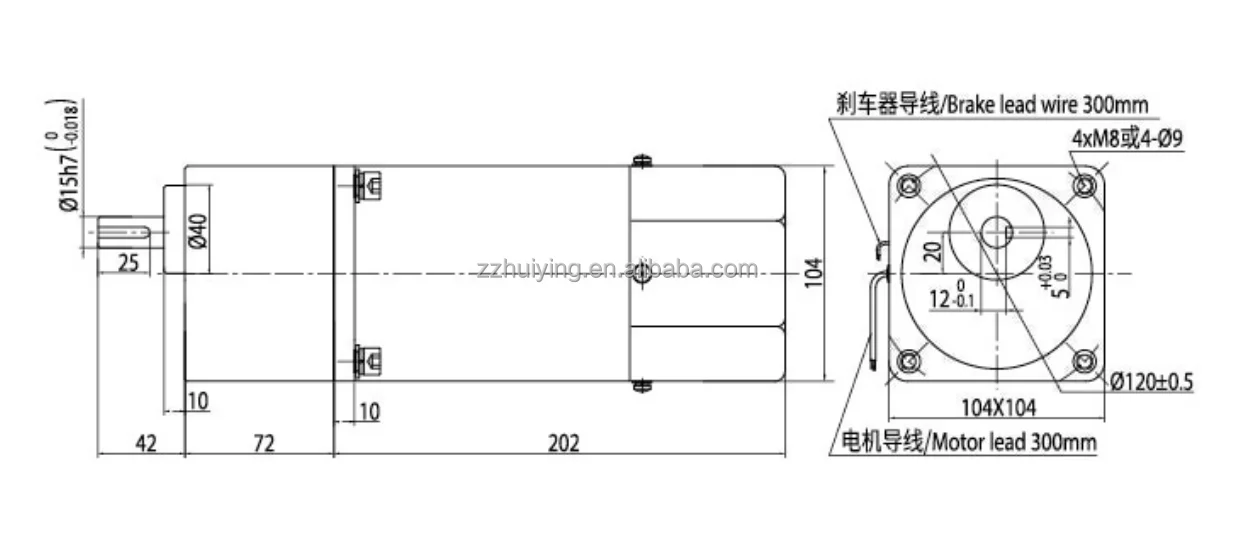

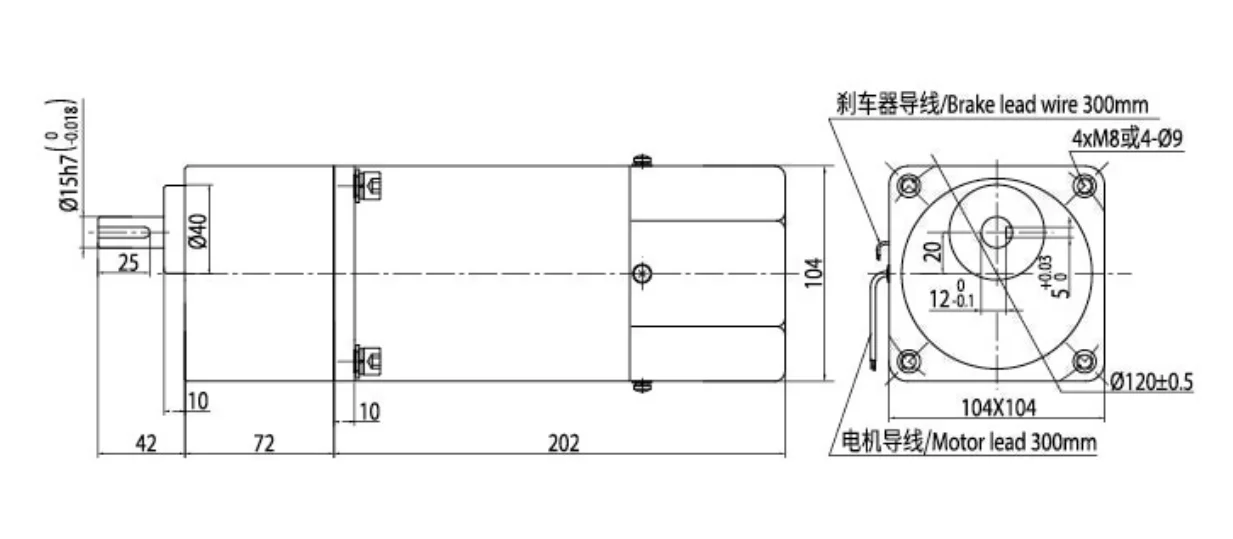

Product Parameters And Dimensions
Product name | AC electric motor with brake |
Power | 200w |
Voltage | Three phase 380v |
Motor speed | 1350rpm |
Frequency | 50HZ |

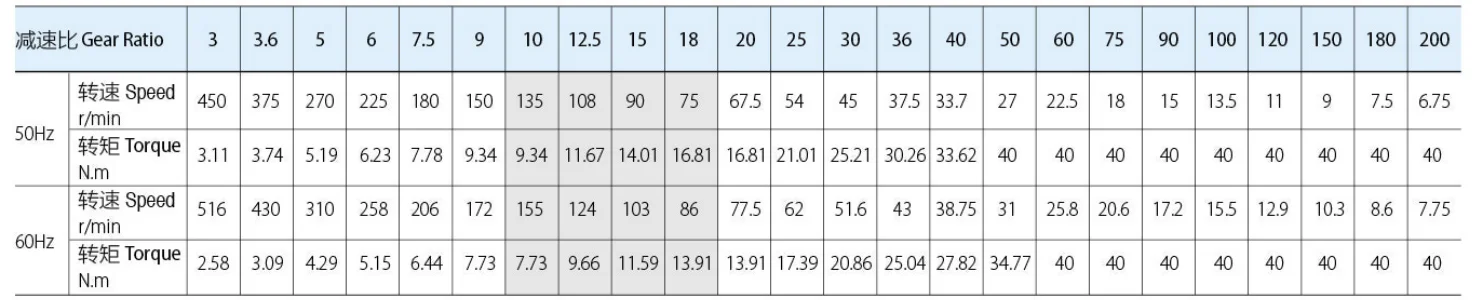

Gear head ratio | 3/3.6/5/6/7.5/9/10/12.5/15/18/20/25/30/36/40/50/60/75/90/100/120/150/180/200 |
Color | blue |
Frame | aluminum |
weights | 14kg |

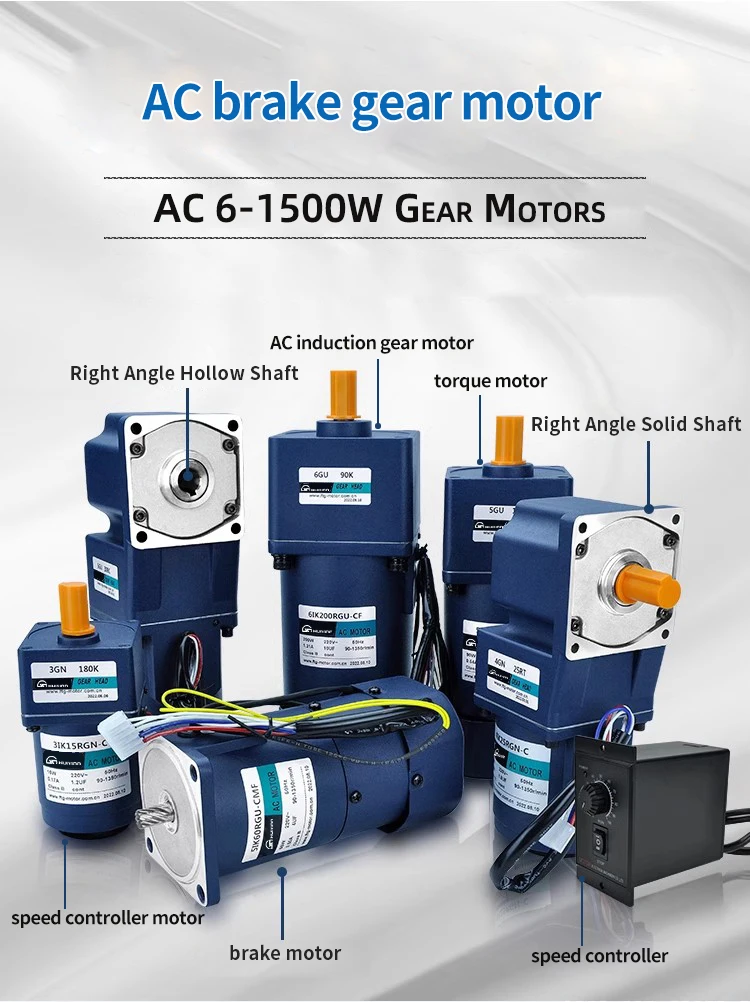

200w AC electric motor with brake

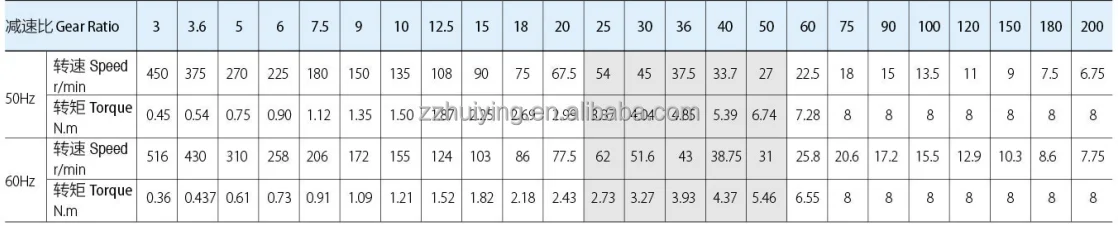

Below are some of the models and parameters of the speed control motor, if you need other models or customized, please send an inquiry.
Product Description

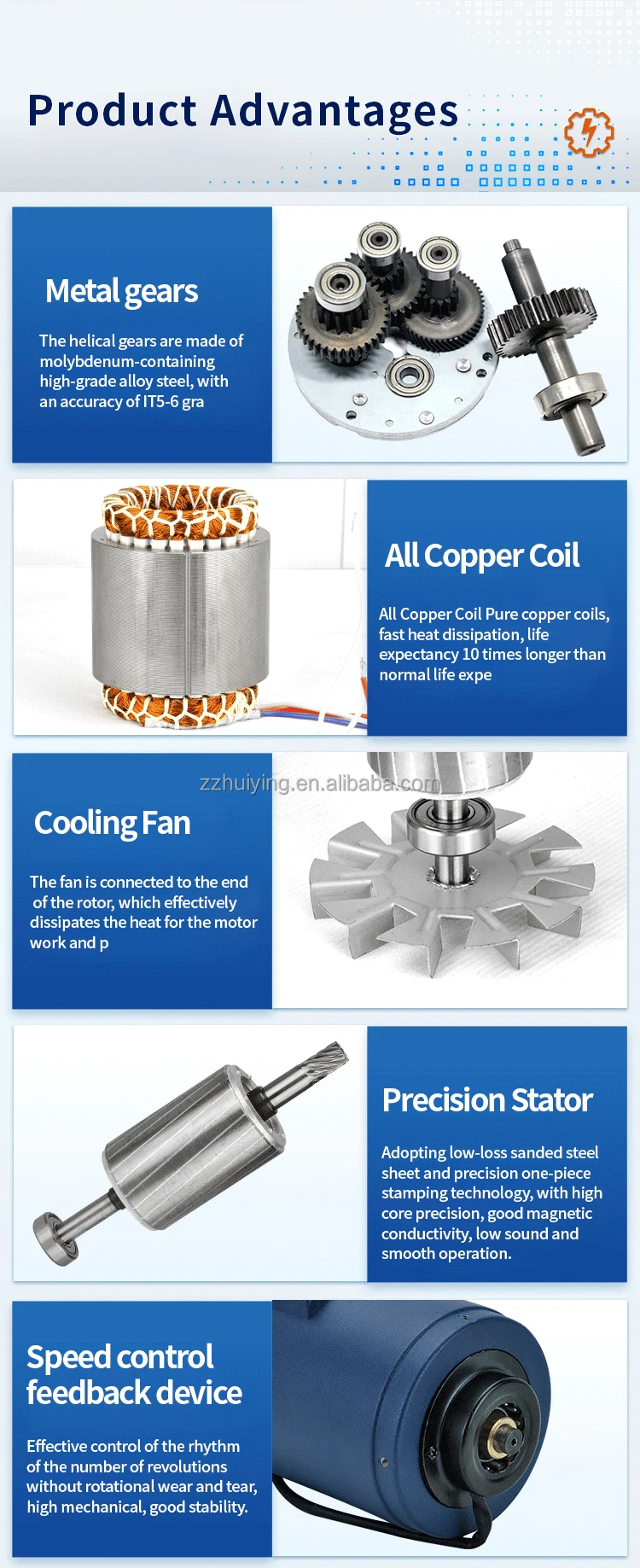

Product Advantages

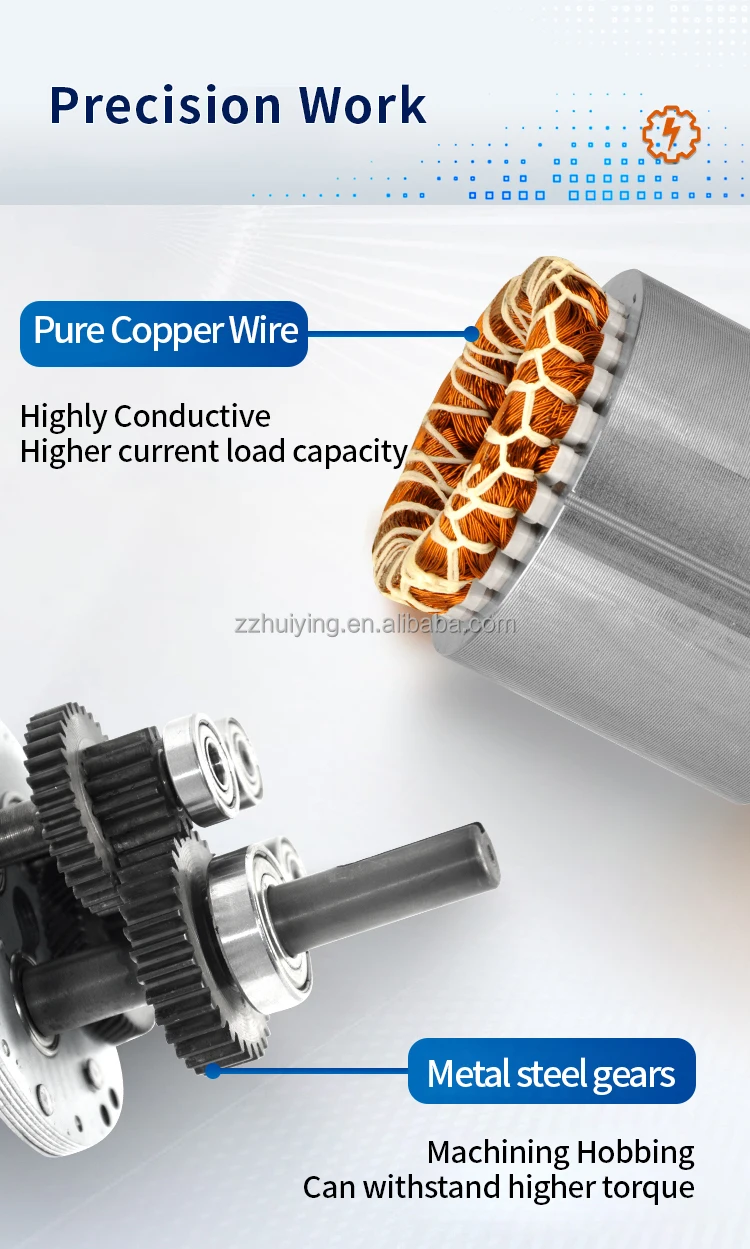

1)The helical gears are made of molybdenum-containing high-grade alloy steel, with an accuracy of IT5-6 grade and wear-resistant without chipping.
2)All Copper Coil Pure copper coils, fast heat dissipation, life expectancy 10 times longer than normal life expectancy Class H (180°C) enameled wire and insulation materials, large margin of safety.
3)The fan is connected to the end of the rotor, which effectively dissipates the heat for the motor work and prolongs the life of the motor.
4)Adopting low-loss sanded steel sheet and precision one-piece stamping technology, with high core precision, good magnetic conductivity, low sound and smooth operation.
5)Effective control of the rhythm of the number of revolutions without rotational wear and tear, high mechanical, good stability.
Recommend Product
Related Products

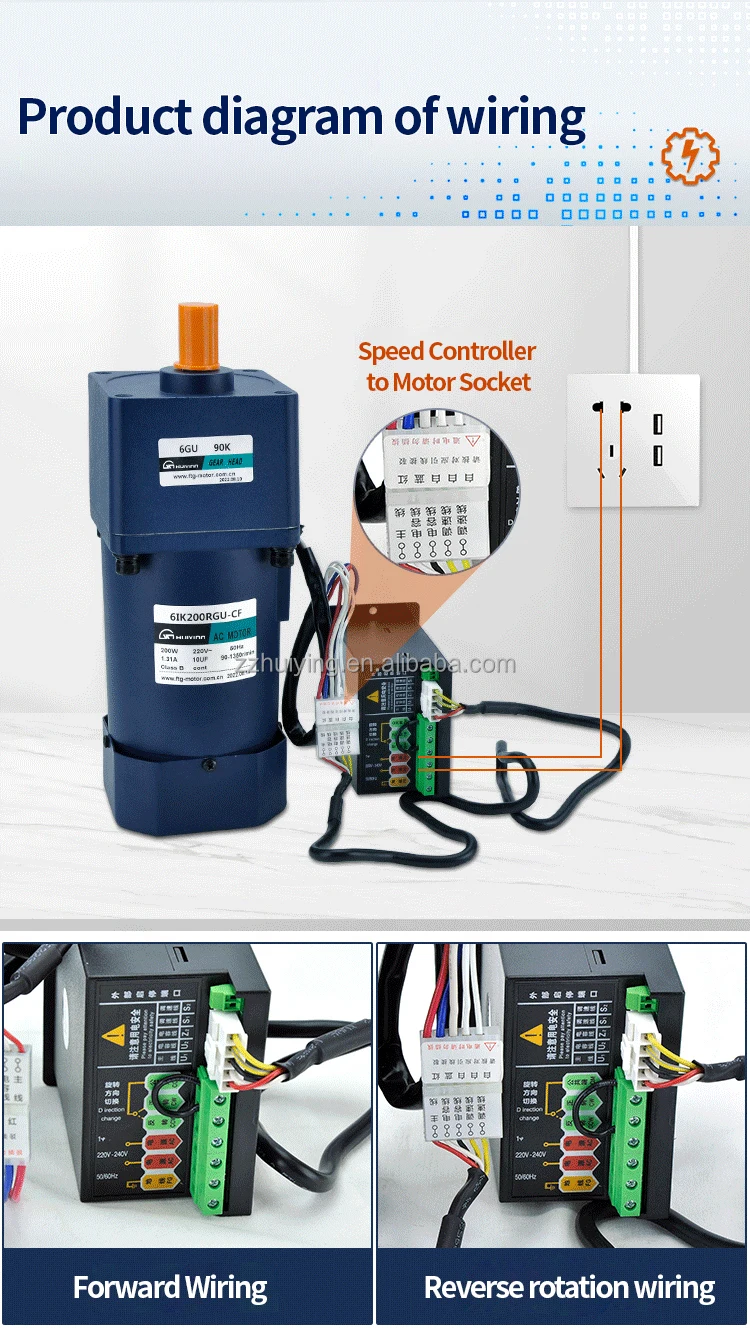

Connecting speed motors and governors is simple, if you don't know how to connect speed motors and governors, we will be online 24 hours a day to provide online guidance
