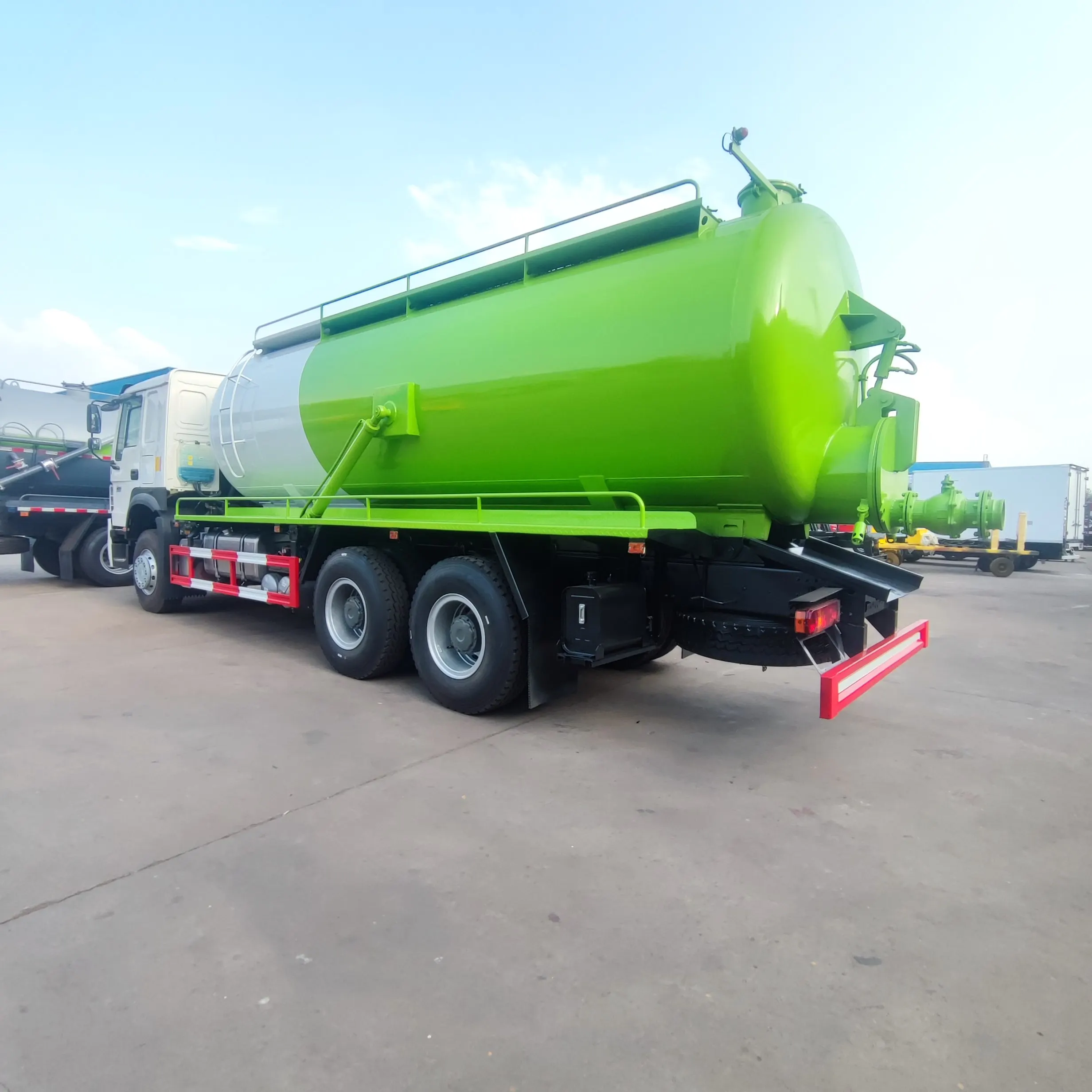

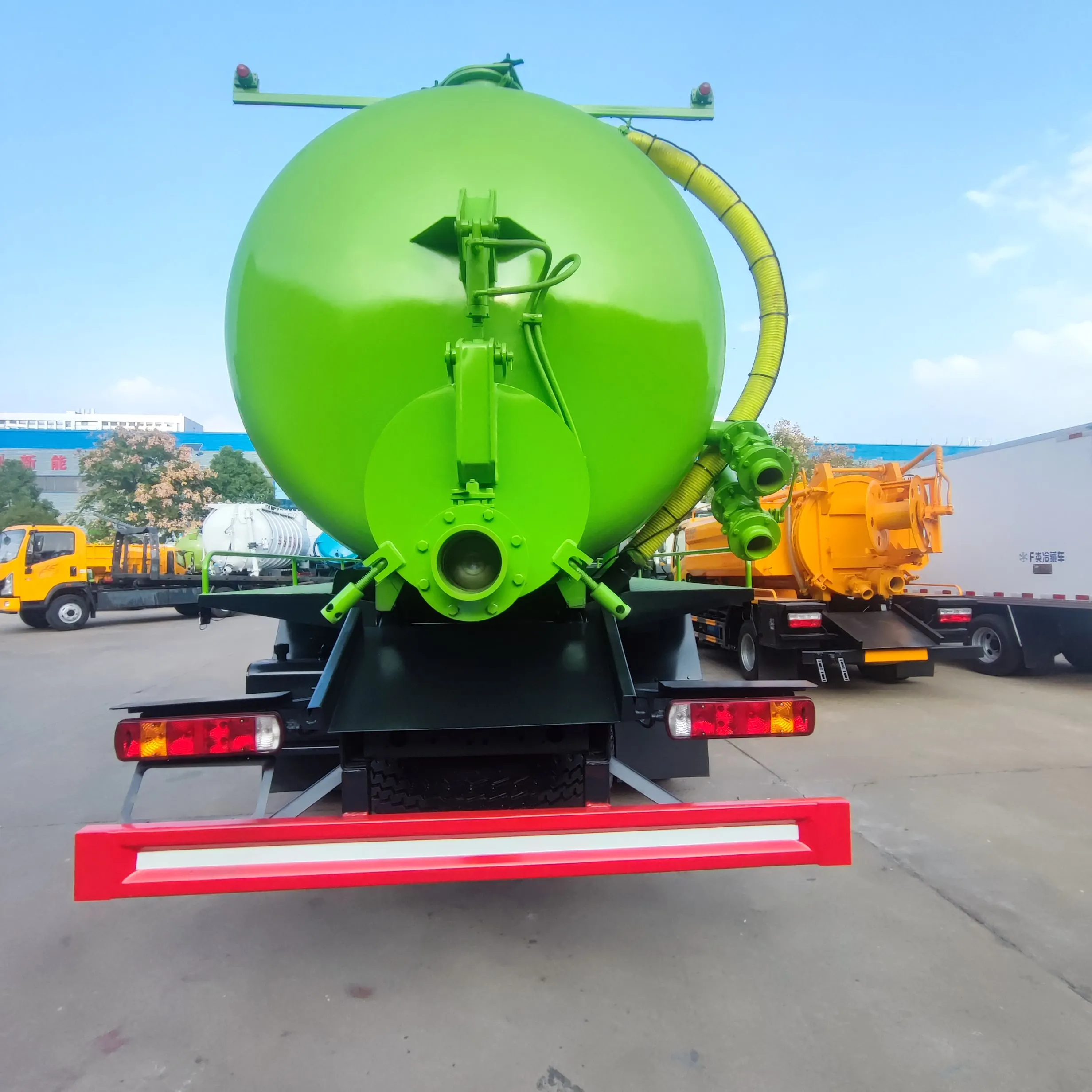

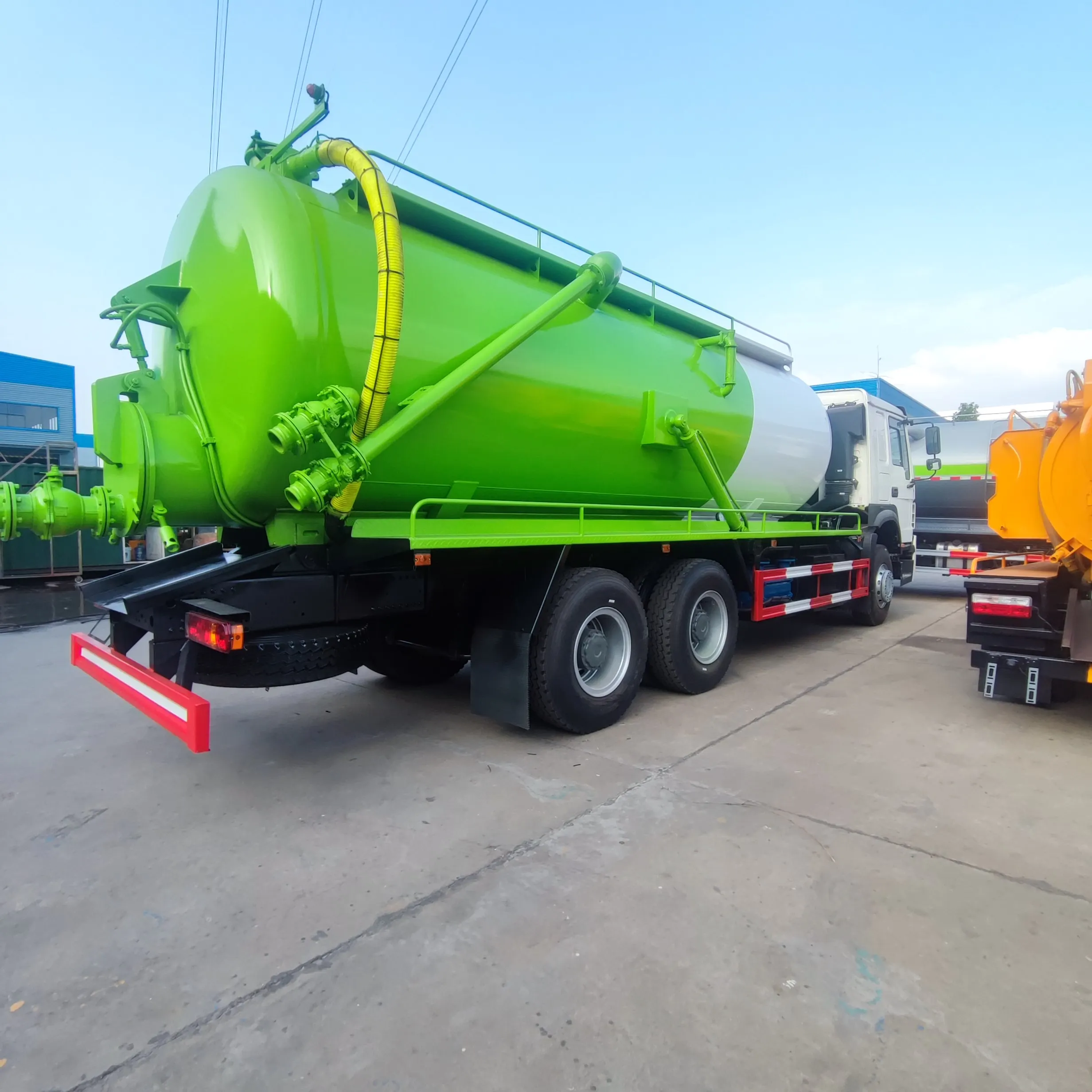

Sinotruk Sewage Suction Truck Cheap 6*4 Wet Vacuum Truck 20 CBM customization Toilet Sucker Truck
- Category: >>>
- Supplier: Chengli Special Automobile Co. Ltd.
Share on (1601271047585):
Product Overview
Description
Product Overview
Sewage Suction Truck
The cleaning and suction vehicle is an environmental sanitation vehicle integrating cleaning and suction functions. It is composed of two tanks, two pumps (vacuum suction pump, high-pressure cleaning pump) and two sets of pipeline systems. It integrates washing, suction, dredging and sewage discharge functions. The sewage suction part is applicable to the suction, transportation and discharge of all kinds of liquid and semi liquid (such as sludge in septic tanks, sewers, rainwater wells, inspection wells,settling wells and stones of about 10mm), as well as sludge, feces, waste water and other media under various ditches, and can also be used for emergency treatment of sudden environmental pollution accidents. It can also be used for septic tanks and sewers in residential areas, schools, farms and other places.
we have different volume sewage suction tank truck, from 2cbm to 40cbm.
we have different brand chassis to choose, Sinotruk, Shacman, FAW, Foton, Dongfeng, JAC, JMC, etc.
we have different volume sewage suction tank truck, from 2cbm to 40cbm.
we have different brand chassis to choose, Sinotruk, Shacman, FAW, Foton, Dongfeng, JAC, JMC, etc.
FEATURES AT A GLANCE
Function

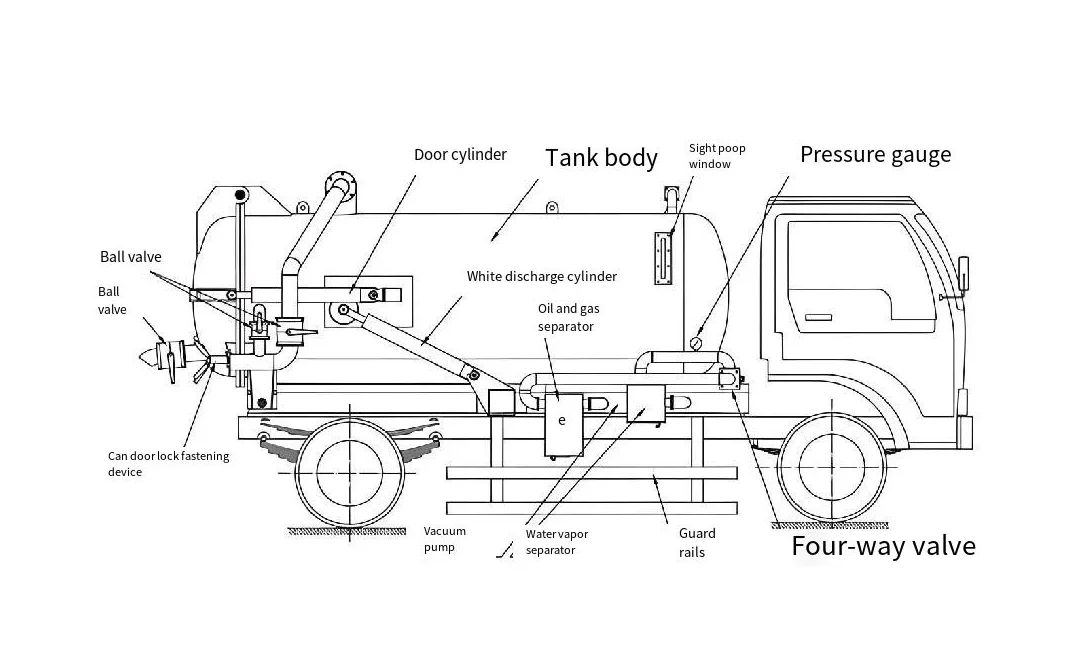

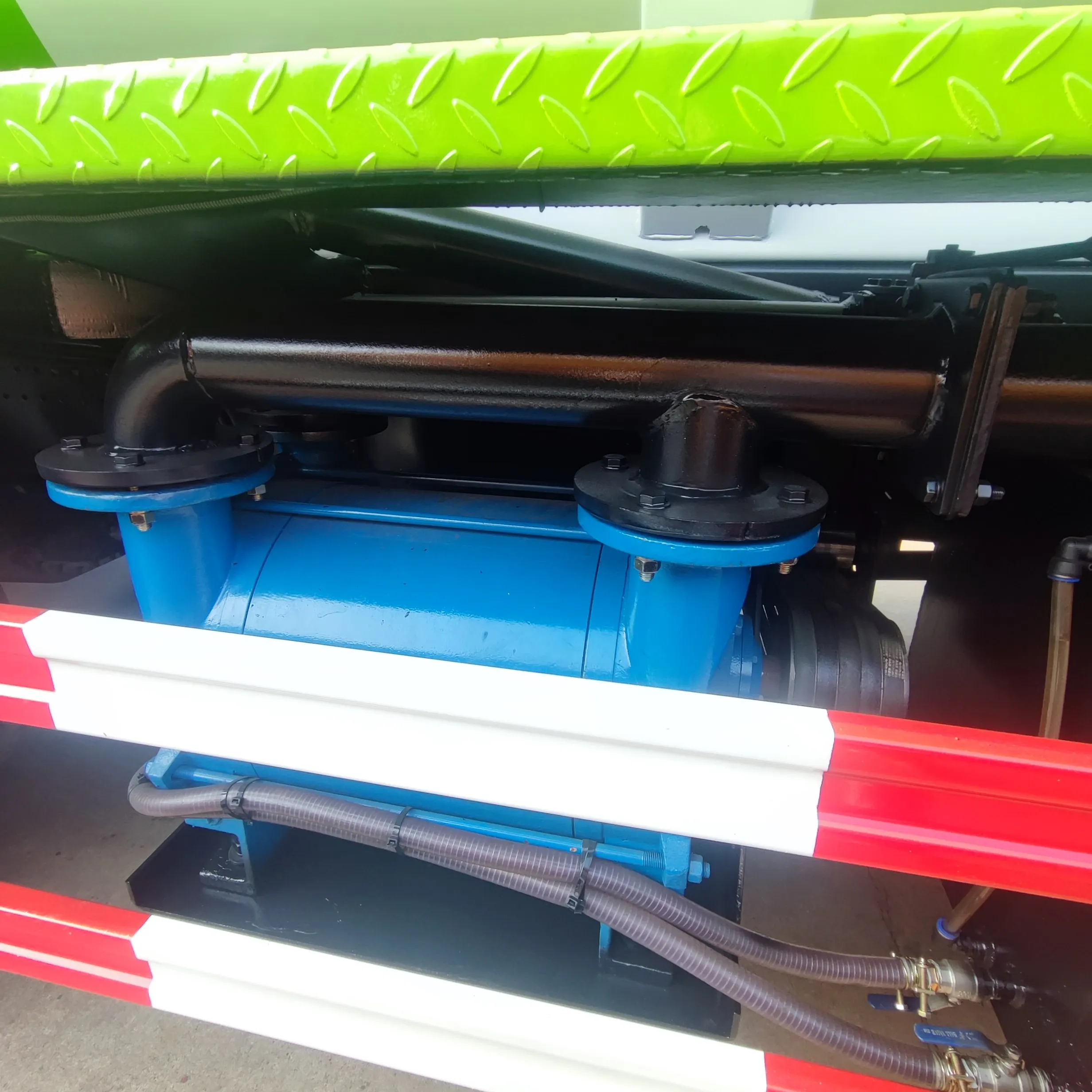

The special part of the suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, and it has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use.

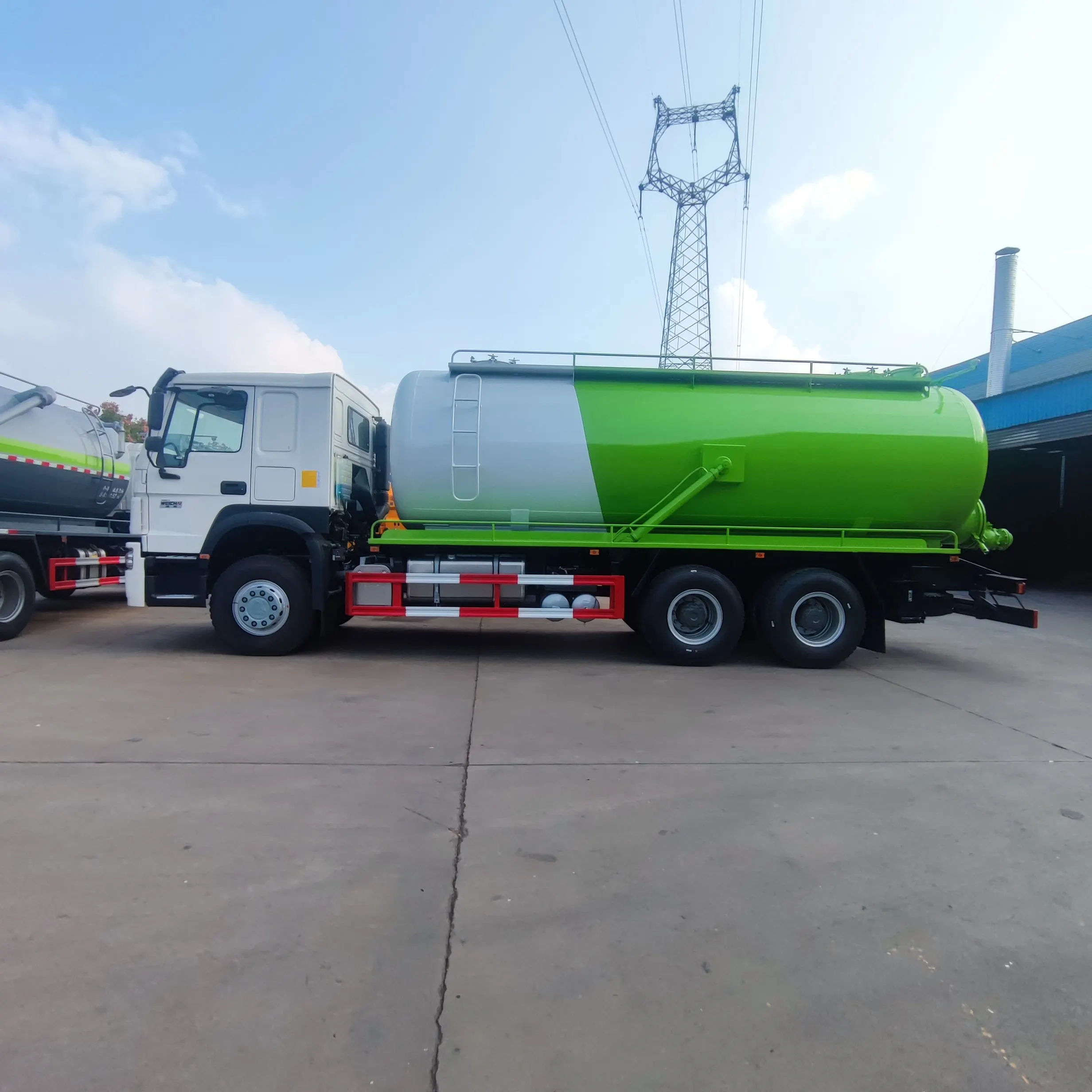

Right elevation
Left elevation
Side elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Overall dimension (L×W×H)(mm) | 11000*2550*3250 |
2 | Chassis manufacturer | Sinotruk |
3 | Drive type | 6*4 |
4 | Transmission | Manual , 12 shift forward and 2 reverse |
5 | Engine brand & Model | WEICHAI POWER & YC10.380E22 (4 cylinders in line, turbocharged and intercooled) |
6 | Fuel type | Diesel, Euro 2 |
7 | Tire Spec. & number | 12.00R22.5, 10 pieces with one spare |
8 | Tank capacity | 20000 Liter |
9 | Tank Material | Carbon steel Q235B |
10 | Tank composition | 14000 liters sewage water tank+4000 liters clean water tank. good quality vacuum pump,Hydraulic self-discharging device， four way valve, anti overflow valve, water gas oil gas separator, manhole, gravity flow discharge port, hydraulic opening rear cover, suction hose,etc. High pressure cleaning pump, high pressure hose+reel, etc. |
PRODUCT CONFIGURATION
Company Profile
Why Choose Us
Chengli Special Automobile Co., LTD.
Chengli Special Automobile Co., LTD. (referred to as "Chengli Special Automobile"), located in the hometown of Shennong, the hometown of ancient music, and the southern suburb of Zengdu District, Suizhou City, Hubei Province, was founded in September 2004, with a registered capital of 100 million yuan. The company has total assets of 1.645 billion yuan, covers an area of 610 mu, and 1,786 employees. The main business scope is technology research and development, manufacturing, sales and service of complete vehicles, special purpose vehicles, new energy vehicles and emergency support vehicles.
The company has passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automobile exemption certification, American mechanical engineer Asmi (ASME) certification, EU agreement ADR and other management certifications. It has the production qualification of special purpose cars, complete cars, new energy vehicles, truck cranes, truck cranes, fire trucks and so on.
The company's "Cheng Liwei" trademark products sell well in domestic and foreign markets, and export to Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar and other more than 50 countries
CERTIFICATION
FAQ
1. who are we?
We are based in Hubei, China, start from 2004,sell to Africa(35.00%),South America(15.00%),Southeast Asia(15.00%),Mid
East(10.00%),South Asia(10.00%),Oceania(5.00%),Central America(5.00%),Eastern Asia(5.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
We are based in Hubei, China, start from 2004,sell to Africa(35.00%),South America(15.00%),Southeast Asia(15.00%),Mid
East(10.00%),South Asia(10.00%),Oceania(5.00%),Central America(5.00%),Eastern Asia(5.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment;
3.what can you buy from us?
Garbage truck,Wrecker truck,Truck with crane,Sewage suction truck,Water truck
4. why should you buy from us not from other suppliers?
We are a big Special Automobile manufacturer of 17 year' experince who is appointed by the MIITC, have registered trademark"CHENLIWEI"(CLW). We have passed ISO9001, ISO14001, ISO18001, etc management system, own autonomous trade import and export right
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
3.what can you buy from us?
Garbage truck,Wrecker truck,Truck with crane,Sewage suction truck,Water truck
4. why should you buy from us not from other suppliers?
We are a big Special Automobile manufacturer of 17 year' experince who is appointed by the MIITC, have registered trademark"CHENLIWEI"(CLW). We have passed ISO9001, ISO14001, ISO18001, etc management system, own autonomous trade import and export right
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
