Ukraine EU 8000 Times 320ah Prismatic LFP Lithium Ion Batteries 105Ah 100Ah 310Ah 280Ah Grade A 3.2V 330Ah Lifepo4 Battery Cell
- Category: >>>
- Supplier: Dongguan Anzhi Electronic Technology Co. Ltd.Dongguan Ltd.
Share on (1601271059955):
Product Overview
Description
Apexium have enough stock in PL/DE/USA/ZA Warehouse,
Sufficient supply/ Fast delivery/ Considerate service！！
Check it with Raina Qu at any time! :)
Sufficient supply/ Fast delivery/ Considerate service！！
Check it with Raina Qu at any time! :)
Products Description
Item | Data information |
Model | 3.2v EV brand new grade A lifepo4 cells |
Real Capacity | According to the model |
Nominal Voltage | 3.2V |
The Highest cycle life | ≧8000 times |
Inquire to sales | |
Max Charge Voltage | 3.65v |
AC Impedance Resistance | 0.14-0.19mΩ |
Charging Temperature | -5-60℃ |
Size | According to the model |
Applications | Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on. |
All Cells are 100% Brand New And HSEV Grade A, EU/USA/CN Warehouse in stock.
China warehouse EXW price as follow:
LF50 50Ah: $18/pc
LF100 100Ah: $24/pc,5000 cycles
LF105 105Ah: $29/pc
LF230 230Ah: $55/pc
V3 LF280K 280Ah: $59/pc, 8000 cycles
LF304 304Ah: $65/pc
MB31 310Ah: $67/pc,8000 cycles
If you want to build the solar storage system with our box, please check below image and talk to Raina for more details:
Details Images
Recommend Products
Model | Capacity | Voltage | IR | Cycles | Size(mm) | Weight | Stocks | Link |
LF50K | 50Ah | 3.2V | 0.7Ω | 7000 | 185*135*29 | 1.4Kg | China | |

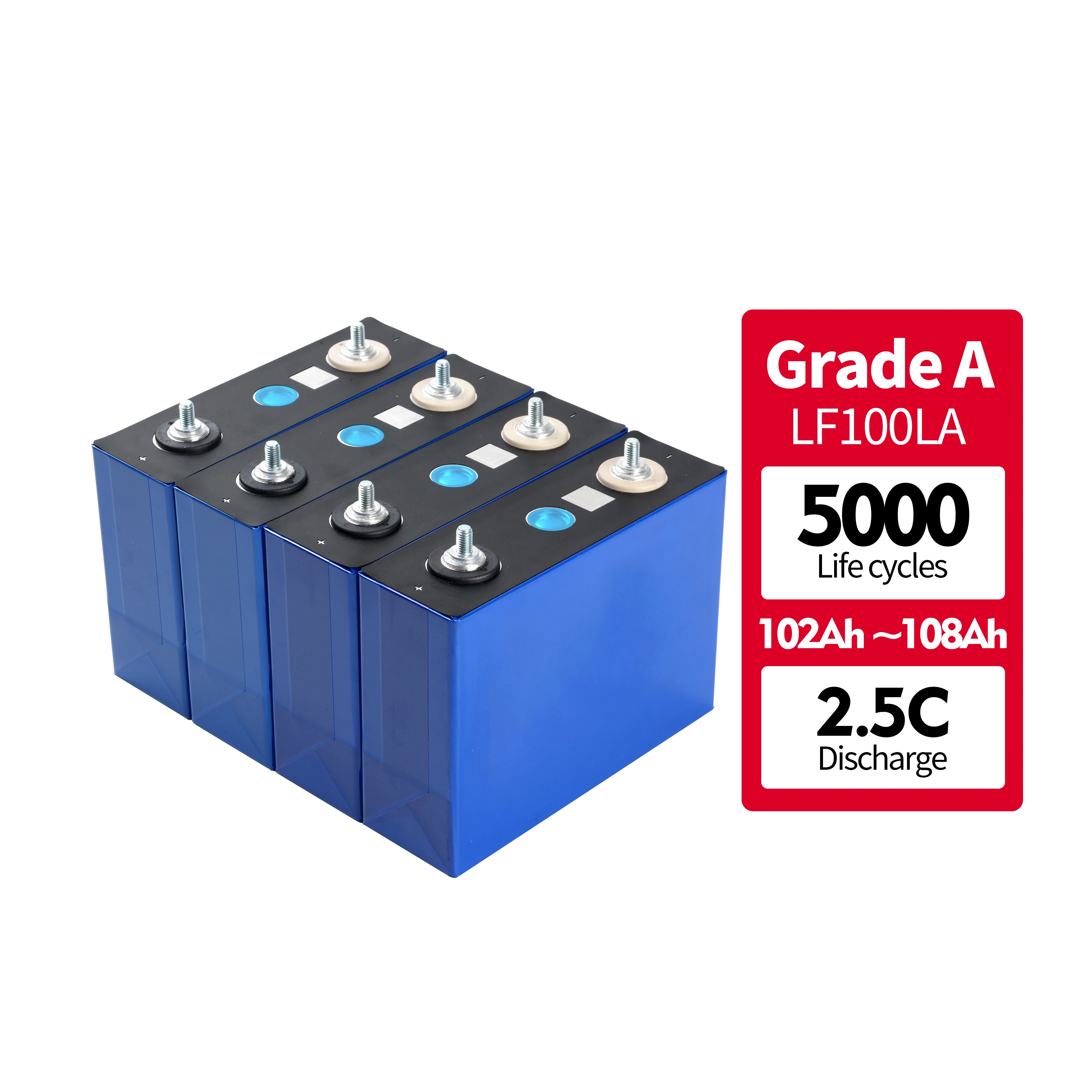

LF100LA | 100Ah | 3.2V | 0.35Ω | 5000 | 160*118*50 | 2.1Kg | China | |
LF105 | 105Ah | 3.2V | 0.35Ω | 5000 | 200*130*36 | 1.98Kg | EU/USA/ZA | |
LF230 | 230Ah | 3.2V | 0.18Ω | 4000 | 202*172*53 | 4.1Kg | EU/USA/ZA | |
LF280K | 280Ah | 3.2V | 0.18Ω | 8000 | 202*172*72 | 5.5Kg | EU/USA/ZA | |
LF304 | 304Ah | 3.2V | 0.18Ω | 4000 | 202*172*72 | 5.5Kg | EU/USA/ZA | |
MB30 | 306Ah | 3.2V | 0.18Ω | 10000 | 202*172*72 | 5.6Kg | EU/China | |

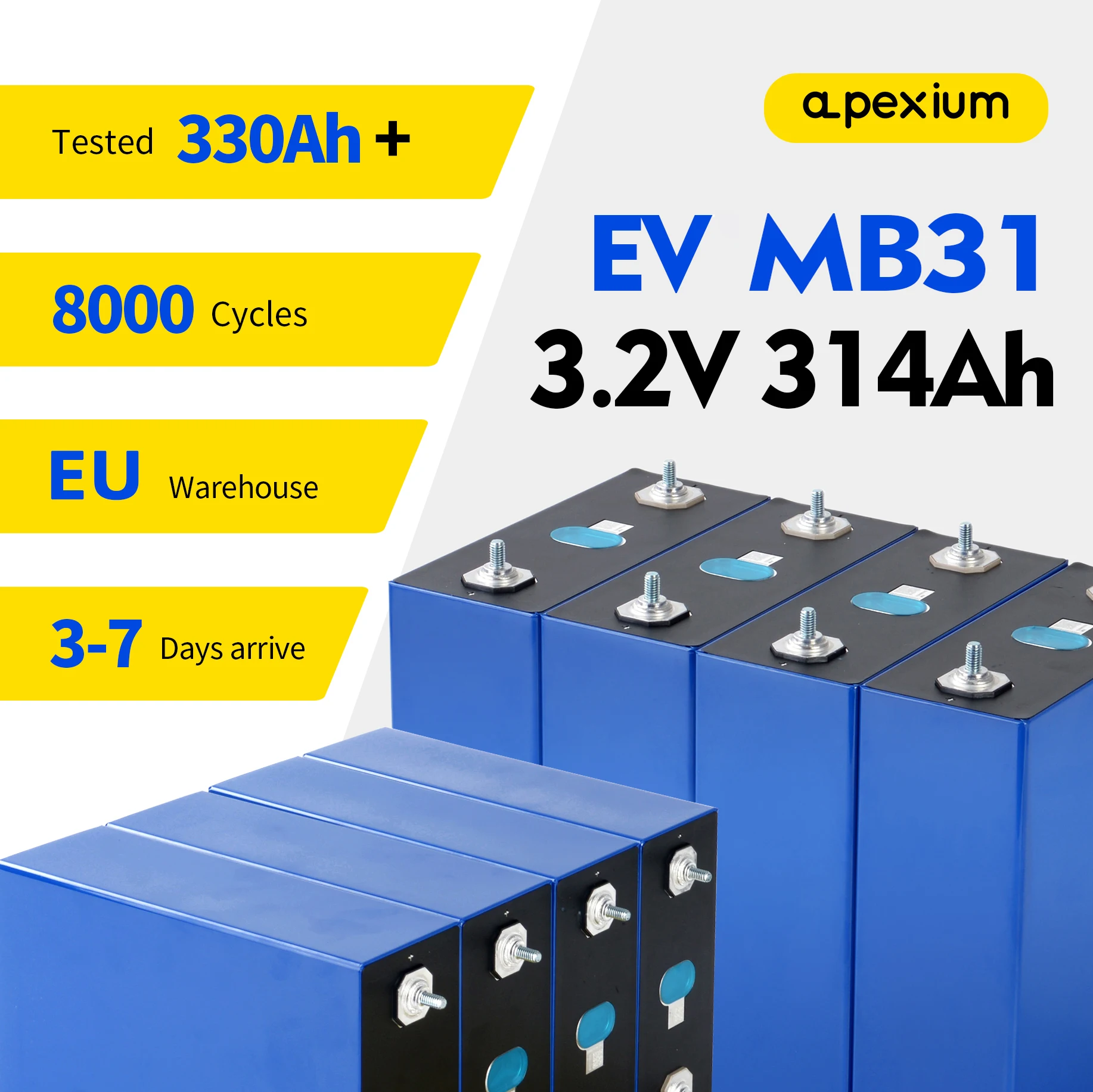

MB31 | 314Ah | 3.2V | 0.18Ω | 8000 | 202*172*72 | 5.6Kg | China | |
REPT 280 | 280Ah | 3.2V | 0.25Ω | 6000 | 202*172*72 | 5.45Kg | EU/USA/CN | |
Hithium 280 | 280Ah | 3.2V | 0.25Ω | 10000 | 202*172*72 | 5.45Kg | China | |
CATL 280 | 280Ah | 3.2V | 0.25Ω | 6000 | 202*172*72 | 5.5Kg | USA/China | |
CATL 302 | 302Ah | 3.2V | 0.25Ω | 4000 | 202*172*72 | 5.6Kg | USA/China | |
CATL 314 | 314Ah | 3.2V | 0.25Ω | 7000 | 202*172*72 | 5.6Kg | China |
51.2V DIY 105Ah kits Stackable type | 51.2V DIY 230Ah kits Stackable type | 51.2V DIY 280Ah kits Stackable type | 25.6V DIY 280Ah kits Stackable type |
16S1P - APEX 100A BMS | 16S1P - APEX 200A BMS | 16S1P - APEX 200A BMS | 8S1P - APEX 200A BMS |
460*350*223(mm) | 600*440*251(mm) | 750*440*251(mm) | 437*442*251(mm) |
15KG | 28KG | 30KG | 15KG |
51.2V DIY 280Ah kits Stackable type | 51.2V DIY 230Ah kits Stand type | 51.2V DIY 280Ah kits Stand V1 type | 51.2V DIY 280Ah kits Stand V2 type |
16S1P - JK 200A BMS | 16S1P - APEX 200A BMS | 16S1P - APEX 200A BMS | 16S1P - APEX 200A BMS |
750*440*251(mm) | 725*415*266(mm) | 874*415*266(mm) | 930*460*308(mm) |
30Kg | 28Kg | 31Kg | 35KG |

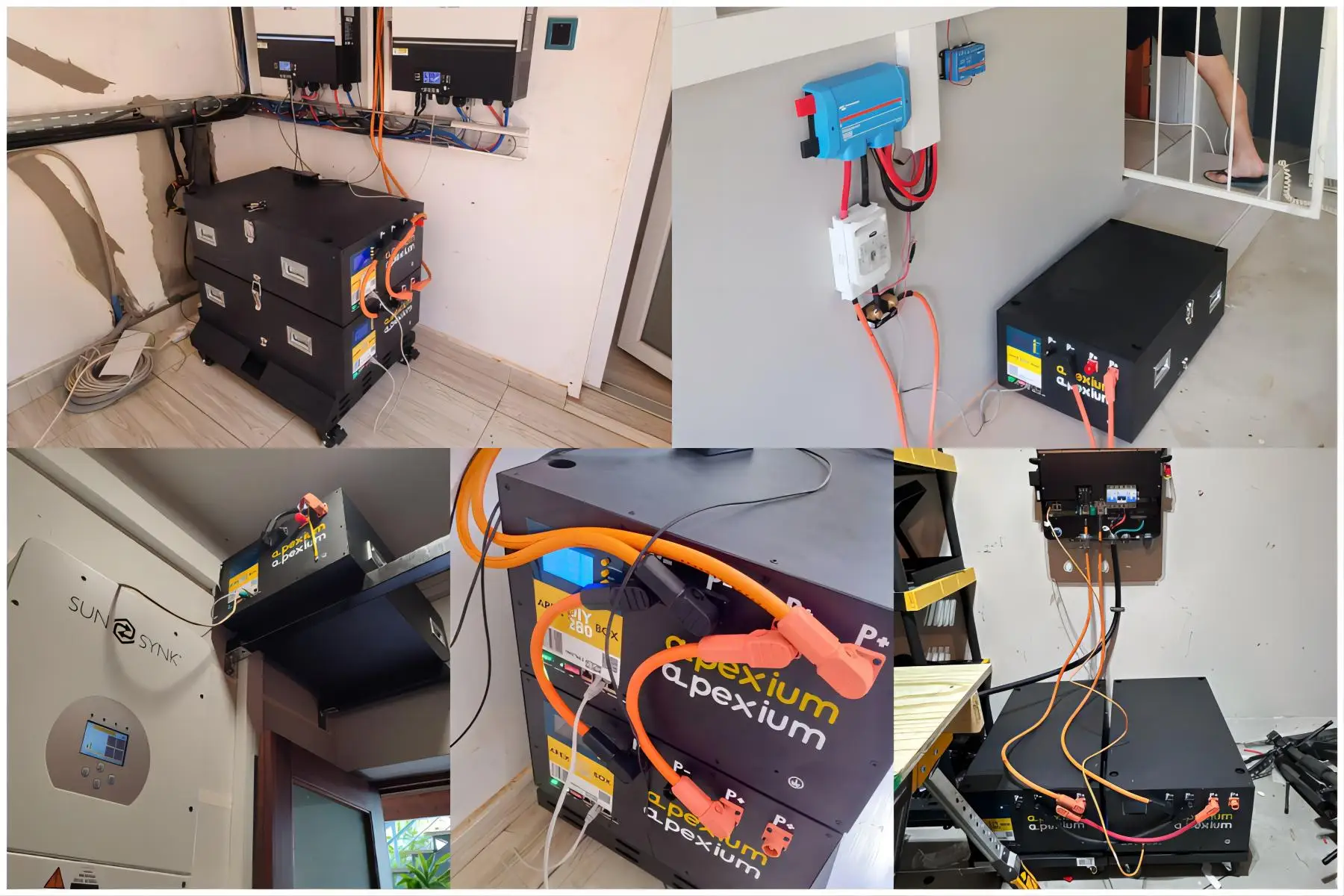

Customer Photos
Real feedback from our clients. Feel free to Check the details with Raina, or click here to send me a request.
Product packaging
Product Usage
Company Profile
FAQ
Apexium BMS：
1. Battery management systems can not be used in series.
1. Battery management systems can not be used in series.
2. BMS power component swith stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it must communicate with
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
4. The external switch on BMS is prohibited to connect with other equipment. If necessary, please confirm
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. Do not touch the surface of the core directly when assembling, so as not to damage the core. The
assembly should be firm and reliable.
assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on do not touch the components
on the circuit board, otherwise it may damage the circuit board.
on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this
specification, otherwise it may damage the protection board.
specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge,
please check the wiring is correct.
please check the wiring is correct.
Apexium DIY Box：
1.Does this box case support parallel connection?A:yes,This box support 15pcs parallel connection.
2.What brand bms built in this DIY BOX?
A:Build in Apexium 48v 200a bms with BT&LCD scrren
3. How about the lead time?
Usually, we have stable stock in wharehouse. The goods can be sent within 2-7 days.
4.What's the difference between your box and the boxes on the market?
A:We have optimized and upgraded all the boxes.
1) The connect busbar Upgraded from flat to bridge-like shape.
2) Add the switch for the box under right,this switch can control the battery pack power,be more safe.
5.How about the quality&warranty time?
The best cold-rolled sheet material is used, with high flatness and surface quality.
The warranty period is 10 years. Talk to sales about specific issues.
