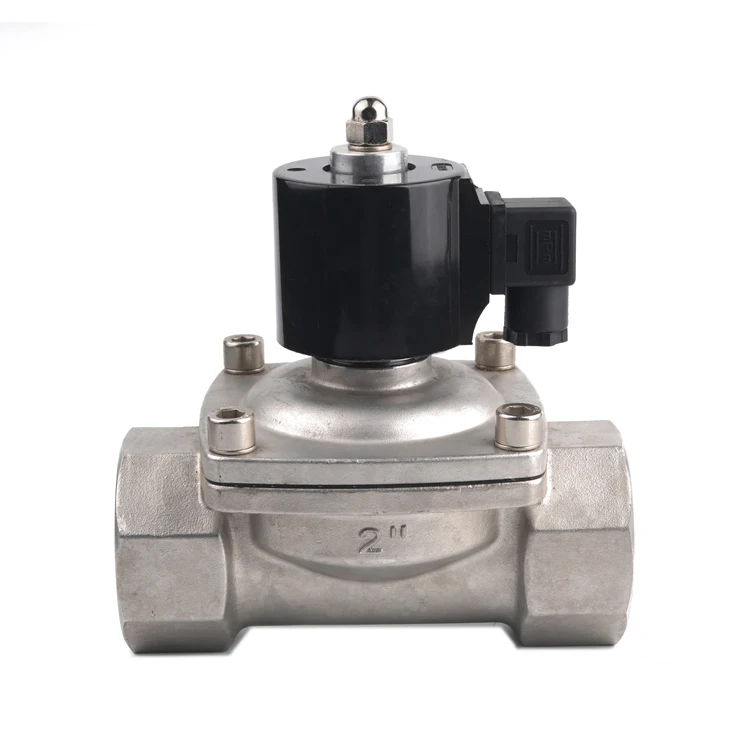

Ningbo Hot Selling 2/2 Way Highly Reliable Stainless Steel Solenoid Valve for Water Oil Gas
- Category: >>>
- Supplier: Ningbo Mingyuanhongda Automation Co. Ltd.
Share on (1601271093302):
Product Overview
Description
Products Description

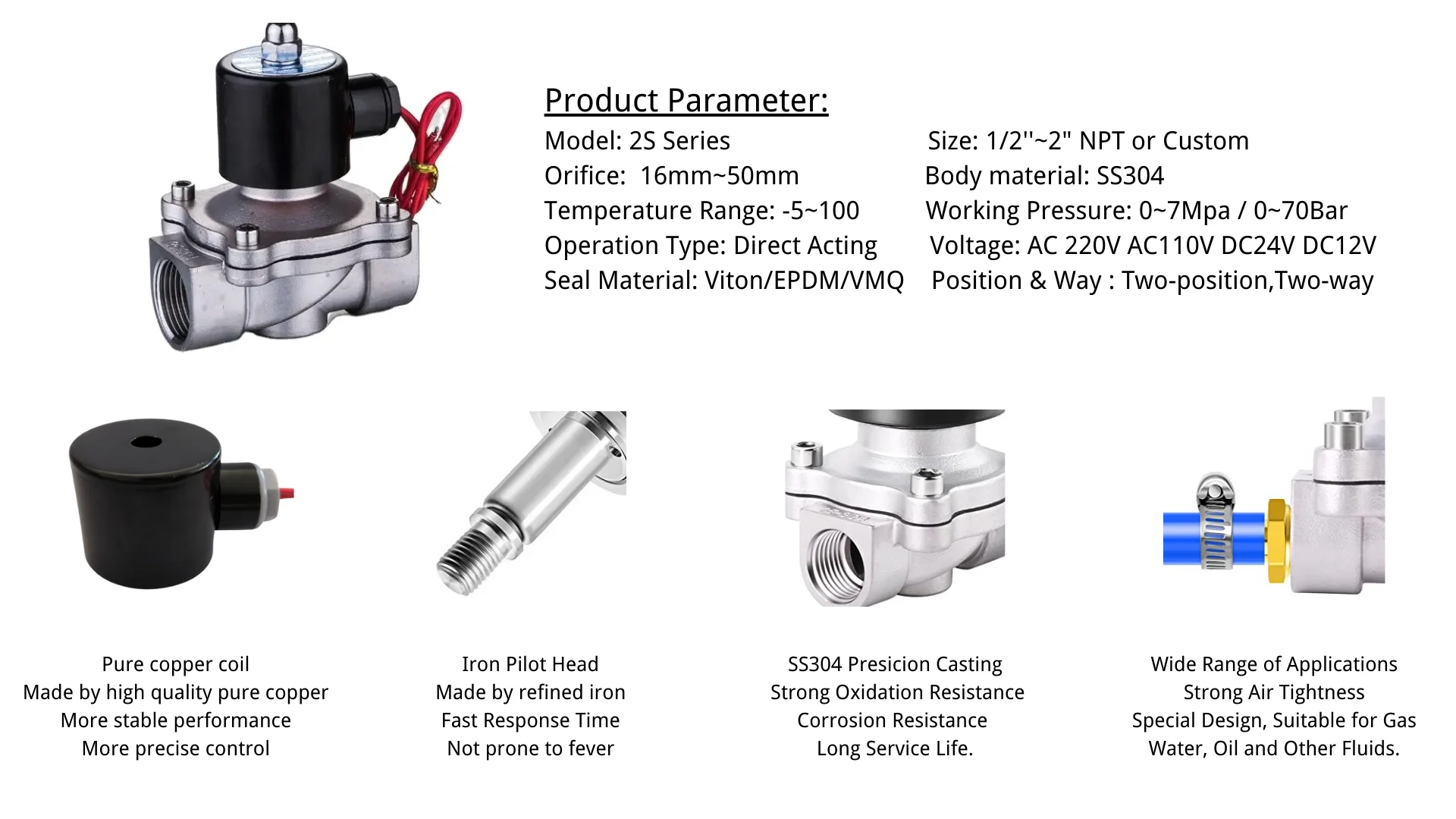

Product Parameter
Product name | Solenoid Valve |
Material | Stainless Steel |
Seal Material | NBR |
Medium | air,water,oil,gas |
Working Pressure | 0~0.7mpa |
Voltage | DC12V/DV24V/AC110V/AC220V |
Working Temperature | -5~80℃ |
Working Tpye | Direct Acting (Normally Open) |
Duty Cycle | ED 100% |
Degree of pretection | IP65 |
Product Features
2S Series Two- position Two-way Stainless Steel Solenoid Valve:
1.Suitable for controlling the liquid, gas, light oil (≤ 20CST) and other media, the use of the structure of direct-acting, zeropressure to open the valve, flow rate, and high reliability.
2.Bodymade of stainless steel SS316 Precision Casting.
Coil Parameters:
AC220V 110V 50Hz/60Hz DC 24V 12V
Plastic coil IP65 /ClassF
Standard Junction Box
Hulled coil IP54 /ClassF
Leaded /Available for other voltage coil
Plastic coil: DN2.5-25mm AC20VA DC 18W
DN35-50mm AC40VA DC 30W
2.Bodymade of stainless steel SS316 Precision Casting.
Coil Parameters:
AC220V 110V 50Hz/60Hz DC 24V 12V
Plastic coil IP65 /ClassF
Standard Junction Box
Hulled coil IP54 /ClassF
Leaded /Available for other voltage coil
Plastic coil: DN2.5-25mm AC20VA DC 18W
DN35-50mm AC40VA DC 30W
Hulled coil: DN2.5-5mm AC16VA DC16W
DN10~25mm AC 20VA DC 28W
DN35~50mm AC 46VA DC 30W
DN10~25mm AC 20VA DC 28W
DN35~50mm AC 46VA DC 30W
A variety of coils are available!

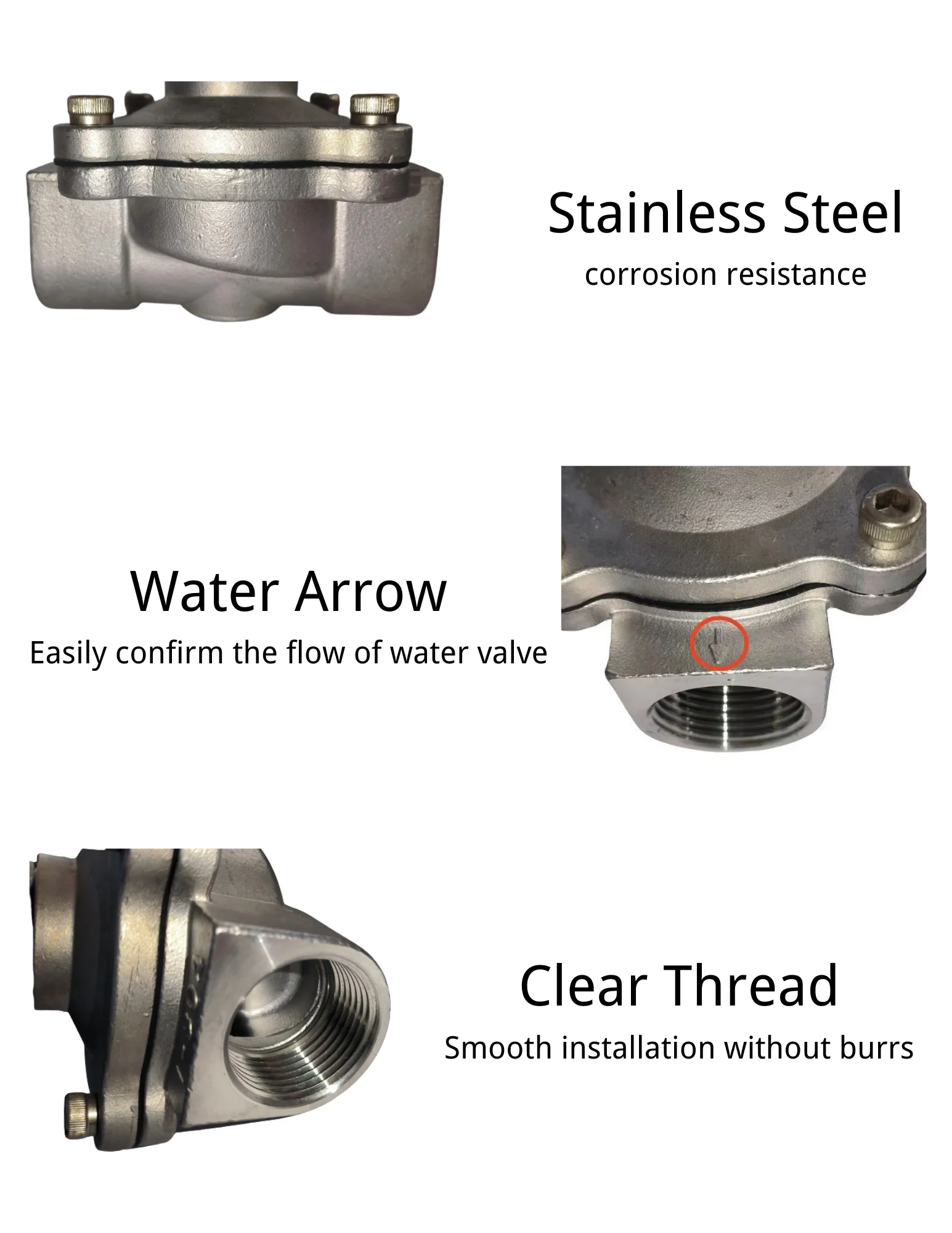

Product Deatils

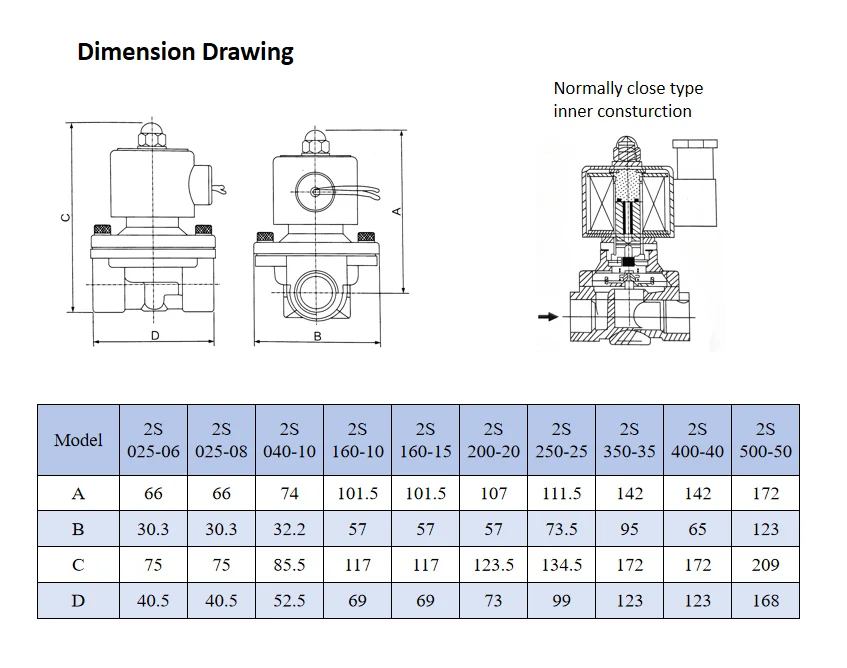

Solenoid Valve Drawing
Specification Table
More Options
Company Profile
Certificates Honors
Packaging & Shipping
FAQ
Q1: Would you send me samples to check the quality before we conclude the business?
Q4: What's your price?
Q5: How about the product quality?
Q6: Can I print own logo on package?
Q7: What's your products' advantage?
Q8: What is your payment term?
A1: Of course, we'd be happy to send that for you. We can also customize your own logo if you provide the artwork.
Q2: How about your warranty policy and after service?
A2: A year free warranty. And we would responsible for all.
Q3: When will you make the delivery?
A3: We will make the delivery within 30 days according to the quantity of the order.
Q4: What's your price?
A4: We are committed to providing you with high quality products and service at reasonable prices.
Q5: How about the product quality?
A5: Our products have been checked in the whole process of production and passed 100% quality inspection.
Q6: Can I print own logo on package?
A6: Sure! Customized package and OEM printing are available.
Q7: What's your products' advantage?
A7: ①Good quality and competitive prices.
②Strictly quality control when producing.
③ Professional team work , for design ,development, producing, assemble, packing and shipping.
Q8: What is your payment term?
A8: T/T,Western Union, MoneyGram, and Paypal. This is negotiable.
