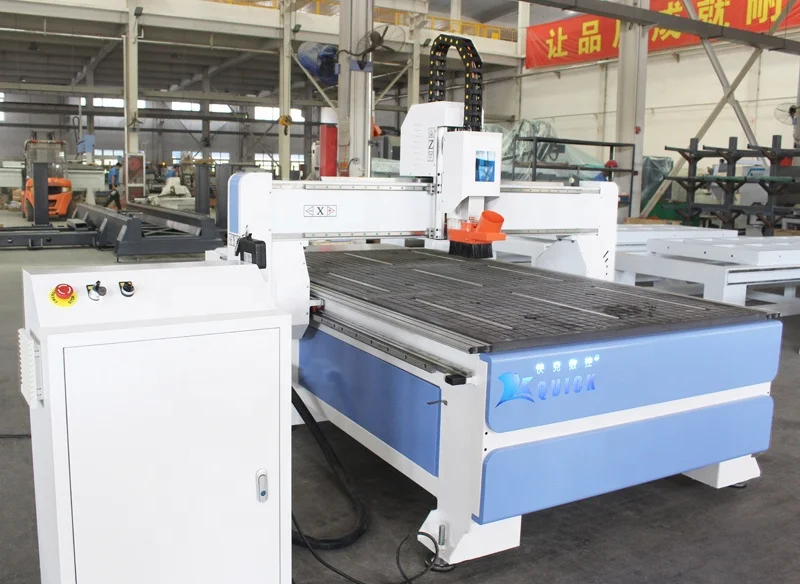

  • The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle
The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle

The New 1325 Woodworking Machine Sales Of Cnc Router With 3.5kw Air Cooling Spindle

Share on (1601271104725):


Price:$3,200.00 - $3,500.00

Quantity:


Product Overview

Description



Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Product Description

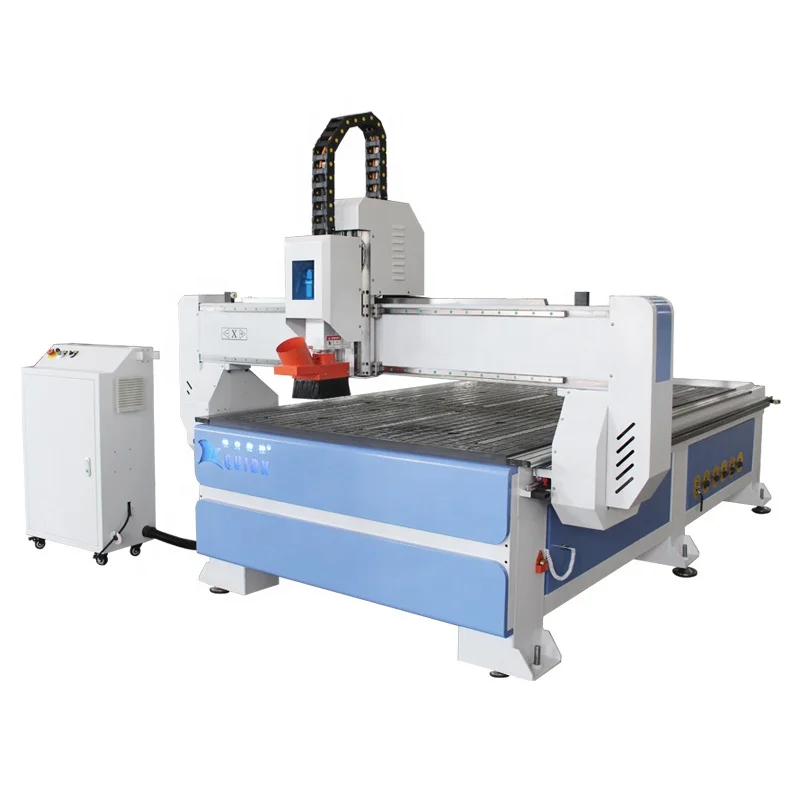

Economical China Cnc Router 1325 Wood Cnc Engraving Cutting Machine With Vacuum Table, it has 1300x2500mm working size, 3.5kw air cooling spindle,stepper motor and DSP A11 controller. As an economical machine, it has Very cost-effective rate. From the appearance point of view, this machine has a beautiful shape and mild color. From the quality point of view, it is very durable and of high quality.


Specification


SPECIFICATION
X-Y-Z axis working area
1300 x 2500x 200mm
Repositioning resolution
0.02mm
X-Y-movement
Rack and pinion, gear drive
Z movement
Ball screw drive
Guide
Linear 20 square
Max. speed
35000mm/min
Max. cutting speed
25000m/min
Spindle power
3.5kw air cooling
Spindle speed
6000– 18000 RPM
Inverter power
3.7KW
Tool Type
Manual
Drive motors
Stepper Motor
Working voltage
AC380V/50-60Hz,3-phase
Command code
G code
Computer interface
USB 2.0
Table
vacuum slot
Control system
DSP A11
Control type
Handheld
software
Artcam ,Alphacam copy
Dust system
dust hood for spindle


Machine Parts

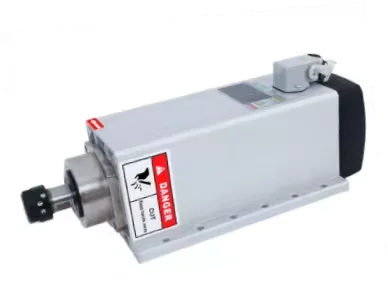

18000rpm Milling,Engraving,Drilling Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
High torque ,
low vibration ,
low heat high reliability
New three-axis linkage motion mode to achieve comprehensive controlling. Support intelligent file checking function.

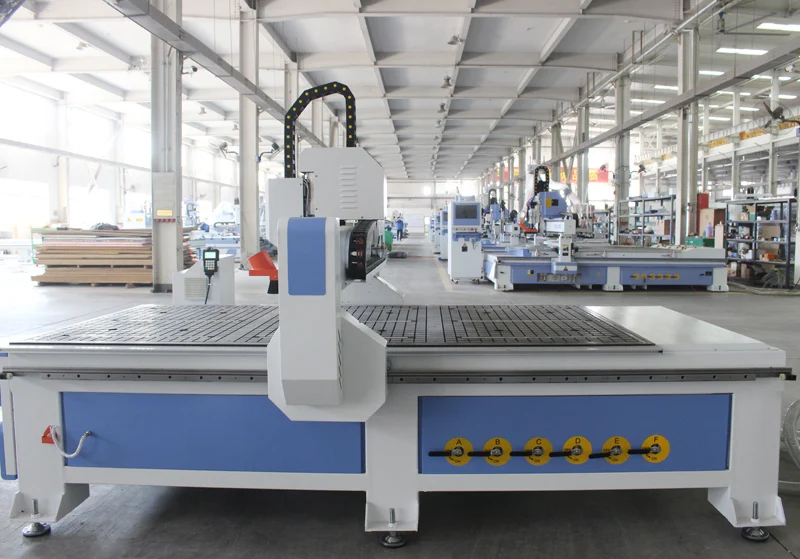

The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped
directly to the table. Clamps are provided.

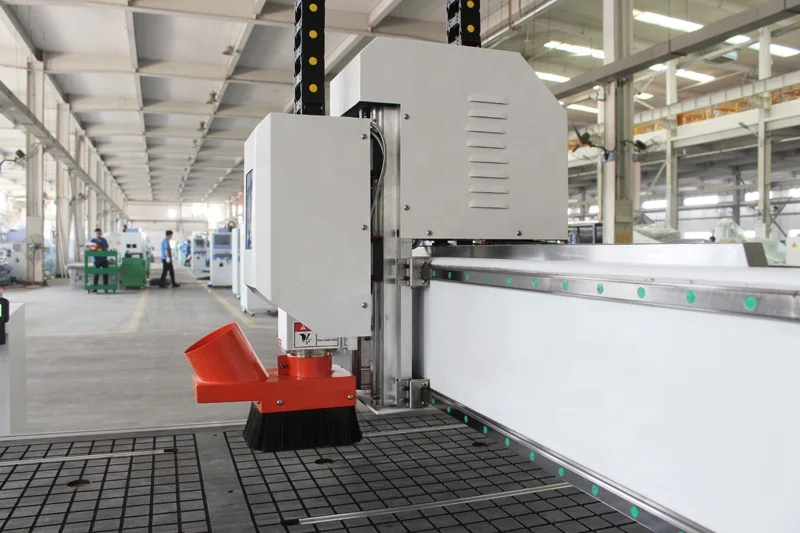

This 4″ dust port will help reduce the amount of dust dispersed from your cnc router.
It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated. When the oil tank
needs filling,top up with a good quality SAE 30 weight oil.


Samples Show


Application
♦ Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
♦ Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
♦ Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♦ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

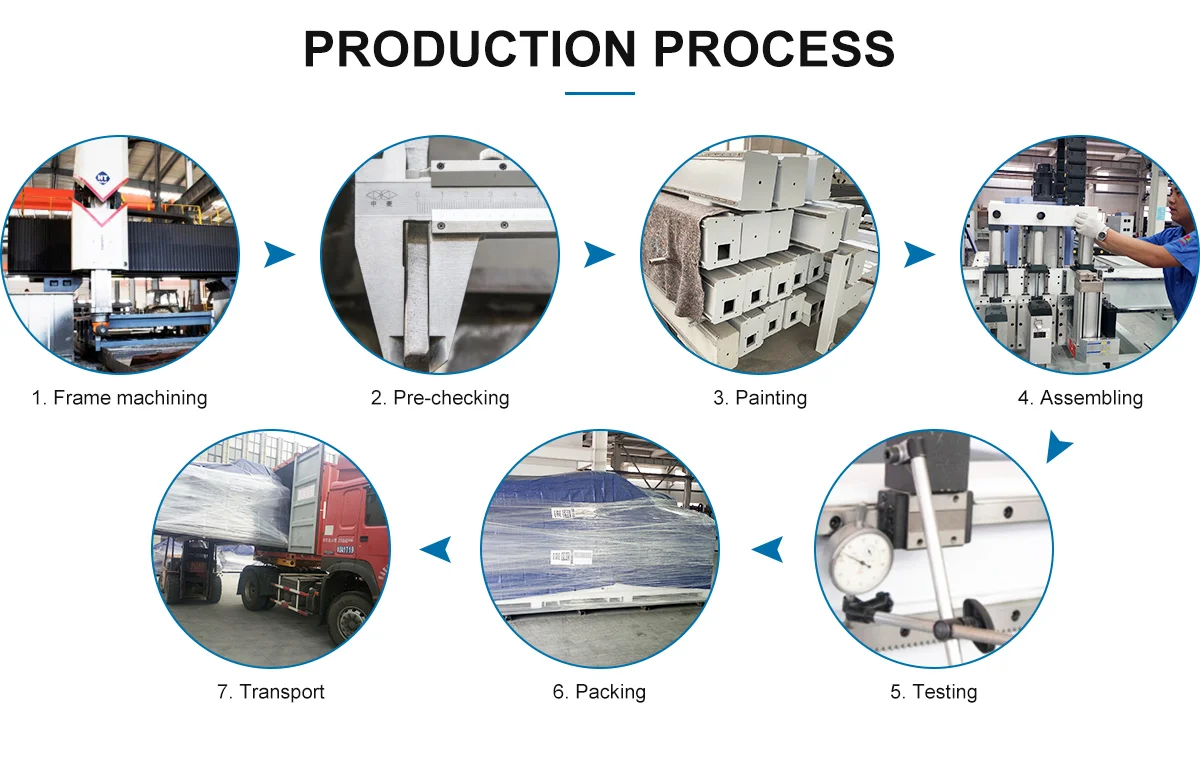

Production Process

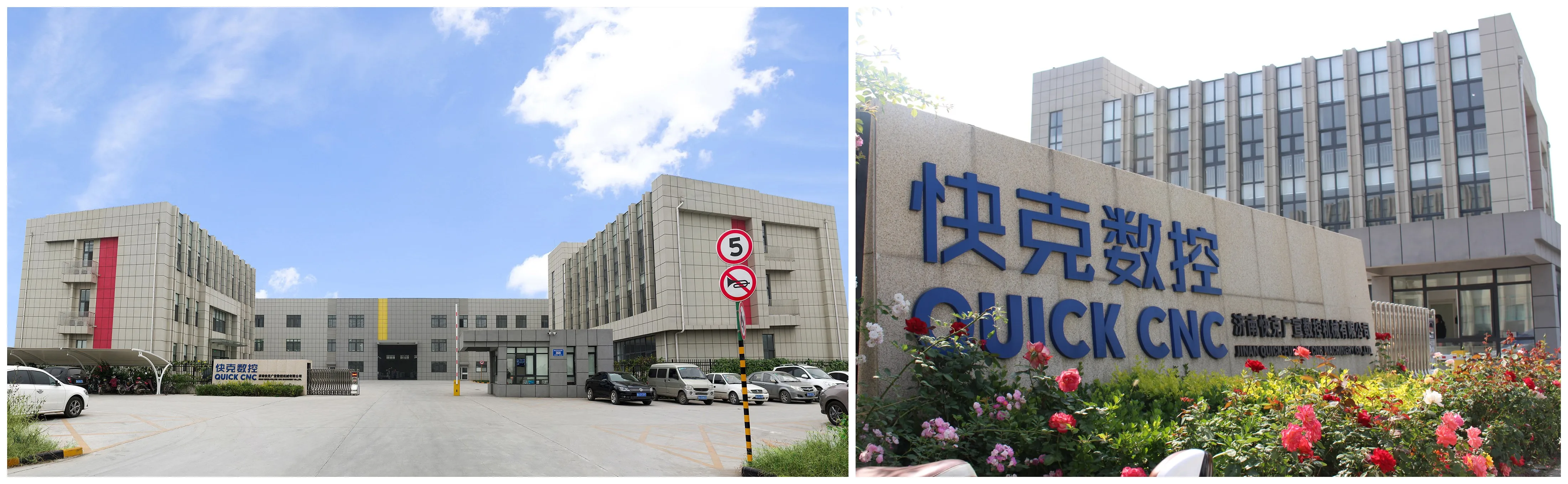

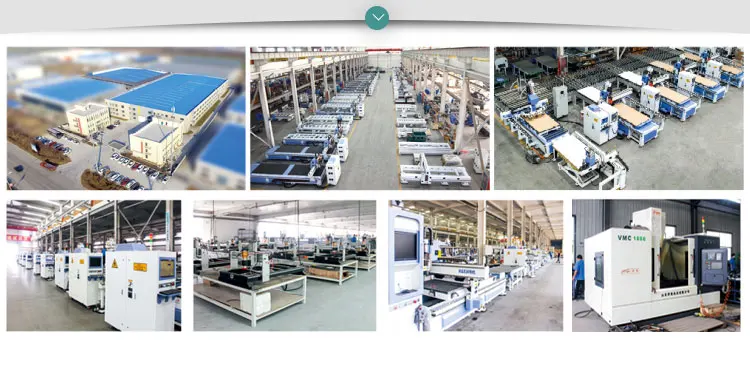

Company Profile






Main Advantages


1.We can customize the most suitable machine for you according to the materials you process and the production process, such as changing the working size, changing the spindle, table, motor, etc.
2.Your transition period from delivered to making money is minimized with our full support staff and technician training. Not only do we provide over-the-phone training; we also send out a technician to work with you.
3.Our machine are treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform, always keep machine accurate.
4.Our company verified by Bureau Veritas (Company profile certification, Business scope certification, Enterprise quailification certification ). Our machines are CE certified and ISO 9001 certified.
5.Our company covers an area of 16000 m², has an independent machine tool processing workshop, in the world has a number of agents.

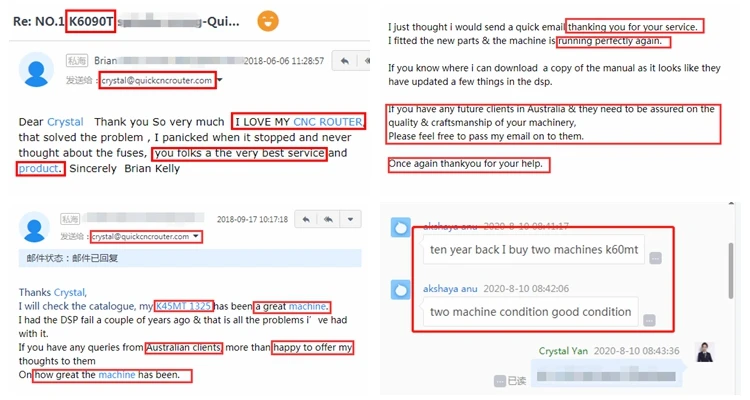

Customers and Team
