Product Overview
Description

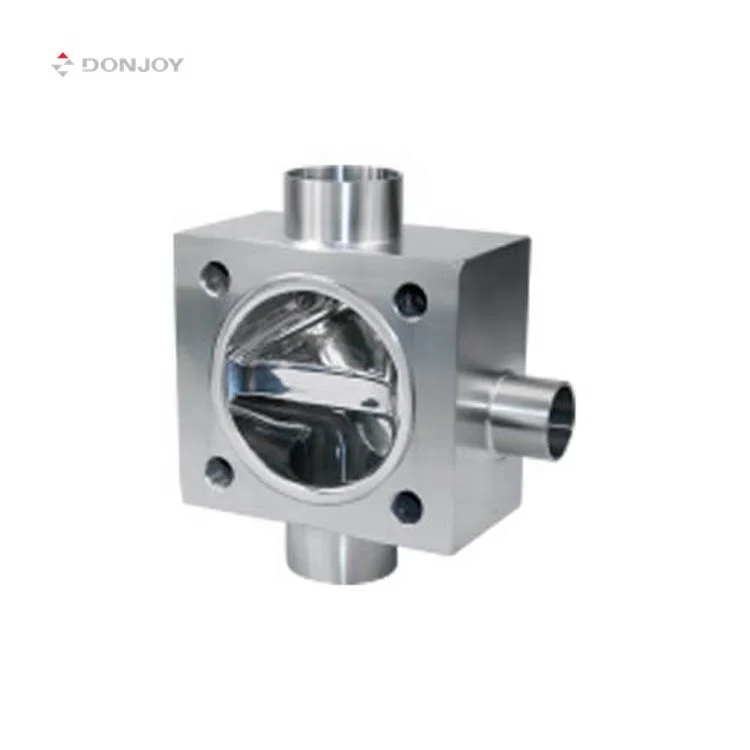

DONJOY sanitary food grade ss316l block type forged body 3 way T type EPDM PTFE diaphragm valve for pharmacy
Donjoy has been manufacturing high cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in

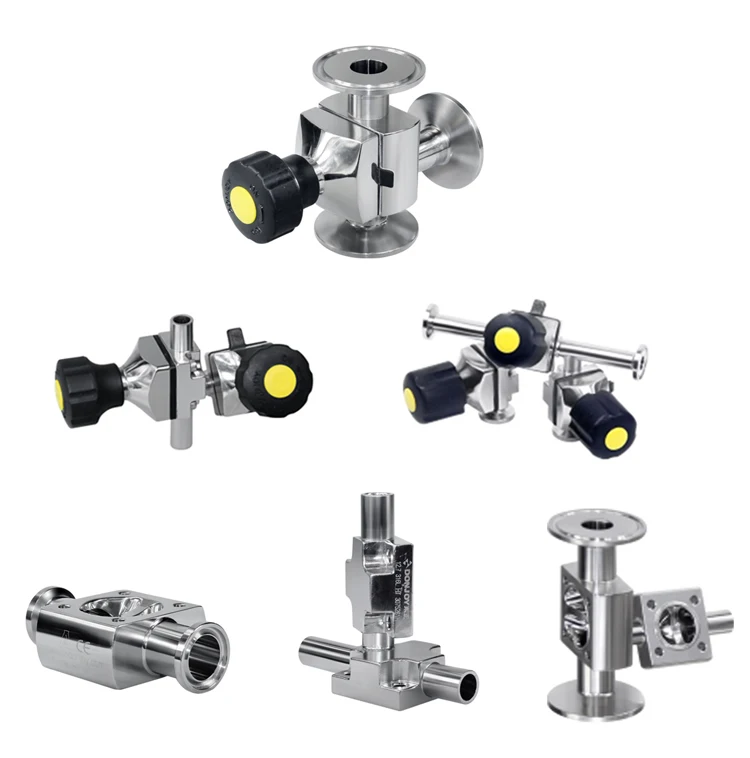

various fields,involving more than 300 varieties,such as 2 way,3 way,U shaped 3 way,multi-ports,adjustable,manual, pneumatic,electric,etc.And they are interchangeable.
The structures of valves have T-type,L-type, U-type, direct-way, multi-ports way, etc.
It is mainly used in liquid sampling, biological systems, laboratories and other projects .
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing time can be up to 150 million life in 3 bar working pressure.

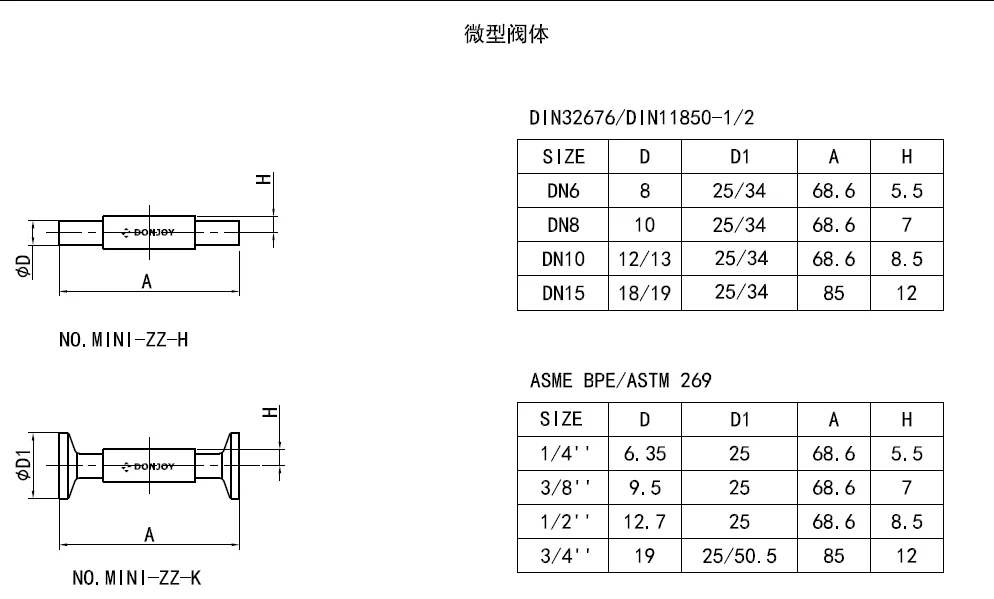

- Size: 1/4"-3/4",DN6-DN15
- Standard: BPE 3A DIN ISO IDF
- Certificate: PED/97/23/EC,3A/54-04/1580,FDA.177.2600
- Max Temperature: -30℃ to 150℃ (Depending on seal material)(diaphragm EPDM+PTFE)
- Max Temperature: -30℃ to 130℃ (Depending on seal material)(diaphragm EPDM)
- Max Pressure: One way (DELTA P=100%) EPDM 8bar, PTFE 6 bar(Option) EPDM 6bar, PTFE 4.5 bar(Option) Double action EPDM 8 bar, PTFE 6 bar. 10 bar for manual diaphragm valve
- Assembling different actuators can meet higher pressure rating.
- Forged Body: 1.4404/316L/1.4435 BN2
- Cast Body: 1.4404/316L
- Connection: Clamp, Weld, Thread, Flange
- Operations: Manual and pneumatic
| ITEM: | DONJOY sanitary food grade ss316l water treatment manual 3 way epdm mini type diaphragm valve |
| Material of valve body: | SS316L |

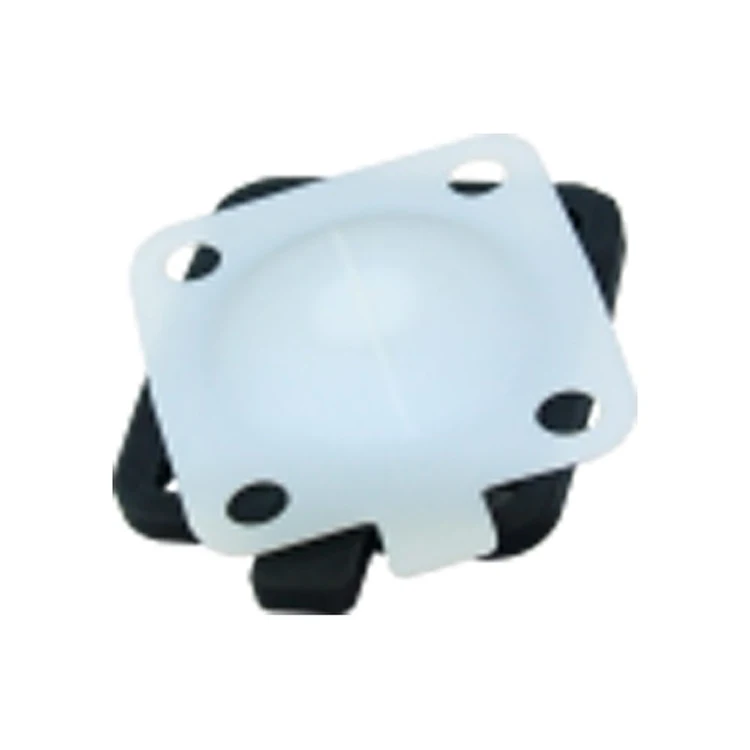

| Seal material: | EPDM+PTFE, EPDM,slicon,FPM |
| Size: | 1/4""-3/4" or DN6-DN15 |
| Max. temperature: | -30~150 degree centigrade (up to diaphragm gasket) |
| Max. pressure: | Standard→10 bar for manual diaphragm valve Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) |
| Casting valve body: | 1.4404/316L |
| Forging valve body: | 1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5% |
| Connection way: | Welded, clamped, flanged, threaded |

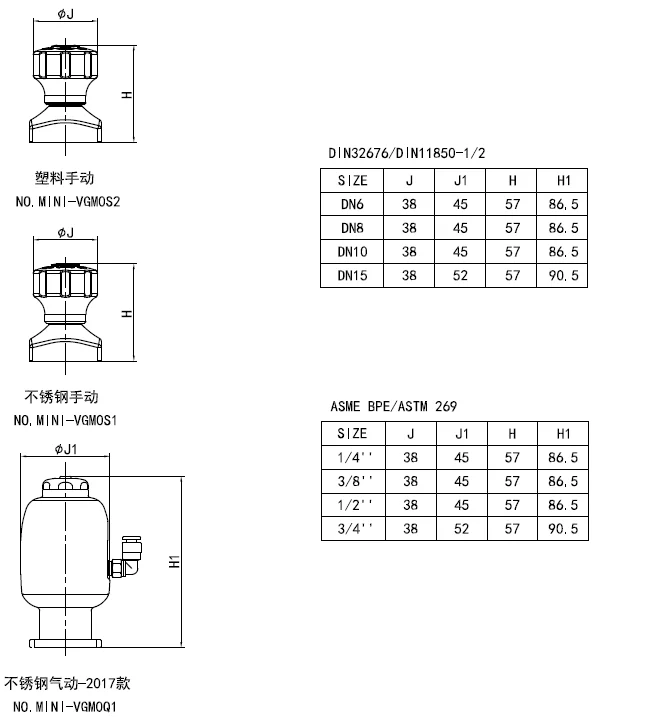

| Optional operaton: | By stainless steel manual,plastic manual,pneumatic actuator, electric actuator, control unit, positioner etc. |
| Optional flow port: | 3 way, T type |
| Application: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Certification: | 3A, CE, ISO |
| Standard: | 3A/BPE/DIN/ISO/IDF |
