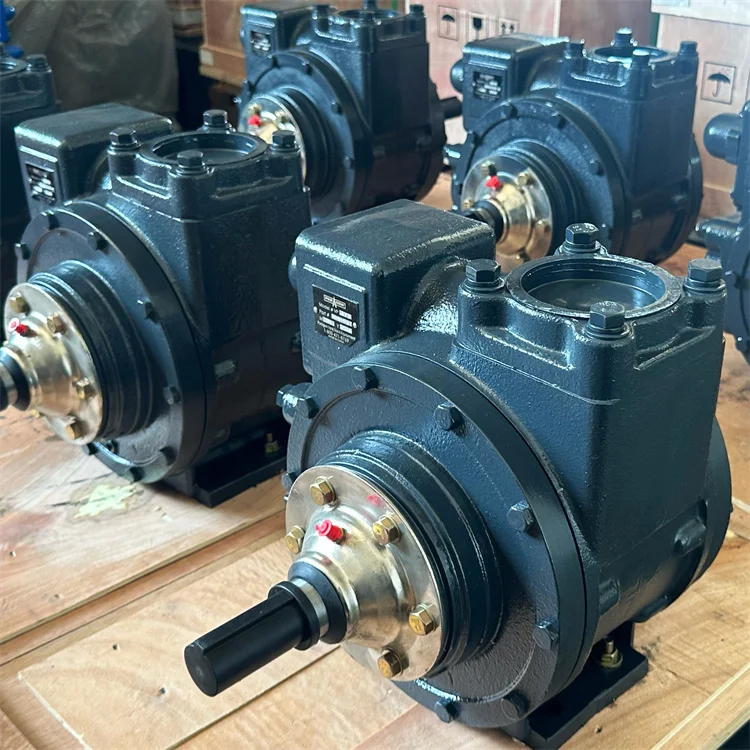

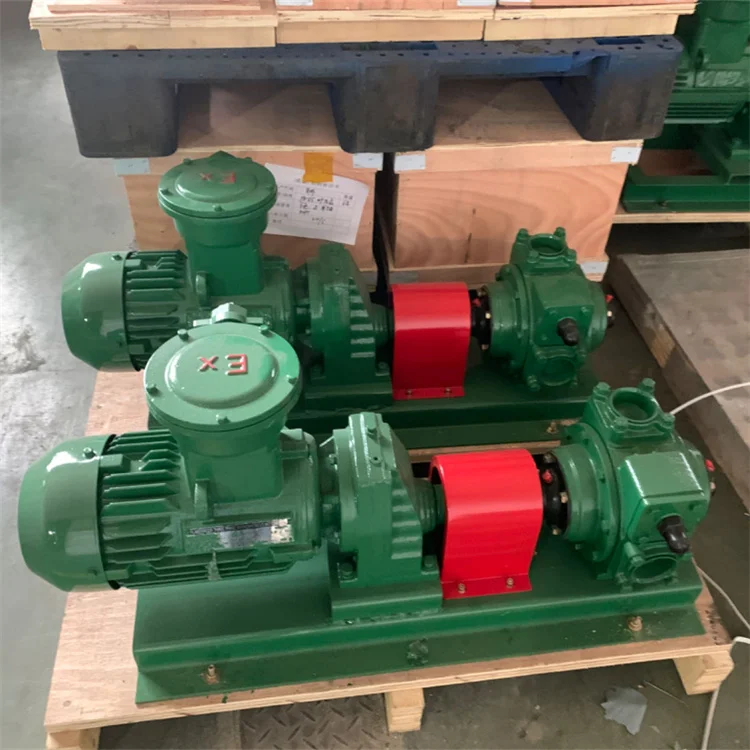

YB 100 4' Rotary Vane Pump Positive displacement pumps Fuel & Oil Transfer Pumps

Product Overview

Description

Cowell rotary vane hydraulic pump for gasoline, diesel

Durable pumps for fast and quiet operation.

Sliding vane design provides sustained performance and trouble free operation, high reliability.

Adjustable relief valve protects pump from excessive pressure.

T-type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks.

Description:

YB Self-priming rotary vane pump with internal by-pass valve.

The pumps use a rotor with sliding vanes to draw the liquid.

The material of construction is nodular iron with sliding vanes built in a special self lubricating material.

Due to its efficiency the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps.

Application:

Fuel oil delivery truck,Fleet refueling,Lube oil,Aviation refuelers,Transport of Petro Chemicals, gasoline, biofuels, solvents and any more.

Technical Specification
Model	YB-50	YB-65	YB-80	YB-100
Size	50mm/2"	65mm/2 1/2"	80mm/3"	100mm/4"
Pump Speed	400~640RPM	400~640RPM	400~640RPM	500RPM

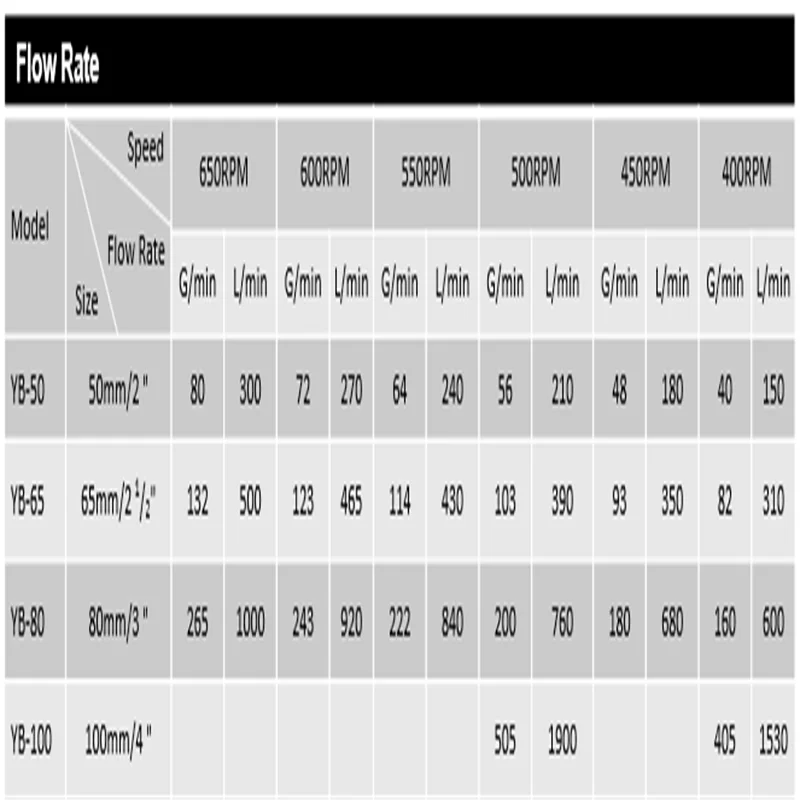

Max. Flow Rate	150~300L/Min	300~500L/Min	600~1000L/Min	1500~1900L/Min
Vacuum	0.5Bar
Working Pressure	5Bar
Motor Power	2.2KW	4KW	7.5KW	18.5KW
Dimension	44×35×35cm	46×34×37cm	49×42×42cm	58×55×61cm
Net Weight	31KG	40KG	68KG	160KG
Gross Weight	34KG	47KG	74KG	178KG
Package	1pc/Wooden Case
