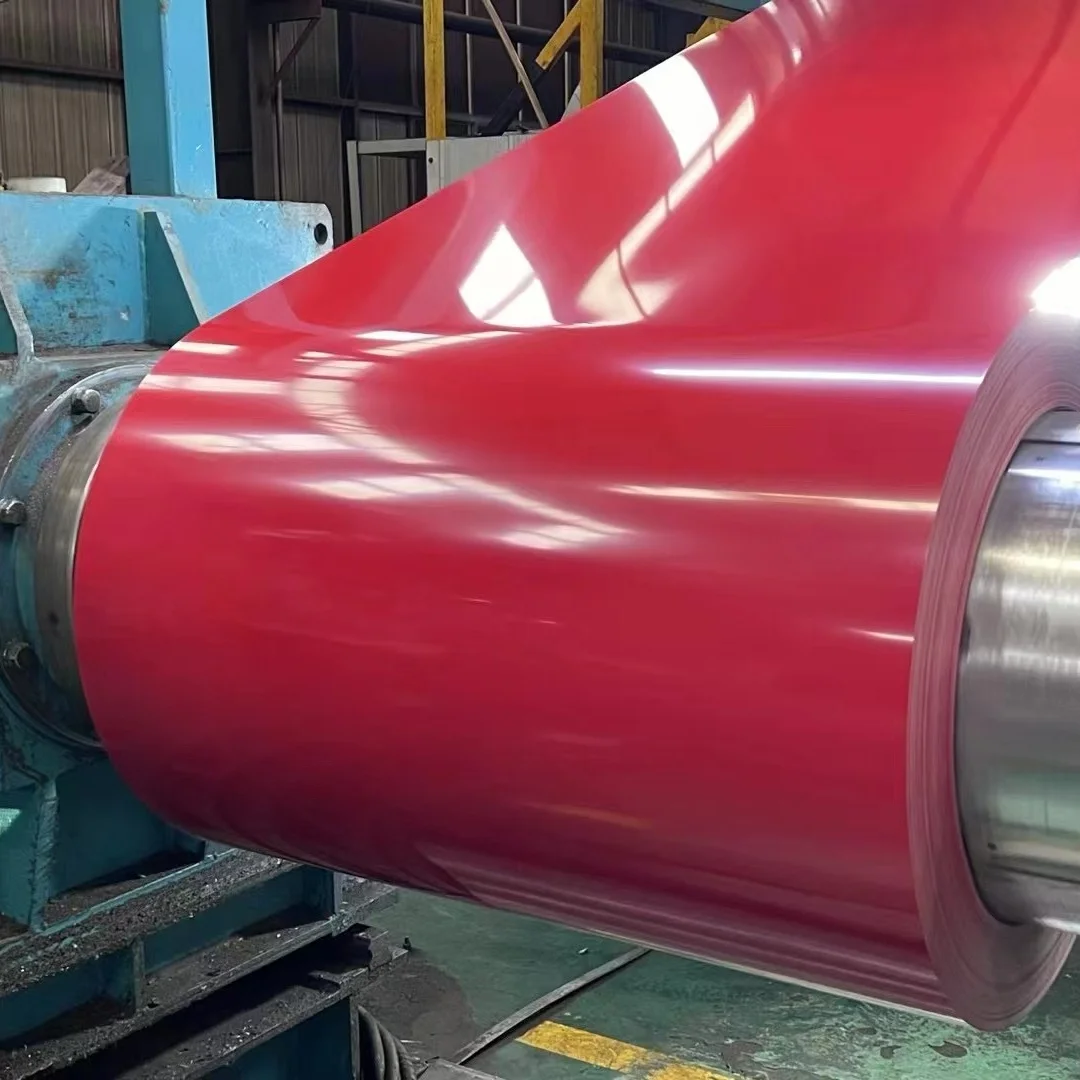

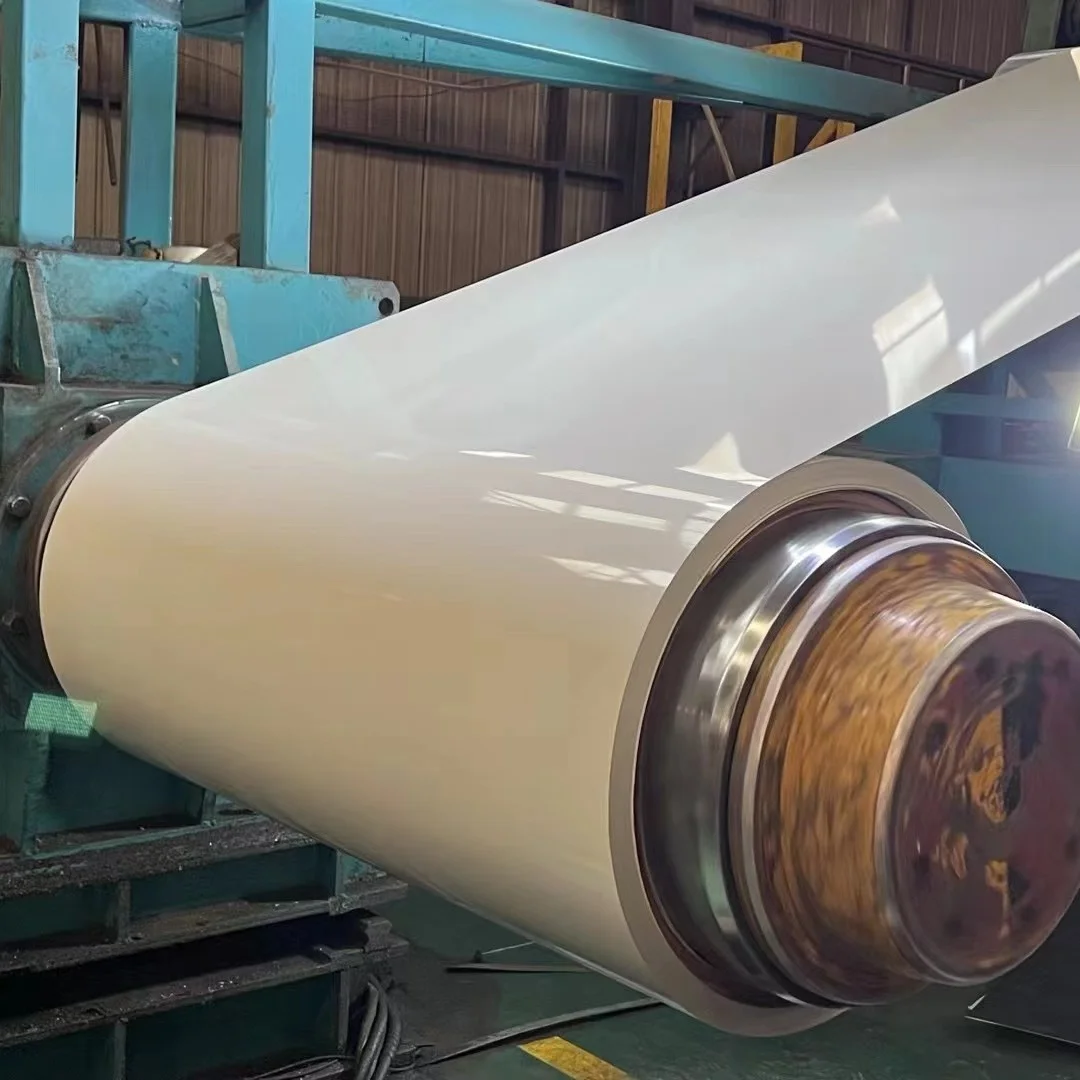

Dx51d SGCC Color Prepainted Galvanized Galvanised Aluminum Zinc PPGI PPGL Gi Gl Cold Rolled CRC Cr Steel Sheet Coil Price
- Category: >>>
- Supplier: Shandong Hongyan Metal Material Co. Ltd.
Share on (1601271128577):
Product Overview
Description
Products Description

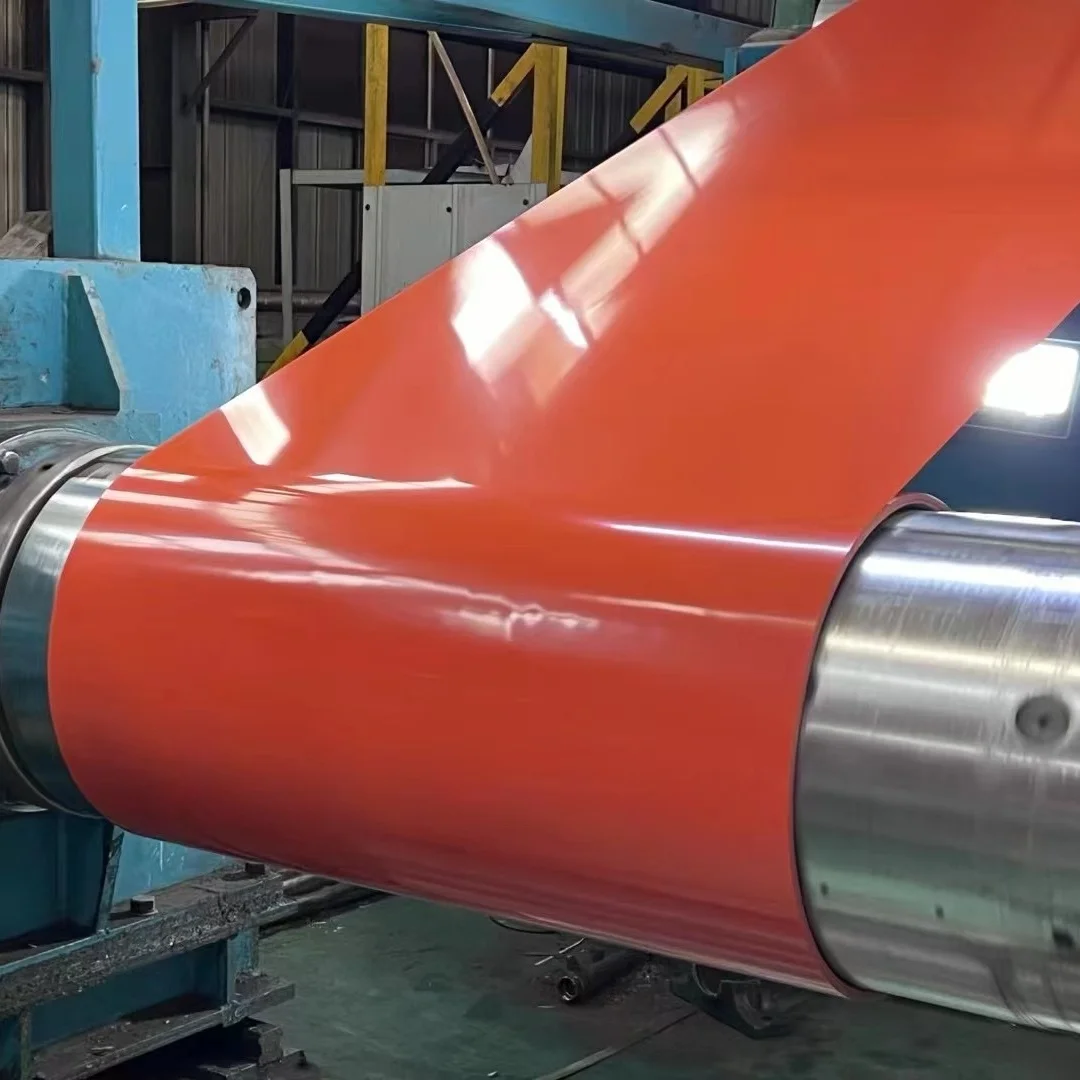

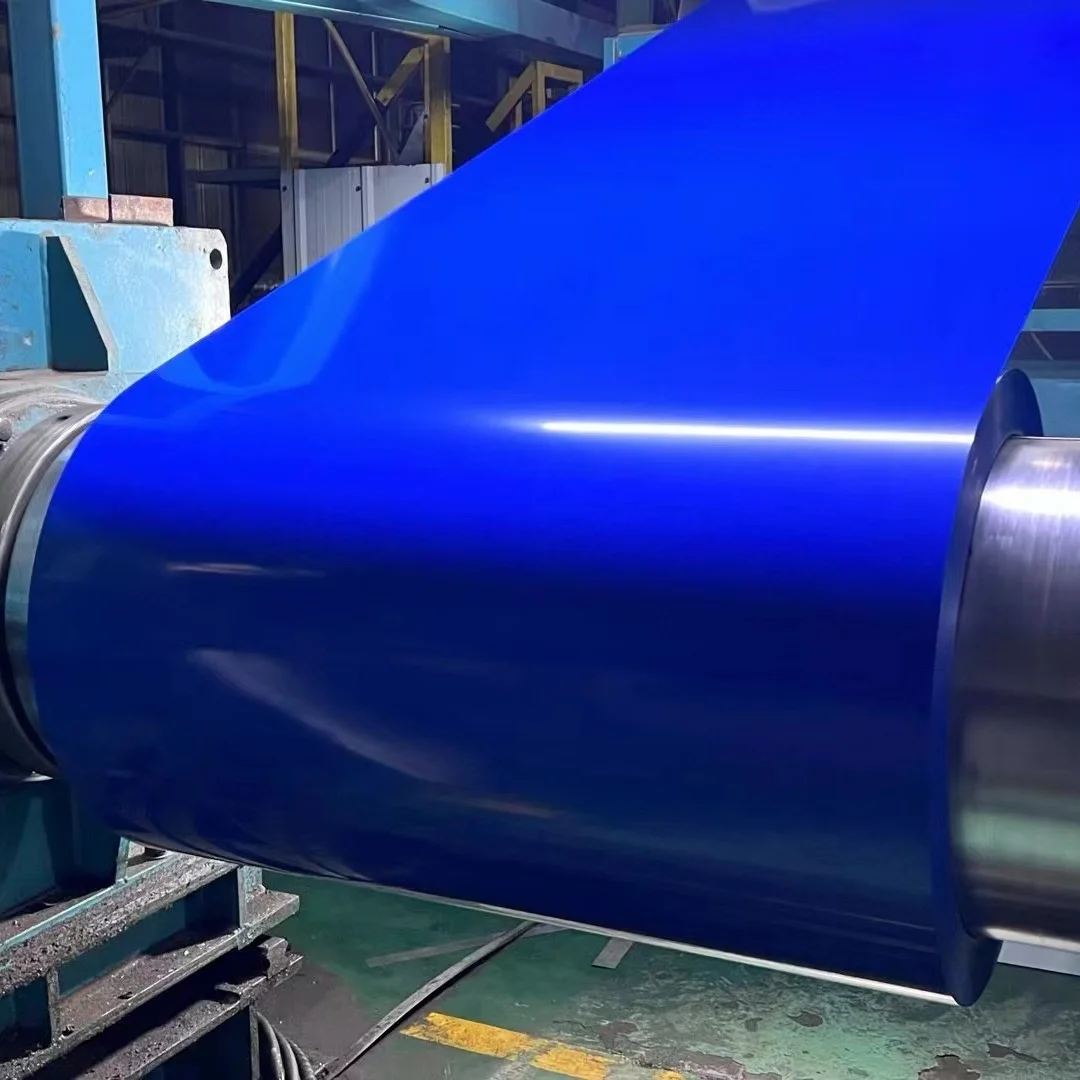

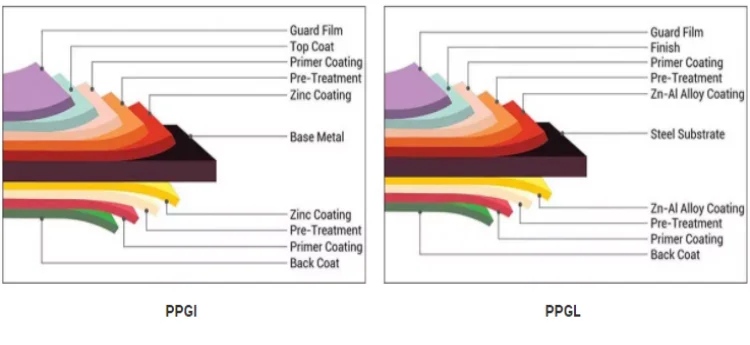

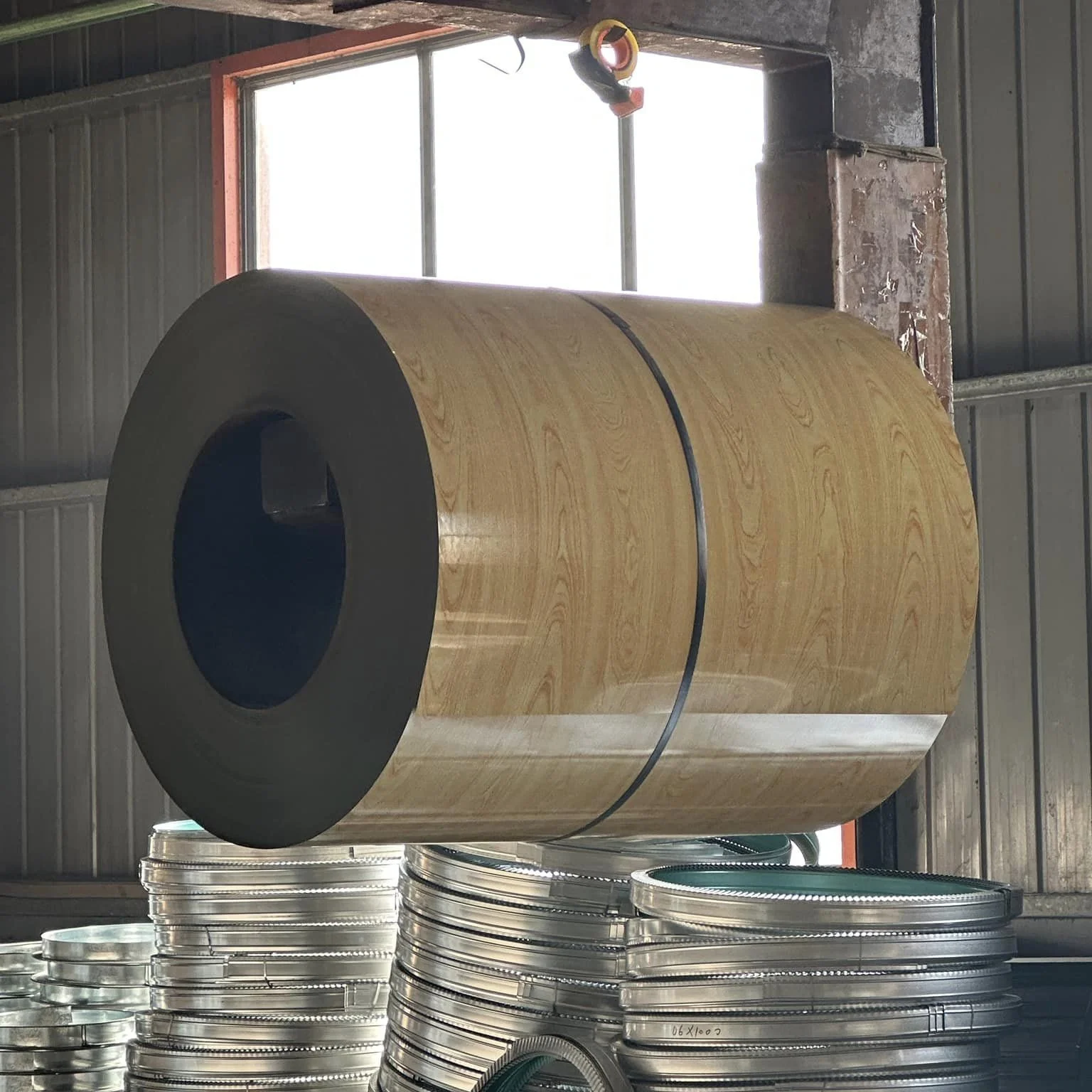

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil,It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction,decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Coating Type
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability andchalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and highcost.
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability andchalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and highcost.
Please contact me for more product details and the latest prices.
Specification
Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Type | Coil/Sheet/Plate/Strip |
Material | CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D |
Thickness | 0.12mm-1.2mm or 0.8mm/0.6mm/0.5mm/0.3mm/0.2mm |
Width | 600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm |

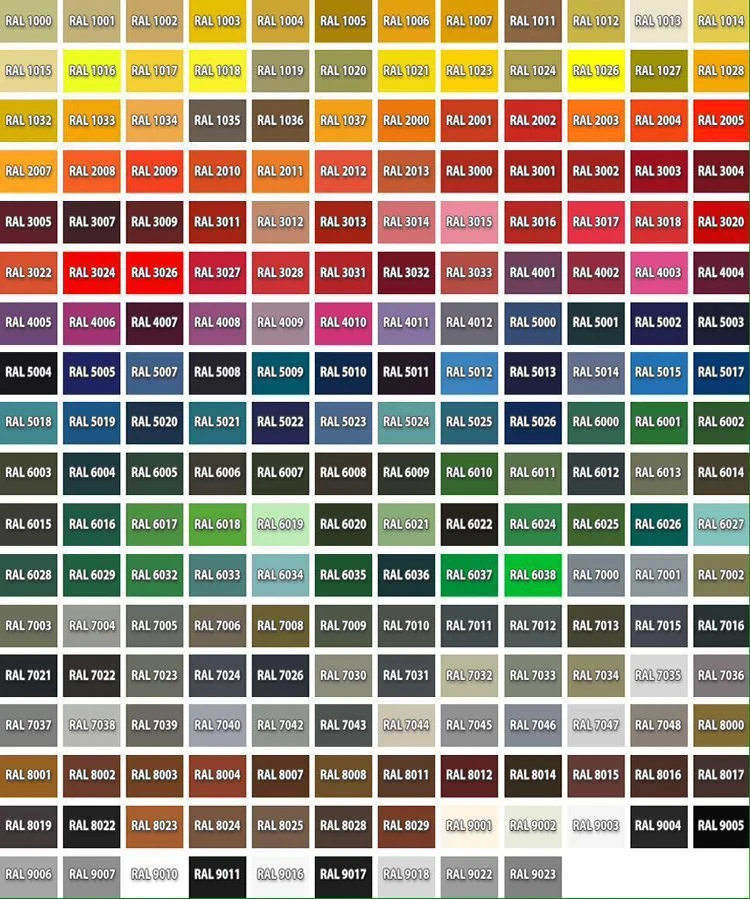

Surface Color | RAL/Printed/Matte/Wrinkled/Embossed/Nano |
Painting Coating | Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um |
Coating Types | PE/PVDF/HDP/SMP |
Pipe Ends | 3 Tons -8 Tons |
Coil ID | 508mm/610mm |
Please contact me for more product details and the latest prices.

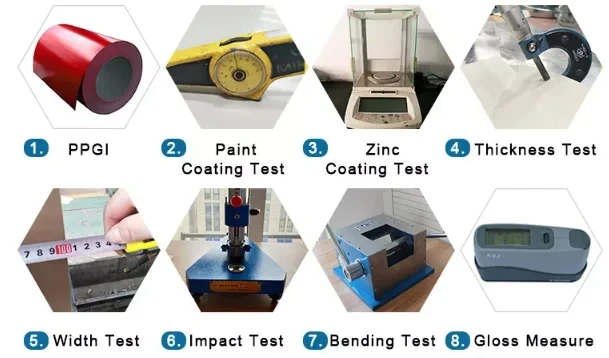

Product quality testing

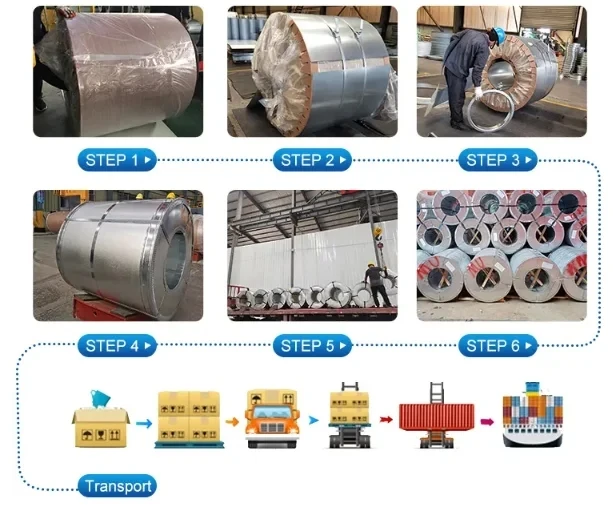

Packing & Delivery
Standard seaworthy export packing: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock.
Please contact me for more product details and the latest prices.

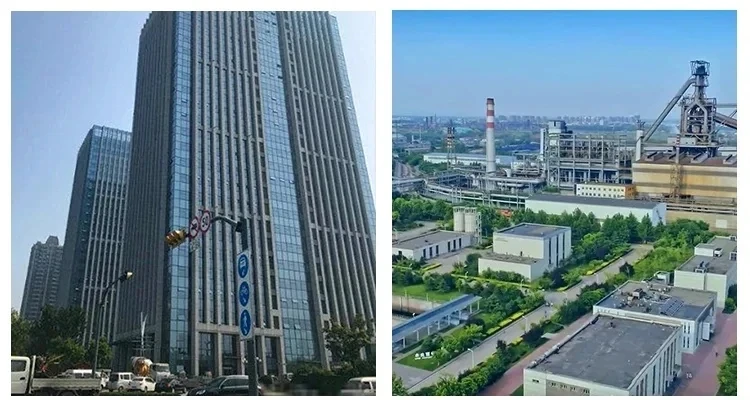

Company Profile
Shandong Hongyan Metal Materials Co., Ltd. is located in Jinan, the capital of Shandong Province, with a registered capital of 50 million yuan. It is a professional company integrating domestic and foreign trade Steel sales company.
Our company's products involve carbon steel,galvanized steel,stainless steel , seamless/welded steel pipe tubes, PPGI/ PPGL coils ,ductile iron pipe,steel sheet
pile,aluminum steel, roofing sheet tile, H&I beam/Angle bar/U&C channel,Silicon steel,steel rebar/deformed bar , iron wires, copper,etc. Product widely used in chemical, pharmaceutical, electric power, railway, automobile, papermaking and constructive engineering and other fields. The company cooperates with Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel Iron and steel, Jinxi Iron and Steel and other well-known domestic iron and steel enterprises have long-term close trade relations.
Our company has advanced wms and erm management systems to ensure that our customers have no worries during product consultation, procurement, ordering and use! Come, our company has won the trust and favor of our customers with high-quality products, first-class service and ultra- low prices, making our products all over the country Overseas! Thanks to the support of new and old customers, Runhai people will work harder and forge ahead, and give back to our customers with better and more efficient services! In order to ensure timely supply .
we set up a central warehouse in Tai'an with abundant inventory; we can provide you with the shortest supply cycle; at the same time, our company has An experienced technical consulting agency, for your correct choice of product model, we have established a marketing team with first-class efficiency and first-class service!
Our company's products involve carbon steel,galvanized steel,stainless steel , seamless/welded steel pipe tubes, PPGI/ PPGL coils ,ductile iron pipe,steel sheet
pile,aluminum steel, roofing sheet tile, H&I beam/Angle bar/U&C channel,Silicon steel,steel rebar/deformed bar , iron wires, copper,etc. Product widely used in chemical, pharmaceutical, electric power, railway, automobile, papermaking and constructive engineering and other fields. The company cooperates with Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel Iron and steel, Jinxi Iron and Steel and other well-known domestic iron and steel enterprises have long-term close trade relations.
Our company has advanced wms and erm management systems to ensure that our customers have no worries during product consultation, procurement, ordering and use! Come, our company has won the trust and favor of our customers with high-quality products, first-class service and ultra- low prices, making our products all over the country Overseas! Thanks to the support of new and old customers, Runhai people will work harder and forge ahead, and give back to our customers with better and more efficient services! In order to ensure timely supply .
we set up a central warehouse in Tai'an with abundant inventory; we can provide you with the shortest supply cycle; at the same time, our company has An experienced technical consulting agency, for your correct choice of product model, we have established a marketing team with first-class efficiency and first-class service!
Company Certification
Customer Photos
FAQ
1. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time . Or we may talk on line by Trade manager . And you can also find our contact information on contact page .
2. Can I get samples before order ?
Yes, of course. Usually our samples are free . we can produce by your samples or technical drawings . We can build the molds and fixtures.
3. What is your delivery time ?
A. The time of delivery is usually around 1 month(1*40ft as usual) ;
B. We can send out in 2-5 days , if it has stock .
4. What is your payment terms ?
Our usual payment term is 30% deposit, and rest against B/L. L/C is also acceptable .
5. How can you guarantee what I got will be good ?
We are factory with 100% pre-delivery inspection which guarantee the quality . And as golden supplier on Alibaba , Alibaba assurance will make guarantee which means Alibaba will pay your money back in advance , if there is any problem with the products .
6. How do you make our business long-term and good relationship ?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer and regard them as friends, no matter where they are from, we sincerely do business and make friends.
You can leave us message, and we will reply every message in time . Or we may talk on line by Trade manager . And you can also find our contact information on contact page .
2. Can I get samples before order ?
Yes, of course. Usually our samples are free . we can produce by your samples or technical drawings . We can build the molds and fixtures.
3. What is your delivery time ?
A. The time of delivery is usually around 1 month(1*40ft as usual) ;
B. We can send out in 2-5 days , if it has stock .
4. What is your payment terms ?
Our usual payment term is 30% deposit, and rest against B/L. L/C is also acceptable .
5. How can you guarantee what I got will be good ?
We are factory with 100% pre-delivery inspection which guarantee the quality . And as golden supplier on Alibaba , Alibaba assurance will make guarantee which means Alibaba will pay your money back in advance , if there is any problem with the products .
6. How do you make our business long-term and good relationship ?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer and regard them as friends, no matter where they are from, we sincerely do business and make friends.
